Mainstays MSD102126571002 User manual

DO NOT RETURN TO THE STORE !
Visit http://www.nticocn.com/en/replacement-parts.html
or call Toll-Free 1-888-751-4355
MSD102126571002
Date of Purchase
Metal Bunk Bed
Manufactured by : New Tec Integration Xiamen Co Ltd
No.88, Zhennan 3
rd
Road，Tong’an District, Xiamen,Fuian, China ,361100
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Lot Number
Thank you for purchasing from NEW TEC!
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1
Twin over Twin
White
Weight Limit: 200 Lb / 91 Kg for upper bed; 225 Lb / 102 Kg for lower bed
ASSEMBLY INSTRUCTION
IM#.NT8222WHTWMV2
VISIT OUR SITE
FOR ASSEMBLY VIDEOS AND MORE!
http://www.nticocn.com/en/
product/show/398.html

2
● Work in a spacious area and near where the unit will be used, preferably on a
carpet, or use a piece of the cardboard packaging to protect your floor and product.
● Recommended 2 of people needed for assembly.
● Make sure all parts are included. Most parts are labeled.
● Read each step carefully. It is very important that each step
● You can visit our site http://www.nticocn.com/en/product/show/398.html (Scan below
QR-code if you possess a smartphone or tablet) for assembly videos and more!
of the instructions is
performed in the correct order. If these steps are not followed in sequence, assem -
bly difficulties will occur.
LIMITED ONE YEAR WARRANTY
Read Before Beginning Assembly
● This product is designed for home use and not intended for commercial use.
● This product contains small components. Please ensure that they are kept away
from small children.
● Do not use power tools to assemble your furniture. Power tools may strip or
damage the parts.
Caution
Your complete satisfaction is our number 1 priority. Our products is designed
and manufactured to meet the highest quality standards. In the event that you
have assembly questions, or parts are missing or damaged, please do not return
the product to the store.
Our customer service department would appreciate the opportunity to provide
information regarding assembly and to provide any necessary parts.
PHONE TOLL FREE : 1-888-751-4355
Emaill : [email protected]
Customer service hours: Eastern Standard Time
Monday – Friday : 8:00AM – 8:00PM
New Tec Integration Xiamen Co Ltd
Printed in China
Customer Service
CONTACT CUSTOMER SERVICE DIRECTLY AT :
The maximum load capacity 200 Lb / 91 Kg for upper bed; 225 Lb / 102 Kg for
lower bed may not be exceeded. Exceeding load capacity may result in collapse
and possible injury.
Warning
Thank you for purchasing this product. We want to make sure it is complete to
your satisfaction. Please check all packing materials carefully and ensure they
are complete. Hardware are blister packed or is separated individually for easy
identification, identify & count all parts & hardware to make sure they match with
the illustrations herein and are all present.
Warranty available to original purchaser only. Proof of purchase is required.
This warranty is your sole remedy for product defect and does not cover damage
due to mishandling, misuse or abuse. The manufacturer is not responsible for
incidental or consequential damages.
This warranty gives you specific legal rights and you may also have other rights
which vary from state to state.

3
X 4 X 2
X 2
ABC
X 2
X 2
E
X 1
F
D
X 2
X 1
X 1
GH
I
A
AA
A
B
CD
DCB
E
F
I
G
H
H
Replacement Parts, visit
http://www.nticocn.com/en/replacement-parts.html

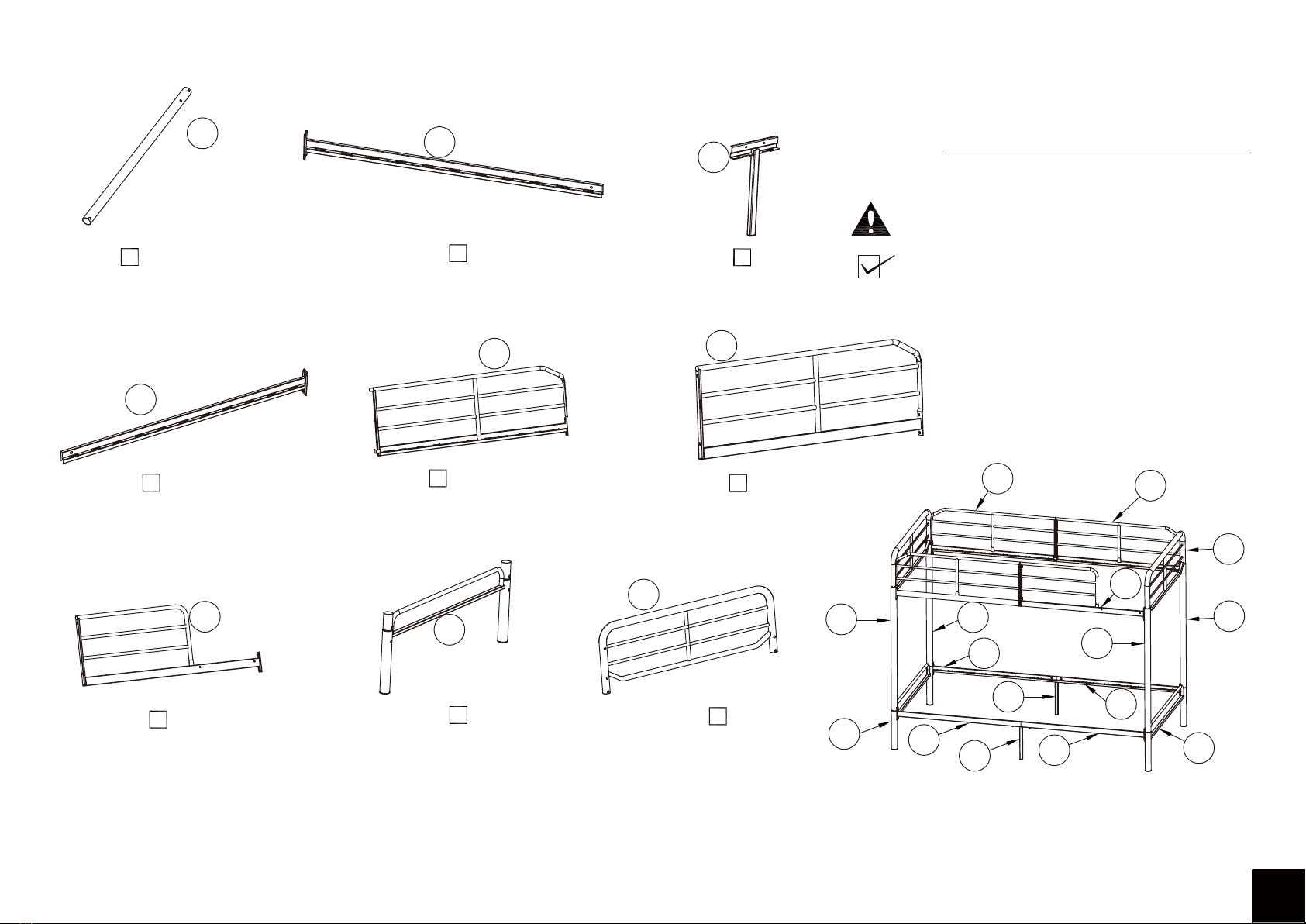

Parts
All in 1 big box!
Before you scrap the packaging material, please
use the Check box to identify the parts and ensure
that you have all the parts needed for the assembly.
NT8222WHT01
NT8222WHT04
NT8222WHT07 NT8222WHT08
NT8222WHT09
NT8222WHT05 NT8222WHT06
NT8222WHT02 NT8222WHT03
Post Side Rail 01 Leg
Side Rail 02 Front/Rear Guardrail Rear Guardrail
Front Guardrail End Guardrail 01 End Guardrail 02
(5 bolt holes)

4
X 2
X 44
X 22
O
End Guardrail 03
(6 bolt holes)
JK
L
M
J
K
L
M
Replacement Parts, visit
http://www.nticocn.com/en/replacement-parts.html
Parts
All in 1 big box!
Before you scrap the packaging material, please
use the Check box to identify the parts and ensure
that you have all the parts needed for the assembly.
N
O
O
NT8222WHT10
NT8222BLK13 NT8222WHT14 NT8222WHT15
NT8222WHT11 NT8222WHT12

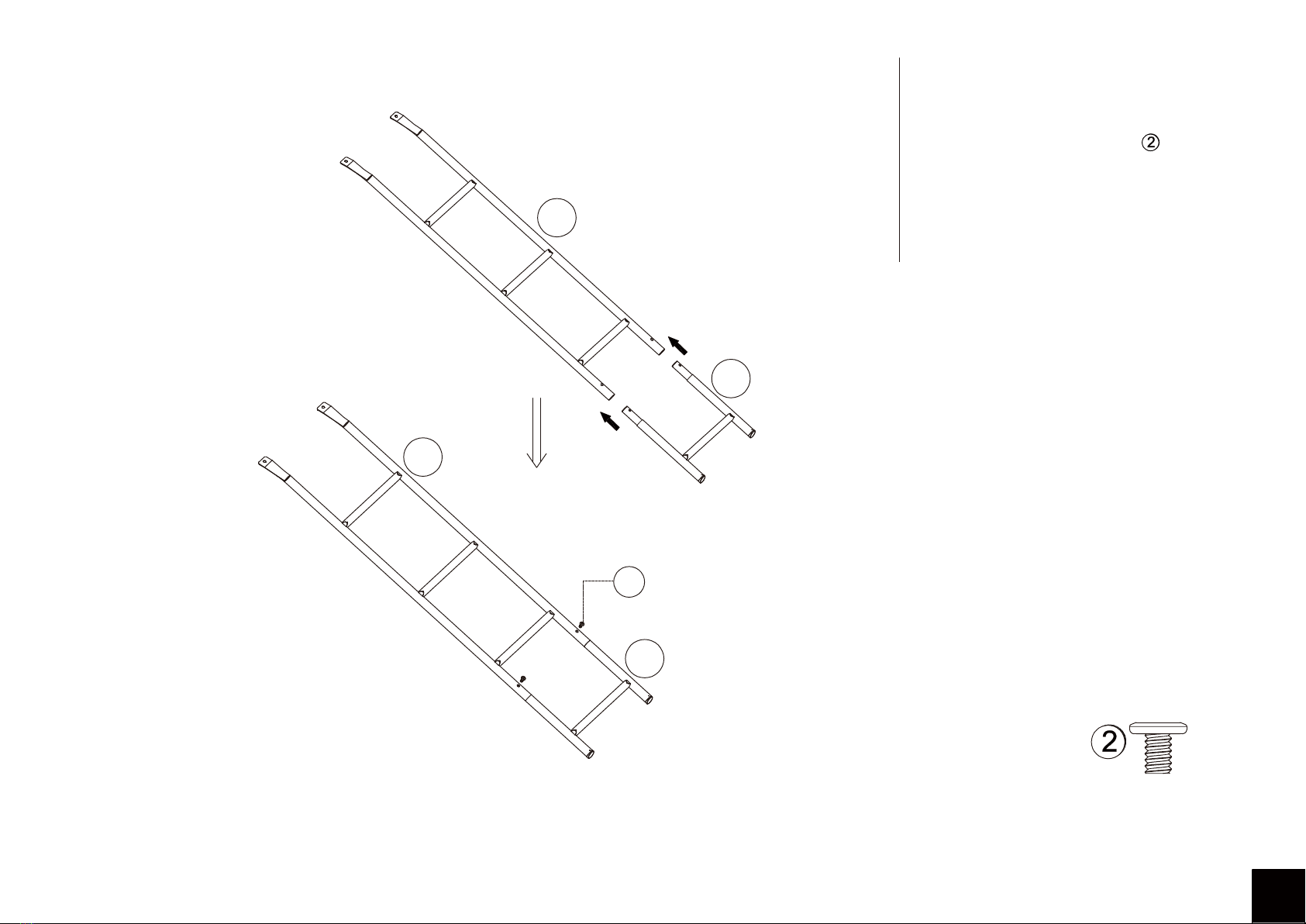

Ladder 01 Ladder 02
Spacer Slat Compulsory wall fitting
X 1
X 1 X 1

5
3
2
X 19
5/16"X 3/4"
5
1
X 6
1/4"
X 1
5mm
4
X 12
1/4"X 3/8"
Hardware Note:
Please do not completely tighten all the
hardware, until the entire assembly is
completed, unless indicated otherwise in the
step-by-step instructions.
The screw(s), bolt(s) to be used at each
step are shown in actual size in the lower
right corner of the page.
Hardware Pack
Hardware Pack #: NT8222BLKWM
X 4
1/4" X 9/16"

6

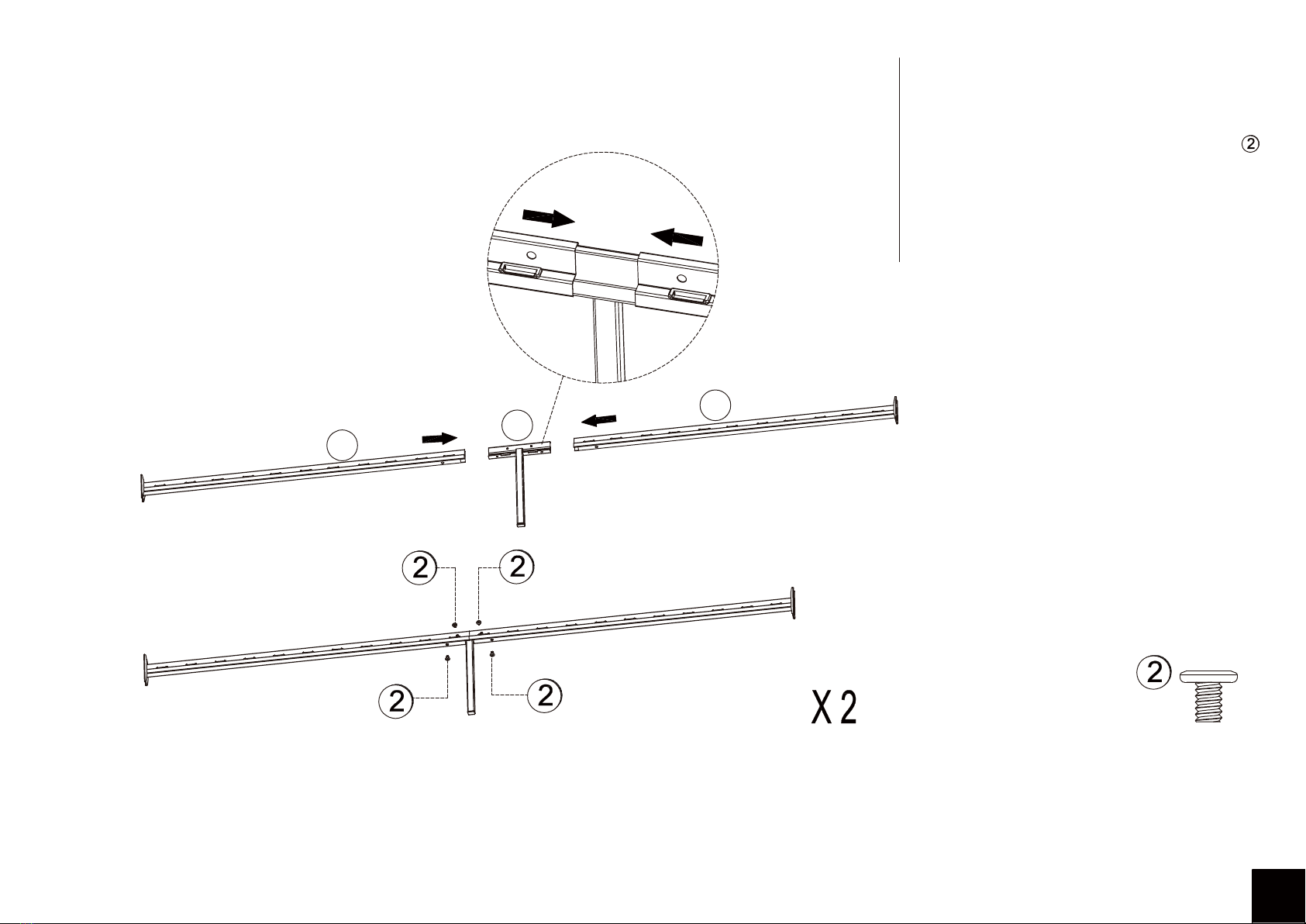

B
C
D
X 8
Insert (C) to (B) & (D) and fix with Bolt .
Step 1

7
Step 2
X 4
H
B
D
B
B
D
C
C
.
Attach (H) to (B) & (D) with Bolt
Leave upper holes
unscrewed until Step 4.
Wide side of the slot
should be facing up !

Step 3
8
I
A
A
J
A
A

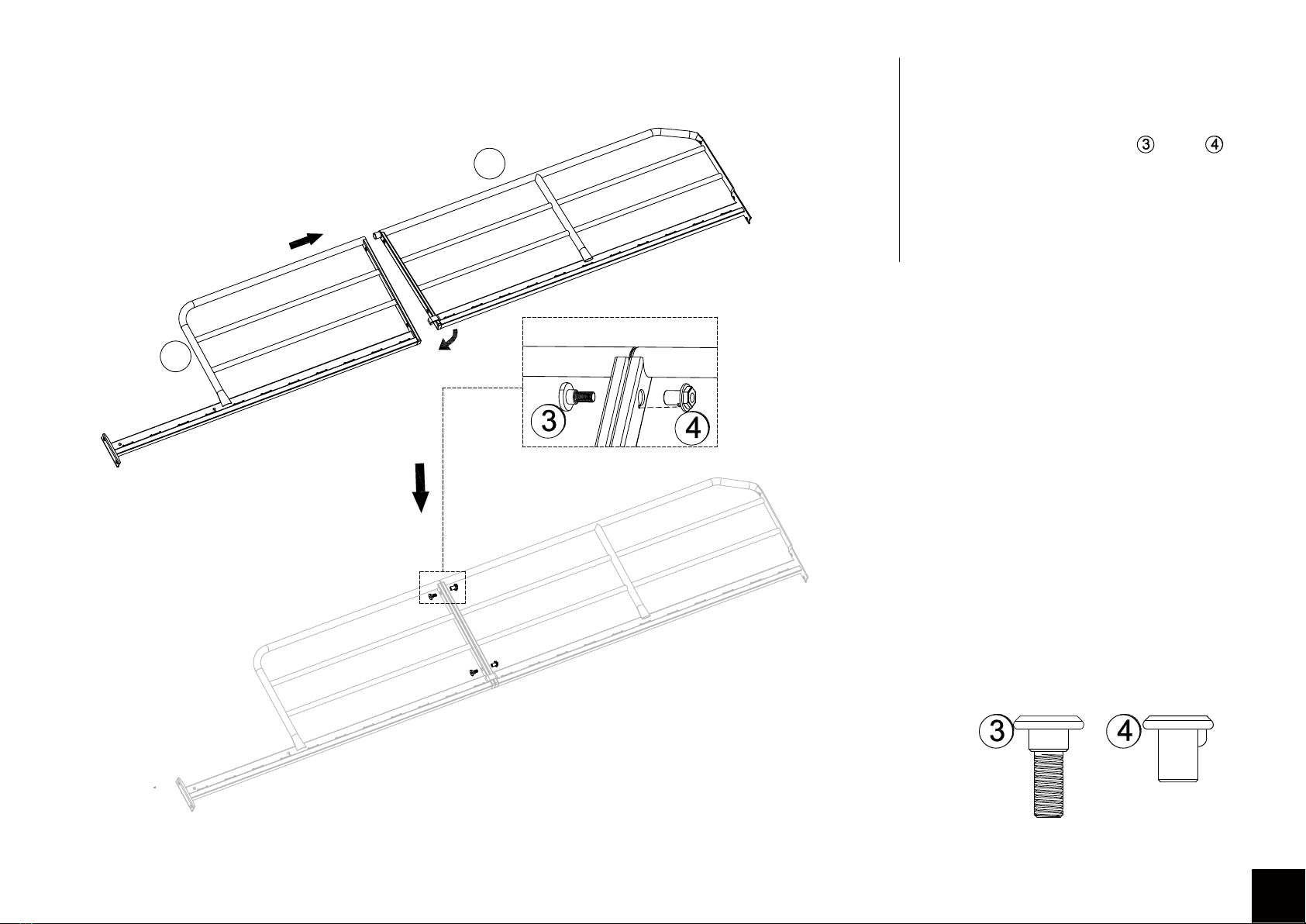

Insert (I) into (A) ;
Insert (J) into (A).
All holes toward inside.

9
Step 4

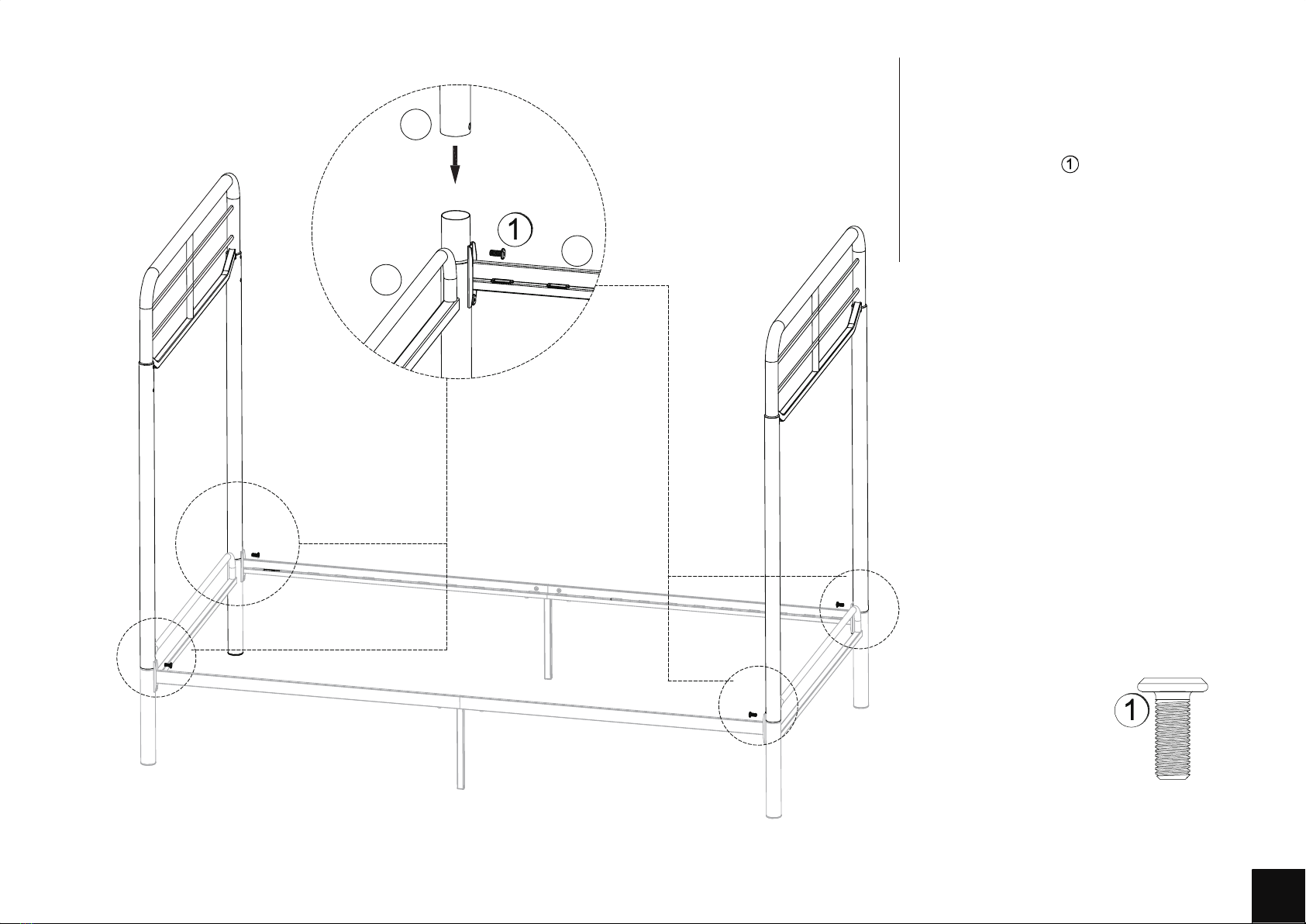

Insert Posts into the lower bunk and
secure with Bolt as shown.
A
B
H
X 4

F
E
Insert the nut's bulge into the slot as shown.

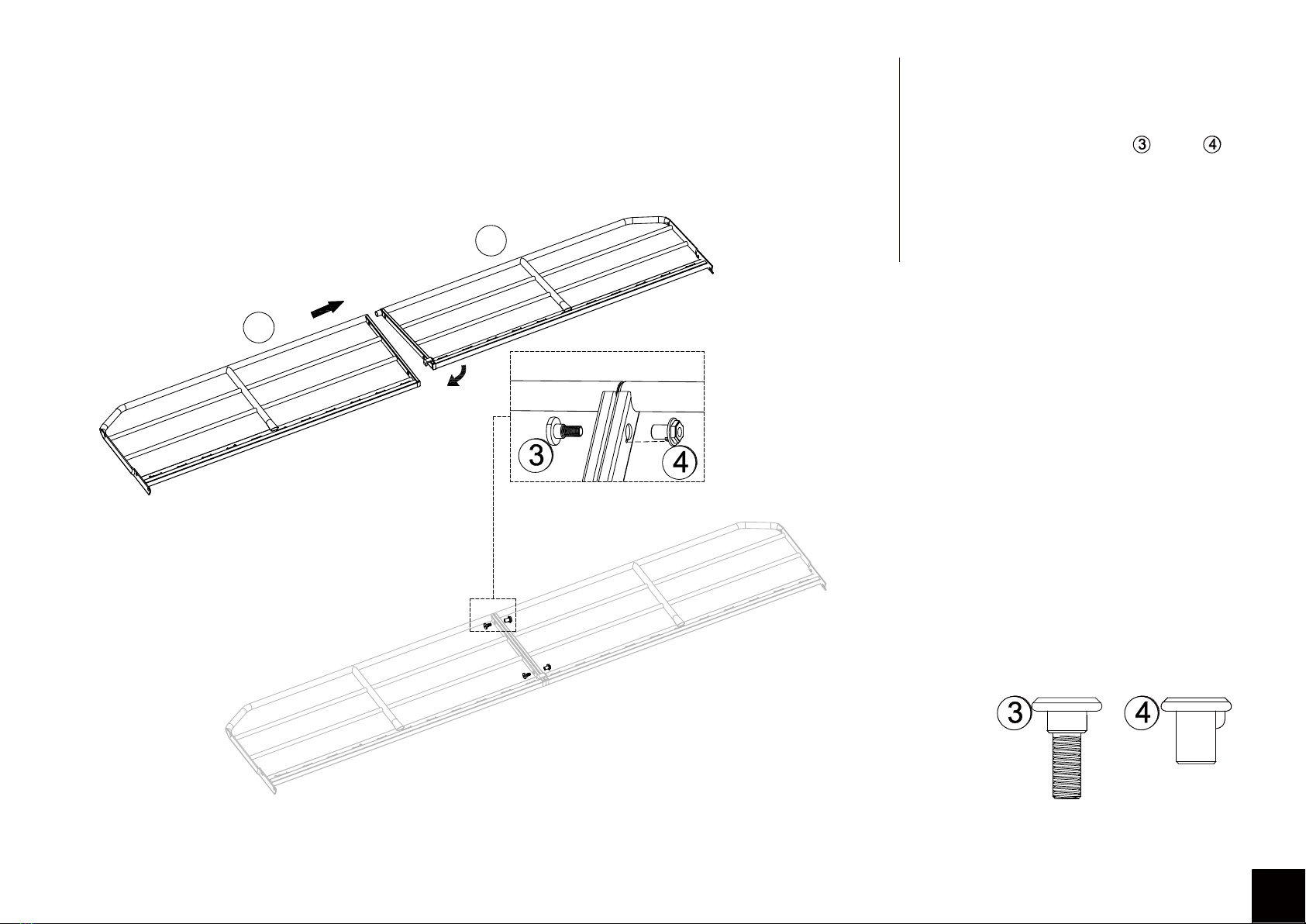

Step 5
Attach (E) to (F) with Bolt & Nut .
10
X 2 X 2

Insert the nut's bulge into the slot as shown.
E
G
11
Step 6
X 2 X 2
Attach (G) to (E) with Bolt & Nut .

12
Step 7
JF
X 11
I
J
G
E
E
F

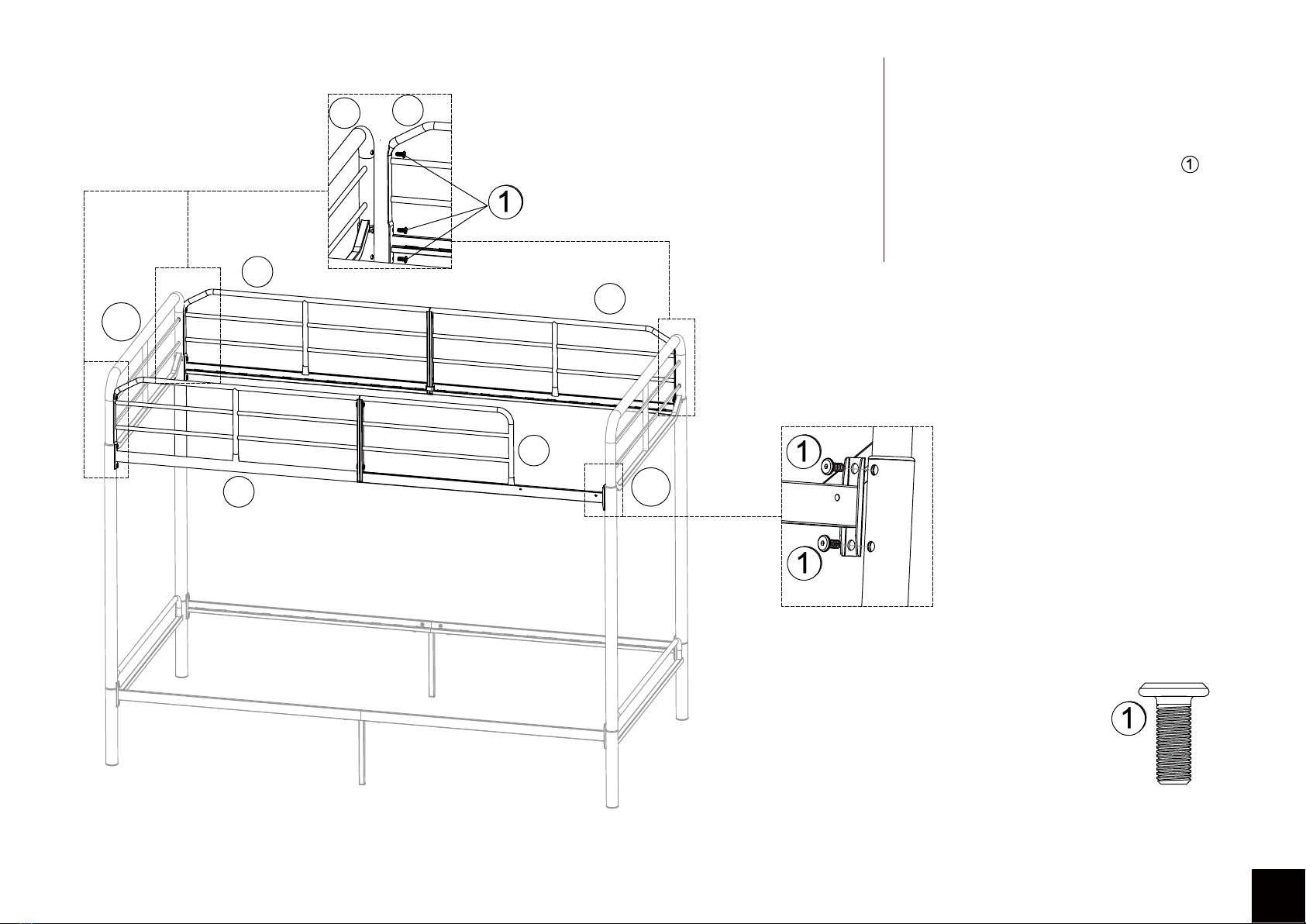

Attach the previously-assembled Guardrails
to the bed end structure with Bolt as shown.

13

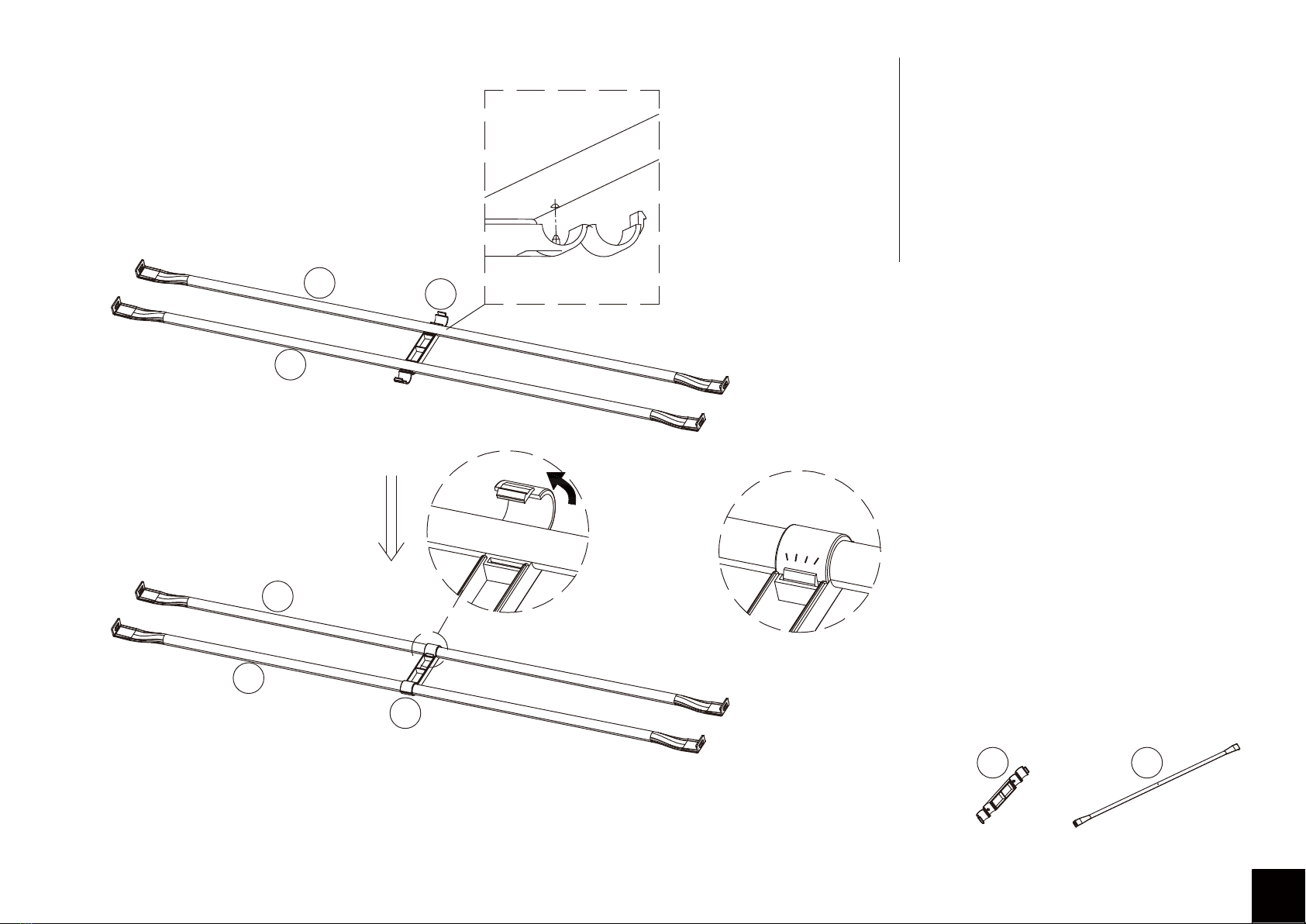

Step 8
N
N
M
N
N
M
MN
X 44
X 22
Insert (N) into (M).
The plug on M insert
into the hole in N.
Lock the plug of socket
until a click is heard.
A click is heard.

14
Step 9
N
Insert both ends of each slat (N) into the
slots in the side rails from one end to the
other in sequence. Each inserting is done
when a click is heard.
A click is heard.

15
Step 10
Insert (K) into (L) with Bolt .
2
K
L
L
K
X 2

Insert the nut's bulge
into the slot as shown.
K
L
K
G
2
4
16
Step 11
Insert (K) into (L) with Bolt .
Attach (K) to the bed with Bolt & Nut .
X 2 X 2

17

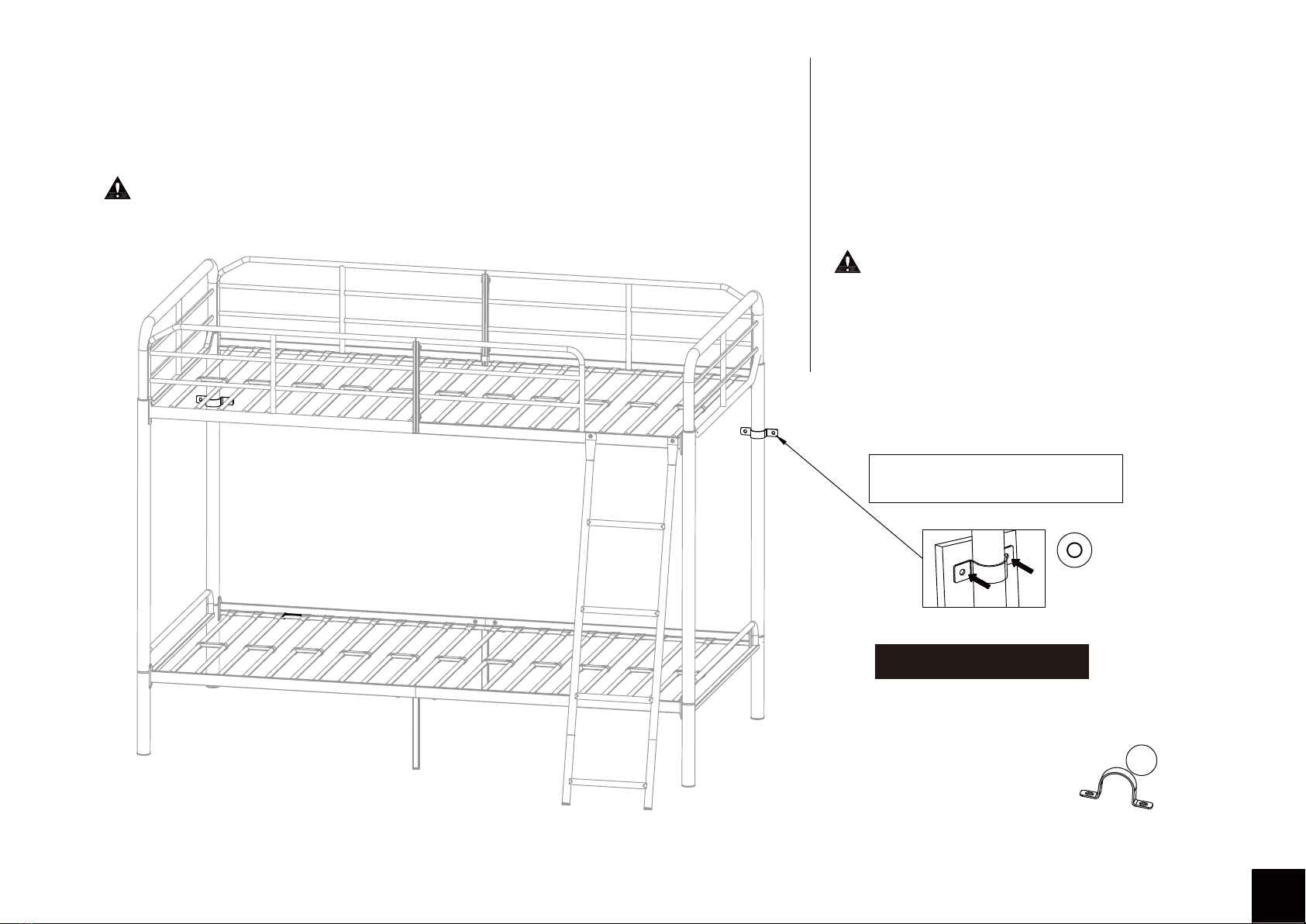

Step 12
200Lb / 91Kg for unpper bed;
225Lb / 102Kg for lower bed.
This unit must be fixed to the wall.
Please completely tighten all the hardwares.
Position the posts to the wall. Drill holes on the wall.
Insert appropriate wall plugs and fix using appropriate
screws through the compulsory wall fixings.
Warning:
Before drilling, check wall for hidden pipes and cables,
Consult a qualified specialist if unsure.
Assembly is complete.
WeightLimit:
O
X 2
Important note：
Wall plugs & screws not included

18

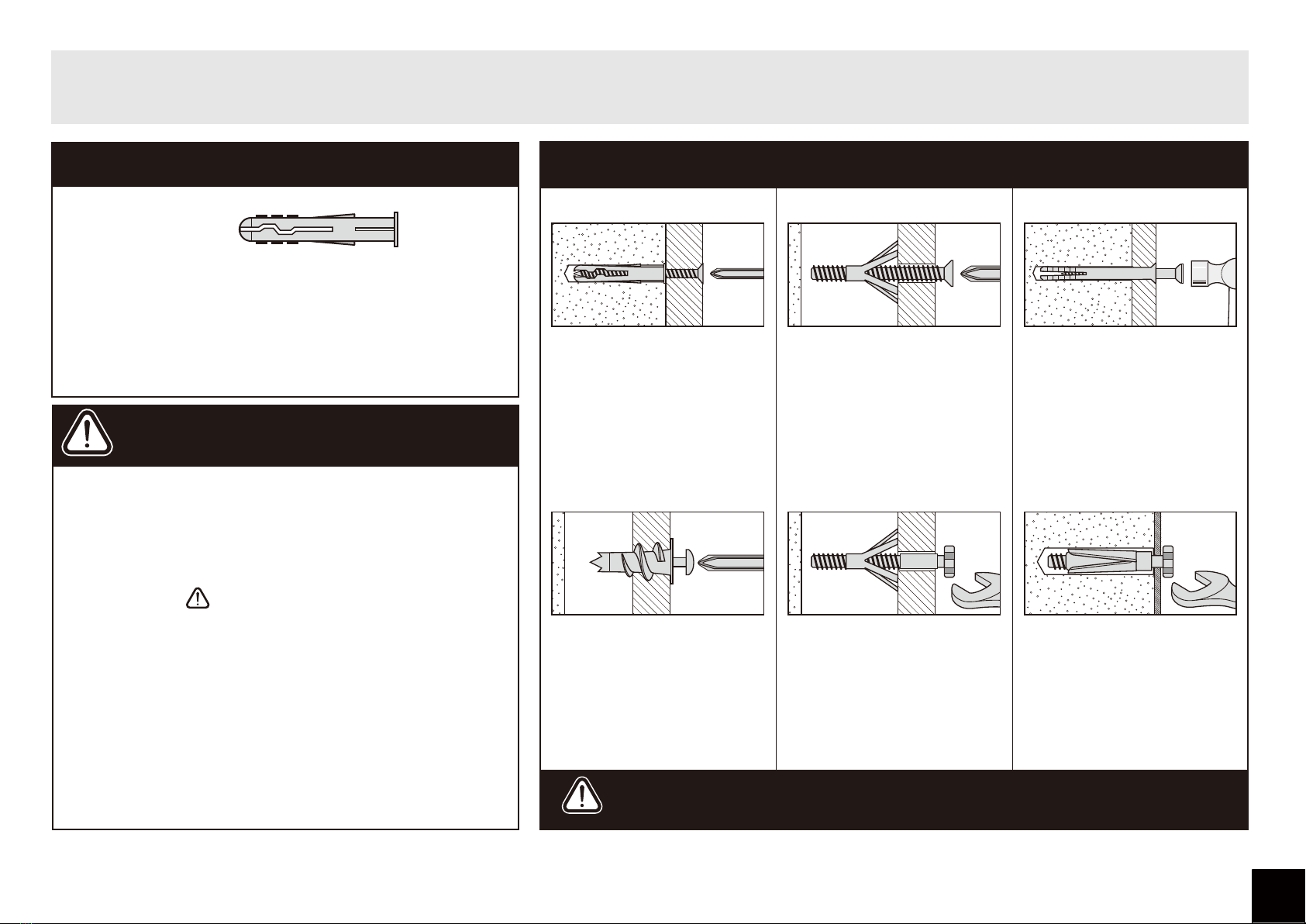

A Guide to - Wall Mounting & Fixings
If plastic wall plugs
are supplied with your
product:
Important note:
- these are only suitable for use in masonry walls.
If you are in any doubt about the correct wall plugs for your wall,
seek professional advice.
Failure of the product due to using incorrect fixings is the
responsibility of the installer.
Important : When drilling into walls always
check that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualifed
tradesperson if you are unsure.
Hints :
1 : General rule : Always use a larger screw and wall plug
if you are not sure.
2 : Ensure you use the recommended drill bit to match the wall
plug and hole size.
3 : Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4 : Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5 : Ensure wall plugs are well fitted and are a tight fit in the
drilled hole.
Care &
Maintenance
Safety
: Always check the fitting
and location to ensure your safety
in and around the home.
Fitting : From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
Types of walls
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
No.1“General Purpose”wall plug No.3 “Cavity Fixing” wall plug No.5 “Hammer Fixing” wall plug
No.2 “Plasterboard” wall plug
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.6 “Shield Anchor” wall plug
Heavy loads
Generally aerated blocks should
not be used to support heavy
loads, use a specialist fitting in
this case. For light loads,
general purpose wall plugs can
be used.
For use with plasterboard parti-
tions or hollow wooden doors.
For use with walls stuck with
plasterboard. The hammer
fixing allows it to be fixed to the
wall rather than the plaster-
board. Always check the fixing
is secure to the retaining wall.
For use when attaching light
loads on to plasterboard
partitions.
For use when fitting or
supporting heavy loads such as
shelving, wall cabinets and
coat racks.
For use with heavier loads such
as TV & HiFi speakers and
satellite dishes etc.

19
WARNINGS for Bunk Bed
Follow the information on the warnings appearing on the upper bunk end structure and on the carton. Do not remove warning labelfrom bed.
Always use the recommended size mattresses or mattress supports, or both, to help prevent the likelihood of entrapment or falls.
Use twin mattress which is 74"-75" long and 37 1/2"-38 1/2" wide on for the bunk.
Ensure thickness of mattress on upper bunk is greater than 4" and that it does not exceed 6".
Surface of mattress must be at least 5" (127 mm) below the upper edge of guardrails.
Do not allow children under 6 years of age to use the upper bunk.
Periodically check and ensure that the guardrail, ladder, and other components are in their proper position, free from damage, and that all connectors are tight.
Do not allow horseplay on or under the bed and prohibit jumping on the bed.
Prohibit more than one person on upper bunk & lower bunk.
Always use the ladder for entering and leaving the upper bunk.
Do not use substitute parts. Contact the manufacturer for replacement parts.
Replacement parts may be obtained from New Tec by contacting customer service at 1-888-751-4355.
Use of a night light may provide added safety precaution for a child using the upper bunk.
STRANGULATION HAZARD-Never attach or hang items to any part of the bunk bed that are not designed for use with the bed; for example, but not limited to, hooks, belts
and jump ropes.
Always use guardrails on both long sides of the upper bunk. If the bunk bed will be placed next tothe wall, the guardrail that runs the full length of the bed should be placed
against the wall to prevent entrapment between the bed and wall.
The use of water or sleep flotation mattresses is prohibited.
Keep these instructions for future reference.

ES
Literas de metal
Twin sobre Twin
Límite de peso: 200 lb / 91 kg para la cama superior;
225 lb / 102 kg para cama inferior
Fabricado por: New Tec Integration Xiamen Co Ltd
N.º 88, Zhennan 3rd Road, Tong’an District, Xiamen, Fuian, China, 361100
Gracias por comprar este producto. Queremos asegurarnos de
que esté completo para su satisfacción. Compruebe
cuidadosamente todos los materiales de embalaje y asegúrese de
que están completos. Las piezas están empacadas en un blíster o
están separadas individualmente para facilitar la identificación,
ubicación y conteo de todas las partes y del hardware; para
asegurarse de que coinciden con las ilustraciones anexas y que
todo está presente.
GARANTÍA LIMITADA DE UN AÑO
Garantía disponible únicamente para el comprador original. La prueba de
compra es obligatoria. Esta garantía es su único recurso para defectos del
producto y no cubre daños debido a manipulación incorrecta, mal uso o abuso.
El fabricante no es responsable de daños incidentales ni consecuenciales. Esta
garantía le concede derechos legales específicos y es posible que también
tenga otros derechos que varían de un estado a otro.
Servicio al cliente
Su satisfacción completa es nuestra prioridad número 1. Nuestros
productos están diseñados y fabricados para cumplir los más altos
estándares de calidad. En caso de que tenga preguntas de montaje o
falten piezas o estén dañadas, no devuelva el producto a la tienda.
Nuestro departamento de atención al cliente agradecería la oportunidad
de proporcionar información sobre el ensamblaje y suministrar cualquier
pieza necesaria.
COMUNÍQUESE DIRECTAMENTE CON EL SERVICIO DE ATENCIÓN AL CLIENTE AL:
Correo eletrónico: ne[email protected].
TELÉFONO GRATUITO: 1-888-751-4355
Horario de atención al cliente: Hora estándar del Este
De lunes a viernes: 8:00 a.m. a 8:00 p.m.
New Tec Integration Xiamen Co Ltd
Impreso en China
¡Gracias por comprar en NEW TEC!
¡NO LA DEVUELVA A LA TIENDA!
Si faltan piezas o están dañadas, nos alegraremos
de enviarlas sin costo alguno.
Visite
o llame al teléfono gratuito 1-888-751-4355
ESTE FOLLETO DE INSTRUCCIONES CONTIENE
INFORMACIÓN DE SEGURIDAD IMPORTANTE. LÉALO Y
CONSÉRVELO PARA REFERENCIA FUTURA.
Lea antes de comenzar el ensamble
●Trabaje en un área espaciosa y cerca de donde se utilizará
la unidad, preferiblemente en una alfombra, o utilice una
pieza del embalaje de cartón para proteger el suelo y el
producto.
●Se recomiendan 2 personas para el montaje.
●Asegúrese de incluir todas las piezas. La mayoría de las
piezas están etiquetadas.
●L
●
show/398.html (Escanear debajo del código QR si posee un teléfono
inteligente o tableta) para videos de ensamblaje y más.
ea cada paso con cuidado. Es muy importante que cada
paso de las instrucciones se realice en el orden correcto. Si no
se siguen estos pasos en secuencia, se producirán dificultades
de montaje.
Precaución
●Este producto está diseñado para uso doméstico y no está
destinado para uso comercial.
●Este producto contiene componentes pequeños.
Asegúrese de mantenerlos alejado de niños pequeños.
●No utilice herramientas eléctricas para montar los muebles.
Las herramientas eléctricas pueden romper o dañar las piezas.
Advertencia
Capacidad máxima de carga de 200 lb/91 kg para la cama
superior. No se puede exceder de 225 lb/102 kg para la cama
inferior. Superar la capacidad de carga puede provocar un
colapso y una posible lesión.
IM#.NT8222WHTWMV2
MSD102126571002
INSTRUCCIONES DE ENSAMBLADO
Blanco
