Maiwe MIEN1203 User manual

MIEN1203/MIEN2205
Industrial Ethernet Switch
User Manual
(Edition: V3.0)
Wuhan Maiwe Communication Co., Ltd.

MIEN1203/MIEN2205 Industrial Ethernet Switch
I
Trademark
This trademark is owned by Wuhan Maiwe
Communication Co., Ltd.
Mwring is the trademark used for link redundancy and self-recovery
technology, owned by Wuhan Maiwe Communication Co., Ltd.
Microsoft and Windows is registered trademark owned by Microsoft.
Copyright
Copyright © Wuhan Maiwe Communication Co., Ltd.
Clarification
The user manual is applicable to MIEN1203/MIEN2205 industrial ethernet
switch.
Please read the following license agreement carefully before using this manual.
The products described in this manual can be used only if you agree on the
following license agreement.
Important Statement
Any information provided by our company in this manual does not represent for
corresponding authorization on these information.
Our company attempts to ensure the accuracy and applicability for the
information provided in this manual, however our company does not assume
any responsibility for the use of these information, and does not assume any
joint responsibility for the use of these information. There may be a few
technical or typographical errors in the product and manual. The company
reserves the right to change all or part of this manual without prior notice.
Statement
Due to continuous update and improvement of products and
technology, the contents of this document may not be completely
consistent with the actual products, appreciate for your understanding.
If necessary to inquiry the updates of the product, please check our
official website or contact our representative directly.

MIEN1203/MIEN2205 Industrial Ethernet Switch
II
Safe Use Instruction
This product performance is excellent and reliable in the designed range of use,
but it’s necessary to avoid man-made damage or destroy for the
equipment.
Read the manual carefully and keep this manual for reference if need
afterwards.
Do not put the device close to the water sources or damp places.
Do not put anything on the power cable, it should be placed out of reach.
To avoid causing fire, do not knot or wrap the cable.
Power connector and other device connectors should be firmly
connected with each other, frequently inspection is needed.
Please keep the fiber socket and plug clean. Do not look directly at the
fiber section when the equipment is working.
Please keep the equipment clean and wipe it with a soft cotton cloth if
necessary.
Please do not repair the equipment by yourself, unless there is clear
instructions in the manual.
Under the following circumstances, please cut off power immediately and
contact us.
Equipment water damage.
The equipment is broken or the casing is broken.
The equipment works abnormally or the performance has completely
changed.
The equipment produces odor, smoke or noise.
Statement: Information requiring explanation in use of the managed software.
Attention: Matters requiring specific attention in the use of the managed
software.

MIEN1203/MIEN2205 Industrial Ethernet Switch
III
Catalogue
1. Product Description.................................................. - 1 -
1.1. Product introduction.................................................................... - 1 -
1.2. System characteristics................................................................- 1 -
1.2.1. High-performance Ethernet switching interface.............................- 1 -
1.2.2. Industrial grade power supply design..............................................- 1 -
1.2.3. Robust appearance design...............................................................- 1 -
1.3. Packing list.................................................................................... - 1 -
2. Hardware structure................................................. - 3 -
2.1. Case................................................................................................- 3 -
2.2. MIEN1203 front panel.................................................................- 3 -
2.3. MIEN2205 front panel.................................................................- 3 -
2.4. MIEN2205-S/M front panel........................................................ - 4 -
2.5. LED indicator................................................................................ - 4 -
2.6. Power input terminal................................................................... - 5 -
3. Hardware installation............................................. - 6 -
3.1. Din-rail installation....................................................................... - 6 -
3.2. Cable connection......................................................................... - 6 -
3.3. Fiber optic connection.................................................................- 7 -
4. Appendix...................................................................... - 8 -
4.1. Technical index............................................................................. - 8 -
4.2. Product model...............................................................................- 9 -

MIEN1203/MIEN2205 Industrial Ethernet Switch
- 1 -
1. Product Description
1.1. Product introduction
MIEN1203-S/M is a 2 Tx ports 10M/100M adaptive high-performance
industrial-grade media converter, with 1 100Base-FX fiber interface, which is
used for optical fiber remote transmission of Ethernet signals.
MIEN2205 is a 5 Tx port 10M/100M adaptive high-performance industrial
Ethernet switch.
MIEN2205-S/M is a 100Base-FX optical fiber interface and 4 Tx ports
10M/100M adaptive high-performance industrial Ethernet switch.
Both MIEN1203 and MIEN2205 series provide industrial rail-mounted
installation. Each RJ45 port has an adaptive function, can automatically
configure to 10Base-T or 100Base-TX state and full-duplex or half-duplex
operation mode, and can automatically connect to MDI/MDI-X.
1.2. System characteristics
1.2.1. High-performance Ethernet switching interface
10Base-T/100Base-TX adaptive Ethernet interface (full duplex, half
duplex), support automatic MDI/MDI-X connection.
MIEN1203/MIEN2205-S/M has 100Base-FX full duplex.
6KV lightning protection standard.
1.2.2. Industrial grade power supply design
Provide industrial-grade DC power supply DC12~48V input. (DC48V,
AC/DC220V power supply is optional).
The power supply has reliable overcurrent and EMC protection.
Differential mode ±2KV, reliable surge protection.
1.2.3. Robust appearance design
Single-ribbed aluminum chassis heat dissipation surface design, no fan
for efficient heat dissipation, the system can work reliably in the environment of
-40°C~+85°C.
The high-strength enclosed aluminum housing enables the system to
work reliably in harsh and dangerous industrial environments.
Provide DIN rail installation.
1.3. Packing list
The MIEN1203/MIEN2205 series packaging contains the following items.
If any of the following items is lost or destroyed, please contact the agent or the
customer service center of Wuhan Maiwe Communication Co., Ltd., and they
will assist you in replacing or supplementing.

MIEN1203/MIEN2205 Industrial Ethernet Switch
- 2 -
Item
QTY
MIEN1203/MIEN2205
1
User manual
1
Product Certificate and Warranty Card
1

MIEN1203/MIEN2205 Industrial Ethernet Switch
- 3 -
2. Hardware structure
2.1. Case
The MIEN1203/MIEN2205 series chassis is a small DIN rail structure. The
whole machine adopts six-sided fully enclosed structure. Its overall dimensions
(not including DIN rail dimensions) are: 118mm×35mm×86mm
(height×width×depth).
2.2. MIEN1203 front panel
The front panel of MIEN1203 integrates one optical fiber interface and two
10Base-T/100Base-TX Ethernet RJ45 ports.
Port 3 is an optical fiber interface, TX is optical transmission, and RX is
optical reception.
2.3. MIEN2205 front panel
The front panel of MIEN2205 integrates 5 10Base-T/100Base-TX Ethernet
RJ45 ports.

MIEN1203/MIEN2205 Industrial Ethernet Switch
- 4 -

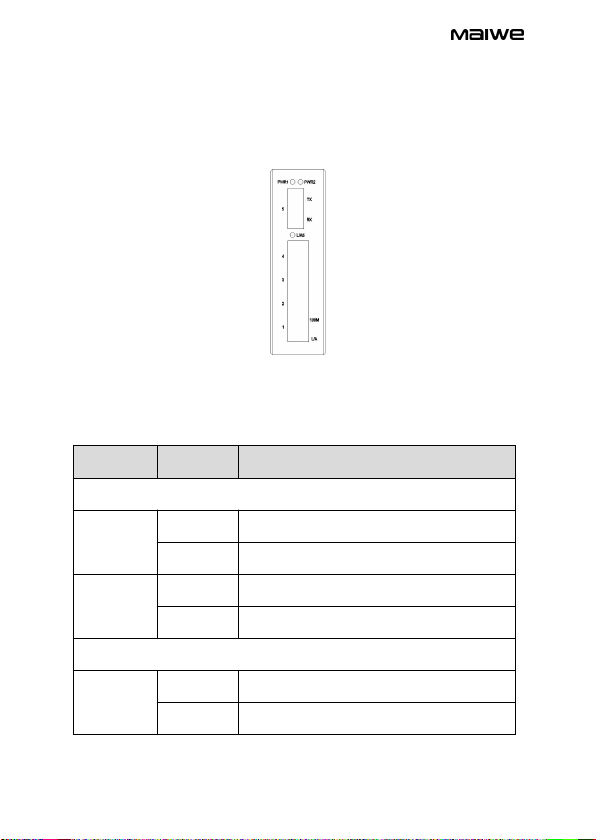

2.4. MIEN2205-S/M front panel
The front panel of MIEN2205-S/M integrates 1 optical fiber interface and 4
10Base-T/100Base-TX Ethernet RJ45 ports.
On the left is the fiber interface, TX is optical transmission, and RX is
optical reception.
2.5. LED indicator
The LED indicator on the front panel of MIEN1203/ MIEN2205/
MIEN2205-S/M can display the system operation and port status, which is
convenient for finding and solving the fault.
LED
Condition
Status
System status LED
PWR1
On
Power supply 1 is connected and operating
normally
Off
The power supply is not connected or operating
abnormally
PWR2
On
Power supply 2 is connected and operating
normally
Off
The power supply is not connected or operating
abnormally
Fiber port status LED
L/A
On
Port has established a valid network connection
Shiny
Port has network activity

MIEN1203/MIEN2205 Industrial Ethernet Switch
- 5 -
Off
The port has not established a valid network
connection
Ethernet RJ45 port status LE
Each Ethernet RJ45 port has two indicator lights, the yellow light is the port
speed indicator, and the green light is the port connection status indicator.
100M
(yellow light)
On
100M working status (namely 100Base-TX)
Off
10M working status (ie 10Base-T)
L/A
(green light)
On
Port has established a valid network connection
Shiny
Port has network activity
Off
The port has not established a valid network
connection
2.6. Power input terminal
MIEN1203/ MIEN2205/ MIEN2205-S/M use DC12~48V power supply or
DC48V. Use 5.08mm pitch 5-wire terminal to connect the power input. The
diameter of the power cord is less than 1.5mm. If using AC220V power supply,
connect V1+ to live wire L, and V1- to neutral wire N, and pay attention to
safety to prevent electric shock.

MIEN1203/MIEN2205 Industrial Ethernet Switch
- 6 -
3. Hardware installation
3.1. Din-rail installation
For most industrial applications, 35mm standard DIN rail installation is
very convenient. When you take out the device from the packing box, the rear
panel of MIEN1203/MIEN2205/MIE N2205-S/M should have a fixed DIN rail
connector. If the device needs to be clamped on the DIN rail, the installation of
the DIN rail should be checked before installation. It mainly includes the
following 2 items:
Whether the DIN rail is firmly fixed, whether other equipment is installed
on the DIN rail, and whether there is enough space for installing
MIEN1203/MIEN2205/MIEN2205-S/M.
Is there a power supply suitable for MIEN1203/ MIEN2205/
MIEN2205-S/M on the rail?
After selecting the installation location of MIEN1203/ MIEN2205/
MIEN2205-S/M, follow the steps below to install MIEN1203/ MIEN2205/
MIEN2205-S/M on the DIN rail:

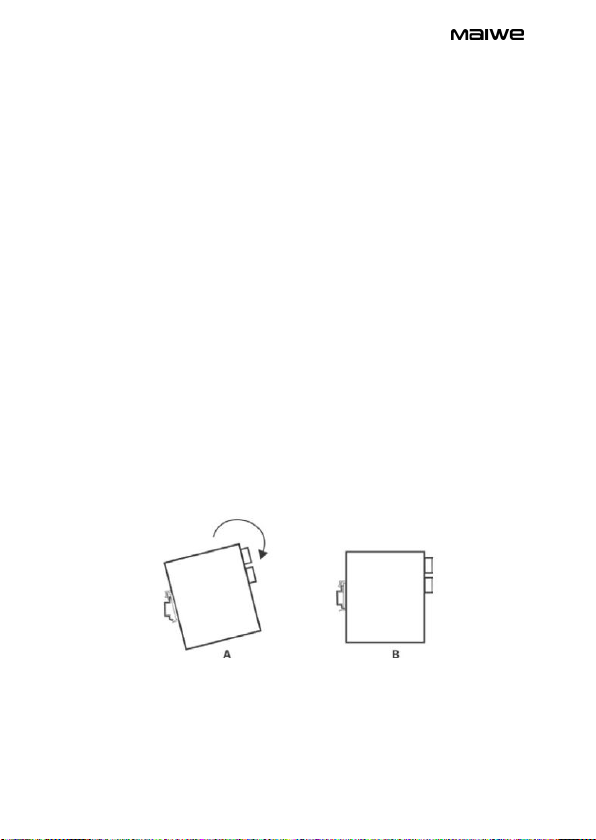

Insert the upper part of the card rail into the card slot on the upper part of
the card rail connecting seat. Push down slightly on the upper panel of
MIEN1203/MIEN2205/MIEN2205-S/M and turn the device as shown in Figure
A below.
As shown in Figure B below, insert the DIN rail into the DIN rail
connector to confirm that the MIEN1203/MIEN2205/ MIEN2205-S/M device is
reliably installed on the rail.
3.2. Cable connection
After MIEN1203/ MIEN2205/ MIEN2205-S/M is correctly installed, the
cables can be installed and connected, including the cable connections of the
following interfaces.
Operation interface

MIEN1203/MIEN2205 Industrial Ethernet Switch
- 7 -
MIEN1203/ MIEN2205/ MIEN2205-S/M provides the terminal equipment
10Base-T/ 100Base-TX Ethernet RJ45 interface, which uses a straight-chain
network cable to connect to the terminal equipment, and a crossover network
cable to connect to the network equipment.
Connect the power supply
MIEN1203/MIEN2205/MIEN2205-S/M devices use power according to the
instructions on the product label. When all other cables are connected, you can
connect to the power supply.
3.3. Fiber optic connection
MIEN1203/MIEN2205-S/M provide 100Base-FX full-duplex single-mode
or multi-mode fiber interface. The type of optical fiber interface can be selected
as SC/ST/FC according to requirements.
Warning:
This switch uses lasers to transmit signals on fiber optic cables. The laser meets
the requirements of Class 1 laser products, and normal operation is harmless to
eyes. However, when the equipment is powered on, do not look directly at the optical
transmission port and the end face of the optical fiber terminator.
The steps to connect the pluggable fiber optic module are as follows:
Remove and keep the rubber cover of SC/ST/FC port. When not in use,
put on a rubber sleeve to protect the optical fiber terminator.
Check whether the optical fiber terminator is clean. Slightly moisten a
clean paper towel or cotton ball, and gently wipe the cable plug. Dirty fiber optic
terminator will reduce the quality of optical transmission and affect port
performance.
Connect one end of the optical cable to the optical fiber interface, and
the other end to the optical fiber interface of another device.
After the connection is completed, please check the corresponding
LINK/ACT indicator of the optical port on the front panel. If the indicator is on,
the connection is valid.

MIEN1203/MIEN2205 Industrial Ethernet Switch
- 8 -
4. Appendix
4.1. Technical index
System indicators
MIEN1203/ MIEN2205/ MIEN2205-S/M
Number of RJ45
ports
MIEN1203-S/M: 2 10Base-T/100Base-TX
MIEN2205: 5 10Base-T/100Base-TX
MIEN2205-S/M: 4 10Base-T/100Base-TX
Number of fiber
ports
MIEN1203-S/M: 1 100Base-FX
MIEN2205-S/M: 1 100Base-FX
System
parameters
Support standards: IEEE 802.3, IEEE 802.3u, IEEE
802.3x
Store and forward rate: 148810pps
MAC address table: 1K
Exchange method: store and forward
Copper port
parameters
Physical interface: RJ-45 with shield
RJ-45 port: 10Base-T/100Base-TX, support
auto-negotiation function
Interface standard: accord with IEEE802.3 standard
Transmission distance: <100 meters
Fiber port
parameters
Luminous power: >-12dBm (single mode)>-17dBm
(multimode)
Receiving sensitivity: <-38dBm (single mode)<-35dBm
(multimode)
Wavelength: 1310nm (single mode) 1550nm (single
mode) 1310 nm (multimode)
Transmission distance: 20~80Km (single mode)<5Km
(multimode)
Connector type: SC/FC/ST
Transmission rate: 125Mbps
Power parameters
Input voltage:
DC power input range: DC12~48V and DC48V (support
dual power supply redundant input)
AC power input range: DC110V~370V and AC85V~264V
(single power input)
Input power consumption: <5W
Overcurrent protection: built-in

MIEN1203/MIEN2205 Industrial Ethernet Switch
- 9 -
Mechanical
parameters
Physical size (height width depth): 118mm 35mm 86mm
(not including DIN rail component size)
Installation method: DIN rail type
Heat dissipation form: aluminum alloy single-rib chassis
surface heat dissipation, no fan Weight: 0.3kg
Working
environment
Working temperature: -40°C~+85°C
Storage temperature: --40°C~+85°C
Humidity: 5~95%(no condensation)
4.2. Product model
The MIEN1203/MIEN2205/MIEN2205-S/M standard configuration power
supply specification is fixed DC12~48V. Users can choose DC48V power
supply or AC/DC220V power supply according to actual conditions.
AC and DC universal power supply, DC110/220V, input voltage range
110~370VDC; AC110/220V, input voltage range 85~264VAC, 50/60Hz.
The optical fiber interface of MIEN1203/MIEN2205-S/M can be
customized for single-mode/multi-mode and SC/ST/FC interfaces. The
standard configuration is SC single-mode optical interface.
Product model
Product description
MIEN1203-M
100Base-FX multimode optical fiber interface media
converter
MIEN1203-S
100Base-FX single-mode optical fiber interface
media converter
MIEN2205
5-port industrial Ethernet switch
MIEN2205-M
100Base-FX Multimode Fiber Interface Ethernet
Switch
MIEN2205-S
100Base-FX single-mode fiber interface Ethernet
switch
.

WUHAN MAIWE COMMUNICATION CO.,LTD
Add.:Building 2, Area E, Phase ii, Optical valley core center, No.52,
Liufang road, East Lake Hi-tech Development Zone,Wuhan,China
Phone: [phone]
Fax: [phone]
www.maiwe.com
