Maiwe MISCOM7028GX Series User manual

MISCOM7028GX/MISCOM8028GX Series
Industrial Ethernet Switch
User Manual
(Edition: V1.1)
Wuhan Maiwe Communication Co., Ltd.

MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch
I
Trademark
The trademark is owned by Wuhan Maiwe
Communication Co., Ltd.
Mwring is the trademark used for link redundancy and self-recovery
technology, owned by Wuhan Maiwe Communication Co., Ltd.
Microsoft and Windows is registered trademark owned by Microsoft.
Copyright
Copyright © Wuhan Maiwe Communication Co., Ltd.
Clarification
The user manual is applicable to MISCOM7028GX/MISCOM8028GX series
industrial ethernet switch.
Please read the following license agreement carefully before using this manual.
The products described in this manual can be used only if you agree on the
following license agreement.
Important Statement
Any information provided by our company in this manual does not represent for
corresponding authorization on these information.
Our company attempts to ensure the accuracy and applicability for the
information provided in this manual, however our company does not assume
any responsibility for the use of these information, and does not assume any
joint responsibility for the use of these information. There may be a few
technical or typographical errors in the product and manual. The company
reserves the right to change all or part of this manual without prior notice.
Statement
Due to continuous update and improvement of products and
technology, the contents of this document may not be completely
consistent with the actual products, appreciate for your understanding.
If necessary to inquiry the updates of the product, please check our
official website or contact our representative directly.

MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch
II
Safe Use Instruction
This product performance is excellent and reliable in the designed range of use,
but it’s necessary to avoid man-made damage or destroy for the
equipment.
Read the manual carefully and keep this manual for reference if need
afterwards.
Do not put the device close to the water sources or damp places.
Do not put anything on the power cable, it should be placed out of reach.
To avoid causing fire, do not knot or wrap the cable.
Power connector and other device connectors should be firmly
connected with each other, frequently inspection is needed.
Please keep the fiber socket and plug clean. Do not look directly at the
fiber section when the equipment is working.
Please keep the equipment clean and wipe it with a soft cotton cloth if
necessary.
Please do not repair the equipment by yourself, unless there is clear
instructions in the manual.
Under the following circumstances, please cut off power immediately and
contact us.
Equipment water damage.
The equipment is broken or the casing is broken.
The equipment works abnormally or the performance has completely
changed.
The equipment produces odor, smoke or noise.
Statement: Information requiring explanation in use of the managed software.
Attention: Matters requiring specific attention in the use of the managed
software.

MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch
III
Catalogue
1. Introduction................................................................. - 1 -
1.1. Product Introduction.................................................................... - 1 -
1.2. System Features..........................................................................- 1 -
1.2.1. High-Performance Full Gigabit Industrial Ethernet Switch........... - 1 -
1.2.2. Industrial Power Supply Design....................................................... - 2 -
1.3. Packing List................................................................................... - 3 -
2. Interface Instructions................................................- 4 -
2.1. Indicator Lights............................................................................. - 4 -
2.2. Ethernet RJ45 Port...................................................................... - 5 -
2.3. SFP FX Port.................................................................................. - 7 -
2.4. CONSOLE Port............................................................................ - 8 -
2.5. Relay Port...................................................................................... - 8 -
2.6. Power Port.....................................................................................- 9 -
2.7. Ground......................................................................................... - 10 -
3. Hardware Installation..............................................- 11 -
3.1. Installation Requirements........................................................ - 11 -
3.2. Mainframe Installation.............................................................. - 12 -
3.3. Cable Connection...................................................................... - 12 -
3.4. Laying Cables.............................................................................- 13 -
4. Annex.......................................................................... - 15 -
4.1. Technique Parameters..............................................................- 15 -
4.2. Industry Standard...................................................................... - 16 -

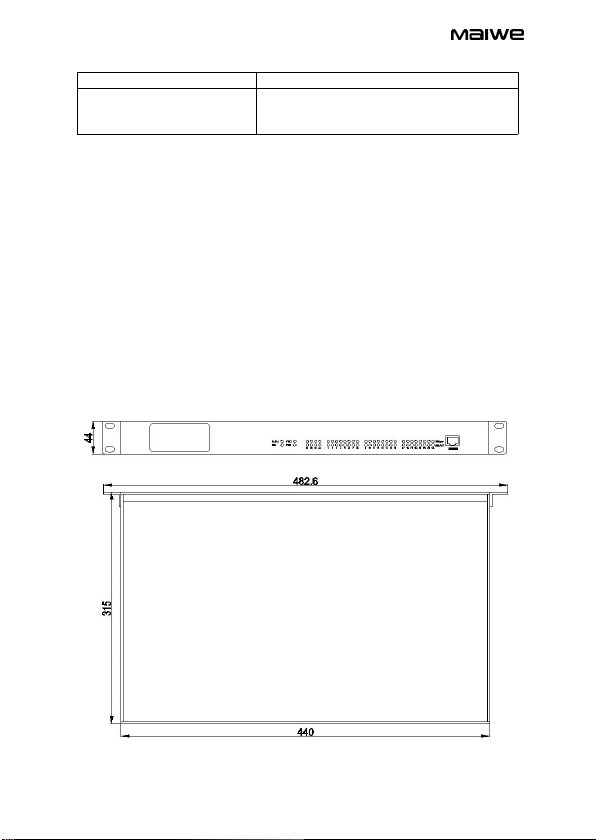

4.3. Structure and Size.....................................................................- 16 -
4.4. Product Selection Guide.......................................................... - 17 -

MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch
- 1 -
1. Introduction
1.1. Product Introduction
MISCOM7028GX/MISCOM8028GX is Layer 3 Full Gigabit Industrial
Ethernet Switch manufactured by Wuhan Maiwe Communication Co., Ltd,
which is specifically designed and developed for core layer application in
industrial communication network filed. The series of switches provide a
high-end industrial Ethernet communication solutions for complicated industrial
application requirements, making the industrial communication more reliable,
smother and faster, meeting the constantly innovation requirements for
customers in terms of added value application.
MISCOM7028GX/MISCOM8028GX with 10/100/1000Base-T Ethernet
port supports both half-duplex and full-duplex work mode, as well as
adaptive-negotiation mode, which is capable of interactively negotiating with
other network equipment and confirm operating method and rate, simplifying
the system configuration and management. The series of switches provide
multiple management methods, inclusive of CLI thru hyper-terminal’s access to
switch, Telnet management system, SNMP management software, and other
network monitoring protocols such as LLDP, SNTPv4, and DHCP. This layer 3
Industrial Ethernet Switch also supports multiple advanced management
functions, such as MSTP, VRRP, IGMP, IGMP Snooping, RIPv1/v2 and OSPF
v1/v2, Static routing, VLAN, GVRP, QoS, Trunk, Rate limitation, Broadcast
storm suppression, ACL, Port mirroring and other common advanced
management functions. In terms of device management, it supports FTP/TFTP
upgrade, Syslog recording, Syslog uploading, and Power failure alarm. In
terms of structure installation, it’s a rack-mounting type switch with flexible
choice of rack-mounting or desktop installation.
The rack-mounting Industrial Ethernet Switch is equipped with 28 Gigabit
ports, including 8 Gigabit combo ports and 20 Gigabit FX ports. All ports
support 802.1Q VLAN, minimum rate limitation of 64Kbps, 16K MAC table size,
4K VLAN, 512 IGMP Groups, L2/L3 Ipv4 and Ipv6 packets forwarding at full
speed.
1.2. System Features
1.2.1. High-Performance Full Gigabit Industrial Ethernet Switch
28 Gigabit Ethernet ports, flexible networking mode provided.
Gigabit SFP interface, support hot-swappable LC FX port module and
RJ45 TX port module.
28 Gigabit SFP FX ports (8 combo ports, with FX or TX port optional

MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch
- 2 -
configuration).
Redundancy technique failure recovery time less than 20ms, enhance
the reliability of system communication.
Support VLAN based on IEEE802.1Q, number 4094.
Support EAPS, MSTP, VRRP and other multiple redundancy protocols.
Support Static Routing, RIP v1/v2 and OSPF v1/v2 and other multiple
dynamic routing protocols.○1
Support IGMP, PIM-SM, and PIM-DM and other multiple multicast
protocols.○2
MAC table size 16K.
Support sophisticated QoS strategy and multiple Queues scheduling
algorithms.
Support SNMP, PMON, Telnet and other multiple network management
protocols.
Support CLI thru hyper-terminal’s access to switch.
Support hardware ACL function, L2-L7 layer data filter.
Support IGMP Snooping detection.
Support broadcast storm suppression.
Support full-duplex and half-duplex mode flow control.
Reliability: MTBF ≥ 50,000 hours.
Support power alarms, port alarms, and ring alarms.
FTP/TFTP-based online software upgrade allowing users easily manage
and update equipment.
Switch with graphical network configuration and maintenance functions,
remotely monitoring the running status and performance of network, providing
network fault monitoring, diagnosis, location and alarm capabilities.
Note: MISCOM7028GX Series DON’T support function○1 and ○2
1.2.2. Industrial Power Supply Design
Support redundancy dual power input: AD220 (85-264VAC/110-370VDC),
single power supply, redundant power supply, flexible choice for customer.
Solid exterior design
The efficient heat dissipation surface design without fan of the aluminum
alloy housing makes it possible to operate the system steady in the
environment of -40℃to +70℃
High-strength enclosed aluminum alloy housing with IP40 protection
allows the system to work reliably in harsh and dangerous industrial
environments.

MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch
- 3 -
1.3. Packing List
Packing list of MAIWE Brand Managed Switch is listed as below. If any
item in the list is lost or damaged, please contact the distributor or MAIWE’s
customer service center, they will assist you to make replacement or
complement.
Items
Quantity
MAIWE Brand Managed Switch
1
CD (network management software, excluded in the
standard configuration)
1
CONSOLE interface cable
1
Product quality certificate and warranty card
1

MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch
- 4 -

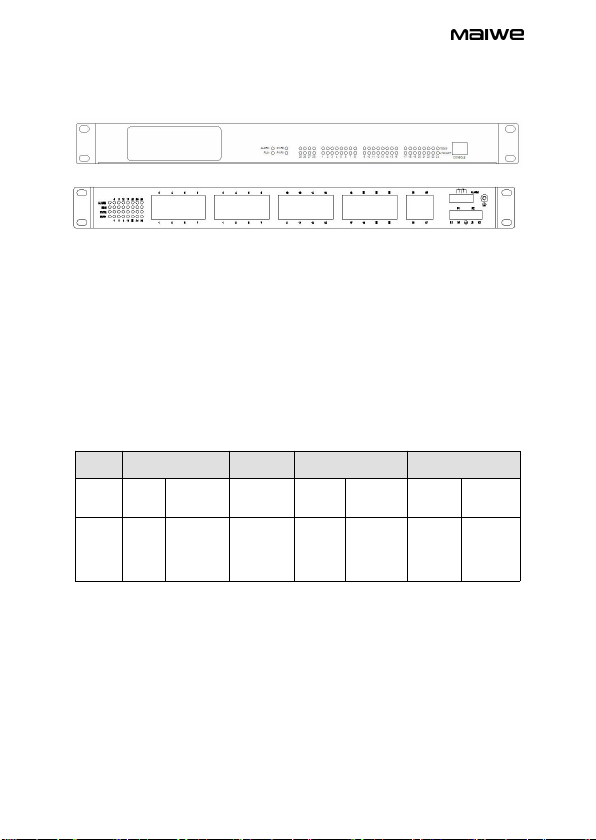

2. Interface Instructions
Front panel
Rear panel
Front panel indicator lights
Console port
Rear panel indicator lights
Ethernet RJ45 port
Gigabit SFP port
Relay port
Power supply port
Ground screw
2.1. Indicator Lights
The indicator lights of the front panel indicate the current working status of
the switch. The specific description is shown in below table:
Front panel indicator lights
PWR1
PWR2
ALARM
RUN
LINK/ACT(1-24、
X1-X4)
SPEED(1-24、X1-X4)
Red light
on
Green
light off
Green light
periodically
flashes
Green light
periodically
flashes
Green
light on
Green light
flashes
Green
light on
Green light
off
Power
supply
normal
No
alarm
Alarm
System work
normally
Link
establishe
d
Data
transmissio
n
1000M
Link
establishe
d
Link not
established
SPEED1-8
Refer to
*Note*
*Note*
At the time when combo port1-8 is configured as Gigabit TX port,
SPPED1-8 Green light off stands for 100M or 10M link established or not
established.
At the time when combo port1-8 is configured as Gigabit FX port,
SPPED1-8 Green light off stands for 1000M link not established.
Rear panel indicator lights

MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch
- 5 -
PWR1
PWR2
ALARM
RUN
LINK/ACT(1-24、X1-X4)
Red light on
Green light
off
Green light
periodically
flashes
Green light
periodically
flashes
Green light
on
Green light
flashes
Power supply
normal
No alarm
Alarm
System work
normally
Link
established
Data
transmission
2.2. Ethernet RJ45 Port
Each RJ45 port with adaptive function, supporting auto MDI/MDI-X
connection, can connect the switch with terminal equipment, servers, hubs or
other switches via straight line/cross-over cable. Each RJ45 port supports
IEEE802.3x adaptive function, so the optimum transmission mode (half or full
duplex) and data rate (10/100/1000Mbps) can be automatically selected (the
other connected equipment must meet this feature). If the equipment
connected to these ports does not support adaptive function, the port will force
itself to work at the same rate as the other parties, avoiding full/half duplex
mismatch, the transfer mode will default to be half-duplex mode, and the flow
control will be automatically disabled. Gigabit TX port can support up to
1000Mbps.
MISCOM7028GX/MISCOM8028GX Series Switches provide 8 RJ45 ports
at most, it can be connected with other Ethernet terminal equipment via
straight line/cross-over cable in use. RJ45 pin number seriation is shown as
below.
RJ45 connector pin number seriation picture.
With supporting auto MDI/MDI-X adaptive function, this series switches
can connect with other Ethernet switch by using of CAT. 5 straight line and
cross-over cable, providing flexible choice for cable in practical use.
At the time when RJ45 port is 10/100Based-TX, pin definition is shown in
the below table.
10/100Based-TX pin definition table.

MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch
- 6 -
Pin Number
MDI-X Signal Name
MD Signal Name
1
Receive data+(RD+)
Transmit data+(TD+)
2
Receive data-(RD-)
Transmit data-(TD-)
3
Transmit data+(TD+)
Receive data+(RD+)
6
Transmit data-(TD-)
Receive data-(RD-)
4,5,7,8
Unused
Unused
At the time when RJ45 port is 10/100/1000Based-T, pin definition is shown
in the below table.
10/100/1000Based-T pin definition table.
Pin Number
MDI-X Signal Name
MD Signal Name
1
Transmit/receive
data(TRD1+)
Transmit /receive
data(TRD0+)
2
Transmit /receive
data(TRD1-)
Transmit /receive
data(TRD0-)
3
Transmit /receive
data(TRD0+)
Transmit /receive
data(TRD1+)
4
Transmit /receive
data(TRD3+)
Transmit /receive
data(TRD2+)
5
Transmit /receive
data(TRD3-)
Transmit /receive
data(TRD2-)
6
Transmit /receive
data(TRD0-)
Transmit /receive
data(TRD1-)
7
Transmit /receive
data(TRD2+)
Transmit /receive
data(TRD3+)
8
Transmit /receive
data(TRD2-)
Transmit /receive
data(TRD3-)

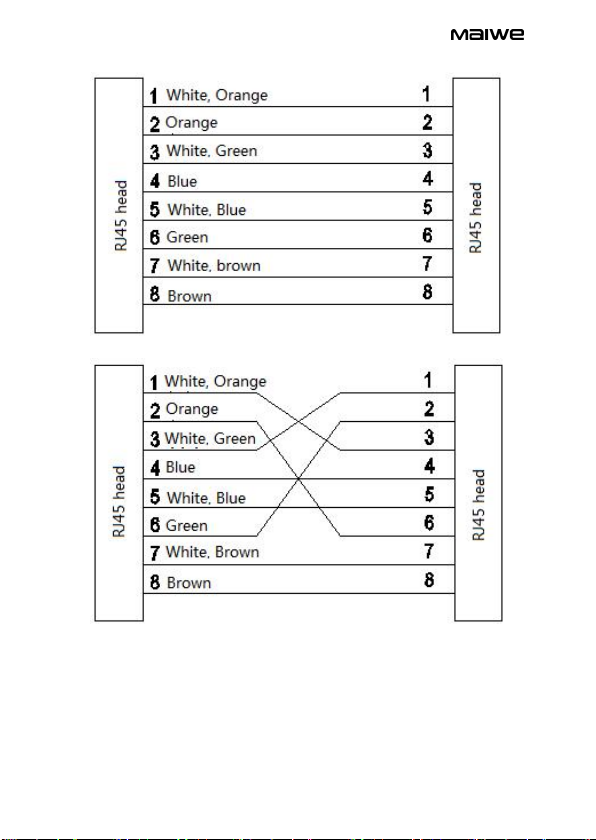

RJ45 port connection refer to below picture, 100M straight line and
cross-over cable is compatible with 1000M cable.

MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch
- 7 -
CAT. 5 straight line cable connection method
CAT. 5 cross-over cable connection method
Note: Cable colors definition in the picture meet EIA/TIA568B Standard.
2.3. SFP FX Port
The Gigabit FX port of the switch is 1000Base-LX full-duplex
single-mode/multi-mode FX port, using SFP hot-swappable device, and the
type of FX port is LC. The FX port needs to be used in pair (TX and RX are in

MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch
- 8 -
pair), the TX port is the fiber transmitting end, connecting with the fiber
receiving end RX of the other remote switch FX port. The RX port is the fiber
receiving end, connecting with the fiber transmitting end TX of the other remote
switch FX port. Two redundant 1000Base-LX FX ports can be used to establish
a fiber redundant ring network. If system fails, the ring network redundancy
recovery time is less than 20ms, which can effectively improve the reliability of
network operation.
SFP module as below picture.
SFP module
2.4. CONSOLE Port
CONSOLE port is a RJ45 port, refer to below diagram. Please use
MAIWE brand serial extension cable to connect with PC serial port. It is a
standard 3 wire RS-232 cable.
Serial port communication parameters are as follows:
Baud Rate: 115200; Data Bits: 8; Parity: None; Stop Bit: 1; Flow Control:
None.
RJ45 serial port diagram

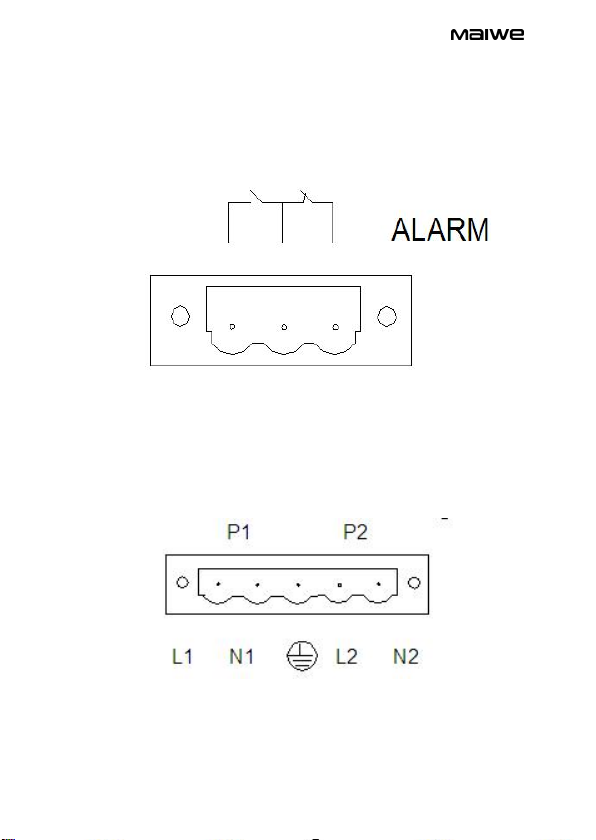

2.5. Relay Port
The terminal blocks of the series of switches’ power failure alarm relay use
3-bit 5.08mm pitch terminal, please refer to below diagram. The alarm relay’s

MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch
- 9 -
one side port is NO, the other side port is NC, the middle port is the public end,
the left two terminals are NO relay, and the right two terminals are NC relay. If
the switch is on normal work condition, the NO relay is closed, NC relay is open.
If the dual power supplies’ one port is power failure, port link is down or
network storm occurs, the NO relay is open and the NC relay is closed. The
relay recommended switch load capacity is 1A (24VDC).
Alarm delay diagram
2.6. Power Port
The standard configuration of the series switches is dual AC220V
redundant power supplies, the terminal blocks use 5.08mm pitch terminals to
connect two power inputs, see below diagram. Input power range: 24DC
(18-36VDC), 48DC (36-72VDC), AC85~265V (Frequency 47~63Hz) or
DC110~370V.
Power input terminal diagram
Switch power supply requirements table

MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch
- 10 -
Power
Voltage Range
Operating
Temperature
Storage
Temperature
Humidity
AD220
85~264VAC/
110~370VDC
-40℃～+70℃
-40℃～+85℃
5～95%
Attention：
2.7. Ground
The panel of the MISCOM7028GX/MISCOM8028GX Series Switches has
a grounding screw. Press one end of the grounding wire to the cold-pressing
terminal and fix it to the grounding hole of the housing with the grounding screw.
Connect the other end of the grounding wire to the ground reliably. The
grounding wire cross section is not less than 2.5 ㎜².
Important notes:
Power on operation: Connect the power supply cable with terminal
blocks of the equipment according to above diagram definition, then power
on.
Power off operation: Plug out the socket first, then take down the
power cable.
Please follow the above operation order.
The supported power specifications of the device is 220VAC/DC.
Please confirm whether the power supply is compliance with the requested
power specification printed on the label of the device before powering on,
so as not to damage the device.

MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch
- 11 -
3. Hardware Installation
3.1. Installation Requirements
The Industrial Ethernet Switch is a kind of single structure that fits
rack-mounting installation. Before installing, first confirm suitable working
environment for installation, including power requirements, sufficient space,
being closed to other network equipment to be connected. Please confirm the
following installation requirements.
Power requirements: The standard product is charged by AD220 power
supply. For other power supply methods, please refer to the product label
printed on the housing and related user manual.
Environmental requirements: Temperature -40 °C ~ 70 °C, relative
humidity 5 ~ 95% (no condensation).
Grounding resistance requirement: <5
According to the contract configuration requirements, check whether the
fiber cables are in place, fiber optic connectors are appropriate.
Avoid direct sunlight and away from heat sources or areas with strong
electromagnetic interference.
Standard 19’’ U rack-mountable installation. Check for suitable cables
and connectors.
Attention:
Make sure the power cable is disconnected before installing or
connecting Ethernet switch. Calculate Max current of each power cable and
public cables, observing all electric information so as to obtain allowed Max
current of wires in different width. If exceeding the Max current, wires will
overheat, causing serious damage to the equipment.
Meanwhile MUST pay attention on the following items:
Separate the power cable and other cables, if the two paths have to
cross, MUST make sure that the intersection of these cables are vertical.
Signal wires or communication wires and power cables cannot be laid in the
same pipe. To avoid interference, wires with different signal characteristics
should be separated. We can use the type of signal transmitted in a line to
determine which wires should be separated. The rule of thumb is that wires
with the same electrical characteristics can be bundled together. Separate
the input and output wires. It is highly recommended that all equipment wires
in the system should be labeled when necessary.

MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch
- 12 -
The switch should be connected to the protection ground: Grounding
and laying wires will effectively suppress the effects of noise caused by
electromagnetic interference. A ground connection should be made before
connecting the equipment, from the ground screw to the ground surface.
3.2. Mainframe Installation
Mainframe picture as below.
Mainframe picture
For most industrial applications, it is very convenient to install in a 19-inch
rack. Check the rack installation before mainframe installation, including the
following two items:
Is there enough room for installing this product?
Is there a power supply suitable for this product?
3.3. Cable Connection
After the correct installation, the cable can be installed and connected,
mainly including the cable connection of the following ports.
Server interface connection
The terminal equipment Gigabit TX ports provided by the product is

MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch
- 13 -
10/100/1000Based-TX. Connect the terminal equipment with straight line cable,
connect the network equipment with cross-over cable.
Connecting network managed port
The CONSOLE port of the product can be connected to the serial port of
the control computer.
Connecting power
After all other cables have been connected, then connect the power
supply that meets the product specifications.
3.4. Laying Cables
Laying cables should be compliance with the following items:
Check whether the specifications, model and quantity of all cables are
consistent with the construction drawing design and contract requirements
before laying the cables.
Before the cable is laid, check whether the cable is damaged, whether
there are quality certificates such as the factory record and quality assurance.
The specifications, quantity, routing direction, and placement position of
the required laying cables should meet the construction drawing design
requirements. The laying length of each cable should be determined according
to the actual location.
User cable and power cable should be placed separately.
There MUST be no disconnection in the middle of the laying cable, or a
connector in the middle.
The cable should be straight and neatly discharged in the aisle, and the
curve should be even, smooth and straight.
The cable should be straight in the channel, and should not exceed over
the channel, block other access holes, and should be tied and fixed at the
cable exit channel or cable bend.
When the cables power cables and ground cables are placed in the
same slot, the three types of cables cannot overlap and mix. If cable is too long,
the cable grounding plate must be placed in the middle of the cable tray, and it
cannot be pressed on other cables.
Prevent the cable from knotting, reduce the bend and avoid small bend
radius when laying the fiber on the tail. The lashing should be tight and not too
tight. When placed on the cable tray, it should be placed separately from other
cables.
The two ends of the cable should have corresponding identifiers. The
content of the identification should be concise and easy to maintain.
Attention:

MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch
- 14 -
When laying the fiber on the tail, it is necessary to prevent the cable
from being knotted, reduce the bend and avoid small bend radius. If the
bend radius is too small, the link optical signal will be seriously depleted and
also it will affect the quality of communication.

MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch
- 15 -
4. Annex
4.1. Technique Parameters
System Indicator
MISCOM7028GX/MISCOM8028GX
IEEE Standard
802.3, 802.3u, 802.3z, 802.3x, 802.1P,
802.3ab
Exchange Method
Store and forward
Backplane Bandwidth
56G
Packet Forwarding Rate
41.664 Mpps
Gigabit Port
28*1000Base-LX ports
Or
8*10/100/1000Base-T+20*1000Base-LX
ports
TX Port Parameter
Physical interface: RJ45 with shielding,
IEEE802.3 standard
RJ45 port: 10/100/1000Base-T (Gigabit)
supports adaptive-negotiation function
Transmission distance:<100 meters
(Standard CAT5/CAT5e cable)
FX Port Parameter
Luminous
power: >-12dBm(single-mode)>-17dBm(
multi-mode)
Light absorption
sensitivity:<-38dBm(single-mode)
<-35dBm(multi-mode)
Wavelength :1310nm(single-mode)
1550nm(single-mode) 1310 nm(multi-
mode)
Transmission distance: <2Km(Gigabit
multi-mode)
Connector type: LC
Transmission rate:1.25Gbps(Gigabit)
Power Parameter
Input
power:220AC/DC(85-264VAC/110-370V
DC)
Input power consumption:32W(MAX)
Overcurrent protection: built-in
Mechanical Parameters
Dimensions:482.6mm×44mm×315mm
Installation method: standard 19' 1U rack
type
Heat dissipation form: aluminum alloy
single rib type fanless casing house heat
dissipation
Outlet form: both front and rear
Casing protection: IP40

MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch
- 16 -
Weight: 4kg
Working Environment
Working temperature: -40°C~+70°C
Storage temperature: -40°C~+85°C
Humidity: 5%~95%(no condensation)
4.2. Industry Standard
EMS
EN61000-4-2 (ESD): ±8kV(contact), ±15kV(air)
EN61000-4-3 (RS): 10V/m(80-1000MHz)
EN61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
EN61000-4-5(Surge): Power Port: ±4kV/DM; ±2kV/CM
Data Port: ±2kV/DM; ±6kV/CM
EN61000-4-6 (CS): 3V(10kHz~150 kHz), 10V(150kHz~80 MHz)
Machinery
IEC60068-2-6(Vibration)
IEC60068-2-27(Shock)
IEC60068-2-27(Shock)
4.3. Structure and Size
Mainframe picture
