Maiwe MIEN6208 Series User manual

MIEN6208 Series
Management Industrial Ethernet Switch
User Manual
(Edition: V3.1)
Wuhan Maiwe Communication Co., Ltd.

MIEN6208 Series Management Industrial Ethernet Switch
I
Trademark
This trademark is owned by Wuhan Maiwe
Communication Co., Ltd.
Mwring is the trademark used for link redundancy and self-recovery
technology, owned by Wuhan Maiwe Communication Co., Ltd.
Microsoft and Windows is registered trademark owned by Microsoft.
Copyright
Copyright © Wuhan Maiwe Communication Co., Ltd.
Clarification
The user manual is applicable to MIEN6208 series of din-rail managed
industrial ethernet switch.
Please read the following license agreement carefully before using this manual.
The products described in this manual can be used only if you agree on the
following license agreement.
Important Statement
Any information provided by our company in this manual does not represent for
corresponding authorization on these information.
Our company attempts to ensure the accuracy and applicability for the
information provided in this manual, however our company does not assume
any responsibility for the use of these information, and does not assume any
joint responsibility for the use of these information. There may be a few
technical or typographical errors in the product and manual. The company
reserves the right to change all or part of this manual without prior notice.
Statement
Due to continuous update and improvement of products and
technology, the contents of this document may not be completely
consistent with the actual products, appreciate for your understanding.
If necessary to inquiry the updates of the product, please check our
official website or contact our representative directly.

MIEN6208 Series Management Industrial Ethernet Switch
II
Revision history:
Version
Date
Reason
V1.0
2016.09
Create files
V2.0
2016.10
Product update
V3.0
2017.05
Product update
V3.1
2018.07
Files update
V1.0
2016.09
Create files

MIEN6208 Series Management Industrial Ethernet Switch
III
Safe Use Instruction
This product performance is excellent and reliable in the designed range of use,
but it’s necessary to avoid man-made damage or destroy for the
equipment.
Read the manual carefully and keep this manual for reference if need
afterwards.
Do not put the device close to the water sources or damp places.
Do not put anything on the power cable, it should be placed out of reach.
To avoid causing fire, do not knot or wrap the cable.
Power connector and other device connectors should be firmly
connected with each other, frequently inspection is needed.
Please keep the fiber socket and plug clean. Do not look directly at the
fiber section when the equipment is working.
Please keep the equipment clean and wipe it with a soft cotton cloth if
necessary.
Please do not repair the equipment by yourself, unless there is clear
instructions in the manual.
Under the following circumstances, please cut off power immediately and
contact us.
Equipment water damage.
The equipment is broken or the casing is broken.
The equipment works abnormally or the performance has completely
changed.
The equipment produces odor, smoke or noise.
Statement: Information requiring explanation in use of the managed software.
Attention: Matters requiring specific attention in the use of the managed
software.

MIEN6208 Series Management Industrial Ethernet Switch
IV
Catalogue
1. Introduction................................................................. - 1 -
1.1. Product description......................................................................- 1 -
1.2. Product characteristic................................................................. - 1 -
1.2.1. Industrial network performance........................................................- 1 -
1.2.2. Industrial application design............................................................. - 2 -
1.2.3. Remote management configuration................................................ - 2 -
1.2.4. Industrial grade power supply design..............................................- 2 -
1.3. Packing List................................................................................... - 3 -
1.4. Products Selections.....................................................................- 3 -
2. Technique parameters:.............................................- 5 -
3. Hardware Installation & Test...................................- 7 -
3.1. Hardware structure...................................................................... - 7 -
3.1.1. System structure................................................................................ - 7 -
3.1.2. Front panel and side panel............................................................... - 7 -
3.2. Hardware Installation.................................................................. - 9 -
3.2.1. Din-rail installation..............................................................................- 9 -
3.2.2. Cable connection............................................................................. - 10 -
3.2.3. Fiber connection.............................................................................. - 10 -
3.3. Testing guide...............................................................................- 11 -
3.3.1. Self-examination...............................................................................- 11 -
3.3.2. Copper port testing.......................................................................... - 11 -
3.3.3. Fiber ports testing............................................................................ - 12 -
3.4. Network topology.......................................................................- 12 -
4. Maintenance and Service...................................... - 14 -
4.1. INTERNET service.................................................................... - 14 -
4.2. Technical support phone services..........................................- 14 -
4.3. The product repair or replacement........................................ - 14 -

MIEN6208 Series Management Industrial Ethernet Switch
- 1 -
1. Introduction
1.1. Product description
Wuhan Maiwe industrial ethernet switch is specially designed for industrial
high speed communications network. The management switch provide the
advanced industrial ethernet solution,which makes the industrial
communications more fluent,dependable and fast.
To satisfy different request,the Maiwe management switch series can be
used for both simple hot-plug function and complicated Web-management
function.
The product provides 2 fiber 6 copper ports , 4 fiber 4 copper ports and 8
copper port models for users to choose, among which the fiber port is
100Base-FX
Single-mode or multi-mode optical fiber interface, the copper port is
10Base-T/100Base-TX Ethernet RJ45 port, each RJ45 port has self-adaptive
function, which can automatically configure to 10Base-T or 100Base-TX state
and full-duplex or half-duplex operation mode,
It can automatically connect MDI/MDI-X. All ports support fast ring network
redundancy function, and the ring network is redundant when the system fails.
The remaining switching time is less than 20mS.
The Mwring technique is designed and developed for industrial
application by Wuhan Maiwe. It can resume the ethernet communication
network in 20ms after the interregnum. By this technique the MIEN6208 switch
can construct the ring network by any optic or RJ45 port to provide faster
restoration speed and communication bandwidth.
1.2. Product characteristic
1.2.1. Industrial network performance
Ring technology based on Mwring self-recovery technology link
redundancy
Embedded Web server, through remote management and configuration
of the browser
Trunk port aggregation
Real-time monitoring of broadcast storm control
Online firmware update
Multicast capabilities to support dynamic IGMP Snooping, multicast
traffic filtering
Optional 100Base-FX different distances, different types of optical
interface

MIEN6208 Series Management Industrial Ethernet Switch
- 2 -
Store and forward mechanism, backplane bandwidth is 8.8Gbps
Fast port 10/100M adaptive, full / half duplex, MDI / MDIX adaptive mode
Full-duplex flow control and half duplex back pressure flow control
Port VLAN and IEEE 802.1Q VLAN
QoS, IEEE802.1P and ToS / DiffServe support, improve the
communication quality
SNMP V1/V2C different levels of network management support
Redundant dual power input, to meet the high availability requirements
Environment to meet the strong electromagnetic interference
requirements between failures
RMON and private MIB table support, an effective remote data
monitoring and management capabilities
1.2.2. Industrial application design
Redundant dual power input design
Rack mounting installation
Bandwidth management, network problems to prevent unpredictable
Backup and restore system configuration parameters
Graphical interface, one key to restore factory default
Port mirroring for online debugging
Effective network diagnostic tool
Power-down alarm relay
fast recovery for cable change
Real-time network time synchronization
Restrict access IP, switches in the network security management
1.2.3. Remote management configuration
Use the Web page, console applications or Windows applications to
manage configuration
Standard SNMP management protocol support
1.2.4. Industrial grade power supply design
A variety of power solutions are available:
The standard DC power input is DC24V, and DC12V and DC48V are
optional.
AC power input DC110V~370V and AC85V~264V.
DC power supply models support dual power supply redundant input, AC
power supply models only support single power supply input
The power supply has reliable over-current, over-voltage protection and
EMC protection
Relay alarm output function, can be connected with other sound and light

MIEN6208 Series Management Industrial Ethernet Switch
- 3 -
alarm equipment
1.3. Packing List
Item
QTY
MIEN6208 Industrial Ethernet switch
1
User manual
1
CD
1
RS232 cable
1
Certificate card
1
1.4. Products Selections
Available models
Ports
Power
range
Standard models
100M
copper
port
100M fiber port
(SC/ST/FC)
Single
mode
Single
mode
single
fiber
Multi
mode
MIEN6208-2S
6
2
1. DC
power
supply:
DC12~4
8V
2. AC
power
supply:
DC110V
~370V
and
AC85V~
264V
adaptive
MIEN6208-2TS
6
2
MIEN6208-2M
6
2
MIEN6208
8
MIEN6208-4S
4
4
MIEN6208-4TS
4
4

MIEN6208 Series Management Industrial Ethernet Switch
- 4 -
MIEN6208-4M
4
4
Note: Each model can be powered by the above one types of power supplies.

MIEN6208 Series Management Industrial Ethernet Switch
- 5 -
2. Technique parameters:
Technical specifications
Ethernet Standard
IEEE802.3-10BaseT
IEEE802.3u-100BaseTX/100Base-
FX
IEEE802.3x-Flow Control
IEEE802.3z-1000BaseLX
IEEE802.3ab-1000BaseTX
IEEE802.1ab
IEEE802.1D-SpanningTree
Protocol
IEEE802.1w-Rapid Spanning Tree
Protoco
IEEE802.1Q -VLAN Tagging
IEEE802.1p -Class of Service
IEEE802.1X-Port Based Network
Access Control
Switch properties
Priority queue
4
VLAN ID
1-4096
IGMP Groups
256
MAC table
4k
Switch Bandwidth
1.6Gbps
Switch Latency
<5μs
Interface
10/100Base port
Port numbers:8
Connector: 9 fixed
F(x)(Single/multi-mode or
SC/FC/ST port available) or RJ45
Baud rate: 100Base-FX(fiber port),
10/100M auto-negotiation
Console port
RS232/RJ45
Terminal block for power input
5.08mm terminal block
Terminal block for relay alarm
5.08mm terminal block,1A@24VDC
Communication distance
Twisted-pair
100m(CAT5/CAT5e cable)
Multi-mode fiber
10/100Base multi-mode: 1310nm
2km
Single mode fiber
10/100Base single mode: 1310nm
20/40km; 1550nm 60/80km
LED indicator lights
Front panel LED
Port light: LINK/ACT, SPEED
Running light: RUN

MIEN6208 Series Management Industrial Ethernet Switch
- 6 -
Power LED: PWR1/PWR2
Power Requirements
Power input
DC110~220V(DC110~370V range)
or AC100~240V(AC85~264V
range) DC12V/DC24V/DC48V
available
Full-load consumption
<8W
Overload protection
support
Inversed protection
support
Redundancy protection
support
Working Environment
Operating Temperature
-40°C~85°C
Storage temperature
-40°C~85°C
Ambient Humidity
5%~95%( non-condensing)
Physical Characteristics
Shell
IP40 protection, aluminum alloy
shell
Installation
35mm din rail-mounted installation
Dimension
54mmx144mmx110mm
Industry standard
EMC
EN61000-4-2(ESD), Level 4
EN61000-4-3(RS), Level 4
EN61000-4-4(EFT), Level 4
EN61000-4-5(Surge), Level 4
EN61000-4-6(CS), Level 4
EN61000-4-8, Level 5
Impact
IEC60068–2-27
Falling
IEC60068-2-32
Shock
IEC60068-2-6

MIEN6208 Series Management Industrial Ethernet Switch
- 7 -
3. Hardware Installation & Test
3.1. Hardware structure
3.1.1. System structure
The chassis of the MIEN6208 series switch is a DIN rail structure, the
whole machine adopts a six-sided fully enclosed structure, and its overall
dimensions(Not including DIN rail size): 144mm×54mm×110mm.
3.1.2. Front panel and side panel

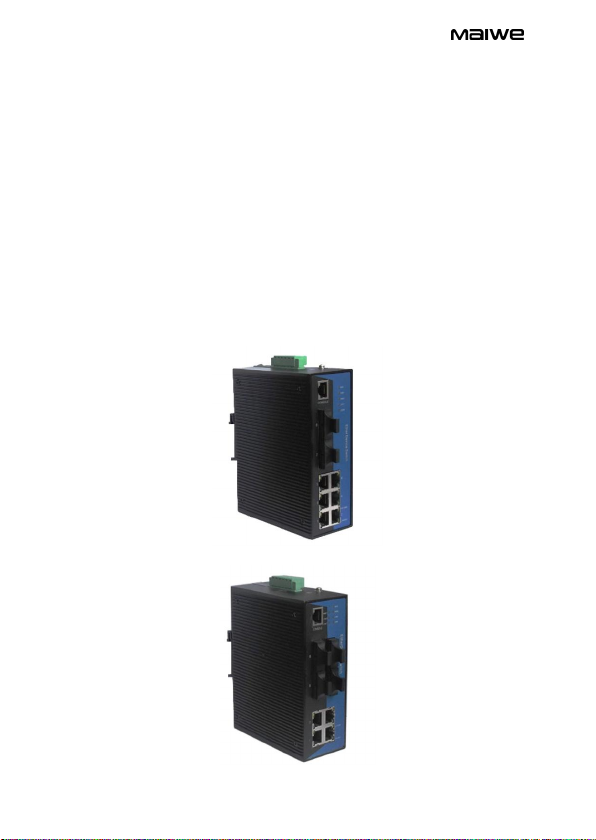

The MIEN6208 series switches have three structures: 2 fiber +6 copper
configuration, 2x100Base-FX fiber ports and 6x10Base-T/100Base-TX
Ethernet RJ45 port; 4 fiber+ 4 copper ports configuration 4 x100Base-FX
optical fiber and 4x10Base-T/100Base-TX Ethernet RJ45 port; the front panel
of the 8copper port model is equipped with 8 x10Base-T/100Base-TX Ethernet
RJ45 port,
Model:MIEN6208-2S: 2fiber+6 copper.
MIEN6208-4S : 4 fiber+4 copper.

MIEN6208 Series Management Industrial Ethernet Switch
- 8 -
MIEN6208: 8 copper ports.
The side panel of MIEN6208 series switches is equipped with a 6-position
lock terminal with 5.08mm pitch as below:
Power input
The DC power supply models of MIEN6208 series switches support
DC12V-44V power supply by default, and users can DC48V, support dual
power input, the two power sources are mutually backup.
The AC power supply models of MIEN6208 series switches support
DC110V~370V and AC85V~264V power supply.
For AC models, V can only be input from V1+ and V1-, V1+ connects to
live wire L, and V1- to neutral wire N. Do not connect from V2+, V2- and pay
attention to safety to prevent electric shock.
Power failure alarm output
MIEN6208 series switches support alarm function and have normally
closed nodes. When the switch is working normally, the normally closed node
is disconnected.
When the system is powered off, the port is offline, or the network storm
alarms, the normally closed node is closed. The recommended switching load
capacity of the relay is 1A(24VDC). The user can use the relay contact output
to connect other sound and light alarm devices.

MIEN6208 Series Management Industrial Ethernet Switch
- 9 -
Serial port network management port (CONSOLE)
The network management port is an RJ45 interface. Please use the serial
port extension cable provided by our company to connect to the PC’s serial
port.
The letter standard is 3-wire RS-232.
The communication parameters of the serial port are as follows: baud rate:
9600, data bit: 8, parity bit: none, stop bit: 1, flow control: none.
Indication lights：
LED
Condition
s
Status
System status LED
PWR1/ PWR2
on
The power is connected and working
properly
off
The power is unconnected or working
abnormal
RUN
blinking
The system is running normally
off
The system is running abnormal
off
Ring close
Fiber port status LED
LINK
On
The port has established an active
network connection
blinking
Port has network activity
off
The port does not have a valid network
connection
Ethernet RJ45 port status LED
Each Ethernet RJ45 port has two indicators, a yellow light for the port rate
indicator and a green light for the port connection status indicator.
10/100M
（Yellow light）
On
100M （100Base-TX）
off
10Mworking status（10Base-T）
LINK/ACT
（Green light）
on
The port has established an active
network connection
blinking
Port has network activity
off
The port does not have a valid network
connection
3.2. Hardware Installation
3.2.1. Din-rail installation
This series equipment back panel have fixed well DIN rail-way connection
seat. If need installation, please check DIN rail way condition . Main including 2
terms :

MIEN6208 Series Management Industrial Ethernet Switch
- 10 -
Checking DIN-Rail is fixed firm, DIN-rail is installed on other equipment,
whether there is enough space .
Checking DIN-Rail whether suitable for power input.
Please selected the correct position. As below behind picture shows:
Insert DIN-Rail into DIN-Rail slot and as schematics 2-1 shows turning
equipment.
As below shows, insert DIN-rail into DIN-Rail slot and confirm the
MIEN6208 reliable equipment installed on the DIN-rail.
3.2.2. Cable connection
After installation, could prepare for cable connection as below:
Working interface connection
This Ethernet switch supplied terminal device interface is
10Base-T/100Base-TX RJ45 port, use the direct cable connect with terminal
equipment, use cross wire connect with network equipment
CONSOLE connection
This products CONSOLE port could connect with serial interface which
control PC.
Power connection
When all cable connect well, could connect with Ethernet switch’ standard
power.
3.2.3. Fiber connection
This series Ethernet switch provide 0/2/4 100Base-FX single mode or
multi-mode fiber optic ports. The interface type can be selected according to
requirements of SC / ST / FC.
Attention：
This switch uses lasers to transmit signals over fiber cable. Laser Class 1
laser/LED products can cause serious damage on the eyes harmless. When
the equipment is power on, please do not stare directly into the laser beam.
Connection fiber cable ,please use following steps:

MIEN6208 Series Management Industrial Ethernet Switch
- 11 -
When use fiber cable port, remove SC/FC/ST port cover; When it finish
work, please put the plastic cover to protect the fiber optic head, keep clean.
Check the fiber optic cable head whether it clean or not. If it not clean,
will effect port and communication quality.
One fiber optic head connect with Ethernet switch optic port, the other
fiber head connect with another equipment fiber optic interface equipment.
After connection, please check switch the front interface’s LNK/ACT LED
lights. If lights on, connection is available.
Attention:
This switch uses a laser to transmit signals over fiber optic cables. The
laser meets the requirements of Class 1 laser products, and normal
operation is harmless to the eyes. However, when powering up the unit, do
not look directly at the optical transmission port and the fiber optic terminator
end face.
The steps to connect the pluggable fiber optic module are as follows ,
please use following steps:
- When use fiber cable port, remove SC/FC/ST port cover; When it finish
work, please put the plastic cover to protect the fiber optic head, keep clean.
- Check the fiber optic cable head whether it clean or not. If it not clean,
will effect port and communication quality.
- One fiber optic head connect with Ethernet switch optic port, the other
fiber head connect with another equipment fiber optic interface equipment.
- After connection, please check switch the front interface’s LNK/ACT LED
lights. If lights on, connection is available.
3.3. Testing guide
3.3.1. Self-examination
When connection equipment, the front panel power supply indicator light
will blinking once, it means working well. After a while Power supply indicator
light is on. Run indicator light (system status LED) will blink interval 1s.
3.3.2. Copper port testing

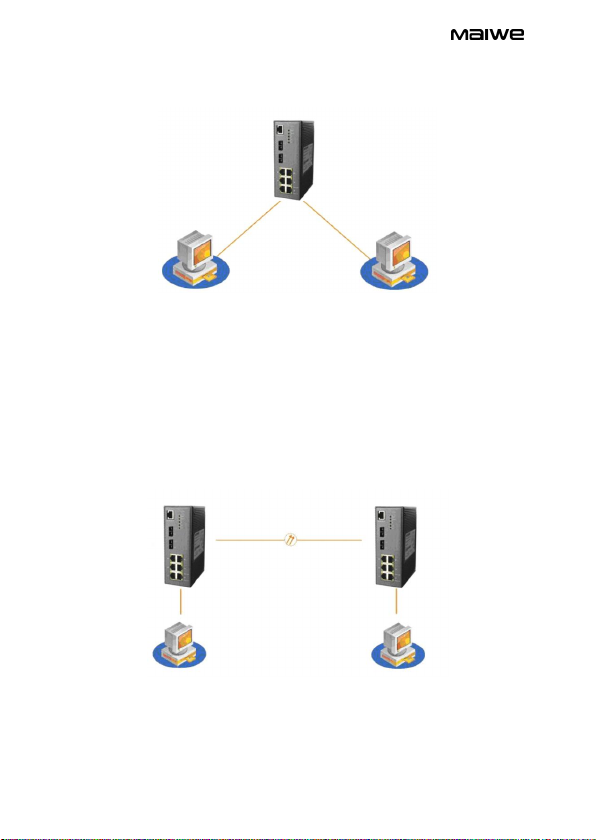

As below picture. Powering on the switch, connect any two copper ports to
the network ports of the two test computers through the direct connection
network cable, and send ping commands to each other. Both parties can
correctly ping each other without losing packets. At the same time, the yellow
light on the corresponding port should be always on (the computer network
card works in the 100M state) or often off (the computer network card works in
the 10M state), and the green light on the corresponding port should flash. The
hardware of the two electrical ports tested is working properly. The following

MIEN6208 Series Management Industrial Ethernet Switch
- 12 -
test diagram takes the 8-port product of the MIEN6208 series switch as an
example.
3.3.3. Fiber ports testing
The device with the fiber interface is composed of the fiber chain network
shown in Figure 3-5 (TX is connected to another RX, and RX is connected to
another TX). Each of the copper interfaces of each device is connected to the
test computer through a direct-connected network cable and sends ping
commands to each other. Both parties can correctly ping each other without
losing packets. At the same time, the LINK lamp corresponding to the optical
port should flash, indicating that the two optical ports tested are working
properly. Figure in below shows the optical port test of the MIEN6208 series
switch.
3.4. Network topology
Normally, this equipment requires three or more switches of this series to
be connected to form a ring.The most typical application example of ring
network technology is in below:

MIEN6208 Series Management Industrial Ethernet Switch
- 13 -

MIEN6208 Series Management Industrial Ethernet Switch
- 14 -
4. Maintenance and Service
5 years warranty from the date of shipment, if there is any failure or
functional product fails within the warranty time, repair or replace is free.
However, these commitments do not include improper use, accidents, natural
disasters, improper operation or improper installation caused the damage.
To ensure that consumers benefit of products, through the following ways
to get help and problem solving:
Internet services.
Call the technical support office.
Product repair or replacement.
4.1. INTERNET service
Through the website of Wuhan Technical Support section, you can get
more useful information and tips.
4.2. Technical support phone services
While using the product, you can connect with our technical support office
for any queries, professional technical engineers are available to answer your
questions.
4.3. The product repair or replacement
Product repair, replacement or return, please contact our sales staff.

WUHAN MAIWE COMMUNICATION CO.,LTD
Add.:Building 2, Area E, Phase ii, Optical valley core center, No.52,
Liufang road, East Lake Hi-tech Development Zone,Wuhan,China
Phone: [phone]
Fax: [phone]
www.maiwe.com
