MIEN2204 Series
Unmanaged Industrial Ethernet Switch
User Manual
(Edition: V2.0)
Wuhan Maiwe Communication Co., Ltd.

MIEN2204 Series Unmanaged Industrial Ethernet Switch
I
Trademark
This trademark is owned by Wuhan Maiwe
Communication Co., Ltd.
Mwring is the trademark used for link redundancy and self-recovery
technology, owned by Wuhan Maiwe Communication Co., Ltd.
Microsoft and Windows is registered trademark owned by Microsoft.
Copyright
Copyright © Wuhan Maiwe Communication Co., Ltd.
Clarification
The user manual is applicable to MIEN2204 series of industrial unmanaged
ethernet switch.
Please read the following license agreement carefully before using this manual.
The products described in this manual can be used only if you agree on the
following license agreement.
Important Statement
Any information provided by our company in this manual does not represent for
corresponding authorization on these information.
Our company attempts to ensure the accuracy and applicability for the
information provided in this manual, however our company does not assume
any responsibility for the use of these information, and does not assume any
joint responsibility for the use of these information. There may be a few
technical or typographical errors in the product and manual. The company
reserves the right to change all or part of this manual without prior notice.
Statement
Due to continuous update and improvement of products and
technology, the contents of this document may not be completely
consistent with the actual products, appreciate for your understanding.
If necessary to inquiry the updates of the product, please check our
official website or contact our representative directly.

MIEN2204 Series Unmanaged Industrial Ethernet Switch
II
Safe Use Instruction
This product performance is excellent and reliable in the designed range of use,
but it’s necessary to avoid man-made damage or destroy for the
equipment.
Read the manual carefully and keep this manual for reference if need
afterwards.
Do not put the device close to the water sources or damp places.
Do not put anything on the power cable, it should be placed out of reach.
To avoid causing fire, do not knot or wrap the cable.
Power connector and other device connectors should be firmly
connected with each other, frequently inspection is needed.
Please keep the fiber socket and plug clean. Do not look directly at the
fiber section when the equipment is working.
Please keep the equipment clean and wipe it with a soft cotton cloth if
necessary.
Please do not repair the equipment by yourself, unless there is clear
instructions in the manual.
Under the following circumstances, please cut off power immediately and
contact us.
Equipment water damage.
The equipment is broken or the casing is broken.
The equipment works abnormally or the performance has completely
changed.
The equipment produces odor, smoke or noise.
Statement: Information requiring explanation in use of the managed software.
Attention: Matters requiring specific attention in the use of the managed
software.

MIEN2204 Series Unmanaged Industrial Ethernet Switch
III
Catalogue
1. Product Overview...................................................... - 1 -
1.1. Product Introduction.................................................................... - 1 -
1.2. Features......................................................................................... - 1 -
1.2.1. High-performance Ethernet Switch Interface................................. - 1 -
1.2.2. Industrial Power Supply Design....................................................... - 1 -
1.2.3. Rugged Design...................................................................................- 1 -
1.3. Packing List................................................................................... - 2 -
2. Interface........................................................................- 3 -
2.1. Ground Screw...............................................................................- 3 -
2.2. Power Input Interface..................................................................- 3 -
2.3. LED Indicator................................................................................ - 4 -
2.4. Ethernet Rj45 Port....................................................................... - 5 -
2.5. 10/100M Optical Fiber Interface............................................... - 6 -
3. Hardware Installation................................................- 7 -
3.1. Installation Requirements.......................................................... - 7 -
3.2. Installation......................................................................................- 8 -
3.2.1. Din-rail Installation............................................................................. - 8 -
3.3. Fiber Interface Connecting........................................................ - 9 -
3.3.1. Fiber Connecting................................................................................- 9 -
3.3.2. Laying Cables.....................................................................................- 9 -

MIEN2204 Series Unmanaged Industrial Ethernet Switch
- 1 -
1. Product Overview
1.1. Product Introduction
The MIEN2204 series products produced by Maiwe are high-performance
industrial Ethernet switches. The products provide industrial din-rail installation
methods, which can adapt to various harsh working environments and have
stable communication performance.
The product provides 2 fiber 2 copper ports, among which the optical port
is 100Base-FX single mode or multi-mode fiber interface, and the electrical
port is 10Base-T/100Base-TX Ethernet RJ45 port, each RJ45 port has an
adaptive function, can be automatically configured to 10Base-T or 100Base-TX
state and full-duplex or half-duplex operation mode, and can automatically
perform MDI / MDI-X connection.
1.2. Features
1.2.1. High-performance Ethernet Switch Interface
The data processing type is store and forward exchange mode
10Base-T/100Base-TX self-adaptive MDI / MDIX Ethernet electrical
interface mode, supporting full-duplex or Half duplex
100Base-X optical fiber interface, interface SC, ST or FC
Comply with IEEE802.3, IEEE802.3u and IEEE802.3x standards
1.2.2. Industrial Power Supply Design
Various power supply options are available:
AC power input DC110 ~ 370V and AC85 ~ 264V
DC power standard input DC12 ~ 48V, optional DC48V (36 ~ 72V)
The power supply has reliable surge, over-current, anti-reverse
protection and excellent EMC performance
Use environmentally friendly materials, 5.08mm pitch, easy to access
power terminals
1.2.3. Rugged Design
Single-ribbed aluminum chassis heat dissipation surface design, fanless
efficient heat dissipation, the system can reliably work in the environment of
-40 ~ +85 ℃
High-strength closed aluminum shell, so that the system can work
reliably in harsh and dangerous industrial environment
Standard DIN rail type installation, and can also provide accessories for
other installation methods

MIEN2204 Series Unmanaged Industrial Ethernet Switch
- 2 -
1.3. Packing List
The package of MIEN2204 series products contains the following items. If
any of the following items are lost or destroyed, please contact the agent or the
customer service center of Maiwe, who will assist you in replacing or making
up.
Packing list
Item
Number
MIEN2204 series switch
1
User manual
1

MIEN2204 Series Unmanaged Industrial Ethernet Switch
- 3 -
2. Interface
1 Ground screw
2 Power input interface
3 LED indicator
4 Ethernet Rj45 port
5 10/100M optical fiber interface
6 DIN-Rail deck
2.1. Ground Screw
The industrial Ethernet switch has a grounding screw. After crimping one
end of the grounding wire with the cold-pressed terminal, the grounding screw
is used to fix it at the grounding hole of the chassis. The other end of the
ground wire is reliably connected to the earth. The cross section of the
grounding wire shall not be less than 2.5mm²

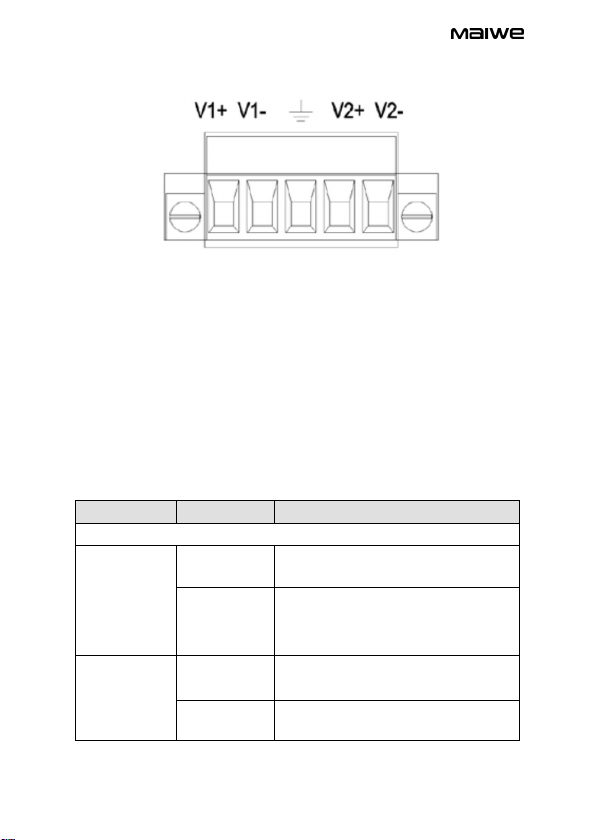

2.2. Power Input Interface
The DC power supply models of this series of switches support DC12-48V
power supply by default, and users can choose DC48V to support dual power
input, and the two power supplies are mutually backup.
The AC power supply models of this series of switches support
DC110-370V and AC85-264V power supply. When using AC models, the
voltage can only be input from V1+ and V1-. V1+ connects to live wire L and
V1- to neutral wire N. Connect V2+ and V2-, and pay attention to safety to

MIEN2204 Series Unmanaged Industrial Ethernet Switch
- 4 -
prevent electric shock.
Important hint:
Power-on operation: first connect the power cord to the power terminal of
the device according to the definition shown in the figure above, and then
power on;
Power-off operation: first unplug the power plug, then remove the power
cord
Please pay attention to the sequence of operations above.
2.3. LED Indicator
The front panel LED indicators of this series of switches indicate the
current working status of the switches.
Specific instructions are shown in the table below.
Description of LED indicator
LED
Conditions
State
System status LED
PWR1/
PWR2
On
power connected and operating
normally
Off
power unconnected or the system is
abnormal
RUN
Blinking
The system is operating normally
(some models are always on to
indicate normal)
Off
The system is abnormal

MIEN2204 Series Unmanaged Industrial Ethernet Switch
- 5 -
Fiber port status LED
LINK 3/4
On
The port has established a valid
network connection
Blinking
Network activity on the port
off
No valid network connection
Ethernet RJ45 port status LED
Each Ethernet RJ45 port has two indicators. The yellow indicator is the
port rate indicator and the green indicator is the port connection status
indicator.
10/100M
（Yellow）
On
100M working state ( 100Base-TX)
Off
10M working state (10Base-T)
LINK/ACT
（Green）
On
The port has established a valid
network connection
Blinking
Network activity on the port
Off
The port doesn’t establish a valid
network connection
2.4. Ethernet Rj45 Port
Each RJ45 port has an adaptive function and supports automatic
MDI/MDI-X connection. The switch can be connected to terminal equipment,
servers, hubs, or other switches using straight-through network cables or
crossover network cables. Each port supports IEEE802.3x adaptive, so the
most suitable transmission mode (half duplex or full duplex) and data rate
(10Mbps and 100Mbps) can be automatically selected (the connected device
must also support this feature). If the device connected to these ports does not
support auto-adaptation, the port will force itself to work at the same rate as the
other party to avoid full/half duplex mismatch. The transmission mode will
default to half duplex and flow control will be automatically disabled.

MIEN2204 Series Unmanaged Industrial Ethernet Switch
- 6 -
2.5. 10/100M Optical Fiber Interface
The 100M optical port of this product is a 100Base-FX full-duplex
single-mode or multi-mode optical fiber interface, and the connector can be SC,
ST or FC. The optical fiber interfaces need to be used in pairs (TX and RX are
a pair). The TX port is the optical transmitting end, which is connected to the
optical receiving end RX of the optical interface of another remote switch.
The RX port is the optical receiving end, which is connected to the optical
transmitting end TX of the same optical interface of the same remote switch.
The 100M optical interfaces mainly include: SC, ST, FC.
SC fiber module ST fiber module FC fiber module

MIEN2204 Series Unmanaged Industrial Ethernet Switch
- 7 -
3. Hardware Installation
3.1. Installation Requirements
This industrial Ethernet switch is a single structure. Before installation, you
must first confirm that there is a suitable working environment, including power
requirements, sufficient space, whether it is close to other network equipment
to be connected, and whether other equipment is in place. Please confirm the
following installation requirements:
Power requirements: standard products use 24V power supply. For other
power supply methods, please refer to the product label, the power supply
mark on the shell and the relevant manual
Environmental requirements: temperature -40℃～+85℃, relative humidity
5～95% (no condensation)
Grounding resistance requirements: <5Ω
According to the contract configuration requirements, check whether the
optical cable is laid in place and whether the optical fiber connector is suitable
Avoid direct sunlight, keep away from heat sources or areas with strong
electromagnetic interference
Standard products are installed on DIN rails. Check if there are cables and
connectors required for installation
Attention
Be sure to disconnect the power cord before installing or connecting the
Ethernet switch. Calculate the maximum possible current in each power line
and common line, and observe all electrical information to know the maximum
current allowed by lines of different widths. If the current exceeds the maximum
rated current, the wire will overheat and cause serious damage to the
equipment.
At the same time, you must also pay attention to the following:
Separate the paths of power lines and equipment lines. If the two paths
must cross, make sure that these lines are perpendicular at the intersection. It
is not allowed to lay signal wires or communication wires and power wires in
the same pipe. To avoid interference, wires with different signal characteristics
should be separated. We can use the type of signal transmitted in a line to
determine which lines should be separated. The rule of thumb is that wires with
the same electrical characteristics can be bundled together. Separate the input
line and output line. It is strongly recommended to label all equipment lines in
the system when necessary.
The switch must be connected to the protective ground:

MIEN2204 Series Unmanaged Industrial Ethernet Switch
- 8 -
Grounding and wiring can effectively suppress the noise impact caused by
electromagnetic interference. The ground connection should be made before
connecting the equipment, from the ground screw to the ground surface.
3.2. Installation
3.2.1. Din-rail Installation
For most industrial applications, it is very convenient to install with 35mm
standard DIN rail. When you remove the device from the packing box, the DIN
rail connection seat should be fixed on the rear panel of the MIEN2204 series
switch. If MIEN2204 series switches need to be mounted on DIN rail, you
should check the installation of DIN rail before installation. It includes the
following two contents:
Whether the DIN rail is fixed and strong, whether other equipment is
installed on the DIN rail, and whether there is enough space for installing the
switch.
Weather Is there any power supply suitable for the work of this switch on
the DIN rail.
After selecting the installation location of the switch, install the switch on
the DIN rail as follows:
Insert the upper part of the DIN rail into the snap groove of the upper part
of the DIN rail connection seat with a snap spring. Push down slightly on the
top panel of the switch and rotate the device as shown in below
Install MIEN2204 series switches to Dil-rail
cable connection
After the MIEN2204 series switches are correctly installed, the cables can
be installed and connected, mainly including the cable connections of the
following interfaces.
RJ45 interface

MIEN2204 Series Unmanaged Industrial Ethernet Switch
- 9 -
The terminal equipment interface provided by MIEN2204 series switches
is a 10Base-T / 100Base-TX Ethernet RJ45 interface, which uses a DC
network cable to connect to the terminal equipment and a crossover network
cable to connect to the network equipment.
Connecting Power
MIEN2204 series switches use power according to the instructions on the
product label. When all other cables are connected, the power can be
connected
3.3. Fiber Interface Connecting
3.3.1. Fiber Connecting
MIEN2204 series switches provide 100Base-FX full-duplex single-mode or
multimode fiber interfaces. The type of optical fiber interface can choose SC /
ST / FC according to demand.
Attention
This switch uses a laser to transmit signals on fiber optic cables. The
laser meets the requirements of Class 1 laser products, and normal
operation is not harmful to the eyes. However, when the device is powered
on, do not look directly at the optical transmission port and the end face of
the fiber terminator.
The steps to connect pluggable fiber optic modules are as follows:
Remove and keep the rubber sleeve of the SC / ST / FC port. When not
in use, put on a rubber sleeve to protect the fiber optic terminator
Check whether the fiber terminator is clean. Lightly moisten a clean
paper towel or cotton ball and gently wipe the cable plug. A dirty fiber
terminator will reduce the quality of the optical transmission and affect the port
performance
Connect one end of the optical cable to the optical fiber interface and the
other end to the optical fiber interface of another device
After the connection is completed, please check the LINK / ACT indicator
of the corresponding optical port on the front panel.
3.3.2. Laying Cables
The cable layout must meet the following conditions:
Check whether the specifications, models and quantities of all cables are
in compliance with the construction drawing design and contract requirements
before laying out the cables
Before laying the cable, check whether the cable is damaged, whether
there are factory records and quality assurance certificates that prove its
quality

MIEN2204 Series Unmanaged Industrial Ethernet Switch
- 10 -
The specifications, quantity, routing direction, and location of the cables to
be laid should meet the design requirements of the construction drawing. The
wiring length of each cable should be determined according to the actual
location.The user cables and power cables should be laid separately.
There must be no disconnection or joints in the middle of the laid cables
Cables should be laid out neatly in the aisle, and the bends should be
even, smooth and straight
The cable should be straight in the channel, and should not go out of the
channel and block other wire entry and exit holes. The cable should be bound
and fixed at the location of the cable exit from the channel or the cable bend
When the cables, power cords, and ground wires are laid in the same slot,
the cables, power cords and ground wires cannot be overlapped or mixed.
When the cable is too long, the cable must be neatly placed in the middle of the
cable rack, and cannot be pressed on other cables
When laying pigtails, prevent the optical cable from knotting and minimize
the turning points, and the turning radius should not be too small. The lashing
should be moderately tight and not too tight. When laying on the cable rack, it
should be placed separately from other cables
There should be corresponding marks at both ends of the cable, and the
content of the marks is concise and easy to maintain
Attention
When laying pigtails, prevent the optical cable from kinking and minimize
the turning point, and the turning radius should not be too small. If the turning
radius is too small, it will cause serious loss of the link optical signal. Affect the
quality of communication.

MIEN2204 Series Unmanaged Industrial Ethernet Switch
- 11 -
Appendix Technical Index
Protocol Standard
IEEE802.3(Ethernet),
IEEE802.3u(100Base-TX&100Base-FX),
IEEE802.3x(Flow control)
Interface
Connector: 1×9 fixed optical
port(single/multi-mode optional, SC/FC/ST
interface) or RJ45 100M FX port
Baud rate:100Base-FX(Optical
port),10/100M-TX auto-negotiation
Terminal block for power
input
5.08mm terminal block
Twisted-pair
100m(CAT5/CAT5e cable)
Multi-mode fiber
100M multi-mode: 1310nm,2km
Single mode fiber
100M single
mode:1310nm,20/40km;1550nm,60/80km
Front panel LED lights
Port light: LINK/ACT; SPEED;
Power status light: PWR
Input power
DC110~220V (Wide voltage:
DC110~370V) or AC100~240V (Wide
voltage: AC85~264V)
Support optional for DC12V~DC24V、
DC48V
Power consumption
<5W@(MAX)
Operating Temperature
-40°C~85°C
Storage temperature
-40°C~85°C
Ambient Humidity
5%~95%
Shell
IP40 protection, aluminum alloy shell
Installation
Standard 35mm DIN-rail Mounting
Dimension
33.0mm*114.0mm*80.0m
EMC
EN61000-4-2(ESD), Level 4
EN61000-4-3(RS), Level 4
EN61000-4-6(CS), Level 4
EN55022：EN55022 Class A

MIEN2204 Series Unmanaged Industrial Ethernet Switch
- 12 -
Dimension
Product Selection
Standard
models
100M
rj45
port
100M Fiber
（SC/ST/FC）
port(SC/ST/FC)
Voltage
rage
Single
mode
Single
mode fiber
Muti
mode
MIEN2204
-2S
2
2
0
0
1. DC
power
supply:
DC12 ~
48V,
DC48V
(36 ~
72V).
2.AC
power
supply:
DC110 ~
370V or
AC85 ~
264V
adaptive
MIEN2204
-2TS
2
0
2
0
MIEN2204
-2M
2
0
0
2
.

WUHAN MAIWE COMMUNICATION CO.,LTD
Add.:Building 2, Area E, Phase ii, Optical valley core center, No.52,
Liufang road, East Lake Hi-tech Development Zone,Wuhan,China
Phone: [phone]
Fax: [phone]
www.maiwe.com
