1. System Overview
1.1. Product Introduction
The unmanaged simple series products produced by Maiwe including
MIEN2016, MIEN2024, MIEN2018-2S/M and MIEN2026-2S/M, are industrial
Ethernet switches that are professionally designed and developed for industrial
high-speed communication network applications. The switch is mainly used for
simple plug-and-play applications. All electrical ports support auto-negotiation,
10/100Mbps full duplex and half duplex, Auto-MDI/MDI-X and other functions.
Make industrial communication smoother, more reliable, and faster, and meet
the continuous innovation needs of customers to increase value-added
applications.
These unmanaged switches provide AC and DC 220V power supply
support, while providing a wide range of DC and AC power input. In terms of
structural installation, the switch uses rack installation.
This series of industrial Ethernet switches has a total of 26 100M ports at
most, and its switching bandwidth is 8.8G. They all support 8K entries in the
MAC address table.
1.2. Characteristic
1.2.1. Industrial network performance
Broadcast storm suppression
Optional 100Base-FX with different transmission distances and different
types of optical fiber interfaces
Store and forward mechanism
100M electrical port 10/100M adaptive, full/half duplex, MDI/MDIX
adaptive mode
Full-duplex flow control and half-duplex back pressure flow control
AC and DC power input to meet the requirements of high availability
Meet the requirements of trouble-free work under strong electromagnetic
interference environment
1.2.2. Industrial application design
Rack installation
Quick recovery of port connection
1.2.3. Packing list
The packaging list of unmanaged products of Wuhan Maiwe
Communication Co., Ltd. is shown in Table 1-1. If any of the listed items is lost
or destroyed, please contact the agent or the customer service center for
replace or make up.

MIEN2016/2018/2024/2026 Rack Mount Industrial Ethernet Switch
- 2 -
Table 1-1 Product packing list
Item
Quantity
Switch
1
User manual
1
Product Certificate and Warranty Card
1
1.3. Performance specifications
Maiwe switches can complete Ethernet information exchange. Users must
refer to the following data for reasonable selection and use in order to show
good industrial characteristics and excellent network information exchange
capabilities.
Technical index:
IEEE standard: 802.3, 802.3u, 802.3x
Exchange method: store and forward
Exchange bandwidth: 8.8G
Flow control: full-duplex flow control, half-duplex back pressure control
MAC address: 8K
Transmission distance: twisted pair cable 100m, fiber 100Mbps maximum
20, 40, 60, 80km
Broadcast storm: real-time broadcast storm suppression
EMC standard:
EN61000-4-2 anti-static (ESD): ±6kV contact discharge, ±8kV air
discharge
EN61000-4-3 electromagnetic field: 10V/m (80-1000MHz)
EN61000-4-6 anti-conduction: 3V (10kHz~150 kHz), 10V (150kHz~80
MHz)
EN55022: EN55022 Class A

MIEN2016/2018/2024/2026 Rack Mount Industrial Ethernet Switch
- 3 -
2. Application Description
2.1. Hardware structure
2.1.1. System structure
The system hardware is mainly composed of the following parts:
The switching network controller uses high-performance ASIC chip
technology to provide Layer 2 wire-speed forwarding of data packets.
The fiber interface adopts an integrated optical transceiver module with
stable performance.
The power supply adopts industrial-grade power supply, with
over-current, over-voltage and EMC protection.
All copper ports and serial ports have EMC protection.
2.1.2. Whole machine structure
The chassis is a 19-inch 1U rack structure, as shown in Figure 2-1, the
whole machine adopts a six-sided fully enclosed structure. Abandon the
traditional flow fan heat dissipation form, reduce the power consumption of the
whole machine, but also improve the stability of the system.
The dimensions are: 482.6*44*210mm.
Figure 2-1 Product appearance
The front panel indicators are shown in Figure 2-2
Figure 2-2 Schematic diagram of front panel indicators
The indicator description is shown in Table 2-1.
Function
LED
LED color
Condition
Status
Power
state
PWR1
Red
On
Power
connection
Off
Power is not
connected
System
status
RUN
Green
Flashing
System is
working fine

MIEN2016/2018/2024/2026 Rack Mount Industrial Ethernet Switch
- 4 -
Panel
status
100Mbps
Green
On
The port has
established a
100M
network
connection
Off
No port
connection or
10M access
LINK/AC
T
Green
On
Port has
established a
valid network
connection
Flashing
Port has
network
activity
Off
The port has
not
established a
valid network
connection
100M fiber interface
MIEN2018-2S/M and MIEN2026-2S/M have 2 100Base-FX full-duplex
single-mode or multi-mode fiber interfaces, and the connectors can be SC, ST
or FC. Optical fiber interfaces need to be used in pairs (TX and RX are a pair),
TX port is the optical transmitting end, connected to the optical receiving end
RX of the optical interface of another remote switch; RX port is the optical
receiving end, connected to the same optical interface of the same remote
switch The optical transmitter TX.

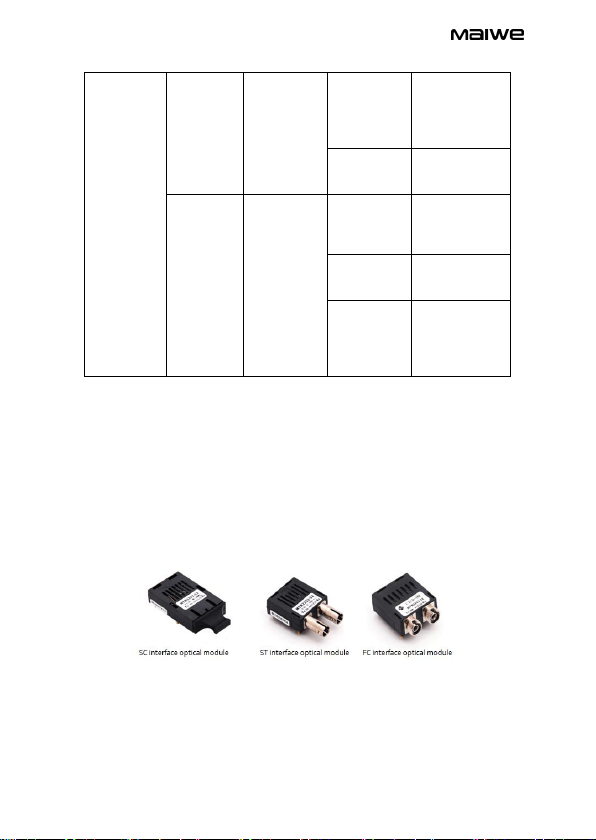

The 100M fiber interfaces mainly include: SC, ST, FC. As shown in Figure
2-3.
Figure 2-3 Appearance of SC /ST /FC interface optical module
Ethernet RJ45 port
This series of products has 16 or 24 10Base-T/100Base-TX Ethernet
RJ45 ports. Each RJ45 port has an adaptive function and supports automatic
MDI/MDI-X connection. The switch can be connected to terminal devices,

MIEN2016/2018/2024/2026 Rack Mount Industrial Ethernet Switch
- 5 -
servers, hubs or other switches using straight-through network
cables/crossover network cables. Each port supports IEEE802.3x adaptive, so
the most suitable transmission mode (half-duplex or full-duplex) and data rate
(10Mbps or 100Mbps) can be automatically selected (the connected device
must also support this feature). If the devices connected to these ports do not
support auto-negotiation, the ports will send at the correct speed, but the
transmission mode will default to half-duplex.
The power input terminals are shown in Figure 2-4.
Figure 2-4 Schematic diagram of power input terminal
The power requirements of this series of switches are shown in Table 2-2.
Table 2-2 Switch power requirements
Voltage
voltage
range
Operating
temperature
Storage
temperature
Humidity
220VAC/DC
85~265
VAC
47-63Hz
or
110~370
VDC
-40°C~85°C
-40°C~85°C
5~95%
2.2. Hardware installation
2.2.1. Installation requirements
The industrial Ethernet switch is a single structure, which can be directly
installed on a 19-inch rack. Before installation, first confirm that there is a
suitable working environment, including power requirements, sufficient space,
whether it is close to other network equipment to be connected, and whether
other equipment is in place. Please confirm the following installation
requirements:
Power requirements: standard products use AC220V power supply. For

MIEN2016/2018/2024/2026 Rack Mount Industrial Ethernet Switch
- 6 -
other power supply methods, please refer to the product label, the power
supply label on the housing and the relevant manual
Environmental requirements: temperature -40°C~85°C, relative humidity
5~95% (no condensation)
Grounding resistance requirements: <5
According to the contract configuration requirements, check whether the
optical cable is laid in place and whether the optical fiber connector is suitable
Avoid direct sunlight, keep away from heat sources or areas with strong
electromagnetic interference
The standard product is installed on a 19-inch rack. Check if there are
cables and connectors required for installation
Note:
Be sure to disconnect the power cord before installing or connecting the
Ethernet switch. Calculate the maximum possible current in each power line
and common line, and observe all electrical information to know the
maximum current allowed by lines of different widths. If the current exceeds
the maximum rated current, the wire will overheat and cause serious
damage to the equipment.
At the same time, you must also pay attention to the following:
Separate the paths of power lines and equipment lines. If the two paths
must cross, make sure that these lines are perpendicular at the intersection.
It is not allowed to lay signal wires or communication wires and power wires
in the same pipe. To avoid interference, wires with different signal
characteristics should be separated. We can use the type of signal
transmitted in a line to determine which lines should be separated. It is
strongly recommended to label all equipment lines in the system when
necessary.
The switch must be connected to the protective ground:
Grounding and wiring can effectively suppress the noise impact caused
by electromagnetic interference. The ground connection should be made
before connecting the equipment, from the ground screw to the ground
surface.
2.2.2. Host installation
The installation dimensions of MIEN2016 and MIEN2024 are shown in
Figure 2-5.

MIEN2016/2018/2024/2026 Rack Mount Industrial Ethernet Switch
- 7 -
Figure 2-5 Schematic diagram of the installation dimensions of MIEN2016 and
MIEN2024
The installation dimensions of MIEN2018-2S/M and MIEN2026-2S/M are
shown in Figure 2-6.
Figure 2-6 Installation dimensions of MIEN2018-2S/M and MIEN2026-2S/M
For most industrial applications, 19-inch rack installation is very
convenient. The installation situation of the rack should be checked before
installation. It mainly includes the following two contents:
Is there enough space for installing this product
Is there a power supply suitable for the work of this product
When installing, first determine the installation position of the product,
align the mounting holes of the switch with the holes on the rack, and fix it with
4 screws. The recommended specification is M5*14.
2.2.3. Cable connection
After the correct installation, the cables can be installed and connected,
mainly including the cable connections of the following interfaces.
Working interface

MIEN2016/2018/2024/2026 Rack Mount Industrial Ethernet Switch
- 8 -
The terminal device interface provided by this product is a
10Base-T/100Base-TX Ethernet RJ45 interface, which uses a straight-through
network cable to connect to the terminal device and a crossover network cable
to connect to the network device.
Connect to power
When all other cables are connected, you can connect to the power supply
of the product identification specification.
2.2.4. Fiber optic connection
Both MIEN2018-2S/M and MIEN2026-2S/M products provide two
100Base-TX single-mode or multi-mode optical fiber interfaces. The type of
fiber interface can be selected as SC, ST or FC according to requirements.
Note:
This switch uses lasers to transmit signals on fiber optic cables. The
laser meets the requirements of Class 1 laser products, and normal
operation is harmless to eyes. However, when the equipment is powered on,
do not look directly at the optical transmission port and the end face of the
optical fiber terminator.
For modules with a transmission distance greater than 60km, do not use
short optical fibers (below 20km) to connect, so as not to cause the optical
saturation and overpower at the receiving end of the module to burn.
The steps to connect the pluggable fiber optic module are as follows:
Remove and keep the rubber sleeve of the LC, SC or FC port. When not
in use, put on a rubber sleeve to protect the fiber terminator.
Check whether the fiber terminator is clean. Slightly moisten a clean
paper towel or cotton ball, and gently wipe the cable plug. Dirty fiber optic
terminator will reduce the quality of optical transmission and affect port
performance.
Connect one end of the optical cable to the optical fiber interface of the
switch, and the other end to the optical fiber interface of another device.
After the connection is completed, please check the corresponding
LINK/ACT indicator of the optical port on the front panel of the switch. If the
indicator is on, the connection is valid.
2.2.5. Laying cables
The cable layout must meet the following conditions:
Check whether the specifications, models and quantities of all cables are
in accordance with the construction drawing design and contract requirements
before laying out the cables

MIEN2016/2018/2024/2026 Rack Mount Industrial Ethernet Switch
- 9 -
Before laying the cable, check whether the cable is damaged, whether
there are factory records and quality assurance certificates that prove its
quality
The specifications, quantity, routing direction, and location of the cables
to be laid should meet the design requirements of the construction drawing,
and the wiring length of each cable should be determined according to the
actual location
User cables and power cords are laid separately
There must be no broken wires or joints in the middle of the laid cables
The cables should be laid out neatly in the aisle, and the bends should
be even, smooth and straight
The cable should be straight in the channel, and should not go out of the
channel and block other cable entry and exit holes. The cable should be tied
and fixed at the location of the cable exit from the channel or the cable bend.
When the cables, power cords, and ground wires are laid in the same
slot, the cables, power cords and ground wires cannot be overlapped or mixed.
When the cable is too long, the cable must be neatly placed in the middle of the
cable rack, and cannot be pressed on other cables
When laying pigtails, prevent the optical cable from knotting and
minimize the turning points, and the turning radius should not be too small. The
lashing should be moderately tight and not too tight. When laying on the cable
rack, it should be placed separately from other cables
Both ends of the cable should have corresponding marks, and the
content of the marks is concise and easy to maintain
Note:
When laying pigtails, prevent the optical cable from kinking and
minimize the turning point, and the turning radius should not be too small. If
the turning radius is too small, it will cause serious loss of the link optical
signal. Affect the quality of communication.
2.3. Simple test
2.3.1. System self-check
All the service port indicators on the front panel will flash once when the
device is powered on, indicating that the port is working normally. After that, the
corresponding Power will always be on, and the Run light (system running
status indicator) will flash at intervals of 1s.

MIEN2016/2018/2024/2026 Rack Mount Industrial Ethernet Switch
- 10 -
2.3.2. Copper port test
As shown in Figure 2-7, power up the device, connect any two electrical
ports to the network ports of two test computers through a direct-connected
network cable, and send Ping commands to each other. Both parties can
correctly ping each other without packet loss. It means that the hardware of the
tested two copper ports is working normally.
Figure 2-7 Schematic diagram of electrical port test
2.3.3. Fiber port test
Combine the two devices into an optical fiber chain network as shown in
Figure 2-8. Any electrical port of each device is connected to the test computer
through a direct-connected network cable, and PING commands are sent to
each other, and both parties can correctly PING to each other without packet
loss. At the same time, the LINK/ACT light corresponding to the optical port
should be on. It means that the hardware of the two fiber ports under test is
working normally, and the other optical ports are tested in the same way.
Figure 2-8 Schematic diagram of optical port test
PING command example:
The IP address of test computer 1 is 192.168.0.10, and the IP address of
test computer 2 is 192.168.0.11. First, make sure that the first item "Allow
incoming echo requests" in the local connection ICMP settings of the firewall of
the two machines is checked. The operation method is to open the advanced
page in the windows firewall settings and set the ICMP protocol, as shown in

MIEN2016/2018/2024/2026 Rack Mount Industrial Ethernet Switch
- 11 -
Figure 2-9.

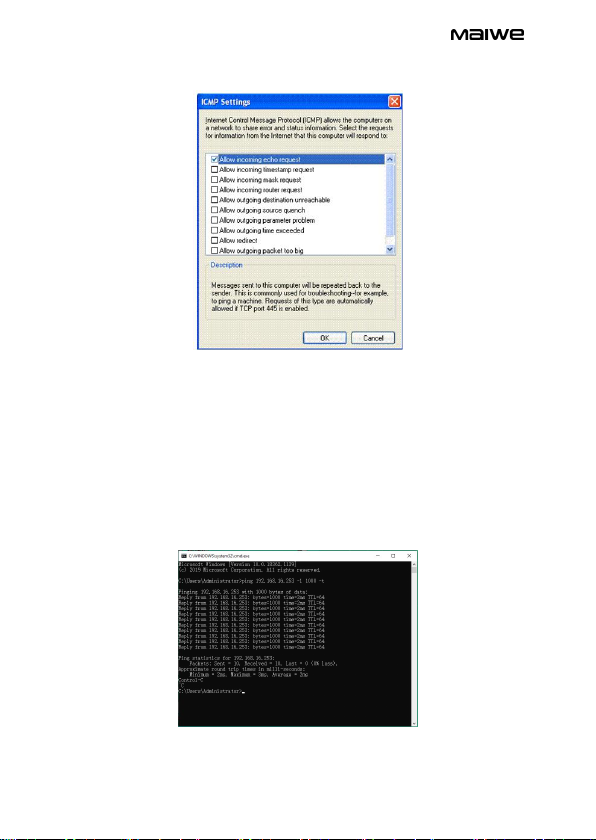

Figure 2-9 ICMP setting interface diagram
Then click Start→Run of test computer 1, enter cmd or command (cmd for
Win2000/XP system, command for WIN98/95 system), a console window will
pop up, and send ping 192.168.0.11 –l 1000 –t, (–l It refers to the number of
bytes to send data packets, -t refers to continuously sending data), run ping
192.168.0.10 -l 1000 -t in test computer 2 in the same way. If test computer 1
returns Reply from 192.168.0.11: bytes=1000 time<10ms TTL=128, test
computer 2 returns Reply from 192.168.0.10: bytes=1000 time<10ms TTL=128,
use CTL+ after running for more than 10 minutes The C command statistics
packet loss rate is 0, indicating that the device is working normally. As shown in
Figure 2-10.
Figure 2-10 The result of inputting the ping test computer in CMD

MIEN2016/2018/2024/2026 Rack Mount Industrial Ethernet Switch
- 12 -
3. Maintenance and Service
From the date of product shipment, Wuhan provides a five-year product
warranty. According to the product specifications of Wuhan Maiwe
Communication Co., Ltd., during the warranty period, if the product has any
malfunction or functional operation failure, Maiwe will repair or replace the
product for the user free of charge. However, the above commitment does not
cover damage caused by improper use, accidents, natural disasters, incorrect
operation or incorrect installation.
To ensure that consumers benefit from the products of Maiwe, help and
problem solving can be obtained through the following methods:
Internet Service
Call the technical support office
Product repair or replacement
3.1. INTERNET service
Through the technical support section of Maiwe website, you can get more
useful information and usage skills.
3.2. Technical support telephone service
Users who use the products of Wuhan Maiwe Communication Co., Ltd.
can call the technical support office of Maiwe. Maiwe has professional
technical engineers to answer your questions and help you in the first time to
solve the product or usage problems you encountered.
3.3. Product repair or replacement
For product maintenance, replacement or return, in accordance with the
processing procedures of Wuhan Maiwe Communication Co., Ltd., you should
first confirm with the technicians of Maiwe and then negotiate with the sales
staff to complete the repair, replacement or return of the product.
Appendix
Selection guide
100M fiber port single-mode/ multi-mode optional, connector SC/ST/FC
optional
Model
100M fiber port
10/100M copper port
MIEN2016
0
16
MIEN2024
0
24
MIEN2018-2S/M
2
16
MIEN2026-2S/M
2
24

MIEN2016/2018/2024/2026 Rack Mount Industrial Ethernet Switch
- 13 -
Our company has the right to change the product model without
notifying the user. For the latest information, please consult our company's
market or technical support staff.
.

WUHAN MAIWE COMMUNICATION CO.,LTD
Add.:Building 2, Area E, Phase ii, Optical valley core center, No.52,
Liufang road, East Lake Hi-tech Development Zone,Wuhan,China
Phone: [phone]
Fax: [phone]
www.maiwe.com
