Makita 4191DZ User manual

01-2003
12V GLASS & TILE CUTTER Model 4191DWA(MCA)
Model 4191DZ(MCA)

2 Model 4191DWA
2 Model 4191DZ
Item Part No.
No. No. Used Description Item Part No. No. No. Used Description
1343530-1 1Band B
2911148-2 1P.H. Screw M4x25
3221882-9 1Spur Gear 15
4629688-3 1DC Motor 12V
5416142-4 1Motor Housing
6421198-4 1Cap
7242030-7 1Tank
8911148-2 1P.H. Screw M4x25
9163159-5A 1Tank Holder
10 261056-0 1Rubber Washer 12
11 416146-6 1Cap
12 416186-4 1Vinyl Tube 5
13 *1Nut
14 233024-3 1Compression Spring 4
15 265995-6 3Tapping Screw 4x18
16 415680-3 1Lock Off Lever
17 182850-6 1Housing Set
18 423294-4 1Rubber Sheet
19 643909-9 1BatteryHolder
20 343579-1 1Set Plate
21 423294-4 1Rubber Sheet
23 911148-2 1P.H. Screw M4x25
25 266050-7 2Tapping Screw Flange PT 4x30
26 266050-7 1Tapping Screw Flange PT 4x30
27 931202-6 1Hex Nut M5
28 265995-6 3Tapping Screw 4x18
29 651891-8 1Switch
30 931102-0 1Hex Nut M4
31 415679-8 1Switch Lever
32 214027-6 1Plane Bearing 4
33 226819-1 1Gear Com. 8-68
34 253307-5 1Thin Washer 4
35 214019-5 1Plane Bearing 4
36 961004-6 1Retaining Ring S-8
37 226448-0 1Helical Gear 33
38 253215-0 1Flat Washer 8
39 211033-2 1Ball Bearing 608LB
40 231240-1 1Compression Spring 7
41 268002-4 1Pin 5
42 152536-6 1Water Supply Cock Com. (Includes
213014-2 O Ring 3)
43 251899-8 1Screw M5x10
44 251899-8 1Screw M5x10
45 942101-7 1Spring Washer 5
46 941101-4 1Flat Washer 5
47 *1Base
48 951131-7 1Spring Pin 4-40
49 941101-4 1Flat Washer 5
50 942101-7 1Spring Washer 5
51 251899-8 1Screw M5x10
52 961011-9 1Stop Ring E-4
53 331483-6 1Nozzle
54 254031-3 1Woodruff Key 3
55 322810-8 1Spindle
56 211061-7 1Ball Bearing 6000LLB
57 416147-4 1Blade Case
58 265995-6 3Tapping Screw 4x18
59 415677-2 1Bearing Box
60 421561-1 1Packing
61 163372-5 1Retainer
62 224324-2 1Inner Flange 28
63 224177-9 1Outer Flange 28
64 922212-4 1Hex Socket Head Bolt M5x12
65 344595-6 1Angular Guide
66 268028-6 1Pin 5
67 344593-0 1Depth Guide
68 268004-0 1Pin 4
69 961017-7 2Stop Ring E-3
100 654069-2 2Receptacle

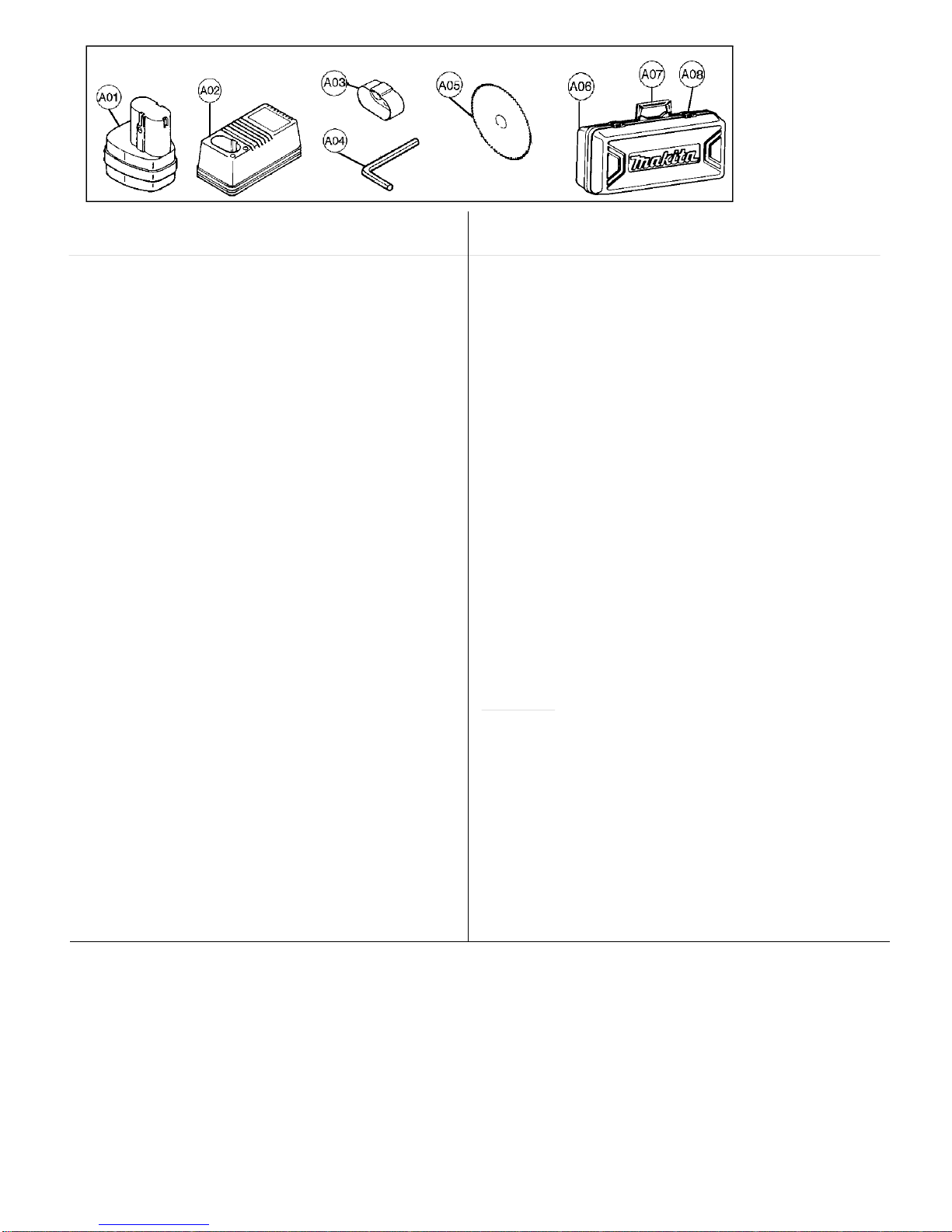

Accessories
A01 192681-5 112V Ni-Cad Battery 1220 (1.3Ah)
192296-8 112V Ni-CadBa ttery 1201 (1.7Ah)
192598-2 112V Ni-Cad Battery 1222 (2.0Ah)
A02 DC1411 1Charger For Ni-Cad & Ni-MH
7.2V ~ 14.4V, 1.3Ah ~ 3.0Ah Batteries
A03 414938-7 1Battery Cover
A04 783202-0 1Hex Wrench 4
A05 724950-8C 13-3/8" Diamond Wheel (Old A-07179)
A06 A82445-2 1Plastic Carrying Case
(Includes Items A07 & A08)
A07 A00181-7 1Black Plastic Handle
A08 A00188-3 2Snap Lock
*SEE SERVICE CHANGES

3 Model 4191DWA
3 Model 4191DZ
SERVICE CHANGES
1. Change on Method of attaching Angular Guide.
Item No. Description Type 1 Type 2
47 Base 168301-3 168318-6
65 Angular Guide - - - - - 344595-6
66 Pin 5 - - - - - 268028-6
67 Depth Guide - - - - - 344593-0
68 Pin 4 - - - - - 268004-0
69 Stop Ring E-3 - - - - - 961017-7 (2 pcs)
Above parts are completely interchangeable as a set.
2. Change on Nut, Addition of O Ring.
Item No. Description Type 1 Type 2
13 Nut 416145-8
- - - - - Space provided for O Ring
70 O Ring 7 - - - - - 213026-5
Above parts are completely interchangeable as a set.
