GB Cordless Angle Screwdriver INSTRUCTION MANUAL
SBatteridriven vinkelskruvdragare BRUKSANVISNING
NBatteridrevet vinkeltrekker BRUKSANVISNING
FIN
Akkukäyttöinen kulmaruuvinväännin KÄYTTÖOHJE
LV Bezvada leņķa skrūvgriezis LIETOŠANAS INSTRUKCIJA
LT
Belaidis atsuktuvas su kampiniu lizdu NAUDOJIMO INSTRUKCIJA
EE Juhtmeta nurkkruvikeeraja KASUTUSJUHEND
RUS
Аккумуляторный угловой шуруповёрт РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
BFL061F
BFL082F
BFL122F
BFL202F

2
1
2
3
1 013042 2 008971
1
3 003617
1
A
B
4 003618
2
1
5 003619
1
2
6 013070
1
2
3
48
5
6
7
7 013090
1
2
3
8 003623
1
2
9 004170
1
10 001145
1
2
11 003628

3
ENGLISH (Original instructions)

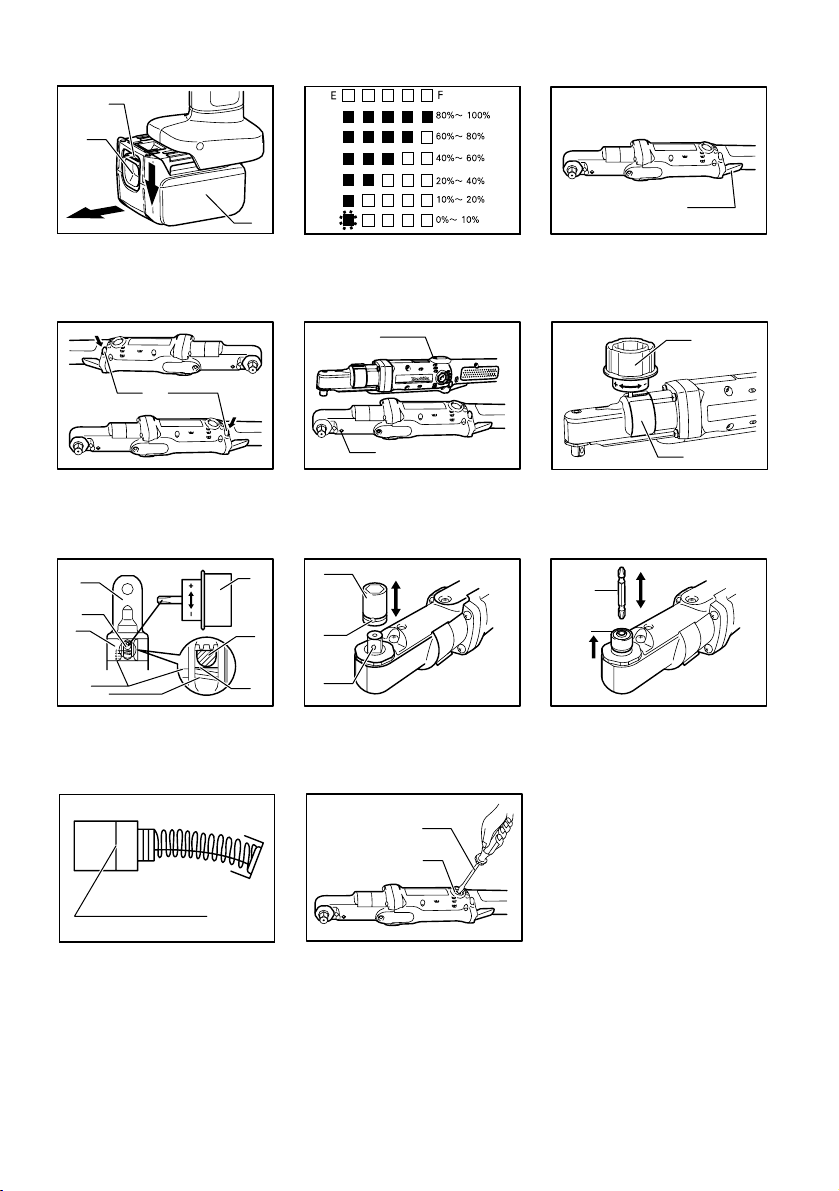

Explanation of general view
1-1. Red indicator
1-2. Button
1-3. Battery cartridge
3-1. Switch trigger
4-1. Reversing switch lever
5-1. Lamp
5-2. LED indicator
6-1. Adjusting grip
6-2. Ring
7-1. Angle head
7-2. Adjusting ring
7-3. Ring
7-4. Scale
7-5. Adjusting grip
7-6. Hole for adjusting grip
7-7. Yellow line
7-8. Compression spring
8-1. Socket
8-2. Hole
8-3. Pin
9-1. Screw bit
9-2. Sleeve
10-1. Limit mark
11-1. Screwdriver
11-2. Brush holder cap
SPECIFICATIONS
Model BFL061F BFL082F BFL122F BFL202F
Hard joint 1.5 - 6 N•m 2 - 8 N•m 5 - 12 N•m 8 - 20 N•m
Fastening torque Soft joint 1.5 - 6 N•m 2 - 8 N•m 5 - 12 N•m 8 - 20 N•m
Angle drive head 9.5 mm square or 6.35 mm hex
No load speed (min-1) 470 700 410 220
422 x 74 x 98 mm (with Battery Cartridge BL1430)
Dimensions 405 x 74 x 98 mm (with Battery Cartridge BL1415)
1.7 kg (with Battery Cartridge BL1430)
Net weight 1.5 kg (with Battery Cartridge BL1415)
Rated voltage D.C. 14.4 V
Battery cartridge BL1430 / BL1430A / BL1415
• Due to our continuing programme of research and development, the specifications herein are subject to change without notice.
• Specifications and battery cartridge may differ from country to country.
• Weight, with battery cartridge, according to EPTA-Procedure 01/2003
ENE033-1
Intended use
The tool is intended for screw driving in wood, metal and
plastic.
ENG905-1
Noise
The typical A-weighted noise level determined according
to EN60745:
Sound pressure level (LpA) : 70 dB(A) or less
Uncertainty (K) : 3 dB(A)
The noise level under working may exceed 80 dB(A)
Wear ear protection
ENG900-1
Vibration
The vibration total value (tri-axial vector sum) determined
according to EN60745:
Work mode: screwdriving without impact
Vibration emission (ah) : 2.5 m/s2or less
Uncertainty (K) : 1.5 m/s2
ENG901-1
• The declared vibration emission value has been
measured in accordance with the standard test
method and may be used for comparing one tool
with another.
• The declared vibration emission value may also be
used in a preliminary assessment of exposure.
WARNING:
• The vibration emission during actual use of the
power tool can differ from the declared emission
value depending on the ways in which the tool is
used.
• Be sure to identify safety measures to protect the
operator that are based on an estimation of
exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it
is running idle in addition to the trigger time).
ENH101-16
For European countries only
EC Declaration of Conformity
We Makita Corporation as the responsible
manufacturer declare that the following Makita
machine(s):
Designation of Machine:
Cordless Angle Screwdriver
Model No./ Type: BFL061F, BFL082F, BFL122F, BFL202F
are of series production and

4
Conforms to the following European Directives:
2006/42/EC
And are manufactured in accordance with the following
standards or standardised documents:
EN60745
The technical documentation is kept by:
Makita International Europe Ltd.
Technical Department,
Michigan Drive, Tongwell,
Milton Keynes, Bucks MK15 8JD, England
26.12.2011
000230
Tomoyasu Kato
Director
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi, 446-8502, JAPAN
GEA010-1
General Power Tool Safety
Warnings
WARNING Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for
future reference.
GEB050-2
CORDLESS SCREWDRIVER
SAFETY WARNINGS
1. Hold power tool by insulated gripping
surfaces, when performing an operation
where the fastener may contact hidden wiring.
Fasteners contacting a "live" wire may make
exposed metal parts of the power tool "live" and
could give the operator an electric shock.
2. Always be sure you have a firm footing.
Be sure no one is below when using the tool in
high locations.
3. Hold the tool firmly.
4. Keep hands away from rotating parts.
5. Do not touch the bit or the workpiece
immediately after operation; they may be
extremely hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
WARNING:
DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence
to safety rules for the subject product. MISUSE or
failure to follow the safety rules stated in this
instruction manual may cause serious personal
injury.
ENC007-7
IMPORTANT SAFETY
INSTRUCTIONS
FOR BATTERY CARTRIDGE
1. Before using battery cartridge, read all
instructions and cautionary markings on (1)
battery charger, (2) battery, and (3) product
using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical
attention right away. It may result in loss of
your eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any
conductive material.
(2) Avoid storing battery cartridge in a
container with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current flow,
overheating, possible burns and even a
breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 ﾟC (122 ﾟF).
7.
Do not incinerate the battery cartridge even if it
is severely damaged or is completely worn out.
The battery cartridge can explode in a fire.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
SAVE THESE INSTRUCTIONS.
Tips for maintaining maximum battery life
1. Charge the battery cartridge before
completely discharged.
Always stop tool operation and charge the
battery cartridge when you notice less tool
power.
2. Never recharge a fully charged battery
cartridge.
Overcharging shortens the battery service life.
3. Charge the battery cartridge with room
temperature at 10 ﾟC - 40 ﾟC (50 ﾟF - 104 ﾟF).
Let a hot battery cartridge cool down before
charging it.

5
4. Charge the battery cartridge once in every six
months if you do not use it for a long period of
time.
FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and the
battery cartridge is removed before adjusting or
checking function on the tool.
Installing or removing battery cartridge
Fig.1
CAUTION:
• Always switch off the tool before installing or
removing of the battery cartridge.
• Hold the tool and the battery cartridge firmly
when installing or removing battery cartridge.
Failure to hold the tool and the battery cartridge
firmly may cause them to slip off your hands and
result in damage to the tool and battery cartridge
and a personal injury.
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip it
into place. Insert it all the way until it locks in place with a
little click. If you can see the red indicator on the upper
side of the button, it is not locked completely.
CAUTION:
• Always install the battery cartridge fully until the red
indicator cannot be seen. If not, it may accidentally
fall out of the tool, causing injury to you or someone
around you.
• Do not install the battery cartridge forcibly. If the
cartridge does not slide in easily, it is not being
inserted correctly.
Battery remaining capacity indicator (only for
models with Battery BL1430A)
Battery BL1430A is equipped with the battery remaining
capacity indicator.
Checking the remaining battery capacity
Fig.2
When charging
When the charging begins, the first (far left) indicating
lamp begins to flicker. Then, as charging proceeds, the
other lamps light, one after the other, to indicate the
battery capacity.
When using
When the tool is switched on, the lamps will light to
indicate the remaining battery capacity. When the tool is
switched off, the light goes out after approx. 5 seconds.
When the orange lamp lights up or flickers, the tool stops
because of little remaining battery capacity. (Auto-stop
mechanism: The tool works only for a second but stops
immediately.) Charge the battery cartridge at this time or
use a charged battery cartridge at this time.
When the tool is used with the battery that has not been
used for a long time and is switched on, no lamps may
not light up at all. The tool stops because of little
remaining battery capacity at this time. (The tool may
work only for a second but stops immediately.) Use
Makita refreshing adapter to refresh the battery.
Switch action
Fig.3
CAUTION:
• Before inserting the battery cartridge into the tool,
always check to see that the switch trigger actuates
properly and returns to the "OFF" position when
released.
To start the tool, simply pull the switch trigger. Release
the switch trigger to stop.
Reversing switch action
Fig.4
CAUTION:
• Always check the direction of rotation before
operation.
• Use the reversing switch only after the tool comes
to a complete stop. Changing the direction of
rotation before the tool stops may damage the tool.
• When not operating the tool, always set the
reversing switch lever to the neutral position.
This tool has a reversing switch to change the direction of
rotation. Depress the reversing switch lever from the A
side for clockwise rotation or from the B side for
counterclockwise rotation.
When the reversing switch lever is in the neutral position,
the switch trigger cannot be pulled.
Lighting up the lamps
Fig.5
CAUTION:
• Do not look in the light or see the source of light
directly.
Pull the switch trigger to light up the lamp. The lamp
keeps on lighting while the switch trigger is being pulled.
The light automatically goes out 10 seconds after the
switch trigger is released.
NOTE:
• Use a dry cloth to wipe the dirt off the lens of lamp.
Be careful not to scratch the lens of lamp, or it may
lower the illumination.

6
LED indicator / Beeper
Led indicator / Beeper on the tool shows the following
functions.
LED indicator Beeper
Auto-stop fastening
This function works when the tool has reached
the preset fastening torque and normal
tightening has been completed. This helps
overtightening to be avoided.
Delayed re-start
For approximately one second after auto-stop
fastening, the tool does not start even if the
switch trigger is pulled.
Warning against
insufficient fastening
Insufficient fastening has been performed
when the switch trigger has released before
reaching the preset fastening torque.
Lights up in red. Along beep
Lights up in red. Along beep
Retighten the
screw.
Warning for battery
cartridge capacity
This indicates the appropriate time to replace
the battery cartridge when the battery power
becomes low.
Flickers in red slowly. Aseries of long
beeps
Flickers in red quickly. Aseries of short
beeps
Aseries of short
beeps
Replace the battery
with fully charged
one.
Replace the battery
with fully charged
one.
Replace the battery
with fully charged
one.
Checking the
remaining battery
capacity, Autostop
This function works when the battery power
is almost used up. At this time, tool stops
immediately.
Check the LED
indicator, lamp and
beeper operation
This function works to check the proper
operation of the LED indicator, lamp and
beeper when a battery cartridge has been
inserted into the tool.
Lights up first in green,
next red.
(And then the lamp
comes on.)
Aseries of very
short beeps
-
Anti-reset of
controller
This function works when an abnormal drop
of the battery voltage occurs for some reason,
and the tool stops.
Flickers in red and
green alternatively.
Aseries of short
beeps
Overheat
This function works when the temperature
of the controller goes up very highly,
and the tool stops.
Remove the battery
cartridge immediately
and cool the tool
down.
Operation error of
the switch trigger
This function works to avoid the tool's
immediate start upon insertion of battery
cartridge into the tool with the switch trigger
being pulled.
Flickers in red and
green alternatively.
Release the switch
trigger.
Function Status Action to be taken
Lights up in green for
approximately one
second.
--
Status of the LED indicator/beeper
Warning for limit of
the fastening
capacity
The tool automatically stops without the clutch
working when exceeding the fastening capacity
limit.
Flickers in red and
green alternatively.
Aseries of short
beeps
Remove the battery
cartridge and then
install it again.
Be sure to use the
tool under load within
its capacity.
013073

7
Adjusting the fastening torque
Fig.6
When you wish to drive machine screws, wood screws,
hex bolts, etc. with the predetermined torque, adjusting
the fastening torque as follows.
1. First remove the battery cartridge from the tool.
2. Loosen the screws securing the lamp cover.
3. Rotate the ring in the front of the tool by hand so
that a hole can be seen below the ring.
4. Place the battery cartridge in place and pull the
switch trigger. Release it so that the adjusting ring
rotates and becomes visible in the hole. And then
remove the battery cartridge.
Fig.7
5. Use an optional adjusting grip to adjust the
fastening torque. Insert the pin of the adjusting grip
into the hole in the front of the tool. And then, turn
the adjusting grip clockwise to set a greater
fastening torque, and counterclockwise to set a
smaller fastening torque.
6. Align the edge of the adjusting ring with your
desired number on the fastening torque scale.
7. Align the yellow line with your desired number on
the fastening torque scale.
8. Insert the battery cartridge and be sure that a
fastening torque has been set up by using a
fastening torque tester.
9. Tighten the screws to secure the lamp cover and
then rotate the ring in front of the tool until the ring
is locked.
NOTE:
• Numbers on the fastening torque scale is a
guideline to set up your desired fastening torque.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and the
battery cartridge is removed before carrying out
any work on the tool.
Selecting correct socket or screw bit
There are different types of sockets or bits for some
models depending on applications. Choose and install a
correct socket or bit for your application.
Installing or removing socket
Fig.8
To install the socket, push it onto the square drive of the
tool with one hand by depressing a pin on the square
drive with another hand until it locks into place. To
remove the socket, simply pull it off depressing the pin on
the square drive.
Installing or removing bit
Fig.9
For tools with retracting sleeve
To install the bit, pull the sleeve in the direction of the
arrow and insert the bit into the sleeve as far as it will go.
Then release the sleeve to secure the bit.
To remove the bit, pull the sleeve in the direction of the
arrow and pull the bit out firmly.
For tools without retracting sleeve
To install the bit, just insert the bit into the spindle as far
as it will go. To remove the bit, pull the bit out firmly.
OPERATION
Hold the tool firmly and place the socket over the bolt or
nut. Then switch the tool on. When the clutch cuts in, the
motor will stop automatically. Then release the switch
trigger.
NOTE:
• Hold the tool with its square drive pointed straight at
the bolt or nut, or the bolt or nut will be damaged.
Limits of fastening capacity
Use the tool within the range of the revolution angle up to
360 ﾟ. If you use the tool beyond the upper limit of this
range, the clutch does not work. And the tool cannot
deliver enough fastening torque (LED flickers in red and
green alternatively).
NOTE:
• The revolution angle means the angle which a
screw/bolt revolves when the tool attains to 100%
from 50% of desired torque.
• Use of a low temperature conditioned battery
cartridge may sometimes give warning for battery
cartridge capacity by warning lamp and beeper
which makes the tool stop immediately. In this case,
the fastening capacity may be inferior to the
specification on this manual even if a charged
battery cartridge is used.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and the
battery cartridge is removed before attempting to
perform inspection or maintenance.
• Never use gasoline, benzine, thinner, alcohol or the
like. Discoloration, deformation or cracks may
result.
Replacing carbon brushes
Fig.10
Remove and check the carbon brushes regularly.
Replace when they wear down to the limit mark. Keep
the carbon brushes clean and free to slip in the holders.
Both carbon brushes should be replaced at the same

8
time. Use only identical carbon brushes.
Fig.11
Use a screwdriver to remove the brush holder caps. Take
out the worn carbon brushes, insert the new ones and
secure the brush holder caps.
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be
performed by Makita Authorized Service Centers, always
using Makita replacement parts.
OPTIONAL ACCESSORIES
CAUTION:
• These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• Protector
• Makita genuine battery and charger
• Angle head set
• Adjusting grip
• Anti kickback head
NOTE:
• Some items in the list may be included in the tool
package as standard accessories. They may differ
from country to country.
