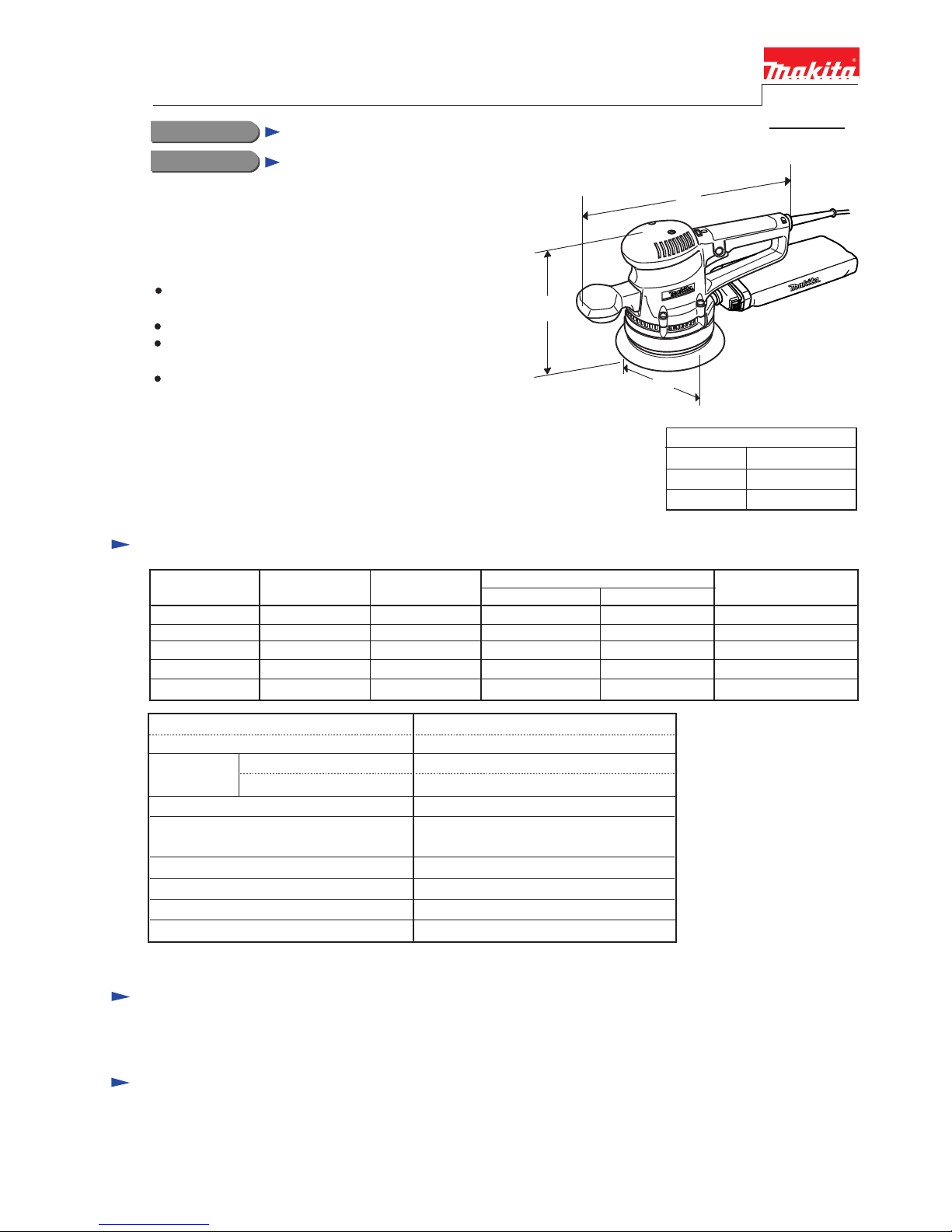

Makita BO6030 Manual

Specifications
Standard equipment
CONCEPTION AND MAIN APPLICATIONS
Models No.
Description
PRODUCT
Optional accessories
BO6030
Random Orbit Sander 150mm (6")
H
W
L
Dimensions : mm ( " )
Width (W)
Height (H)
Length (L)
150 (5-7/8)
181 (7-1/8)
309 (12-1/8)
Continuous rating (W)
Voltage (V) Cycle (Hz) Input Output Max. Output(W)
110
120
220
230
240
Current (A)
50 / 60 310 160 200
3.0 50 / 60 310 160 200
2.7
50 / 60 310 160 200
1.5
50 / 60 310 160 200
1.4
50 / 60 310 160 200
1.4
Pad diameter : mm (")
Sanding stroke rate (*min-1)
Orbits (*min-1)
No load speed
Dust extraction system
*min-1 = per minute
150 (6)
Pad fastening system Hook and Loop
8,000 - 20,000
Orbit diameter : mm (") 3.0 (1/8)
4,000 - 10,000
Integral dust extraction
(through the sanding plate with dust bag)
Protection from electric shock by double insulation
Net weight : Kg (lbs)
Cord length : m (ft)
2.3 (5.1)
2.5 (8.2)
Model BO6030 is a new Random Orbit Sander 150mm (6")
with two handles from Makita, featuring;
Tough exterior construction - durable motor housing
and sturdy aluminum fan housing - for pro's hard jobs
Ergonomic design for controlled operation
Optimum speed selection and assorted accessories
for a wide range of sanding jobs
Superiority to the competing model, FESTO #ET2E
in sanding efficiency and dust extraction rate
See page 2 and 3 for more detailed information.
*Abrasive disc 150-#120 ............................. 1 pc.
*Hex wrench 6 ............................................ 1 pc.
*Dust bag .................................................... 1 pc.
*Sanding clothes (150mm) ; Grit 100, 240, 800
*Abrasive discs (150mm) ; #40, 60, 80, 120, 180, 240, 400
*Pads (150mm) ; soft, super soft
*Sponge pad (150mm), Felt pad (150mm), Wool pad (150mm)
Sanding plate brake Yes
TECHNICAL INFORMATION
P 1 / 8
*Paper pack
*Paper pack holder

Features and benefits
Assorted Optional Accessories
for a Wide Range of Sanding Jobs
Lower Vibration,
More Efficient Sanding
Variable Speed Control Dial
Pads; soft, super-soft
Abrasive discs
Sanding cloth (for extra fine finish)
Sponge pad
Wool pad (for buffing)
Ergonomic Housing Top;
optimum design
for single-handed operation
Fits your palm ideally because of its
low height and round design.
Detachable Front Handle
Convenient for corner sanding.
(the same handle as BO5020)
Sanding Pad Brake
Saves the workpiece from sanding
scratches when the running machine
is pressed against the workpiece.
"Hook and Loop"
Pad Fastening System
The dust extracting holes
are positioned so as to
accept the accessories of
both FESTO and BOSCH.
Makita BO6030
Compared with competitor A's model A-a in the same class,
BO6030 sands more than model A-a
although its vibration is almost at the same level.
Competitor
Model A-a Competitor
Model A-a
125
120
100
100
(When sanding a workpiece of spruce fir
with the following abrasive papers for two minutes.)
Effective System of
Integrated Dust Extraction
Dust extracting rate (%)
Makita BO6030
The large vacuum fan for more effective dust
extraction.
Can be connected to the Makita vacuum cleaner.
(The diameter of the opening for dust ejection is
the same as BO5020.)
75
61
72
50
Simply turn the dial to preselect
the optimum sanding speed to suit
the material or the desired finish.
Dust Bag Convenient
for Disposal of Dust
Can be detached by merely
pushing a button for quick
disposal of dust.
(the same dust bag as BO5020)
Soft Rubber Grip
Fits your hand perfectly
for controlled operation.
Large and Tough
Cord Guard
Also, its excellent flexibility
protects the cable from
disconnection.
P 2 / 8
Numbers in chart below are relative values when setting
model A-a's capacity as 100.
Grit :60
Grit :120
(When sanding a workpiece of spruce fir
with the following abrasive papers for two minutes.)
Grit :60
Grit :120
50 100 150
Sanding rate
Paper pack holder is supplyed
as an optional accessory.
Paper pack holder
Also FESTO's paper pack can be attached
to Mod.BO6030. See page 6/8
Paper pack

Comparison of products
Makita
No
(feed-back control)
BO6030
310
2.7
Model No.
Spec.
Electronic control
of constant sanding speed
Continuous rating input (W)
Front handle
Dust bag (fabric)
Abrasive disc
Standard equipment
2.3
Net weight : kg (lbs)
181
150
252
(7-1/8)
(5-7/8)
(9-7/8)
150
230
(5-7/8)
(9)
Dimensions
: mm ( " )
Competitor A
Model A-a
310
Dust bag (paper)
2.1
183 (7-1/4 ) 183
150
297
(7-1/4)
(5-7/8)
(11-3/4)
150
286
(5-7/8)
(11-1/4)
195 (7-5/8 )
Competitor C
Model C
340
Front handle
Dust bag (paper)
Abrasive disc
2.1
Competitor B
4,000 - 10,000
Orbits per minute (min-1)4,000 - 10,000 4,500 - 12,000 4,000 - 10,000
8,000 - 20,000 8,000 - 19,000 9,000 - 24,000 8,000 - 20,000
0.9
2.7
1.2
3.5 4.0
12.1 12.9
3.5
Vibration
: (m/s2)
Yes
Sanding pad brake Yes Yes Yes
Hook and Loop
Pad fastening system Hook and Loop Hook and Loop Hook and Loop
3
Orbit diameter : mm (") 3 4 Changeable in
3 and 6
Model B
400
Front handle
2 Dust bags (paper)
3 Abrasive papers
2.7
(5.1) (4.6) (4.6) (5.9)
No No No No
Yes No No
P 3 / 8
Dust extracting system
Protection from electric shock
Integral dust
extraction
Integral dust
extraction
Integral dust
extraction
Integral dust
extraction
by double
insulation
by double
insulation
by double
insulation
by double
insulation
Change from eccentric mode
to eccentric+rotation mode
Stroke per minute (min-1)
No load
Loaded
Length
Width
Height
Rated ampere under 120V (A)

Repair P 4 / 8

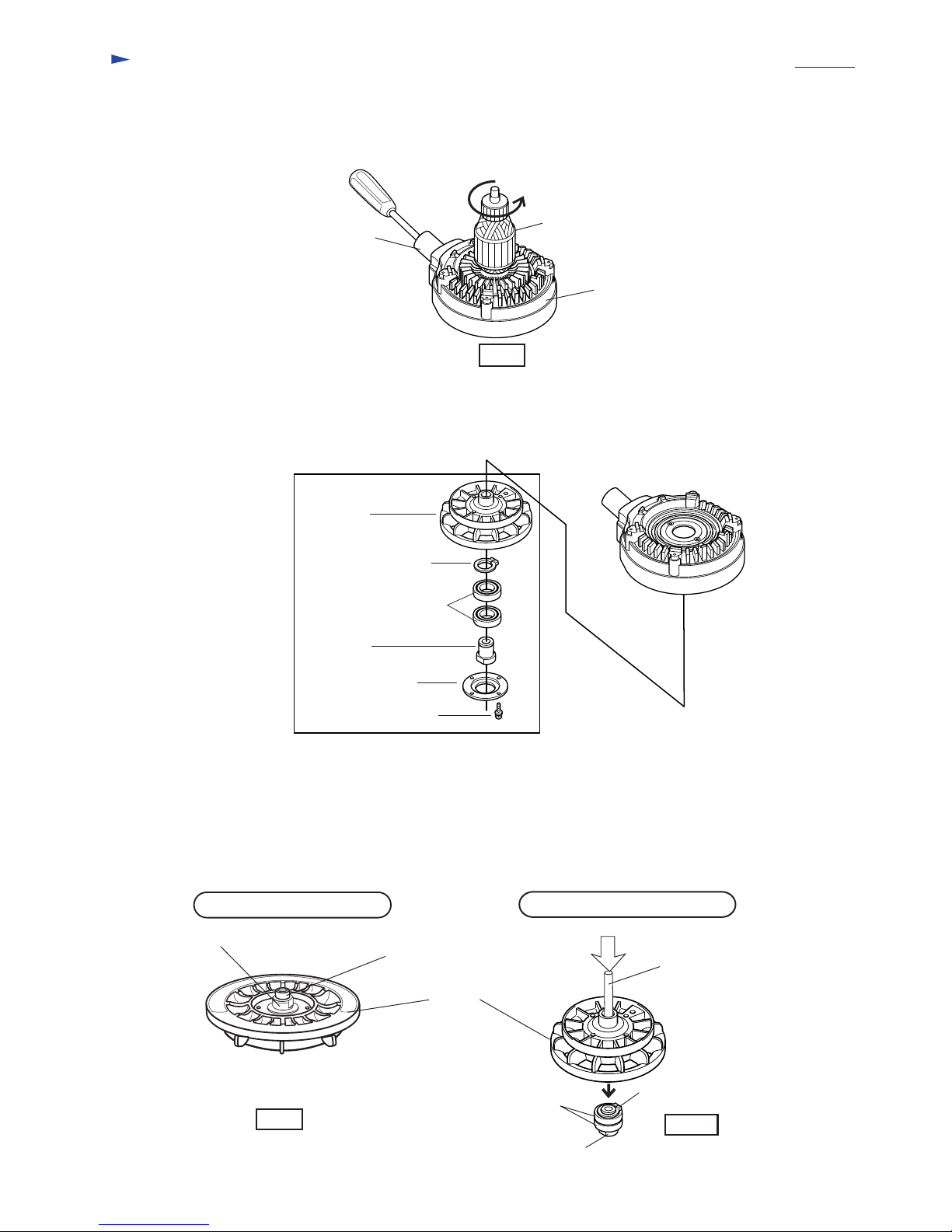

< 1 > Disassembling armature
1. Lock fan 92 (for dust extraction) with screwdriver inserted into dust extracting hole of scirt. See Fig. 1.
2. Turn armature anti-clockwise as illustrated in Fig. 1. Then, armature can be separated from skirt.
Fig. 1
Skirt
Armature
Dust extracting hole
Turn anti-clockwise .
< 2 > Disassembling ball bearing 6902DDW
1. Separate fan 92 section from skirt, after disassembling armature as illustrated in Fig. 2.
Fan 92 section
Fan 92
Fan 92
Ball bearing 6902DDW
Retaining ring S-15
Spindle
Bearing retainer
Pan Hd. screw M3x12
2. Disassemble bearing retainer from fan 92 by unscrewing pan head screw M3x12. See Fig. 2.
3. Screw hex socket head bolt M8x14 (for fastening pad 150) into spindle as illustrated in Fig. 3.
This hex socket head bolt M8x14 functions as a stopper for No.1R234 "round bar for arbor" which is to be
inserted into the hole of fan 92 in order to separate spindle.
Hex socket head bolt M8x14
(for fastening pad 150)
Spindle
View from pad installing side View from armature installing side
Fig. 3 Fig. 3A
No.1R234 Round bar for arbor
4. Insert No.1R234"round bar for arbor" into armature installing hole of fan 92. And press it by arbor press
as illustrated in Fig. 3A. Then, spindle, 2 pcs.of ball bearing 6902DDW and retaining ring S-15 can be removed.
Ball bearing 6902DDW Retaining ring S-15
Spindle

Repair P 5 / 8
Retaining ring S-15
Fig. 5A
Spindle
Ball bearing 6902DDW

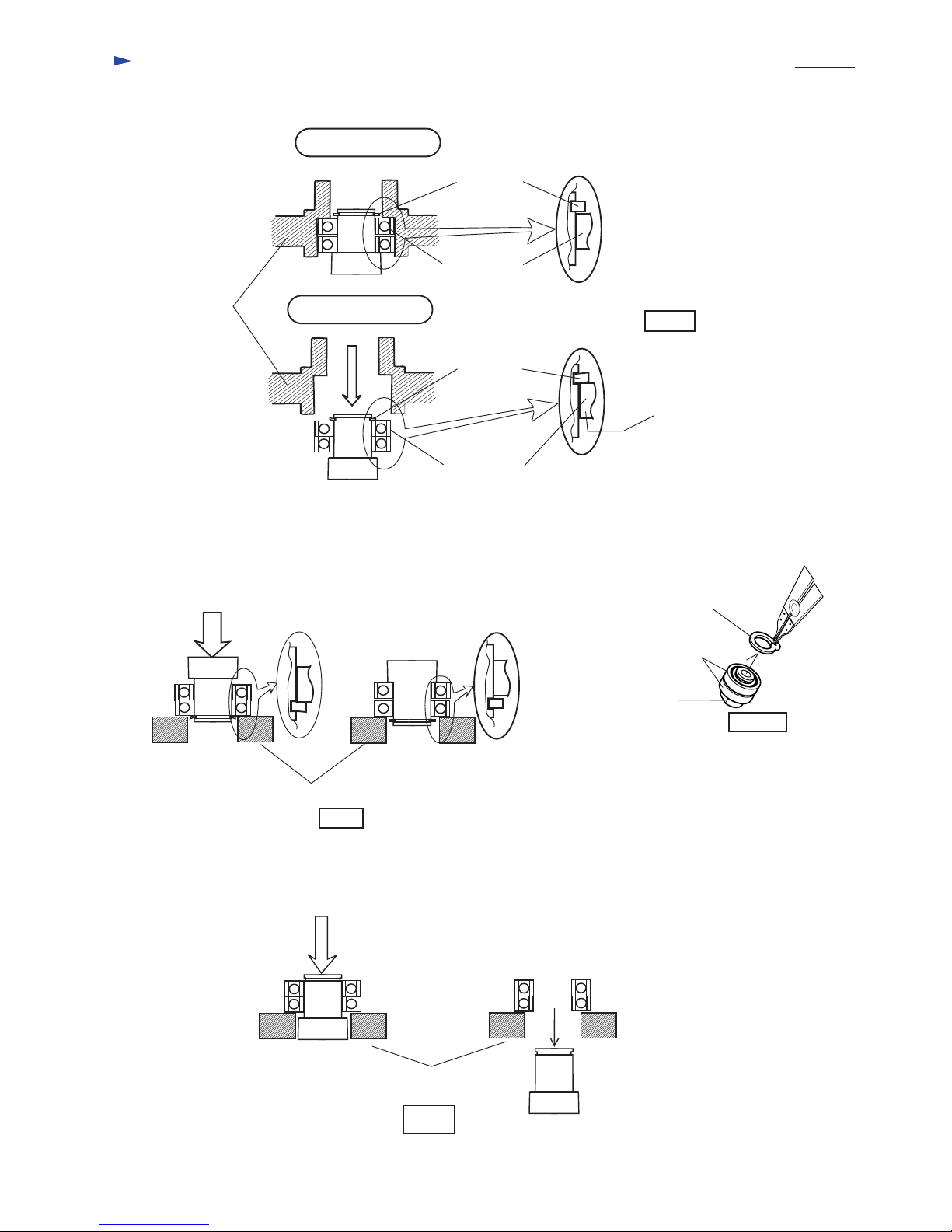

5. Ball bearing 6902DDW puts pressure on retaining ring S-15 which is engaged in the groove of spindle,
because it has been slidden closely to the retaining ring S-15, when separating from fan 92. See Fig. 4.
6. In order to take off pressure on retaining ring S-15, put the spindle on No.1R037 "bearing setting plate"
as illustrated in Fig. 5, and press the spindle. So, ball bearing 6902DDW is returned to the original position.
Consequently the pressure on retaining ring S-15 is taken off, and it can be easily disassembled from spindle
as illustrated in Fig. 5A.
7. Put the spindle from which retaining ring S-15 has been taken off, on No.1R037 "bearing setting plate" as
illustrated in Fig. 6. And disassemble ball gearings 6902DDW by pressing spindle.
Before disassembling
Ball bearing 6902DDW has been
slidden closely to the retaining ring S-15,
and puts pressure on retaining ring S-15.
After disassembling Fig. 4
Retaining
ring S-15
Retaining
ring S-15
Ball bearing
6902DDW
Ball bearing
6902DDW
Fan 92
Press with arbor press.
Press with arbor press.
Spindle
Spindle
No.1R037 "Bearing setting plate"
Fig. 5
No.1R037 "Bearing setting plate"
Fig. 6

Repair P 6 / 8

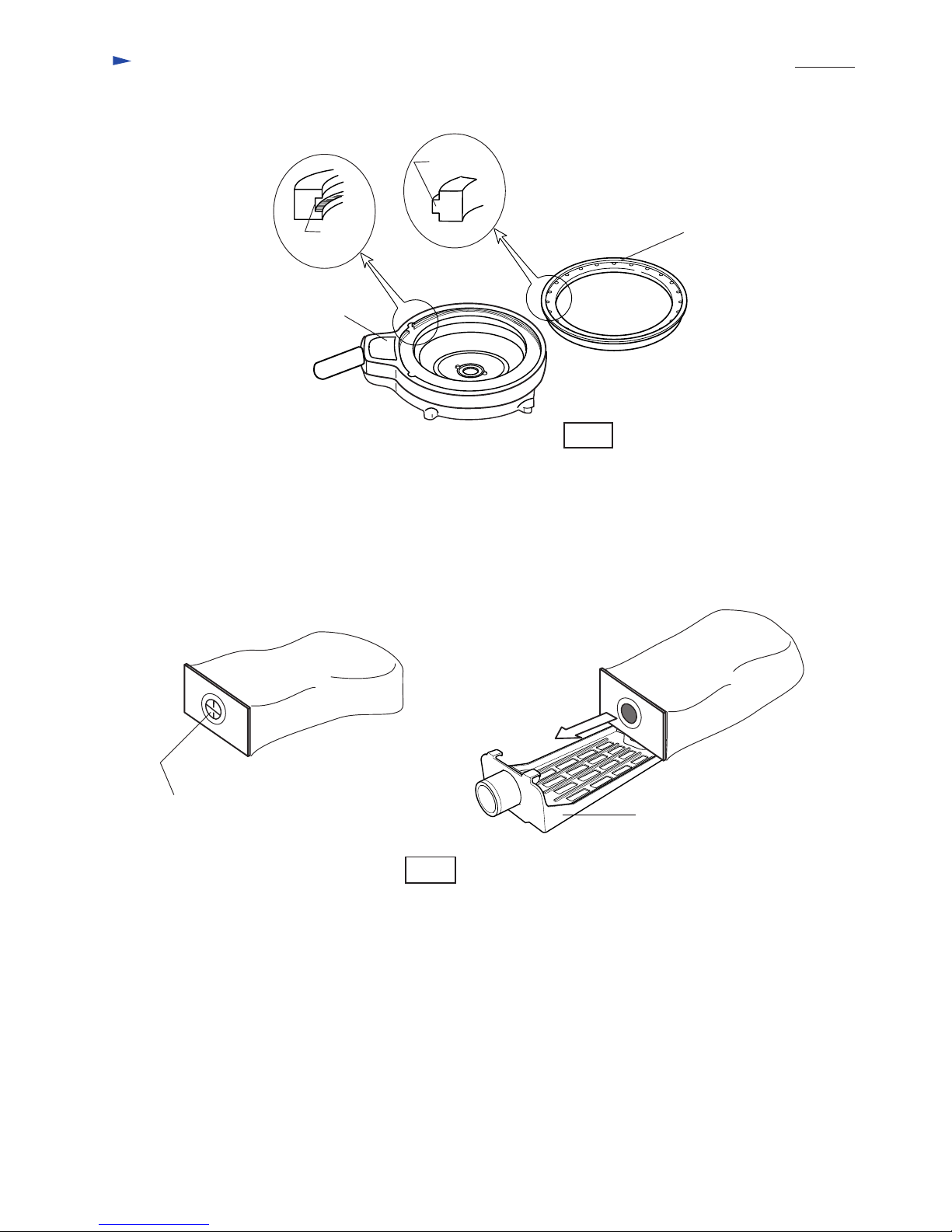

< 3 > Assembling rubber guard
The lip portion of rubber guard has to fit in the groove of skirt as illustrated in Fig. 7.
Lip
Groove
Fig. 7
Rubber guard
Skirt
< 4 > Attaching the other manufacturer's accessory
FESTO's paper pack can be attached to Mod.BO6030, too. In this case, open the paper film with your finger.
And attache the paper pack to paper pack holder. See Fig. 8.
Open the film here with your finger. Paper pack holder
Fig. 8

Circuit diagram
Wiring diagram
P 7 / 8
Support
complete
Controller
Power supply cord
1
2
3
4
Switch
Noise suppressor
With choke coil
Black
Orange
Purple
White
Transparent
Color index of lead wires
Choke coil
Choke coil
to field
white or blue
The other lead wires are
as per the color index listed
above.
Noise suppressor
Switch
Controller
Do not make the lead wires
loose in this area.
Inflect the terminal as per
the illustration to reserve the
space for noise suppressor.
Support lead wire (Black)
Support lead wire (Purple)
Fix support lead
wire (Purple) with
lead holder.
Fix choke coil lead
wire (Purple) and controller lead wire
(white) to be connected to brush holder,
with lead holder.
Put the loose portion of lead wires,
choke coil and insulated terminal
in this space.
Fix lead wires with
lead holder. Support lead wire (Black)
Support lead wire (Orange)
Fix lead wires with
lead holder.
Fix lead wires with
lead holder.
Controller lead
wire (Black)
Put the loose portion of controller lead wire
into the space between boss and controller.

Circuit diagram
Wiring diagram
P 8 / 8
Without choke coil
Black
Orange
Purple
White
Transparent
Color index of lead wires
Support
complete
Controller
Power supply cord
1
2
3
4
Switch
Noise suppressor
white or blue
The other lead wires are
as per the color index listed
above.
Noise suppressor
Switch
Controller
Do not make the lead wires
loose in this area.
Inflect the terminal as per
the illustration to reserve the
space for noise suppressor.
Support lead wire (Black)
Support lead wire (Purple)
Fix support lead
wire (Purple) with
lead holder.
Fix controller lead wire
(white or blue ) to be connected
to brush holder and support lead wire
(purple), with lead holder.
Put the loose portion of lead wires
in this space.
Put the loose portion of lead wires
and insulated terminal into this space.
Fix lead wires with
lead holder. Support lead wire (Black)
Support lead wire (Orange)
Fix lead wires with
lead holder.
Fix lead wires with
lead holder.
Controller lead
wire (Black)
Put the loose portion of controller lead wire
into the space between boss and controller.
