INSTRUCTION MANUAL
Belt Sander
M9400
ENGLISH: Original instructions
DOUBLE INSULATION
Read before use.

2ENGLISH
SPECIFICATIONS
Model M9400
Belt size 100 mm x 610 mm
Belt speed 380 m/min
Overall length 354 mm
Net weight 6.2 kg
Safety class /II
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsmaydifferfromcountrytocountry.
• WeightaccordingtoEPTA-Procedure01/2014
Symbols
The following show the symbols used for the equip-
ment. Be sure that you understand their meaning before
use.
Read instruction manual.
DOUBLE INSULATION
Only for EU countries
Do not dispose of electric equipment
together with household waste material!
InobservanceoftheEuropeanDirective,
onWasteElectricandElectronic
Equipment and its implementation in
accordancewithnationallaw,electric
equipment that have reached the end of
their life must be collected separately and
returned to an environmentally compatible
recycling facility.
Intended use
The tool is intended for the sanding of large surface of
wood,plasticandmetalmaterialsaswellaspainted
surfaces.
Power supply
The tool should be connected only to a power supply of
thesamevoltageasindicatedonthenameplate,and
canonlybeoperatedonsingle-phaseACsupply.They
aredouble-insulatedandcan,therefore,alsobeused
from sockets without earth wire.
Noise
ThetypicalA-weightednoiseleveldeterminedaccord-
ing to EN62841:
Sound pressure level (LpA) : 87 dB (A)
Sound power level (LWA) : 98 dB (A)
Uncertainty (K) : 3 dB (A)
Wear ear protection
Vibration
Thevibrationtotalvalue(tri-axialvectorsum)deter-
mined according to EN62841:
Workmode:sandingmetalplate
Vibration emission (ah) : 2.5 m/s2or less
Uncertainty (K) : 1.5 m/s2
NOTE: The declared vibration emission value has
been measured in accordance with the standard test
method and may be used for comparing one tool with
another.
NOTE: The declared vibration emission value
may also be used in a preliminary assessment of
exposure.
WARNING: The vibration emission during actual
use of the power tool can differ from the declared
emission value depending on the ways in which the
tool is used.
WARNING: Be sure to identify safety measures
to protect the operator that are based on an estima-
tion of exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it is
running idle in addition to the trigger time).
EC Declaration of Conformity
For European countries only
TheECdeclarationofconformityisincludedasAnnexA
to this instruction manual.
General power tool safety warnings
WARNING: Read all safety warnings, instruc-
tions, illustrations and specications provided
with this power tool. Failure to follow all instructions
listedbelowmayresultinelectricshock,reand/or
seriousinjury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated(corded)powertoolorbattery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit.Clutteredor
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust.Powertoolscreatesparks
which may ignite the dust or fumes.

3ENGLISH
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical Safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodiedplugsandmatchingoutletswill
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet con-
ditions.Waterenteringapowertoolwillincrease
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply.UseofanRCDreduces
the risk of electric shock.
7. Use of power supply via an RCD with a rated
residual current of 30 mA or less is always
recommended.
8. Power tools can produce electromagnetic
elds (EMF) that are not harmful to the user.
However,usersofpacemakersandothersimilar
medical devices should contact the maker of their
device and/or doctor for advice before operating
this power tool.
9. Do not touch the power plug with wet hands.
10. If the cord is damaged, have it replaced by the
manufacturer or his agent in order to avoid a
safety hazard.
Personal Safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication. A moment of inattention while operating
powertoolsmayresultinseriouspersonalinjury.
2. Use personal protective equipment. Always
wear eye protection.Protectiveequipmentsuch
asadustmask,non-skidsafetyshoes,hardhator
hearing protection used for appropriate conditions
willreducepersonalinjuries.
3. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool.Carryingpowertoolswith
yourngerontheswitchorenergisingpowertools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
resultinpersonalinjury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts.Looseclothes,jewelleryor
long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dustcollectioncanreducedust-relatedhazards.
8.
Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action can
causesevereinjurywithinafractionofasecond.
9. Always wear protective goggles to protect
your eyes from injury when using power tools.
The goggles must comply with ANSI Z87.1 in
the USA, EN 166 in Europe, or AS/NZS 1336
in Australia/New Zealand. In Australia/New
Zealand, it is legally required to wear a face
shield to protect your face, too.
It is an employer's responsibility to enforce
the use of appropriate safety protective equip-
ments by the tool operators and by other per-
sons in the immediate working area.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
powertoolwilldothejobbetterandsaferatthe
rate for which it was designed.
2.
Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source
and/or remove the battery pack, if detachable,
from the power tool before making any adjust-
ments, changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4.
Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool
or these instructions to operate the power tool.Power
tools are dangerous in the hands of untrained users.
5. Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused
by poorly maintained power tools.

4ENGLISH
6. Keep cutting tools sharp and clean.Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation.
8. Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for
safe handling and control of the tool in unexpected
situations.
9. When using the tool, do not wear cloth work
gloves which may be entangled. The entangle-
ment of cloth work gloves in the moving parts may
resultinpersonalinjury.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Follow instruction for lubricating and chang-
ing accessories.
BELT SANDER SAFETY WARNINGS
1. Hold the power tool by insulated gripping
surfaces, because the sanding surface may
contact its own cord.Cuttinga"live"wiremay
make exposed metal parts of the power tool "live"
and could give the operator an electric shock.
2. Ventilate your work area adequately when you
perform sanding operations.
3. Some material contains chemicals which may
be toxic. Take caution to prevent dust inhala-
tion and skin contact. Follow material supplier
safety data.
4. Always use the correct dust mask/respirator
for the material and application you are work-
ing with.
5. Always use safety glasses or goggles.
Ordinary eye or sun glasses are NOT safety
glasses.
6. Hold the tool rmly with both hands.
7. Make sure the belt is not contacting the work-
piece before the switch is turned on.
8. Keep hands away from rotating parts.
9. Do not leave the tool running. Operate the tool
only when hand-held.
10. This tool has not been waterproofed, so do not
use water on the workpiece surface.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
FUNCTIONAL
DESCRIPTION
CAUTION:
• Alwaysbesurethatthetoolisswitchedoffand
unpluggedbeforeadjustingorcheckingfunction
on the tool.
Switch action
12
►1. Switch trigger 2. Lock button
CAUTION:
• Beforeplugginginthetool,alwayschecktosee
that the switch trigger actuates properly and
returns to the "OFF" position when released.
Tostartthetool,simplypulltheswitchtrigger.Release
the switch trigger to stop.
Forcontinuousoperation,pulltheswitchtriggerand
thenpushinthelockbutton,andthenreleasethe
switch trigger.
Tostopthetoolfromthelockedposition,pulltheswitch
triggerfully,andthenreleaseit.
ASSEMBLY
CAUTION:
• Alwaysbesurethatthetoolisswitchedoffand
unplugged before carrying out any work on the
tool.

5ENGLISH

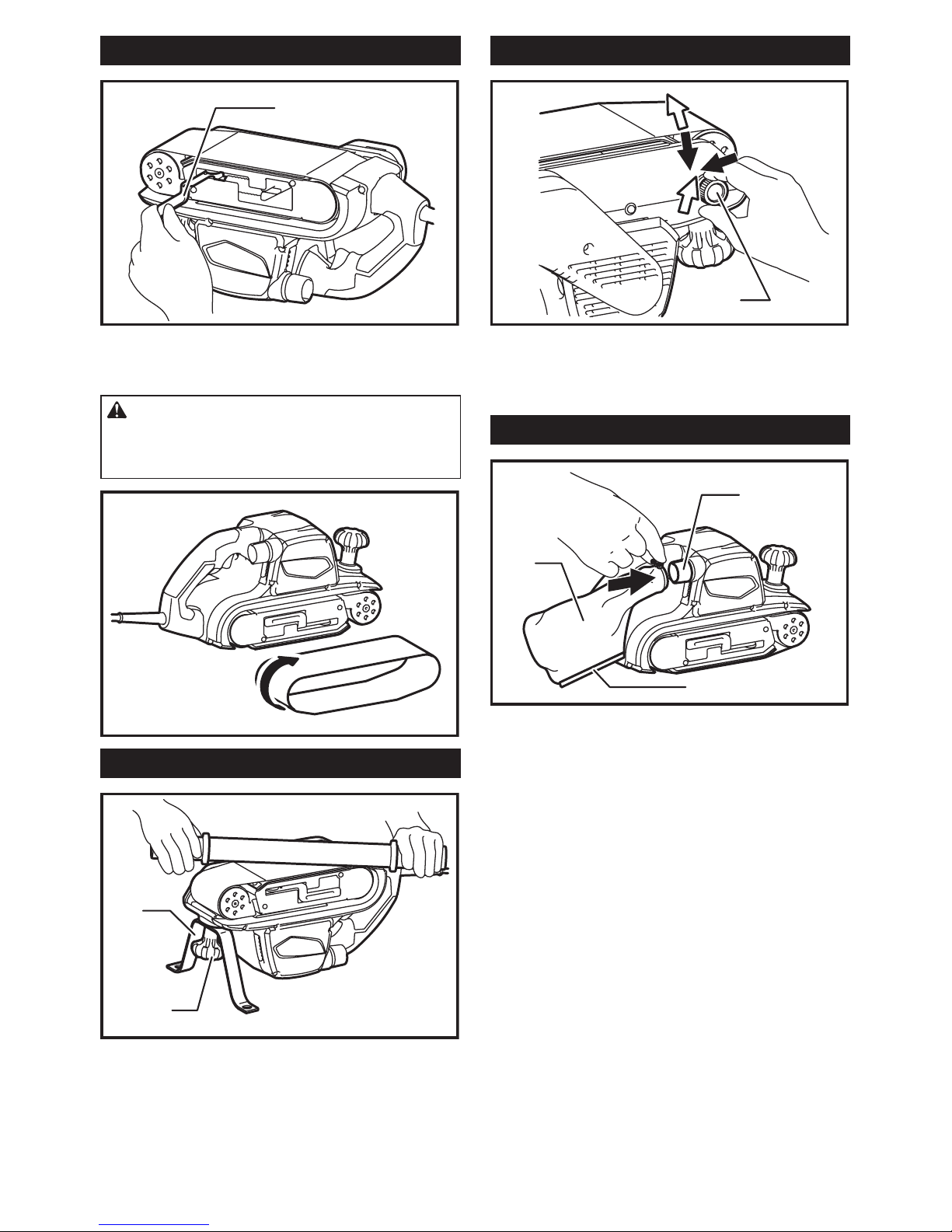

Installing or removing abrasive belt
1
►1. Lever
Pulltheleverallthewayoutandinstallthebeltoverthe
rollers,andthenreturnthelevertotheoriginalposition.
CAUTION:
• Wheninstallingthebelt,makesurethatthe
direction of the arrow on the back of the belt
corresponds to the one on the tool itself.
Installing or removing step
1
2
►1. Step 2. Knob
Using step with the tool turned upside down allows
sanding another way of use. Remove the knob and then
place the step on the place the knob was seated and
secure it with knob.
Adjusting belt tracking
1
►1.Adjustingknob
Whilethebeltisrunning,usetheadjustingknobtocen-
ter the belt tracking. Failure to do so can result in frayed
belt edges and wear on the sander frame.
Dust bag
1
2
3
►1. Dust bag 2. Fastener 3. Dust spout
The use of the dust bag makes sanding operations
cleananddustcollectioneasy.Toattachthedustbag,
titontothedustspout.
Whenthedustbagisabouthalffull,removethedust
bag from the tool and pull the fastener out. Empty
thedustbagofitscontents,tappingitlightlysoasto
remove particles adhering to the insides which might
hamper further collection.

6ENGLISH
OPERATION

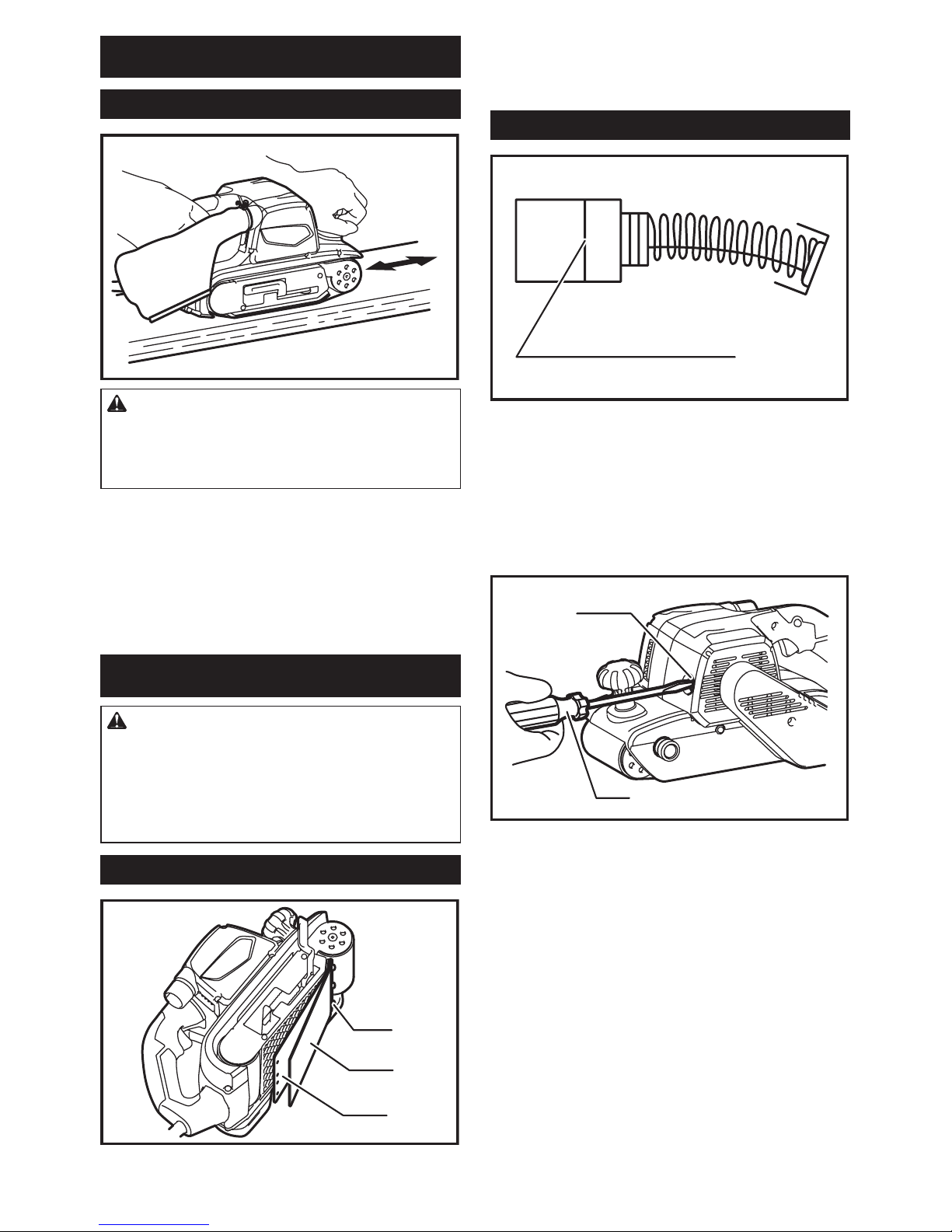

Sanding operation
CAUTION:
• Thetoolshouldnotbeincontactwiththework-
piece surface when you turn the tool on or off.
Otherwiseapoorsandingnishordamageof
the belt may result.
Holdthetoolrmlywithbothhands.Turnthetoolonand
wait until it attains full speed. Then gently place the tool
ontheworkpiecesurface.Keepthebeltushwiththe
workpiece at all times and move the tool back and forth.
Never force the tool. The weight of the tool applies adequate
pressure.Excessivepressuremaycausestalling,overheating
ofthemotor,burningoftheworkpieceandpossiblekickback.
MAINTENANCE
CAUTION:
• Alwaysbesurethatthetoolisswitchedoffand
unplugged before attempting to perform inspec-
tion or maintenance.
• Neverusegasoline,benzine,thinner,alcohol
orthelike.Discoloration,deformationorcracks
may result.
Replacing carbon plate
1
2
3
► 1. Strap washer 2.Corkrubberplate3.Carbonplate
Replace an carbon plate on the cork rubber plate when
it is worn down. Remove screws on the strap washer
andtheworncarbonplate,placeanewcarbonplate
and then secure it with the screws.
Replacing carbon brushes
1
►1. Limit mark
Remove and check the carbon brushes regularly.
Replace them when they are worn down to the limit
mark. Keep the carbon brushes clean and free to slip in
the holders. Both carbon brushes should be replaced at
the same time. Use only identical carbon brushes.
Use a screwdriver to remove the brush holder caps.
Takeouttheworncarbonbrushes,insertthenewones
and secure the brush holder caps.
1
2
►1. Brush holder cap 2. Screwdriver
TomaintainproductSAFETYandRELIABILITY,repairs,
anyothermaintenanceoradjustmentshouldbeper-
formedbyMakitaAuthorizedServiceCenters,always
using Makita replacement parts.

7

www.makita.com
Makita Europe N.V.
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi 446-8502 Japa
n
Jan-Baptist Vinkstraat 2,
3070 Kortenberg, Belgium
885404A221
EN
20170403
