Makita LS1040 User manual

Compound Miter Saw
255 mm (10”) MODEL LS1040
Equipped with Electric Brake
INSTRUCTION MANUAL
DOUBLE
INSULATION

00
00
45O (left and right)
450
(left)
90.5 mm x 95 mm
(3-9/16"
x 3-3/4")
69 mm
x 130 mm
48 mm
x 95 mm
(2-3/4"
x 5-1/8")
(1-7/8"
x 3-3/4")
35 mm
x 130 mm
( 1-3/8" x 5- 1 /8")
90.5 mm
x 67 mm
69 mm
x 92 mm
(3-9/16"
x 2-5/8")
(2-3/4"
x 3-5/8")
48 mm
x 67 mm
35 mm
x 92 mm
(1-7/8"
x 2-5/8")
(1-3/8"
x 3-5/8")
~~ ~~
No load speed (RPM) ..................................... ............................ 4,600
Dimensions
(L x W x H) .................................
Net weight .........................
mm x 530 mm x 532 mm
(18-23/32"
x 20-27/32" x 20-15/16")
............................... 11 .O kg (24.2 Ibs)
* Manufacturer reserves the right to change specifications without notice.
* Note: Specifications may differ from country to country.
WARNING: For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
2

For Your Own Safety Read Instruction
Manual Before Operating
Compound Saw
Save
it for future reference
GENERAL SAFETY PRECAUTIONS
(For All Tools)
1. KNOW YOUR POWER TOOL. Read the owner's manual carefully. Learn the
tools applications and limitations, as well as the specific potential hazards
peculiar to
it.
2. KEEP GUARDS IN PLACE and in working order.
3. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keys and adjusting wrenches are removedfrom tool before turning
it on.
4. KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents.
5. DON'T USE INDANGEROUSENVIRONMENT. Don't use power tools indamp
or wet locations, or expose them to rain. Keep work area well lighted.
Don't use tool in presence of flammable liquids or gases.
6. KEEP CHILDREN AWAY. All visitors should be kept safe distance from work
area.
7. MAKE WORKSHOP KID PROOF with padlocks, master switches, or by
removing starter keys.
8. DON'T FORCETOOL. It will do thejob better andsafer atthe ratefor which
it was designed.
9. USE RIGHT TOOL. Don't force tool or attachment to do a job for which it
was not designed.
IO. WEAR PROPER APPAREL. Wear no loose clothing, gloves, neckties, rings,
bracelets, or other jewelry which may get caught in moving parts. Nonslip
footwear isrecommended.Wear protective hair covering tocontain longhair.
11. ALWAYS USE SAFETY GLASSES. Also use face or dust mask if cutting
operation is dusty. Everyday eyeglasses only have impact resistant lenses,
they are NOT safety glasses.
12. SECURE WORK. Useclamps or avise toholdwork when practical. It's safer
than using your hand and
it frees both hands to operate tool.
13. DON'T OVERREACH. Keep proper footing and balance at all times.
14. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for best and
safest performance. Follow instructions for lubricatingand changing acces-
sories.
15. DISCONNECTTOOLS before servicing; when changingaccessories suchas
blades, bits, cutters, and the like.
3

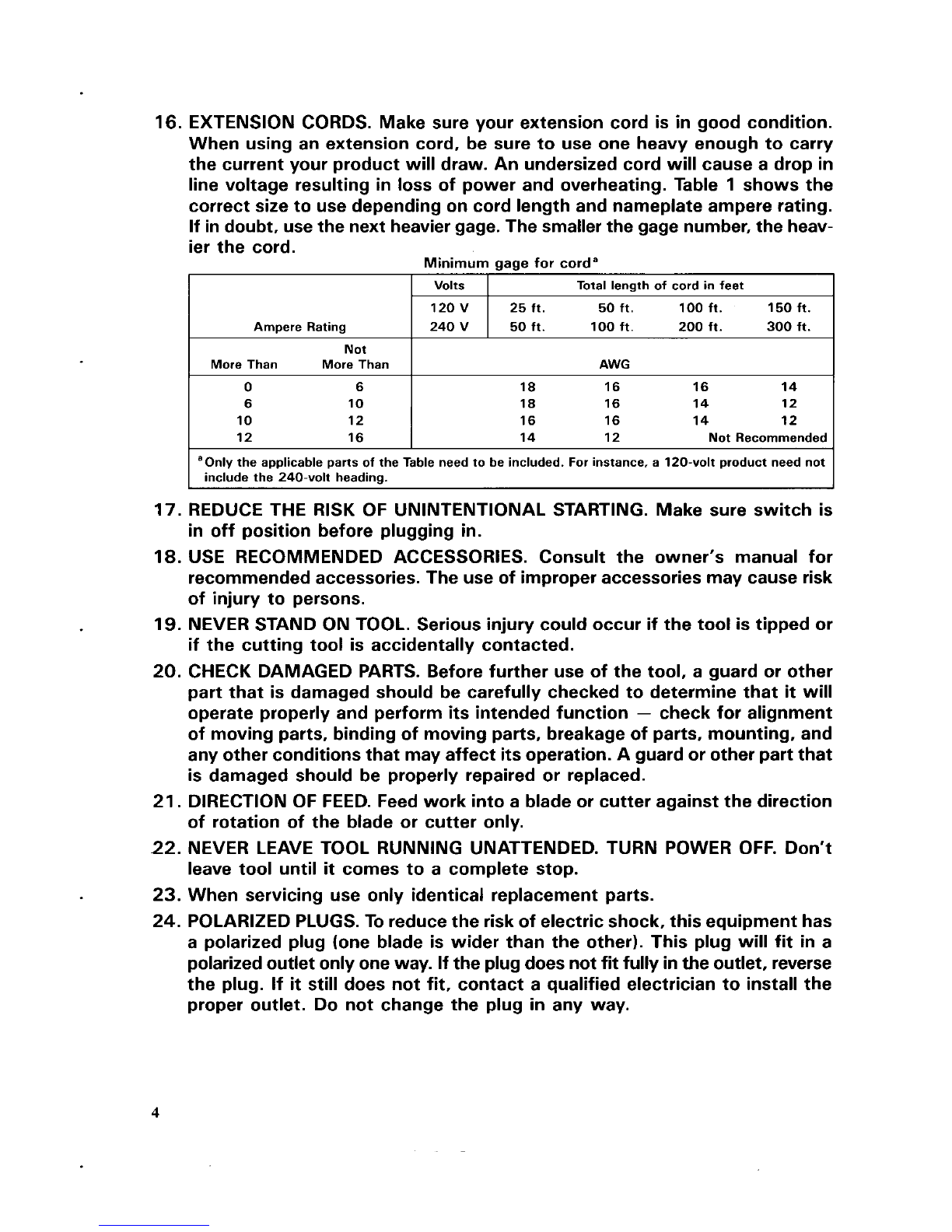

16. EXTENSION CORDS. Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one heavy enough to carry
the current your product will draw. An undersized cord will cause a drop
in
line voltage resulting in loss of power and overheating. Table 1 shows the
correct size to use depending oncord length and nameplate ampere rating.
If indoubt, usethe next heaviergage. The smaller the gage number, the heav-
ier the cord.
Minimum aaae for cord"
I Volts I Total lenath of cord in feet I
50 ft. 100 ft. 150 ft.
Ampere Rating 100 ft. 200 ft. 300 ft.
I More Than More Not Than I
AWG I
0 6
12
16
6
10
12 12
Not Recommended
18 16 16
18 16 14
16 16 14
14 12
Only the applicable parts of the Table need to be included. For instance, a 120-volt product need not
include the
240-volt heading.
17.
18.
19.
20.
21.
22.
23.
24.
REDUCE THE RISK OF UNINTENTIONAL STARTING. Make sure switch is
in off position before plugging in.
USE RECOMMENDED ACCESSORIES. Consult the owner's manual for
recommendedaccessories. The use of improper accessories may cause risk
of injury to persons.
NEVER STAND ON TOOL. Serious injury could occur
if the tool is tipped or
if the cutting tool is accidentally contacted.
CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properly and perform its intendedfunction
- check for alignment
of moving parts, binding of moving parts, breakage of parts, mounting, and
any other conditions that may affect itsoperation. A guard or other part that
is damaged should be properly repaired or replaced.
DIRECTION OF FEED. Feed work intoa blade or cutter against the direction
of rotation of the blade or cutter only.
NEVER LEAVE TOOL RUNNING UNATTENDED. TURN POWER OFF. Don't
leave tool
until it comes to a complete stop.
When servicing use only identical replacement parts.
POLARIZEDPLUGS.To reducethe risk of electric shock, this equipment has
a polarized plug (one blade is wider than the other). This plug
will fit in a
polarizedoutlet only one way.
If the plugdoes not fit fully in the outlet, reverse
the plug.
If it still does not fit, contact a qualified electrician to install the
proper outlet. Do not change the plug
in any way.
4

VOLTAGE WARNING: Before connectingthe tool toa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplateof the tool. A power source with voltage greater than that specified
for the tool can result in SERIOUS INJURY tothe user
- as well as damage to
the tool. If
in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
ADDITIONAL SAFETY RULES
1. Wear eye protection.
2. Do not operate saw without guards in place.
3. Don't use the tool
in the presence of flammable liquids or gases.
4. Check the blade carefully for cracks or damage before operation.
5. Use only flanges specified for this tool.
6. Be careful nottodamagethe arbor, flanges (especiallythe installingsurface)
7. Make sure that the turn base is properly secured
so it will not move during
8. For your safety, removethe chips, small pieces, etc. from the table top before
9. Avoid cutting nails. Inspect for and remove all nailsfrom the workpiece before
Replace cracked or damaged blade immediately.
or bolt. Damage to these parts could result in blade breakage.
operation.
operation.
operation.
10. Make sure the shaft lock is released before the switch is turned on.
11. Be sure that the blade does not contacttheturn base in the lowest position.
12. Hold the handle firmly. Be aware that the saw moves up or down slightly
during start-up and stopping.
13. Do not perform any operation freehand. The workpiece must be secured
firmly against the turn base and guide fence during all operations.
14. Keep hands out of pathof saw blade.Avoid contact withany coasting blade.
It can still cause severe injury.
15. Never reach around saw blade.
16. Make sure the blade is not contacting the workpiece before the switch is
turned on.
17. Before using the tool on an actual workpiece, let
it run for a while. Watch
for vibration or wobbling that could indicate poor installation or a poorly
balanced blade.
18. Wait until the blade attains full speed before cutting.
19. Stop operation immediately if you notice anything abnormal.
20. Do not attempt to lock the trigger in the on position.
5

21. Shut off power and wait for saw bladeto stop before servicing or adjusting
tool.
22. Be alert at all times, especially during repetitive, monotonous operations.
Don't be lulledintoa false sense of security. Bladesare extremelyunforgiving.
23. Do not cut cross-armed as shown
in the picture.
24. Always use accessories recommended in this manual. Use of improper
25. Don't abusecord. Never yank cord todisconnect it from thereceptacle. Keep
accessories such as abrasive wheels may cause an injury.
cord away from heat, oil, water and sharp edges.
SAVE THESE INSTRUCTIONS.
6

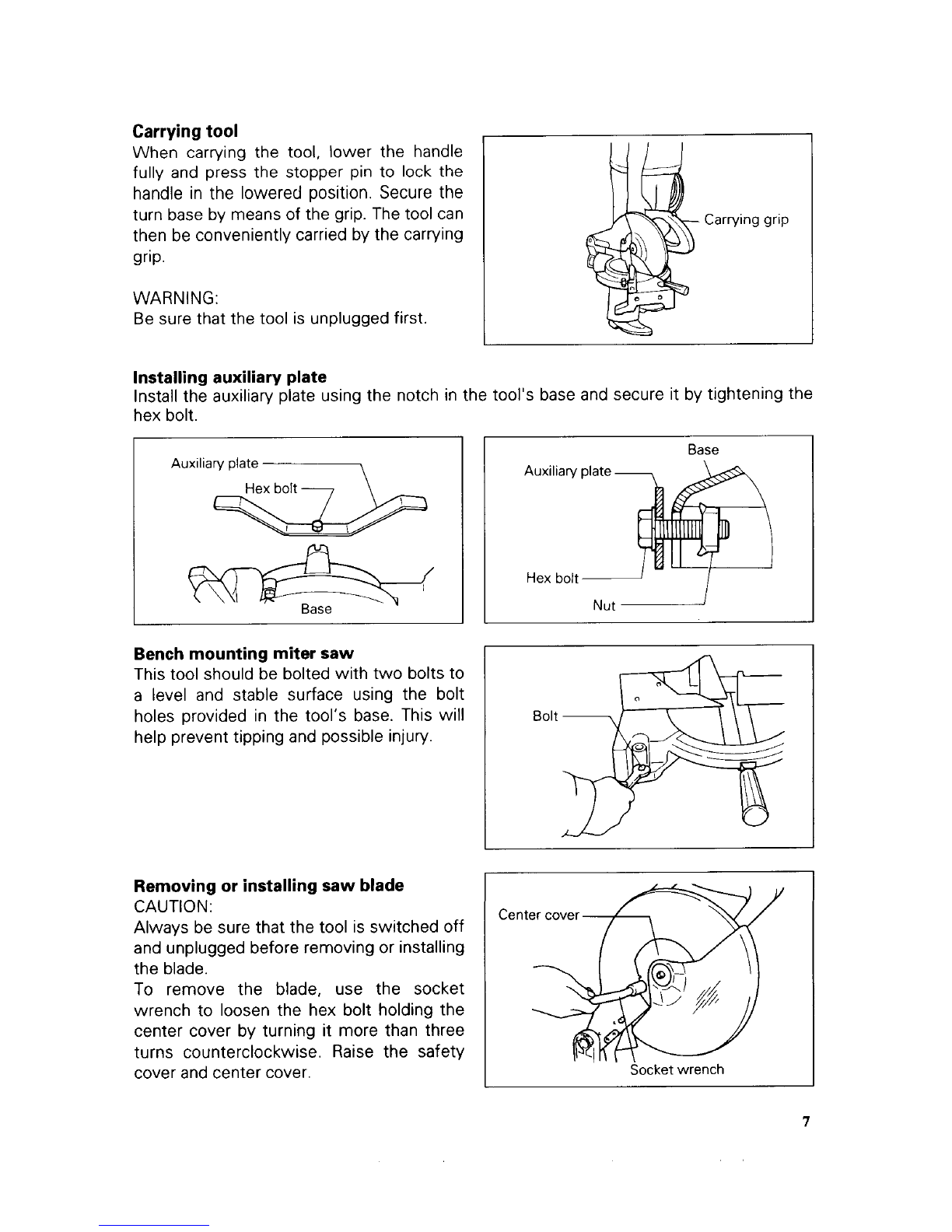

Carryingtool
When carrying the tool, lower the handle
fully and press the stopper pin to lock the
handle in the lowered position. Secure the
turn base by meansof the grip.The tool can
then be conveniently carried by the carrying
grip.
WARN
I NG :
Besure that the tool is unpluggedfirst.
Carrying grip
I
Installing auxiliary plate
Installthe auxiliary plate using the notch in the tool'sbase and secure it by tightening the
hex bolt
Auxiliary plate -,
Hex bolt
\-77b
M
Benchmounting miter saw
Auxiliary plate
Hex bolt
~
Base
Nut
I
7
T-
Removing or installingsaw blade
CAUTION:
Always be sure that the tool is switched off
and unpluggedbefore removingor installing
the blade.
To remove the blade, use the socket
wrench to loosen the hex bolt holding the
center cover by turning
it more than three
turns counterclockwise. Raise the safety
cover andcenter cover.
~
Socket wrench
7

Press the shaft lock so that the blade can-
not revolve and use the socket wrench to
loosenthe hex bolt clockwise.Then remove
the hex bolt, outer flange and blade.
To install the blade, mount the blade onto
the spindle, making sure that the direction
of the arrow
on the surface of the blade
matches the direction of the arrow on the
blade case. Installthe outer flange and hex
bolt, and then use the socket wrench to
tighten the hex bolt securely counterclock-
wise while pressing the shaft lock. Then
tighten the hex bolt clockwise to secure
the center cover.
- Socket
wrench
CAUTION:
Use only the Makita socket wrench provided to install or remove the blade. Failure to do
so may result in overtightening or insufficient tighteningof the hex bolt. This could cause
an injury
Safety cover
When lowering the handle, the safety
cover rises automatically. The cover returns
to its original positionwhen the cut is com-
pleted and the handle is raised. NEVER
DEFEAT
OR REMOVE THE SAFETY
COVER. In the interest of your personal
safety, always maintain the safety cover in
good condition. Any irregular operation of
the safety cover should becorrectedimme-
diately. NEVER USE THE
TOOL WITH A
FAULTY SAFETY COVER. If the see-
through safety cover becomes dirty, or
sawdust adheresto it insuch
a way that the bladeand/or workpiece is no longereasily vis-
ible, unplug the saw and cleanthe cover carefully with
a damp cloth. Do not use solvents
or any petroleum-basedcleaners on the plastic cover.
8

Dust baa I
The use-of the dust bag makes cutting
operations clean and dust collections easy.
To attach the dust bag, fit the bags entry
port over the dust spout.
When the dust bag is about half full,
remove the dust bag from the tool and pull
the fastener out. Empty the dust bag of its
contents, tapping it lightly
so as to remove
particles adhering to the insides which
might hamperfurther collection.
Switch action
To prevent the trigger from being acciden-
tally pulled,
a lock-off button is provided.
To start the tool, press in the lock-off but-
ton and pull the trigger. Releasethe trigger
to stop.
I
\
Dust SDout -
Fastener /
I------- Lock-off button
CAUTION:
*Before plugging in the tool, always check to see that the switchtrigger actuates properly
*When not using the tool, remove the lock-off button and store
it in a secure place. This
*Do not pull the trigger hardwithout pressing in the lock-off button.This can cause break-
and returns tothe
"OFF" position when released.
prevents unauthorizedoperation.
age
of the switch.
9

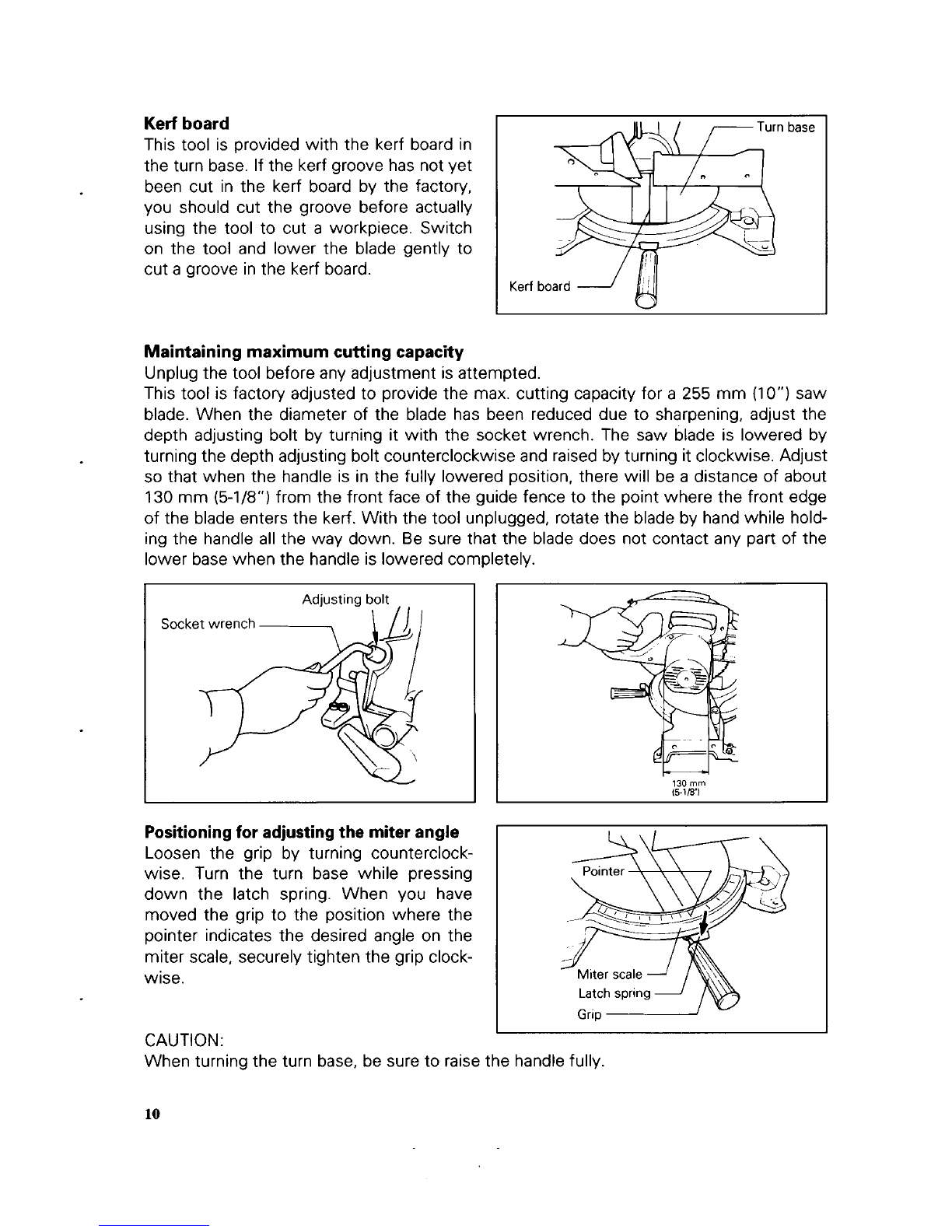

Kerf board
This tool is provided with the kerf board in
the turn base. If the kerf groove has not yet
been cut in the kerf board by the factory,
you should cut the groove before actually
using the tool to cut
a workpiece. Switch
on the tool and lower the blade gently to
cut
a groove inthe kerf board.
Maintaining maximum cutting capacity
Unplugthe tool beforeany adjustment is attempted.
This tool is factory adjusted to provide the max. cutting capacity for
a 255 mm (IO") saw
blade. When the diameter of the blade has been reduced due to sharpening, adjust the
depth adjusting bolt by turning
it with the socket wrench. The saw blade is lowered by
turning the depth adjusting bolt counterclockwise and raised
by turning it clockwise. Adjust
so that when the handle is in the fully lowered position, there will be a distance of about
130 mm (5-1/8") from the front face of the guide fence to the point where the front edge
of the bladeenters the kerf.With the tool unplugged, rotate the blade by handwhile hold-
ing the handle all the way down. Be sure that the blade does not contact any part
of the
lower basewhen the handleis lowered completely.
Socket wrench
130 mm
I 15118'1
Positioningfor adjusting the miter angle
Loosen the grip by turning counterclock-
wise. Turn the turn base while pressing
down the latch spring. When you have
moved the grip to the position where the
pointer indicates the desired angle on the
miter scale, securely tighten the grip clock-
wise.
CAUTION:
When turningthe turn base, be sure to raise the handlefully.
10

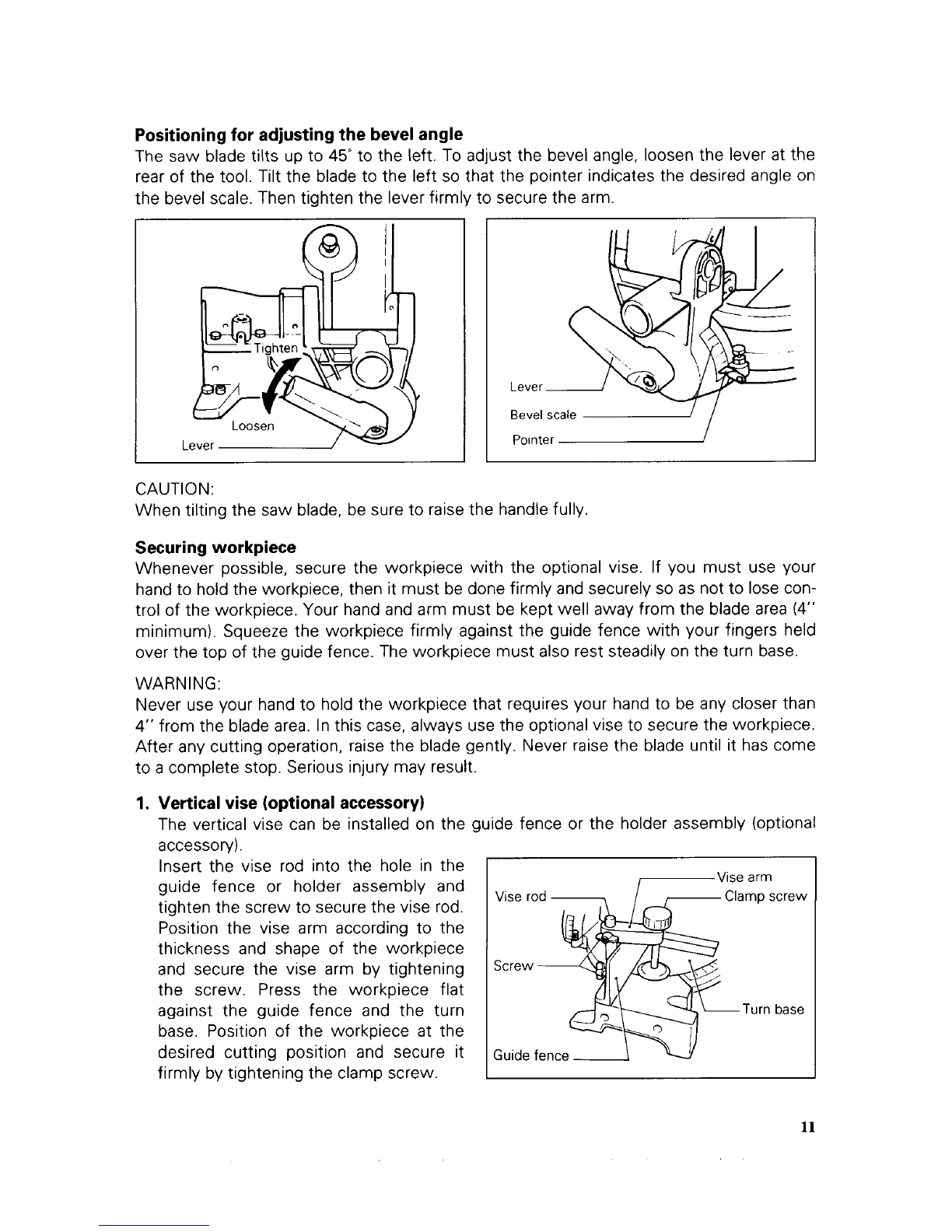

Positioningfor adjustingthe bevel angle
The saw blade tilts up to 45" to the left.To adjust the bevel angle, loosen the lever at the
rear of the tool. Tilt the blade to the left
so that the pointer indicates the desired angle on
Securing workpiece
Whenever possible, secure the workpiece with the optional vise. If you must use your
handto holdthe workpiece, then it must be donefirmly and securely
so as not to lose con-
trol of the workpiece. Your handand arm must be kept well away from the blade area
(4"
minimum).Squeeze the workpiece firmly against the guide fence with your fingers held
over the top of the guide fence. The workpiece must also rest steadily on the turn base.
WARN
I NG:
Never use your handto hold the workpiece that requires your hand to be any closer than
4" from the blade area. Inthis case, always use the optionalvise to secure the workpiece.
After any cutting operation, raise the blade gently. Never raise the blade until it has come
to
a complete stop.Serious injury may result.
1. Vertical vise (optional accessory)
The vertical vise can be installed on the guide fence or the holder assembly (optional
accessory).
Insert the vise rod into the hole in the
guide fence or holder assembly and
tightenthe screw to secure the vise rod.
Position the vise arm according to the
thickness and shape of the workpiece
and secure the vise arm by tightening
the screw. Press the workpiece flat
against the guide fence and the turn
base. Position of the workpiece at the
desired cutting position and secure it
firmly by tighteningthe clamp screw.
Turn base
11

2. Horizontalvise (optionalaccessory)
The horizontal vise can be installed on either the left or right side of the base. When
performing
15" or greater mitercuts, installthe horizontalvise on the side oppositethe
direction in which the turn table is to be turned.
By turning the knob on the vise coun-
terclockwise, the screw is releasedand the vise shaft can be moved rapidly in and out.
By turning the knob clockwise, the screw remains secured. To grip workpieces, turn
the knob gently clockwiseuntil the projection reaches it topmost position, then fasten
securely.
If the knob is forced in or pulled out while beingturnedclockwise, the projec-
tion may stop at an angle. In this case, turn the knob back counterclockwise until the
screw is released,before turning again gently clockwise.
Knob -,
3. Holdersand holder assembly
(optionalaccessories)
The holders and the holder assembly
can be installedon either side as
a con-
venient means
of supporting work-
pieces horizontally. Install them as
shown in the figure. Then tighten the
screwsfirmly to secure the holders and
the holder assembly.
When cutting long workpieces, use the
holder-rod assembly (optional acces
sory). It consists of two holder assem-
blies and two rods
12.
Projection
Holder -,
Vertical vise - -
jScrew
Holder assembly 1 -Screw
Holderassembly
Rod 12
CAUTION:
Always support longworkpieces levelwith the top surface of the turn base for accurate
cuts and to preventdangerous
loss of control of thetool.
12

Operation
CAUTIO N:
*Before use, be sure to releasethe handlefrom the lowered position by pulling the stop-
per pin.
*Make sure the blade
is not contacting the workpiece, etc. before the switch is turnedon.
*Do not apply excessive pressure on the handlewhen cutting. Too muchforce may result
inoverloadof the motor and/or decreasedcutting efficiency.
*Gently press down the handle to perform the cut.
If the handle is pressed down with
force or if lateralforce
is applied, the blade will vibrate and leavea mark (saw mark)inthe
workpiece andthe precision of the cut
will be impaired.
When cutting with this tool, the thickness
of the blade is cut out of the workpiece as
well Therefore, your cutting line should be
on either the left or right side of the groove
in the kerf board Switch on the tool and
wait until the bladeattains full speed before
lowering gently into the cut When the
blade, contacts the workpiece, gradually
bear down on the handle to perform the
cut When the cut is completed, switch off
the tool and WAIT UNTILTHE BLADE HAS
COME TO A COMPLETE STOP before
returning the bladeto its fully elevated posi-
tion A thin piece of cut off material could
Cutting line
Groove
CAUTIO N:
When cutting long workpieces, use sup-
ports that are as high as the top surface
level of the turn base.
1. Miter cutting
Refer tothe previously covered "Positioning for adjusting the miterangle".
13

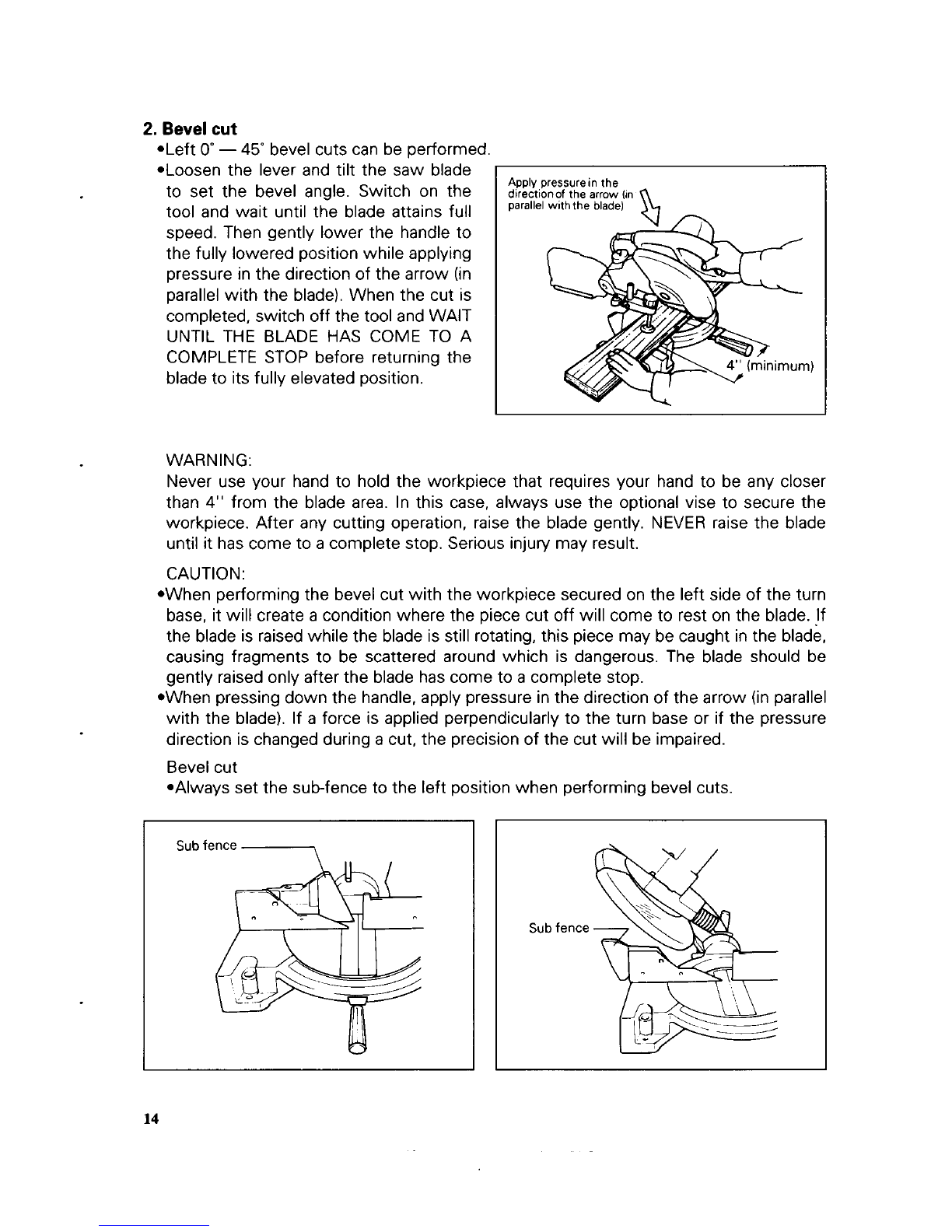

2. Bevel cut
*Left 0" - 45' bevel cutscan be performed.
*Loosen the lever and tilt the saw blade
to set the bevel angle. Switch on the
tool and wait until the blade attains full
speed. Then gently lower the handle to
the fully loweredpositionwhile applying
pressure inthe direction of the arrow (in
parallelwith the blade).When the cut is
completed, switchoff the tool and WAIT
UNTIL THE BLADE HAS COME TO A
COMPLETE
STOP before returning the
bladeto its fully elevated position.
Apply pressurein the
directtonof the arrow (in
Darallelwiththe blade1
\
WARNING:
Never use your hand to hold the workpiece that requires your hand to be any closer
than
4" from the blade area. In this case, always use the optional vise to secure the
workpiece. After any cutting operation, raise the blade gently. NEVER raise the blade
until
it has come to a complete stop. Serious injury may result.
CAUTION:
*When performing the bevelcut with theworkpiece secured on the left side of the turn
base, itwill create a condition where the piece cut off will come to rest on the blade.If
the bladeis raisedwhile the blade is still rotating, this piece may becaught inthe blade,
causing fragments to be scattered around which is dangerous. The blade should be
gently raisedonly after the blade has come to
a complete stop.
*When pressing downthe handle,apply pressure inthe direction of the arrow (inparallel
with the blade). If a force is applied perpendicularlyto the turn base or if the pressure
directionis changedduring a cut, the precision of the cut will be impaired.
Bevel cut
*Always set the sub-fence to the left positionwhen performing bevel cuts.
Sub fence
Sub
fence
14

Bevel angle
450 I Left and right 0' - 45'
Miter angle
When performing the compound cutting, refer to "Miter cutting" and "Bevel cut"
explanations.

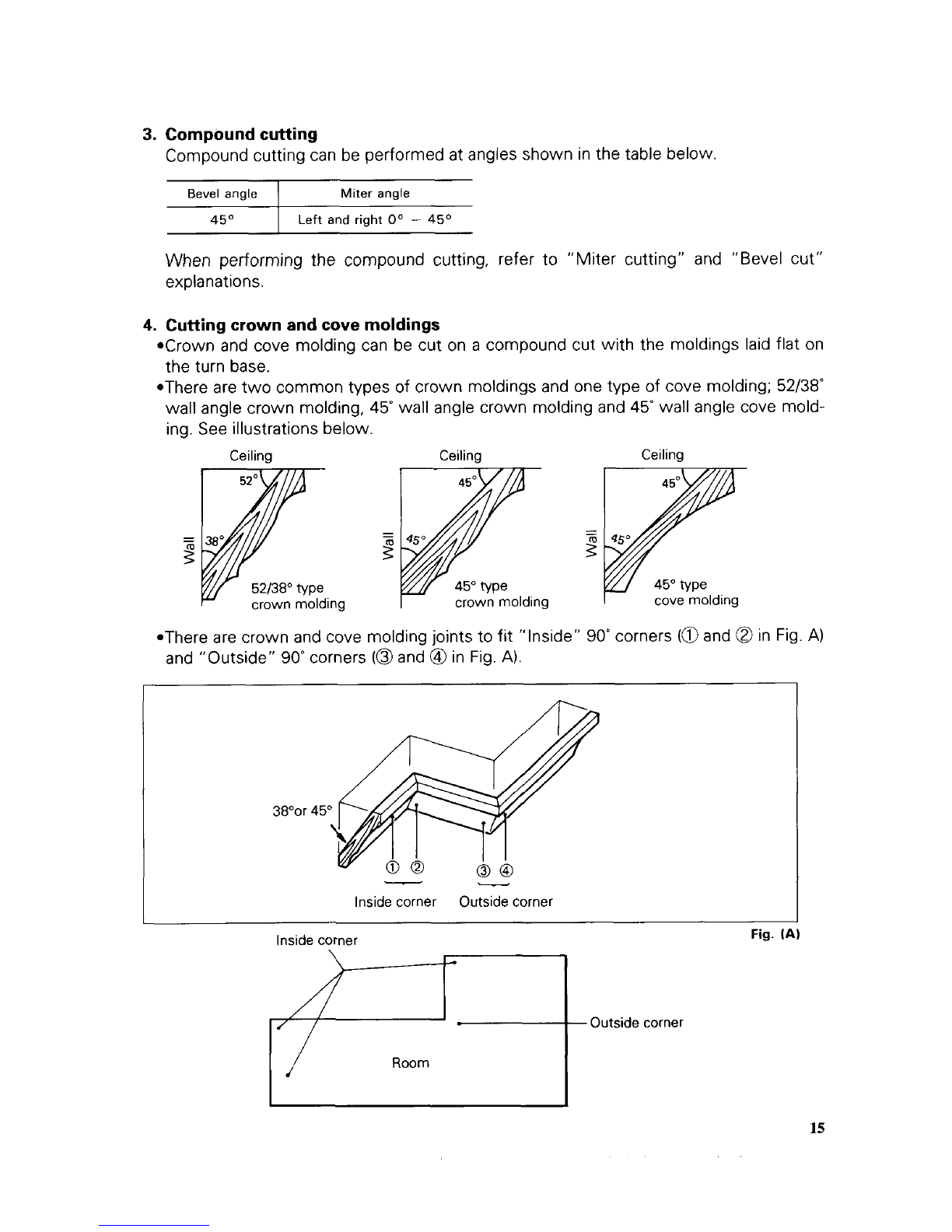

4. Cutting crown and cove moldings
*Crown and cove molding can be cut on a compound cut with the moldings laid flat on
the turn base.
*There are two common types
of crown moldings and one type of cove molding; 52/38"
wall angle crown molding, 45"wall angle crown molding and 45"wall angle cove mold-
ing. See illustrations below.
Ceiling Ceiling Ceiling
P q50
2 2 =v 45" type
--
--
cove molding
*There are crown andcove molding joints to fit "Inside" 90" corners (a and @ in Fig. A)
and "Outside" 90" corners (0 and @ in Fig. A).
-
-
Inside corner Outside corner
Fig. (A)
Inside corner
4
/
Outside cornel
Room
/
15

Position
in Fig
(A)
0
0
@
For inside corner
-
-
For outside corner -
UJ
Wall contact edge should be
I against guide fence
Bevel angle Miter angle
52/38" type 45" type 52/38' type 45O type
Right 31
6O
Right 35 3"
Left 33
90 Left 30" Left 31 6O Left 35 3O
Right 35 3O
Right 31
6"
Molding edge against guide fence
Position
in Fig
(A)
Ceiling contact edge should be
against guide fence
For inside corner
e
Guide
Finished piece
Finished piece
will be on the
Left side of blade
Ceiling
Wall
Fig. (B
For outside corner
@
Finished piece will be on the
Right side of blade
Ceiling contact edge should be
against guide fence
. 16
Position in Fig (A)
0
0
0
@
For inside corner
For outside corner
Miter angle Finished piece
Right 45"
Left 45'
Right 45'
Save the right side of blade
Save the left side of blade
Save the right side
of blade
Save the left side of blade

5. Cuttingaluminum extrusion
When securing aluminum extrusions,
use spacer blocks or pieces of scrap
as
shown in the figure to prevent deforma-
tion of the aluminum. Use
a cutting
lubricant when cutting the aluminum
extrusion
to prevent build-up of the alu-
minum material on the blade.
I n
n
Guidefence
WF
p
Spacer block
Aluminum extrusion
Spacer block
CAUTION:
Never attempt to cut thick or round aluminum extrusions. Thick aluminum extrusions
may come loose during operation and round aluminum extrusion cannot be secured
firmly with this tool.
6. Wood facing
Useof wood facing helpsto assure splinter-free cuts in workpieces. Attach a wood fac-
ingto the guide fence using the holes inthe guide fence.
CAUTION:
*Use straight woodof even thickness
as thewoodfacing.
.See the figure belowconcerning the dimensions for
a suggested woodfacing.
Over 10 mm (3/W
Over 460 mm(18-1/87
90 mm
(3-9/16)
W",, 107" 107" Wmm,, Hole
(3-9/16 1 (4-7/32") (4-7/32') (3-9/16 )
Center of wood facing
17

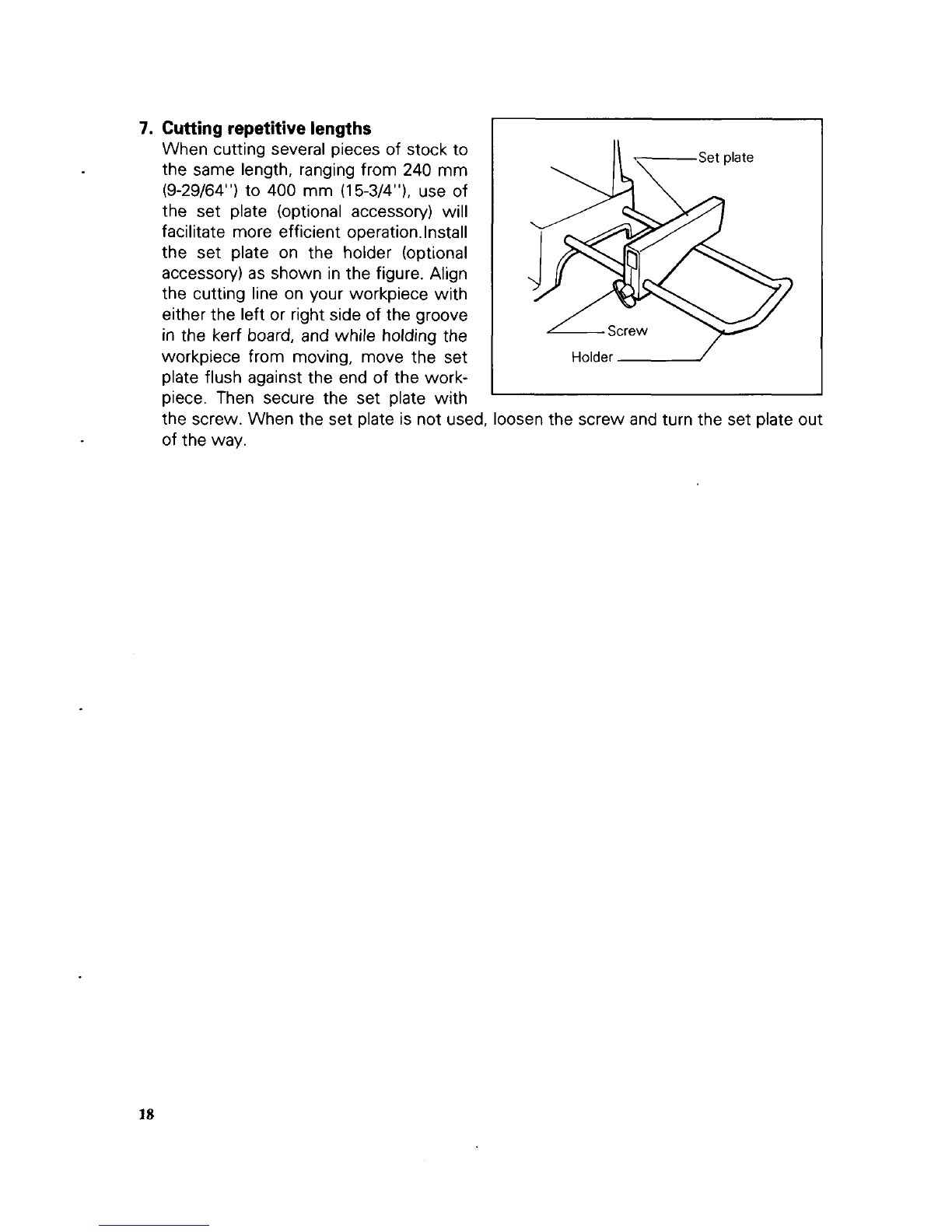

7. Cutting repetitive lengths
When cutting several pieces of stock to
the same length, ranging from
240 mm
(9-29/64") to 400 mm (15-3/4"), use of
the set plate (optional accessory) will
facilitate more efficient operation.lnstal1
the set plate on the holder (optional
accessory) as shown in the figure. Align
the cutting line on your workpiecewith
either the left or right side of the groove
in the kerf board, and while holding the
workpiece from moving, move the set
plate flush against the end of the work-
piece. Then secure the set plate with
Holder d
I
the screw.When the set plate is not used, loosenthe screw and turn the set plate out
of the way.
18

MAINTENANCE
CAUTION:
Always be sure that the tool is switched off and unplugged before attempting to perform
inspection or maintenance.
WARN
I NG :
Always be sure that the blade is sharp and clean for the bestand safest performance.
Alignment for squareness
This tool was carefully adjusted and alignedfor squarenessof cut at the factory, but rough
handlingmay have affectedthe alignment. If your tool is not aligned properly, perform the
following.
1) Miter angle
Loosenthe grip and set the turn base at zero degrees by turning the turn base.Tighten
the grip securely and loosen the hex bolts on the guide fence. Square the side
of the
bladewith the face of the guide fence using
a triangular rule,try-square, etc. by moving
the right side of the guide fence. Then securelytightenthe hex bolts on the guide fence
inthe order indicated in the figure.
II
\ Hex. bolt 1
2) Bevel angle
a) 0" bevel angle
Loosen the lever
at the rear of the
tool. Loosenthe hex nut and turn the
hex bolt (A)two or three revolutions
clockwise
so that the blade tilts to
the right.
Lever
I
19

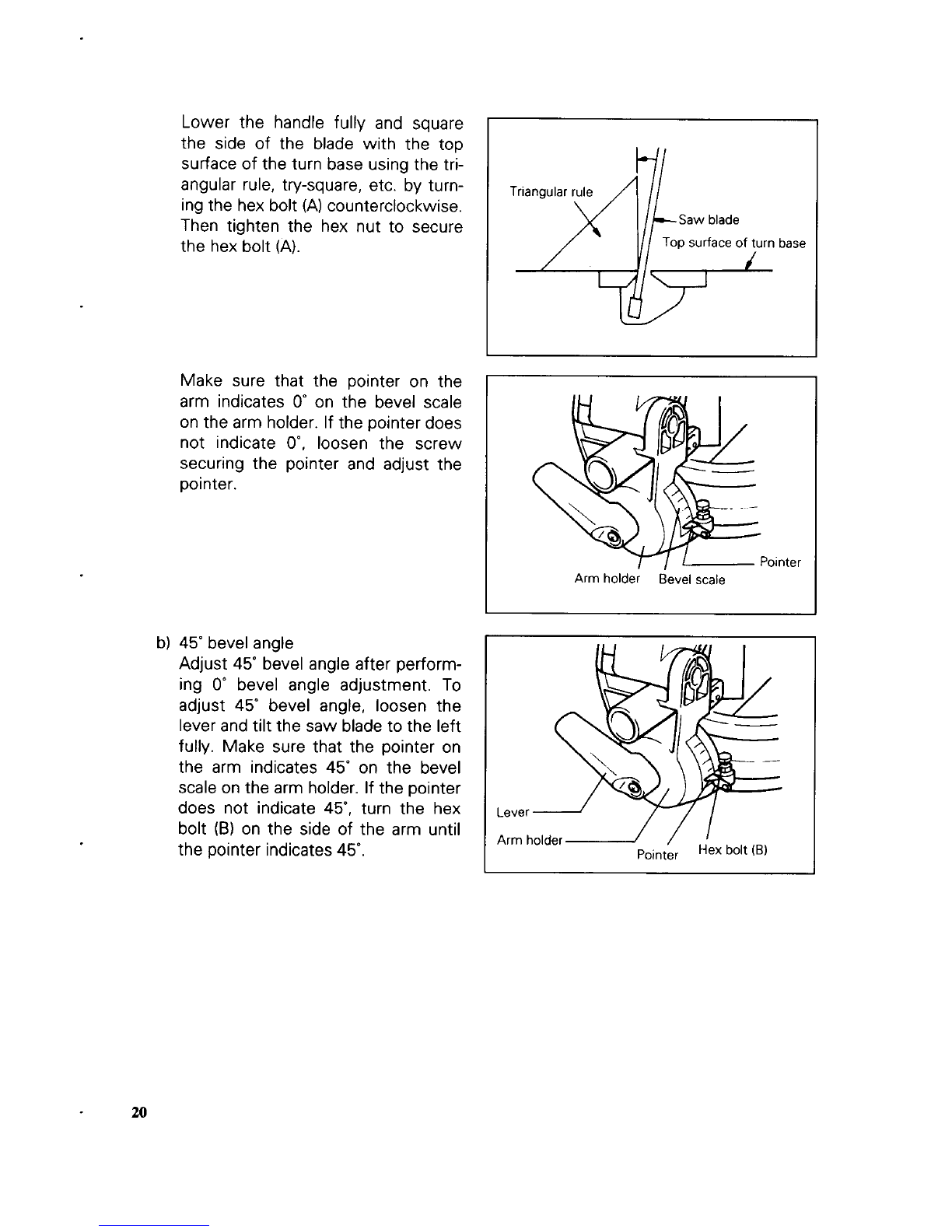

Lower the handle fully and square
the side
of the blade with the top
surface
of the turn base using the tri-
angular rule, try-square, etc. by turn-
ingthe hex bolt (A)counterclockwise.
Then tighten the hex nut to secure
the hex bolt (A).
Make sure that the pointer on the
arm indicates
0" on the bevel scale
on the arm holder. If the pointer does
not indicate
0", loosen the screw
securing the pointer and adjust the
pointer.
b) 45"bevelangle
Adjust 45" bevel angle after perform-
ing
0" bevel angle adjustment. To
adjust 45' bevel angle, loosen the
lever andtilt the saw bladeto the left
fully. Make sure that the pointer on
the arm indicates 45" on the bevel
scaleon the arm holder. If the pointer
does not indicate
45'. turn the hex
bolt
(B) on the side of the arm until
the pointerindicates45'.
Triangular rule
/
base
ointer
I
..
Arm holder Bevel scale
Lever
-
Arm holder2 / '
pointer Hex bolt (B)
20
