Makita CL106FD User manual

INSTRUCTION MANUAL
MANUEL D'INSTRUCTION
MANUAL DE INSTRUCCIONES
Cordless Cleaner
Aspirateur sans Fil
Aspiradora Inalámbrica
CL106FD
IMPORTANT: Read Before Using.
IMPORTANT : Lire avant usage.
IMPORTANTE: Lea antes de usar.

2ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model: CL106FD
Capacity 600 mL
Continuous use (with battery BL1016) Approx. 16 min
Overall length 958 mm (37-3/4")
Rated voltage D.C. 10.8 V - 12 V max
Standard battery cartridge BL1016, BL1021B BL1041B
Net weight 1.0 kg (2.2 lbs) 1.1 kg (2.5 lbs)
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsandbatterycartridgemaydifferfromcountrytocountry.
• Weight,withbatterycartridge,accordingtoEPTA-Procedure01/2003
SAFETY WARNINGS
IMPORTANT
SAFETY
INSTRUCTIONS
When using an electrical appliance,
basic precautions should always be fol-
lowed, including the following:
READ ALL
INSTRUCTIONS
BEFORE USING
THIS APPLIANCE.
WARNING
To reduce the risk of re, electric shock
or injury:
1. Do not leave appliance when battery
tted. Remove battery from appli-
ance when not in use and before
servicing.
2. Do not use on wet surfaces. Do not
expose to rain. Store indoors.
3. Do not allow to be used as a toy.
Close attention is necessary when
used by or near children.
4. Use only as described in this man-
ual. Use only manufacturer's recom-
mended attachments.
5. Do not use with damaged battery.
If appliance is not working as it
should, has been dropped, dam-
aged, left outdoors, or dropped into
water, return it to a service center.
6. Do not handle appliance with wet
hands.
7. Do not put any object into open-
ings. Do not use with any opening
blocked; keep free of dust, lint, hair,
and anything that may reduce air
ow.
8. Keep hair, loose clothing, ngers,
and all parts of body away from
openings and moving parts.
9. Turn off all controls before removing
the battery cartridge.
10. Use extra care when cleaning on
stairs.
11. Do not use to pick up ammable or
combustible liquids, such as gaso-
line, or use in areas where they may
be present.
12. Use only the charger supplied by
the manufacturer to recharge.

3ENGLISH
13. Do not pick up anything that is burn-
ing or smoking, such as cigarettes,
matches, or hot ashes.
14. Do not use without dust bag and/or
lters in place.
15. Do not charge the battery outdoors.
16. Use power tools only with speci-
cally designated battery packs. Use
of any other battery packs may create
ariskofinjuryandre.
17. Recharge only with the charger
specied by the manufacturer. A
charger that is suitable for one type of
batterypackmaycreateariskofre
when used with another battery pack.
18. When battery pack is not in use,
keep it away from other metal
objects, like paper clips, coins,
keys, nails, screws or other small
metal objects, that can make a
connection from one terminal to
another. Shorting the battery terminals
togethermaycauseburnsorare.
19. Under abusive conditions, liquid
may be ejected from the battery;
avoid contact. If contact acciden-
tally occurs, ush with water. If liq-
uid contacts eyes, additionally seek
medical help. Liquidejectedfromthe
battery may cause irritation or burns.
SAVE THESE
INSTRUCTIONS.
ADDITIONAL
SAFETY RULES
This appliance is intended for house-
hold use.
1. Read this instruction manual and
the charger instruction manual care-
fully before use.
2. Do not pick up the following
materials:
• Hot materials such as lit ciga-
rettes or spark/metal dust gen-
erated by grinding/cutting metal
• Flammable materials such as
gasoline, thinner, benzine, kero-
sene or paint
• Explosive materials like
nitroglycerin
• Ignitable materials such as
Aluminum, zinc, magnesium,
titanium, phosphorus or
celluloid
• Wet dirt, water, oil or the like
• Hard pieces with sharp edges,
such as wood chips, metals,
stones, glasses, nails, pins or
razors
• Powder to clot such as cement
or toner
• Conductive dust such as metal
or carbon
• Fine particle like concrete dust
Such action may cause re, injury
and/or property damage.
3. Stop operation immediately if you
notice anything abnormal.
4. If you drop or strike the cleaner,
check it carefully for cracks or dam-
age before operation.
5. Do not bring close to stoves or other
heat sources.
6. Do not block the intake hole or vent
holes.
SAVE THESE
INSTRUCTIONS.
Symbols
Thefollowingsshowthesymbolsusedfor
tool.
volts
direct current

4ENGLISH
Important safety
instructions for
battery cartridge
1. Before using battery cartridge,
read all instructions and cautionary
markings on (1) battery charger,
(2) battery, and (3) product using
battery.
2. Do not disassemble battery
cartridge.
3. If operating time has become
excessively shorter, stop operating
immediately. It may result in a risk
of overheating, possible burns and
even an explosion.
4. If electrolyte gets into your eyes,
rinse them out with clear water and
seek medical attention right away. It
may result in loss of your eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with
any conductive material.
(2) Avoid storing battery cartridge
in a container with other metal
objects such as nails, coins, etc.
(3) Do not expose battery cartridge
to water or rain.
A battery short can cause a large
current ow, overheating, possible
burns and even a breakdown.
6. Do not store the tool and battery
cartridge in locations where the
temperature may reach or exceed 50
°C (122 °F).
7. Do not incinerate the battery car-
tridge even if it is severely damaged
or is completely worn out. The bat-
tery cartridge can explode in a re.
8. Be careful not to drop or strike
battery.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries
are subject to the Dangerous Goods
Legislation requirements.
For commercial transports e.g. by third
parties, forwarding agents, special
requirement on packaging and labeling
must be observed.
For preparation of the item being
shipped, consulting an expert for haz-
ardousmaterialisrequired.Please
also observe possibly more detailed
national regulations.
Tapeormaskoffopencontactsand
pack up the battery in such a man-
ner that it cannot move around in the
packaging.
11. Follow your local regulations relat-
ing to disposal of battery.
SAVE THESE
INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causingres,personalinjuryanddamage.Itwill
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.

5ENGLISH
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before adjusting or checking function on the tool.
CAUTION: Take care not to trap nger(s)
between cleaner and battery as shown in diagram
when loading battery. Trappingnger(s)maycause
injury.
Installing or removing battery
cartridge
CAUTION: Always switch off the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
tridge rmly when installing or removing battery
cartridge. Failure to hold the tool and the battery
cartridgermlymaycausethemtoslipoffyourhands
and result in damage to the tool and battery cartridge
andapersonalinjury.
3
1
2

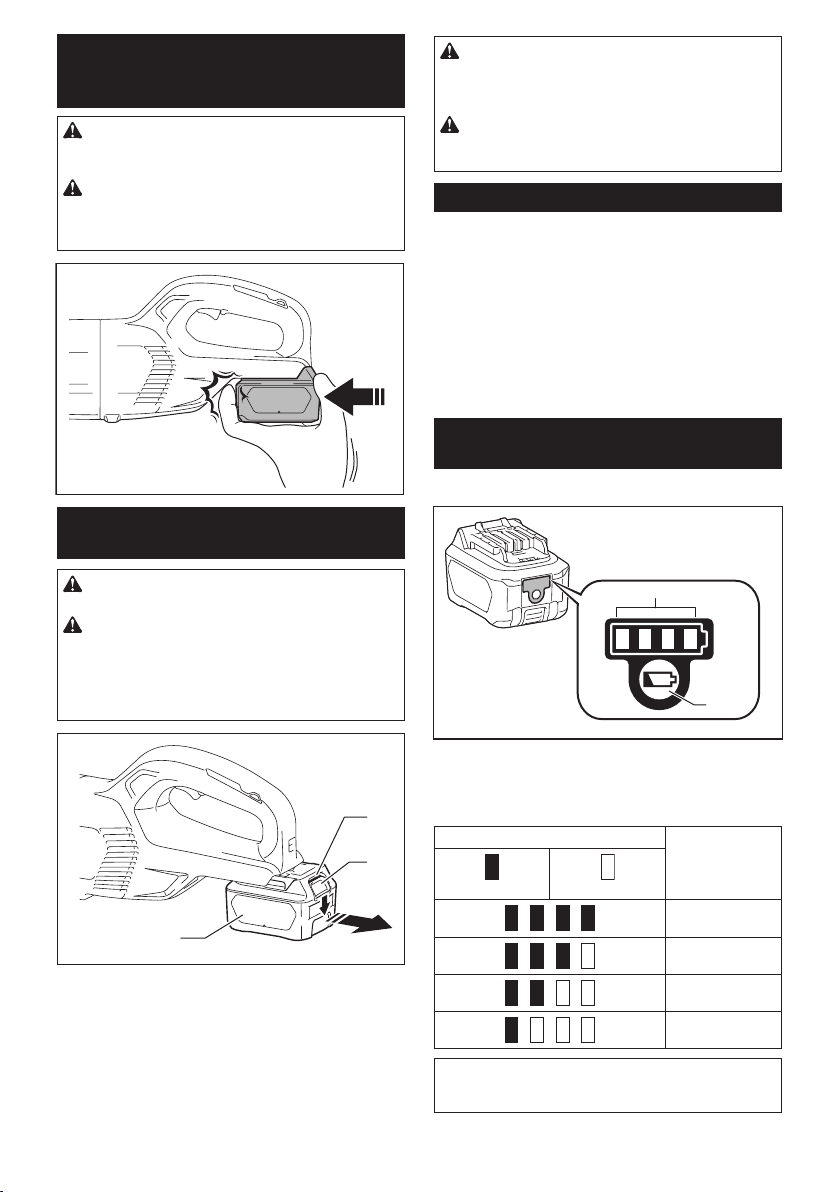

►1. Red indicator 2. Button 3. Battery cartridge
Toremovethebatterycartridge,slideitfromthetool
while sliding the button on the front of the cartridge.
Toinstallthebatterycartridge,alignthetongueonthe
battery cartridge with the groove in the housing and slip
itintoplace.Insertitallthewayuntilitlocksinplace
withalittleclick.Ifyoucanseetheredindicatoronthe
upper side of the button, it is not locked completely.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen.Ifnot,
itmayaccidentallyfalloutofthetool,causinginjuryto
you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly.Ifthecartridgedoesnotslideineasily,itis
not being inserted correctly.
Battery protection system
Thetoolisequippedwithabatteryprotectionsystem.
Thissystemautomaticallycutsoffpowertothemotorto
extend battery life.
Thetoolwillautomaticallystopduringoperationif
the tool and/or battery are placed under the following
condition:
Low battery voltage:
Theremainingbatterycapacityistoolowandthetool
willnotoperate.Ifyouturnthetoolon,themotorruns
againbutstopssoon.Inthissituation,removeand
recharge the battery.
Indicating the remaining battery
capacity
Only for battery cartridges with the indicator
1
2
►1.Indicatorlamps2. Check button
Pressthecheckbuttononthebatterycartridgetoindi-
catetheremainingbatterycapacity.Theindicatorlamps
light up for a few seconds.
Indicator lamps Remaining
capacity
Lighted Off
75% to 100%
50% to 75%
25% to 50%
0% to 25%
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may differ slightly
from the actual capacity.
