IMPORTANT: Please read this manual before commencing
assembly of this product.
IMPEX®INC.
2801 S. Towne Ave, Pomona, CA 91766
Tel: [phone]
www.marcypro.com
[email protected]

1
© Impex Inc. www.marcypro.com
TABLE OF CONTENTS
BEFORE YOU BEGIN
Thank you for selecting MARCY MAGNETIC ELLIPTICAL TRAINER
ME-1017E by IMPEX®INC. For your safety and benefit, read this
manual carefully before using the equipment. As a manufacturer, we are
committed to providing you with complete customer satisfaction. If you
have any questions, or find there are missing or damaged parts, we
guarantee you complete satisfaction through direct assistance from our
factory. To avoid unnecessary delays, please call our TOLL-FREE
customer service number. Our Customer Service Agents will provide
immediate assistance.
Toll-Free Customer Service Number
1-800-999-8899
Mon. –Fri. 9 a.m. –5 p.m. PST
www.marcypro.com
[email protected]
BEFORE YOU BEGIN
1
IMPORTANT SAFETY NOTICES
2
CARE AND MAINTENANCE
2
WARNING LABEL PLACEMENT
3
HARDWARE PACK
4
COMPONENTS
5
ASSEMBLY INSTRUCTIONS
6
EXPLODED DIAGRAM
12
PARTS LIST
14
COMPUTER INSTRUCTIONS
15
EXERCISE GUIDELINES
16
WARRANTY
18
ORDERING PARTS
18

2
© Impex Inc. www.marcypro.com
IMPORTANT SAFETY NOTICE
This exercise equipment is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual before
you assemble or operate your equipment. In particular, note the following safety precautions:
1. Read the warning notice and instruction prior to assembling and using the equipment.
2. This equipment is not intended for children under 12 years of age.
3. This equipment can be only used by hands or feet. Do not stand with full weight on the
pedals.
4. Do not leave children unattended with the equipment.
5. This equipment is intended for indoor use and for consumer use only.
6. Position the equipment on a clear, leveled surface. Make sure the surface is free of objects that
may cause tipping. Keep objects which could interfere with the user away.
7. Inspect before use. Keep frame padding in place. Never use the equipment if it is not
functioning properly.
8. Always wear appropriate workout clothing when exercising.
9. Do not use the equipment when it is wet.
10.Use the equipment only with mature, knowledgeable supervision.
11.Do not use the equipment while under influence of alcohol or drugs.
12.While keeping the head erect, focus eyes on the equipment toward the perimeter.
13.Before exercising, always do stretching exercises to properly warm up.
14.If the user experience dizziness, nausea, chest pain, or any other abnormal symptoms,
STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
Care and Maintenance
1. For equipment information, contact the manufacturer.
2. Periodically inspect all parts to ensure all parts are functioning properly.
3. Replace any worn and/or damaged parts immediately.
4. Always keep the top surface of the pedals clean and dry.
5. Use mild household spray cleaners and/or a damp rag to wipe clean. Do not use harsh
cleaning chemicals.
6. Sand rusted areas on tubular members and repaint using a non-lead-based paint meeting
the requirements of Title 16 CFR Part 1303.
7. Disposal Instructions –The equipment can be safely disassembled and disposed.. Call
your local recycle agency regarding details of recycling.
8. Assembled dimensions: 53”x24”x64”
9. Maximum User Weight Capacity: 250 lbs.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN. THIS IS
ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-
EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS
EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY
DAMAGE SUSTAINED THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.

3
© Impex Inc. www.marcypro.com
WARNING LABEL PLACEMENT
NO:1 NO:9 NO:52/53 NO:12/13
NO:11 NO:41L/R NO:48L/R NO:10
NO:35 NO:39 NO:37L/R NO:6/3
NO:43
The warning labels shown here have been placed on the Base Frame. If the labels are missing or illegible,
please call customer service at 1-800-999-8899 for replacements. Apply the labels in the location shown.

4
© Impex Inc. www.marcypro.com
HARDWARE PACK
NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.
NO.
DESCRIPTION
Q’TY
DRAWING
2
Carriage bolt M10*75
4
4
Curved washerФ10*Ф22
4
5
Domed nut M10
4
21
Hollow carriage nutФ8*20
4
22
Allen bolt M6*12
4
26
Flat washerФ10*Ф32
2
27
Lock washerФ10
2
28
Hex head bolt M10*20
2
29
D type washer
2
31
Hex bolt M8*45
2
32
Hex bolt M10*78
2
33
Sleeve
2
34
Aircraft nut M10
2
42
Club knob
4

5
© Impex Inc. www.marcypro.com
44
Washer Ф10*Ф22
6
46
Washer Φ27*Φ12.8
2
47
Allen bolt M8*16
6
54
Curved washer Ф8*Ф20
6
59
Hinge bolt L/R
1/1
36
Wave washer
2
60
Nut L/R
1/1
Allen Key
2
Allen key L8
1
Allen Key L6
1
Allen Key L4
1

6
© Impex Inc. www.marcypro.com
COMPONENTS FOR ASSEMBLY
NO:1 NO:9/51 NO:52/53 NO:12/13
NO:11 NO:41L/R NO:48L/R NO:10
NO:37L/R NO:6/3
NO:43
NO:35 NO:39
PART NO.
DESCRIPTION
Q’TY
1
Main Frame
1
9/51
Front post/ Tension control knob w/cable
1/1
52/53
Bottom handlebar L/R
1/1
12/13
Top handlebar L/R
1/1
41
Pedal tube L/R
1/1
11
Fixed handlebar
1
6/3
Front stabilizer/ Rear stabilizer
1/1
10
Computer
1
48
Pedal L/R
1/1
35
Top handlebar cover
4
39
Bottom handlebar cover
4
37
Pedal tube cover L/R
2/2
43
Bottle holder
1

7
© Impex Inc. www.marcypro.com

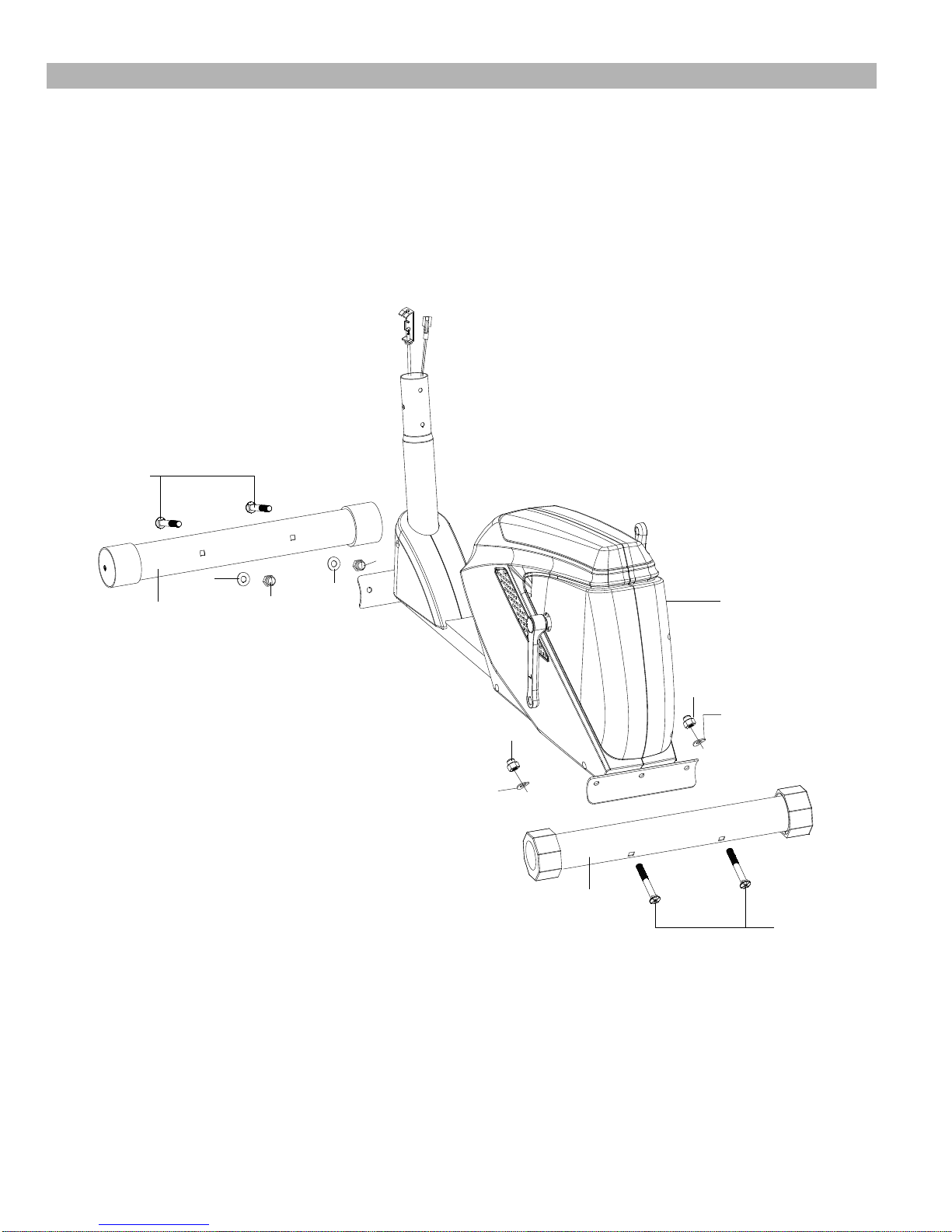

ASSEMBLY INSTRUCTION
STEP 1
1. Attach rear stabilizer (#3) to main frame (#1), tighten with two curved washers (#4), domed
nuts (#5) and carriage bolts (#2).
2. Attach the front stabilizer (#6) to the main frame (#1), tighten with two carriage bolts (#2),
curved washers (#4) and domed nuts (#5).
2
5
4
5
44
5
2
3
6
5
4
1

8
© Impex Inc. www.marcypro.com
STEP 2
1. Connect the extension lower sensor wire (#49) with the middle sensor wire (#55).
2. Turn the tension control knob w/cable (#51) to level 8, connect it to extension tension
cable (#50).
3. Insert the front post (#9) into the main frame (#1) and secure using four Allen bolts (#47) and
four curved washers (#54).
9
50
51
49
54
47
47
54
55
55 51 55
49
50
1

9
© Impex Inc. www.marcypro.com

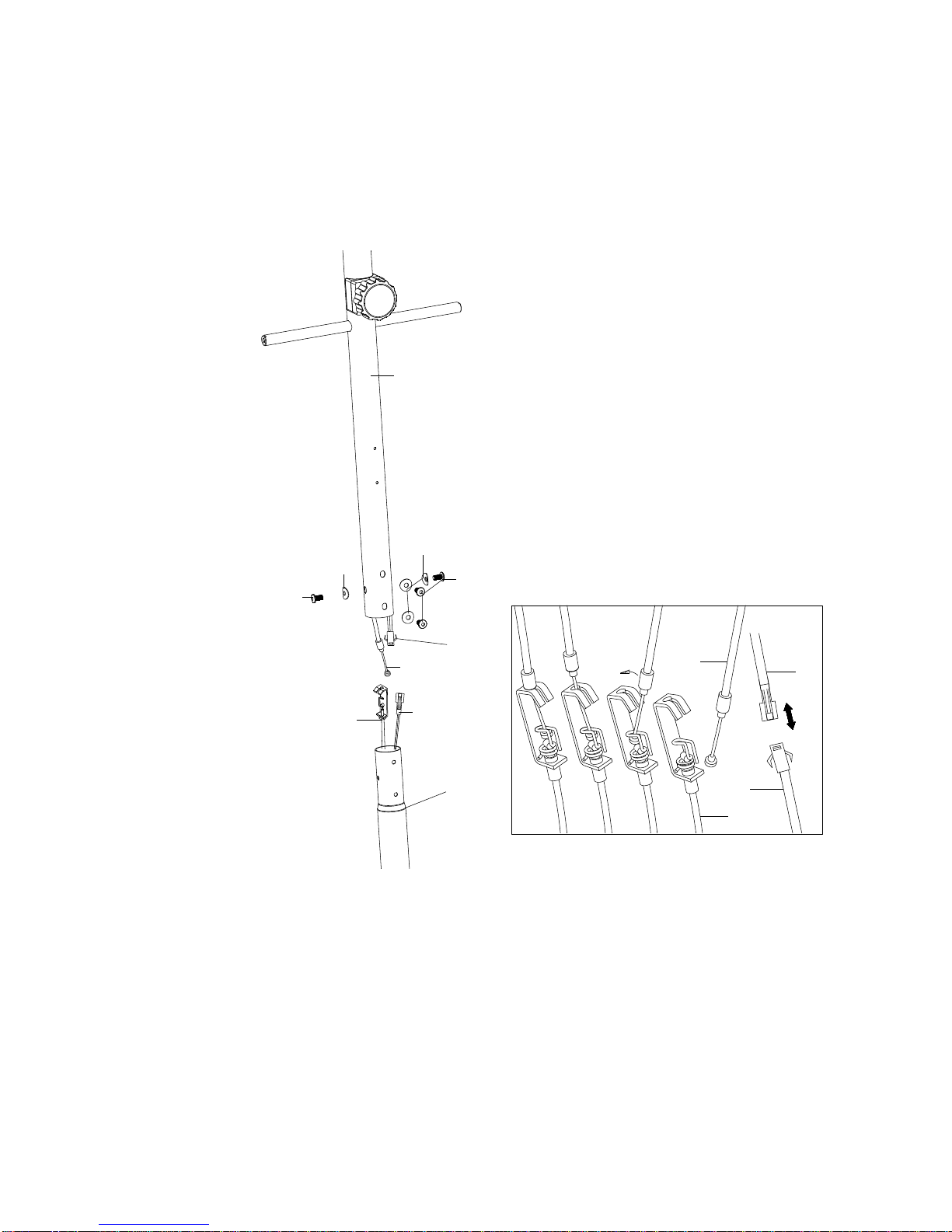

HOW TO CONNECT TENSION CONNECTOR
Slide the Cable wire from the
extension sensor wire Connector
in between the opening on the wire
holder on sensor wire Connector.
Pull the extension sensor wire
Connector backward and slide the
wire through the slot on the bracket.
Drop down the Connector
so the fitting sits firmly on
top of the bracket.
NOTE: In able to hold the Front Post while connecting the cables and wires, extra help may
be needed

10
© Impex Inc. www.marcypro.com
Step3
1. Attach the bottom handlebar L (#52) into the front post (#9), tighten with one D type washer
(#29), washer (#26), lock washer (#27) and hex bolt (#28).
2. Repeat for bottom handlebar R (#53).
55
28
27
52
53
26
29
29 27
26
28
9

11
© Impex Inc. www.marcypro.com
STEP 4
1. Attach pedal tube L (#41L) to the crank, secure using one nut (#60L), wave washer (#36),
and hinge bolt L (#59L).
2. Slide bottom handlebar L (#52) into pedal tube L (#41L) then insert sleeve (#33). Insert hex
bolt (#32) through sleeve (#33) then fasten and secure with one washer (#44) and aircraft
nut (#34).
3. Repeat above procedure for pedal tube R (#41R) and bottom handlebar R (#53).
4. Attach pedal L (#48L) to pedal tube L (#41L), tighten with two hex head bolt (#31) and club
knob (#42). Repeat for pedal R (#48R).
33
32
34
44
59L
31
48L
41L
42 46
48R
42 59R
41R
31
32
34
44
33
46
55
60R
60L
52 53

12
© Impex Inc. www.marcypro.com
Step5

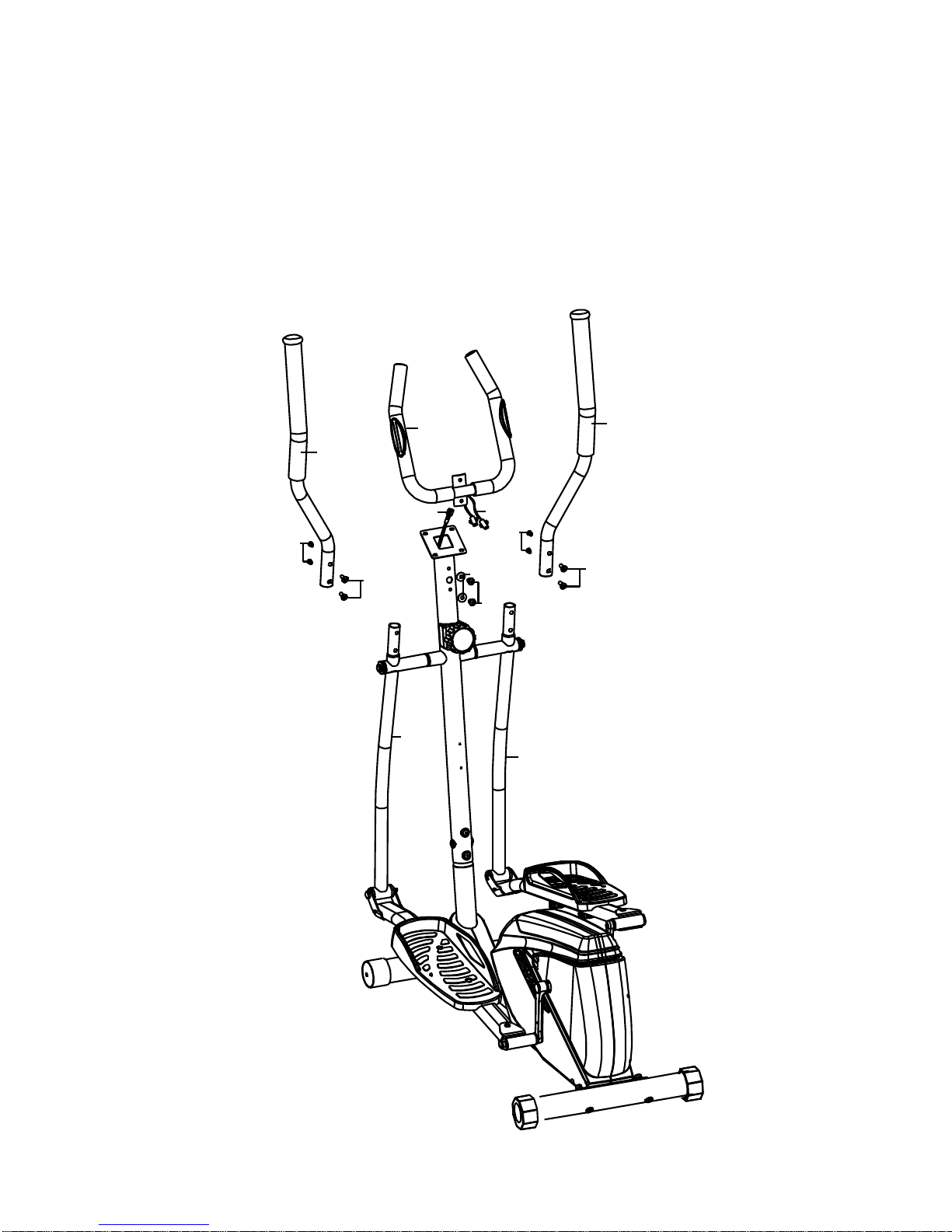

1. Insert the top handlebar L (#12) into the bottom handlebar L (#52), tighten with two hollow
carriage nuts (#21) and Allen bolts (#22). Repeat for top handlebar R (#13).
2. Insert the hand pulse wire (#58) through front post (#09) and pull the hand pulse wire (#58)
out of front post (#09).
3. Attach fixed handlebar (#11) to the front post (#09), tighten with two Allen bolts (#47) and
two curved washers (45).
2
33
32
34
44
59L
31
48L
41L
42 46
48R
42 59R
41R
31
32
34
44
33
46
55
60R
60L
58
47
54
55
21
22
12
21
22
13
11
55
10
20
52
53
55
28
27
52
53
26
29
29 27
26
28
35
23
35
23
30 30
39
39
25
37L 25
45
25
37R
37R
45
25
37R
43
56
2
5
4
5
44
5
2
9
50
51
49
54
47
47
54
55
3
6
5
4
55 51 55
49
50

13
© Impex Inc. www.marcypro.com
Step6
1. Connect upper sensor wire from the back of computer (#10) to the middle sensor wire (#55).
2. Connect lower pulse wire (#58) to upper pulse wire from the back of the computer (#10).
3. Attach computer (#10) to bracket on front post (#09), tighten with four screws (#20).
55
10
20
58

14
© Impex Inc. www.marcypro.com
Step7
1. Attach computer (#10) to bracket on front post (#9), tighten with two screws (#20).
2. Attach top handlebar cover (#35) to the top handlebar L/R (#12/#13), tighten with four self-
tapping screws (#23).
3. Attach bottom handlebar cover (#39) to the bottom handlebar L/R (#52/#53), tighten with two
self-tapping screws (#30).
4. Attach pedal tube cover L (#37L) and pedal tube cover R (#37R) to the pedal tube L (#41L),
tighten with two self-tapping screws (#25) and one self-tapping screw (#45).
5. Repeat for right pedal tube R (#41).
55
10
20
9
23
30 30
39
39
25
37L 25
45
25
37R
37R
45
25
37R
35
23
35 43
56
9
52
53
13
12
41R
41L

15
© Impex Inc. www.marcypro.com

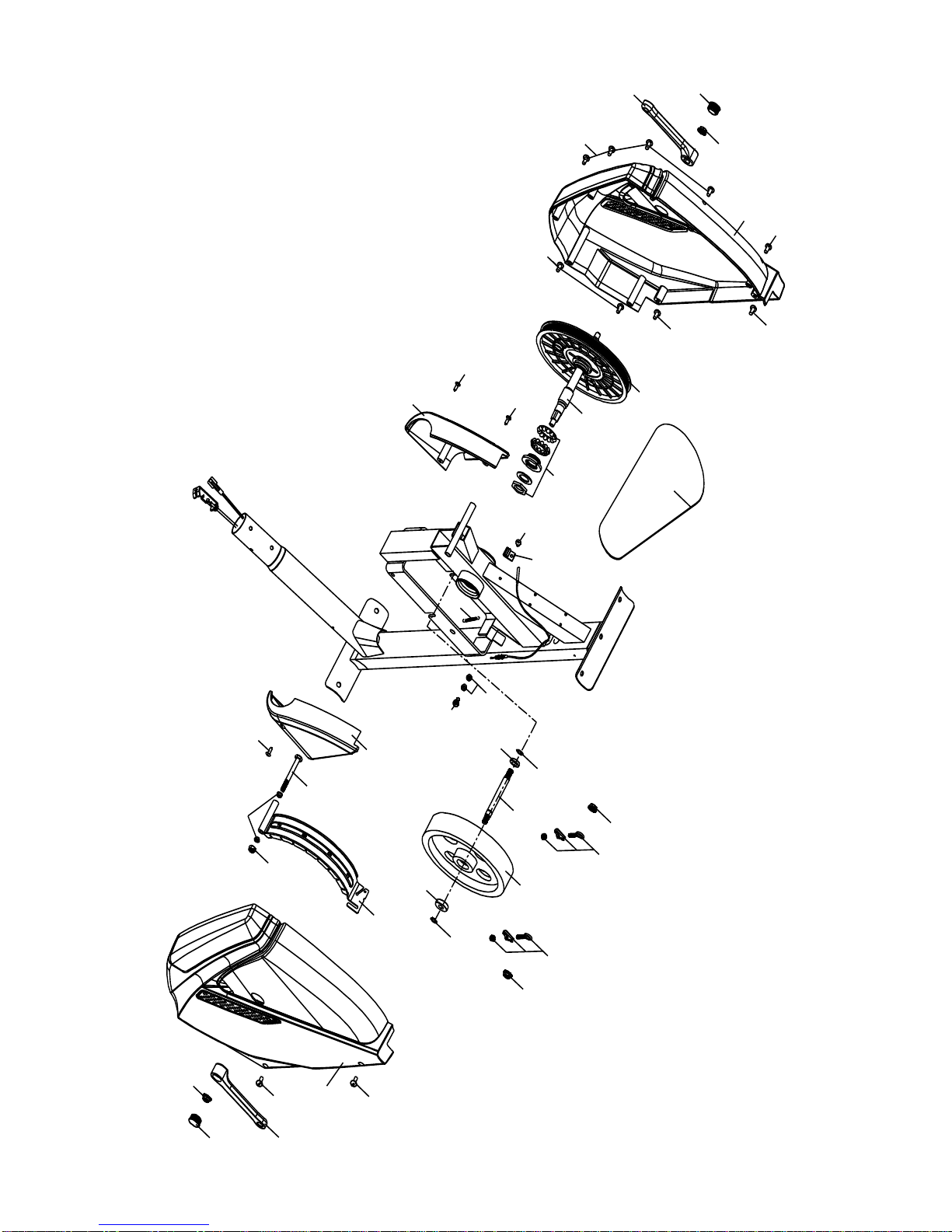

EXPLODED DIAGRAM
16
14
12
15
11
19
19
13
35
23
35
23
16
9
17
18
21
22
21
22
3
59L
31
20
54
47
28
27
5
44
5
47
54
33 33
52
53
32
32
34
34
30
30
39
39
14
48L
48R
26
29
29 27
26
28
61
61
42 59R
41R
41L
42
2
7
7
8
8
25
37L 25
45
44 44
25
37R
37R
37L
45
25
47
54
6
1
46
46
24
50
51
17
18
2
31
58
43
55
49
60R
60L
10
36
36
56
55
4
4

16
© Impex Inc. www.marcypro.com
71
72
70
69
34
68
76
80L
80R
75
56
74
56
56
57
57
66
66
65
62
63
63
64 64
67 67
73
77L
77R
78L
66
79
78R
79
66
83
56
56
56
56
57
40
38

17
© Impex Inc. www.marcypro.com
ME-1016U PARTS LIST
PART
NO.
DESCRIPTION
QTY
PART
NO.
DESCRIPTION
QTY
1
Main frame
1
31
Hex bolt M8x1¾"
4
2
Carriage bolt M10x3"
4
32
Hex bolt M10x3"
2
3
Rear stabilizer
1
33
Sleeve
2
4
Curved washer Ф¾"
4
34
Aircraft nut M10
3
5
Domed nut M10
4
35
Top handlebar cover
4
6
Front stabilizer
1
36
Wave washer
2
7
End cap for front stabilizer
2
37
Pedal tube cover L/R
2/2
8
End cap for rear stabilizer
2
38
Belt
1
9
Front post
1
39
Bottom handlebar cover
4
10
Computer
1
40
Axle
1
11
Fixed handlebar
1
41
Pedal tube L/R
1/1
12
Top handlebar L
1
42
Club knob
4
13
Top handlebar R
1
43
Bottle holder
1
14
End cap
2
44
Washer Ф⅜"
2
15
Foam grip for fixed
handlebar
2
45
Self-tapping screw
ST5x⅔"
2
16
Foam grip
2
46
Washer Ф1"
2
17
Self-tapping screw ST4x¾"
2
47
Allen bolt M8x⅔"
6
18
Washer Ф½"
2
48
Pedal L/R
1/1
19
Hand pulse sensor
2
49
Lower sensor wire
1
20
Screw M5x⅔"
4
50
Extension tension cable
1
21
Hollow carriage nut
4
51
Tension control knob
w/cable
1
22
Allen bolt M6x½"
4
52
Bottom handlebar L
1
23
Self-tapping screw ST4x⅔"
4
53
Bottom handlebar R
1
24
End cap
2
54
Curved washer Ф¾"
6
25
Self-tapping screw M5x⅜"
4
55
Middle sensor wire
1
26
Washer Ф⅜"
2
56
Self-tapping screw
ST5x⅔"
9
27
Lock washer
2
57
Self-tapping screw
ST5x⅔"
7
28
Hex bolt M10x¾"
2
58
Hand pulse wire
2
29
D type washer
2
59
Hinge bolt L/R
1/1
30
Self-tapping screw ST4x1"
2
60
Nut L/R
1/1

18
© Impex Inc. www.marcypro.com
61
Plastic spacer
2
71
Screw M6x1"
1
62
Flywheel
1
72
Nut M8
2
63
Clip
2
73
Spring
1
64
Bearing
2
74
Sensor bracket
1
65
Axle for flywheel
1
75
BB assembly
1
66
Flange nut
4
76
Pulley
1
67
Flywheel adjuster
2
77
Front chain cover L/R
1/1
68
Magnetic assembly
1
78
Crank L/R
1/1
69
Spacer
2
79
Main crank cover L/R
1/1
70
Hex head bolt M8x4"
1
80
Chain cover L/R
1/1
COMPUTER
FUNCTIONAL BUTTONS:
MODE - Push down for selecting functions.
SET - To set the time, distance, calories and hand pulse.
RESET - For resetting time, distance, calories and hand pulse.
FUNCTION AND OPERATIONS:
1. SCAN: Press “MODE” button until “SCAN” appears, monitor will cycle through all the 6
functions: Time, speed, distance, calorie ODO and pulse. Each function will display for 6
seconds.
2.TIME: (1) Count the total time of exercise from start to end.
(2) Press “MODE” button until “TIME” appears, press “SET” button to set exercise time.
When the “set” is zero, the computer will sound an alarm for 15 seconds.
3.SPEED: Display current speed.
4. DIST: (1) Count the distance of exercise from start to end.
(2) Press “MODE” button until “DIST” appears. Press “SET” button to set exercise
distance. When the “set” is zero, the computer will sound an alarm for 15 seconds.
5.CALORIES: (1) Count the total calories of exercise from start to end.
(2) Press “MODE” button unit “CAL” appears. Press “SET” button to set
exercise calories. When the “set” is zero, the computer will sound an alarm for
15 seconds.
6. ODO：Monitor will display the total accumulated distance.
7. PULSE: Press MODE button until “PULSE” appears. Before measuring your pulse rate, please
place the palms of your hands on both contact pads and the monitor will show your
current heart beat rate in beats per minute(BPM) on the LCD after 6~7 seconds.

19
© Impex Inc. www.marcypro.com
Note: During the pulse measurement, the measured value may be higher than the
actual pulse rate during the first 2~3 seconds, then will return to normal level. The
PULSE Function value cannot be regarded as the basis of medical treatment.
Press “MODE” button until “PULSE” appears. Press “SET” button to set exercise pulse.
The setting values of 40-240 RPM , the computer will sound alarm when heart rate is
below the SET value.
NOTE：
1. If the display is faint or does not show any digits, please replace the batteries.
2. The monitor will automatically shut off after 4 minutes of inactivity.
SPECIFICATIONS:
FUNCTION
AUTO SCAN
Every 6 seconds
TIME
00:00’~99:59’
CURRENT SPEED
The maximum signal can be pickup is 99.9M/H
TRIP DISTANCE
0.00~99.99M or 0.00~9999M
CALORIES
0.1~999.9kCAL
ODO
0.1~999.9M or 1 ~ 9999M
PULSE RATE
40~240BPM
BATTERY TYPE
2pcs of SIZE –AA or UM –3
OPERATING TEMPERATURE
0°C ~ +40°C
STORAGE TEMPERATURE
-10°C ~ +60°C
EXERCISE GUIDELINES
Using your Magnetic Elliptical Trainer will provide you with several benefits, it will improve
your physical fitness, tone muscle and in conjunction with calorie controlled diet help you lose
weight.
1. The Warm Up Phase
This stage helps get the blood flowing around the body and the muscles working properly. It will
also reduce the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as
shown below. Each stretch should be held for approximately 30 seconds, do not force or jerk your
muscles into a stretch - if it hurts, STOP.
SIDE BENDS OUTER THIGH
INNER THIGH
FORWARD
BENDS
CALF / ACHILLES
