HPAT600 HANDYPAT
MARTINDALE
ELECTRIC
Trusted by Professionals
Trusted by Professionals
INSTRUCTION
MANUAL

GENERAL SAFETY INFORMATION: Always read before proceeding.
Warning
These instructions contain both information and warnings that are
necessary for the safe operation and maintenance of this product. It
is recommended that you read the instructions carefully and ensure
that the contents are fully understood. Failure to understand and to
comply with the warnings and instructions can result in serious
injury, damage or even death.
In order to avoid the danger of electrical shock, it is important that
proper safety measures are taken when working with voltages
exceeding 30V AC RMS, 42V AC peak or 60V DC.
This product must only be used by a competent person capable of
interpreting the results under the conditions and for the purposes for
which it has been constructed. Particular attention should be paid to
the Warnings, Precautions and Technical Specifications. Always
check the unit is in good working order before use and that there are
no signs of damage to it. Do not use if damaged.
Where applicable other safety measures such as use of protective
gloves, goggles etc. should be employed.
Please keep these instructions for future reference. Updated
instructions and product information are available at:
www.martindale-electric.co.uk/instruct
REMEMBER: SAFETY IS NO ACCIDENT
MEANING OF SYMBOLS:
Equipment complies with relevant EU Directives
AC (Alternating Current)
Caution - refer to accompanying documents
Caution - risk of electric shock
End of life disposal of this equipment should be
in accordance with relevant EU Directives
Fuse Check
Test voltage: 4V DC (into open circuit)
Test current: 200mA DC (into short circuit)
Pass level: >2mA
Simulated Load Test
Test voltage: 4V DC (into open circuit)
Test current: 200mA DC (into short circuit)
Accuracy (referenced to 230V rms):
± (5% reading + 2 digits)
Threshold for 'Simulated Current Hi': 16A
Memory
Completed test types that can be stored: 200
General
Overload protection: 300V AC/DC
Protection class: IP20
Safety: Complies to BS EN 61010-1: 2001
Temperature Range: -10 to 40°C, non-condensing
Batteries: 6 x 1.2V AA NiMH rechargeable batteries
1800mAh, or greater
Caution - use only the battery type specified
Battery Life: Fully charged, minimum 600 complete
tests, stored to memory. The HPAT600 will operate fully
from the battery charger in the event of discharged
batteries
Battery Charger:
Input: 230V 50Hz
Output: 12VDC at 300mA, 5.5 jack x 2.5 bore centre
positive
Auto Power Down:
After 10 minutes of inactivity, or when battery low
Dimensions: 90 x 210 x 54mm
Weight: Approx 700g (including batteries & leads)

Thank you for buying one of our products. For safety
and full understanding of its benefits please read this
manual before use. Technical support is available
from 01923 441717 and
[e-mail].
CONTENTS
1 INTRODUCTION
1.1 Unpacking and Inspection 1
1.2 Description & Overview 1
2 GENERAL OPERATION & FUNCTIONS
2.1 Precautions 3
2.2 Power On/Off 4
2.3 Display Indicators 5
2.4 Connector Descriptions 5
2.5 Press Button Description 6
2.6 Contrast Adjustment 8
2.7 Default Settings and Pass Levels 8
2.8 User Specified Pass Level Range 8
2.9 Menu 9
2.10 Null of Test Probe Lead Resistance 9
2.11 Setting User Specified Pass Levels 10
2.12 Setting Insulation Test Voltage 10
2.13 Setting Auto/Manual Test Mode 11
2.14 Saving Test Data to Memory 11
2.15 Memory Full Screen 11
2.16 Recalling Test Data from Memory 12
2.17 Memory Empty Screen 12
2.18 Deleting Individual Test Data in Memory 12
2.19 Deleting All Test Data in Memory 13
2.20 Resetting to Default Settings and Pass Levels 14
2.21 Backlight 14
Specification
HPAT600
HandyPAT
MARTINDALE
ELECTRIC
Earth Continuity
Test voltage: 4V DC (into open
circuit)
Test current: 200mA DC (into short
circuit)
Range: 0 - 19.99Ω
Resolution: 0.01Ω
Accuracy: ± (5% reading + 2 digits)
Default pass levels:
Lead: 0.1Ω
Class I: 0.1Ω
User selectable pass levels:
0.1Ωto 0.9Ωin 0.1Ωsteps
Insulation
Default test voltage:
>500V DC at 1mA (< 600V DC into open circuit)
User selectable test voltage:
>250V DC at 1mA (< 300V DC into open circuit)
Test current: 1.5mA (into short circuit)
Ranges: 2.00MΩ, 20.0MΩ, 200MΩ
Resolution: 0.01MΩ
Accuracy: ± (5% reading + 2 digits)
Default pass level:
Lead: 1 MΩ
Class I: 1 MΩ
Class II: 2 MΩ
User selectable pass levels:
0.3 MΩto 1 MΩin 0.1 MΩsteps
1 MΩto 10 MΩin 1 MΩsteps

2.22 Battery Low Message 14
2.23 Auto Power Down 14
2.24 Charging Batteries 15
2.25 Inadvertent Connection of Mains 15
Supply Voltage
3 PERFORMING APPLIANCE & LEAD TESTS
3.1 Auto or Manual Test Mode? 16
3.2 Preliminary Checks and Set Up 17
3.3 IEC Lead Test 18
3.4 Class I Test 20
3.5 Class II Test 22
3.6 Simulated Load Test 24
3.7 Class I Earth Continuity Test 26
3.8 Class I Insulation Test 27
3.9 Class II Insulation Test 29
3.10 Extension Lead Testing 31
3.11 Fuse Check/Simulated Load Failure 31
3.12 Earth Continuity/Insulation Failure 32
3.13 Simulated Load Current Hi 33
3.14 Testing of 110V appliances 34
4 MAINTENANCE
4.1 Fitting Batteries 35
4.2 Calibration 35
4.3 Cleaning 36
4.4 Repair & Service 36
4.5 Storage Conditions 36
5 WARRANTY 36
TECHNICAL SPECIFICATION
and does not apply to fuses, batteries, test leads or to any
product which, in Martindale’s opinion, has been misused,
altered, neglected, contaminated, or damaged by accident
or abnormal conditions of operation, handling or storage.
Martindale authorised resellers shall extend this warranty
on new and unused products to end-user customers only
but have no authority to extend a greater or different
warranty on behalf of Martindale.
Martindale's warranty obligation is limited, at Martindale's
option, to refund of the purchase price, free of charge
repair, or replacement of a defective product which is
returned to Martindale within the warranty period.
This warranty is the buyer’s sole and exclusive remedy
and is in lieu of all other warranties, expressed or implied,
including but not limited to any implied warranty of
merchantability or fitness for a particular purpose.
Martindale shall not be liable for any special, indirect,
incidental or consequential damages or losses, including
loss of data, arising from any cause or theory.
Since some jurisdictions do not allow limitation of the term
of an implied warranty, or exclusion or limitation of
incidental or consequential damages, the limitations and
exclusions of this warranty may not apply to every buyer. If
any part of any provision of this warranty is held invalid or
unenforceable by a court or other decision-maker of
competent jurisdiction, such holding will not affect the
validity or enforceability of any other provision or other part
of that provision. Nothing in this statement reduces your
statutory rights.
37

1. INTRODUCTION
1.1 Inspection
Examine the shipping carton for any sign of damage.
Inspect the unit and any accessories for damage. If
there is any damage then consult your distributor
immediately.
Unpack the HPAT600 and check that you have the
following accessories:
Instructions
Mains Charger Unit
Car Charger
Test Probe with crocodile clip (TL67)
6 x AA NiMH rechargeable batteries
Adaptor Lead (EX332)
Null Pin on keyfob
Inspect the unit and its accessories for any damage.
If any item is missing or there is damage to any item,
consult your distributor immediately.
Refer to section 4.1 for installation of batteries.
1.2 Description

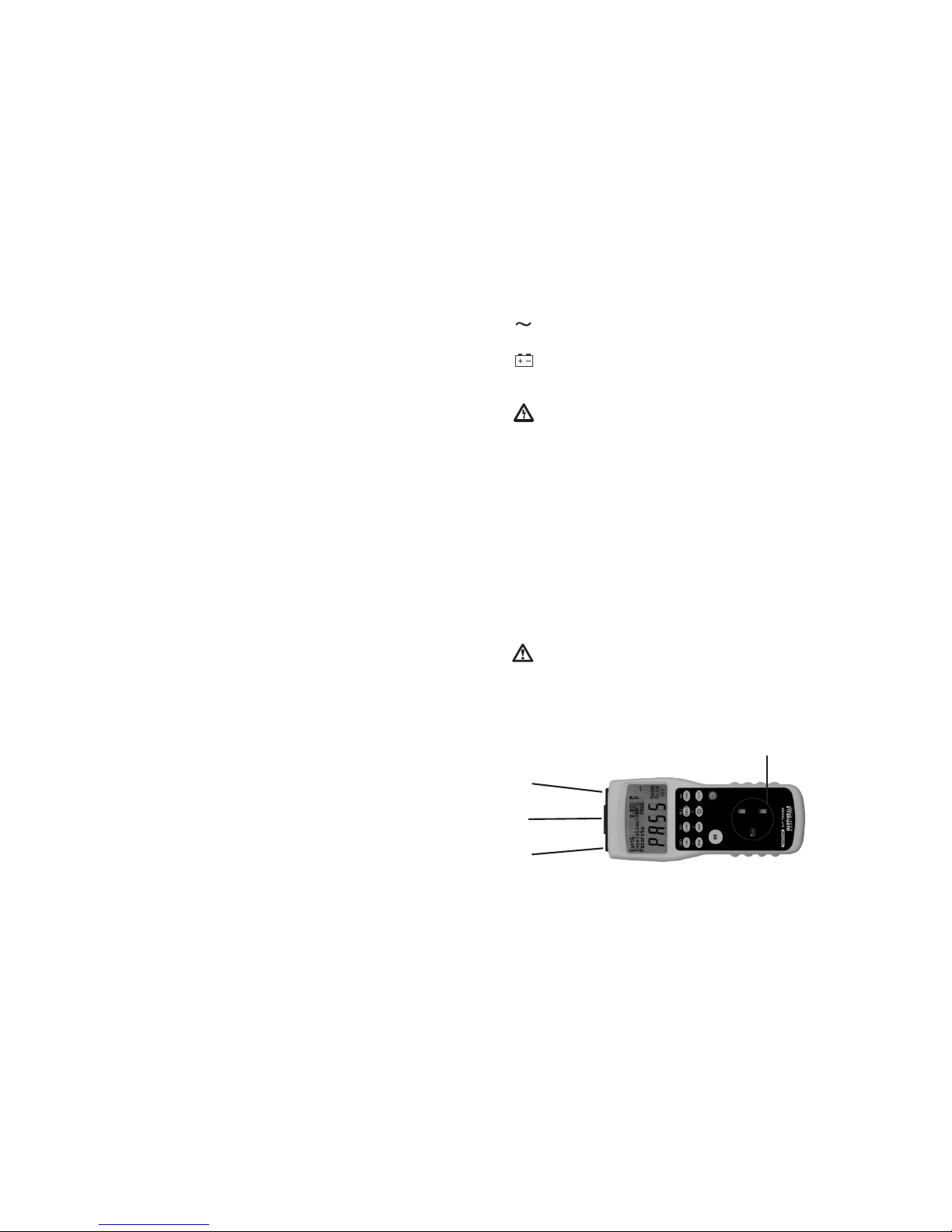

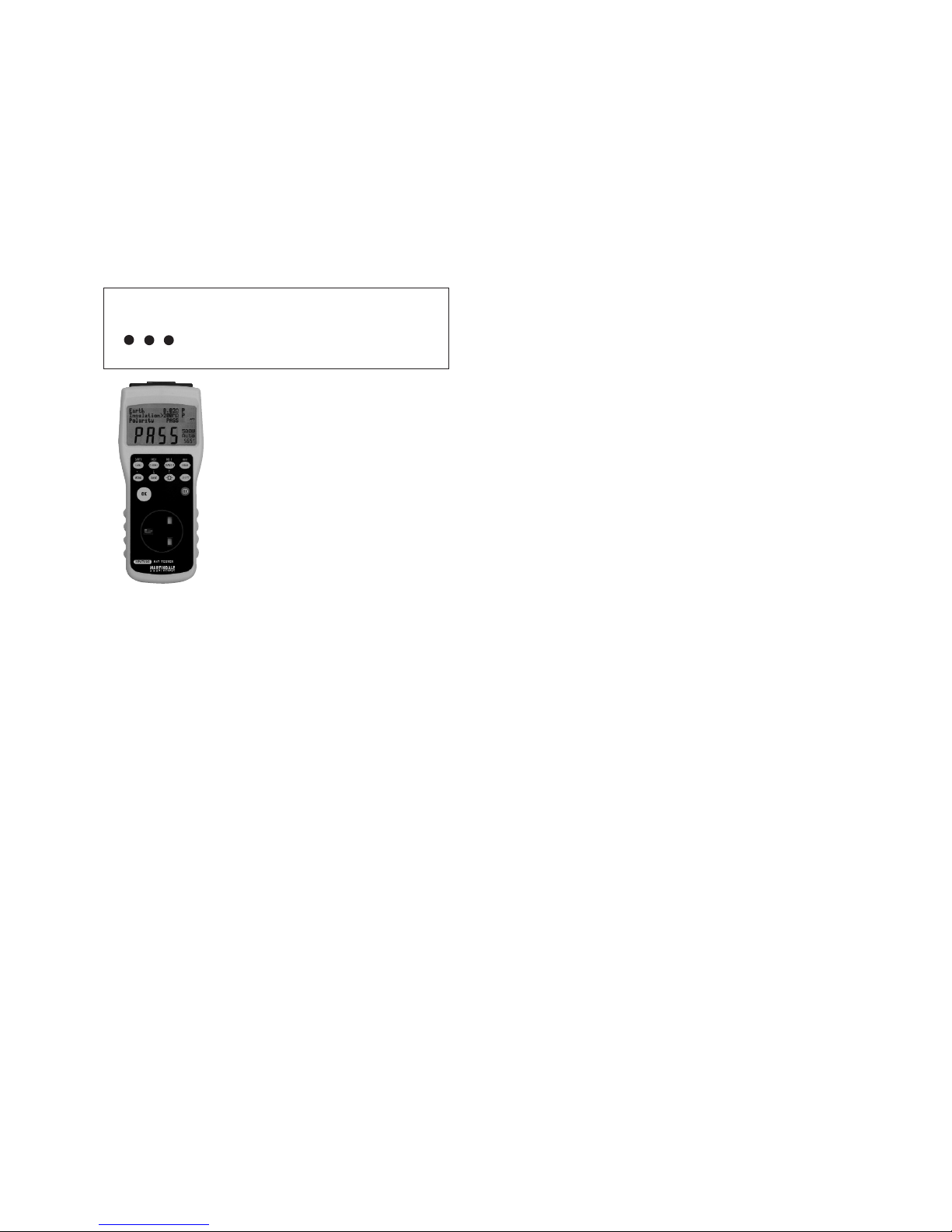

The battery powered HPAT600 HANDYPAT is a Portable
Appliance Tester with the following features:
Dual Insulation Test Voltage
The insulation measurement test voltage can be set to
either 500V or 250V.
User Selectable Pass Levels
Appliance and lead test pass levels may be set to other
than default values.
Martindale Electric is pleased to offer you this service.
Please contact our Service Department for details.
Email: [e-mail]
Tel: [phone]
4.3 Cleaning
The unit may be cleaned using a soft dry cloth. Do not
use moisture, abrasives, solvents, or detergents, which
can be conductive.
4.4 Repair & Service
There are no user serviceable parts in this unit other
than batteries. Return to Martindale Electric if faulty. Our
service department will quote promptly to repair any
fault that occurs outside the warranty period.
Before the unit is returned, please ensure that you have
checked the:
- unit - leads - batteries
- fuses - poor connections - damage
4.5 Storage Conditions
The instrument should be kept in warm dry conditions
away from direct sources of heat or sunlight, and in
such a manner as to preserve the working life of the
unit. It is strongly advised that the unit is not kept in a
tool box where other tools may damage it.
5. WARRANTY AND LIMITATION OF LIABILITY
This Martindale product is warranted to be free from
defects in material and workmanship under normal use
and service. The warranty period is 2 years and begins
on the date of receipt by the end user. This warranty
extends only to the original buyer or end-user customer, 1
36

235
Auto or Manual Test Modes
The HPAT600 can be operated in either of two test
modes. In the Manual test mode, aimed at the
newcomer to PAT testing, a connection diagram for the
selected test type is shown on the display. Each step of
a test type requires confirmation by a press of the OK
button. In the Auto test mode, for the experienced
operator, the HPAT600 will automatically run through a
selected test type without any further user interaction
unless a failure is encountered.

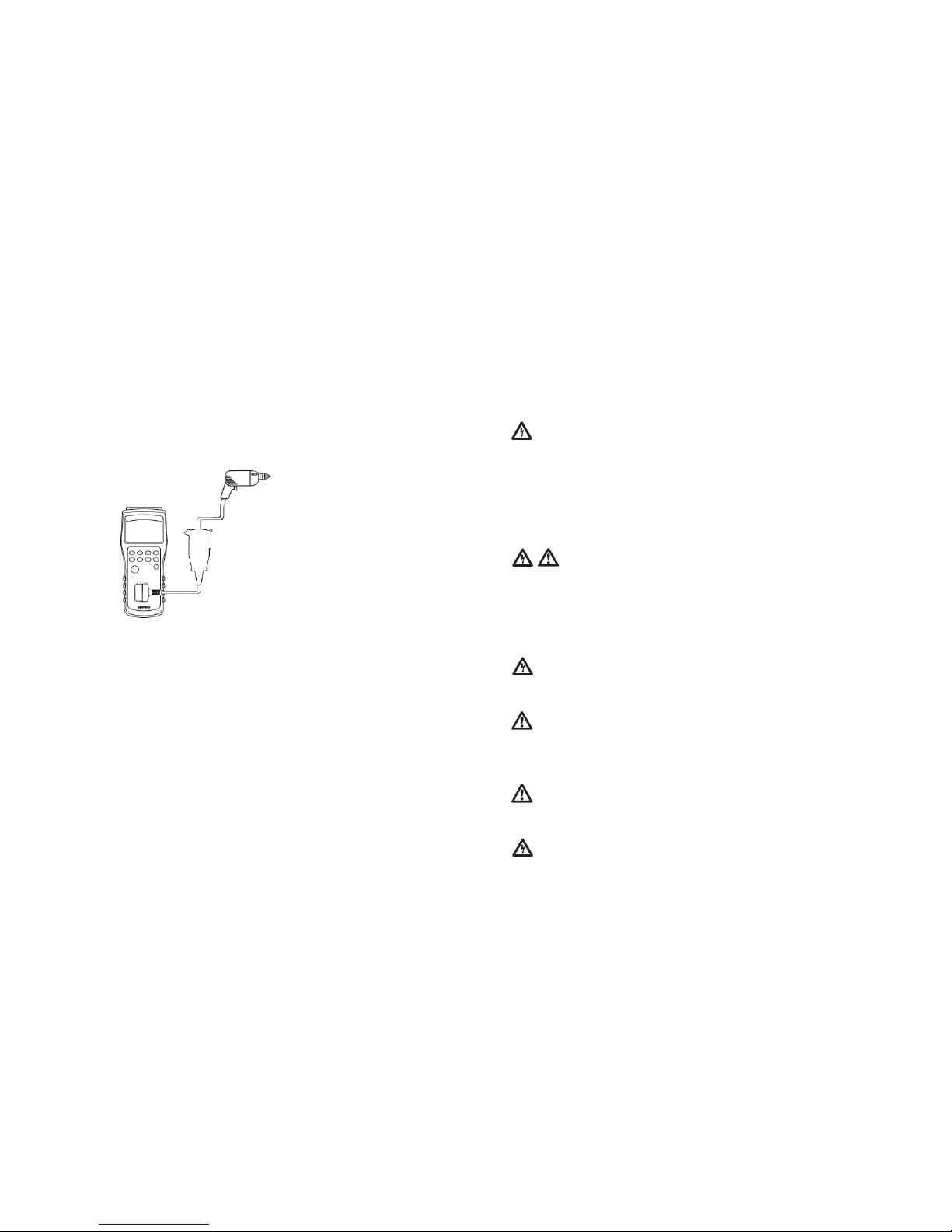

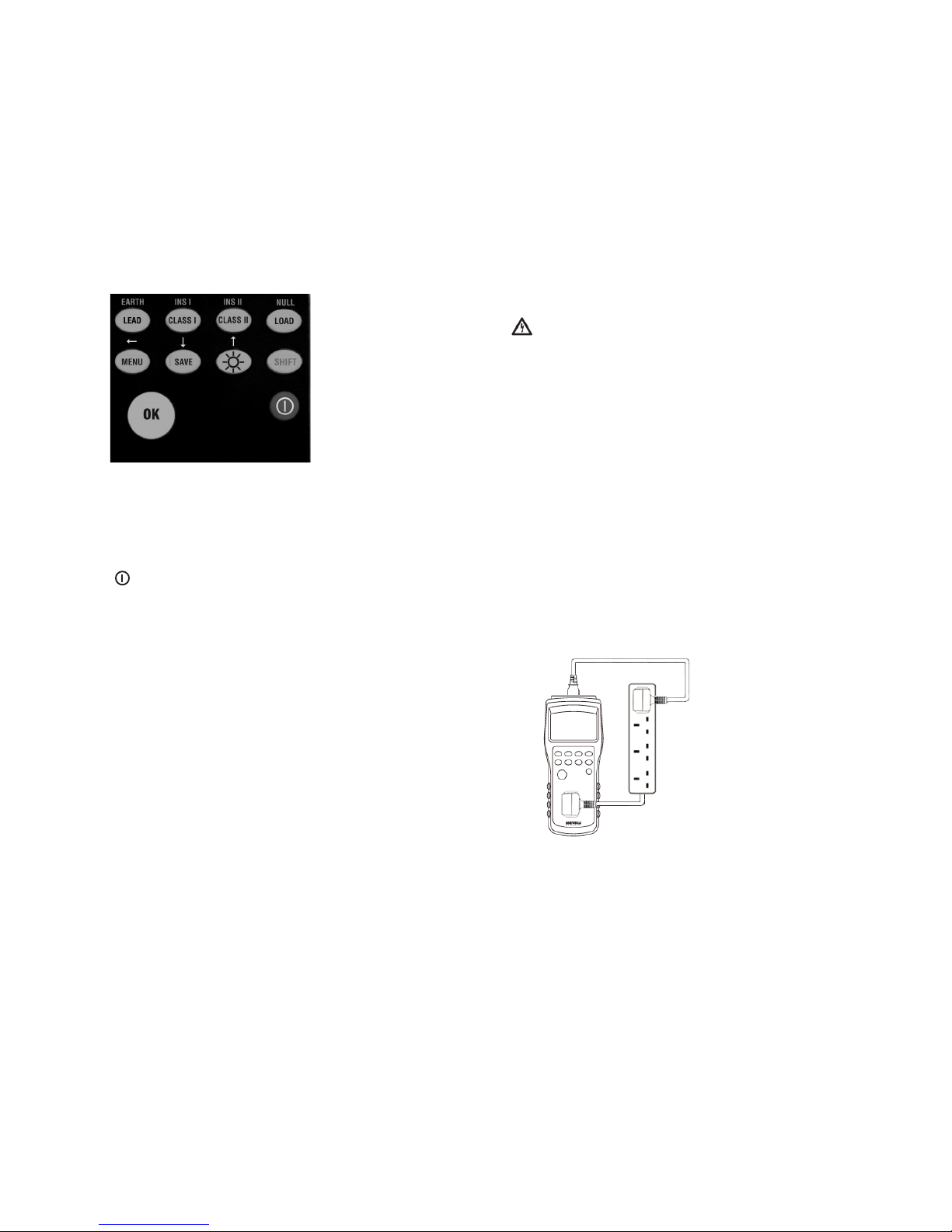

IEC Lead Test
The HPAT600 can also be used to check IEC leads and
extension leads for earth continuity, insulation, and
correct polarity, (Martindale EX332 IEC lead required for
extension lead testing).
Test Data Memory Storage
The HPAT600 is able to store in memory the test data
for up to 200 appliance tests.

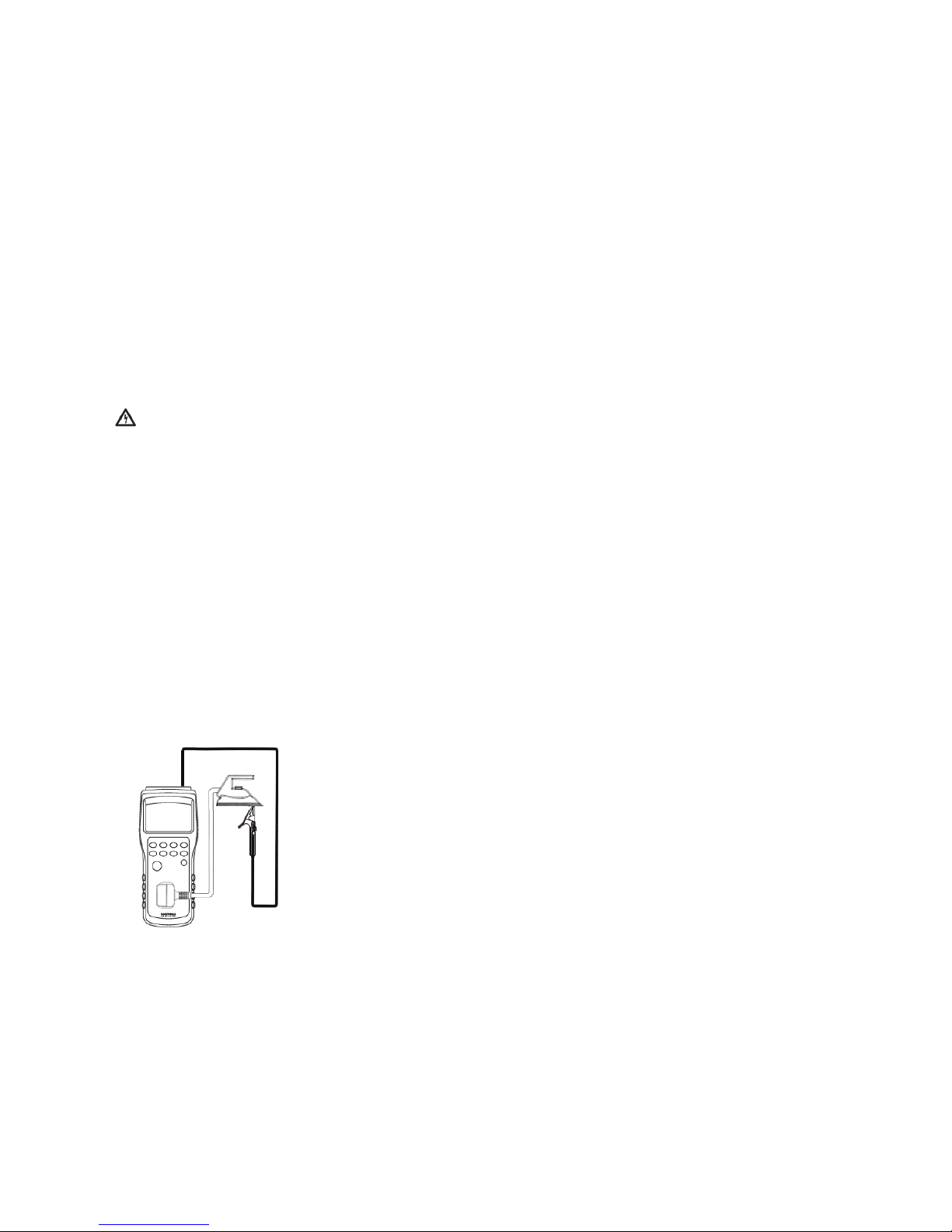

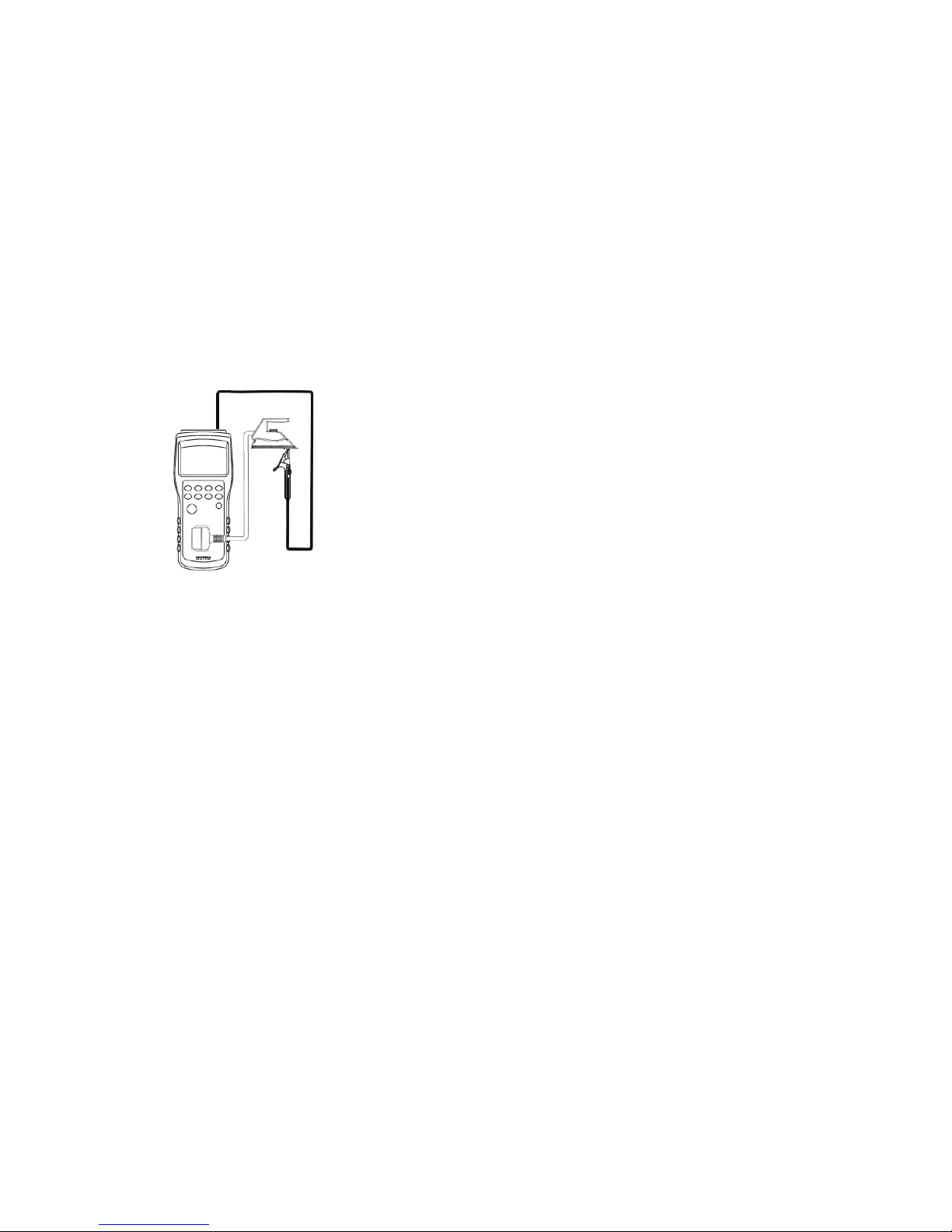

Test Probe Null Function
A null function is incorporated in the HPAT600 to
compensate for the test probe lead resistance when
used for Class I earth continuity measurements. This
allows for alternative test probes to be used if desired.
The HPAT600 will perform the following test types:
IEC Lead test sequence
Class I test sequence
Class II test sequence
Simulated Load test
Class I Earth Continuity single test
Class I Insulation single test
Class II Insulation single test
Check that the appliance is switched ON - Begin the test
again if necessary. The user should also have checked
the fuse (if fitted). Assuming such checks above have
been made, the Class I or Class II appliance test
sequence can be continued beyond the FUSE FAIL
result by selecting Continue and OK. (See 3.11)
4. MAINTENANCE
4.1 Fitting Batteries
Ensure the HPAT600 is disconnected from any
possible voltage sources and the HPAT600 is powered
off before removing the battery cover.
Do not fit non-rechargeable batteries.
Remove the battery cover of the HPAT600 by
unscrewing the two battery cover retaining screws.
The battery cover will now lift off.
Fit 6 new AA NiMH rechargeable batteries,
observing correct polarity.
Replace the battery cover and secure with the two
battery cover retaining screws.
New batteries may need charging prior to use. - See
section 2.24 (Charging Batteries).
Used batteries should not be discarded with other
metal objects.
Used batteries should be disposed of in
accordance with current EU directives.
4.2 Calibration
To maintain the integrity of measurements made using
your instrument, Martindale Electric recommends that it
is returned at least once a year to an approved
Calibration Laboratory for recalibration and certification.

34
2. GENERAL OPERATION & FUNCTIONS
2.1 Precautions
This product has been designed with your safety in mind,
but please pay attention to the following warnings and
cautions before use.
Warning
Before use check the unit for cracks or any other
damage. Make sure the unit is free from dust, grease
and moisture. Also check any associated leads and
accessories for damage. Do not use if damaged. Be sure
the HPAT600 is in good working order before use.
Warning
The HPAT600 and this Instruction Manual are intended
for use by personnel who are adequately trained and
familiar with the 'IEE Code of Practice for In-service
Inspection and Testing of Electrical Equipment'.
Warning
Do not use the HPAT600 if the battery cover is not fitted.
Warning
Do not connect the HPAT600 to the mains supply via the
IEC inlet.
Warning
Use batteries of the specified type in the HPAT600.
Warning
Do not touch the appliance being tested or the test probe
tip when the HPAT600 is performing an electrical test.
Where possible, use the crocodile clip provided to attach
the probe to the appliance.
if the 'Simulated load current Hi' message is displayed it
would be advisable to have the appliance investigated
by a suitably qualified technician.
3.14 Testing of 110V appliances
A TL157 PAT 110V Adaptor (available separately) is
required for testing 110V appliances (yellow BS4343
16A 110V plug).
Refer to the connection diagram below.
Ensure that the appliance is switched ON.
Undertake a test sequence as appropriate for the
appliance (See 3.4 to 3.9).
NOTE: The TL157 has a special configuration of
internal connections to enable the safe testing of Earth
Continuity and of Insulation Resistance for 110V
appliances.
However, for reasons of safety, the TL157 will not allow
a 110V appliance to draw any run current through the
mains socket (1). (This is to prevent inadvertent
connection of a 110V appliance to 240V mains).
For this reason, the test of a 110V appliance using the
TL157 will always result in a FAIL at the Fuse Check or
at Simulated Load test.
TL157 110V
Adaptor
110V Appliance
3

433
Caution
Avoid severe mechanical shock or vibration and extreme
temperature.
Caution
Remove the batteries from the HPAT600 when not in use
for an extended period, to avoid risk of corrosion from
leaking batteries. (Refer to 4.1 Fitting Batteries).
2.2 Power On/Off
Hold down the red power button for at least 1 second to
power on the HPAT600. The HPAT600 will power on at the
last settings used and will display the SELECT TEST screen.
If the HPAT600 was previously Auto powered down the
screen present at auto power down will be displayed.
Refer to 2.23 (Auto Power Down).
To power off the HPAT600 hold down the red power button
for at least 1 second. Present settings will be stored.
connected to the HPAT600.
Test probe is not making good contact with the
appliance.
Pass levels are not correct for the type of appliance or
lead being tested.
Null of the test probe lead resistance incorrect. (Refer
to 2.10)
Repeat Test
If for example the test probe was not connected correctly,
the failed test step can be repeated by selecting Repeat
and pressing OK.
Abort Test
If it is decided the appliance or lead is faulty, the test can
be terminated by selecting Abort and pressing OK. The
HPAT600 will display 'FAIL' and the individual
measurement results.
This data can now be saved (SAVE) to memory if
required. Refer to 2.14. (Saving Test Data to Memory).
Note: If the earth continuity or insulation measurements
FAIL, then Repeat and Abort are the only options. For
example if a Class I test fails earth continuity the
HPAT600 will not proceed to the insulation measurement.
3.13 Simulated Load Current Hi
If the simulated load test indicates a load current
value > 16A, the 'Simulated load current Hi' message is
displayed.
If the simulated load test current value is > 30A, the
display will flash '30.0'.
The HPAT600 is designed for the testing of
appliances that are powered from 13A mains sockets, so

2.3 Display Indicators
Flashes to indicate battery charger is connected to
the HPAT600 and powered (Refer to 2.24).
When flashing indicates the battery is charging.
When continuous indicates the battery is fully
charged (Refer to 2.24).
Indicates insulation test voltage is present at front
panel mains socket.
Indicates that SHIFT state is selected. Press SHIFT
again to cancel when required. Note that the SHIFT
state will cancel automatically after any shifted
button function has been used once.
2.4 Connector Descriptions
1) Front panel mains socket - used to connect the
appliance under test.
2) 4mm socket - used for earth continuity/Class II
insulation test probe.
3) IEC input socket - used for IEC lead testing.
Do not connect to mains supply.
4) Jack socket - used to connect battery charger. 12V
DC only, centre is positive.
S
1
2
3
4
Some types of appliance, for example those with
switched mode power supplies, will indicate 'FAIL' for the
fuse check and simulated load test due to the nature of
their circuitry.
A 'FAIL' in such circumstances does not necessarily
mean a fuse is ruptured or the appliance is faulty.
Remove the fuse/fuses and check fuse continuity by an
alternate means.
Ensure the appliance is NOT plugged into the mains
supply when removing fuses.
Continue Test
If it is determined the fuses are satisfactory and the
appliance was of a type that would fail the fuse check,
Class I or Class II appliance tests can be continued by
selecting Continue and pressing OK to proceed to the
next step of the test.
Repeat Fuse Check/Simulated Load Test
If for example the appliance had not been switched ON
the fuse check or simulated load test can be repeated
by selecting Repeat and pressing OK. The fuse check
or simulated load test is then repeated.
Abort Test
If it is decided the appliance is faulty, or a simulated load
test is not possible because the appliance is of a type
that would fail the test, then the Class I, Class II or
Simulated Load tests can be terminated by selecting
Abort and pressing OK.
3.12 Earth Continuity/Insulation Failure
Possible Reasons for Failure other than a faulty
appliance or Lead
Appliance or lead being tested not correctly 5
32

2.5 Press Button Description
OK Used to select a screen choice or advance when the
HPAT600 waits for a prompt. Only active when MENU is
selected or a choice during test process is required and
the OK symbol is displayed on screen.
Hold for 1 second to power up or power down the
HPAT600.
SHIFT + ON Enables contrast adjustment at power up.
MENU Selects HPAT600 menu.
Used to exit menu screens. Only active when menu is
selected and the symbol is displayed on screen.
SAVE Used to save test data. Only active after a test has
been performed and becomes inhibited once test data has
been saved or test data has been cleared from screen by
selection of another function or test.
Used to scroll to screen selections and decrement
pass level values, memory locations and contrast. Only
active when MENU is selected or a choice during test
process is required and  symbol is displayed on the
screen.
3.10 Extension Lead Testing
Always refer to and perform 3.2 before
proceeding
To test extension leads the HPAT600 IEC Lead Test is
used with connections as detailed below. Refer to 3.3
(IEC Lead Test).
A Martindale EX332 IEC mains lead (or similar) is
required to perform extension lead tests.
Test Connections
Refer to the Extension Lead connection diagram
below.
Plug the extension lead plug into the HPAT600 front
panel mains socket (1).
Plug the EX332 IEC lead mains plug into the
extension lead socket.
Connect the other end of the EX332 IEC lead to the
HPAT600 IEC input socket (3).
3.11 Fuse Check/Simulated Load Failure
Possible Reasons for Failure other than a Faulty
Appliance or Ruptured Fuse
Appliance mains switch not set to the ON position.
Appliance not correctly connected to the HPAT600.
Extension Lead
Connection
EX332
631

Turns on the backlight. Alternate pressing turns the
backlight on and off. Will not function when OK is active.
Used to scroll to screen selections and increment pass
level values, memory locations and contrast. Only active
when the MENU is selected or a choice during the test
process is required and the  symbol is displayed on
the screen.
SHIFT
Used to select alternate push button functions (EARTH,
INS I, INS II & NULL). The S symbol is displayed on
screen while shift is selected. A second press will cancel
SHIFT. Also used to enable the contrast adjustment at
power up.
LEAD Selects the lead test.
SHIFT EARTH Selects the Class I Earth Continuity test
as a single test.
CLASS I Selects the Class I test sequence.
SHIFT INS I Selects the Class I Insulation test as a
single test.
CLASS II Selects the Class II test sequence.
SHIFT INS II Selects the Class II Insulation test as a
single test.
LOAD Selects the Simulated Load test.
SHIFT NULL Selects the Class I Earth Continuity null
function.
Class II insulation test and display the diagram screen.
Press OK for the HPAT600 to display the test screen
and perform the Class II insulation measurement.
If 'FAIL' is displayed after the Class II insulation
measurement, refer to 3.12. (Earth Continuity/Insulation
Failure)
Testing in Auto Mode
Press SHIFT and INS II (CLASS II) to select the
Class II insulation test and display the test screen.
The HPAT600 will perform the Class II insulation
measurement.
If 'FAIL' is displayed after the Class II insulation
measurement, refer to 3.12. (Earth Continuity/Insulation
Failure)
Result of Test
At the end of the test the HPAT600 will display 'PASS'
or 'FAIL' to indicate the result of the test. The
measurement result is also displayed.
Test data can now be saved (SAVE) to memory if
required. Refer to 2.14. (Saving Test Data to Memory)

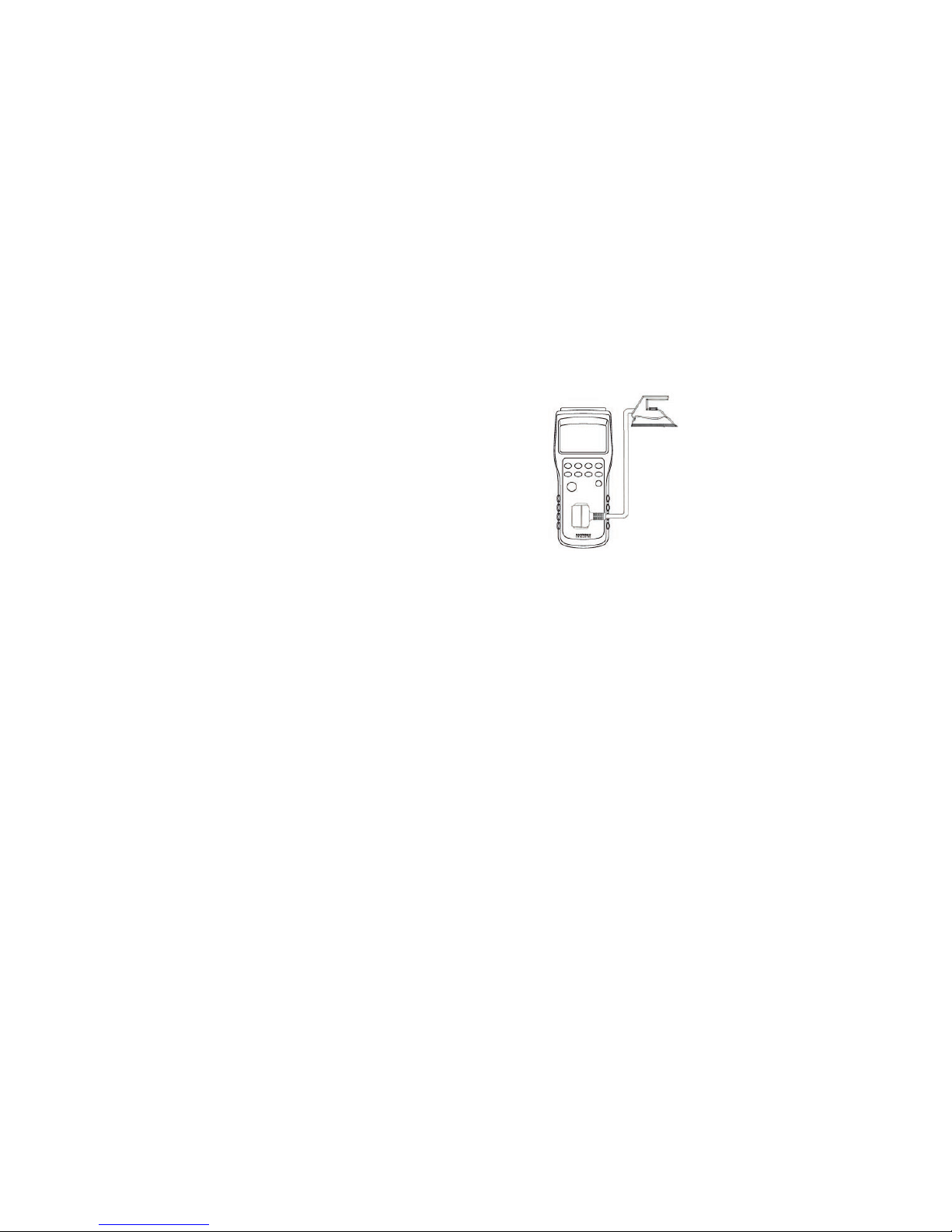

Class II Test
Connections
730

2.6 Contrast Adjustment
If required the display contrast can be adjusted at power
up. To enable the contrast adjustment hold down the
SHIFT and ON/OFF buttons simultaneously at power-up.
The contrast adjustment screen will be displayed. Use
the  buttons to adjust the contrast as required. Press
the OK button to exit the contrast adjustment screen.
2.7 Default Settings and Pass Levels
Note that the HPAT600 will power up at the last settings
used. See section 2.20 for returning to default settings.
Default Settings
Insulation voltage 500V
Auto/Manual Manual
Backlight Off
Default Pass Levels
Earth Continuity Class I 0.1 Ω
IEC Lead 0.1 Ω
Insulation Class I 1 MΩ
Class II 2 MΩ
IEC Lead 1 MΩ
2.8 User Settable Pass Level Range
Earth Continuity Class I 0.1Ωto 0.9Ωin 0.1Ωsteps
IEC Lead 0.1Ωto 0.9Ωin 0.1Ωsteps
Insulation Class I 0.3MΩto 1.0MΩin 0.1MΩ
steps and
1MΩto 10MΩin 1MΩsteps
Class II 0.3MΩto 1.0MΩin 0.1MΩ
steps and
1MΩto 10MΩin 1MΩsteps
Result of Test
At the end of the test the HPAT600 will display 'PASS' or
'FAIL' to indicate the result of the test. The measurement
result is also displayed.
Test data can now be saved (SAVE) to memory if
required. Refer to 2.14. (Saving Test Data to Memory)
3.9 Class II Insulation Test
Always refer to and perform 3.2 before
proceeding
This is a single test to measure resistance between live
and exposed metalwork and between neutral and exposed
metalwork.
Test Connections
Refer to the Class II connection diagram below.
Plug the appliance mains plug into the HPAT600 front
panel mains socket (1).
Connect the test probe to the HPAT600 4mm test
probe socket (2) and connect the other end to any
exposed metal work on the appliance.
If the appliance being tested has more than one
instance of exposed metalwork, it is advisable to connect
the test probe to each in turn and perform additional
individual Class II insulation tests. Refer to 3.9 (Class II
Insulation Test)
Where the appliance being tested has one or more
areas of possible insulation breakdown, such as cooling
slots or cover joints, it is advisable to wrap metal foil tightly
around the appliance and connect the test probe to the
metal foil then perform Class II insulation tests.
Testing in Manual Mode
Press SHIFT and INS II (CLASS II) to select the
829

2.9 Menu
Pressing the MENU button will display the first page of
the MENU screen.
Set Pass Levels Refer to 2.11
Set Insulation Voltage Refer to 2.12
Set Auto/Manual Refer to 2.13
Scrolling down with the button will display the second
page of the MENU screen.
Recall Memory Refer to 2.16
Delete All Memory Refer to 2.19
Reset to Defaults Refer to 2.20
Use the button to exit the MENU screen.
2.10 Null of Test Probe Lead Resistance (Class I
Earth Continuity only)
The null function is used to compensate for the test
probe lead resistance when used for Class I earth
continuity measurements. This also allows for the use
of alternative test probes.
To null the test probe lead resistance press SHIFT and
NULL (LOAD) to display the NULL screen. Use  to
select Null or Abort.
If Abort is selected, press OK and the HPAT600 will
return to the SELECT screen.
If Null is selected, connect the test probe from the
4mm socket (2) to the Earth pin of the front panel
mains socket (1) (use the brass earth contact pin
supplied with the HPAT600). While connected, press
OK.
Test Connections
Refer to the Class I Insulation connection diagram
below.
Plug the appliance mains plug into the HPAT600
front panel mains socket (1).
Testing in Manual Mode
Press SHIFT and INS I (CLASS I) to select the
Class I insulation test and display the diagram screen.
Press OK for the HPAT600 to display the test screen
and perform the Class I insulation measurement.
If 'FAIL' is displayed after the Class I insulation
measurement, refer to 3.12. (Earth Continuity/Insulation
Failure)
Testing in Auto Mode
Press SHIFT and INS I (CLASS I) to select the
Class I insulation test and display the test screen.
The HPAT600 will perform the Class I insulation test.
If 'FAIL' is displayed after the Class I insulation
measurement, refer to 3.12. (Earth Continuity/Insulation
Failure)
Class I Test
Connections
928

If the null is successful, NULL will be displayed on the
large 4 digit display and the HPAT600 will return to the
SELECT screen.
If the null fails, the NULL FAIL screen will be displayed.
Use  to select Repeat or Abort.
If Abort is selected, press OK and the HPAT600 will
return to the SELECT screen.
If Repeat is selected, check the test probe connections
and press OK to repeat the null measurement.
2.11 Setting User Specified Pass Levels
Pass levels other than default (Refer to 2.7 for default
values) may be set by the user (Refer to 2.8 for the range
of user specified pass level settings).
To set a new pass level enter the MENU screen and with
Pass Levels selected press OK to enter the PASS
LEVEL screen. Use  to select the pass level to be
changed and press OK. Use  to set the required pass
level on the display and press OK. Use to exit the
PASS LEVEL and MENU screens. The new pass level
will now be stored.
2.12 Setting Insulation Test Voltage
The insulation measurements can be performed at either
500V DC or 250V DC (default is 500V DC).
To set the insulation test voltage enter the MENU screen,
use  to select Insulation V, and press OK to enter the
INSULATION VOLTAGE screen. Use  to select the
required insulation test voltage and press OK. Use the 
button to exit the MENU screen. The insulation test
voltage is displayed in the bottom right of the display.
Testing in Manual Mode
Press SHIFT and EARTH (LEAD) to select the Class
I earth continuity test and display the diagram screen.
Press OK for the HPAT600 to display the test screen
and perform the Class I earth continuity measurement.
If 'FAIL' is displayed after the Class I earth continuity
measurement, refer to 3.12. (Earth Continuity/Insulation
Failure)
Testing in Auto Mode
Press SHIFT and EARTH (LEAD) to select the Class
I earth continuity test and display the test screen.
The HPAT600 will perform the Class I earth continuity
measurement.
If 'FAIL' is displayed after the Class I earth continuity
measurement, refer to 3.12. (Earth Continuity/Insulation
Failure)
Result of Test
At the end of the test the HPAT600 will display 'PASS'
or 'FAIL' to indicate the result of the test. The
measurement result is also displayed.
Test data can now be saved (SAVE) to memory if
required. Refer to 2.14. (Saving Test Data to Memory)
3.8 Class I Insulation Test
Always refer to and perform 3.2 before
proceeding
This is a single test to measure resistance between
earth and line and between earth and neutral.
10 27

2.13 Setting Auto/Manual Test Mode
Tests can be performed in either Auto or Manual test
modes (default is Manual).
To set the test mode enter the MENU screen, use  to
select Auto/Man, and press OK to enter the
AUTO/MANUAL screen. Use  to select the required
test mode and press OK. Use the button to exit the
MENU screen. The test mode is displayed in the bottom
right of the display.
2.14 Saving Test Data to Memory
At the end of an appliance test the data from the test
will be displayed on the screen. This data can be saved
to memory if required.
To save the test data press SAVE and the SAVE screen
will be displayed. The SAVE screen will display the
memory location into which the test data will be saved
as Save to memory XXX. Press OK to save the data to
memory. Make a note of the appliance that relates to
that memory location.
Note: The SAVE button is only active after a test has
been completed and is inhibited once the test data has
been saved.
2.15 Memory Full Screen
If the HPAT600 memory is full when attempting to save
test data, the MEMORY FULL screen will be displayed.
To proceed from this screen press OK. It will be
necessary to delete some or all of the memory locations
in order to save any further test data. (See 2.18 and
2.19).
If the HPAT600 displays the 'Simulated load current
Hi' message, refer to 3.13. (Simulated Load Current Hi)
Test data can now be saved (SAVE) to memory if
required. Refer to 2.14. (Saving Test Data to Memory)
3.7 Class I Earth Continuity Test
Always refer to and perform 3.2 before
proceeding
This is a single test to measure resistance between earth
and exposed metalwork.
Test Connections
Refer to the Class I Earth Continuity connection
diagram below.
Plug the appliance mains plug into the HPAT600 front
panel mains socket (1).
Connect the test probe to the HPAT600 4mm test
probe socket (2) and connect the other end to any
exposed metal work on the appliance.
If the appliance being tested has more than one
instance of exposed metalwork, it is advisable to connect
the test probe to each in turn and perform an earth
continuity measurement.
Class I Test
Connections
1126

2.16 Recalling Test Data from Memory
Test data that has previously been saved in the
HPAT600 memory can be recalled and displayed on the
RECALL MEMORY screen.
To recall test data enter the MENU screen, use  to
select Recall Memory and press OK to enter the
RECALL MEMORY screen. Mem XXX will be displayed.
With XXX selected, use  to scroll to the required
memory location number with the stored test data to be
viewed. Use to exit the RECALL MEMORY and
MENU screens.
Note: The highest memory location with stored data will
be displayed on entering the RECALL MEMORY
screen. This will normally be the last appliance tested.
However, after individual memory locations have been
deleted (see 2.18), the lowest available vacant memory
location will be used to store new data, so the user
must make appropriate notes of where actual data has
been stored for a particular appliance.
2.17 Memory Empty Screen
If no test data has been stored in memory, attempting to
enter the RECALL MEMORY screen (Refer to 2.16) will
cause the MEMORY EMPTY screen to be displayed. To
exit from this screen press OK.
2.18 Deleting Individual Test Data in Memory
When recalling stored test data (Refer to 2.16) the
stored test data in any memory location may be deleted
individually. The stored test data in other memory
locations will NOT be deleted.
Navigate through MENU and select Recall Memory.
Test Connections
Refer to the Simulated Load Test connection diagram
below.
Plug the appliance mains plug into the HPAT600 front
panel mains socket (1).
Testing in Manual Mode
Press LOAD to select the appliance simulated load
test and display the diagram screen.
Press OK for the HPAT600 to display the test screen
and perform the simulated load test.
If 'FAIL' is displayed after the simulated load test, refer to
3.11. (Fuse Check/Simulated Load Failure)
Testing in Auto Mode
Press LOAD to select the simulated load test and
display the test screen.
The HPAT600 will perform the simulated load test.
If 'FAIL' is displayed after the simulated load test, refer to
3.11. (Fuse Check/Simulated Load Failure)
Result of Test
At the end of the test the HPAT600 will display the
value of the simulated load test current and the
calculated power. These values are referenced to a
simulated mains supply voltage of 230V and a unity
power factor.
Simulated Load
Test
12 25

Scroll  to required memory location. Use to
highlight Mem then to navigate to Delete.
Note: If the next steps are completed, the chosen
individual test data will be deleted from memory and
cannot be recovered, so ensure that your records
are correct before continuing.
Press OK to delete the chosen memory location.
Successive presses of OK will delete next higher
memory locations sequentially.
If no higher memory locations contain stored data,
successive presses of OK button will delete next lower
memory locations sequentially.
When finished, use successively to exit the MENU
screens.
2.19 Deleting All Test Data in Memory
To delete all test data stored in all memory locations
enter the MENU screen, use  to select Del. All
Memory. Press OK to display Really delete all
memory?.
Note: If the next steps are completed, all test data
will be deleted from memory and cannot be
recovered, so ensure that your records are correct
before continuing.
Use to to select yes and press OK to delete all the
stored test data.
Alternatively, select no and press OK to return to the
MENU screen. When finished use to exit the MENU.
Class II insulation measurement.
If 'FAIL' is displayed after the Class II insulation
measurement, refer to 3.12. (Earth Continuity/Insulation
Failure)
Testing in Auto Mode
Press CLASS II to select the Class II appliance test
and display the test screen.
The HPAT600 will perform the fuse check and Class II
insulation test with no further interaction from the
operator unless the test fails.
If 'FAIL' is displayed after the fuse check, refer to 3.11.
(Fuse Check/Simulated Load Failure)
If 'FAIL' is displayed after the Class II insulation
measurement, refer to 3.12. (Earth Continuity/Insulation
Failure)
Result of Test
At the end of the Class II appliance test the HPAT600
will display 'PASS' or 'FAIL' to indicate the overall result
of the test. The individual measurement results are also
displayed with a 'P' or 'F' alongside to indicate a pass or
fail.
Test data can now be saved (SAVE) to memory if
required. Refer to 2.14. (Saving Test Data to Memory)
3.6 Simulated Load Test
Always refer to and perform 3.2 before
proceeding
This test calculates the appliance load current and power
for a simulated mains voltage of 230V and unity power
factor.
13
24

2.20 Resetting to Default Settings and Pass Levels
(Factory Reset)
To reset all settings and pass levels to default (Refer to
2.7 for default settings and pass levels) enter the MENU
screen and use  to select Reset to Def. and press
OK. All defaults will now be set and the HPAT600 will
return to the SELECT TEST screen.
Note: Resetting to defaults will NOT delete stored test
data.
2.21
The backlight is switched on and off by alternate
pressing of the button. It will not function if the
MENU screen is active or the becomes enabled during
testing.
2.22 Battery Low Message
When the batteries discharge to a predetermined low
threshold value, the HPAT600 will display a 'Connect
charger' message. Approximately 10 further tests can be
performed and saved, after this message has first been
displayed, before Auto power down occurs.
2.23 Auto Power Down
If the HPAT600 remains inactive for a period of 10
minutes or the HPAT600 batteries approach a level
where the HPAT600 can no longer function correctly, the
HPAT600 will automatically power down. The message
'Auto power down' will be displayed on the screen for 3
seconds before auto power down.
When the HPAT600 is next powered up, by pressing the
red ON button, (after attaching battery charger if
Connect the test probe to the HPAT600 4mm test
probe socket (2) and connect the other end to any
exposed metal work on the appliance.
If the appliance being tested has more than one
instance of exposed metalwork, it is advisable to connect
the test probe to each in turn and perform additional
individual Class II insulation tests. Refer to 3.9 (Class II
Insulation Test)
Where the appliance being tested has one or more
areas of possible insulation breakdown, such as cooling
slots or cover joints, it is advisable to wrap metal foil
tightly around the appliance and connect the test probe
to the metal foil then perform Class II insulation tests.
Testing in Manual Mode
Press CLASS II to select the Class II appliance test
and display the diagram screen.
Press OK for the HPAT600 to display the VISUAL
CHECK screen.
If any visual or fuse checks fail, select Fail and press
OK to abort the test and return to the select test screen.
If all visual and fuse checks pass, select Pass all and
press OK for the HPAT600 to display the test screen and
perform the fuse check.
If 'FAIL' is displayed after the fuse check, refer to 3.11.
(Fuse Check/Simulated Load Failure)
Press the OK button for the HPAT600 to perform the
Class II Test
Connection
14 23

necessary) the unit will return to the same state as
before Auto power down: Any test data that may have
been present at power down will be displayed. Any
partially completed action can be continued as if the
unit had never powered down.
2.24 Charging Batteries
Use rechargeable batteries of the specified type
To charge the batteries, plug the battery charger into a
mains power socket, connect the battery charger jack
to the socket (4) on the HPAT600. The ~ symbol will
flash on the display to show the battery charger is
connected and the sign will flash while the battery
is being charged. When the battery is fully charged the
sign will become continuous.
The HPAT600 may be used for testing while powered
from the battery charger.
The HPAT600 will operate fully from the battery charger
in the event of discharged batteries.
2.25 Inadvertent Connection of Mains Supply
Voltage
If mains voltage is inadvertently applied to the
HPAT600, via the IEC socket (3) at the top end, an
internal buzzer will sound continuously and 'Err' will be
displayed on the HPAT600 display. All HPAT600 press
buttons will be inhibited until the source of the applied
voltage is removed.
Testing in Auto Mode
Press CLASS I to select the Class I appliance test
and display the test screen.
The HPAT600 will perform the fuse check, Class I
earth continuity and Class I insulation measurements
with no further interaction from the operator unless the
test fails.
If 'FAIL' is displayed after the fuse check, refer to 3.11.
(Fuse Check/Simulated Load Failure)
If 'FAIL' is displayed after the Class I earth continuity or
Class I insulation measurements, refer to 3.12. (Earth
Continuity/Insulation Failure).
Result of Test
At the end of the Class I appliance test the HPAT600 will
display 'PASS' or 'FAIL' to indicate the overall result of the
test. The individual measurement results are also displayed
with a 'P' or 'F' alongside to indicate a pass or fail.
Test data can now be saved (SAVE) to memory if
required. Refer to 2.14. (Saving Test Data to Memory).
3.5 Class II Test
Always refer to and perform 3.2 before
proceeding
The following are performed for a Class II appliance test:
Fuse check - checks fuse continuity.
Insulation measurement - measures resistance
between live and exposed metalwork and between
neutral and exposed metalwork.
Test Connections
Refer to the Class II connection diagram below.
Plug the appliance mains plug into the HPAT600 front
panel mains socket (1). 15
22

3 PERFORMING APPLIANCE & LEAD TESTS
Warning
The HPAT600 and this Instruction Manual are intended
for use by personnel who are adequately trained and
familiar with the 'IEE Code of Practice for In-service
Inspection and Testing of Electrical Equipment'.
3.1 Auto or Manual Test Mode?
The Manual test mode is aimed at the newcomer or
those with limited experience of PAT testing. In this
mode a diagram is displayed at the beginning of each
test to show the connections to the appliance under test.
Each step of a test type requires user confirmation by a
press of the OK button before the HPAT600 will proceed
to the next step.
A VISUAL CHECK screen is incorporated in this mode
for Class I, Class II and IEC lead tests. If the operator
indicates that any of the visual tests fail, the HPAT600
will abort the test.
In the Auto test mode, for the experienced operator, the
HPAT600 will run through a selected test type
automatically without any further user interaction, unless
a failure is encountered.
In this mode the connection the diagram is not displayed
and the visual check screen is not incorporated.
It this expected that the experienced user will have
completed all these necessary steps properly without
prompting.
Testing in Manual Mode
Press CLASS I to select the Class I appliance test and
display the diagram screen.
Press OK for the HPAT600 to display the VISUAL
CHECK screen.
If any visual or fuse checks fail, select Fail and press
OK to abort the test and return to the select test screen.
If all visual and fuse checks pass, select Pass all and
press OK for the HPAT600 to display the test screen and
perform the fuse check.
If 'FAIL' is displayed after the fuse check, refer to 3.11.
(Fuse Check/Simulated Load Failure)
Press OK for the HPAT600 to perform the Class I
earth continuity measurement.
If 'FAIL' is displayed after the Class I earth continuity
measurement, refer to 3.12. (Earth Continuity/Insulation
Failure)
Press OK for the HPAT600 to perform the Class I
insulation measurement.
If 'FAIL' is displayed after the Class I insulation
measurement, refer to 3.12. (Earth Continuity/Insulation
Failure)
Class ITest
Connection
16 21
