Masterflex L/S MFLX07528-10 User manual

MASTERFLEX® L/S® MFLX07528-10
OPERATING MANUAL:
L/S® PRECISION
VARIABLE SPEED
CONSOLE DRIVES
Model Nos.
MFLX07528-10
MFLX07528-20
MFLX07528-30
®
®
A12991059B
Edition 04
(US & Canada only) Toll Free 1800MASTERFLEX • 18006373739
(Outside US & Canada) 18473817050
masterflex.tech @ avantorsciences.com | www.avantorsciences.com/masterflex
®

© 2023 Masterflex LLC. All rights reserved.
NORPRENE, PHARMED and TYGON – Reg TM Saint-Gobain Performance Plastic Corp.
Trademarks bearing the ®symbol in this publication are registered in the U.S. and in other countries.
PUMP FOR LIQUIDS
ORIGINAL INSTRUCTIONS
Masterflexii L/S Precision Variable-Speed Console Drives Operating Manual

DANGER: Remove power from the pump before any
cleaning operation is started.
WARNING: Remove power from the pump before attempting
any maintenance.
WARNINGS: Tubing breakage may result in fluid being sprayed
from pump. Use appropriate measures to protect operator and
equipment.
Turn Pump System off before removing or installing tubing.
Fingers or loose clothing could get caught in drive mechanism.
CAUTIONS: When changing flow direction, allow the pump to
come to a complete stop before starting again. Failure to do
so could cause permanent damage to the motor.
Replace the fuse only with one of the same type and rating.
The fuse rating and type are stated on the rear panel.
CAUTION: To avoid electrical shock, the power cord
protective grounding conductor must be connected to ground.
Not for operation in wet locations as defined by EN61010-1.
If the product is not used in a manner specified in the
instructions, the protection provided by the equipment may
be impaired.
CAUTION: Risk of Danger. Consult Operator’s manual for nature
of hazard and corrective actions.
CAUTION: Risk of crushing. Keep fingers away from rotor
while pump is in operation. Stop pump before loading or
unloading tubing.
CAUTION: Hot Surface. Do not touch.
CAUTION: Risk of electric shock. Consult Operator’s manual for
nature of hazard and corrective actions.
This product is not designed for, nor intended for use in
patient connected applications; including, but not limited to,
medical and dental use, and accordingly has not been
submitted for FDA approval.
This product is not designed for, nor intended for use in
hazardous duty areas as defined by ATEX or the NEC (National
Electrical Code); including, but not limited to use with
flammable liquids.
Masterflex L/S Precision Variable-Speed Console Drives Operating Manual iii
Preface
Safety Precautions
SAFETY
PRECAUTIONS
Explanation of
Symbols
WARNING:
Product Use
Limitation

1. Read instructions before operating the unit.
2. Observe safety precautions at all times, especially when pumping
dangerous liquids.
3. If the pump runs unusually noisy or if bunching of the tubing in the
pump can be observed, make sure the tubing is clamped down tightly
and/or replace it with a new piece of tubing.
4. The L/S Precision Variable-Speed Console Drives must be well-
grounded at all times.
5. The L/S Precision Variable-Speed Console Drives are equipped with a
current-limiting circuit that will shut the motor down if any of the
following conditions exist:
a. Tubing that is too hard is loaded in the pump.
b. Incorrect tubing size or wall thickness is loaded in the pump.
c. Tubing is improperly loaded into the Pump Head.
6. The unit is fused and grounded to protect the operator in the event of
short circuits that could be caused by liquid entering the case.
CAUTION: Replace the fuse only with one of the same type
and rating. The fuse rating and type are stated on the
rear panel.
7. The L/S Precision Variable-Speed Console Drives should not be used
in outdoor or hazardous locations.
Safety
Masterflexiv L/S Precision Variable-Speed Console Drives Operating Manual
Preface

L/S Precision Variable-Speed Console Drives Operating Manual vMasterflex
Table of Contents
Page
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Controls, Indicators and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
INSTALLATION AND SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Before Starting Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Mounting the Pump Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Inserting Tubing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Tubing Inspection and Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Pump Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Keypad Lockout Enable/Disable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2
External Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2
External Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Fuse Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2
Motor Gear and Brush Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1
WARRANTY, PRODUCT RETURN and TECHNICAL ASSISTANCE . . . .8-1
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-1
Product Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-2
Technical Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-2
Section 1
Section 2
Section 3
Section 6
Section 8
Section 7
Section 4
Section 5

Figures
Page
Controls, Indicators and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2

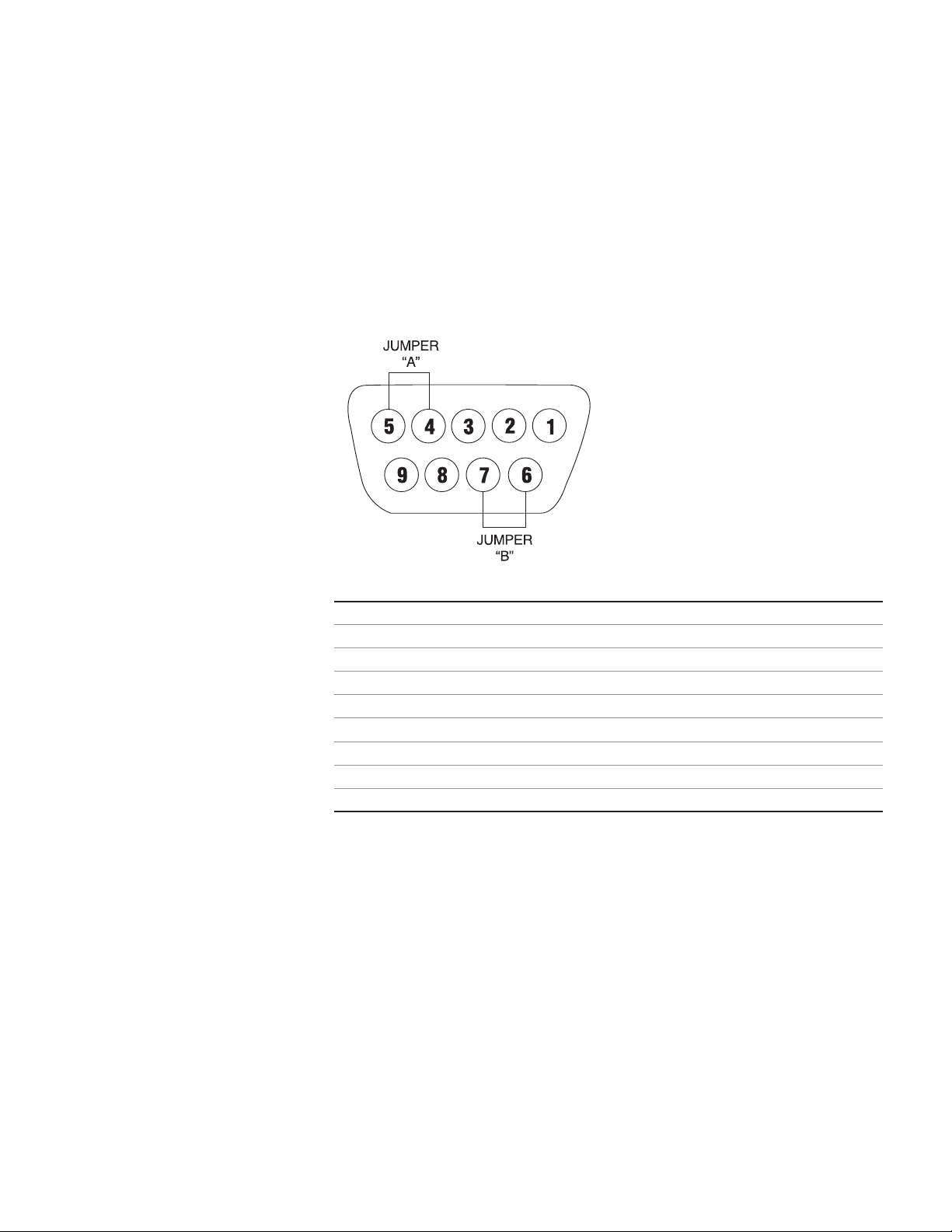

DB9 Pin Configuration with Wiring Scheme . . . . . . . . . . . . . . . . . . . . . . . . .3-3
Fuse Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2
Motor Gear and Brush Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
L/S Precision Variable-Speed Console Drives Operating Manual viiMasterflex
Figures

L/S Precision Variable-Speed Console Drives Operating Manual 1-1Masterflex
Section 1 Introduction
The L/S Precision Variable-Speed Console Drives control the speed of
MASTERFLEX® Pump Heads to provide flow rates from 0.06 to 3400 mL/min.
The 300 and 600 rpm L/S Precision Variable-Speed Console drives can
mount up to two (2) MASTERFLEX Pump Heads or other pumps
adapted to MASTERFLEX drives.
The 100 rpm L/S Precision Variable-Speed Console drive can mount up to
four (4) MASTERFLEX Pump Heads or other pumps adapted to
MASTERFLEX drives.
Advantages of Peristaltic Pumps:
• Handle abrasive slurries and corrosive fluids with minimal wear. Ideal
for titanium dioxide or diatomaceous earth filter aid applications.
• Low maintenance; sealless and valveless design
• Valveless design prevents clogging.
• Inner surfaces are smooth and easy to clean.
• Contamination free; fluid contacts only the tubing or tube material.
• Suction lift and priming up to 8.8m water column at sea level.
• Low shearing for handling the most shear sensitive of fluids such as
latex or fire fighting foam.
• Capable of running dry and pumping fluids with high quantities of
entrained air, such as black liquor soap.
• High volumetric efficiency allows operation in metering or dosing
applications where high accuracy is required.
• Handles extremely viscous fluids.
• Availability of tubing and tube materials that are suitable for food and
pharmaceutical use.
General Description
Application Solutions

1-2 L/S Precision Variable-Speed Console Drives Operating Manual Masterflex
Section 1
Introduction
Controls, Indicators
and Connectors
Figure 1-1. Controls, Indicators and Connectors
A
BE
CD
A. POWER (ON/OFF) SWITCH: Turns the unit ON or OFF.
B. SPEED KEYS: Sets the speed of the pump. The higher the number, the
faster the speed of the pump. When the speed key is depressed the
smallest speed units change first followed by an increasing rate of change.
C. FLOW DIRECTION KEY: Sets the direction of pump rotation
Clockwise/Counterclockwise. An LED annunciator indicates the
active direction. The motor is brought to a controlled stop before
reversing direction.
D. INTERNAL/EXTERNAL KEY: Changes the drive operation mode.
Internal (Local) operation from the front panel keypad is designated
by INT, external (Remote) operation is designated by EXT. In INT
mode, START/STOP, FLOW DIRECTION, and SPEED keys on the
front panel determine operating state. Depression and release of keys
enables toggling between the two operating states.
E. START/STOP KEY: Upon depression, key toggles the motor
ON/OFF during INT mode. This key will not start the drive if in
EXT mode. If pressed while operating in EXT mode (stop desired),
the button will always stop the drive and a toggle of the EXT
Start/Stop is required to restart the drive.
F. EXTERNAL/REMOTE CONNECTOR: Utilized to connect wiring
for remote control operation with a DB9 connector.
G. IEC Power Entry Module/Line Cord: Utilized to connect line cord to
drive. See page 4-1 for alternative cords.
F
G

L/S Precision Variable-Speed Console Drives Operating Manual 2-1Masterflex
Section 2 Installation and Setup
• The drive should be mounted on a flat horizontal surface. Up to a
maximum of two (2) Pump Heads can be added for 300 rpm and 600
rpm drives or four (4) Pump Heads for 100 rpm drives.
• The ambient air temperature should not exceed 104° F (40° C) and
adequate air flow should be provided for.
• The drives are provided with a grounded plug. If used in a GFCI
protected circuit, nuisance tripping may occur.
• Tubing should be clean and routed so that bend radii are at a
minimum four (4) times the tube diameter and as short as possible.
WARNING: Turn drive off before removing or installing tubing.
Fingers or loose clothing could get caught in drive mechanism.
• Use a tube size of appropriate diameter for the flow rate and
viscosity required.
• For tubing selection and compatibility, see Tubing Selection Guide
within this flash drive or on the web.
• For Pump Head information, see Pump Head datasheets within this
flash drive or on the web.
• Before cleaning or conducting maintenance on unit remove power
from the drive.
DANGER: High voltages exist and are accessible. Use extreme
caution when servicing internal components.
Mount Pump Head and load tubing (See Pump Head datasheets within
this flash drive or on the web). Check to ensure that rollers are clean and
free of defects.
Before Starting Drive
Mounting the
Pump Head

L/S Precision Variable-Speed Console Drives Operating Manual 3-1Masterflex
Inserting Tubing
Section 3 Operation
WARNINGS: Tubing breakage may result in fluid being
sprayed from pump. Use appropriate measures to protect
operator and equipment.
Turn Pump System off before removing or installing tubing.
Fingers or loose clothing could be caught in the pump
mechanism.
CAUTION: To avoid electrical shock, the power cord protec-
tive grounding conductor must be connected to ground. Not
for operation in wet locations as defined by EN61010-1.
If the product is not used in a manner specified in the
instructions, the protection provided by the equipment
may be impaired.
Tubing should be inspected periodically for tears, cracks, cut marks,
abrasions, inability to hold pressure, bubbles in the flow stream and
reduction or loss of flow.
Tubing life may be extended by periodically moving the worn tubing
inside the occlusion bed of the pump to the outside of the occlusion bed
to the suction side of the pump. This will avoid excessive tubing wear at
any specific point.
Always move the worn tubing to the suction side of the pump.
CAUTION: When changing flow direction, allow the pump
to come to a complete stop before starting again. Failure to
do so could cause permanent damage to the motor.
1. Make sure the speed is set to the minimum setting.
2. Turn the power switch ON. Increase the speed to start the pump
action. The higher the rpm setting, the faster the speed of the pump.
3. The L/S Precision Variable-Speed Console Drives are self-priming. To
begin pumping, select a flow direction with the flow direction button,
insert the intake and output tubing into a reservoir, and turn the unit
ON. Prime the tubing for at least 5 minutes. If accurate flow control is
important, allow the pump to prime for approximately 20 minutes for
more stable flow conditions.
Tubing Inspection and
Replacement
Pump Controls

3-2 L/S Precision Variable-Speed Console Drives Operating Manual Masterflex
Section 3
Operation
External Operation Models are equipped with inputs that can be controlled by external signals
connected at the rear panel 9-pin “D” shell connector. The external inputs
permit control of the pump by remote equipment or accessories. Figure 3-1
indicates the signal locations in the connector.
Pin No. Description
1 Speed Control Voltage Input (0–10V) (+) input
2 Speed Control Current Input (4–20 mA) (+) input
3 Speed Control Input Reference Common
4 Local/Remote Speed Control
5 Local/Remote Speed Control Reference
6 Start/Stop and CW/CCW Reference
7 Start/Stop (+) Control
8 CW/CCW
9 Chassis (Earth) Ground
Figure 3-1. DB9 Pin Configuration with Wiring Scheme
Keypad Lockout
Enable/Disable
Press and hold the INT/EXT key. After five (5) seconds, display will
change to all dashes. Release INT/EXT key and press UP ARROW key (▲)
five (5) times. Repeat this process to unlock the keypad. When the keypad
is locked out, display will change to display all dashes (- - - - -) when a key
is depressed.
Note: Jumpers “A” and “B” are
optional. See page 3-3 External
Inputs for correct usage.

L/S Precision Variable-Speed Console Drives Operating Manual 3-3Masterflex
Section 3
Operation
The front INT/EXT key enables external functions. Switching to INT on
the display disables the external functions, allowing the front panel
controls to operate the pump.
When the INT/EXT key is in the EXT position, starting and stopping the
pump is controlled by an external contact closure between pins 6 and 7
(Jumper B), and the pump speed is determined by an externally supplied
0–10V or 4–20 mA source. Connection must be made between pins 6 and
7 to Start/Stop the drive and a control voltage greater than 0V between
pins 1 and 3 or a control current greater than 4 mA between pins 2 and 3
must be applied for the pump to run.
If setting the speed from the front panel is desired with external Start/Stop
contact operation, the INT/EXT key must again be in the EXT position.
In addition, Jumper A should be in place. Jumper A connects pin 4 of the
“D” shell connector (Local/Remote) to pin 5 (Local/Remote Reference).
Start/Stop will then be controlled from the rear panel (Jumper B), and the
pump speed will be controlled from the front panel. The accessory
Footswitch (part no. 77595-35) and Handheld Remote Controller
(part no. 07528-80) are connected internally in this way.
NOTE: The signal common for the speed control voltage and current
inputs is not referenced to earth ground.
The START/STOP (pin 7), CW/CCW (pin 8) and Local/Remote (pin 4)
are digital inputs. They are internally pulled up to +5 V with respect to
earth ground via pins 5 and 6. They can alternately be driven with open
collector logic. For increased noise immunity, use of contact closures is
recommended.
External Inputs

L/S Precision Variable-Speed Console Drives Operating Manual 4-1Masterflex
Section 4 Maintenance
Replacement Parts
WARNING: Remove power from the pump before attempting any
maintenance.
Description Part Number
Brushes (set of 2) 07520-04
Brush Cap Holder 07520-03
Fuse-T3.15A, 5 x 20 mm 77500-25
Gear Service Kit (600 & 300) 07553-06
Gear Only (600 & 300 rpm) 07553-09
Gear Service Kit (100 rpm) 07553-08
Ferrite, Line Cord Snap-on, (CE Required) B-3689-CR
Line Cord, Australia 50001-60
Line Cord, Denmark 50001-62
Line Cord, India 50001-64
Line Cord (115V), United States 50001-68
Line Cord, Israel 50001-69
Line Cord, Europe 50001-70
Line Cord, England 50001-72
Line Cord, Switzerland 50001-74
Line Cord, Italy 50001-76
Line Cord (230V), United States 50001-78
Line Cord, China 50001-79

4-2 L/S Precision Variable-Speed Console Drives Operating Manual Masterflex
Section 4
Maintenance
Fuse Replacement
Item Description
A IEC Power Entry Module / Line Cord
B 3.15A (5×20 mm) Fuse – Do Not Substitute
1. Place the power switch in the off position.
2. Disconnect the AC power input line cord from the receptacle.
3. Remove and check the fuse and replace if defective.
Figure 4-1. Fuse Replacement
A
B

L/S Precision Variable-Speed Console Drives Operating Manual 4-3Masterflex
Section 4
Maintenance
A
C
D
Motor Gear and Brush
Replacement
Figure 4-2. Motor Gear and Brush Replacement
A. 6-600 & 3-300 rpm gear assembly (included in service kit 07553-06)
B. Gasket
C. 1-100 rpm gear set (included in service kit 07553-08)
D. Gear Case cover assembly
E. Brush Cap
F. Motor Brush (set of two included in 07520-04)
B
Cleaning
WARNING: Remove power from the pump before any cleaning
operation is started.
Keep the drive enclosure clean with mild detergents. Do not immerse or
use excessive fluid when cleaning.
F
E
