1 Product Overview
The printer described in this User Guide provides full color dye-sublimation or monochrome thermal transfer
printing on standard 54x86 mm plastic cards. PVC, PVC Composite, PET, ABS, PC and Re-printable cards
are supported (accordingly with varnished card product configuration). It is managed from the computer
through the USB port or via Ethernet/Wi-Fi.
The ribbon carrier, that comes with the printer, allows the ribbon to be replaced quickly and easily.
Several options are available so that the printer can be configured to operate in different types of
environments:
•Magnetic stripe encoder
•Smart Card Encoding Station with Contact and Contactless Smart Card encoder
•10/100 Ethernet and/or 802.11a/b/g Wi-Fi connection
•Single Card Feed Option through Manual feeder
•Connection for external smart card encoding
•Locking system for input Hopper, reject bin and ribbons
2 Getting Started
The printer comes with several accessories; check carefully that they have been all received. This list may
vary depending on the location where the printer will be used and the configuration you have ordered.
The printer is shipped in special packaging designed to prevent damage during transportation. If any visible
damage is noticed upon reception, contact the dealer immediately.
Maintain the printer packaging intact and store it in a clean and dry place.
Note: If the printer has to be returned, it must be returned integrally with its full original packaging (box,
cushions and protective bags). If it is returned without its original packaging and any components are
damaged during transportation, such components will no longer be covered by the warranty. Matica
will also charge for the new packaging which will be required to ship the printer back.

MC310 USER GUIDE I
2-2
Unpacking the Printer
The following items are included in the box:
•Printer
•Memory stick containing the Installer, Printer driver and Printer Manager
•Quick Installation Guide
•Cleaning swab
•Cleaning card
•
Power cord
•Power supply
•USB cable
•Ribbon carrier
•Reject bin
Note: Contact the dealer immediately if any of the items listed above is missing.
Only use the power supply provided with the printer.

MC310 USER GUIDE I
2-3
Functional Description
2.2.1 Front View
The front of the printer is the operator side and has following features:
1) Front slot for Single card Manual Feeding.
2) Input Hopper
3) Operator panel and printer status indicators: ON/OFF key and 3 functional keys
4) LCD display
5) LED light indicating card availability status in the input hopper.
6) Biometric lock option (Only for MC310s, S3110 (Financial version))

MC310 USER GUIDE I
2-4
2.2.2 Operator Panel
,

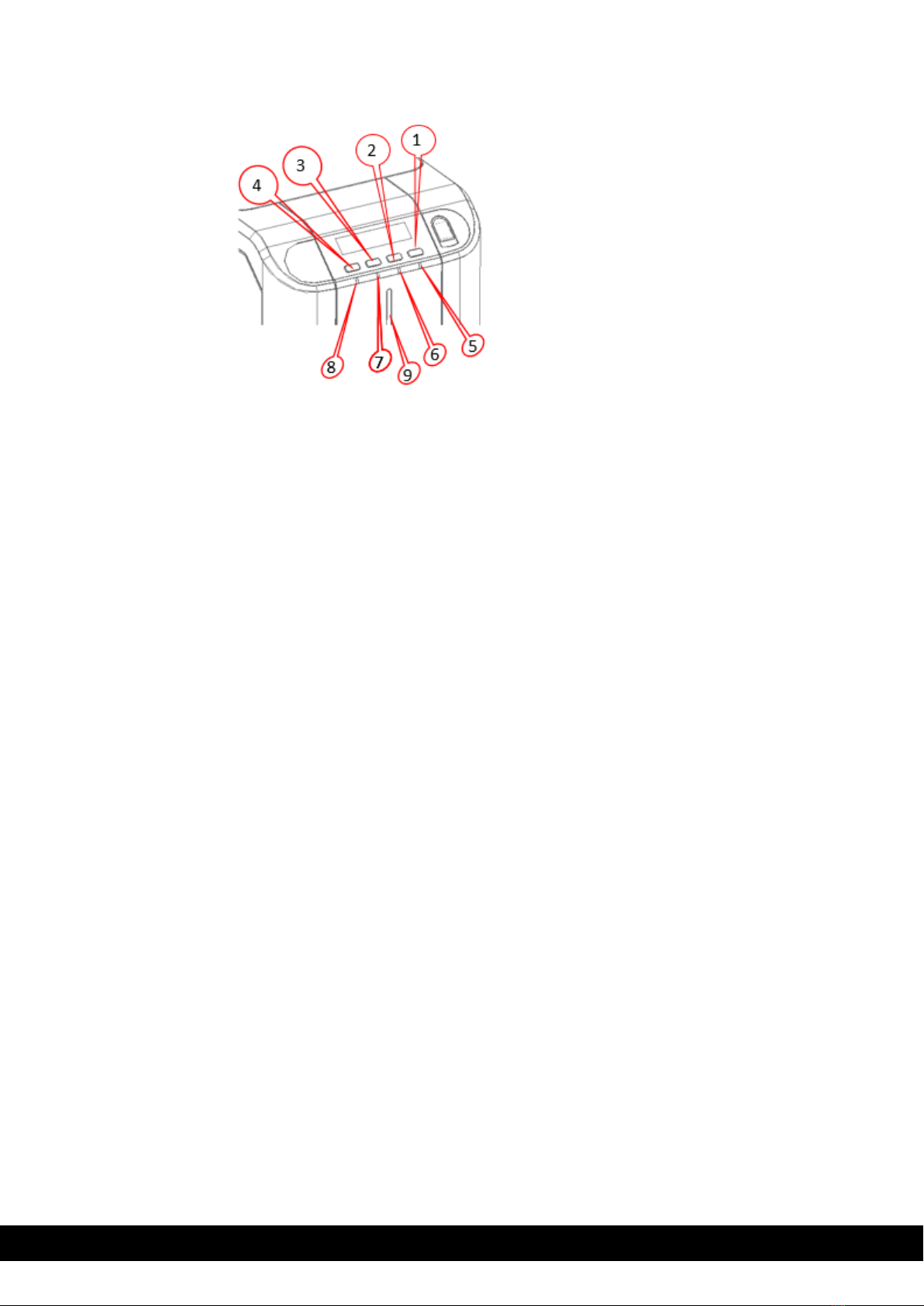

The front operator panel consists of 4 soft touch buttons and 4 status LEDs along with an informative display
•Button operation
oPower button (Shown as 1)
Short press to turn on the printer
Long press to turn off the printer when it is ON
oSelection button (Shown as 2)
To select the menu option and transit to respective sub-menu
Selecting option in sub-menu. Ex. Standard Cleaning, chip encoder setting
oMenu/Scroll button (Shown as 3)
Button will be used to enter in Menu
Same button will be used to scroll to next menu item
Same button will be used for incrementing the value while setting Sleep time
oWi-Fi button (Shown as 4)
Press to tun on the Wi-Fi, if the Wi-Fi option is present in the system
LCD will display the status
•Status LED
oPower LED (Shown as 5)
White - indicates printer is ON
oStatus LED – Ready (Shown as 6)
Green – indicates printer is ready for printer
Green blinking – indicates printer is receiving data or printing
Amber – indicates ribbon is nearing end
Amber blinking – indicates there is no card OR no ribbon
oStatus LED – Error (Shown as 7)
Red – indicates there is an error, card jam, cover open etc in printer
Red blinking – indicates printer requires servicing OR firmware upgrade
oWi-Fi LED – (Shown as 8)
Off – indicates Wi-Fi is not available in printer
Blue blinking – indicates Wi-Fi is available in printer but not connected
Blue – indicates printer is connected
oInput hopper LED – (Shown as 9)
Off – indicates there is no card available in printer
Red blinking – indicates no. of cards in the hopper are running low.
Red – indicates there are cards available in input hopper
