Matrix VS-S70 User manual

OWNERS MANUAL
Versa Single-Station Strength
VS-S70 Leg Press

Table Of Contents
Safety, General Care & Maintenence .................................................3
Getting Started (Product Specifications)..........................................5
Assembly Information ..........................................................................6
Markings .................................................................................................7
Parts List ................................................................................................8
Installation & Assembly: Value Line
Part 1 Weight Stack & User Frame Assembly............................9
Part 2 Cable Assembly ................................................................ 10
Parrt 3 Handlebar Assembly........................................................11
Part 4 Pad Assembly.................................................................... 12
Part 5 Exercise Arm Assembly.................................................. 14
Part 6 Plastics Assembly ............................................................ 15
Part 7 Cable Adjustment.............................................................. 18
Installation & Assembly: Optional Kits
Part 8 Premium Kit....................................................................... 19

3
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
It is the sole responsibility of the purchaser of Matrix products to instruct all individuals, whether they are the end user or
supervising personnel on proper usage of the equipment.
It is recommended that all users of Matrix exercise equipment be informed of the following information prior to its use.
PROPER USAGE
Do not use any equipment in any way other than designed or intended by the manufacturer. It is imperative that Matrix
equipment be used properly to avoid injury.
Keep hands and feet clear at all times from moving parts to avoid injury.
CHECK FOR DAMAGED PARTS
1. DO NOT use any equipment that is damaged and or has worn or broken parts. Use only replacement parts supplied by
your country’s local Matrix dealer.
2. MAINTAIN LABELS AND NAMEPLATES: Do not remove labels for any reason. They contain important information.
If unreadable or missing, contact your Matrix dealer for a replacement.
3. SECURING EQUIPMENT: All equipment MUST be secured to the floor to stabilize and eliminate rocking or tipping over.
This must be performed by a licensed contractor.
4. MAINTAIN ALL EQUIPMENT: Preventative maintenance is the key to smooth operating equipment as well as keeping your
liability to a minimum. Equipment needs to be inspected at regular intervals.
5. Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to do so.
Matrix dealers will provide service and maintenance training at our corporate facility upon request.

4
IMPORTANT SAFETY INSTRUCTIONS
WARNING: This product contains chemicals known to the State of
California to cause cancer and birth defects or other reproductive harm.
WARNING: SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW
THESE PRECAUTIONS TO AVOID INJURY!
1. Never allow children on strength training equipment. Teenagers must be supervised at all times while using this
equipment.
2. All warnings and instructions should be read and proper instruction obtained prior to use.
3. Use this equipment for its intended purposes only.
4. NEVER allow resistance straps, ropes or other means be attached to this equipment, as this may result in serious
injury.
5. NEVER use this equipment for support during stretching, as this may result in serious injury.
6. Cease exercise if you feel faint or dizzy. Obtain a medical exam before beginning an exercise program.
7. Keep body, hair, clothing and accessories free and clear of all moving parts.
8. Inspect the machine before use. DO NOT use machine if it appears damaged or inoperable.
9. Check to see that the selector pin is completely inserted into the weight stack.
10. NEVER use this machine with the weight stack pinned in an elevated position.
11. NEVER use dumbells or other means to incrementally increase the weight resistance. Only use the means provided
directly from the manufacturer.
12. This equipment should only be used in supervised areas where access and control are regulated by the owner.

5
GETTING STARTED
TECH SPECS
Overall dimensions 73”L X 41”W X 66”H
Weight 795 lbs (361 kg)
Shipping weight 380 lbs (172 kg)
WARRANTY (Valid in USA only)
Frame (not coatings) 10 years
Structural parts 10 years
Weight stacks 5 years
Pulleys 5 years
Pivot bearings 5 years
Any items not specified 3 years
Labor (excluding upholstery/cables/grips) 3 years
Upholstery/cables/grips/springs 1 year
ACTION FREQUENCY
Clean Upholstery Daily
Inspect Cables Daily
Clean Guide Rods Monthly
Inspect Hardware Monthly
Inspect Frame Bi-Annually
Clean Machine As Needed
Clean Grips As Needed
Lubricate Guide Rods As Needed
Upholstery & Grips should be cleaned with a non-ammonia based cleaner or a mild soap and water. Guide rods should be
lubricated with Teflon based lubricant. Apply the lubricant to a cotton cloth and then apply up and down the guide rods.
MAINTENANCE CHECKLIST
EXERCISE PLACARD | PRODUCT SPECIFICATIONS | MAINTENANCE CHECKLIST
EXERCISE PLACARD
PRODUCT SPECIFICATIONS

6
ASSEMBLY
UNPACKING | TOOLS REQUIRED
UNPACKING
Thank you for purchasing a Matrix product. This machine is an EN957-1 and EN957-2 compliant Class S product. Your Ma-
trix product is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the
machine. Prior to assembly, confirm all the components by matching them with the exploded diagrams. Carefully unpack
the unit from this box and dispose of the packing materials in accordance with your local laws.
CAUTION
The weight of the product is 380 lbs. (172 kg) not including the weight stack. The weight stack for this machine is 415 lbs.
(189 kg). To avoid injury to yourself and prevent damage to the frame components, be sure to have proper assistance re-
moving the frame pieces from this box. Please be sure to install the equipment on a stable base, properly level the machine
and leave at least two feet of clearance to enter and exit the machine. Maximum user weight for this machine is 300 lbs.
TOOLS REQUIRED FOR ASSEMBLY
3MM L-Shaped Allen Wrench
4MM L-Shaped Allen Wrench
5MM L-Shaped Allen Wrench
6MM L-Shaped Allen Wrench
8MM L-Shaped Allen Wrench
10MM L-Shaped Allen Wrench
Phillips & Standard Screwdrivers
8MM Open-End Wrench
13MM Open-End Wrench
17MM Open-End Wrench.
19MM Open-End Wrench
Adjustable Wrench
Blue Locktite 242 must be used on all fasteners that are not assembled with Nylock Nuts

7
MARKINGS
WARNING LABEL LOCATIONS

8
Parts List
ID DESCRIPTION QTY
1 M10 X 125L Socket Head Cap Screw 4
2 M10 Flat Washer 26
3 Wide Cupped Flange 2
4 User Frame 1
5 Lower Connecting Tube 1
6 M10 X 20L Socket Head Cap Screw 10
7 M10 Nylock Nut 11
8 Weight Stack Frame 1
9 Upper Connecting Tube 1
10 Handlebar Assembly 1
11 M10 Flat Washer (Ø18 mm) 8
12 M10 X 30L Socket Head Cap Screw 4
13 Bottom Pad 1
14 Back Pad 1
15 M10 X 75L Socket Head Cap Screw 2
16 Linkage 1
17 M10 X 160L Socket Head Cap Screw 3
18 Exercise Arm Assembly 1
19 Front Shroud 1
20 Rear Shroud 1
21 M8 X 25L SHC 4
22 Large M8 Flat Washer (Ø20 mm) 4
23 Top Cap 1
24 Top Cap Cover 2
PREMIUM KIT COMPONENTS
1P Wing 1
2P Rep Counter 1
3P Towel Hook 1
4P ASG Pull Grip 3

9
PART 1: WEIGHT STACK TO USER FRAME ASSEMBLY
STEP 1 | WEIGHT STACK TO USER FRAME INSTRUCTIONS & NOTES
6
5
8
3
2
1
9
7
4
ID DESCRIPTION QUANTITY
1 M10 X 125L SHC 4
2 M10 Flat Washer 14
3 Wide Cupped Flange 2
4 User Frame 1
5 Lower Connecting Tube 1
6 M10 X 20L 6
7 M10 Nylock Nut 4
8 Weight Stack Frame 1
9 Upper Connecting Tube 1
Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN .
ASSEMBLY

10
ASSEMBLY

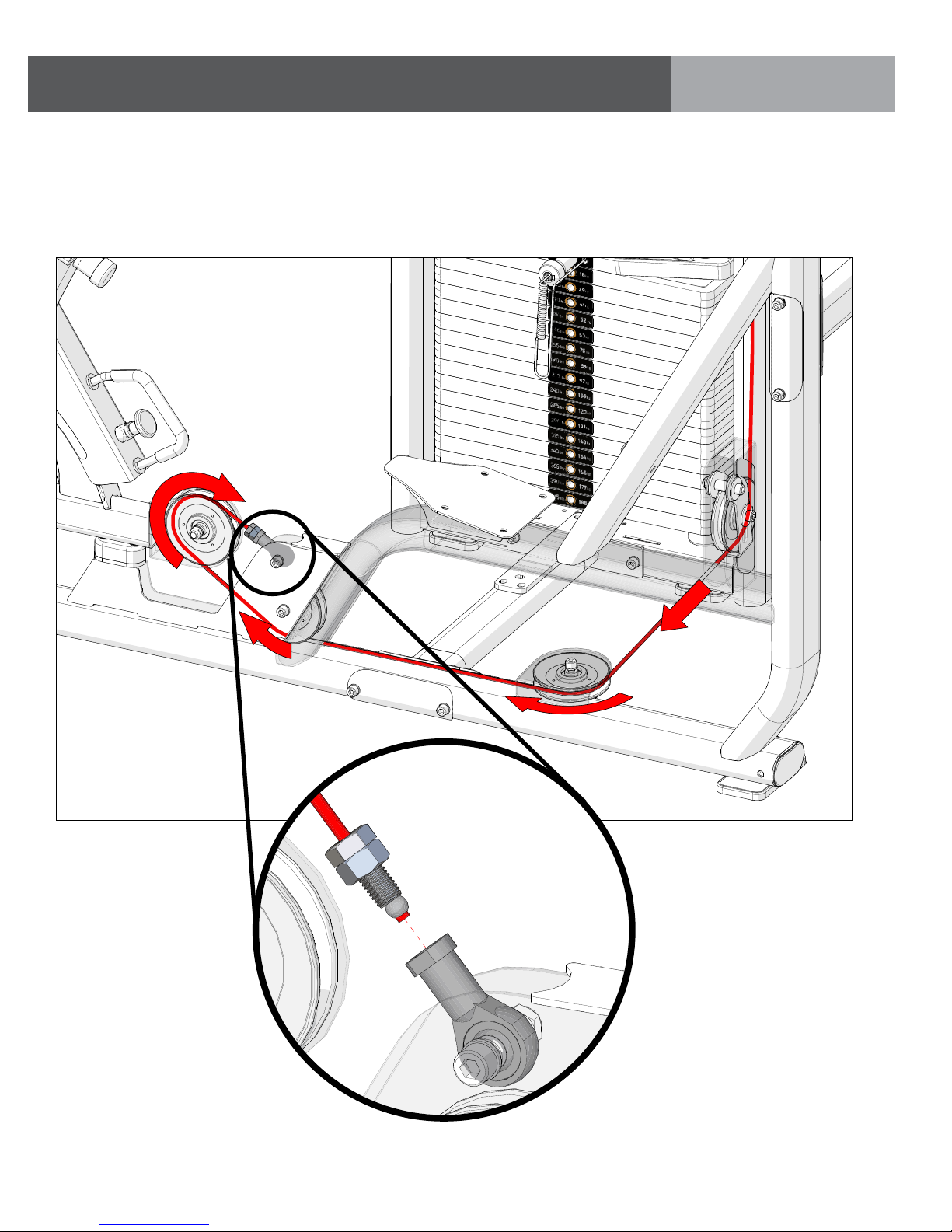

STEP 1 | CABLE ASSEMBLY INSTRUCTIONS & NOTES
PART 2: CABLE ASSEMBLY
Route the cable as shown from the weight stack.
Assemble cable end as
shown. Fully tighten
fitting.

11
PART 3: HANDLEBAR ASSEMBLY
STEP 1 | HANDLEBAR ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
7 M10 Nylock Nut 4
10 Handlebar Assembly 1
11 M10 Flat Washer (Ø18 mm) 8
12 M10 X 30L SHC 4
ASSEMBLY
Torque M10 hardware from pages 8-10 to: 77 N-m/57 ft-lbs.
7
10
11
12

12
ASSEMBLY

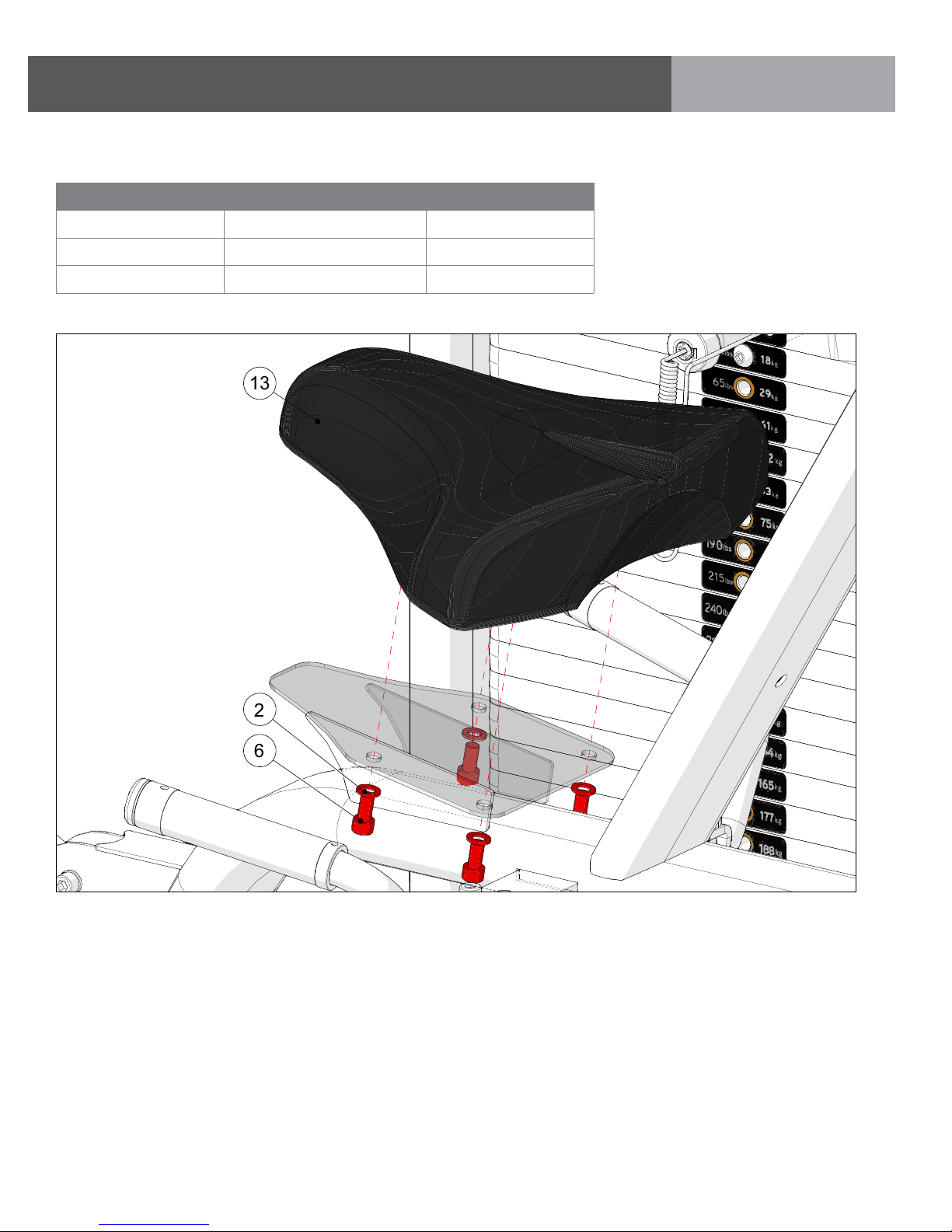

STEP 1 | BOTTOM PAD ASSEMBLY INSTRUCTIONS & NOTES
PART 4: PAD ASSEMBLY
ID DESCRIPTION QUANTITY
2 M10 Flat Washer 4
6 M10 X 20L SHC 4
13 Pad 1
6
2
13
Install the pad as shown.
Tighten to 27 N-m/20 ft-lbs.

13
ASSEMBLY

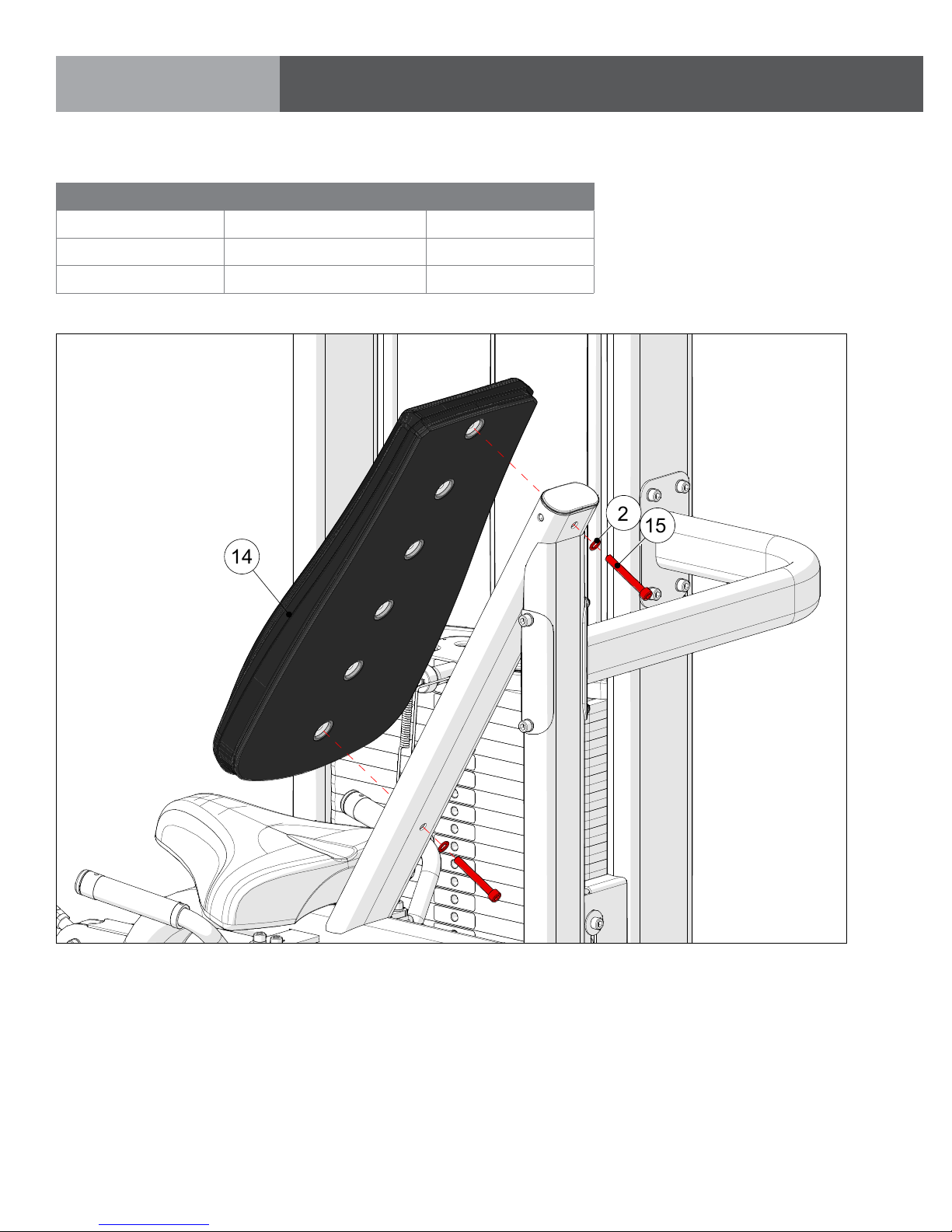

STEP 2 | BACK PAD ASSEMBLY INSTRUCTIONS & NOTES
PART 4: PAD ASSEMBLY
ID DESCRIPTION QUANTITY
2 M10 Flat Washer 2
14 Back Pad 1
15 M10 X 75L SHC 2
14
2
15
Install the pad as shown.
Tighten to 27 N-m/20 ft-lbs.

14
PART 5: EXERCISE ARM ASSEMBLY

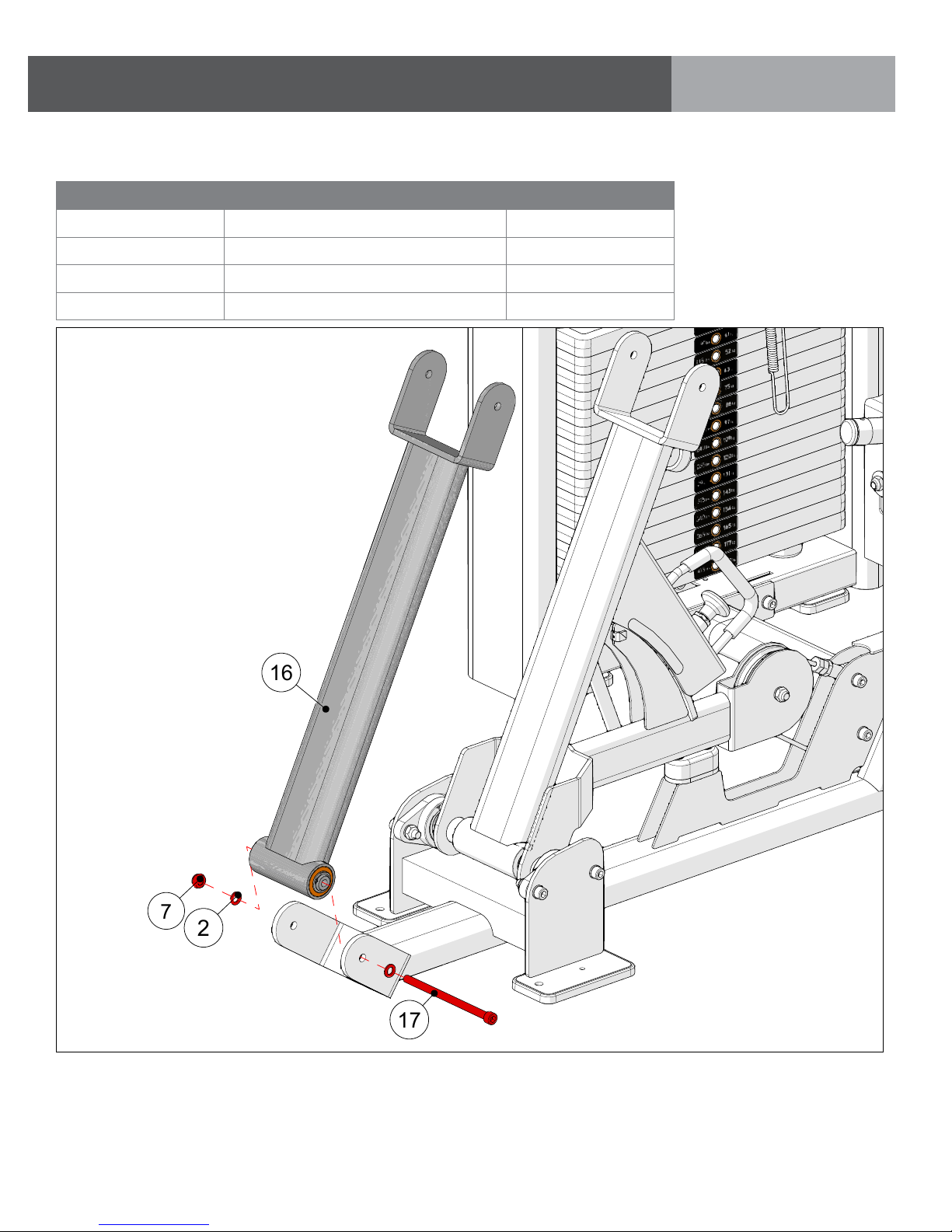

STEP 1 | EXERCISE ARM ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
2 M10 Flat Washer 2
7 M10 Nylock Nut 1
16 Linkage 1
17 M10 X 160L SHC 1
ASSEMBLY
7
2
16
17
Install the user frame hardware as shown.
Fully Tighten to: 77 N-m/57 ft/lbs.

15
PART 5: EXERCISE ARM ASSEMBLY
STEP 2 | EXERCISE ARM ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
2 M10 Flat Washer 4
7 M10 Nylock Nut 2
17 M10 X 160L SHC 2
18 Exercise Arm 1
ASSEMBLY
Install the user frame hardware as shown.
Fully Tighten to: 77 N-m/57 ft/lbs.
7
2
18
17

16
STEP 1 | SHROUD ASSEMBLY ASSEMBLY INSTRUCTIONS & NOTES
PART 6: PLASTICS ASSEMBLY
ID DESCRIPTION QUANTITY
19 Front Shroud 1
20 Rear Shroud (Not shown) 1
ASSEMBLY
Install the weight stack shrouds as shown.
19
Position hangers in their lowest position

17
STEP 2 | TOP CAP ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
21 M8 X 25L SHC 4
22 M8 Flat Washer (20 mm diameter) 4
23 Top Cap 1
22
21
23
ASSEMBLY
PART 6: PLASTICS ASSEMBLY
Install the top cap onto the weight stack as shown.
Torque to 17 N-m/147 in-lbs.

18
STEP 3 | TOP CAP COVERS INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
24 Top Cap Cover 2
24
24
ASSEMBLY
PART 6: PLASTICS ASSEMBLY
Install the top cap covers.

19
ASSEMBLY
PART 7: CABLE ADJUSTMENT
Cable tension is adjusted by raising or lowering pulley as shown.
Note: Nuts for adjustable pulley must be on inside towards weight plates.

20
ASSEMBLY
PART 8: PREMIUM KIT ASSEMBLY
PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
1P Wing 1
2P Rep Counter 1
3P Towel Hook 1
4P ASG Pull Grip 3
3
5
1
2
4
1P
2P 3P
4P
IMPORTANT NOTICE
PLEASE NOTE:
Be sure to remove the insulating
sheet when installing the
Rep Counter.
