matson MA61224 User manual

MA61224MANUAL
MULTI-VOLTAGE
6/12/24V AUTOMATIC
BATTERY CHARGER
LITHIUM
COMPATIBLE

MA61224 .MANUAL2 |
MULTI-VOLTAGE 6/12/24V BATTERY CHARGER
Avoid contact with battery acid - it is highly corrosive, causing burn injuries and equipment damage
Wear safety glasses to prevent eye injuries.
If acid contacts eyes - ush immediately with cold water for 10 minutes, and seek medical attention
Wear protective clothing to prevent acid contacting the skin
If battery acid contacts skin - wash immediately with soap and fresh water
Remove all jewellery and personal metal items when working with a lead-acid batteries
1. The battery charger is intended for use by adults and should not be operated by children
2. It is designed for use in dry and protected environments. DO NOT expose to the elements i.e. rain, dust, etc.
3. This charger is for 6, 12 and 24 Volt use only. DO NOT exceed ratings nominated in the specications for the
charger described in this manual.
4. The MA61224 charger range requires an earthed 240Volt mains power supply
5. Disconnect from the 240Volt mains power supply before making connections and/or disconnecting clamps
from the battery.
6. When disconnecting power, pull by the plug - DO NOT pull on the power lead.
7. DO NOT attempt to use charger if it is damaged or faulty
8. DO NOT charge non-rechargeable batteries
9. Always check the manufacturers recommended charge rates and voltage specications for the battery prior
to charging
10. DO NOT attempt to charge or jump start a frozen lead-acid battery
11. Only use attachments supplied with the charger - failure to do so may result in personal injury or equipment
damage or void warranty
12. Dispose of faulty batteries in an environmentally responsible manner
To avoid any personal injury, please read the safety instructions below.
This manual contains important safety and operating instructions for
the MA61224 Battery Charger. Consider ALL safety, warning and caution
instructions carefully.
WARNING

| 3MA61224 .MANUAL
MULTI-VOLTAGE 6/12/24V BATTERY CHARGER
THE MATSON MA61224 IS A FULLY AUTOMATIC 7 STAGE
BATTERY CHARGER.
● Prevents the battery from overcharging and consequent damage
● Can be connected to the battery indenitely
● Are programmable for dierent battery types including REG/AGM, GEL , CALCIUM AND LifePO4
● Has variableVoltage outputs
● Has a unique inbuilt diagnosis program. On connection to the battery, the charger automatically diagnoses
the battery condition and changes its charge rate and charge stages accordingly.This optimizes charging
conditions and extends battery life
● Has a LED display for: voltage, current, battery capacity & alternator %
● Has electronic touch-button controls
● Has a desulphation stage (Automatic)
● Uses high frequency charging for eciency
● Incorporates polarity protection
● Prevents output leads from sparking due to reverse connection or short circuit
● Has over temperature protection - internally fan cooled with a set cut o point for additional safety
● Has over current protection - charger automatically reduces current for optimum battery condition
FEATURES
A lead-acid battery can generate explosive gases during normal battery operation.
To reduce risk of explosion, follow these instructions, those of the battery manufacturer and of any
equipment being used in vicinity of battery
Use the jump start in a well ventilated area. DO NOT operate in the vicinity of ammablessuch as petrol etc.
DO NOT allow sparks or ame near the battery
Short circuiting the contacts can generate a spark, creating a potentially explosive situation - take care
with tools and components
Never smoke while working with a lead-acid battery

MA61224 .MANUAL4 |
MULTI-VOLTAGE 6/12/24V BATTERY CHARGER
SPECIFICATIONS
MODEL MA61224
Charging Stages 7
Input 240vac, 50Hz
Output Voltage 6/12/24 Volt DC Selectable
Output Current 6/12 Volt, 2/10/20 Amp. Selectable
24 Volt, 2/5/10 Amp. Selectable
Power supply mode 12v mode- 13.1v- 13.3v at 10Amps
24 mode- 26.2v – 26.4v at 5Amps
Min. Start Voltage 2 Volt
CHARGE CONTROL
Soft Start Yes
Charge Rates
6 Volt
REG/AGM - 7.2v
Gel - 7.05v
Calcium- 7.5v
12 Volt
REG/AGM- 14.5v
Gel - 14.1
Calcium - 15.1v
LiFePO4- 14.4v
24 Volt
REG/AGM – 29V
Gel - 28.2v
Calcium- 30.2v
LiFePO4- 28.8v
Absorption Constant voltage with automatic Amperage control
Equalization Automatic
Analysis / Fault Find Automatically detects faulty batteries. Error codes indicate fault
Alternator Function When selected - indicates alternator is functioning correctly
Float 6V @ 6.7V – 6.9V 12V @ 13.1V – 13.5V 24V @ 27.V – 29V
Reboot
FEATURES
Case Construction Hard plastic
Fan Cooled Yes
Permanent Mount Yes
Weight 1.9kg
Dimensions 300 x 100 x 75mm (LxWxH)
Cable length 1.8m
BATTERY SIZE / TYPE 10 - 240 Ah Charge

| 5MA61224 .MANUAL
MULTI-VOLTAGE 6/12/24V BATTERY CHARGER
FRONT PANEL INDICATORS
MODE SELECTION:
● Battery charging
● Power supply
● Alternator test
BATTERY CHARGING MODE
Battery Type
● Select battery type by pressing battery type button
Battery Voltage
● Select voltage by pressingVoltage setting button
● Battery % - % of charge in the battery
● Voltage -Voltage of the battery being charged
● Current - Current (amperage) going into the
battery being charged
Charge Rate
Display Indicator
● Select Amperage by pressing Charging rate button. Selection cycles through
2A / 10A / 20A. NOTE: If 24V is selected - the selections are 2A / 5A / 10A
● 2A - Slow charge - recommended for optimal battery condition. e.g. A
100Ah charges in approx 20 hours
● 10A - Intermediate charge - e.g. A 100Ah charges in approx 10 hours
● 20A - Boost charge - e.g. A 100Ah charges in approx 5 hours
● These times are a guide only - charge rates will vary depending on a
number of conditions
You can switch between
charge rates during the
charge process. The charge
rate automatically adjusts
to the present charge level

MA61224 .MANUAL6 |
MULTI-VOLTAGE 6/12/24V BATTERY CHARGER
CHARGING A BATTERY
1. Turn the charger ON by connecting it to 240VAC mains power
2. Select battery charging mode by pressing MODE button.
3. Press BATTERY TYPE to select the required battery chemistry
4. Select BATTERYVOLTAGE - 6 / 12 / 24 volts
5. Select CHARGE RATE required
If charging a battery in a vehicle, ensure cables are removed from any rotating or crush hazards.
Conrm the vehicle is negative earth - vehicle chassis.
6. Attach the black / negative - clamp to the negative terminal of the battery
7. Attach the red / positive + clamp to the positive terminal of the battery
8. There is a 30 second delay between connecting the clamps and switching to charge.
9. Once charging has started, the display will indicate the battery type selected, % of battery being charged,
Voltage and Amperage.
10. Once fully charged,’Charging nished’will appear on the display.
11. When fully charged, you can either;
Leave the charger connected and it operates in a maintenance mode, or
Disconnect as follows
12. Turn the charger OFF at mains power
13. Disconnect the red / positive + clamp from the battery positive terminal
14. Disconnect he black / negative - clamp from the battery negative terminal

| 7MA61224 .MANUAL
MULTI-VOLTAGE 6/12/24V BATTERY CHARGER
POWER SUPPLY FUNCTION

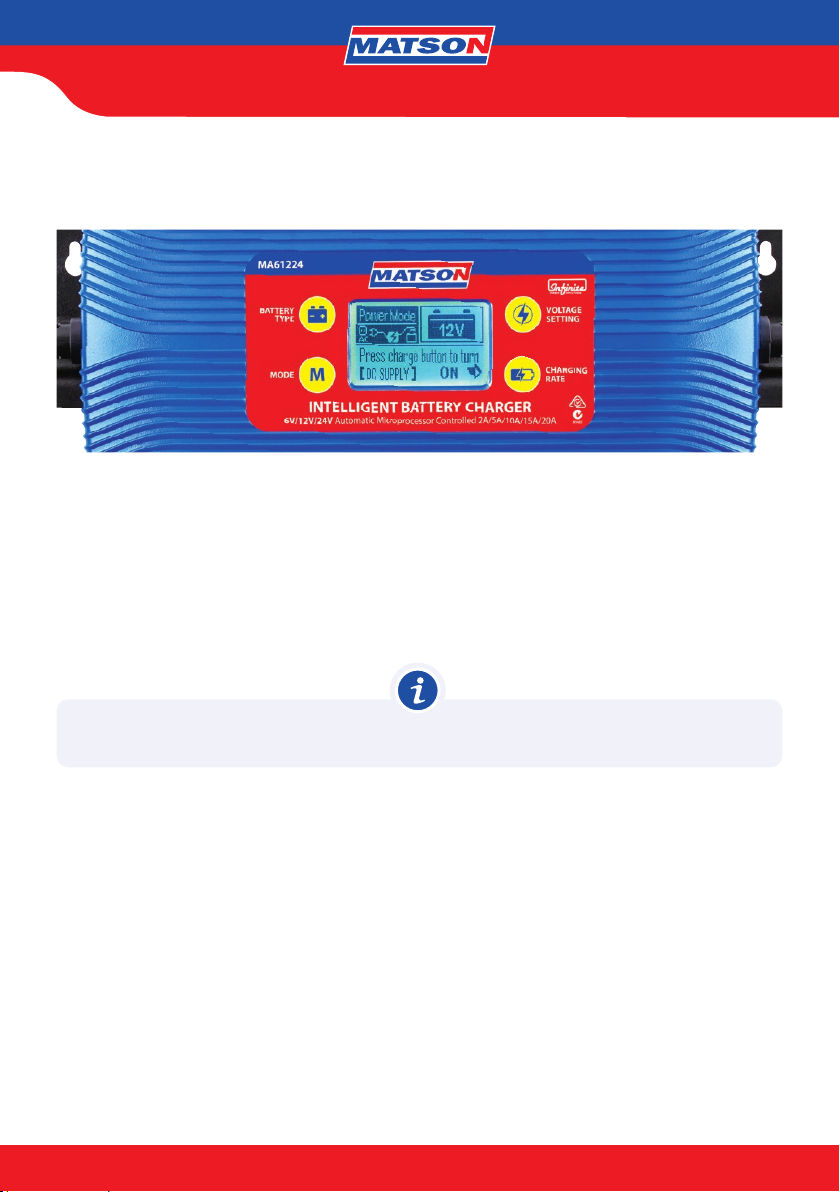

● Press Mode Button to select power supply mode. Below screen will appear on the display
● Select the voltage 12V or 24V. Please note the output on 12V is 13.3V at 10A and 26.2V at 5A
● Once voltage selection is complete. Press and hold‘Charging rate button‘ to start the power supply function.
● Please note –The power supply can only be turned on when the clamps are connected to the batteries.
ALTERNATOR FUNCTION
Alternator function can only be selected when the clamps are NOT connected to a battery.
1. Turn the charger ON
2. Press MODE to select ALTERNATOR %
3. Connect the RED DC clamp from the charger to the Positive (+) battery post and the BLACK DC clamp
from the charger to the Negative (-) battery post.
4. Start the engine and rev the motor -
If alternator is working correctly, display indicates a value higher than 50
If the display indicates less than 50 - the alternator is not performing as designed and requires
checking by a qualied technician.

MA61224 .MANUAL8 |
MULTI-VOLTAGE 6/12/24V BATTERY CHARGER
TROUBLESHOOTING
LED/ERROR CODE FAULT / CONDITION COMMENT
F01 Bad cells in battery Replace battery
F02 Charge time exceeds 48 hours Bad cells in battery - replace battery
F03 Reverse connection Check clamps for correct polarity
F04 Overheating
Charger starts again when
temperature drops.
Ensure charger vent is not covered
F05 Aging battery Battery cannot be eciently charged -
replace battery
F06 Incorrect voltage setting Set correct charge rate voltage
F07 Over voltage
Charger has detected the voltage is
over 30v.
Ensure the correct voltage setting
WARRANTY POLICY
Products developed and sold by Tridon Australia Pty Ltd come with a guarantee for the reasonable life of
the product, for the purpose it is commonly used. This is in addition to the rights of the consumer under the
Australian Consumer Law.
To be considered for warranty please take the product with proof of purchase to the store where you
purchased the product or contact Tridon Australia
The warranty is given by:Tridon Australia, 21-25 Derby St, Silverwater, NSW 2128.
Tel: [phone].
Email: [email protected]
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage incurred if the product fails when used for the purpose for which it was intended.
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and
the failure does not amount to a major failure.
Tridon Australia will bear costs associated with claiming legitimate warranties. Proof of expenses incurred
must be submitted toTridon Australia Pty Ltd.
