Mec MCC-40 User manual

BEDIENUNGSANLEITUNG
MEC multifunktionales Motorrad
Batterie Ladegerät
MCC-40
E
OPERATING INSTRUCTIONS
Multi-functional motorcycle
battery charger
MCC-40

Notes
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_________________________________________________________________________

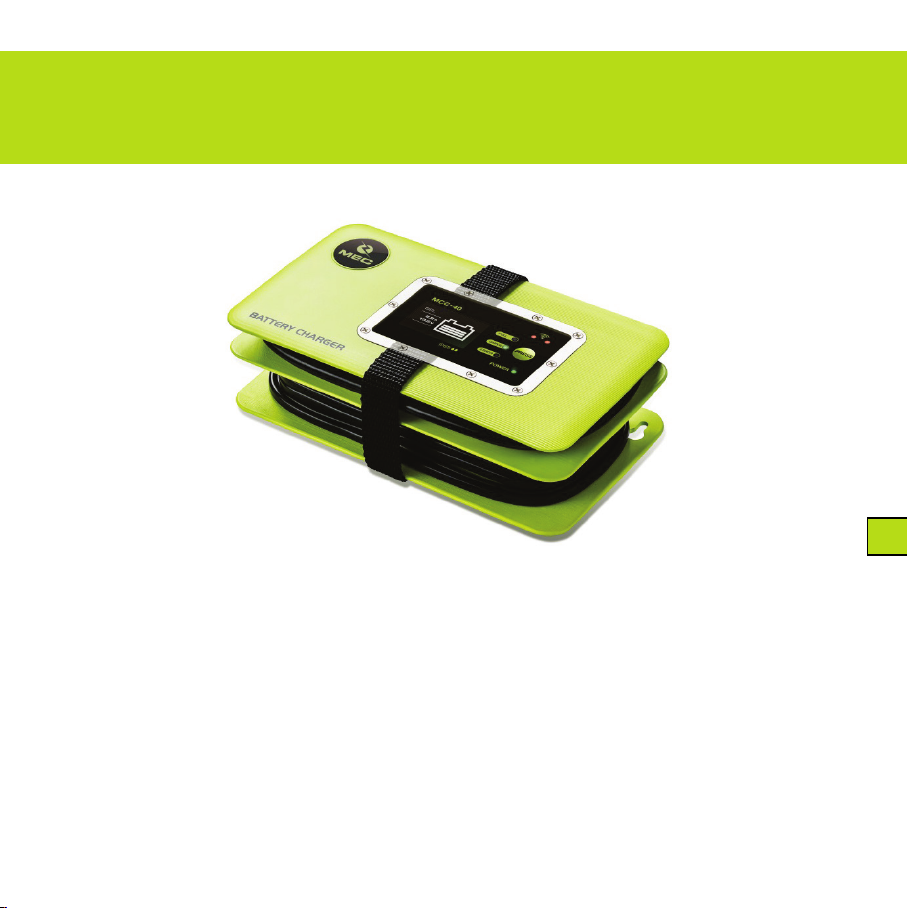

Introduction
Dear Customer!
Your MEC MCC-40 charger is a state-of-the-art product. The MCC-40 is ideal for quick charging and the safe
storage
of your motorcycle starter battery over the winter.
The MCC-40 is dust- and water-resistant in accordance with protection class IP65 and has an installed temperature
sensor that charges your battery based on the ambient conditions. Five charging programmes for different types of
batteries are stored in the charger and can be selected at the click of a button. When plugged in, the MCC-40 checks
the charge status every 7 days and recharges the battery if necessary. This makes the MCC-40 ideal for the safe
storage of your motorcycle starter battery over the winter.
The charger has a safety and EMC certificate and meets all the applicable national and European requirements. The
relevant conformity documentation is available from the manufacturer. Please carefully read through the operating
instructions and pay attention to these instructions before first using your MEC MCC-40 motorcycle battery charger.
MCC-40
E

Scope of delivery
Transport case
MCC-40 battery charger with cable
storage and
fastening strap
Charging plug
12mm DIN ISO 4165
with integrated temperature sensor
Pole terminal adapter
with socket for
connection
withthe chargingplugand pole
terminals for direct
connection to the battery
(red + | black -)
Operating instructions

Safety information
• Please read the operating instructions prior to initial use and store well for future reference.
• The MCC-40 battery charger is designed for 12V lead-based batteries and 12V lithium-iron-phosphate
(LiFePO4) batteries. The charger must not be used for other batteries.
• Only use the pole terminal adapter supplied by MEC when directly connecting the charger to the battery pole
terminals. Please pay attention to the polarity of the terminals.
• Before using the battery charger, use the vehicle documents to confirm the polarity, ground connection,
maintenance information and the battery type in your vehicle. The polarity on your vehicle must match the in-
formation on the charger. The battery type must match the selected recharging program.
• Make sure that the power supply connection complies with the national directives for electrical connections.
• Before initial start-up, check whether the mains voltage indicated on the name plate matches the available
supply
voltage. The mains supply must be protected with max. 16A.
• WARNING: Never recharge non-rechargeable batteries.
• WARNING: Never recharge a frozen starter battery.
• Check all cables and connections for damage before start-up. Defective or damaged cables may only be re-
paired or replaced by MEC or specialist workshops commissioned by MEC.
• Ensure that the cables are never jammed or mechanically damaged.
• Do not open the charger.
• WARNING: Explosive gases may be generated while charging! Ensure that there is adequate ventilation while
charging and prevent the formation of sparks and other sources of
ignition near the battery.
• Do not position the charger above or on top of the starter battery.
• Make sure that the charger is not covered while charging.
• WARNING: Battery acid is corrosive and may cause property damage and personal injury. In the event of di-
rect
contact with skin or eyes, immediately rinse with plenty of clean water and contact a doctor.
• Please always wear appropriate work clothes, protective gloves and safety glasses when working with lead-
based batteries.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or in-
struction concerning use of the appliance in a safe way and understand the hazards involved. Children shall
not
play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The charger may only be stored and used out of the reach of children or unauthorised individuals.
• Keep the charger out of direct sunlight.
• During charging the battery must be placed in a well ventilated area.
• MEC is not liable for any personal injury and/or property damage as a result of improper or incorrect use.
E

Connection / start-up
The MEC MCC-40 battery charger is designed for 12V lead-based or 12V lithium (LiFePO4) starter batteries.
The battery charger is delivered with "Universal" charging profile. This profile allows all conventional lead-based and
lithium-iron-phosphate starter batteries to be safely recharged. To ensure the optimal recharging of the starter battery, a
special charging profile can be selected for WET, GEL, AGM and lithium (LiFePO4), which is saved when the power is
disconnected.
Start-up
1. Match the polarity on the vehicle to the polarity on the charger using the vehicle documents.
a. Polarity on the 12mm DIN-ISO 4165 charging plug:
b. Pole terminal adapter:
c. If the charging socket polarity does not match the charging plug polarity on the battery charger, the pole
terminal adapter must be used to recharge the starter battery directly.
2. Check the battery type using the vehicle documents or the manufacturer information on the battery.
a. If the battery type cannot be clearly identified, please use the "Universal" charging program.
3. Connect the power cable (AC) to the mains socket.
4. Select the battery type.
5. Connect the charging plug to the motorcycle, or connect the pole terminals to the battery, paying attention to the
polarity.
6. Recharging starts and ends automatically.
7. If the battery charger remains connected to the mains as well as to motorcycle/battery, the charge status will be
checked after 7 days (168 hours) and the recharging will commence automatically if required.

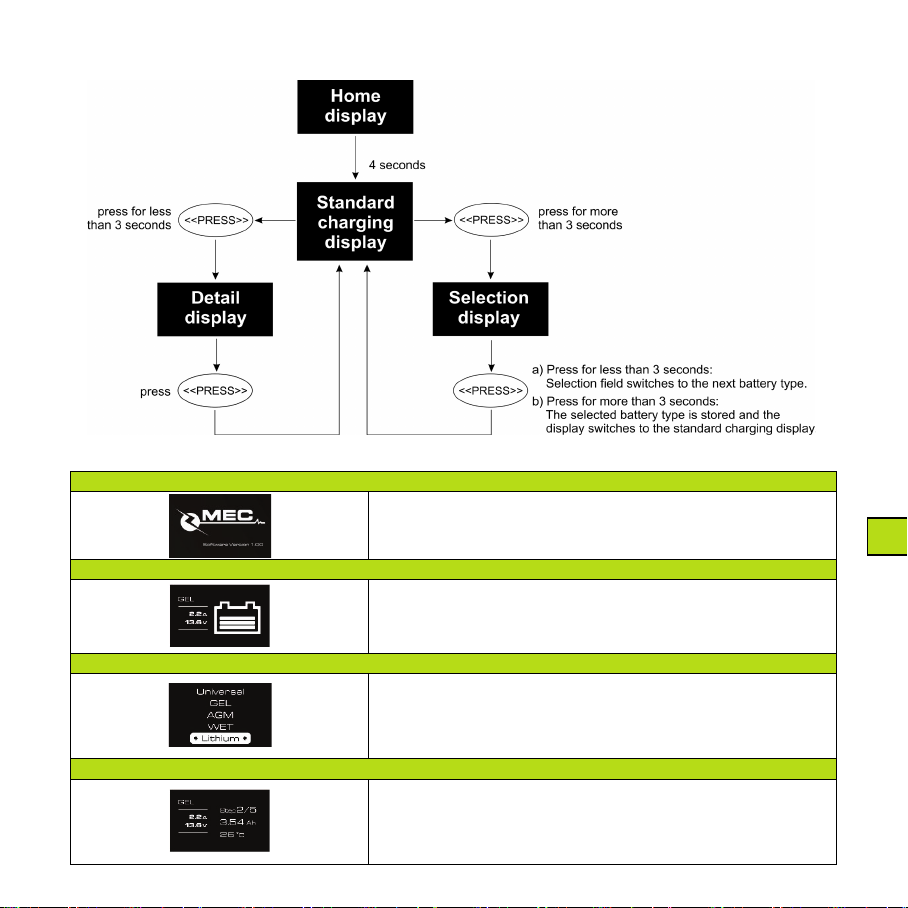

Selecting the battery types and display functions on the screen
Description of the operating display
Home charging display
• MEC symbol
• Software version
Standard charging display
• Selected charging profile
• Current charging current [A]
• Current battery voltage [V]
• Charging status display
Selection display
• Universal: for all types of Lead/acid and Lithium-iron-phosphate batteries
• GEL: for Lead/acid, gel batteries
• AGM: for Lead/acid, absorbent glass mat batteries
• WET: for Lead/acid, wet batteries
• Lithium: Lithium-iron-phosphate (LiFePO4) battery
Detail display
• Selected charging profile
• Current charging current and charging voltage
• Current charging phase
• Ampere-hours (Ah) supplied in the current charge cycle
• Temperature on the charger plug
E

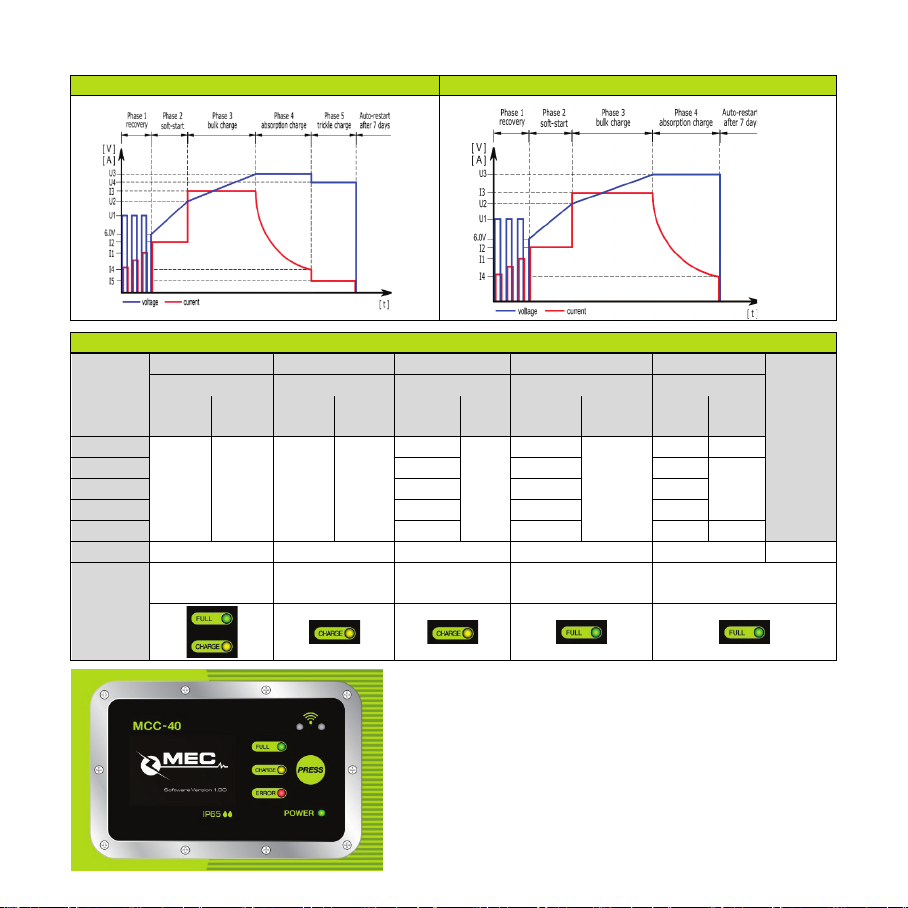

Charging profiles
GEL/AGM/WET charging profile
Universal/Lithium charging profile
Overview of charging profile
Charge
Mode
Phase 1
Phase 2
Phase 3
Phase 4
Phase 1
Auto-restart
recovery
soft-start
bulk charge
absorption charge
trickle charge
U
(U1)
Imax.
(I1)
Umax.
(U2)
I
(I2)
Umax.
(U3)
I
(I3)
U
(U3)
Imin.
(I3)
U
(U4)
I
(I5)
Universal
10.0V 1.5A 11.5V 1.5A
14.2V
2.2A
14.2V
0.8A
--
--
Gel
14.4V
14.4V
13.5V
0.5A
AGM
14.6V
14.6V
13.6V
Wet
14.8V
14.8V
13.8V
Lithium
14.4V
14.4V
--
--
Timer
--
2.5h
13h
4h
12h
168h
LED
Signal
Charge LED an
Full LED flashing
Charge LED
illuminated
Charge LED
flashes slowly
Charge LED
Flashes rapidly
Full LED illuminated
For charge conservation and winter storage, your multi-functional
motorcycle battery charger is equipped with an auto restart func-
tion that checks
the charge capacity every 168 hours (7 days) and
recharges the
battery if necessary.

Description of the error symbols (ERROR)
Display
LED-
Signal
Error description
Trigger:
Defective battery
Possible causes:
A defective battery or a battery with excessively low rated voltage was connect-
ed to the charger.
Actions:
- Immediately remove the battery from the charger.
- Check the rated voltage on the starter battery.
- Dispose of the defective battery in line with the applicable legislation.
Trigger:
Battery polarity reversal
Possible causes:
Battery incorrectly connected
Actions:
- Disconnect the charger from the battery.
- Check/correct the polarity on the pole terminals and the 12mm charging plug.
Trigger:
Temperature in the charger too high
Possible causes:
Ambient temperature in which the charger is being operated is too high. The charger
is not working as specified.
Actions:
- Cool the vehicle/starter battery down if the ambient temperature is too high.
- Disconnect the charger from the battery if the ambient temperature meets the
specifications. Contact your dealer.
Trigger:
Overload on the charging plug (12mm ISO-4165)
Possible causes:
Charger is only suitable for use with 12V starter batteries.
Actions:
- Immediately disconnect the charger from the battery.
- Contact your dealer if the battery type complies with the specification
Trigger:
Temperature on the charging plug (12mm ISO-4165) too high
Possible causes:
The ambient temperature around the charging plug/vehicle is outside the specified range.
Actions:
- Cool the vehicle/ battery down if the ambient temperature is too high.
- Disconnect the charger from the battery if the ambient temperature meets
the specifications.
- Contact your dealer.
Trigger:
The connection to the battery was interrupted during charging.
Possible causes:
The connection was deliberately/accidentally interrupted. Defective power
cable or poor contact to the battery.
Actions:
- Check the contacts and restore the connection.
- Disconnect the charger from the battery if the power cable is defective.
- Contact your dealer.
E

Description of the symbols on the charger's name plate
Description
CE mark
The battery charger complies with the following EU directives:
• Low Voltage Directive 2006/95/EC
• EMC Directive 2004/108/EC
• REACH 1907/2006 & ROHS 2011/65/EU
The documentation on the compliance with the EU directives can be
requested from your dealer or at [e-mail]
WEEE 2012/19/EU mark
Do not dispose of electrical appliances as unsorted municipal waste,
use separate collection facilities. Contact your local government for
information regarding the collection systems available. If electrical
appliances are disposed of in landfills or dumps, hazardous sub-
stances can leak into the groundwater and get into the food chain,
damaging your health and well-being.
Description of the ambient conditions under which the battery
charger may be operated
IP: International Protection
6: Dust-proof / complete protection against contact
5: Protection against spray water from any angle
Pay attention to the operating instructions
Please carefully read through the operating instructions and pay at-
tention to instructions before first using your MCC-40 battery charger.
Protective insulation
The charger may be operated without any additional protective earth
connection.

Technical data
Model:
MCC-40
Input voltage:
100-240VAC / 50-60Hz
Input current::
max. 1000mA
Output voltage:
max. 14.8 VDC
Output current:
max. 2.2 A
Ambient operating temperature:
-10°C to +45°C
Storage temperature:
-25°C to +65°C
Battery types:
12V lead/acid (WET, GEL, AGM) and lithium (LiFePO4) batteries
Battery capacity:
6-30Ah lead/acid (WET, GEL, AGM) batteries
2-30Ah lithium (LiFePO4) batteries
Every time only one battery can be charged!
Charger type:
Fully-automatic battery charger with integrated winter storage function
Temperature compensation:
Adaptation of the charging voltage to the ambient temperature measured
by the 12mm charging plug.
Min. battery voltage:
2.0VDC
Back discharge current:
<1mA
Housing dimensions:
180mm x 100mm x 53mm
Weight:
ca. 700g
These operating instructions apply for the charger its state of technology at the time of printing. Misprints and changes to
technology and equipment remain reserved.
Contact data:
MEC-Energietechnik GmbH
Energiestrasse 3
9500 Villach
AUSTRIA
Email: [e-mail]
Version: 1.1-2016
E
