Mec NOVA-150F Series User manual

Instruction Manual
Battery Chargers
NOVA-150F Series:
Safety Rules and General Warnings
•Persons, who are not able to use the charger in a safe way, because of their physical, sensory or mental incompetence, or because of their
lack of experience, should not use without the control or instruction from a skilled or qualified person.
•The charger runs with 100-240 Volts alternating current, which is not suitable for children – Danger of Life. And beware of risk of electric shock
at all times.
•Ensure sufficient air ventilation; do not cover the vent outlet while charging in progress.
•Avoid flammable gases, solvents or vapours all the time. Prevent open flame or sparks while charging in progress. Explosion RISK!
•The charger is exclusively designed for charging rechargeable batteries and must not be used for other purposes. Corresponding model should
be selected for particular lithium-based or lead-based batteries.
•You should take into consideration of the charging instructions issued by the battery manufacturer before charging. Check also if the charge
profile fits your battery and application.
•DO NOT OPEN or DISMANTLE the charger. Repair work must only be processed by authorized technical staff.
•If the mains connection of the charger is damaged, it must be replaced with an original wire which is available at MEC or authorized dealers.
•NEVER place the charger on top of the battery while charging in progress.
•The charger should be protected against direct solar radiation or temperatures over 40°C.
•In case of obvious damage or malfunctioning, disconnect the charger from the mains supply and protect against unintended reconnection.
•The DC cable must not be cut, shortened or extended under any circumstances.
•Keep the charger in dry room (rel. humidity <80%). Clean with dry cloth only. Avoid fluid of any kind to get into the charger.
Special Features
•IP20 Load-dependent fan cooling; spray-painted metal housing
•Microprocessor-based 4-Step charging technology with soft start and automatic re-start of the charge cycle
•Battery "wake-up"function by sending out programmed "wake-up"pulses
•Optimal and gentle charging for the greatest possiblity of charge cycles guaranteed with high frequent combinatorial circuit technology
•5 Selectable battery types (GEL, AGM, WET, Calcium, +PS-Mode) and built-in battery temperature sensor for models targeting lead-based
batteries
•LED indicators showing corresponding charge status and errors
•Protection against short circuit, reverse polarity, over temperature or overload

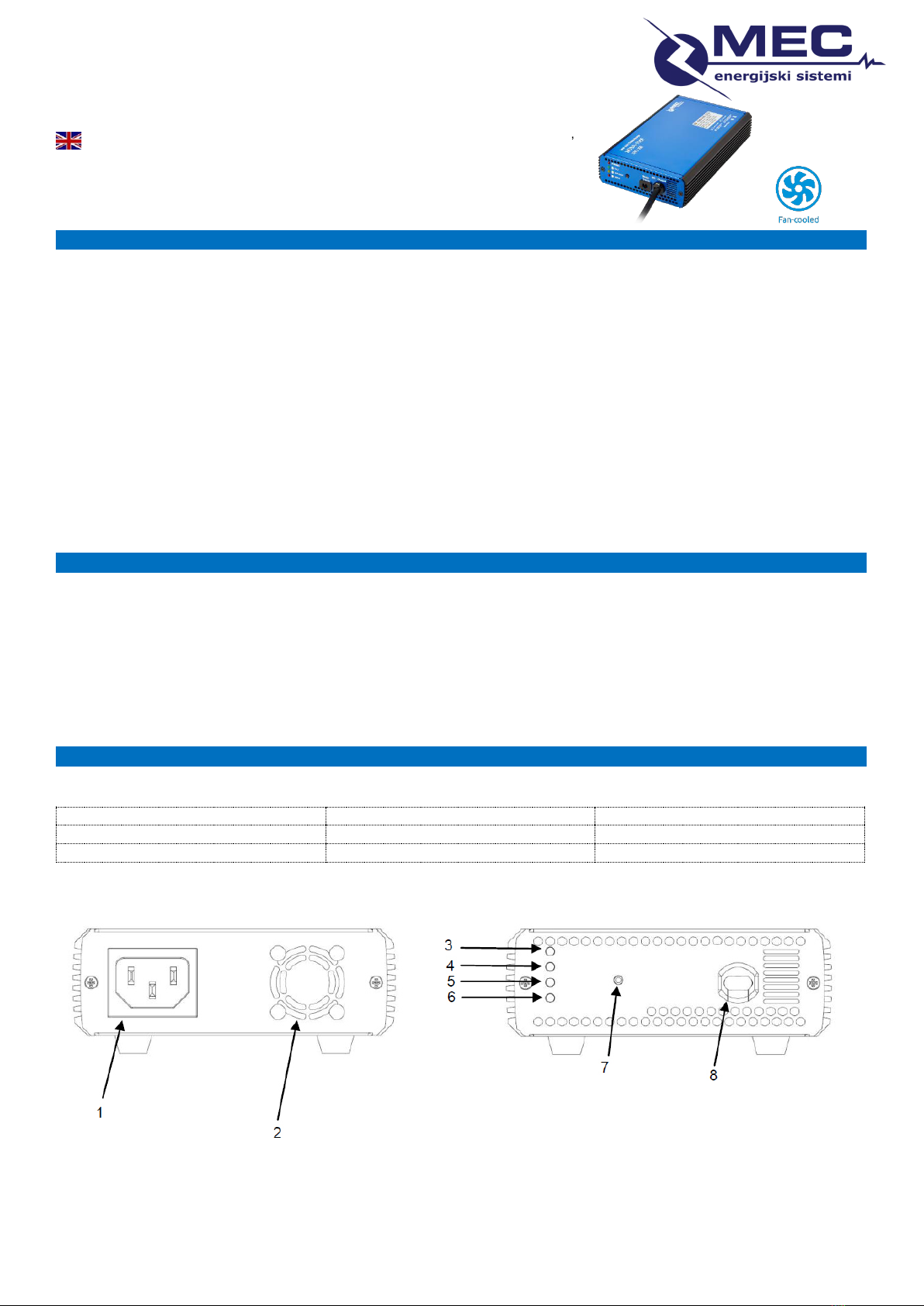

Product Configuration
Models Targeting Lithium-based Batteries
1. Mains Socket 2. Cooling Fan 3. Red Mains LED
4. Green Full LED 5. Yellow Charge LED 6. Red Error LED
7. Wake-up Button 8. DC Cable
IP20 Load-dependent fan-cooled. With one (1) or multiple,
selectable charge profiles, customized parameters.
Ignition-Lock (optional).
MEC-Energijski sistemi,d.o.o.
Cesta na Okroglo 5, 4204 Naklo, Slovenia/Europe
Tel: [phone]
Email: [e-mail]
www.mec-europe.com

Instruction Manual NOVA-150F Series
- 2 -
Models Targeting Lead-based Batteries
Preparation – Before Charging
General Checking
•Check thoroughly the charger itself including all the cables show no damages
•Take into consideration the charging instruction issued by the battery manufacturer
Charging Cable – Polarity Checking
WARNING: Check the polarity before mounting onto a plug:
•Red cable = Plus (+)
•Black cable = Minus (-)
DC Mains Supply Checking
•Make sure the DC cable must not be cut, shortened or extended under any circumstances
•Make sure the mains supply complies with the technical specification requirements of the charger
Before Connecting the Charger to the Battery
•Make sure the charger is switched off and disconnected from the mains supply
•<For models targeting lead-acid batteries> Select the charge profile with the slide switch; NEVER slide the switch while charging in progress
•Then connect the terminals of the charger to the battery (Red cable to the positive (+) terminal of the battery; then Black cable to the negative
(-) terminal)
•If the battery is built-in within a vehicle, the Black cable can be connected to the negative (-) terminal of the battery or the body of the vehicle;
make sure the connection is done with a safe distance from the fuel line and take into consideration of the battery and vehicle manufacturer
•Finally connect the power cable of the charger to the mains supply, and switch on the charger
Charging the Battery
The charging process starts automatically and runs through the following stages:
Getting Ready: Auto Wake-up
Press the Wake-up Button and the charger will send out series of controlled current pulses to reactivate the BMS (if any) and bring in a voltage to
the battery for getting ready for the charging process. If no battery or defected battery pack is connected, the Red Error LED blinks. In this case,
switch off the charger and check the battery pack.
Phase 1: Soft Start
Yellow Charge LED (5) keeps on lighting. The charger regulates the initial charging current to better prolong the battery life.
Phase 2: Constant Current Charging
Yellow Charge LED (5) blinks slowly. The battery is being charged to 80% of its capacity at this stage.
Phase 3: Constant Voltage Charging
Yellow Charge LED (5) blinks quickly. The battery is being charged to its maximum capacity. When the Green Full LED (4) turns on, the charger can
now be disconnected from the battery.
Phase 4: Float Charging (for lead-based batteries only) or Auto Restart
Green Full LED (4) keeps on lighting indicate the battery has reached its full capacity. If the battery keeps connecting to the charger, auto restart of
the charging cycle will take place after 7 days or when the battery voltage has dropped to under 3.6V/cell (Li-ion Battery) or 3.2V/cell (LiFePO4
Battery).
1. Mains Socket 2. Cooling Fan 3. Red Mains LED
4. Green Full LED 5. Yellow Charge LED 6. Red Error LED
7. Slide Switch with Program LEDs
3
4
5
6
7
MEC-Energijski sistemi,d.o.o.
Cesta na Okroglo 5, 4204 Naklo, Slovenia/Europe
Tel: [phone]
Email: [e-mail]
www.mec-europe.com

Instruction Manual NOVA-150F Series
- 3 -
Disconnect the Charger from the Battery:
1. First, disconnect the charger from the mains supply
2. Then, disconnect the charger from the battery (release the Black (-) terminal then the Red (+))
After disconnecting the charger from the mains, please wait at least 5 seconds to reactivate the charger if in need – otherwise damages may be
resulted.
Charging Advice and Battery Care
Charging Advice:
•If the charger must be disconnected from the battery during the charging process, please FIRST disconnect the charger from the mains supply.
The continuation of the charging process is equal to a new charging cycle; all relevant points of the Operating Instructions have to be considered.
•To lengthen the lifetime of the battery, please do not stop the charging process before the battery is fully charged. The charger will automatically
stop when the charging process is completed.
Battery Care:
•Never expose the battery to high temperatures, as this causes permanent battery capacity loss.
•Never deep-discharge or overcharge the battery, cells can be damaged irreversibly.
•If possible, always disconnect the battery from the load when being stored over long period of time.
•Store battery in a dry and cool place at about 40-60% of its rated capacity.
General Errors Description Solutions
No LED lighting or blinking after connecting to the mains •Check if the charger is connected to mains supply properly
•Check if there are any problems with the mains supply
Red Mains-LED is on, charger is connected to the battery,
but the charging process seems not working
•Check the connection to battery
•Check if the battery is damaged or has been deeply discharged
Error-LED blinking (N x blinking / 2 secs pause) •Please refer to the table below for LED Blinking Signals
LED Blinking Signals
Blinking Signal (continuous looping) Error Description
1 x Battery damaged
2 x Battery voltage is too high or wrong battery connection
5 x Charger temperature is too high during the charging process
Advice for Disposal
It is prohibited to dispose the charger with household or residual waste removal (WEEE-Richtlinie 2012/19/EU und
EAG-VO). The charger must be disposed at designated disposal points. For the protection of our environment, please
check at your communal adminstrative agency of your nearest disposal point.
The charger conforms to the RoHS-directive EU 2015/863, for the restriction of the use of certain
hazardous substances in electrical and electronic equipment.
Disclaimer of Warranty
The warranty period (see our General Terms and Conditions) starts with the charger being dispatched by the manufacturer. The Company accepts
liability by guaranteeing to working hours and spare parts only.
For damages caused by non-observance of the operating instructions, inappropriate start up or handling as well as dismantling, reconstructions or
modifications of the charger, the warranty claim expires and the Company assumes no liability for consequential damages to any properties or persons
in connection with or arising from the purchase and use of the charger.
We reserves the rights to configure the charger as per actual needs and the manual may not reflect the most updated conditions of the product at all
times. Please contact us should you need any technological support.
Errors and Troubleshooting
MEC-Energijski sistemi,d.o.o.
Cesta na Okroglo 5, 4204 Naklo, Slovenia/Europe
Tel: [phone]
Email: [e-mail]
www.mec-europe.com

Instruction Manual NOVA-150F Series
- 4 -
Technical Specifications
DC Ausgang | DC Output
LiFePO4 Batteries
3.2V/cell (nom.)
Li-ion Batteries
3.6V/cell (nom.) Lead-based Batteries
Ladespannung max.
Charge Voltage max.
(+/-1%)
4S 8S 4S 7S 12V 24V 36V 48V
12.8V 25.6V 14.4V 25.2V
Ladestrom max.
Charge Current max.
(+/-1%)
10A 7A 9A 5A 13A 8A 5A 4A
Wirkungsgrad max. | Efficiency max. >87% @ 230V
Ausgangsleistung, nom.
Output Power, nom. 150W
Restwelligkeit | Ripple <1%
Rückstrom | Back Current <1mA
Ladekabel
Charge Cable
1.2m offene Kabelenden
1.2m open cable ends
AC Eingang | AC Input
Eingangsspannung | Input Voltage 100...240VAC / 50...60Hz
Netzkabel & Stecker | Power Cord & Plug 1.2m Länderspezifisch | Country Specific
Gehäuse | Enclosure
Werkstoff | Material Metallgehäuse, lackiert | Metal housing, painted
Abmessungen / Gewicht
Dimension / Weight 180 x 110 x 36 mm / ca. 800g
LED-Anzeigen
LED-Indicators
Netz-, Error-, Laden-, Batt.-Voll Anzeige
Mains-, Error-, Charging-, Batt.-Full Indicator
Schutzklasse / Protection Class 1
IP Klasse | IP Code IP20
Einsatztemperaturbereich
Operating Temp. 0°C to +40°C
Kühlung | Cooling Leistungsabhängiger Lüfter | Fan Cooling
Besonderheiten | Special Features
4-Stufen Ladecharakteristik**
4-Step Charge Characteristics**
Abschaltung bei "Batterie-Voll" (Ladestromerkennung)
Charge Cut-off at "Batterry-Full" (Current Detection)
Ladefreigabe (opt.)***
Charge Enable (opt.)***
Kabel f. Ladefreigabe / Ladesperre
Cable f. Charge Enable / Charge Disable
Wegfahrsperre | Ignition-Lock Function*** 2-Adriges Kabel -> (Relaiskontakt) | 2-Core Cable -> (Dry-contact)
Ladeparameter | Charge Parameter Ladeprofilanpassung über IR-Schnittstelle | Charge Profile Configurable via IR-Port
Automat. Batterie Weckfunktion
Automat. Battery Wake-up
Nach dem Einschalten weckt der Lader das BMS durch definierte Spannungspulse
The charger, after "Power-on", activates the BMS with pre-defined voltage pulses
Geräteschutz
Device Protection
Übertemperatur-, Kurzschluss-, Verpolung-, Überlastschutz
Over temperature-, Short Circuit-, Reverse Polarity-, Overload Protection
Zertifizierungen | Certification CE
Spezifikationen der Akkuhersteller sind vorrangig zu beachten! | Specifications of the battery manufacturer take priority!
** Abweichende Ladeprofile auf Anfrage | Different charge profiles available on request.
*** Optionale Varianten auf Anfrage | Optional features available on request.
Subject to technical modifications. We assume no liability for misprints.
