MecPower Tecway Power storm User manual

1
In order to prevent the variety of problems which caused by incorrect operation，
Please read the manual first before operating this machine and pay attention to the items
marked in “note”.
Please keep this manual carefully for checking when needed.
Summary
 Transportation, installation, safe operation of moving and operating methods and
attentions;
 Installation and operation;
 Function adjustment;
 Maintenance;
 General troubleshooting and solutions;
 Main components diagram;

2
Safety Attentions
1) Certain part of the game is with high voltage. Adjust the game by technician. Do not
open the game door unless maintenance or parts replacement is required.
2) Please switch off the power before checking and maintenance.
3) Please switch off the power before opening the game door.
4) Fire extinguisher equipment must be nearby the game.
Installation
The game must be located properly to avoid damages.
Improper Locations:
Notes of Usage
1) The voltage range of the game should be 105V~115V or 215V~225V. The proper
voltage should be 110V/220V. The specific voltage accords to the date plate on
the back door of the game. The voltage must be correct; otherwise it would be
difficult to repair the damage.
2) The plug must be plugged in tightly and keep the power cords not be too tight
and damaged in order to prevent bodily injury, short-circuit and power leakage.
3) To put the machine to normal operating, please properly adjust the coin match

3
and the game settings when use at the first time.
4) Please regularly check all the functions of the game when operate to prevent
dysfunction.
Notes of Maintenance
1) Be sure to check and maintain the game regularly.
2) Switch off the power before replacing the parts of the game.
3) The parts for replacement should be the same model as the old one.
4) Please check the connection and voltage output after replacing the power supply.
5) The voltage range of the PCB should be 5.1V-5.4V.
6) Check whether the game has creepage and the voltage before repairing the PCB.
Notes of Clean
1) Please use clean and soft cloth to clean the game.
2) Prevent damaging the surface of the game, please do not use the following
cleanser:
 Alterative Cleanser；
 Acidic Cleanser；
 Insecticide, sterilized water, alcohol or other chemical cleanser.
Notes of Moving and Shipping
1) Properly disassemble the game for necessary moving and shipping.
2) Prevent the game from hitting or being attrite during movement.
3) Protecting the case when move the game.

4
GAME INTRODUCTION
Power storm with unique, beautiful and comic appearance, interesting and exciting game,
it is specially designed and developed by our company for the young people. It will be very
essential and popular in amusement center.
Power storm is an animation and motion experience as one of the machine, when guests
watch the amazing animation, can experience the visual stimulation, strong power, wind
power, high and low sounds right surround sound and so on to make it perfect, immersive
feeling.
Features:
Realistic, colorful, cute outlook
Integrated main board, high-speed processing CPU, stable performance.
High definition, high-quality LCD display.
Surround sound effects
Simulate lifelike motion seats, stable and reliable dynamic components
Strong blower
Operating income can be adjusted according to the situation
舒适的座椅
稳定的气动动感组件
稳定的电脑主机
强力吹风
47寸高清液晶显示器
靓丽外形
Creative outlook
47” LCD monitor
Stable pneumatic assembly
Comfortable seat
Strong blower
Stable computer system

5
PLAYING TIPS
Ride on the power storm and insert coin, press the button to choose what you want to
start，1)There are 4 shorts: Snow Storm ,Space Travelling , Chengdu J-20 ,The Great Wall
of China.2) Wait for a few seconds after the broadcast, the picture will be go on blizzard or
special angles such as the plane jets, in the process of forward will continue to have
amazing scenery, will bring you very exciting visual experience, combined with simulate
lifelike seat dynamic with strong and the sound of blowing around the has very good
sensory experience.3) Should hold your armrest in the process of watching, it can
alleviate strong vibration caused by tension. 4) If you need in the process of watching,
press movement to stop button, the seat will stop vibration; press movement to stop
button again, it will restart the seat to move feeling.
片号按键
动感停止按键
投币入口
座椅扶手
Movement stop button
Film selection button
Coin slot
Handrail

1
TECHNICAL PARAMETER
VOLTAGE: AC 220V/110V（50/60HZ）
MAX. CURRENT：13A/26A
(Note: please refer to the nameplate located on the back of the games to check actual
usage of voltage.)
MAX. POWER: 2860W
STANDBY POWER: 460W
COIN SIZE：φ21mm ~ φ30mm (diameter)
1.2mm ~ 2.5mm (thickness)
CAPACITY OF COIN BOX: 1200pcs of coins with coin size φ25mm*1.5mm
LOCATION REQUIRED: -5 ~ 40℃, humidity is less than 90%. No contact with any
corrosive liquid, no any greasiness and dirt.

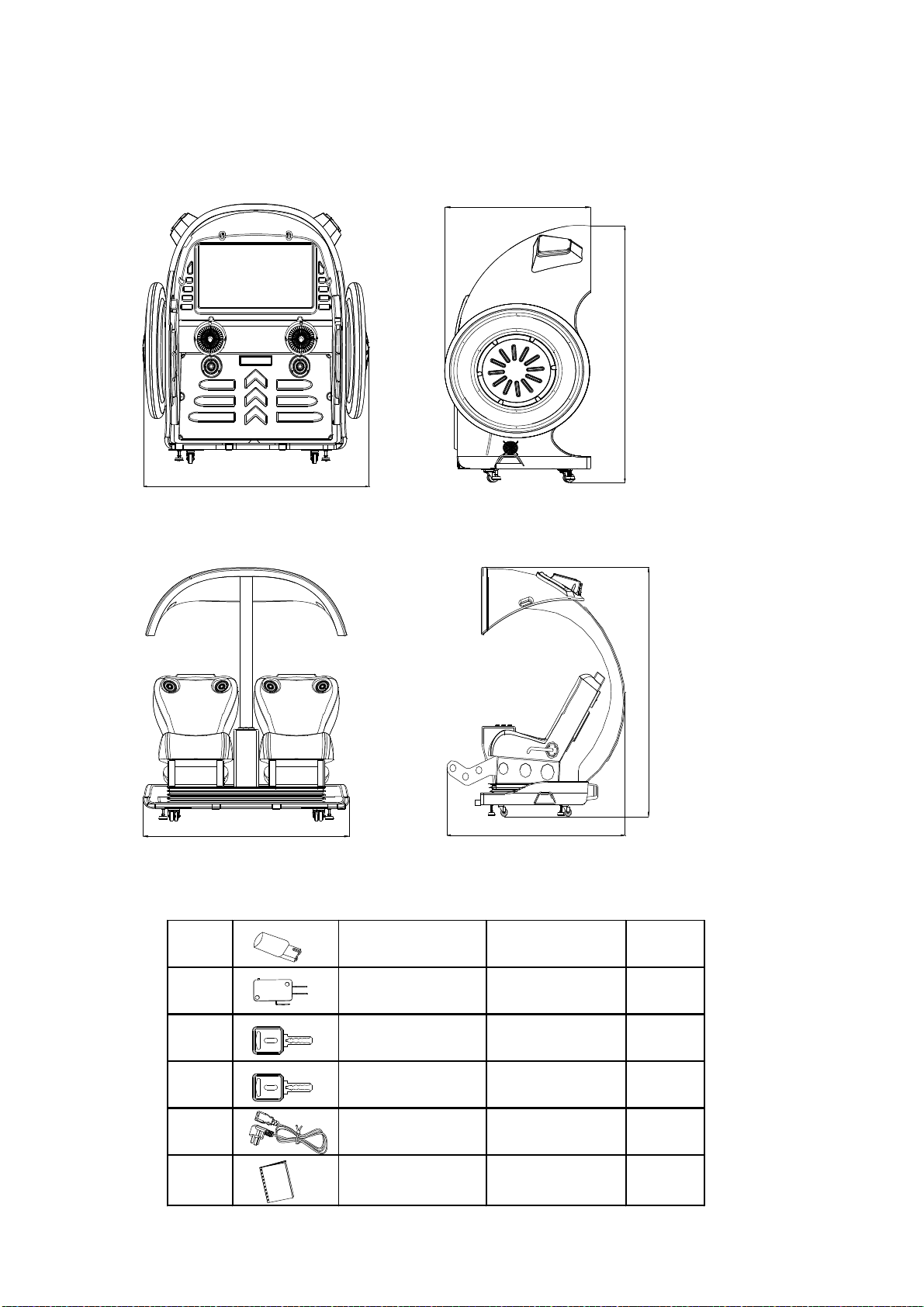

DIMENSIONS: L2650mm*W2030mm*H2200mm
2650
2030
2200

7
Chassis components size：L2030mm*W1400mm*H2200mm
Chassis components size：L1900mm*W1750mm*H2200mm
Parts shipped with the game:
1 LED light green 2
2 micro switch 2
3 key 1285＃2
4 key 1396＃2
5 power cord 1
6 manual 1
OPERATION MANUAL
2030
2200
1400
1750
2200
1900

8
MOVEMENT
Direction of movement diagram：
Seat components movement diagram:
Note: when the road surface is uneven during moving or when you tilt the machine, please
pay attention to the strength and hang the chassis in the air to prevent damage to the air
sac.
错误的出力方向
Wrong direction
出力方向
错误的出力方向
错误的出力方向
Wrong direction
Wrong direction
correct direction

9
WARNING
 Please power off the game first and pull out the cord, then move the game.
 Prevent hitting, rubbing the games when move the games, otherwise it will damage
the appearance of the game.
 Please do not carefully move, turnover, transport the game; otherwise it will destroy
the game.

10
INSTALLATION
Please follow the direction below to install the game.
Choose the location for installation:

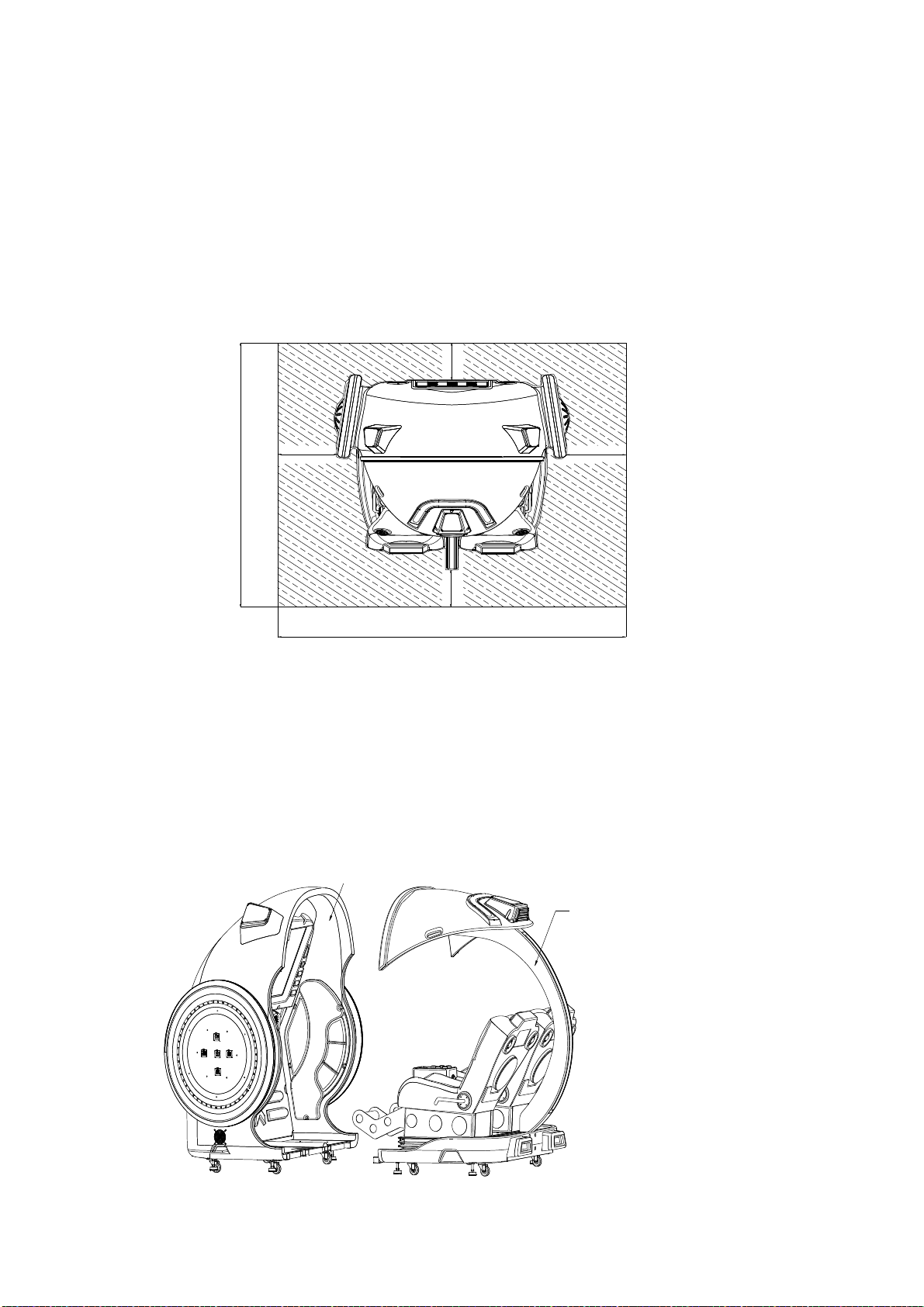

1) Put the power storm in the same type of Kiddie Ride with monitor then select the
concrete placement machine according to the machine's exterior.
2) Choose the proper location for installation, please follow the below drawing to
install.
NOTE: It must be placed on the flat floor to make the machine on the ground steadily.
Installation:
1) After choosing the installation position, have a good connection on chassis
components and the seat assembly.
0.5m 0.5m
0 . 5 m 0 . 5 m
3.7m
3 . 1 m
座椅组件
机箱组件
Computer part
Seat part

11

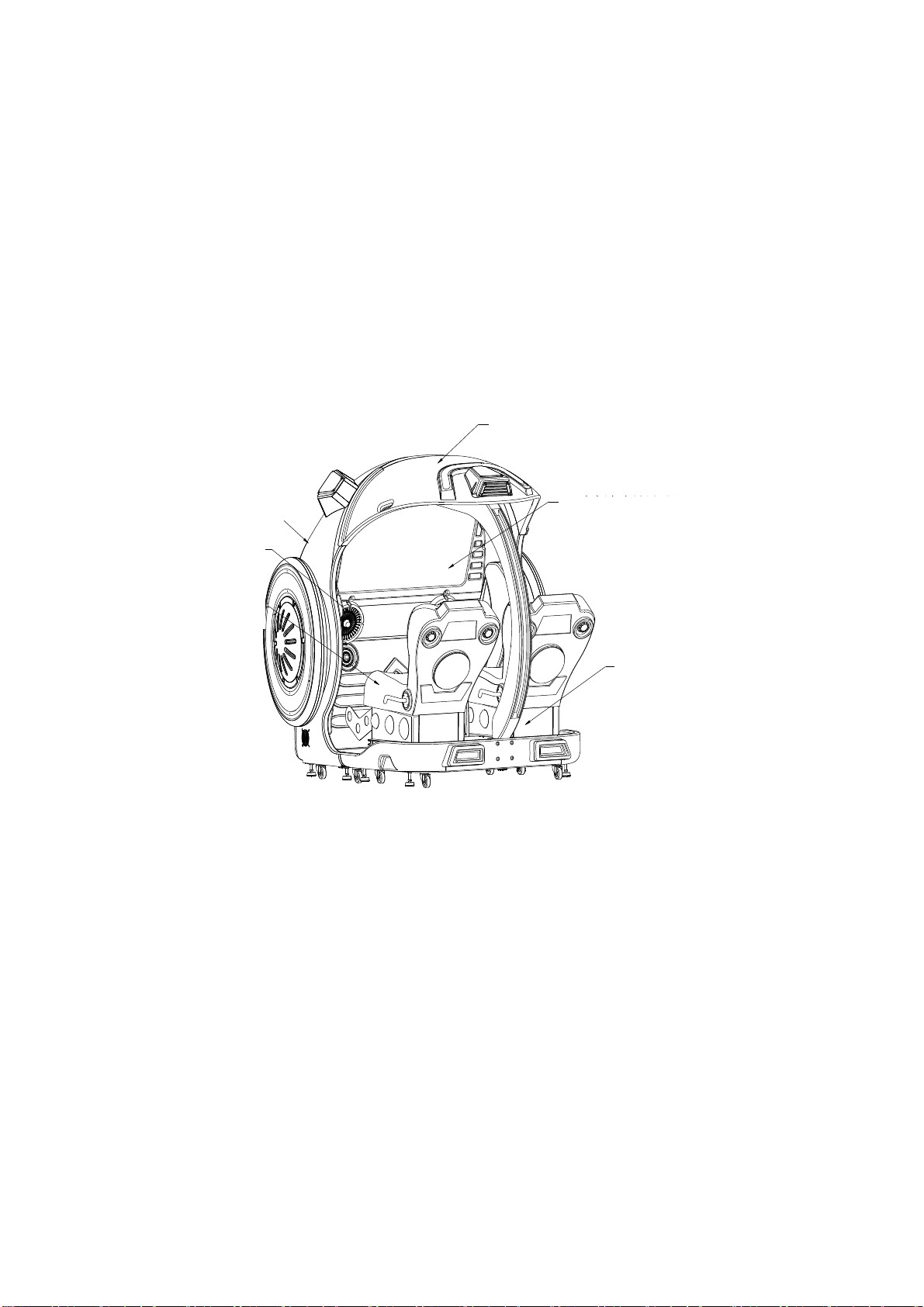

2) Put the seat part and chassis part together again and fix with six M8 * 35 screw,
connect the connector and the seat air supply pipe joint.

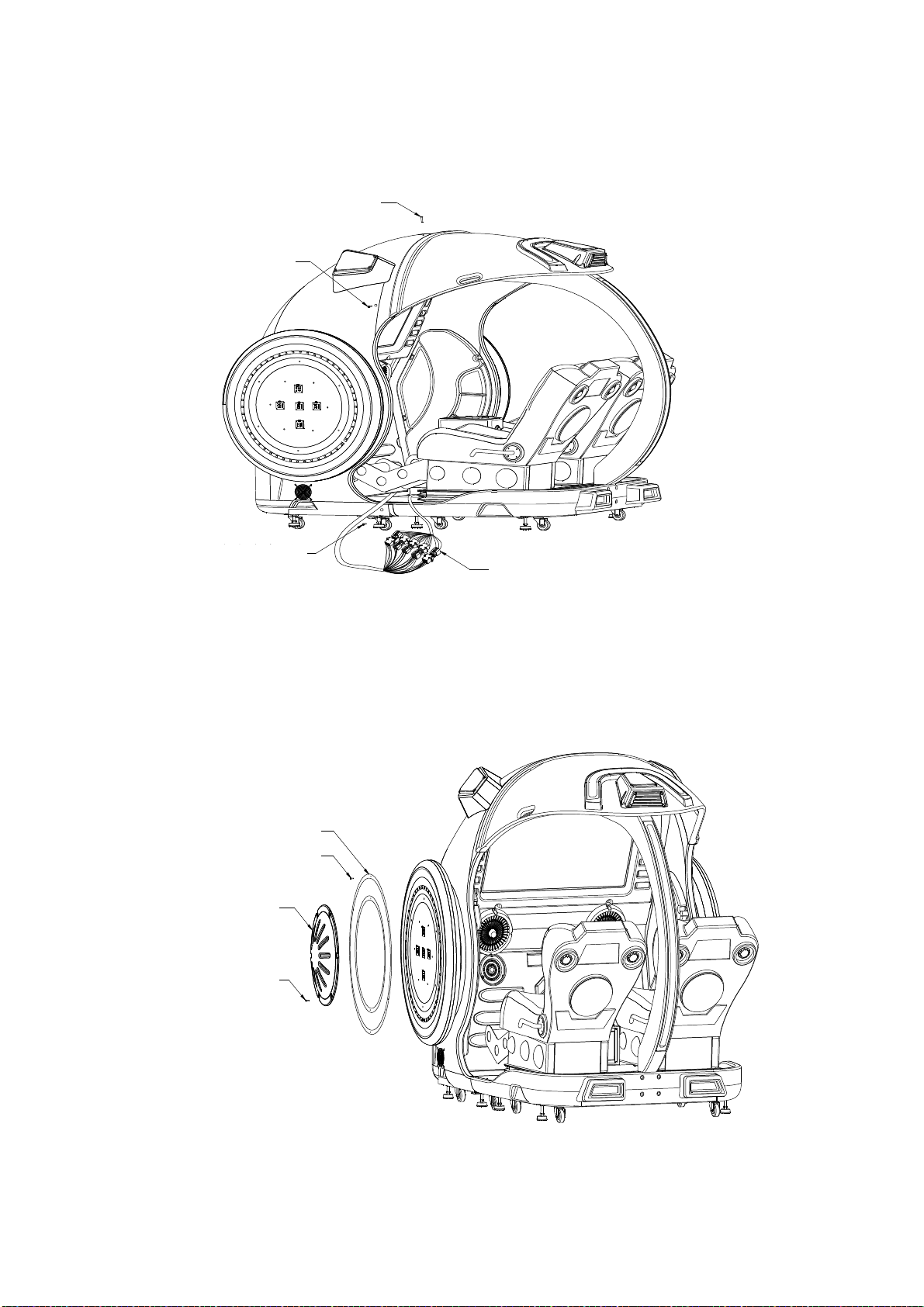

3) use the M4 * 20 big screw to fix the left and right sides of the yellow ring blister and
white blister.
座椅供气管
机箱与座椅组件连线接头,
M8*35平 内 六 角 机 丝
M8*35平 内 六 角 机 丝
M 8*35平 内 六 角 机 丝
M8*35 screw
M8*35 screw
M8*35 screw
Connector for computer part and seat
part, air pipe for seat part
M4*20大扁自攻
大轮奶白吸塑
M4*20大扁自攻
黄色环形吸塑
Yellow ring blister
M4*20 screw
White wheel blister
M4*20 screw

12
Fix the machine:
The machine must be laid flat on the ground, fixed machine need to adjust the anchor
down, make the anchor bear the gravity of the whole machine, caster wheel off the ground
about 10 mm (note: six fixed anchor is fixed to the ground, to prevent the seat vibration
when the machine moving.
活动脚轮
固定地脚
10mm
Wheel
Foundation
移动
固定
万向脚轮
地脚调整座
约10mm
Fixed Movable
Foundation Wheel

13
Check and set before connecting the power:
1) Please check the machines internal structure for transportation vibration caused by
loose, line connection terminals should not drop out.
2) Check the machine grounding line should be over the ground connection.
3) Check the machine's power input at both ends of the impedance of the ground should
be greater than 100 megohm.
4) Connect the power cord. It is very important for connecting the power cord is related to
personal safety, please see the following the correct connection methods, and can't use
the wrong connection method, prevent the happening of the accident
电源输入插头
15A市电插盒
15A socket
Plug
最大负载大于15 的市电插盒
最大负载10A的移动电源插盒
机器的电源连线
13A电流经过，
机器电源插头不能插在移动电源插盒上
Power cord for machine
Max load for movable power box is 10A.
Max load for socket is more than 15A.
The power for this machine is 13A, so
can not use this kind of movable
power box.

14
Attentions:

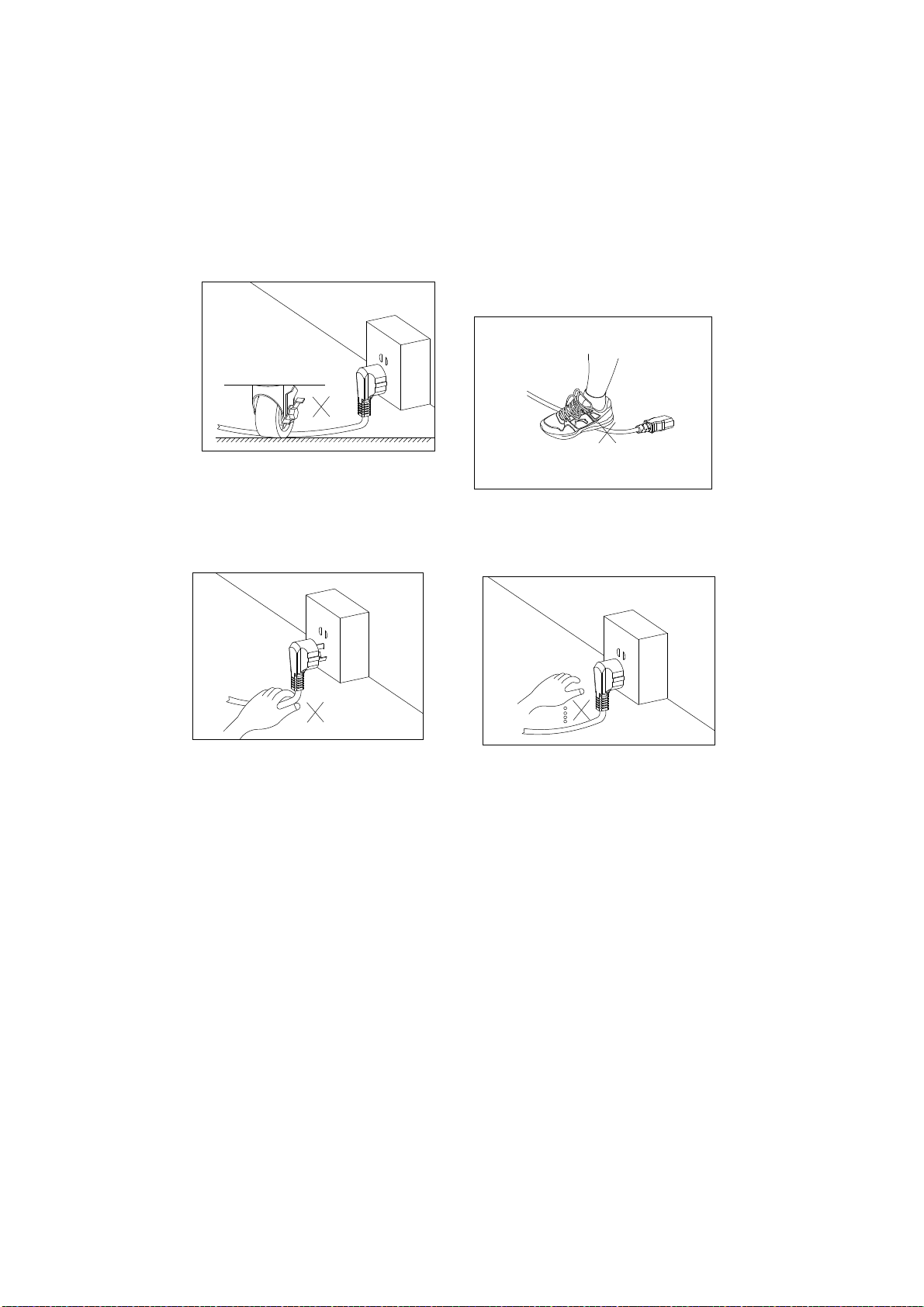

A Please make sure the power cord is not pressed by wheel, foundation, etc.
Otherwise, it will damage the wire to cause short circuit, even fire. Do not use
strong power to extend and wring the wires. Do not make the wire be near to the
high temperature object. Properly put the wire to avoid any kicking or treading.
B Hold the plug to pull it out from the socket. Do not touch the plug with wet hands.
Check and Adjust after connecting the power:
1) Make sure the input voltage is same as the one stated on name plate on the back
door of the game.
2) Confirm the biggest load current is greater than 15A of the machine power
socket.
3) After connecting the power, please switch on the game.
4) Inserting coin to check if the coin machine cans work properly.
5) Visually check the game and confirm the display and light can work properly.
6) Insert coin to play the game, confirm the fire button and the machine movement
are normal.
7) Check the sound if it is ok.
AAA A

15
Check before operation:
Check the game before operation to prevent the game from working improperly when
operated.
Checking item：
1) Check if the cord is securely plugged in and without defects.
2) Check the location of game.
3) Check if the game case is without defects or burrs.
4) Check if the game without dirt and properly stuck on with marks.
DAILY OPERATION
Input the power
1) Turn on the machine power switch.
2) Visually check the game and confirm the display can work properly.
3) Check the sound if it is ok.
4) Confirm the coin mech, fire button and the machine movement is normal.
Warning：Before operation, please confirm all the items above are ok.
Check after operation:
1) Check the display of the game and confirm it is proper.
2) Double check the coin mech, fire button and the machine movement is normal; if
it has any problems, please solve the problem as soon as possible.
Collect coins and keep record:
1) Switch off the power and open the door of the coin box to take out the coins
2) Open the door of the coin mech to keep a record of the coins’ quantity.

16
GAME SETTINGS:
Keys for setting
Choose the content and result need to set, according to the set table toggle switch (ON or
OFF), set up the game coin.
The SW ON the motherboard has eight small switches, switch the ON to switch
conduction; To set the switch OFF to shut-off condition. Then set one of them can change
the game coin.
Setting chart:
Descriptions:
1COIN[S]/1CREDIT[S]: this setting can decide how many coins for how many playing time,
if set to “1COIN[S]/1 CREDIT[S]”, it means insert 1 coins for 1 game.
12345678
1 coin OFF OFF OFF OFF OFF OFF OFF OFF
2 coins OFF ON OFF OFF OFF OFF OFF OFF
3 coins OFF OFF ON OFF OFF OFF OFF OFF
4 coins OFF OFF OFF ON OFF OFF OFF OFF
5 coins OFF OFF OFF OFF ON OFF OFF OFF
6 coins OFF OFF OFF OFF OFF ON OFF OFF
7 coins OFF OFF OFF OFF OFF OFF ON OFF
8 coins OFF OFF OFF OFF OFF OFF OFF ON
DIP SW1
setting
no. of coin
per play
主机板
主机板
SW
OFF
ON DIPON
874 5 6321
设置键
Main board
Main board
Setting keys

17
ADJUSTMENT
adjust the coin mech
Descriptions:
1): Please take out the plastic coin from sample coin chute and replace it with token.
2): Remove the screws on back of coin entrance. Adjust the fixing chip on back of coin
entrance according to the token’s diameter, which prevent blocking the coin mech as
inserting the large coin in by mistake.
3): Turn the COIN Switch to “NO” (COIN Signal wire and GND should be disconnected at
usual time). Turning switch can be used as the coin mech switch when the game is power
on.
4): Adjust the adjusting switch of COIN Signal wave length to 50MS.
5): Adjust the micro-adjusting resistance of token tolerance. Clockwise: increasing the
sensitivity of token tolerance, that is, the range of accepting the token tolerance will be
larger. Counter clockwise: decrease the sensitivity, that is, the range will be smaller and
choose the token more strictly.
adjusting chip in
coin entrence
coin-return
pole
Adjusting Switch For
Coin Signal
Wavelength
switch for coin signal
Port For Power/Signal
Input
Micro-Resistance
sample
coin
chute
DC+12V
STRICT SLACK
Sensitivity
+-
COIN
Remove
REPLACE
Backward
SW3
100ms SLOW
25ms FAST
NOM
正常
MGN
精准
50ms MEDIUM
WHITE
COUNTER(+/-)
GROUND
N.C.
SW1
SW2
N.O.
COUNTER(-/+)
COIN SIGNAL
GRAY
BLACK
RED
GRAY

18
Adjust the volume:
Power amplifier plates can be adjusted to sign:
Descriptions:
Adjust the volume by twisting the volume potentiometer: twist clockwisely to increase the
volume, counterclockwisely to decrease the volume.
As above drawing shown, you can select the potentiometer to adjust the volume of your
choice.
Adjust the vibration range:
Vibration regulator
Vibration range adjustment
功放板
功放板
右边座椅音量
左边座椅音量
低音音量
Amplifier board
Amplifier board
Bass level
Volume for right seat
Volume for left seat
气压表
气压调整阀
MP.
0
1
0.8
0.6
0.2
0.4
Valve
Barometer

19
Pull up valve. Clockwisely turn the valve to increase air pressure, counterclockwisely to
decrease air pressure.
Warning:
The proper air pressure is from 0.2 to 0.5MP. The air pressure can not be less than
0.15MP and higher than 0.55MP. If the air pressure is too low or too high, it will affect the
game and damage the air bag. Please do not adjust the air pressure of this game if not
necessary.
拉起气压调整阀
顺时针拧动增大气压
逆时针拧动减小气压
MP.
0
1
0.8
0.6
0.2
0.4
Pull up the valve.
Clockwisely turn the valve to increase air pr
essure, counterclockwisely to decrease the p
ressure.

20
CHECK AND MAINTAIN
！warning
 Please check and maintain the game by technicians.
 Please power off the game when check and maintain.
 Please do not put any tools into cabinet, otherwise it will cause problem.
After checking, please tightly screw the screws and close the door.
Daily Check
ITEM DESCRIPTION
Coin mech Check whether the coin mech can work proper.
Fire button Check whether the button can launch
Motion Check whether the motion is proper
Sound Check whether the sound and the volume are ok.
Display Check if the displayed colors are proper.
Temperature、
humidity
Check if the temperature and humidity is proper
Daily Maintenance
ITEM DESCRIPTION
Cabinet Clean the cabinet with water and soft paper.
Monitor Clean the ABS for monitor with water and soft paper.
PCB Sweep the dust and dirty in the board with small brush
Air Tank
Open the valve under the air tank to release the water.
（once every three months）
