MecPower Tecway Toddler Police User manual

Toddler Police Operation Manual

1
CONTENT
1、GAME INTRODUCTION ............................................................................. 2-3
2、GAME INSTRUCTION.................................................................................... 3
3、TECHNICAL PARAMETER ........................................................................ 4-5
4、GAME SETTING & OPERATION .................................................................. 6
4.1 GAME SETTING & BUTTON INSTRUCTION .......................................................... 6
4.2 SETTING METHOD ......................................................................................... 7-8
4.3 SETTING INSTRUCTION..................................................................................... 8
5、ADJUSTMENT .............................................................................................. 8-9
5.1 COIN ACCEPTOR............................................................................................... 9
5.2 VOLUME.......................................................................................................... 9
6、TROUBLE SHOOTING ..................................................................................10
7、PART SCHEMATIOC DIAGRAM & PART LIST.........................................11
7.1 WOODEN CABINET ASSY. & PART LIST ..............................................................11
7.2 WARNING LIGHT ASSY. & PART LIST .................................................................12
7.3 MONITOR ASSY. & PART LIST ...........................................................................12
7.4 STEERING WHEEL ASSY. & PART LIST................................................................13
7.5 COIN BOX ASSY. & PART LIST ...........................................................................14
7.6 MAIN HOST ASSY. & PART LIST.........................................................................14
7.7 UNDER FRAME ASSY. & PART LIST....................................................................15
8、SCHEMATIC DIAGRAM ...............................................................................16

2

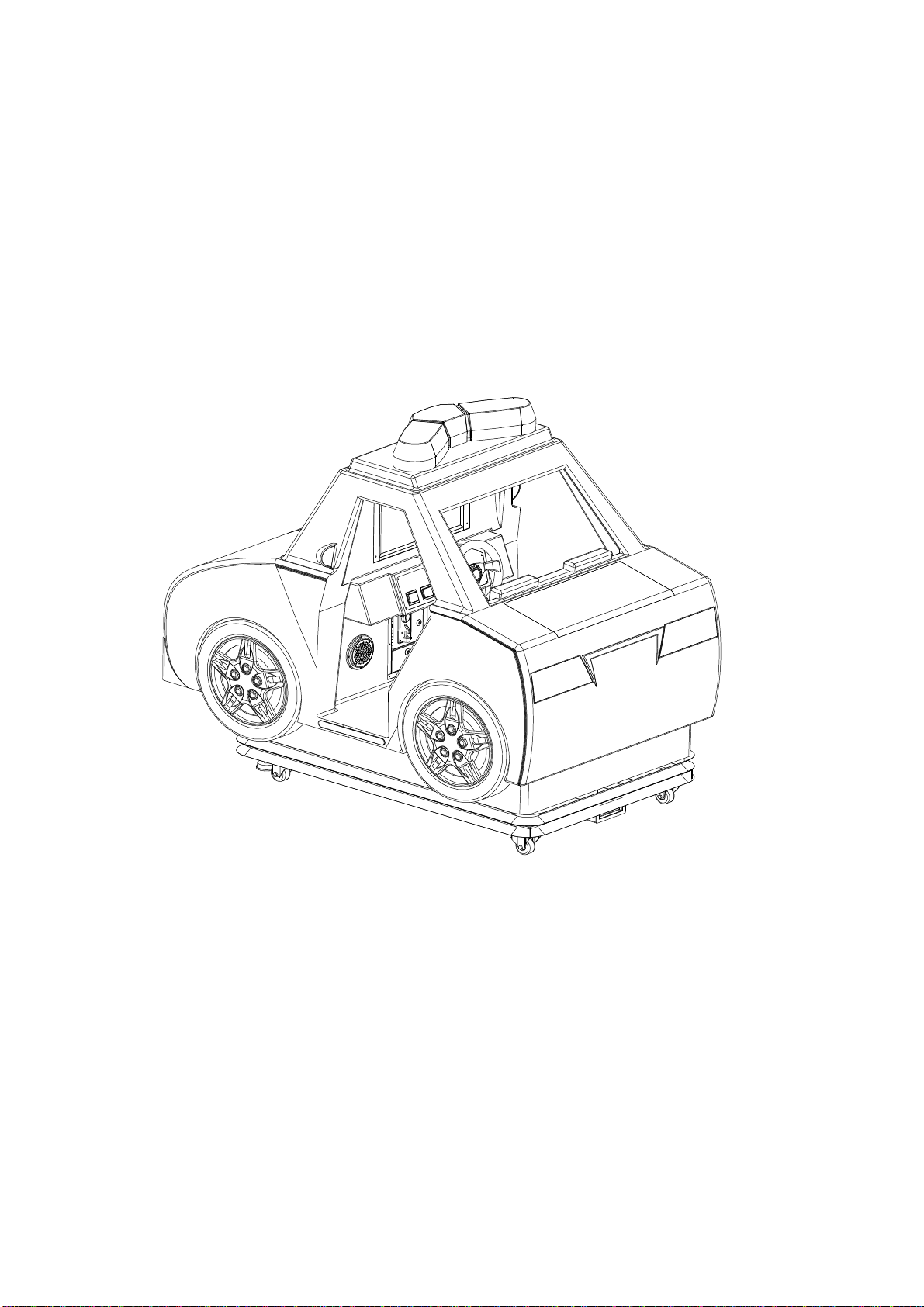

1. Game Introduction
The unique, beautiful, streamlined appearance and interesting game
content of the Toddler Police make it very popular with young players in the
playground.
Toddler Police is another masterpiece developed by our company aiming at
the content research of children's favorite games, combined with the new
popular elements of games. It is an indispensable model in entertainment
venues.
Characteristics of this product
The appearance design has the characteristics of layering, bright color and
beautiful appearance；
With integrated motherboard, CPU can be processed quickly, and its
performance is stable and reliable；
High-definition and high-quality liquid crystal display ensures clear display
quality；
Using high-quality analogical coin thrower, the token diameter is wide, the

3
precision is adjustable, and the token is stable and reliable；
Rotating components are stable and reliable；
Game playing, stimulation and operability are very entertaining；
The operating income ratio can be adjusted according to the actual situation.
2. Game Instruction
Game Instruction：After the start of the game, the police car is controlled to catch
the thieves; when the vehicle meets the thieves, the picture of the
cage trapping the thieves appears, indicating that the thieves are
caught. If you encounter a bonus item or person, you get a bonus.
Put the coin into the coin slot and press any button to start the game.
1） Use the steering wheel to control the direction of the vehicle.
2） Stepping on the accelerator can speed up the vehicle.
3） Press the horn button and the car whistles.
4） Press the button of the alarm lamp to light up the alarm.
5） Press the handheld button and the screen will throw the handheld; if the
handheld is thrown, the thief will be caught.

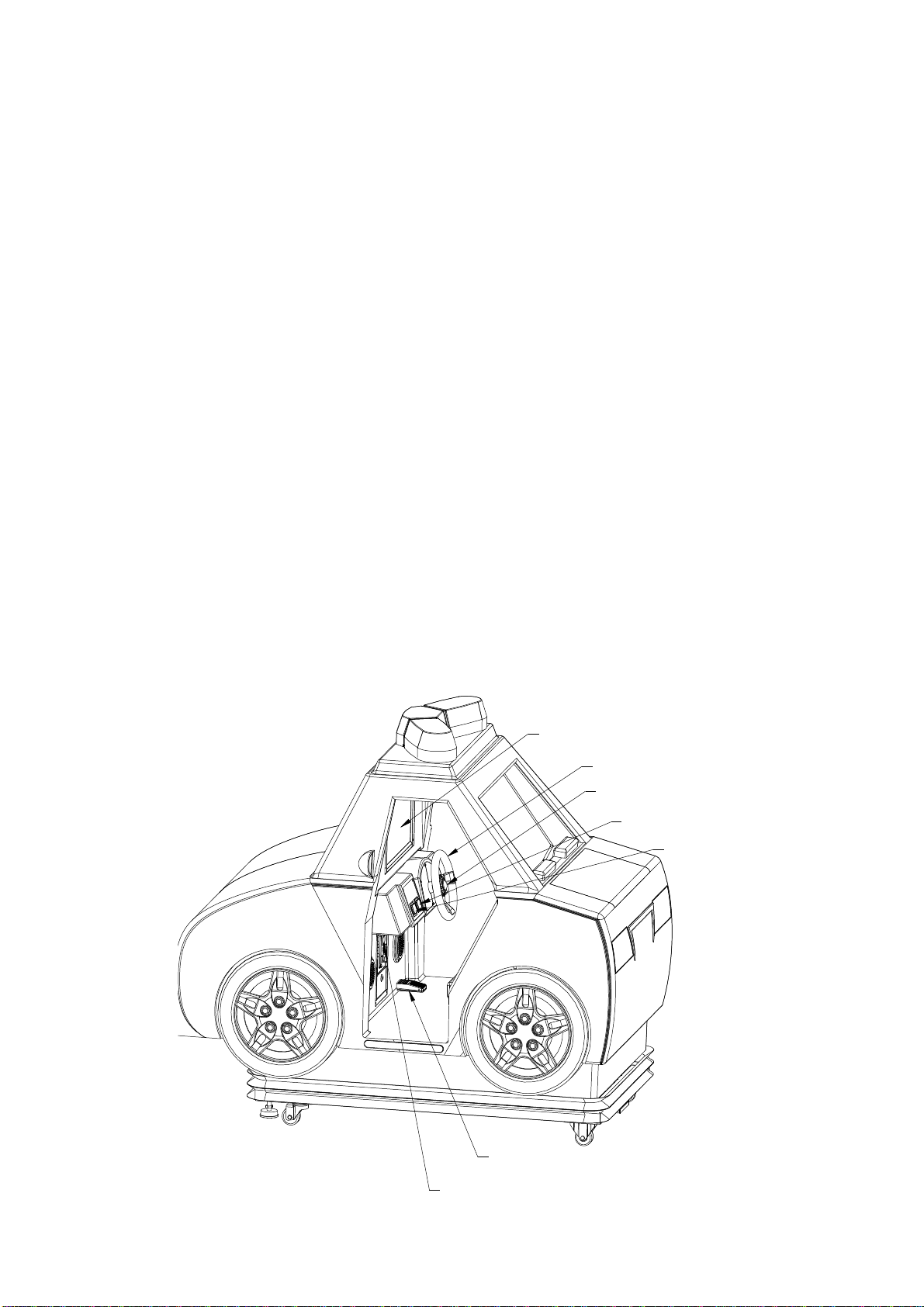

Monitor
Steering wheel
Speaker button
Warning light button
Handcuffs button
Pedal accelerator
Coin slot

4
3. Technical Parameter
Voltage：AC220V/110V（50/60HZ）
Max. / Min. Current：0.5A/1.1A
（Note: For actual voltage and current, please refer to the machine nameplate.）
Max Power：70W
Standby power：270W
Use token size range：φ21mm ~ φ30mm
Thickness range of tokens used：1.2mm ~ 2.5mm
Coin box capacity：φ25mm*1.5mm about 2050 pieces
Environment：Room temperature is - 5 - 40 degree C, ambient humidity > 90%,
no corrosive liquid contacts directly, no excessive oil mist, dust.

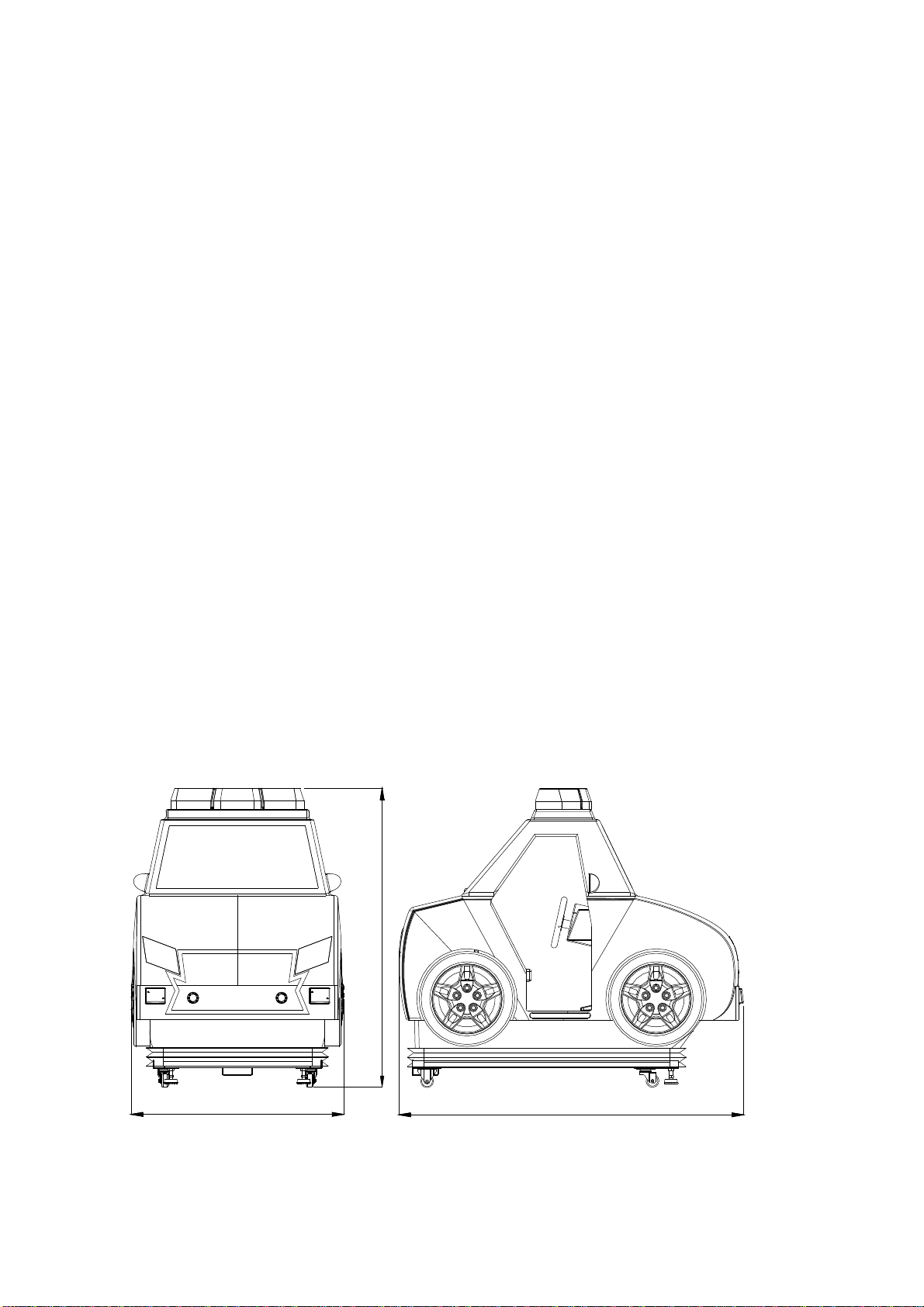

Dimension：L1800mm*W1060mm*H1500mm
1500
1060 1800

5

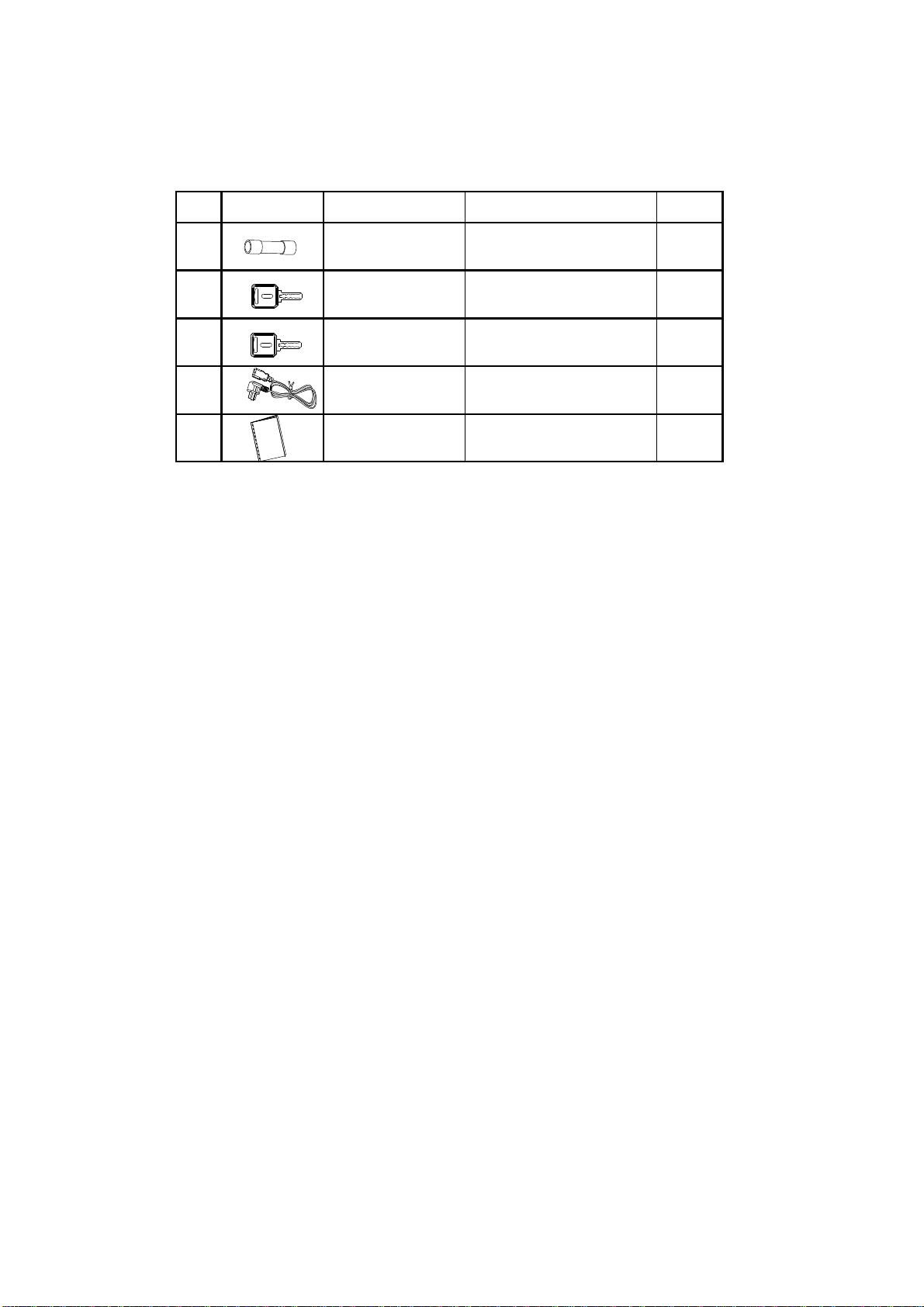

Spare Part：
No. Drawing Item Spec./Model Qty
1 Fuse 5A（Small）2pcs
2 Key 1285＃2pcs
3 Key 1396＃2pcs
4 Power cord 1pc
5 Manual 1pc
OPERATION MANUAL

6

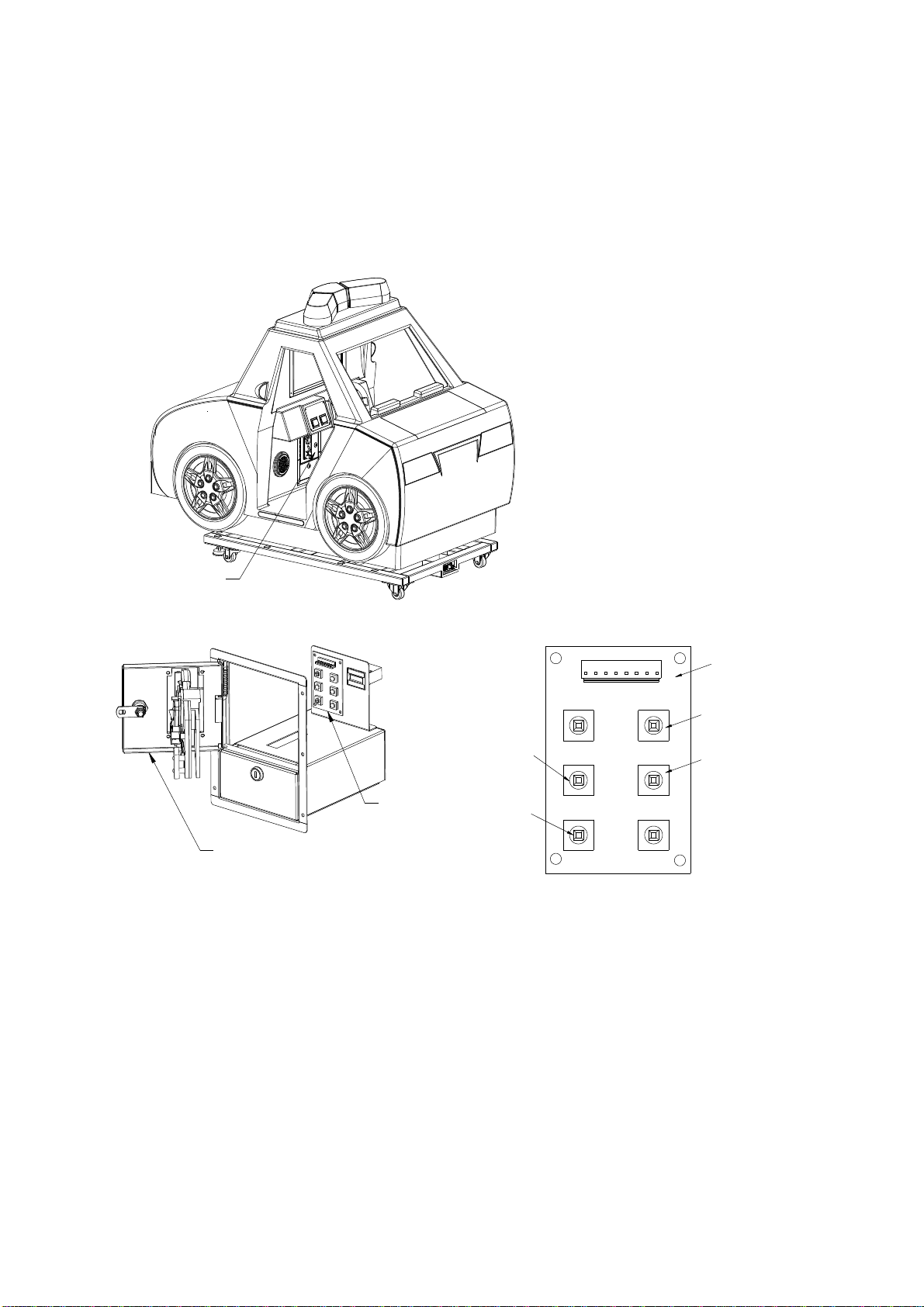

4. Game Test & Setting Operation
4.1 Game test & button setting
Open the coin door and find the setting board
TEST: TEST button ：Enter/Exit test menu
SERVE: FREE play button：Free Play
SELECT: Select button： Select test item
ENTER: Confirm button：Change item content
SW1
TEST
SERVE
SELECT
ENTER
ERASE
Coin door
Setting board
Coin door
Test
Free
Setting board
Select
Confirm

7
4.2 Setting Method
Setting operation method: Press the "TEST" key on the settings panel to
enter/exit the game content setting interface; Press the "SELECT" key on the
settings panel to select the items that need to be changed; Press the "ENTER"
on the settings panel to change the item content.
4.3 Setting Instruction
Game Parameter setting
Setting Instruction
1）Play a game with a few coins: This setting determines how many coins the
machine will throw to play a game once. If you set it to 1 coin to play a
game once, then you can play a game once with 1 coin.
2）Volume：This setting determines the volume of the machine. If set to 100%,
then the machine is at the maximum volume.
3）Game Time：This setting determines how many seconds each game takes. If
set to "120" seconds, 120 seconds per play.
4）Language：This setting determines the language in which subtitles are
displayed on the screen. If set to "Chinese", then the subtitles displayed on
设置
1 币玩1次游戏
游戏音量25%
游戏语言 中文
演示画面声效选择 有声效
恢复出厂设置
游戏时间120秒
V1.0bate

8
the screen are Chinese subtitles.
5）Presentation screen sound effect selection: This setting determines whether
to play standby music when the machine is standby. If set to "sound effect",
the machine will play standby music in standby state.
6）Restore factory settings: This setting determines that all game parameters are
restored to factory settings.
5. Volume Adjustment
Sound board
Sound board
Volume potentiometer

9
Volume Adjustment 1：Open the repair door of the children's police car, find the
volume potentiometer on the sound board, and twist the volume
potentiometer to adjust the volume of the machine. Turning
potentiodynamic device clockwise makes the output volume of
the machine larger, and turning potentiodynamic device
counterclockwise makes the output volume of the machine
smaller.

10
6. Trouble Shooting
Trouble Shooting：
Fault Failure Trouble Shooting
No sample coin Put the sample coin in
coin go through
High sensitivity Adjust the sensitivity of coin acceptor
coin acceptor damage Replace the coin acceptor.
Control wire not connect Connect the control wire
Warning light damage Replace the warning light
Control board damage Repair or replace the control board.
Main board damage Repair or replace the main board
Warning light not
rotate
Rotating motor damage Repair or replace the rotating motor
switch wire not connect connect the switch wire
switch damage Replace the switch
Main board damage Repair or replace the main board
Display board signal not connect
Connect the signal wire of display board
display board damage Replace the display board
Main board damage Replace the main board
Speaker wire loosen Connect the speaker wire
Volume low Adjust the volume potentiometer
Speaker damage Replace the speaker
Micro switch not connect Connect the micro switch wire
Micro switch damage Replace the micro switch
Main board damage Repair or replace the micro switch
Not connect of pedal wire Connect the wire of pedal throttle
Pedal throttle switch damage Replace pedal throttle switch
Main board damage Repair or replace main board
No AC110V/220V input voltage
Check the power
Not turn on filter switch Check and turn on the switch
No voltage output for power supply
Repair or replace the power supply
Main board do not operate Replace main board
Do not insert
coin
No Sound
No reaction of
the whole
machine
No display
Button switch
Warning light
not light up
No effect of
steerig wheel
No response to
pedal throttle

11
7. Part Schematic Diagram & Part List

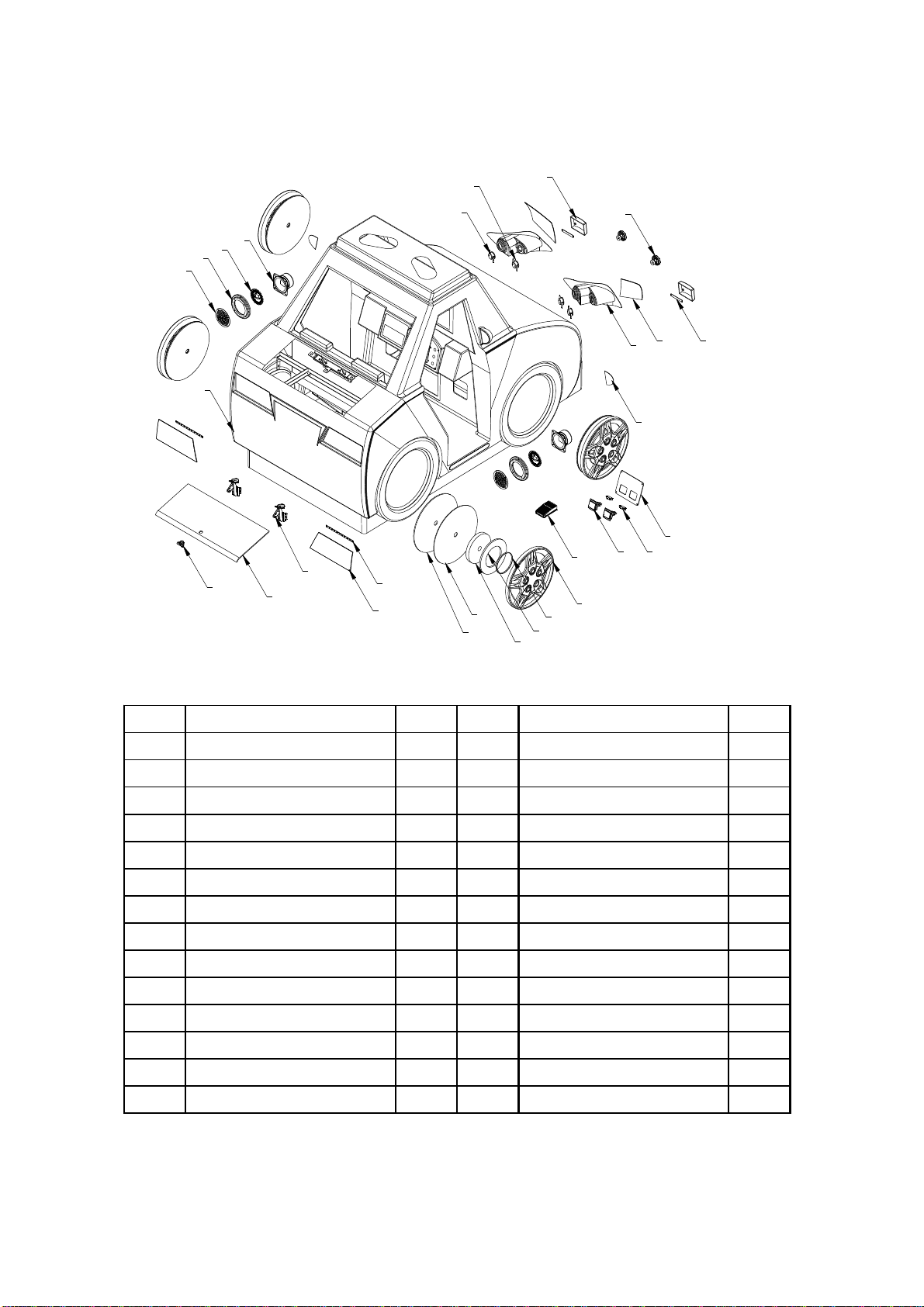

7.1 Wooden cabinet diagram & Part List
NO. Item/No. Qty NO. Item/No. Qty
01 Fiberglass body 1 15 Micro switch 2
02
Speaker net(4"
）2 16 Square button 2
03 Speaker cover 2 17 Pedal accelerator 1
04 Speaker light 2 18 Wheel suction 4
05 Speaker(4"8Ω30W) 2 19 Running belt(40cm) 4
06 Spot light(whiteφ32) 2 20 Luminescent organic chip 4
07 Spot light(yellowφ32) 2 21
Luminescent Organic Sheet Fixed Wood Board
4
08 Width lamp cover 2 22 Reflector 4
09 Color light(Redφ50) 2 23 Reflector backplane 4
10 MOTO-5 light board 2 24 light strip(Red 20cm) 4
11 Headlamp organic chip 2 25 Taillight organic chip 2
12 Headlamp 2 26 hinge 2
13 Rearview mirror 2 27 Repairing door 1
14 button organic chip 1 28 Lock 1285 1
0203
06
04 05
01
07 08
09
1011
12
13
14
1516
17
18
19
20
21
22
23
24
25
26
27
28

12
7.2 Warning light assy. & Part List
7.3 Monitor Assy. Diagram & Part List
NO. Item/No. Qty
01 Monitor fixed frame 1
02 Monitor glass 1
03 Monitor 19" 1
04 Monitor fixed code 2
03
01
02
04
NO. Item/No. Qty
01 Alarm lamp suction 1
02 Alarm lamp 4
03 Alarm lamp installation board 1
01
02
03

13
7.4 Steering wheel assy. Diagram & Part List
07
01
02 03 04 05 06
08 09
10
11
12
13
14
15
16
17
18
19
NO. Item/No. Qty NO. Item/No. Qty
01 Steering wheel 1 11 Shim 1
02
St eering Wheel Decorative Organic Slices
2 12 Sliding Ring Installation Code 1
03 Steering wheel axle mounting base 1 13 Small sliding ring 1
04 Steering wheel axle 1 14 Friction floor 1
05 Bearing 61802 2 15 friction plate 1
06 Bearing 6202 1 16 Friction switch 1
07
Installation Code of Chip Micro Switch
1 17 Clip spring 1
08 Chip Micro Switch 2 18 Micro switch 1
09 Spring 1 19 Button 1
10 Limit spring 1 20

14

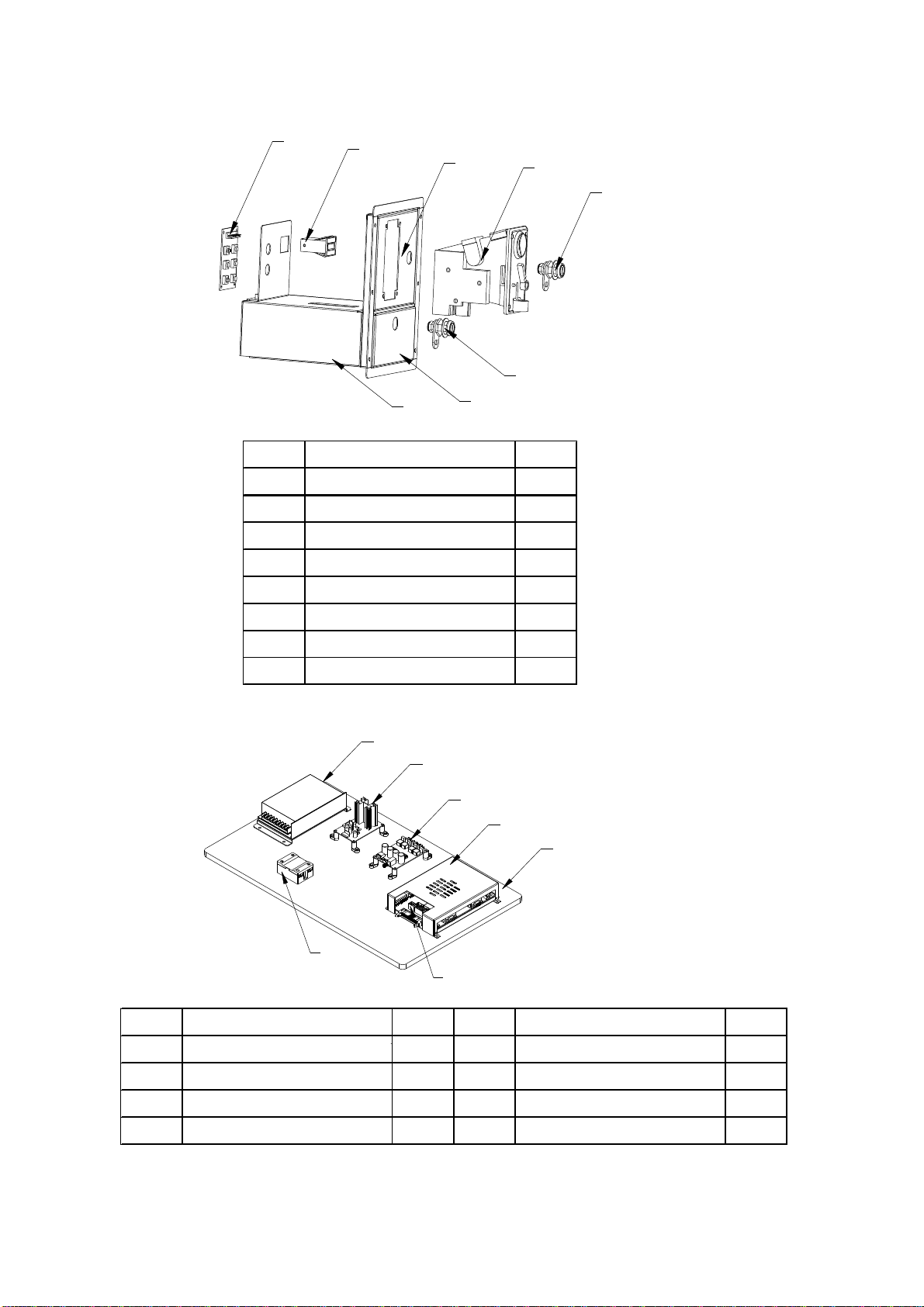

7.5 Coin box assy. Diagram & Part List
7.6 Main board assy. Diagram & Part List
NO. Item/No. Qty NO. Item/No. Qty
01
Power supply 12V12.5A5V3A
1 05 Electrical Installation Board 1
02 MOS drive board 1 06 Android main board 1
03 Amplifier board 1 07
Solid relay
1
04
Android main board fixed box
1 08
01
02
03
04
05
06
07
01 02
06
07
05
04
03
08
NO. Item/No. Qty
01 Setting board 1
02 Meter 1
03 Single coin gate 1
04 Analogical coin acceptor 1
05 Lock 1285 1
06 Lock 1396 1
07 Coin box 1
08 Coin box hardware rack 1

15

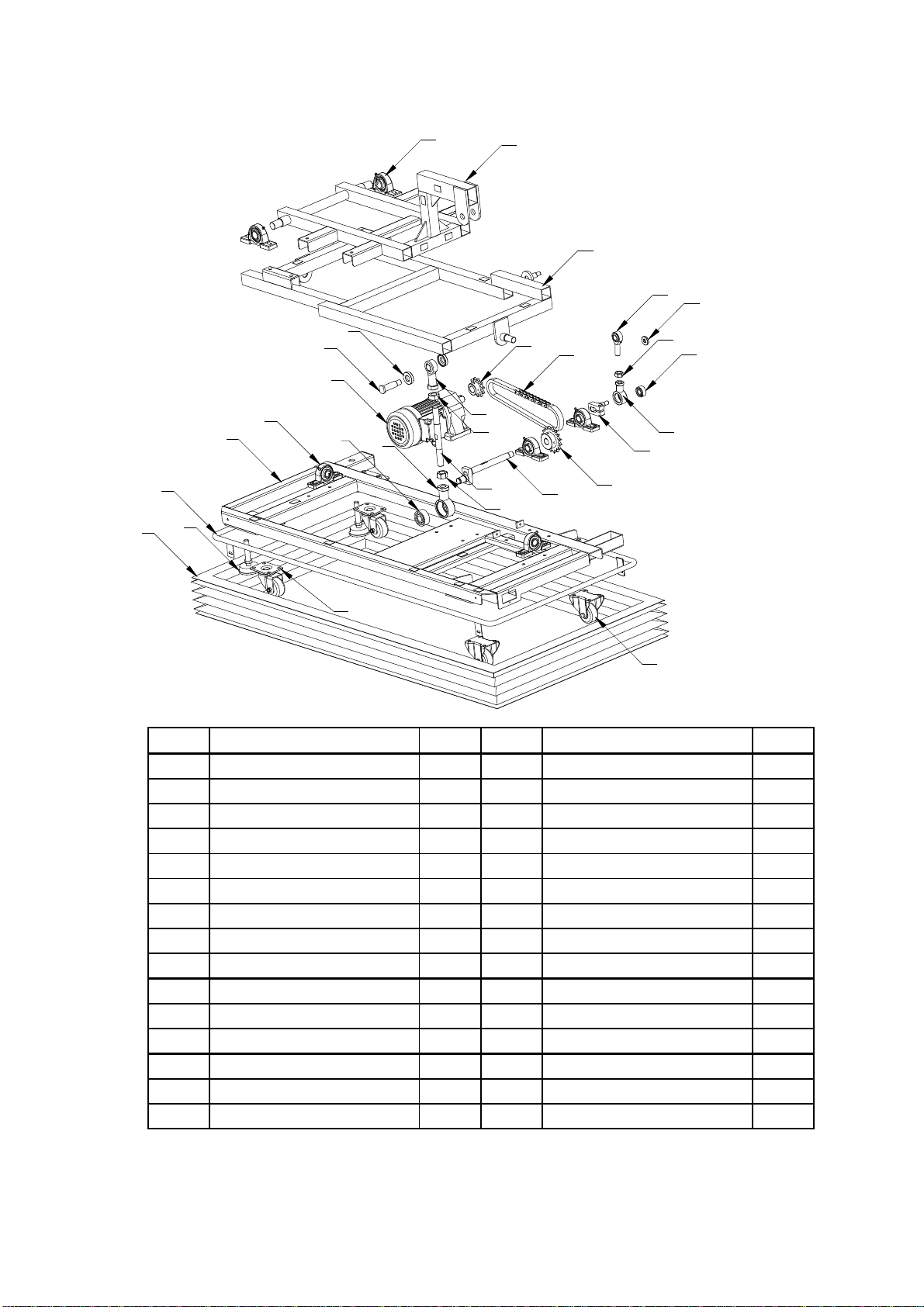

7.7 Under frame assy. Diagram & Part List
NO. Item/No. Qty NO. Item/No. Qty
01 Movable castors 2.5" 2 16 Hexagon nut M16 1
02 Fixed foot M16 4 17 Self-aligning ball bearing 2202 1
03 Dust cover 1 18 Motor sprocket 10A 5分1
04 First under frame 1 19 Chain 10A 5分1
05 TR bearing UCP204 4 20 Joint bearing PHS20 1
06 Self-aligning ball bearing 2304 1 21 Fine nut 1-4 1
07 Left and Right Bearing base 1 22 Upper and lower bearing base 1
08 Motor 200W 1:60 1 23 Left and right eccentric axis 1
09 Support shaft 1 24 Driven sprocket 10A 5分1
10 Limit pad 1-14 2 25 Main eccentric shaft 1
11 TR bearing UCP205 2 26 screw 1
12 Third under frame 1 27 Hexagon nut M20 1
13 Second under frame 1 28 Filter 1
14 Joint bearing 1 29 Fixed casters 2.5" 2
15 Limit pad 1-10 1
15
28
26
06
02
01
03
04 05
07
08
09
27
20
21
25 24
23 22
11 12
13
19
18 17
16
10
14
29

16
8. Schematic Diagram
O2-1
W1
Pu2-1
MT+
MT-
GND
NC
+12V
GND GND +5V
4 3 2 1
1
2
3
4
5
MOS
Br/W2
Y/W2 G/W2 R/W2
Y/G1
Pi1
Grey/W1
Pu/W1
B/W1
G/W1
R/W1
W1
2 1
Y/G1
Pi1
1
Pu/W1
3
2
1
1
2
DC IN
R+
GND
GND
+12
4寸8Ω30W
R/Bla2
Bla2-2
L+ R/Bla1
Bla2-1
GND
2
1
OUT
OUT
4 8Ω30W
IN
1
2
3
IN-R
GND
IN-L
M
Grey1-1
+12V
GND
Pi1
Pu1
B1
G1
Y1
Br1
Br/W2
Y/W2
W/Bla1
O2
Bla1
Bla5
Y/G2-1
B2-1
Br2-1
Bla9
O9
GND
R
L
Grey/W1
2
G/W1
Pi1 Y1 Pu1 Grey1 B1 G1 Br1
1
2
3
4
R/W1
VGA
DC12V IN
A16
A17
B16
B17
B10A10
A8
A9
A11
A12
A13
A14
A15
B8
B9
B11
B12
B13
B14
B15
34P
B1
A1
Bla8
O8
Bla7
O7
2
1
1
2
4
3
4
3
2
1
R/W2
Grey1
O3
Bla3
O1
Bla6
O6
220V
E
220V
GND
12V
O1-19
Bla1-9
5V
L
N
PE 22
33
11
R1
G/W2
R1
Bla2
O4
A2
A3
A4
A5
A6
A7
B2
B3
B4
B5
B6
B7
Y/W1
W/Bla1
B/W1
10
5
6
8
9
1
3
4
2 7
20
11 12 13 14 15
2 3
4
5 6 7
816
11 12 13 14 15
9
3
4
5 6 7
1
8 16
9
10
1
2
3
2
1
5
6
3
4
2
1
O/W1
Br/W1
Br/W1
Y/W1
O/W1
Sw1
Test
Serve
Select
Enter
290378
1
2
3
4
5
8
7
6
1
2
2
1
1
1
2
1
2
3
O5
Bla4
1 1
19
22
VGA 15P
+12V
GND
Android Main Board
Power input Filter
Power supply
Solid
Relay
Handcuffs button light
Handcuffs button light
Speaker button light
Headlight
Headlight
Left cornering light
Right cornering light
Danger light
Left rear light
Right rear light
Meter
Warning light
Warning light
Warning light
Warning light
Drive Board
Drive Signal
Swing motor
" LED Monitor
joint
video output Audio output
setting button
select button
change button
free play button
coin
speaker button
handcuffs button
handcuffs button
turn left switch
turn right switch
pedal switch
swing motor
handcuffs light
handcuffs light
speaker button light
meter
warning light
right rear light
left rear light
danager light
right turning light
left turning light
headlight
wheel running light
wheel running light
wheel running light
wheel running light
speaker running light
speaker running light
left indicator light
right indicator light
Amplifier board
button control board
coin acceptor
speaker button
handcuffs button
handcuffs button
left turning switch
right turning switch
pedal switch
"

17
