MecPower Tecway GALAX TRAVEL User manual

MANUAL FOR GALAX TRAVEL

1
ATTENTIONS
Please read the manual first before operating this machine.
Please pay attention to the items marked in “note”.
Safety Attentions
1) Certain part of the game is with high voltage.Adjust the game by technician. Do not
open the game door unless maintenance or parts replacement is required.
2) Please switch off the power before checking and maintenance.
3) Please switch off the power before opening the game door.
4) Fire extinguisher equiment must be nearby the game.
5) The game must be located properly to avoid damages.
Improper Locations:
Place directly
exposed to sunshine Humid area Place with high
temperature
Place with corrossive
air and liguid Rough area or place
with strong shake
Place with massive
dust
Notes of Usage
1) The voltage range of the game should be 105V~115V or 215V~225V. The proper
voltage should be 110V/220V. The specific voltage accords to the date plate on the back
door of the game.
2) The plug must be plugged in tightly but keep the power cords not be too tight.
3) Please properly adjust the coin mech and the game settings when use at the first time.
4) Please regularly check all the functions of the game when operate.

2
Notes of Maintenance
1) Be sure to check and maintance the game regularly.
2) Switch off the power before replacing the parts of the game.
3) The parts for replacement should be the same model as the old one.
4) Please check the connection and voltage output after replacing the power supply.
5) The voltage range of the PCB should be 12.1V-12.4V.
6) Check whether the game has creepage and the voltage before repairing the PCB.
Notes of Clean
1) Please use clean and soft colth to clean the game.
2) Prevent damaging the surface of the game, please do not use the following cleanser:
Alterative Cleanser;
Acidic Cleanser;
Insecticide, sterilized water, alcohol or other chemical cleanser.
Notes of Moving and Shipping
1) Properly disassemble the game for necessary moving and shipping.
2) Prevent the game from hitting or being attrite during movement.
3) Protecting the case when move the game.

3
PLAYING TIPS
There are four levels for the game. Player can choose single player mode or 2P mode.
Single player mode:
1. Insert coin, press the button on the handle and wait around several seconds to start the game.
2. Level 1: move the gun to aim the target, and then press button to shoot the target. Shoot down
the 12 targets within the game time (can be adjusted, default setting is 40 seconds.) in order to
score the 12 points (1 target = 1 point) to pass Level 1 and the game will automatically enter into
Level 2.
3. Level 2: move the gun to aim the target, and then press button to shoot the target. The targets in
this level will randomly stand up or fall down. Shoot down as many targets as possible within the
game time (can be adjusted, default setting is 40 seconds.) in order to score the more points. The
targets will fix to be standing up during the final several seconds of the game time, please try to
shoot down all these standing targets within these several seconds in order to pass Level 2 and the
game will automatically enter into Level 3.
手柄开关
激光枪座
投币入口
目标耙心
Target
Gun
Coin slot
Button on the handle

4
4. Level 3: move the gun to aim the target, and then press button to shoot the target. Shoot down 4
random targets within the game time (can be adjusted, default setting is 5 seconds.) to pass Level 3
and the game will automatically enter into Level 4.
5. Level 4: Shoot 10 pcs of the bull’s-eye of flying saucer within the game time (can be adjusted,
default setting is 30 seconds.) in order to score the 10 points (1 bull’s-eye of flying saucer = 1
point) to pass Level 4. Or player can shoot 12 targets to get higher points first.
2P Mode:
1. Insert coin, press the button on the handle and wait around several seconds to start the game.
2. Level 1: move the gun to aim the target, and then press button to shoot the target. Shoot down
the 12 targets and then the targets will stand up again, please shoot down those 12 targets again
within the game time (can be adjusted, default setting is 40 seconds.) to pass Level 1 and the game
will automatically enter into Level 2. The points for P1 and P2 will be calculated by the targets
shot down (1 target = 1 point).
3. Level 2: Level 2: move the gun to aim the target, and then press button to shoot the target. The
targets in this level will randomly stand up or fall down. Shoot down as many targets as possible
within the game time (can be adjusted, default setting is 40 seconds.) in order to score the more
points. The targets will fix to be standing up during the final several seconds of the game time,
please try to shoot down all these standing targets within these several seconds in order to pass
Level 2 and the game will automatically enter into Level 3.
4. Level 3: move the gun to aim the target, and then press button to shoot the target. Shoot down 8
random targets within the game time (can be adjusted, default setting is 5 seconds.) to pass Level 3
and the game will automatically enter into Level 4.
5. Level 4: Shoot 10 pcs of the bull’s-eye of flying saucer within the game time (can be adjusted,
default setting is 30 seconds.) in order to score the 10 points (1 bull’s-eye of flying saucer = 1
point) to pass Level 4. Or player can shoot 12 targets to get higher points first.

5
TECHNICAL PARAMETERS
Voltage: AC 220V/110V（50/60HZ）
Max. current: 0.5A/0.9A
(Note: The proper voltage and current used accords to the nameplate at the back door of the
game.)
Max. power: 120W
Power (standby mode): 70W
Coin size: φ21mm ~ φ31mm(diameter)
1.2mm ~ 2.5mm(thickness)
Capacity of coin box: about 5000 pcs with coin size φ25mm*1.5mm
Location required: indoor use; temperature: -5~40°C ; RH > 90%; no contact with any corrosive,
greasiness and dirt.
Dimensions: L2010mm*W1030mm*H2075m
20101030
2075

6
Accessories shipped with the game:
INSTALLATION

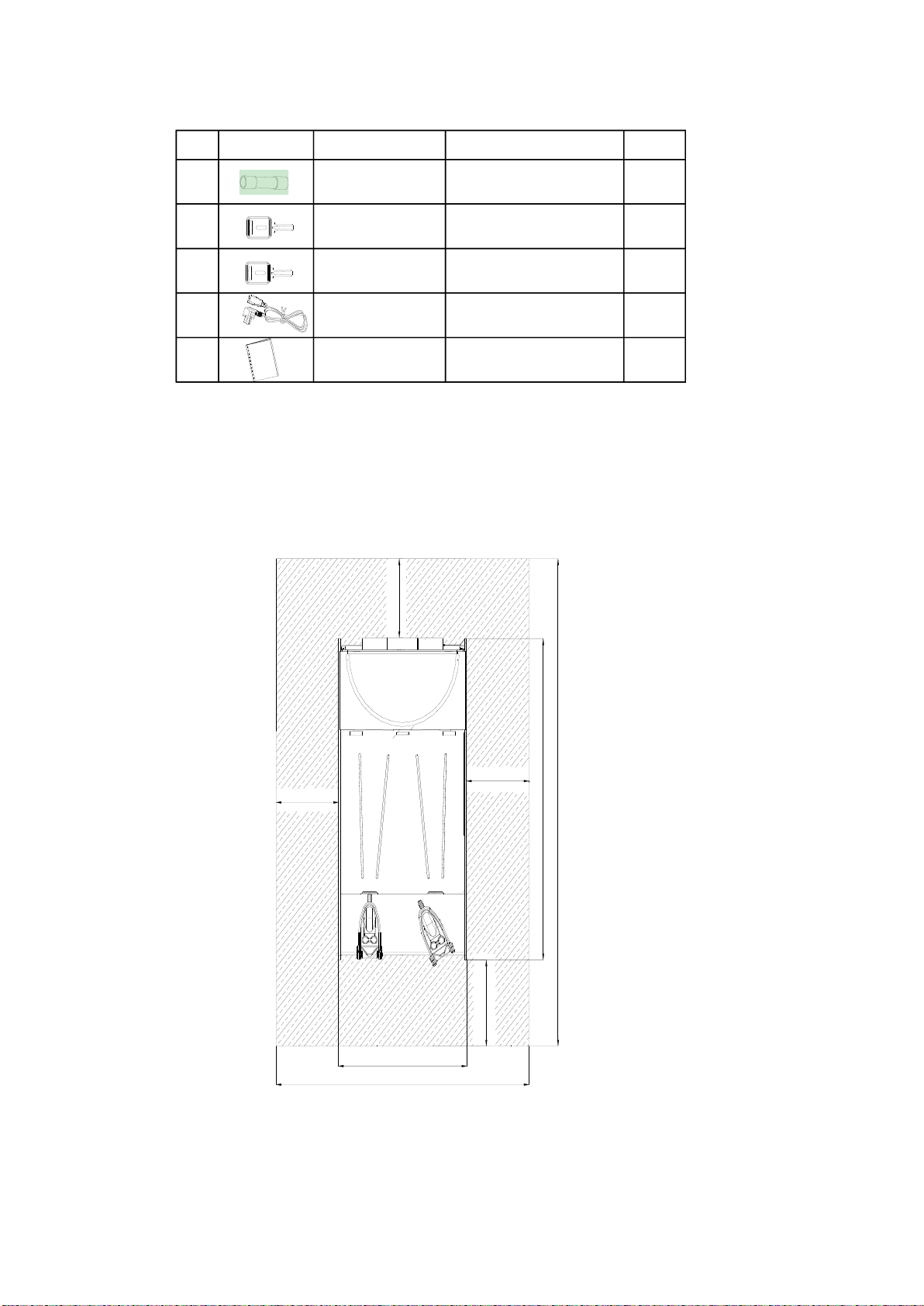

Choose a proper location for the game and keep a certain space for game operation, as below
drawing shown:
Note: Please install the game on the flat floor.
# DRAWING NAME SPEC./MODEL QTY
1 fuse 5A (small) 2
2 key
1285＃2
3 key
1396＃2
4 power cord 1
5 manual 1
OPERATION MANUAL
3.01m
2.03m
1.03m
2.01m
0.5m
0.5m
0.5m
0.5m

7
Check the connection:
1. Check if the inner structure of the game is loose caused by transportation or the terminals
drop.
2. Check if the game is grounded.
3. Check if the resistance of the GNDs is more than 100 megohm.
4. Connect the power cord.
Attentions:
a) Please make sure the power cord is not pressed by wheel, foundation, etc. Otherwise, the
wire will be damaged to cause short circuit, even fire. Do not use strong power to extend
and wring the wires. Do not make the wire be near to the high temperature object.
Properly put the wire to avoid any kicking or treading.
市电插盒
电源输入插头
Socket
Plug
AAAA

8
b) Hold the plug to pull it out from the socket.
c) Do not touch the plug with wet hands.
d) Make sure the voltage and fuse used are proper.
Connect the power:
1. Confirm the value of voltage input is same as the one stated on the nameplate on the back of
the game.
2. Switch on the power switch.
3. Properly adjust the coin mech and confirm it can work properly.
4. Check and confirm all the display board and lights can work properly.
5. Adjust the setting according to the game setting.
6. Insert coin to start the game for testing and confirm it can work properly (buttons, gun, and
infrared gun head.
7. Check and confirm the sound is ok.
！warning
Before inputing the power, please check the resistance between input port and GND. Make
sure the connection is proper.

9
Check before operation
1. Confirm the power cord is properly plugged and without any damages.
2. Confirm the game is properly fixed.
3. Confirm the cabinet of game is without damages and burrs.
4. Confirm the surface of game is clean and with proper marks.
Daily operation:
Please properly refer to the instructions above to check the game before operation.
After operation, please collect the coins and keep record of the coin meter.

10
GAME SETTING
Keys for setting:
ENTER: enter into the menu
DW: to next item / decrease the value of setting
UP: to previous item / increase the value of setting
ESC: exit the menu / back to previous menu

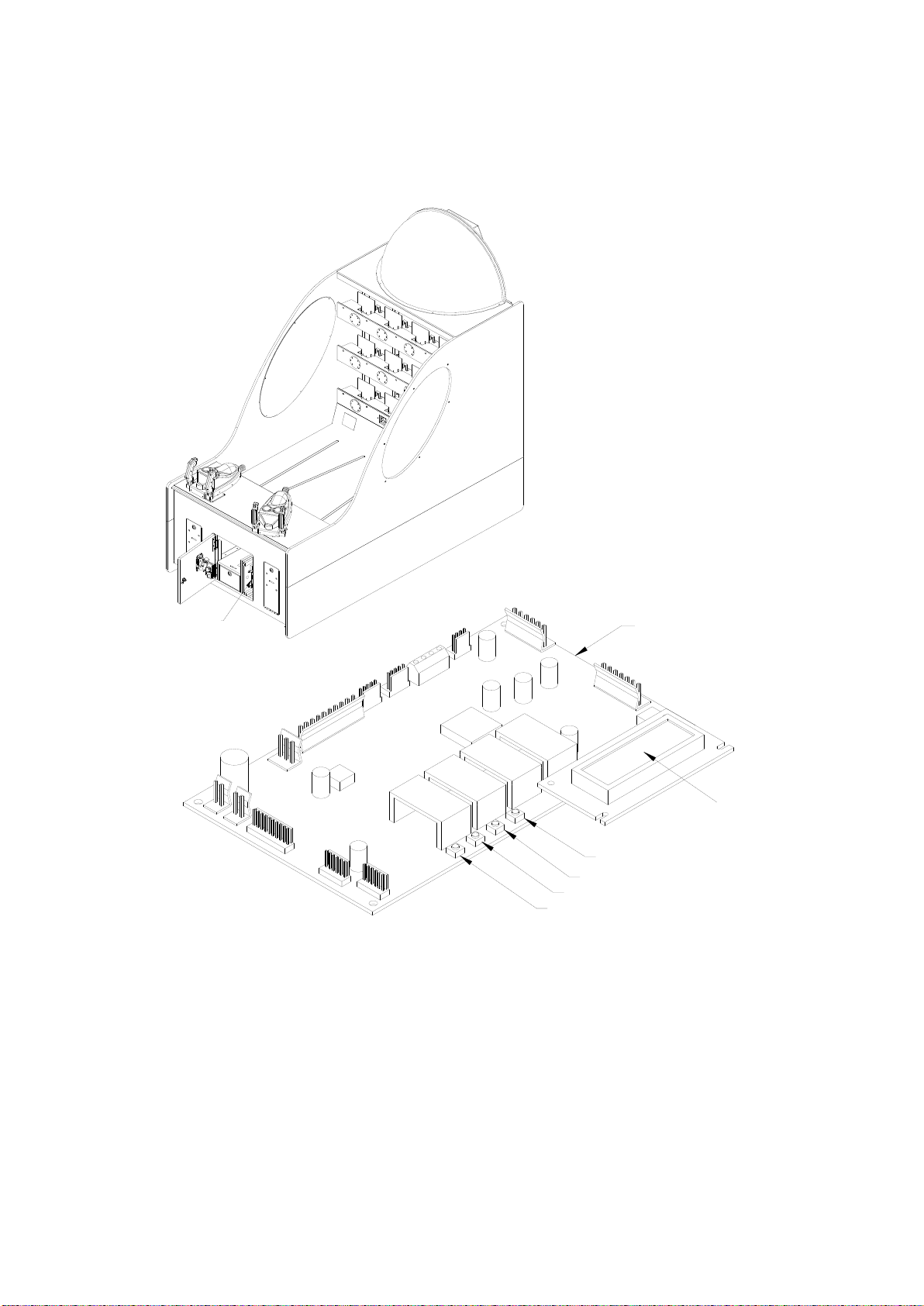

主机板
ESC
UP
DW
ENTER
后台设置
显示板
主机板
Main board
Main board
Display for
setting

11
Instructions:
Switch on the game, below information will be shown on the display of the main board:
When in main interface as above shown:
Press <ENTER> to enter into main menu. There are three menus under main menu: SERVICE
menu, SET UP menu and TEST menu. Press <UP> or <DOWN> to choose the menu.
Press <ESC> to enter into check menu.
Press <UP> or <DOWN> to adjust the volume.
1. SERVICE
When in main interface, press <ENTER> to enter into SERVICE menu.
Press again <ENTER>, it will show the # of coin inserted. If press again <ENTER>, it will
automatically increase 1 coin inserted. Press and hold <ENTER> for three seconds, the data of the
coins inserted will be cleared.
2. SETUP
When in main interface, press <ENTER> to enter into main menu, then press <UP> or <DOWN>
to SETUP menu:
GALAXY TRAVEL
GLX Ver 5.14
SEVISE
Coin= 10
SEVISE
SETUP

12
(1) CREDIT
When in the SETUP menu, press <ENTER> to submenu of the SETUP menu, then press <UP> or
<DOWN> to CREDIT:
There are 4 settings can be selected for CREDIT:
1.1 setting #1: 01COIN = 1 Crd (Default setting)
When it is in setting #1, press <ENTER>, press <UP> or <DOWN> to increase or decrease the
value of setting, then press <ECS> to previous menu. After that, the setting will be saved
automatically.
1.2 setting #2: 1 COIN = 2 CREDITS (value can not be changed.)
1.3 setting #3: FREE PLAY
1.4 setting #4: COIN DOUBLE
SETUP
1.Credit
SETUP 1.Credit
1.1 01Coin= 1Crd
SETUP 1.Credit
1.2 1Coin= 2Crd
SETUP 1.Credit
1.3 Free
SETUP 1.Credit
1.4 Coin Double

13
This setting is only for Single Player mode and is invalid for 2P mode. The setting is 1 coin per
game, the value of setting can not be changed.
(2) TICKET
When in the SETUP menu, press <ENTER> to submenu of the SETUP menu, then press <UP> or
<DOWN> to TICKET:
2.1 Ticket Mode:
When it is in TICKET menu, press <ENTER>, press <UP> or <DOWN> to choose 2.1 and press
<ENTER> to show the current setting. Below is the default setting:
Press again <ENTER>, it will show below menu to confirm if select ticket mode setting.
<ENTER> is for confirm and <ESC> is for exit.
<ENTER> for confirming to select ticket mode setting
There are four settings can be selected by pressing <UP> and <DOWN>.
Setting #1: 4-line long pulse (suitable for wood door)
SETUP
2. Ticket
Confirma alterar
Tickt Dispenser?
2.1 Model
4f.CURTO(contin)
SETUP 2. Ticket
2.1 Model=4f.LON
2.1 Model
4f.CURTO(contin)

14
Setting #2: 4-line short pulse (suitable for iron door)
Setting #3: No ticket dispenser (if this setting is selected, the game will not dispense ticket even
the ticket dispenser is installed.)
Setting #4: 3-line pulse
2.2 Ticket Min/ Max
This setting can decide the maximum and minimum value for ticket dispensed.
When it is in TICKET menu, press <ENTER>, press <UP> or <DOWN> to choose 2.2 and press
<ENTER> to show the current setting. Below is the default setting:
The value for above setting can be changed.
The minimum value is for mercy ticket. Player can get the tickets even he/she does not get any
points during the game.
The maximum value is for when player get higher points than the set value, the game will still
dispense the number of tickets same as the set value.
2.1 Model
4f.LONGO(contin)
2.1 Model
Sem Tick
2.1 Model
3fios (pulso)
Tick Min/Max
Min= 05 Max= 25

15
2.3 EXIT FACTOR:（setting of # of points for # of ticket）
When it is in TICKET menu, press <ENTER>, press <UP> or <DOWN> to choose 2.3 and press
<ENTER> to show the current setting. Below is the default setting:
There are 6 settings:
POINTS *2 （1 point for 2 tickets）
POINTS *1 （1 point for 1 ticket）
POINTS /2 （2 points for 1 ticket）
POINTS /3 （3 points for 1 ticket）
POINTS /4 （4 points for 1 ticket）
POINTS /5 （5 points for 1 ticket）
Note: The game will dispense ticket only according to the set value of maximum and minimum of
ticket.
2.4 LEVEL START
This setting decides the lowest point for ticket dispensed. If player can not get the set lowest
points, the game will not dispense ticket (Except the mercy ticket).
When it is in TICKET menu, press <ENTER>, press <UP> or <DOWN> to choose 2.2 and press
<ENTER> to show the current setting. Below is the default setting. The value can be changed
from 0 to 99 by pressing <UP> and <DOWN>.
(3) TIMES
Game time for Level 1 (Default setting is 40S): When in the SETUP menu, press <ENTER> to
submenu of the SETUP menu, then press <UP> or <DOWN> to TIMES:
2.3 Factor
Points/2
2.4 ponto p/tic
00Points
SETUP
3.Time

16
Press again <ENTER> to set the game time of Level 1:
Setting menu of game time of level 1:
The value of game time can be changed from 20S to 90S by pressing <UP> and <DOWN>.
Setting method for game time of Level 2, Level 3, Level 4 is same as above.
Game time for Level 2: default setting is 40S and can be changed from 20S to 90S.
Game time for Level 3: default setting is 7S and can be changed from 4S to 10S.
Game time for Level 4: default setting is 40S and can be changed from 30S to 50S.
(4) LOAD DEFAULT
When in the SETUP menu, press <ENTER> to submenu of the SETUP menu, then press <UP> or
<DOWN> to LOAD DEFAULT:
Press again <ENTER> to below menu:
SETUP 3.Time
3.1 Stage1-Recon
Tempo 1-Reconn
40 Seg -Stand
SETUP
4. Load Default
4. Load Default
Are You Sure

17
This is for confirming if set the game to default setting. If yes, press <ENTER>. If not, press
<ESC> to exit.
After enter into the menu, press <UP> and <DOWN> at the same time to confirm default setting.
After several seconds:
After several seconds, it will return to main menu automatically:
(5) SOUND DEMO
When in the SETUP menu, press <ENTER> to submenu of the SETUP menu, then press <UP> or
<DOWN> to SOUND DEMO:
Press again <ENTER> to below menu:
Press Up+Dw
OK
Wait......
GLX Ver 5.14
GALAXY TRAVEL
GLX Ver 5.14
SETUP
5. Sonud Dem Yes
5. Sonud Dem
Yes

18
This setting is for playing the music or not when the game is in attraction mode. Yes is for playing
the music in attraction mode, Nao is for not playing the music.
(6) TICKET BONUS
When in the SETUP menu, press <ENTER> to submenu of the SETUP menu, then press <UP> or
<DOWN> to TICKET BOUNUS:
Press again <ENTER> to below menu:
Please keep the setting as “Nao” all the time to avoid any mistake.
(7) LANGUAGE
When in the SETUP menu, press <ENTER> to submenu of the SETUP menu, then press <UP> or
<DOWN> to LANGUAGE:
Press again <ENTER> to below menu, then to choose the language of the game play:
SETUP
6. TK Bonus Nao
6. TK Bonus
Nao
SETUP
7. Language
SETUP 7. Language
7.4 Chinese

19
There are 4 selections:
7.1 –Portuguese
7.2 –English
7.3 –Spanish
7.4 –Chinese
3. TEST
When the game is in TEST mode:
All the lights of the game will light up.
The middle display board will show the number of targets when shooting the targets.
The left or right score display board will show the correspondingly number of left or right gun
shoots.
The flying saucers can move by press <UP> and <DOWN>.
Press START button for one time, the game will dispense 1 ticket.
4. CHECK
When the game is in main menu, press <ESC> to below CHECK menu:
Coin 00030 -- # of coins inserted
Tick 00015 -- # of tickets dispensed
It will return to main menu if there is no any operation after several seconds in above menu. Press
again <ENTER> to below menu:
Jackpot 000000 -- points got for Jackpot
Tick.JK 000000 -- tickets dispensed for Jackpot
The above two menus can be switched by pressing <ENTER>.
Coin 000030
Tick 000015
Jackpot 000000
Tick.JK 000000
