MecPower Tecway Geronimo's Horse User manual

1
In order to prevent the variety of problems which caused by incorrect
operation，Please read the manual first before operating this machine and pay
attention to the items marked in “note”.
Please keep this manual carefully for checking when needed.
Summary
Transportation, installation, safe operation of moving and operating
methods and attentions;
Installation and operation;
Function adjustment;
Maintenance;
General troubleshooting and solutions;
Main components diagram;
Circuit connection diagram.

2
Safety Attentions
1) Certain part of the game is with high voltage. Adjust the game by
technician. Do not open the game door unless maintenance or parts
replacement is required.
2) Please switch off the power before checking and maintenance.
3) Please switch off the power before opening the game door.
4) Fire extinguisher equipment must be nearby the game.
Installation
The game must be located properly to avoid damages.
Improper Locations:
Notes of Usage
1) The voltage range of the game should be 105V~115V or 215V~225V.
The proper voltage should be 110V/220V. The specific voltage accords
to the data plate on the back door of the game. The voltage must be
correct; otherwise it would be difficult to repair the damage.
2) The plug must be plugged in tightly and keep the power cords not be

3
too tight and damaged in order to prevent bodily injury, short-circuit
and power leakage.
3) To put the machine to normal operating, please properly adjust the
coin match and the game settings when use at the first time.
4) Please regularly check all the functions of the game when operate to
prevent dysfunction.
Notes of Maintenance
1) Be sure to check and maintance the game regularly.
2) Switch off the power before replacing the parts of the game.
3) The parts for replacement should be the same model as the old one.
4) Please check the connection and voltage output after replacing the
power supply.
5) The voltage range of the PCB should be 5.1V-5.4V.
6) Check whether the game has creepage and the voltage before
repairing the PCB.
Notes of Clean
1) Please use clean and soft cloth to clean the game.
2) Prevent damaging the surface of the game, please do not use the
following cleanser:
Alterative Cleanser；
Acidic Cleanser；
Insecticide, sterilized water, alcohol or other chemical cleanser.
Notes of Moving and Shipping
1) Properly disassemble the game for necessary moving and shipping.
2) Prevent the game from hitting or being attrite during movement.
3) Protecting the case when move the game.

4
CONTENT
GAME INTRODUCTION---------------------------------------------------------------------5
PLAYING TIPS---------------------------------------------------------------------------------6
TECHNICAL PARAMETER-----------------------------------------------------------------7
INSTALLATION--------------------------------------------------------------------------------8
GAME SETTING-----------------------------------------------------------------------------10
CHECK BEFORE OPERATION----------------------------------------------------------11
DAILY OPERATION-------------------------------------------------------------------------11
ADJUSTMENT-------------------------------------------------------------------------------12
CHECK AND MAINTAIN-------------------------------------------------------------------14
TROUBLESHOOTING---------------------------------------------------------------------15
PARTS DRAWING AND PARTS LIST--------------------------------------------------16
SCHEMATIC DIAGRAM-------------------------------------------------------------------19
]

5
1. GAME INTRODUCTION
Geronimo’s Horse with unique, beautiful, comic and simulation car appearance,
interesting and exciting game, it is specially designed and developed by our
company for the young people. It will be very essential and popular in
amusement center.
Features:
Beautiful outlook
Integrated main board, high-speed processing CPU, stable proformance.
Coin mech with high quality fits for various coins.
Simple, stimulating, strong operational sense and full of entertaining.
Operating income can be adjusted according to the situation.
BEAUTIFUL OUTLOOK
STABLE MOVEMENT

6
2. PLAYING TIPS
Ride on the Geronimo’s Horse and insert coin, the game will start
automatically. It will move up and down, forward and backward.; when the
game time is up, it will stop. If urgent stop needed, please pull the rein to stop
the game.
SADDLE
COIN SLOT
INDICATOR
HANDRAIL
REIN FOR STOP

7
3. TECHNICAL PARAMETER
VOLTAGE: AC220V/110V（50/60HZ）
MAX. CURRENT：2A/4A
(Note: please refer to the nameplate located on the back of the games to check
actual usage of voltage.)
MAX. POWER: 450W
COIN SIZE：φ21mm ~ φ30mm (diameter)
1.2mm ~ 2.5mm (thickness)
CAPACITY OF COIN BOX: 1200pcs of coins with coin sizeφ25mm*1.5mm
LOCATION REQUIRED: -5 ~ 40 , humidity is less than 90%. No contact with℃
any corrosive liquid, no any greasiness and dirt.
Parts shipped with the game:
# DRAWING NAME SPEC./MODEL QTY
1key
1285＃2
2key
1396＃2
3 manual 1
OPERATION MANUAL
1830
1000 2000

8
4. INSTALLATION
Please follow the direction below to install the game.
4.1 CHOOSE THE LOCATION FOR INSTALLATION
1) Put the Geronimo’s Horse in the same type of Kiddie Ride with monitor
then select the concrete placement machine according to the machine's
exterior.
2) Choose the proper location for installation,
NOTE：It must be placed on the flat floor to make the machine on the
ground steadily.

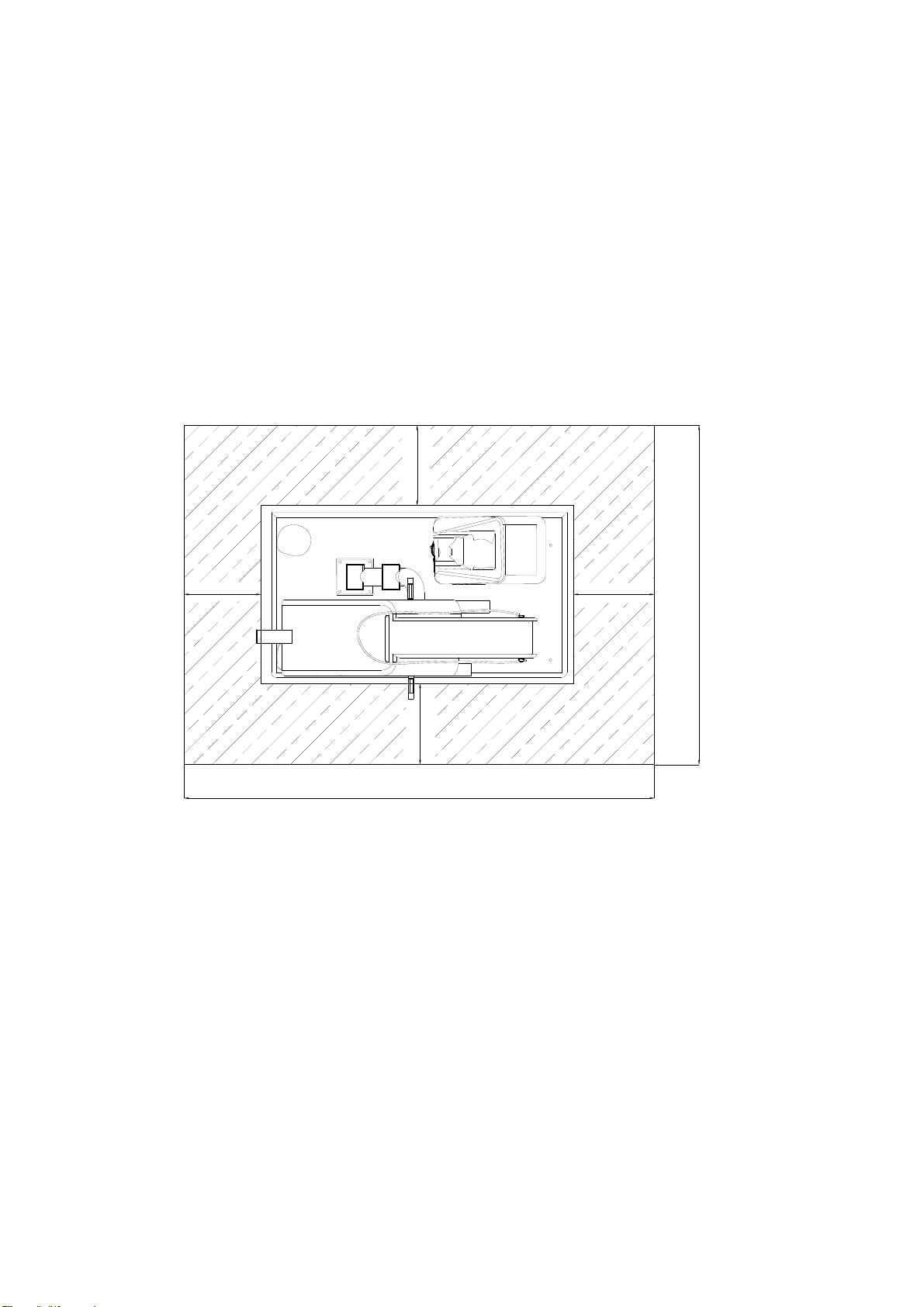

4.2 CHECK AND SET BEFORE CONNECTING THE POWER
1) Please check whether the parts of cabinet are loose caused by moving,
and the wire terminal should not drop out from the port.
2) Check whether the GND is connected.
3) Please check whether the resistance of power input at the both ends for
GND is more than 100 megohm.
4) Adjust the coin machine and check if it can work properly.
5) Connect the wires.
2m
3m
0.5m
0.5m
0.5m
0.5m

9
Attention
A Please make sure the power cord is not pressed by wheel, foundation,
etc. Otherwise, it will damage the wire to cause short circuit, even fire.
Do not use strong power to extend and wring the wires. Do not make
the wire be near to the high temperature object. Properly put the wire
to avoid any kicking or treading.
B Hold the plug to pull it out from the socket. Do not touch the plug with
wet hands.
AAAA

10
5. GAME SETTING
Descriptions:
Step 1: open the coin door to find DIP SW1 setting group on setting board
Step 2: set the game according to below setting chart:
DIPSW1
SETTINGS 1 2 3 4 5 6 7 8
1 coin OFF OFF
2 coins ON OFF
3 coins OFF ON
no. of coin per
play
5 coins ON ON
60 sec. OFF OFF
90 sec. ON OFF
120 sec. OFF ON
game time per
play
180 sec. ON ON
120 sec. OFF OFF
180 sec. ON OFF
90 sec. OFF ON
waiting time for
playing DEMO
music 60 sec. ON ON
ENABLE OFF
DEMO music DISABLE ON
No. of coin per play: this setting decides how many coins for each play.
Game time: this setting decides how long the game time is for each play.
Wating time for playing DEMO background music: this setting decides how
long the waiting time is for each demo music play.
DEMO background music switch: this setting decides to if enable the demo
music.
SW1 SWITCHES GROUP
SETTING BOARD
SW1
1
234568
7
ONDIP
NAME:BLYAOBAI IO PCB
PCB BOX

11
6. CHECK BEFORE OPERATION
Check the game before operation to prevent the game from working
improperly when operated.
Checking item：
1) Check if the cord is securely plugged in and without defects.
2) Check the location of game and confirm it is fixed securely.
3) Check if the game case is without defects or burrs.
4) Check if the game without dirt and properly stuck on with marks.
5) Switch on the game.
6) Confirm the background music is with any problems.
7) Confirm the coin mech can work properly.
8) Coinfirm the game is with proper movements.
7. DAILY OPERATION
INPUT POWER TO OPERATE
1) Check if the coin mech can work properly.
2) Check if the game moves properly
3) Check if the game has any strange sound.
COLLECT COINS AND KEEP RECORD
1) Switch off the power and open the door of the coin box to take out the
coins
2) Open the door of the coin mech to keep a record of the coins’ quantity.

12
8. ADJUSTMENT
8.1 ADJUT THE COIN MECH
Descriptions:
1): Please take out the plastic coin from sample coin chute and replace it
with token.
2): Remove the screws on back of coin entrance. Adjust the fixing chip on
back of coin entrance according to the token’s diameter, which prevent
blocking the coin mech as inserting the large coin in by mistake.
3): Turn the COIN Switch to “NO” (COIN Signal wire and GND should be
disconnected at usual time). Turning switch can be used as the coin
mech switch when the game is power on.
4): Adjust the adjusting switch of COIN Signal wave length to 50MS.
5): Adjust the micro-adjusting resistance of token tolerance. Clockwise:
increasing the sensitivity of token tolerance, that is, the range of
accepting the token tolerance will be larger. Counter clockwise:
decrease the sensitivity, that is, the range will be smaller and choose
the token more strictly.
adjusting chip in
coin entrence
coin-return
pole
Adjusting Switch For
Coin Signal
Wavelength
switch for coin signal
Port For Power/Signal
Input
Micro-Resistance
sample
coin
chute
DC+12V
STRICT SLACK
Sensitivity
+-
COIN
Remove
REPLACE
Backward
SW3
100ms SLOW
25ms FAST
NOM
正常
MGN
精准
50ms MEDIUM
WHITE
COUNTER(+/-)
GROUND
N.C.
SW1
SW2
N.O.
COUNTER(-/+)
COIN SIGNAL
GRAY
BLACK
RED
GRAY

13
8.2 ADJUST THE VOLUME
Step 1: open the coin door to find the volume potentiometer.
Step 2: twist the potentiometer to adjust the volume. Twist clockwisely to
increase the volume, counterclockwisely to decrease the volume.
PCB BOX
NAME:BLYAOBAI IO PCB
DIP
ON
78
6
5
4
3
2
1
SW1
VOLUME POTENTIOMETER

14
9. CHECK AND MAINTAIN
！warning
Please check and maintain the game by technicians.
Please power off the game when check and maintain.
Please do not put any tools into cabinet, otherwise it will cause problem.
After checking, please tightly screw the screws and close the door.
9.1 Daily Check
ITEM DESCRIPTION
Coin mech Check whether the coin mech can work proper.
Sound Check whether the sound and the volume are ok.
Motor Check if the motor of movements run properly.
Temperature、
humidity
Check if the temperature and humidity is proper
9.2 Daily Maintenance
ITEM DESCRIPTION
Cabinet Clean the cabinet with water and soft paper.
PCB
Sweep the dust and dirty in the board with small
brush

15
10. TROUBLESHOOTING
If you have any problems in installing or using the machine, we recommend
that you firstly check the following table for possible cause of the problem and
solution before asking for technical support:
PROBLEM CAUSES SOLUTIONS
no sample coin insert sample coin
sensitivity for coin was adjusted too
high
adjust the sensitivity, screw the resistance (turn
right)
the coin mech is bad replace the coin mech
The connection of light is bad. Re-connect the wires of light.
The light port on main board is bad. Replace or repair the main board.
Connection for stop switch is bad. Reconnect the wire of stop switch.
The stop switch is bad. Replace the stop switch.
The transducer of motor is bad. Adjust or repari the transducer.
The capacitor of motor has leakage. Replace the capacitor of motor.
The speaker is bad. Check and replace the speaker.
The sound signal wire is loose. Check the connection of sound signal.
The volume is too low. Adjust the volume.
No AC110V/220V voltage input. Check the power connection.
No voltage output of power supply. Repair or replace the power supply.
Voltage output of power supply is
too low. Adjust the voltage to 12.5V.
Main board is bad. Replace the main board.
No movement
after switching
on the game.
The motor does
not work.
Can't insert coin
No sound.
can't stop the
game when pull
the rein.
The indicator
light dese not
light up

16
11. PARTS DRAWING AND PARTS LIST
11.1 Chassis assembly
NO. NAME / MODEL NO. QTY
01 Fiberglass decoration wolf 1
02 Fiberglass base for wolf 1
03 LED light 1
04 Meter 1
05 Coin door 1
06 Coin mech 1
07 Lock 1285 1
08 Speaker 8Ω, 8W 1
09 Speaker mesh 1
10 Lock 1396 1
11 Cash box 1
12 Lock 1285 1
13 Service door 1
14 Chassis 1
15 Wheel 2
16 Foundation 2
16
15
14
13
12
11 10
09
08
07
06
05
04
03
02
01

17
11.2 Main boad assembly
11.3 Horse assembly
NO. NAME/MODEL NO. QTY
01 Transducer AS2-107 1
02 Power supply 12V 10A 1
03 Relay control board 1
04 Main board 1
05 Main board holder 1
NO. NAME/MODEL NO. QTY
01 Rein ring 2
02 Rein sleeve 1
03 Rein shaft 1
04 Rein 1
05 Handrail 1
06 Fiberglass horse 1
07 Saddle 2
05
02
04
03
01
07
06
05
01 0302 04

18
11.4 Horse supporting assembly
NO. NAME / MODEL NO. QTY
01 Horse metal parts 1
02 Horse fixed parts 1
03 Externally threaded bearing 1
04 Short bearing 1
05 Internally threaded bearing 1
06 Belt pulley fixed sleeve 1
07 Drive belt pulley 1
08 Limit sleeve 1
09 Sheave sleeve 1
10 Belt adjustor 1
11 Belt pulley short key 1
12 Motor shaft 1
13 Motor long key 1
14 Motor FC71C4-B5 1
15 Stairs assembly 2
15
14
13 11
12
10 09 08
06 07
03
05
04
02
01

19
12. SCHEMATIC DIAGRAM
1
2
3
COIN MECH 1
2
3
N/A
N/A
N/A
N/A
N/A
N/A
N/A
volume output A
volume output B
Bla1-Bla2
POWER
SUPPLY
220V
220V 12V
GND
E
coin signal
5
2
3
4
11
4
3
2
5
motor control
8
9
77
9
8
coin meter
66
DP1
rein input
+12V
GND
10
13
12
11
14
15
indicator
10
11
12
13
14
15
N/A
volume output A
5
2
3
4
11
4
3
2
5
CN4
volume output B
GND
CN3
2
3
11
3
2
+12V
GND
+
-
4" SPEAKER 15W
MAIN BOARD
01-02
Bla1-1
R1-1
R1-2
Bla1-2
Y1
B1
G1
W1
O3-O4
Bla3
Br1
N/A
TRANSDUCER
T2
T3
T1
L2
L1
FT1
REV
FWD
VCC
FA1
GND
CF3
MA
MC
A/B
C
Bla3-2
Br3-2
B3-2
B3-1
Br3-1
Br3-2
Bla3-2
B3-2 W
V
U
MOTOR
IM
Y/G3-1
MT
COM
FT2
resistor
10K¦Έ 1/4W
N/A
CN4
5
2
3
4
11
4
3
2
5
N/A
co-rotation signal
N/A
COM
N/A
+12V
motor control
8
6
77
6
8
RELAY CONTROL BOARD
COIN METER
INDICATOR
REIN SWITCH
220V POWER INPUT
SAFE SWITCH
FAN
O3
Bla3
O4
W1
Br1
G1
B1
Y1
B3-1
Br3-1
Y/G3-1
