MecPower Tecway POLICE MOTO User manual

POLICE MOTO

1
ATTENTIONS
Please read the manual first before operating this machine.
Please pay attention to the items marked in “note”.
Safety Attentions
1) Certain part of the game is with high voltage. Adjust the game by technician.
Do not open the game door unless maintenance or parts replacement is
required.
2) Please switch off the power before checking and maintenance.
3) Please switch off the power before opening the game door.
4) Fire extinguisher equiment must be nearby the game.
5) The game must be located properly to avoid damages.
Improper Locations:
Place directly
ex posed t o s unshine
Humid area Place w ith high
t emperature
Place w ith c orros siv e
air and liguid
R ough area or plac e
w ith s trong shak e
Place w it h mas s iv e
dus t
Notes of Usage
1) The voltage range of the game should be 105V~115V or 215V~225V. The
proper voltage should be 110V/220V. The specific voltage accords to the date
plate on the back door of the game.
2) The plug must be plugged in tightly but keep the power cords not be too
tight.

2
3) Please properly adjust the coin mech and the game settings when use at the
first time.
4) Please regularly check all the functions of the game when operate.
Notes of Maintenance
1) Be sure to check and maintance the game regularly.
2) Switch off the power before replacing the parts of the game.
3) The parts for replacement should be the same model as the old one.
4) Please check the connection and voltage output after replacing the power
supply.
5) The voltage range of the PCB should be 5.1V-5.4V.
6) Check whether the game has creepage and the voltage before repairing the
PCB.
Notes of Clean
1) Please use clean and soft colth to clean the game.
2) Prevent damaging the surface of the game, please do not use the following
cleanser:
 Alterative Cleanser;
 Acidic Cleanser;
 Insecticide, sterilized water, alcohol or other chemical cleanser.
Notes of Moving and Shipping
1) Properly disassemble the game for necessary moving and shipping.
2) Prevent the game from hitting or being attrite during movement.
3) Protecting the case when move the game.

3
TECHNICAL PARAMETERS
Voltage: AC 220V/110V（50/60HZ）
Max. current: 2.7A/5.5A
(Note: The proper voltage and current used accords to the nameplate at the back door
of the game.)
Max. power: 600W
Power (standby mode): 100W
Coin size: φ21mm ~ φ31mm(diameter)
1.2mm ~ 2.5mm(thickness)
Capacity of coin box: about 1500 pcs with coin size φ25mm*1.5mm
Location required: indoor use; temperature: -5~40°C ; RH > 90%; no contact with
any corrosive, greasiness and dirt.
Dimensions: L1720mm*D880mm*H1180mm
Free Parts:
# DRAWING NAME SPEC./MODEL QTY
1 bulb 10W 2
2 key 1285＃2
3 key 1396＃2
4 power cord 1
5 manual 1
OPERATION MANUAL
1180
1720
880

4
CHECK THE CONNECTION
1. Check if the inner structure of the game is loose caused by transportation or the
terminals drop.
2. Check if the game is grounded.
3. Check if the resistance of the GNDs is more than 100 megohm.
4. Connect the power cord.
Attentions:

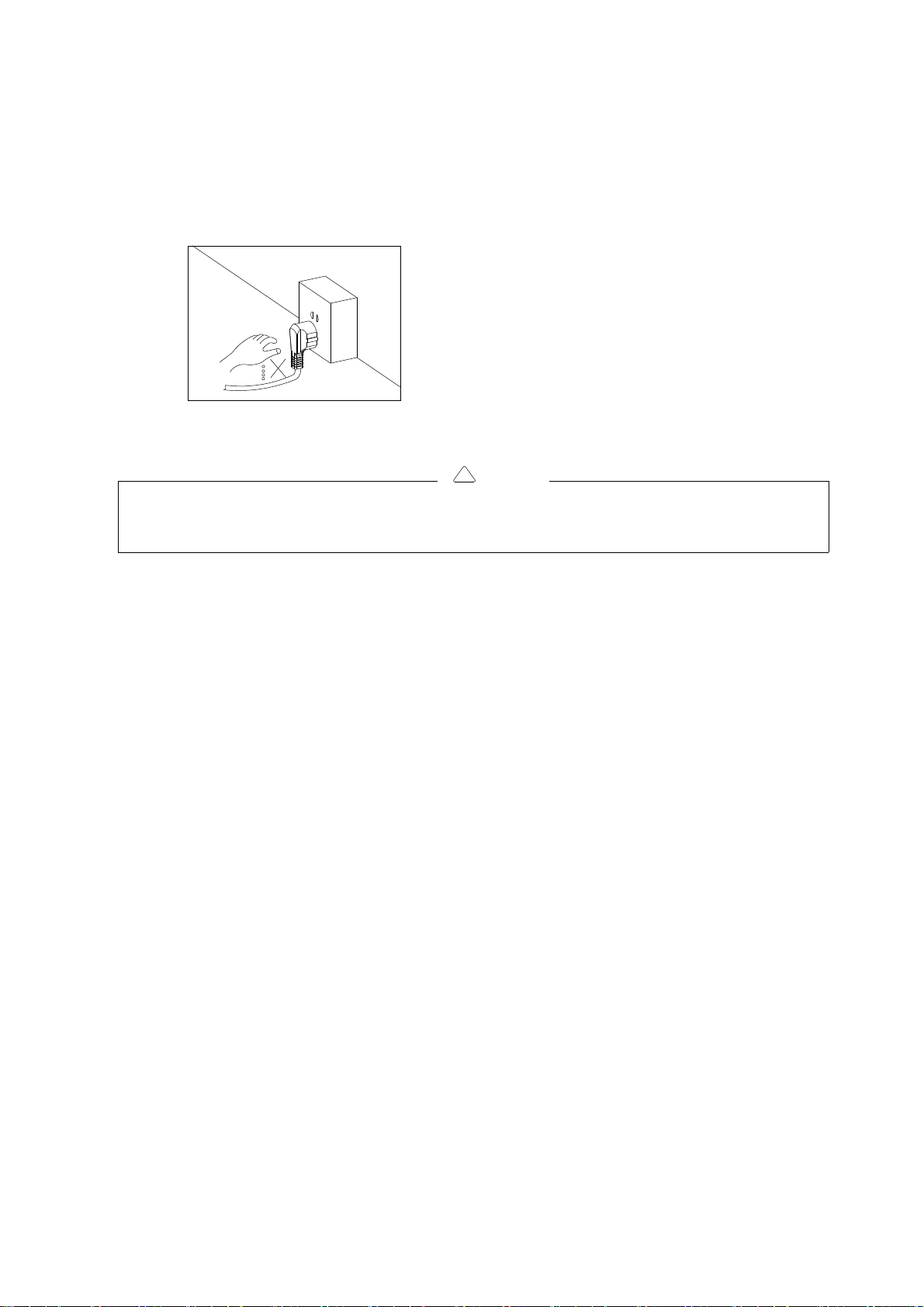

a) Please make sure the power cord is not pressed by wheel, foundation, etc.
Otherwise, the wire will be damaged to cause short circuit, even fire. Do not
use strong power to extend and wring the wires. Do not make the wire be near
to the high temperature object. Properly put the wire to avoid any kicking or
treading.
b) Hold the plug to pull it out from the socket.
电源开关
电源输入插头
市电插盒
Socket
Plug
Power switch
AAAA

5
c) Do not touch the plug with wet hands.
d) Make sure the voltage and fuse used are proper.
Connect the power:
1. Confirm the value of voltage input is same as the one stated on the nameplate on
the back of the game.
2. Swith on the power switch.
3. Properly adjusted the coin mech and confirm it can work properly.
4. Check and confirm all the flash lights and display boards can work properly.
5. Open the back door of the game to find out the main board. Adjust the DIP switch
according to the game setting chart.
6. Test the game and confirm it can work properly.
7. Check and confirm the sound is ok.
！w a rn in g
B e fo re in p uting the pow e r, p lea se c h eck the re sista n ce b e tw e en inp ut p o rt a n d G N D . M a ke
sure the co n nection is p r o p e r.

6
CHECK BEFORE OPERATION
1. Confirm the power cord is properly plugged and without any damages.
2. Confirm the game is properly fixed.
3. Confirm the cabinet of game is without damages and burrs.
4. Confirm the surface of game is clean and with proper marks.
DAILY OPERATION
Please properly refer to the instructions above to check the game before operation.
After operation, please collect the coins and keep record of the coin meter.

7
GAME SETTINGS

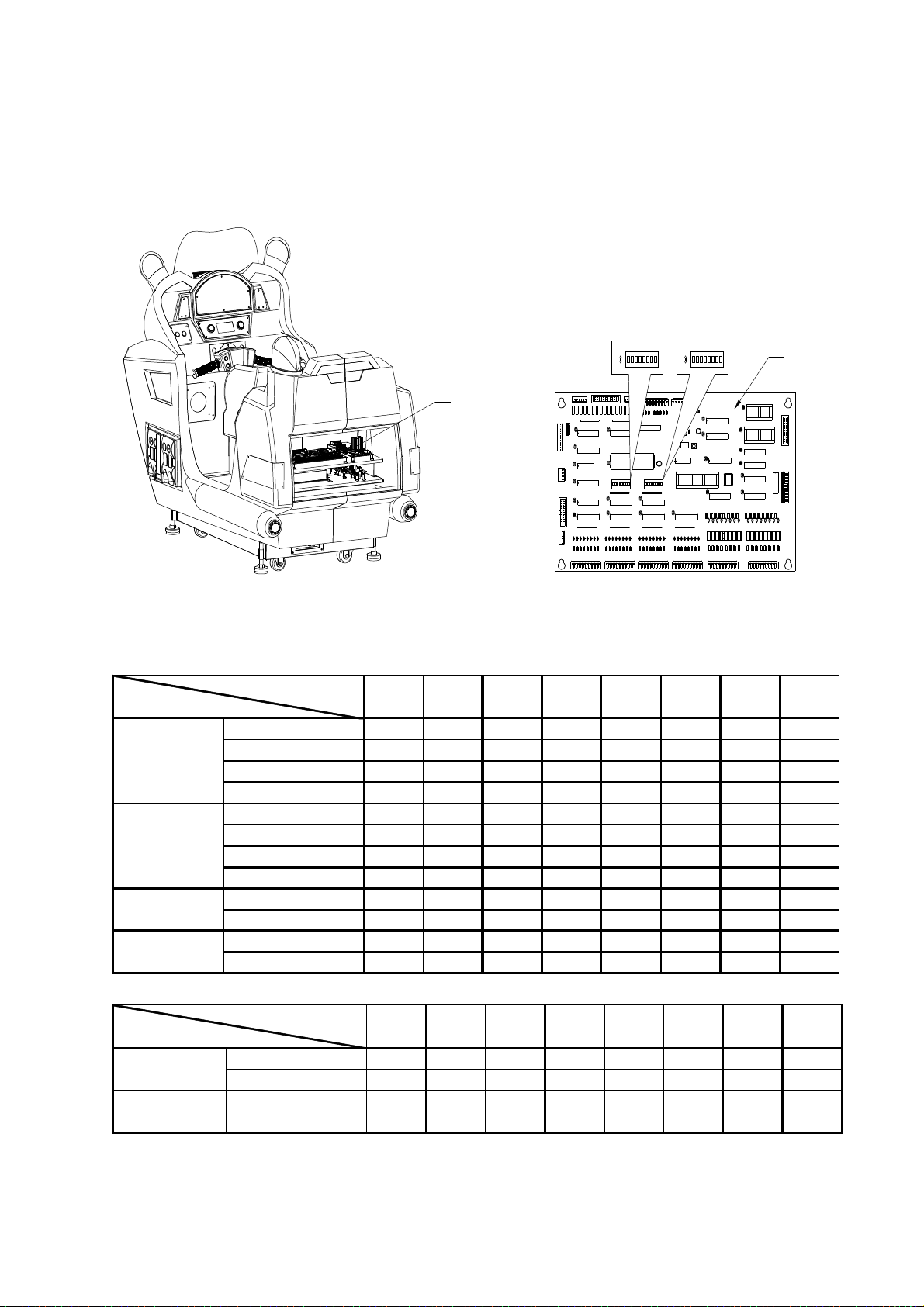

Open the door of chassis to find the DIP switches SW1, SW2 on the main board.
Game settings chart:
1 2 3 4 5 6 7 8
1 COIN OFF OFF
2 COINS ON OFF
3 COINS OFF ON
FREE PLAY ON ON
60 SECONDS OFF OFF
90 SECONDS ON OFF
120 SECONDS OFF ON
150 SECONDS ON ON
ENABLE OFF
DISABLE ON
ENABLE OFF
DISABLE ON
DEMO
MOVEMENT
DIP SW1
SETTING ITEMS
GAME TIME
NO. OF COIN
PER GAME
DEMO MUSIC
12345678
ENABLE OFF
DISABLE ON
ENABLE OFF
DISABLE ON
DIP SW2
SETTING ITMES
ODOMETER
TACHOMETER
主机板
SW2SW1
ON
OFFOFF
ON DIPONDIPON
1 2 3 654 7 8874 5 6321
主机板
Main
board
Main
board

8
ADJUSTMENT
Adjust the coin mech:
Descriptions:
A. remove the plastic coin from the coin sample chute and put a proper coin in it.
B. remove the screws on the back of coin entrance. Adjust the the fix chip of back of
coin entrance according to the diameter of coin you will use so that it will prevent
the large coin blocking the coin mech.
C. set the COIN SW to “ON”.
D. set the pulse of COIN signal to “50MS”.
E. following the drawing to adjust the resistance for sensitivity of coin acceptance, turn
colckwise for increasing and counterclockwise for decreasing.
adjusting chip of entrance
coin reject bar
COIN signal wavelength
adjusting SW
COIN signal SW
power/signal input
micro-adjust resistance
sample coin chute
DC+ 12V
STR ICT SLACK
Sensitivity
+-
COIN
Remove
REPLACE
Backward
SW3
100ms SLOW
25ms FAST
NOM
normal
MGN
accurate
50ms MEDIUM
WHITE
COUNTER(+/-)
GROUND
N.C.
SW1
SW2
N.O.
COUNTER(-/+)
COIN SIGNAL
GRAY
BLACK
RED
GRAY

9
Adjust the volume:
Descriptions:

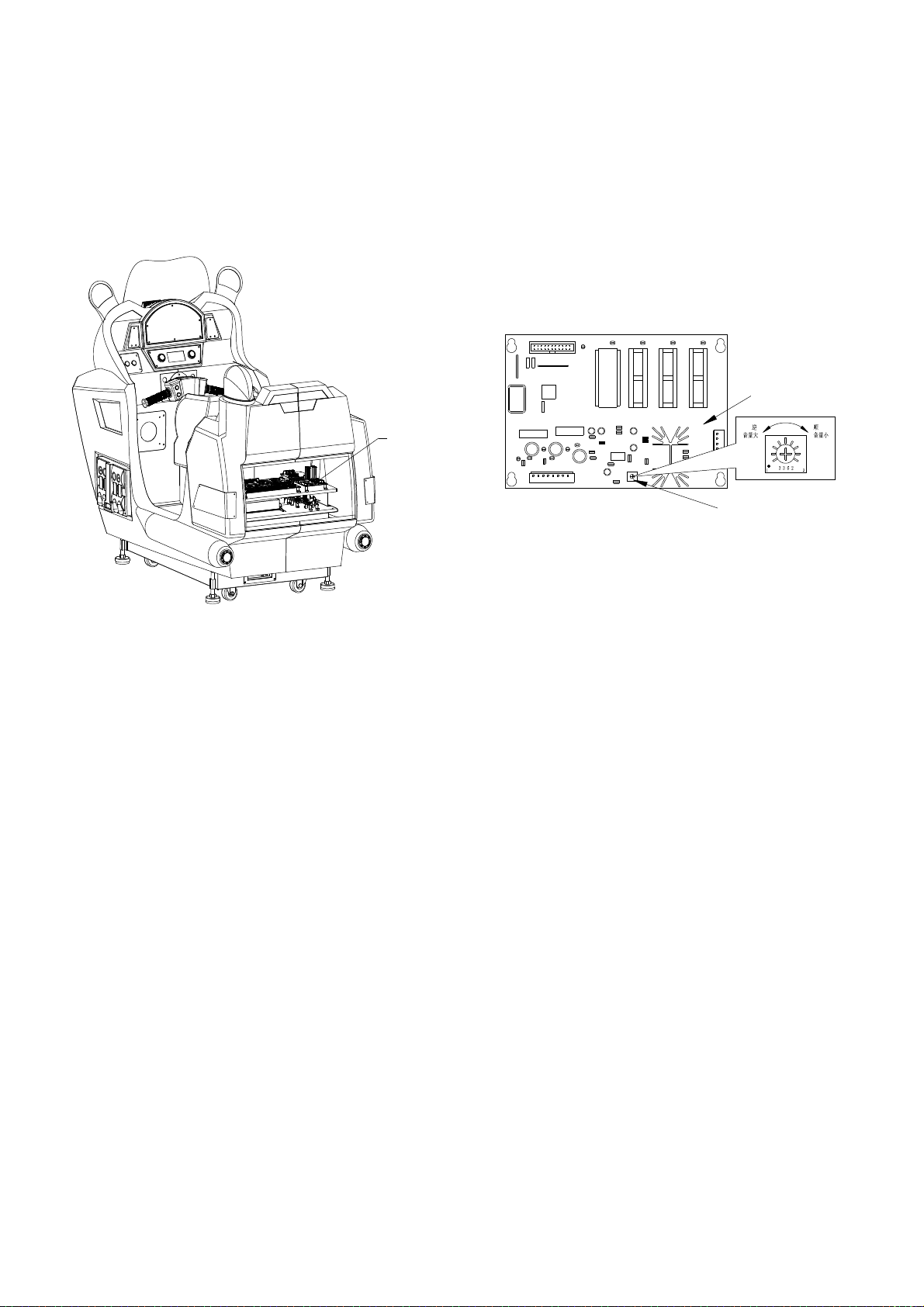

Open the back door to find the volume potentiometer on the sound board.
Twist the potentiometer to adjust the vlume. Counterclockwisely to increase the
volume, clockwisely to decrease the volume.
声音板
Sound
board
Sound
board
Volume
potentiometer

10
CHECK AND MAINTENANCE
Daily check
ITEMS DESCRIPTIONS
Coin mech Check if the coin mech can work properly.
START button Check if the START button can work properly.
Accelerator Check if the accelerator can work properly.
Sound Check if the sound is proper.
Motor Check if the motor can work properly.
Temperature, humidity Check if the temperature and humidity is proper.
Daily maintenance
ITEMS DESCRIPTIONS
Cabinet Clean the cabinet with water.
Acrylic panel Clean the panel with water.
PCB Clean the PCB with brush.

11
TROUBLESHOOTING
PARTS PROBLEM CAUSES SOLUTIONS
The coin mech need to be
adjusted. Adjust the coin mech.
Fake coin in coin mech. Take out the fake coin.
The wire of coin signal is loose. Check the connection of coin mech.
The coin mech is bad. Repair or replace the coin mech.
Wire of button is loose. Check the connection.
Micro switch of button is bad. Replace the micro switch.
Bad connection. Check the connection of sensor.
Sensor is bad. Replace the sensor.
Micro switch is bad. Replace the micro switch.
Bad connection. Check the connection of micro switch.
Bad connection of display board. Check the connection of display board.
Port of display board is bad. Repair or replace the main board.
Bad connection. Check the connection of lights.
The light is bad. Replace the light.
The speaker is bad. Replace the speaker.
Wire of audio signal is loose. Check the connection of audio signal wire.
The volume is too low. Adjust the volume.
Motor drive board is bad. Repair or replace the drive board.
Bad connection Check the connection of motor.
No AC110V/220V voltage input. Check the connect and 110V/220V voltage input.
The fuse is burnt. Replace the fuse.
No voltage output in power supply. Repair or replace the power supply.
The output voltage of power supply
is too low. Adjust the output voltage of power supply to 5.2V.
The main board is bad. Replace the main board.
The micro
switch is invalid.
No Sound.
SPEAKE
R
Coin in coin box
is invalid.
No scoring.
Can not insert
coin
START
BUTTON
Pressing the
button is nvalid
COIN
MECH
No movement
after powering
on the game.
POWER
ACCELER
ATOR
SENSOR
MICRO
SWITCH
MOTOR
DISPLAY
BOARD No display.
The light can
nor work.
LIGHTS
No movement.

12
PARTS DRAWING AND PARTS LIST
Main Cabinet:
# NAME QTY # NAME QTY
01 Waring light 2 14 Rear right acrylic 1
02 Black switch 2 15 Service door 1
03 Yellow LED light 5W 2 16 Red light 2
04 Bulb 10W 2 17 LED light board 2
05 Left head light lens 1 18 Rear left acrylic 1
06 Right head light lens 1 19 ABS 1
07 Windshield 1 20 Speaker mesh 1
08 Air outlet 1 21 Speaker 1
09 Blower 1 22 Left wheel blister 1
10 LEG light white 4 23 Right wheel blister 1
11 Right meter’s acrylic 1
12 Rotation warining light 1
13 Fiberglass body 1
04
06
05
03
08
07
09
10 11
12
13
14
23
22
21
20
15
16
19
17
18
02
01

13

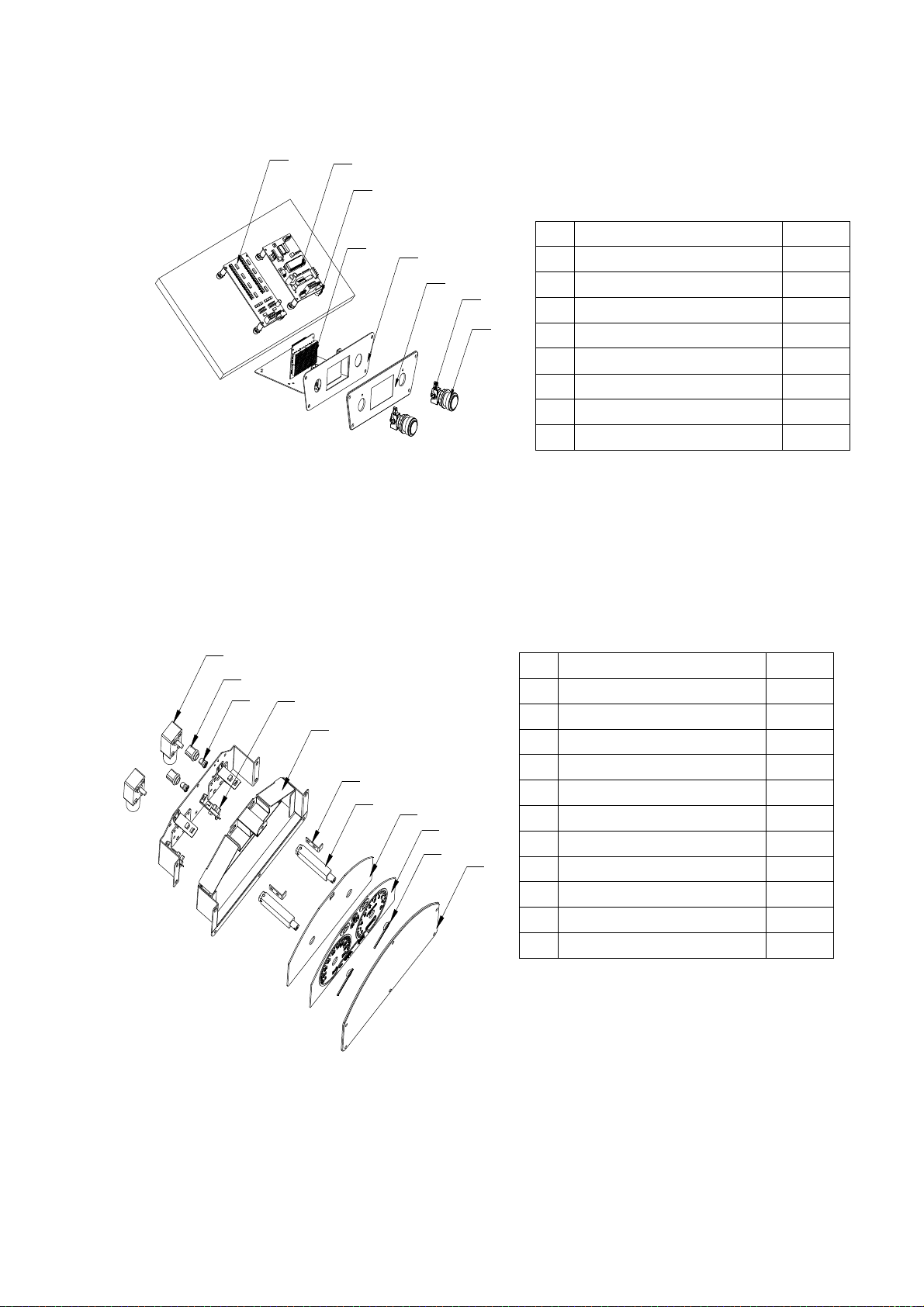

Matrix Assembly:
Panel for Meters:
# NAME QTY
01 Matrix drive board 1
02 Matrix control board 1
03 PCB holder 8
04 Matrix display board 1
05 Matrix holder 1
06 Display board acrylic 1
07 Micro switch 2
08 Small round button 2
# NAME QTY
01 Motor 2
02 Light holder 2
03 LED light 2
04 Optical swich 4
05 Meter panel 1
06 Shade 2
07 Rotation pole 2
08 Meter panel 1
09 Meter acrylic 1
10 Indicator 2
11 Transparent acrylic 1
08
07
06
05
01 02
03
04
01
02
03 04
05
06
07 0809
10 11

14

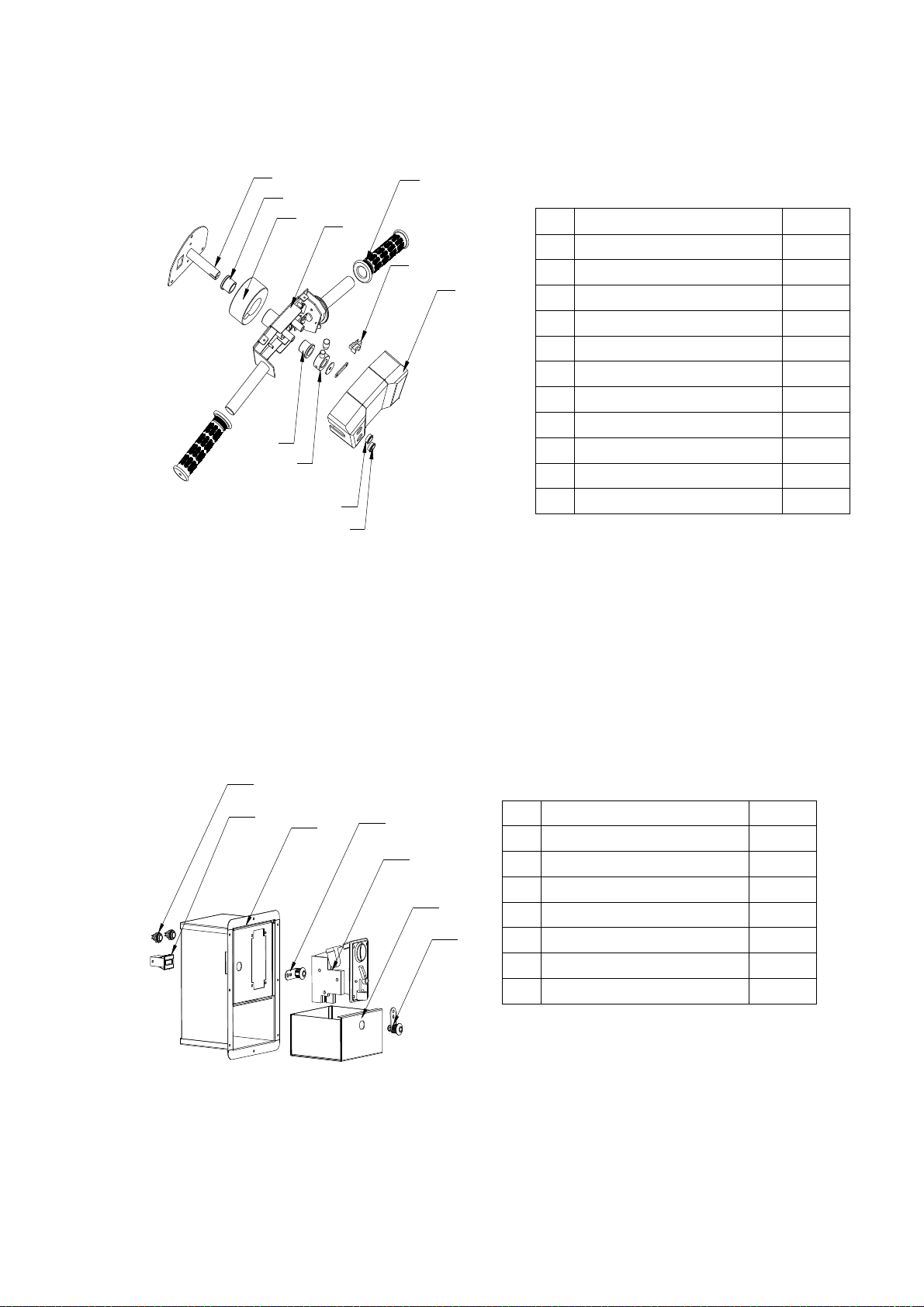

Handle:
Coin Door:
# NAME QTY
01 Handle base 1
02 Handle sleeve 1
03 Big handle sleeve 1
04 Handle assembly 1
05 Handle 2
06 Optical switch 1
07 Handle cover ABS 1
08 Green button 1
09 Red buton 1
10 Handle button sleeve 1
11 Handle sleeve 1
# NAME QTY
01 Button switch 2
02 Meter 1
03 Coin door assembly 1
04 Lock 1285 1
05 Coin mech 1
06 Coin box 1
07 Lock 1396 2
02
07
06
05
04
03
01
01
02
03 04
05
07
09
08
10
11
06

15
PCB Assembly:
Chassis:
# NAME QTY
01 Main board 1
02 LED drive board 1
03 Computer host board 1
04 Wooden board 1
05 Motor drive board 2
06 Linking board 1
07 PCB holder 24
08 Power supply holder board 1
09 Solid relay 25A 1
10 Power supply 1
11 Power supply holder 1
# NAME QTY
01 Frame 1
02 Bearing with pole 1
03 Bearing base 1
04 Bearing 6004 4
05 Bearing with base 2
06 Chassis 1
07 Air switch 10A 1
08 Power switch box 1
09 Foundation 4
10 Wheel 4
11 Motor shaft 1
12 Motor CH-22 1
13 Limit rubber 2
08
11 10 09
07
06
05
04
03
02
01
13
12 11
10
09
08
07
06
05
04
03
02
01

16

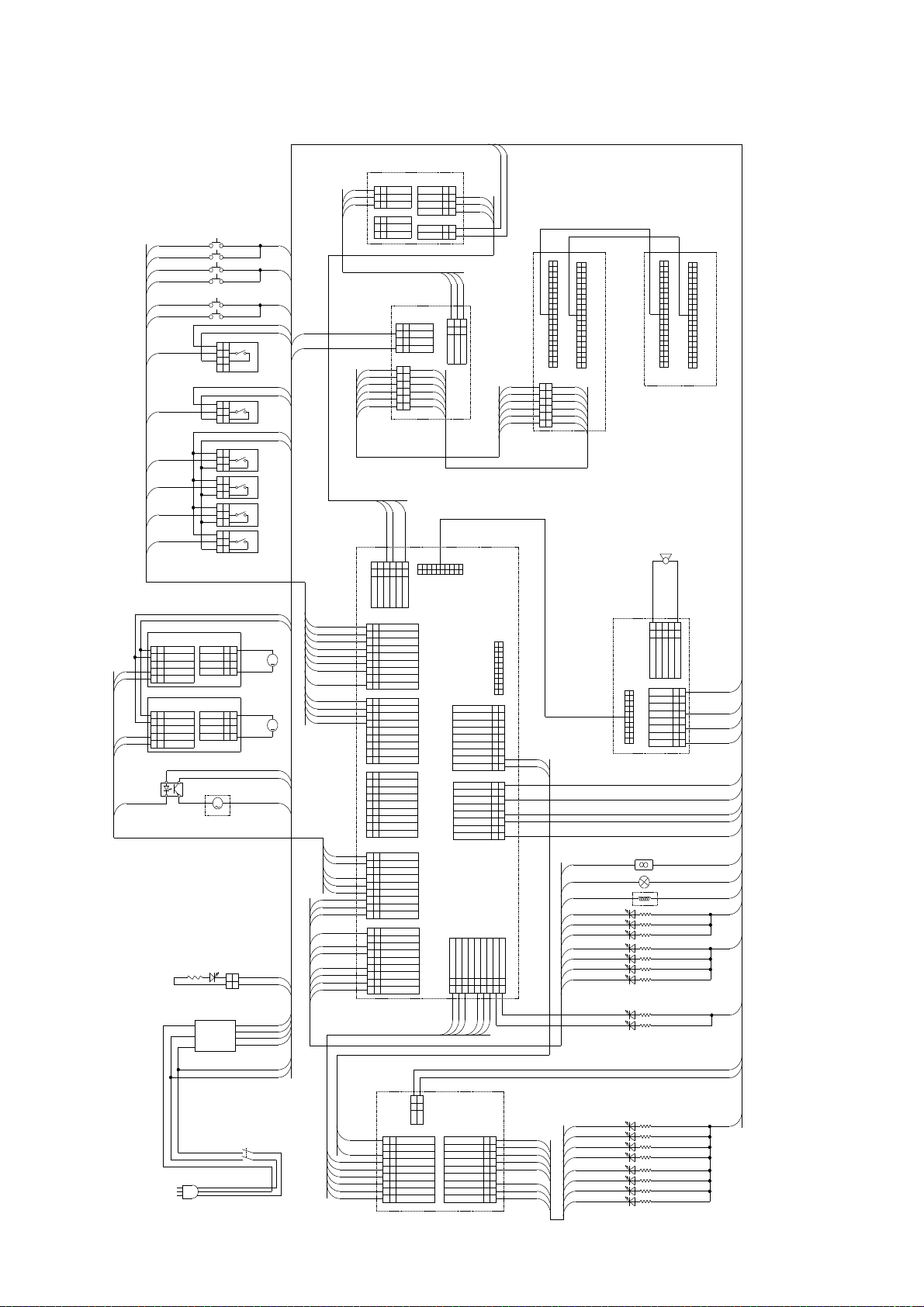

SHEMATIC DIAGRAM
front&back red light(R)
wheel light 3(L&R)
wheel light 2(L&R)
N/A
speaker sw light
alarm sw light
indicator sw light
panel light 1(R)
START sw light alarm sw light
speaker sw light
direction sw light
panel light 1(R) panel light 2(R) panel light 2(L)
coin meter
Motor
tachometer motor up
tachometer motor down
speedometer motor down
tachometer sw down
O7
Bla12
O6
R5
Bla11
right indcator
N/A
left indicator
CN1
5
2
3
4
11
4
3
2
5
8
77
8
66
Signal
Amplifier
Board
4 4
2
3 3
2
5
8
7
6
9 9
6
7
8
5
CN3
Accelerator
SW
3
2
coin mech
2
3
1 1
11
3
22
3
5V R1-R5
Bla1-Bla14
G1
12V
GND
-12V
220V
220V
Power
Supply
O1-O14
E
front&back red light(L)
N/A
big light (L)
wheel light 1(L&R)
service button
N/A
9 8 7 6 5 4 3 2
1
9 5 6 8 7 3 4 2
COIN1
N/A
6 6
8
9
7 7
9
8
5
2
3
4
1 1
4
3
2
5
CN6
Bla1
O1
5
2
3
4
11
4
3
2
5
speedometer motor up
8
9
77
9
8
66
CN9
CN10
5
2
3
4
11
4
3
2
5
8
9
77
9
8
66
N/A
CN4
5
2
3
4
11
4
3
2
5
8
9
77
9
8
66
N/A
CN8
N/A
6 6
7 7
5
2
3
4
1 1
4
3
2
5
8 8
9 9
AC 220V IN
1
2
3 3
2
1+5V
+5V
8
7
6
5 5
6
7
8
GND
GND
GND
+12V
4 4
+12V
GND
CN7
Main Board
22
1 1
Side light board
1
CN12
N/A
tachometer sw up
speedometer sw down
speedometer sw up
N/A
panel light 1(L)
IDC20P
CON1
6 6
8
9
7 7
9
8
coin sw
5
2
3
4
1 1
4
3
2
5
CN3
N/A
accelerator sw
START sw
REST sw
speaker sw
indicator sw
alarm sw
fan
strobe
Control CT
Send TX
CN13
2 3 4 5 5
4 3 2
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
big light(R)
big light(L)
front&back red light(R)
front&back red light(L)
wheel light 3
wheel light 2
wheel light 1
N/A
N/A
N/A
left indicator
right indicator
N/A
N/A
N/A
N/A
Receive RX 11
66
N/A N/A
1 112V
GND 22
CN5
N/A
3
2 2
3
1 1
11
3
2
Speedometer SW
(up)
2
3
Speedometer SW
(down)
Bla3
R1
Tachometer SW
(down)
3
2
Tachometer SW
(up)
2
3
1 1
11
3
22
3
Alarm SW
START button
Speaker SW
Indicator SW
REST SW
Service SW
44
Fan
Strobe
coin meter
big light (R)
9 9 START sw light 11
22GND
33
4
55
4N/A
-12V
GND
115V
7
66
7
GND
GND
CN1
812V 8
IDC20P
Sound
Board
CON1
N/A
output - output + output - 5
3 4 2
CN2
output + 1 1
2 3 4 5Bla4-2
-
4" speaker
15W
+
R4-2
GND 1 1
J3
22
2
3
1 1
3
2
J2
GND
Link T-
5V
Send TX
Control CT
GND 4 4
2
3 3
2
J4
11
Receive RX
J1
2
3
11
3
2
Link T+
Link T+
Link T-
GND
Linking Board
Link A(T+) 1 1
CN1
2 33
2
Link B(T-)
GND
GND
GND
+5V
CN3
2
3
11
3
2
8
9
7 1
3
2
CN7
5
6
410
12
11
4 4 +12V
+5V
RCK2/L1
GND
OE
DG1
RCK1
L3
SCK2/L2
GND
LO
OR1
SCK1
Matrix Control Board
S9276
L3
SCK2/L2
GND
LO
OR1
SCK1
+5V
RCK2/L1
GND
OE
DG1
RCK1
11
12
10 4
6
5
CN4
2
3
17
9
8
JP8 JP6
JP7 JP5 JP7 JP5
JP8 JP6
1
40
1
40
1
1
40 40
Matrix Board
Matrix Drive Board
reversal
44
2
3
1 1
3
2
CN1
+12V
GND
N/A
5 5 foreward
motor -
3
2
44
2
3
1 1
motor +
CN2
N/A
N/A
Motor Drive Board 1
Motor Drive Board 2
N/A
N/A
CN2
motor + 11
3
2
4 4
2
3
motor -
foreward
55
N/A
GND
+12V
CN1
2
3
11
3
2
4 4 reversal
M
+
-
-
+
M
Solid Relay
M
Motor
Br1-1
B1-1
panel light 2(R)
left indicator
right indicator
panel light 1(R)
panel ight 2(R)
indicator sw light
speaker sw light
alarm sw light
START sw light
left indicator
right indicator
panel light 1(R)
panel light 2(R)
indicator sw light
speaker sw light
alarm sw light
START sw light
panel light 1(L)
panel light 2(L)
leakage circuit
breacker
motor for
speedometer
motor for
tachometer
W1
Y1
G1
B1
Pu1
Grey1
Br1
Pi1
Y/G1
Br/W1
R/W1
O/W1
Y/W2
G/W1
B/W1
Pu/W1
Grey/W1
W/Bla1
B2
Bla/W1
R/W2
G/W2
B/W2
Br2
Y2
G2
B3
Y3
G/Bla1
Pu2
Grey2
W2
Pi2
Y/G2 Br/W2
Pu/W2
Grey/W2
Br/W4
G/Bla3
W/Bla2
W1
Y1
G1
B1
Pu1
Grey1
Br1
Pi1
Y/G1
Br/W1
R/W1
O/W1
Y/W2
G/W1
B/W1
Pu/W1
Grey/W1
W/Bla1
B2
Bla/W1
R/W2
G/W2
B/W2
Br2
Y2
G2
B3
Y3
W2
Pi2
Y/G2
Br/W2
G/Bla1
Pu/W2
Grey/W2
Grey/W3
Pu/W3
W3
Pi3
Y/G3
Br/W3
G/Bla2
Y4
Pu/W3
Grey/W3
W3
Pi3
Y/G3
Br/W3
G/Bla2
Y4
W/Bla2
G/Bla3
Br/W4
Bla1-1
W1-1
R1-1
R1-1 W1-1
Bla1-1
Br1-1
B1-1
O2
O4
Bla5
R2
Bla4
Bla6
Bla7
Bla8
Bla9
R3
Bla10
O5
G1
Bla2
O3
R4
Bla13
O8
O9
O10
O11
O12
O13
Bla14
O14
IDC40P
IDC40P
