INFORMATION FOR YOUR SAFETY!
THE FCC REGULATION WARNING (for USA)
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
Unauthorized changes or modification to this system can
void the user's authority to operate this equipment.
CAUTION
The normal function of the product may be disturbed by
Strong Electro Magnetic Interference. If so, simply reset
the product to resume normal operation by following the
owner's manual. In case the function could not resume,
please use the product in other location.
PRECAUTIONS
PLEASE READ CAREFULLY BEFORE PROCEEDING
Please keep this manual in a safe place for future reference.
Power Supply
Please connect the designated Power Cord to an AC outlet
of the correct voltage.
Do not connect it to an AC outlet of voltage other than that
for which your instrument is intended.
Unplug the Power Cord when not using the instrument, or
during electrical storms.
Connections
Before connecting the instrument to other devices, turn off
the power to all units. This will help prevent malfunction and
/ or damage to other devices.
Location
Do not expose the instrument to the following conditions to
avoid deformation, discoloration, or more serious damage:
Direct sunlight
Extreme temperature or humidity
Excessive dusty or dirty location
Strong vibrations or shocks
Close to magnetic fields
Interference with other electrical devices
Radios and televisions placed nearby may experience
reception interference. Operate this unit at a suitable
distance from radios and televisions.
Cleaning
Clean only with a soft, dry cloth.
Do not use paint thinners, solvents, cleaning fluids, or
chemical-impregnated wiping cloths.
Handling
Do not apply excessive force to the switches or controls.
Do not let paper, metallic, or other objects into the
instrument. If this happens, unplug the Power Cord from the
wall outlet. Then have the instrument inspected by qualified
service personnel.
Disconnect all cables before moving the instrument.
2
Regarding the display
This display is a precision device created
using extremely high technology, and careful attention
has been paid to its product quality. Although you may
notice some of the issues listed below, please be aware
that these are due to the characteristics of LCD displays,
and are not malfunctions.
• There may be pixels in the display that are always dark
(unlit) or always bright (lit).
• Depending on the displayed content, the brightness of
the display may appear uneven.
• Depending on the displayed content, horizontal stripes
of shading may be visible.
• Depending on the displayed content, flickering or moire
patterns may be visible.
instrument
0
5
25
75
95
100
aw_GRAND1000_Manual_G06_120912Part1
2012󾾠󾾠9󾾠󾾠12󾾠󾾠 12:35:40

Contents
3
Introduction
Panel & Display Description

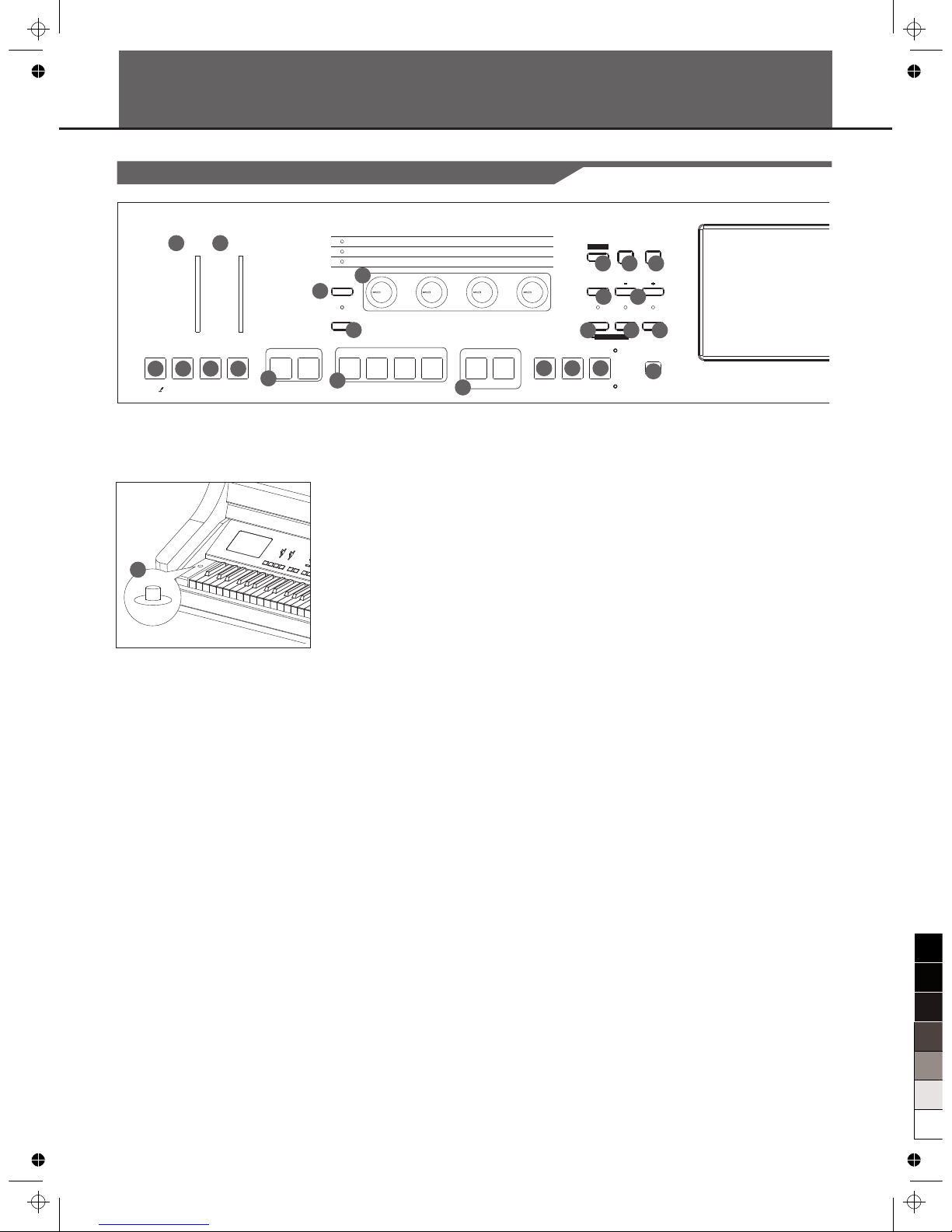

Front Panel............................ ......................6

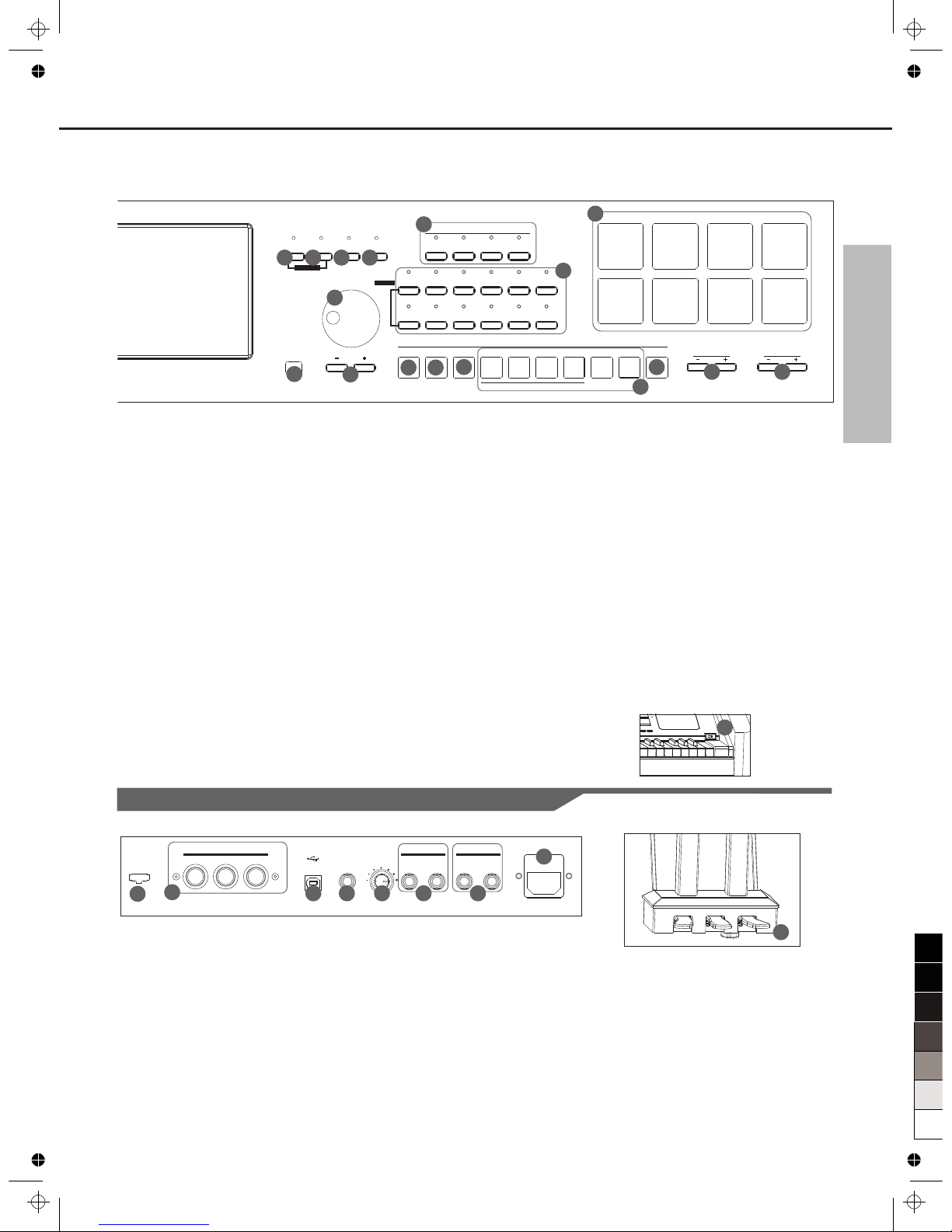

Rear Panel..........................................................7

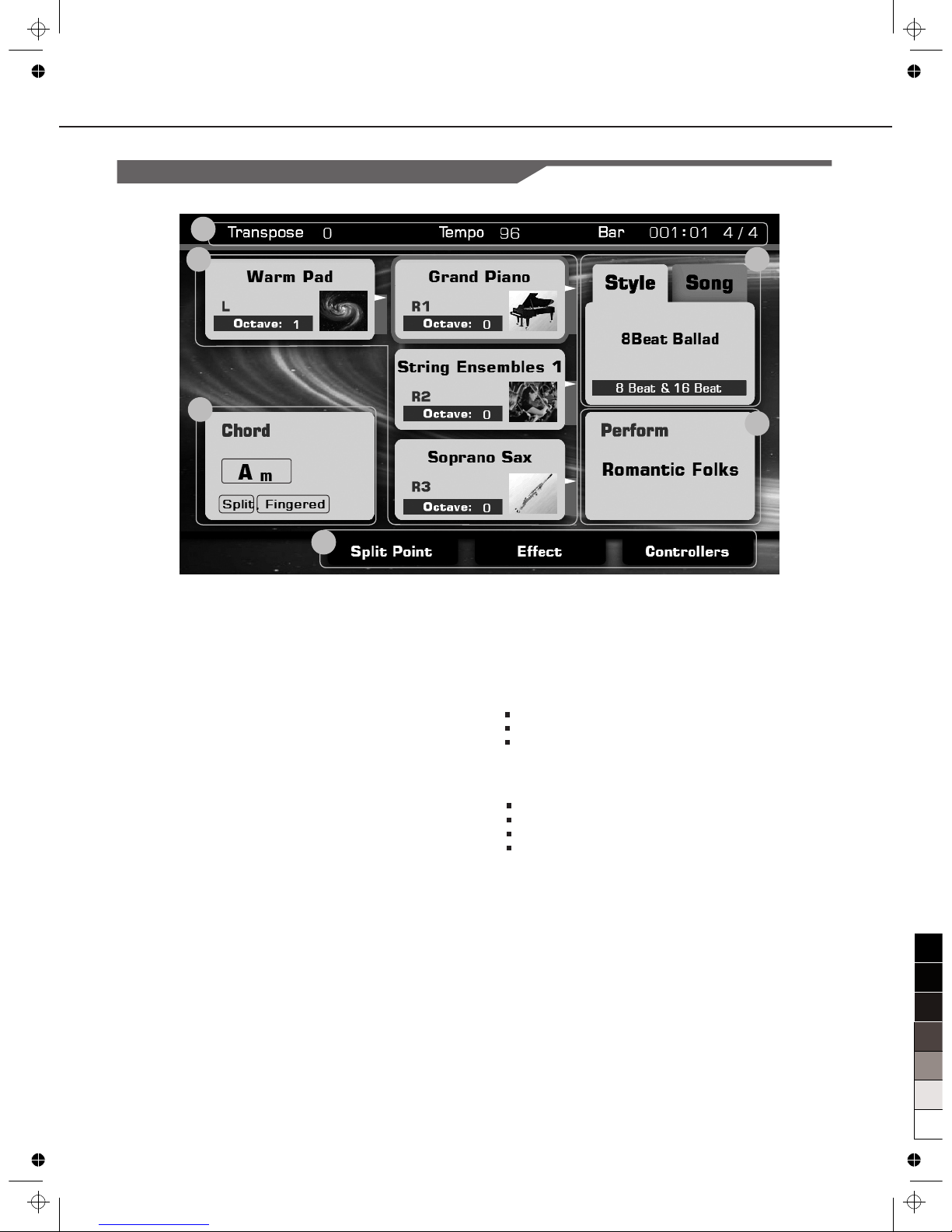

Main Display........................................................8
Setup
Part List...............................................................9

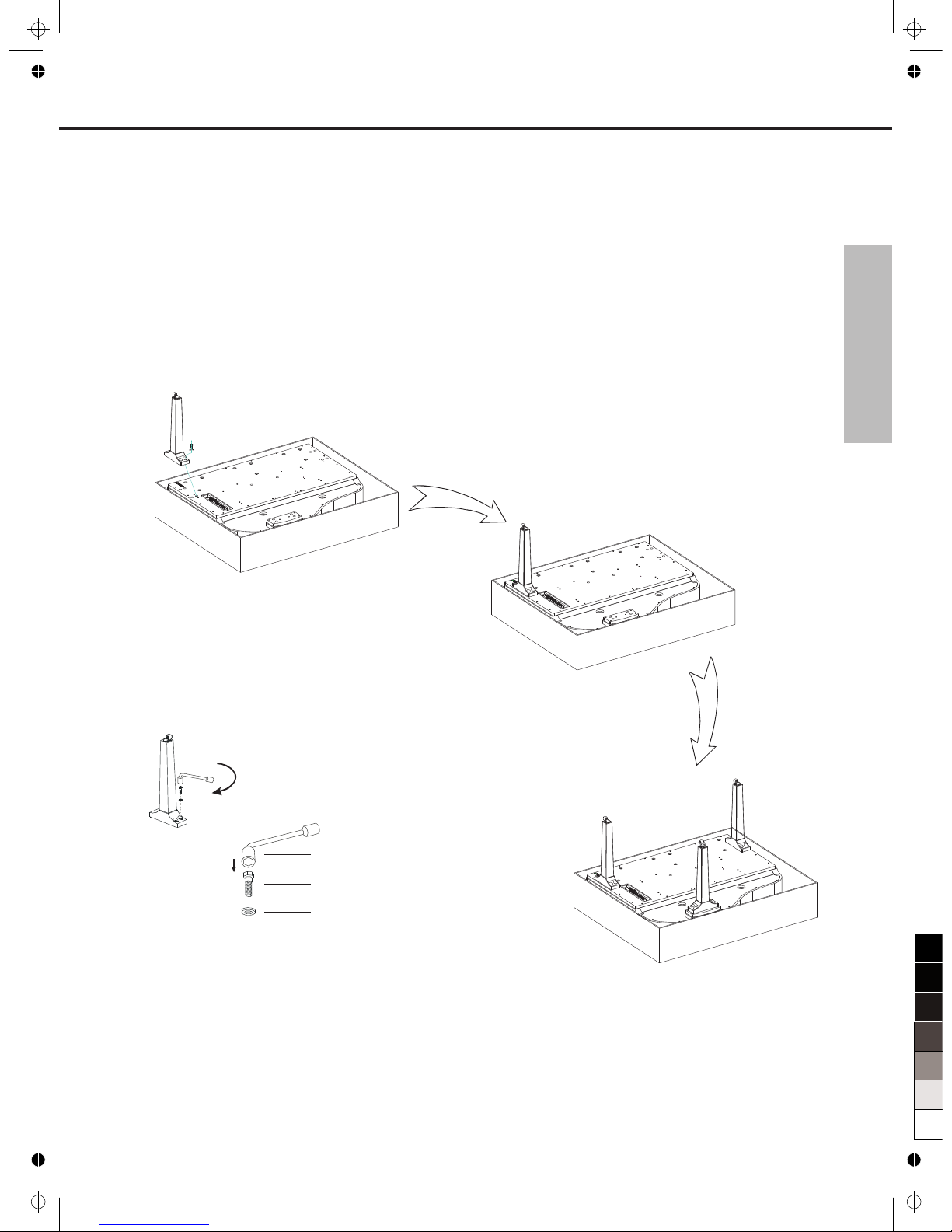

Setup Guide......................................................10
Connections
Power Supply....................................................14
Connecting a pair of Headphones.....................14
Connecting an Audio Equipment.......................14
Connecting an MP3/CD Player.........................14
Connecting a Microphone.................................15
Connecting a Computer....................................15
Connecting External MIDI Devices...................15
Quick Start
Basic Operations
Selection Operation...........................................16

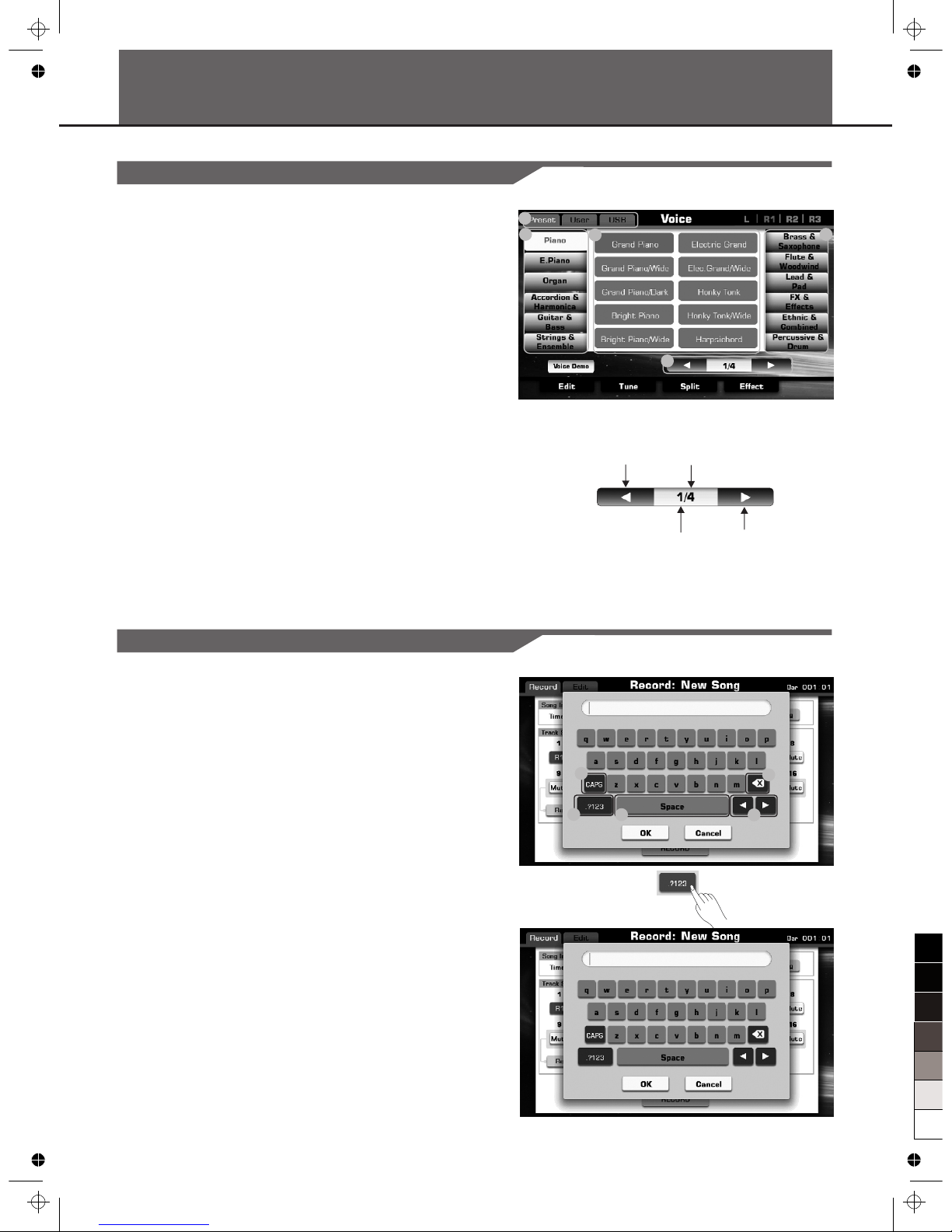

Soft Keyboard Operation...................................16
Setting Operation..............................................17
Playing the Demos.......................................18
Playing Voices..............................................19

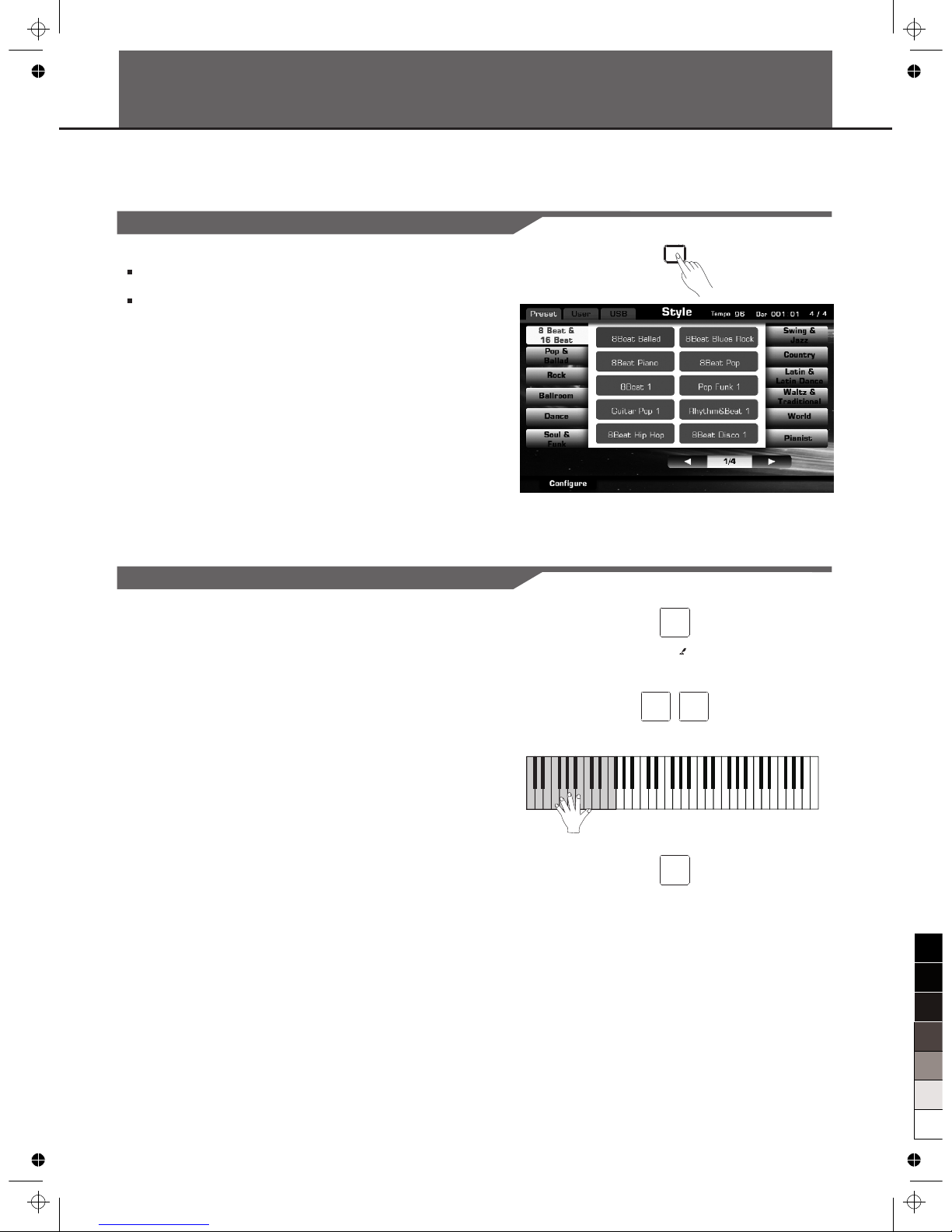

Playing with a Style......................................20
Playing Songs...............................................21
Recording Your Performance to MIDI......22
Recording Your Performance as Audio...23
Using a USB Storage Device.....................24
Downloading Data from the Computer....25
........
0
5
25
75
95
100
aw_GRAND1000_Manual_G06_120912Part1
2012󾾠󾾠9󾾠󾾠12󾾠󾾠 12:35:40

Voice
Playing Various Voices......................................26
Keyboard Parts
Playing a single Voice (Right1)................................26
Playing Two or Three Voices Simultaneously (R 1, 2, 3)26
Playing Different Voices with the Left and Right Hands.27
Setting the touch sensitivity of the keyboard.....27
Changing Pitch..................................................28
Master Tuning.....................................................28
Transpose..........................................................28
Octave..............................................................29
Scale Tune.........................................................29
Adjusting the Volume of Voices.........................31
Adding Effects to Voices....................................31
Arpeggiator.........................................................32
Harmony............................................................35
Chopper.............................................................35
Global Effect......................................................36
Reverb and Chorus..............................................36
EQ....................................................................37
Editing Voice.....................................................37
Editable Parameters.............................................38
Saving the Edited Voice.........................................39
Saving, Deleting or Renaming the User Voice.............39
Style
Selecting Various Styles....................................40
Playing Only the Rhythm Tracks of a Style.......40
Playing All Tracks of a Style..............................40
Adjusting the Volume Balance..........................41
Muting the tracks of a style...............................42
Split Point Settings............................................42
Selecting a Chord Fingering Type.....................43
Chord Basics......................................................43
Single Finger......................................................44
Multi Finger........................................................44
Chord Dictionary..................................................44
Operations for Style Playback...........................45
Style Variations....................................................45
The Function Description of Control Buttons...............45
Adjusting the Tempo..........................................46
Using the Metronome.......................................46
One Touch Setting.............................................47
Saving, Deleting or Renaming the User Style...47
....................................................26
Contents
Advanced Use
Song
Playing Various Songs
Operations for Song Playback..........................48
Adjusting the Volume of the Song.....................49
Displaying Music Notation (Score)....................50
Piano Mode
Entering the Piano Mode...................................52
The Setting of this Mode...................................52
Song Recording
MIDI Recording.................................................54
..................................................45
Multi Track Recording...........................................55
Editing the Recorded MIDI Song..............................56
Audio Recording................................................57
Saving, Deleting or Renaming the User Song..57
Global Setting
Keyboard...........................................................58
Style & Song.....................................................58
Controllers.........................................................59
Knob.................................................................59
Multi Pad............................................................60
Pedal................................................................61
Effect.................................................................62
MIDI I/O.............................................................62
Utility..................................................................62
Performance Memory
Selecting a Performance Bank..........................64
Recalling a Performance Memory Settings.......64
Freezing the Specific Item.................................65
Registering the Performance Memory Settings.65
Saving, Deleting or Renaming the User
Performance......................................................66
USB Device
File Operations in the File Selection Display.....67
Creating a New Folder......................................68
Formatting the USB Device...............................68
MIDI
What’s MIDI?.....................................................69
Midi Terminals...................................................69
Downloading Data from the Computer..............69
......................................48
Quick Recording
4
0
5
25
75
95
100
aw_GRAND1000_Manual_G06_120912Part1
2012󾾠󾾠9󾾠󾾠12󾾠󾾠 12:35:40

Contents
Appendices
Troubleshooting
Specification..................................................70
Appendices
Voice List...........................................................71
Style List............................................................77
Song List...........................................................78
Demo List..........................................................78
Chord List..........................................................79
MIDI Implementation List..................................80
............................................70
Introduction Quick Start Advanced Use Appendices
5
0
5
25
75
95
100
aw_GRAND1000_Manual_G06_120912Part1
2012󾾠󾾠9󾾠󾾠12󾾠󾾠 12:35:40

O.T.S.
LINK
AUTO
FILL IN
FADE
IN / OUT
START/
STOP
SYNCSYNC
STOP
INTRO 1 INTRO 2 MAIN 1 MAIN 2 MAIN 3 MAIN 4 ENDING 1
PLAY/
STOP
RW FF
REVERB
ATTACK
ASSIGN 1
CHORUS
RELEASE
ASSIGN 2
VOLUME
CUTOFF
ASSIGN 3
PAN
RESONANCE
ASSIGN 4
MIXER
METRO.
NEW SONG
SELECT
SONG
RECORD
AUDIO
RECORD
A.B.C.
CHORD
DICT.
START
ENDING 2
MASTER
VOLUME
MUSIC
VOLUME SONG
SELECTSCORE
STYLE
SELECT
TEMPO
TAP
EFFEC T ON / OFF
TEMPO
MAX
MIN
MAX
MIN
PAUSE
17
16
15
14
Panel & Display Description
Front Panel
6
1. POWER ON/OFF BUTTON
Turn the power on or off.
2. MASTER VOLUME SLIDER
Adjust the master volume.
3. MUSIC VOLUME SLIDER
Adjust the volume of the playing style
or the playing song.
4. SELECT BUTTON
Select the three effect combinations of
GROUP KNOBS sequentially.
5. GROUP KNOBS
Effect1: Adjust reverb level, chorus
level, volume, pan of the
RIGHT 1 voice.
Effect2: Adjust attack time, release
time, the filter cut off
frequency, the amount of
resonance applied at the filter
cutoff frequency of the
RIGHT 1 voice.
Effect3: The knob effect can be
assigned separately. See
“Controller”.
6. EFFECT ON/OFF BUTTON
Turns the keyboard effect (arpeggio,
harmony, chopper) on or off.
7. SCORE BUTTON
Show the staff of the current song
(SMF).
8. SONG SELECT BUTTON
Enter the SONG SELECT interface.
9. STYLE SELECT BUTTON
Enter the STYLE SELECT interface.
10. TEMPO TAP BUTTON
Change the tempo by “tapping” out
the tempo with this button.
11. TEMPO+, TEMPO- BUTTONS
Adjust the current tempo.
12. METRO. BUTTON
Turn the Metronome on or off.
13. RECORD SONG BUTTON
Enter the RECORD SONG interface.
You’ll record your performance in
SMF format.
14. RECORD AUDIO BUTTON
Enter the audio recording is in ready
state. You’ll record your performance
in WAV format.
15. A.B.C. BUTTON
Turn the A.B.C. MODE on or off.
16. O.T.S. LINK BUTTON
Turn the O.T.S. LINK on or off.
If it is turned on, the One Touch
Settings can be changed when you
select different style.
17. AUTO FILL IN BUTTON
Turn the AUTO FILL IN on or off.
18. FADE IN/OUT BUTTON
Turn the FADE IN or OUT on or
off.
19. INTRO 1, 2 BUTTONS
Play the intro.
20. MAIN 1, 2, 3, 4 BUTTONS
Play the main part.
STYLE CONTROL
21. ENDING 1, 2 BUTTONS
Play the ending.
22. SYNC. STOP BUTTON
Turn the SYNC. STOP on or off.
23. SYNC. START BUTTON
Turn the SYNC. START on or off.
24. START/STOP BUTTON
Start or stop playing the style.
SONG
21. RW, FF BUTTONS
Rewind and fast forward the song.
23. PAUSE BUTTON
Pause the song playback.
24. PLAY/STOP BUTTON
Start playing the song or stop
the song playback.
25. MIXER BUTTON
Enter the MIXER interface.
23
4
5
6
78 9
10 11
12 13
18 19 20 21
22 23 24
1
25
0
5
25
75
95
100
aw_GRAND1000_Manual_G06_120912Part1
2012󾾠󾾠9󾾠󾾠12󾾠󾾠 12:35:42

BANK FREEZE STORE O.T.S.
VOICE
MODE
PIANO
MODE
USB
DISK
GLOBAL
SETTING R 2
IGHT R3IGHT
EXIT
M1 M2 M3 M4 M5 M6
DEMO
PART ON/OFF
PIANO E.PIANO ORGAN
ACCORDION &
HARMONICA
GUITAR &
BASS
STRINGS &
ENSEMBLE
BRASS &
SAXOPHONE
FLUTE &
WOODWIND
LEAD &
PAD
FX &
EFFECTS
ETHNIC &
COMBINED
PERCUSSIVE &
DRUM
2 3 41
6 7 85
VOICE
LEFT RIGHT 1
TRANSPOSE OCTAVE
PERFORMANCE MEMORY
O.T.S.
37
36
35
Panel & Display Description
7
26. VOICE MODE BUTTON
Enter the VOICE mode.
27. PIANO MODE BUTTON
Enter the PIANO mode.
28. GLOBAL SETTING BUTTON
Enter the GLOBAL SETTING
interface.
29. USB DISK BUTTON
Enter the USB DISK interface.
30. PART ON/OFF BUTTONS
Turn LEFT, RIGHT1, RIGHT2,
RIGHT3 on and off individually.
31. DATA DIAL
Increase and decrease the
value.
32. VOICE BUTTONS
Enter the VOICE SELECT
interface. You'll select a voice
category.
33. MULTI PADS
Add spice to your performance
with special dynamic phrases
by pressing them.
34. EXIT BUTTON
Exit the current interface and
return to the previous display.
35. +, - BUTTONS
Increase and decrease the
value by 1.
36. BANK BUTTON
Enter the PERFORMANCE SELECT
interface.
37. FREEZE BUTTON
Turn the FREEZE function on or off.
38. STORE BUTTON
Save the panel setups to one of the
performance memorys.
26 27 28
30
31
32
34 38
39
40 41
39. M1-M6 BUTTONS
PERFORMANCE MEMROY:
Recall the panel setups from one of
the performance memorys.
O.T.S (M1-M4):
Call up all the settings (voice, effect,
etc) that match the current style.
40. O.T.S. BUTTON
Switch to the O.T.S. function.
41. TRANSPOSE+, TRANSPOSE-
BUTTONS
Adjust the TRANSPOSE value.
42. OCTAVE+, OCTAVE-
BUTTONS
Adjust the OCTAVE value.
43. USB PORT
Connect the USB storage device.
PEDAL
USB
IN OUT THRU L R R
220-240V~ 50/6 0Hz
AUX. OUT
L/MONOMIC MIC VOL
MIDI AUX.IN
F3 T1AL250V
44. MIDI IN/OUT/THRU JACKS
Connect other products equipped
with a MIDI interface.
45. USB JACK
Connect to a computer.
46. MIC JACK
Connect a microphone.
47. MIC VOL KNOB
Adjust the input volume of the
microphone.
48. AUX IN JACKS
Connect any external audio source,
such as an MP3 or CD player.
49. AUX OUT JACKS
Connect to your amp/audion system.
For monaural output, use the L/MONO
jack.
50. AC POWER INLET
Connect the AC power cable to this inlet.
51. PEDAL JACK
Connect pedals.
52. PEDALS
The function of pedal can be set.
The default settings are soft,
sostenuto, sustain from left to right.
45 46 47 48 49
51
Rear Panel
43
52
29
33
42
50
44
0
5
25
75
95
100
aw_GRAND1000_Manual_G06_120912Part1
2012󾾠󾾠9󾾠󾾠12󾾠󾾠 12:35:42

1. Voice
Display voice name and octave data of each part.
(Right1, Right2, Right3, Left)
How to select the voice for each part?
For example:
1. Pressing anywhere in the R1 display area makes the
R1 part selected.
2. Pressing again will call up the Voice Selection display.
Now, you can select the voice for R1.
2. Style&Song
Display the currently selected style name, for example
“8Beat Ballad”. Pressing this name will call up the Style
Selection.
Pressing song tab will display the currently selected song
name, for example “Brahms Waltz”. Pressing this name
will call up the Song Selection display.
3. Performance
Display the currently selected performance name.
Pressing this name will call up the Performance
Selection display.
Main Display
12
3
4
5
6
CB
A
4. Chord
Display the chord name and related information.
A. Chord Name
B. Chord Mode
C. Split
5. Shortcut to setup pages
Pressing “Split Point” will call up the Split Setting quickly.
Pressing “Effect” will call up the Effect Setting quickly.
Pressing “Controllers” will call up the Controllers display
quickly.
6. Others
The amount of transposition in semitone units.
Current tempo.
Current playback position.
Current time signature.
Panel & Display Description
8
0
5
25
75
95
100
aw_GRAND1000_Manual_G06_120912Part1
2012󾾠󾾠9󾾠󾾠12󾾠󾾠 12:35:42

Setup
9
This section contains information about setting up your instrument and preparing to play. Please go through this section carefully
before turning the power on.
Before you proceeding to assemble the stand, get a Philip's
screwdriver (not supplied).
Make sure you have the following parts, which are supplied into
package.
Part List
A Pedal component
B Right leg component
C Left leg component
D Rear leg component
E Piano body
F Slice
G M12X45mm hexagonal bolt
H 3x15mm screw
I Copper pole
J Wrench
E
C
AHIBD
J
G
0
5
25
75
95
100
aw_GRAND1000_Manual_G06_120912Part1
2012󾾠󾾠9󾾠󾾠12󾾠󾾠 12:35:44

Setup
A. Please reverse the carton to upside down and place it in the
horizontal before you initial assembly the piano. Make sure the
bottom surface of carton is up. Then open the box, take off the
foams which used for protected piano body.
10
Setup Guide
0
5
25
75
95
100
aw_GRAND1000_Manual_G06_120912Part1
2012󾾠󾾠9󾾠󾾠12󾾠󾾠 12:35:44

B. Put the left leg component(C) on the left of piano body. Find the
sunken hole on the leg component and correspond the hole on the
piano body. Then place a washer into this sunken hole, Use Wrench
(J) to tighten 4 pieces of hexagonal bolt (2 on each side) by
clockwise turn.
Please see below illustrator for you detail reference.
(Make sure the direction of the placement is correct before screwing)
Fix the Right leg component(B) and Rear leg component(D) to Piano
body (E) with Hexagonal bolt(G) according finished assembly in left leg
component.
How to screwing the hexagonal bolt?
Put a Washer into the sunken hole on the leg component.
* Put the hexagonal bolt into the sunken hole, then screwing it
* Use the Wrench snapped the cap of Hexagonal bolt, put together the
leg component and the piano body by clockwise turn the wrench.
Wrench/hexagonal bolt spanner
hexagonal bolt
Slice
Setup
11
0
5
25
75
95
100
aw_GRAND1000_Manual_G06_120912Part1
2012󾾠󾾠9󾾠󾾠12󾾠󾾠 12:35:45

C. Use screws(H) to tighten the two copper poles (I) onto the back of
Pedal component(A).Make sure the direction of the placement is
correct before screwing.
D. Then reserved the Pedal component with two copper poles(I), and
use the hexagonal bolt(G) to tightly settled it with the piano body
according finished assembly in left leg component, fix the other side
of copper Pole onto the piano body (E). The assembly are finished.
Setup
12
0
5
25
75
95
100
aw_GRAND1000_Manual_G06_120912Part1
2012󾾠󾾠9󾾠󾾠12󾾠󾾠 12:35:46

E. Reverse the piano after finished assembly.
Please carefully reverse the piano avoid touched floor cause
damaged or broke any leg components or pedal component. Then
moved the carton box and all package goods.
You can enjoy play the piano now.
Caution!
carefu lly reverse the piano
avoid damaged or broke
any legs
Setup
13
0
5
25
75
95
100
aw_GRAND1000_Manual_G06_120912Part1
2012󾾠󾾠9󾾠󾾠12󾾠󾾠 12:35:49

Connections
14
Connecting a pair of Headphones
There are two headphones jacks on the left underneath the piano body.
1. When an optional pair of stereo headphones is connected with the
headphones jack 2, the sound from speakers will switch off
automatically resulting in only the sound from headphone to be
heard.
2. When jack 1 is connected with the stereo headphones, the sound
can be heard from both headphones and speakers of the piano.
3. Connect two pairs of headphones to jack1 and jack 2, it helps the
user play with the teacher or friend in a quiet surrounding.
Note:
Do not listen with the headphones at high volume for long periods of
time. Doing so may cause hearing loss.
Connecting an Audio Equipment
Connect the rear-panel AUX.OUT jack to amplified speakers, amplifiers
or domestic hi-fi units for external amplification.
For monaural output, use the L/MONO jack.
Note:
To avoid damaging the speakers, please ensure that the volume has
been set to the minimum level before connecting the power and other
devices.
Connecting an MP3/CD Player
Connect the audio output of an MP3/CD player or other audio source to
the stereo AUX IN jacks on the rear panel.
The input signal is mixed with the instrument signal, allowing you to
play along.
Power Supply
1. Connect the AC power cable to AC power inlet on the underside of
the piano body.
2. Plug the AC power cable into an AC outlet.
3. Turn the power ON. The LCD on the panel will light up.
Note:
When the keyboard is not in use or in the time of thunderstorm, please
disconnect the power for safety purpose.
Headphone Jack 1
Headphone Jack 2
L R R
220-2 40V~ 50/60 Hz
AUX. OUT
L/MON OMIC VOL
AUX.IN
F3 T1AL 250V
L R R
220-2 40V~ 50/60 Hz
AUX. OUT
L/MON OMIC VOL
AUX.IN
F3 T1AL 250V
0
5
25
75
95
100
aw_GRAND1000_Manual_G06_120912Part1
2012󾾠󾾠9󾾠󾾠12󾾠󾾠 12:35:49

Connections
15
Connecting a Computer
You can simply connect the computer with USB cable via the USB
connector.
You can use a commercially available MIDI interface to connect the
piano to the computer via the MIDI connectors.
After the driver is installed and initialization is finished, you can choose
USB Audio Device in the device menu of the software to transfer midi
data.
Note:
Do not select USB audio device in both of input and output setting
together, otherwise the sound overlaps.
Connecting External MIDI Devices
You can use standard MIDI cables to connect external MIDI devices.
MIDI IN: Receive MIDI message from an external MIDI device.
MIDI OUT: Transmits MIDI message generated by the instrument.
MIDI THRU: Simply relays the MIDI message received at MIDI IN.
Note:
To avoid damages, please be sure to turn off the power switches
before you disconnect the related devices from the piano.
Connecting a Microphone
You can connect an external microphone to MIC IN jack.
Adjust the input volume of the microphone by using MIC VOLUME
knob.
Note:
Turn the volume switch counter-clockwise to reach the minimum
volume level when connecting or disconnecting a microphone.
MIDI OUTMIDI IN
MIDI OUT MIDI IN
USB
L R
AUX. OUT
L/MONOMIC MIC VOL
AUX.IN
USB
IN OUT THRU MIC
MIDI
USB
IN OUT THRU MIC
MIDI
0
5
25
75
95
100
aw_GRAND1000_Manual_G06_120912Part1
2012󾾠󾾠9󾾠󾾠12󾾠󾾠 12:35:49

Selection Operation
16
There are some selection interfaces: voice selection, style selection,
song selection, performance selection, etc.
How to select the file in these selection interfaces?
For example:
1. Location of data
Preset: Location where pre-programmed (preset) data is stored.
User: Location where recorded or edited data is saved.
USB: Location where data on USB storage device is saved.
2. Category of data
The files are divided into categories according to their types. The
categorization will be selected by pressing this categorization name
on LCD. For example: The voice file (Grand Piano) is in the Piano
categorization. Pressing “Piano” will select the Piano
categorization.
3. Flip and File Browsing
If there are too many files in one category, the files will be on
paging show. You can select your desired page by pressing the
cursor button on LCD.
4. File Selecting
Select the desired file by pressing the file name on the current page.
Using the Soft Keyboard
When you name or rename a file or a folder, you should call up soft
keyboard display.
1. Deleting characters:
Press the delete button.
2. Moving the cursor:
Press the right or left cursor button.
3. Entering capital characters:
Press the CAPS button, the capital characters will be displayed.
4. Entering space:
Press the space button.
5. Entering numbers or marks:
Press the numbers button, the numbers and marks will be
displayed.
Enter the number or mark by pressing its button.
Press the OK button to actually enter the new name and return to
the previous display.
Press the CANCEL button to canel operations and return to the
previous display.
Previous Page
Next Page
Current Page
Page Num
3
54
1
2
Basic Operations
1
22 4
3
0
5
25
75
95
100
aw_GRAND1000_Manual_G06_120912Part2
2012󾾠󾾠9󾾠󾾠12󾾠󾾠 13:03:22

Basic Operations
Setting Operation
On/Off
There are three types on parameter setting.
1. ON/OFF as in the picture: )
Press this “ON/OFF” button to switch the keyboard touch response
ON (orange font display) or OFF (gray font display).
2. LIST (as in the picture: Curve )
Press this “Normal” button, all available parameters would be
listed.
You can choose any one of 3 ways below:
1. Press your desired parameter on LCD to select it.
2. Use the DATA DIAL to select your desired parameter.
3. Press the [+] or [-] button to select your desired parameter.
The selected parameter will be highlighted.
3. DATA (as in the picture: Flat velocity )
Press this “100” button to display a pop-up box.
You can choose any one of 3 ways below:
1. Press the “+” or “-” button to adjust the data.
2. Use the DATA DIAL to adjust the data.
3. Press the [+] or [-] button to adjust the data.
(
17
Normal
100
0
5
25
75
95
100
aw_GRAND1000_Manual_G06_120912Part2
2012󾾠󾾠9󾾠󾾠12󾾠󾾠 13:03:22

Playing the Demos
The instrument features 9 wonderful demos. Please refer to DEMO
LIST.
Press the [VOICE MODE] and [PIANO MODE] buttons
simultaneously to start playing the demo.
Select your desired demo
Press the Demo name on LCD or use the DATA DIAL, the [+] or the
[-] button to select your desired demo.
Pause the demo
Press the [PAUSE] button to pause the demo playing or continue
playing the demo.
Stop the demo
Press the [PLAY/STOP] button to stop the demo playback.
Adjust the tempo of the demo playback
Press the [TEMPO+] or [TEMPO-] button to adjust the tempo of the
playback demo.
Exit the demo
Press the [EXIT] button to stop the demo playback and return to the
main display.
18
PLAY/
STOP
PAUSE
TEMPO
EXIT
VOICE
MODE
PIANO
MODE
DEMO
0
5
25
75
95
100
aw_GRAND1000_Manual_G06_120912Part2
2012󾾠󾾠9󾾠󾾠12󾾠󾾠 13:03:22

Playing Voices
The instrument features exceptionally realistic 672 voices, including piano, guitar, strings, brass and many more. Please refer to
Voice List.
Turn the R1 PART on
Press the PART ON/OFF [RIGHT 1] button to turn the R1 part on.
You can play different voices simultaneously or play different voices
with the left and right hands. First, turn on the corresponding part.
Select a Voice for R1 PART
1.
Press one of the VOICE buttons to select a voice category and call
up the Voice Selection display.
Press the R1 display area on Main Display to call up the Voice
Selection display. Press one of the voice categories NAME on the
Voice Selection display.
2. Press the cursor button on LCD to select your desired voice page.
3. Press the voice NAME to select the desired voice on the current
page display.
You can also select the user voice, details see Voice.
There are 2 methods to select the voice category.
Play the Voice Demo
Press the “Voice Demo” on the Voice Selection display to start the
demo for the selected voice. Press the “Voice Demo”again to stop it.
Note:
If there isn't voice demo for the selected voice, “Voice Demo” will not
be displayed.
Play the keyboard and listen to the selected voice.
19
R 2
IGHT R3IGHT
PART ON/OFF
LEFT RIGHT 1
PIANO E.PIANO ORGAN
ACCORDION &
HARMONICA
GUITAR &
BASS
STRINGS &
ENSEMBLE
BRASS &
SAXOPHONE
FLUTE &
WOODWIND
LEAD &
PAD
FX &
EFFECTS
ETHNIC &
COMBINED
PERCUSSIVE &
DRUM
0
5
25
75
95
100
aw_GRAND1000_Manual_G06_120912Part2
2012󾾠󾾠9󾾠󾾠12󾾠󾾠 13:03:22

Playing with a Style
The instrument features 240 styles in a variety of different musical genres. Try selecting some of the different styles
(Refer to Style List) and play with the auto accompaniment.
Select a style
1.
Press the [STYLE SELECT] button.
Press STYLE Name on the Main Display.
2. Press one of the style categories NAME on the Style Selection
display to select the style category.
3. Press the cursor button on LCD to select your desired style page.
4. Press the style NAME to select the desired style on the current
page display.
You can also select the user style, details see Style.
There are 2 methods to call up the Style Selection display.
Start a style
1. Press the [A.B.C.] button, the specified left-hand section of the
keyboard becomes the “Auto Accompaniment” section, and chords
played in this section are automatically detected and used as a
basis for fully automatic accompaniment with the selected style.
2. Press the [SYNC START] button to set Auto Accompaniment to
standby—letting you simultaneously start the accompaniment as
soon as you start playing.
3. As soon as you play a chord with your left hand, the
accompaniment starts.
4. Press the [START/STOP] button to stop the accompaniment.
20
START/
STOP
SYNC
STOP
SYNC
START
STYLE
SELECT
A.B.C.
CHORD
DICT.
0
5
25
75
95
100
aw_GRAND1000_Manual_G06_120912Part2
2012󾾠󾾠9󾾠󾾠12󾾠󾾠 13:03:22
