Medifab JOSI-Octopus User manual

Serial Number:
User Manual for all Octopus Head Supports
Manual: Octopus20190815
IMPORTANT CONSUMER INFORMATION NOTICE:
This manual contains important instructions that
must be passed on to the user of this product.
Please do not remove this manual before delivery
to the end user.
SUPPLIER:
This manual must be given to the user of this product.
USER:
Before using this product, read entire manual and save
for future reference.
Octopus Head
Support
Installation and
User Manual

JOSI-Octopus
Positioning system for head and upper body
Instructions for use
JOSI-Manta
Stand 06/15
EN

Contents
Page
Introduction 2
Safety instructions 3
Indication and purpose 4
JOSI-Octopus 5
JOSI-Manta 10
Care and maintenance 14
1

INTRODUCTION
Dear Customer
JOSI-Octopus and JOSI-Manta is a positioning system for head and upper body.
Before using JOSI-Octopus and JOSI-Manta, please read the instructions for use carefully
and follow the safety instructions.
Technical modifications and errors excepted.
2

Safety instructions
Please always note the following safety instructions!
3
1. JOSI-Octopus and JOSI-Manta is only to be mounted and adjusted by qualified staff of orthopedic and
rehab specialized trade.
2. Before using JOSI-Octopus and JOSI-Manta make yourself familiar with the safe handling of the system
and follow any given instructions for use.
3. JOSI-Manta is designed for the exclusive use at JOSI-Octopus.
4. Never leave the user unattended while using JOSI-Octopus and JOSI-Manta!
5. Use the positioning system only in an upright posture. Breathing and circulation must not be affected.
For additional support for an upright posture please use belt-systems like seat trousers,
4-point pelvis belts, chest shoulder belts.
6. JOSI-Octopus and JOSI-Manta is no a system for fixation and stabilisation of the user in vehicles.
7. In case of non-observance of this instruction for use as well as any technical changes or amendments
(adds-on) we will not take any product liability.
8. The JOSI-Octopus headrest is exclusively to be used together with both retraction retainers closed in
front position by magnet twist-off cap (size 1-3) or plastic strap with velcro strap fastener (size 0)
(see Adjustments and Handling page 9, description picture 6).
Note: Size 1-3 magnetic twist-off cap on strap!
Size 0 plastic strap with velcro strap fastener!
Non-observance of these safety instructions can cause severe damages!
JOSI-Octopus and JOSI-Manta is orthopedic aid which is not suitable for re-use!

Indication and purpose
4
- Infantile cerebral palsy
- Paraplegia
- Neuromuscular diseases
- General developmental disorders
- Restricted motor skills
JOSI-Octopus and JOSI-Manta can be used in case of:

Add-on parts
Photos below show the add-on parts and their names.
5
retraction retainer, right (GR)
retraction retainer, left (GL)
head pad (I)
strap with magnet twist-off cap (H)
(size 1-3)
for opening twist in
arrow´s direction
open
JOSI-Octopus
plastic strap with
velcro strap fastener
(size 0)
locking lever for depth
adjustment (E)
locking lever for angle adjustment (D)

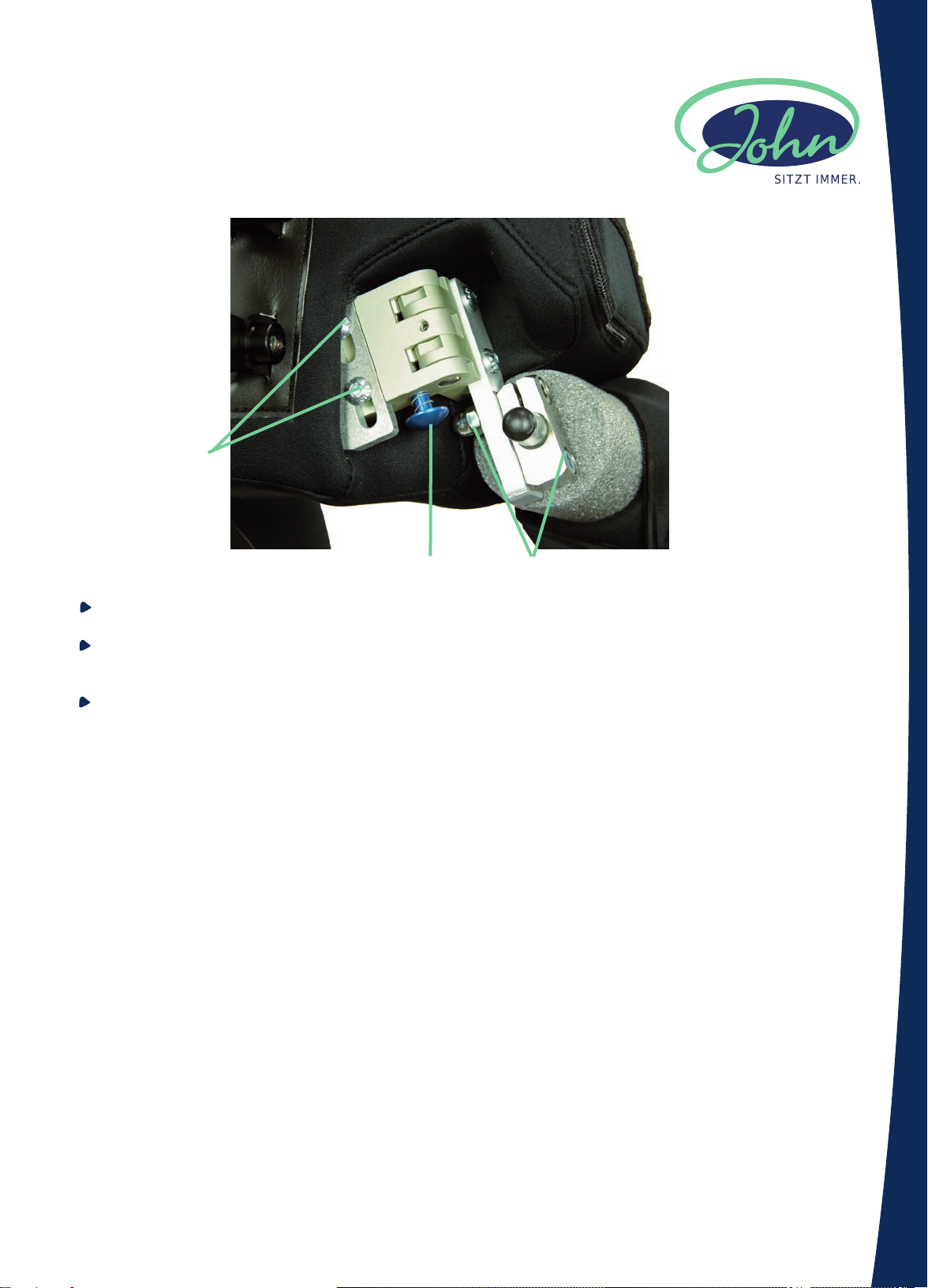

click-in joint with release button
for retraction retainers (C)
headrest mounting for height adjustment (F)
optional depth extansion

by loosening the screws A, the respective retraction retainer can be adjusted in height
by loosening the screws B, the respective retraction retainer can be adjusted in depth and angle to
the user´s upper body
by pressing the release button (C) the retraction retainer can be folded
6
A
CB

Adjustments and Handling
7
1.Put the headrest mounting (F) into the universal bracket
which is mounted on seatshell and fix the wing nut.
2.
Open the magnet twist-off cap (H) (size 1-3) by
turning anti-clockwise.
With size 0 open the plastic strap with velcro strap
fastener.
F

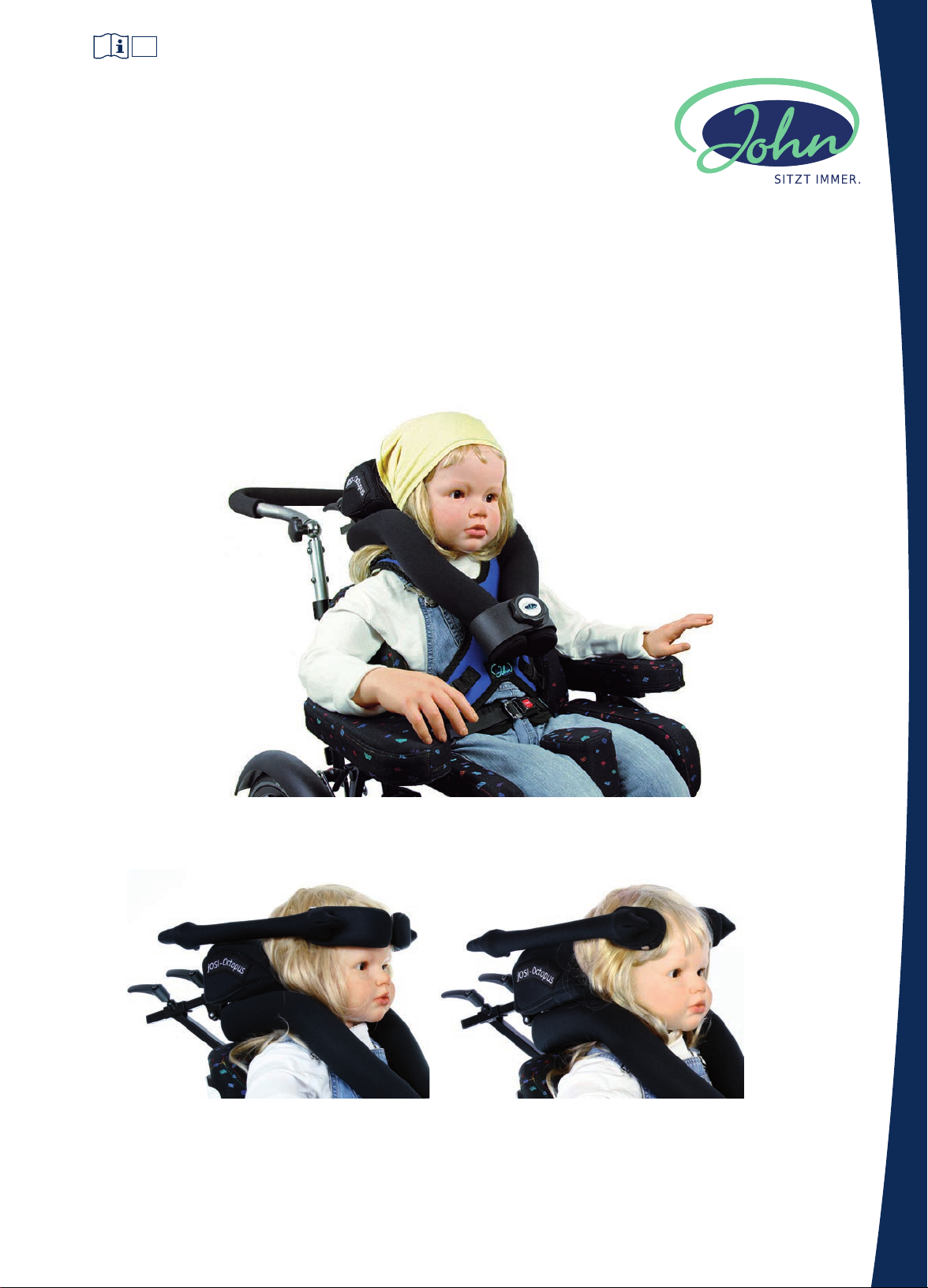

After checking the sitting posture as well as the chest- and pelvis belts JOSI-Octopus can be adjusted.
The headrest has to be adjusted so that neck and occiput fit closely to it.
Note: between retraction retainers and upper body must be 1cm difference.
In all settings, make sure that there are no physical limitations for the user.
open
open

8
3.
4.
C
G
GR GL
5.
1
2
GL
GR

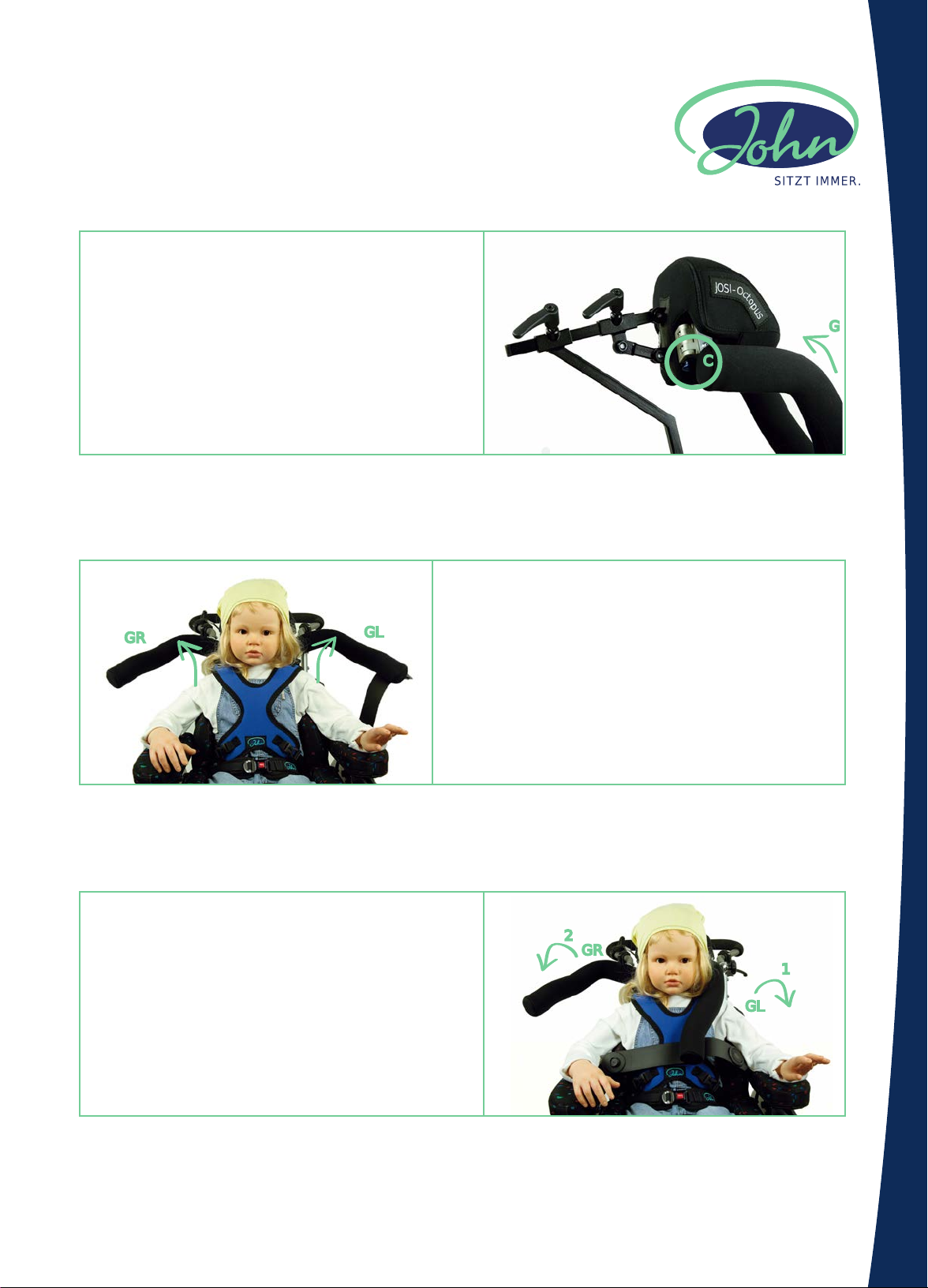

Press the release button (C) of the respective
click-in joint and fold the retraction retainers
(GL and GR) back.
The retraction retainers are adjustable in two
levels.
After opening of both retraction retainers (GL / GR) the
user is positioned in the seatshell and the belt systems
for upper body and pelvis region are adjusted.
Always close the left retraction retainer (GL) first.
Press the release button (C) of the click-in joint and
let the retraction retainer (GL) click in its front
position.
Repeat the same for the right retraction retainer (GR).

9
H
6.
D
E
7.
8.
AB
After both retraction retainers are clicked in, close the
magnet twist-off cap (H) or the plastic strap with velcro
fastener (size 0).
Put the strap with the magnet twist-off cap (H) around
both retraction retainers.
When both ends of the strap are on top of one another it
clicks in automatically.
Only this procedure will ensure a safe application.

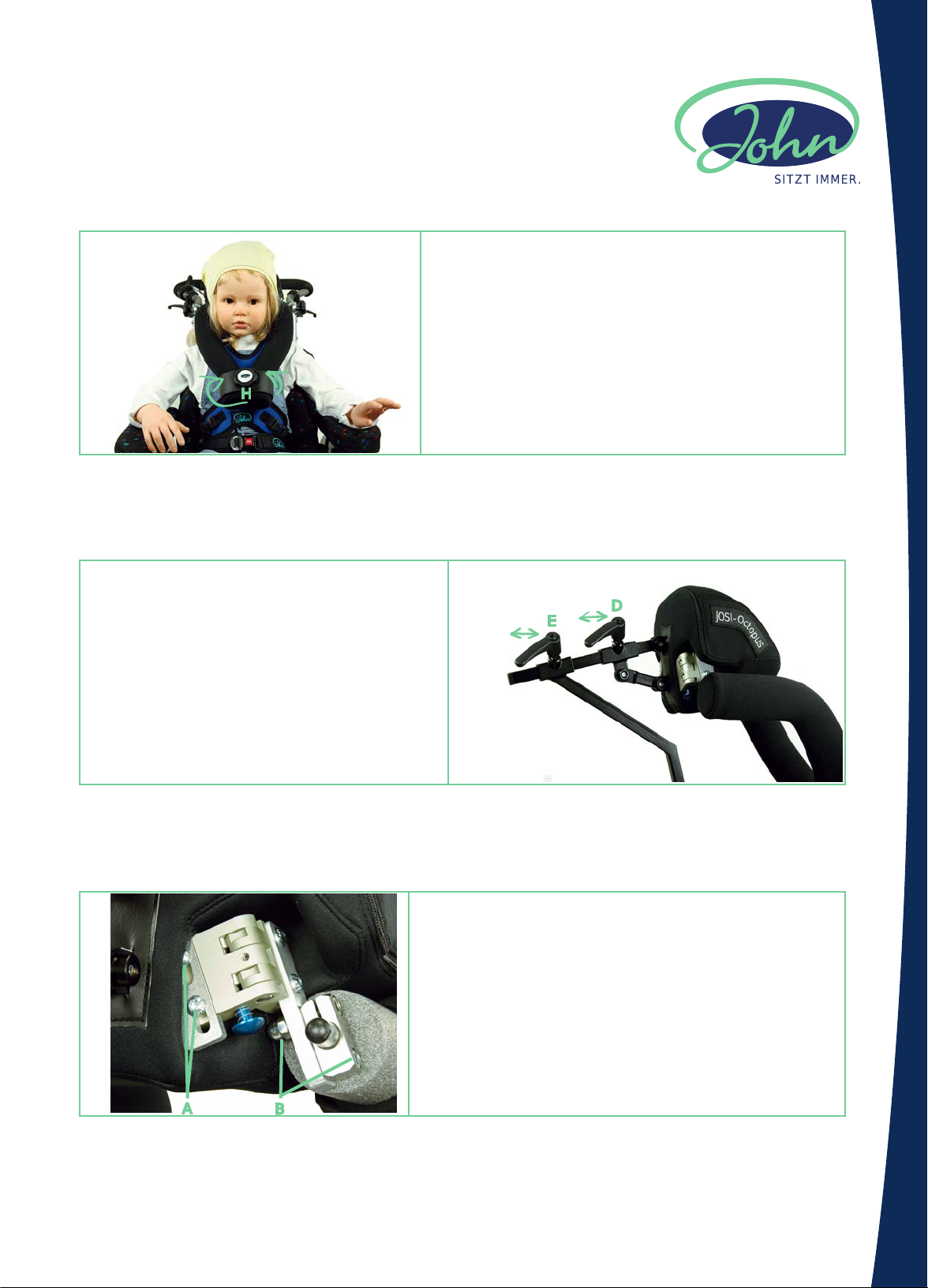

Finally the individual fine adjustment of
headrest and retraction retainers is made:
The headrest adaption is made via angle- and
depth adjustment.
By loosening both locking levers (D and E) the
headrest can be adjusted.
The retraction retainers are to be adjusted to the user´s
upper bodyby loosening the screws A for height and by
loosening the screws B for depth and angle.
Note: between retraction retainers and upper body
must be 1cm difference.
After finishing all adjustments tighten the screws again.
Finally check all add-on parts once more for correct
assembly and adjustment!

JOSI-Manta
Add-on parts
Photos below show the add-on parts and their names.
10
front positioning side positioning
click-in joint with release button (C)
mounting
(at JOSI-Octopus)
width adjustable with wing bolt
„Ergo-Wing“ (B)
pad for front positioning
(alternatively pad for side positioning)
back ball and socket
joint (K1)
front ball and socket joint
(K2)
side guide retainer (F)

Mounting JOSI-Manta at JOSI-Octopus
11
1.Open the headrest cover by zipper and turn sideways.
2.
Remove the left and right screw.
After checking the correct head posture JOSI-Manta can be adjusted.
When adjusting the headrest system make sure that there is some space left for moving the patient´s
head.
All add on parts have to be mounted properly.
In all settings, make sure that no physical functions of the user will be affected.

12
3.
4.
Adjustments and Handling JOSI-Manta
5.
K1
B
Cover the headrest again. Use an appropriate tool for
making holes through the covering to the drillings
beneath.
Mount JOSI-Manta with screws at JOSI-Octopus.
For best adjustment on head please follow the next
steps.

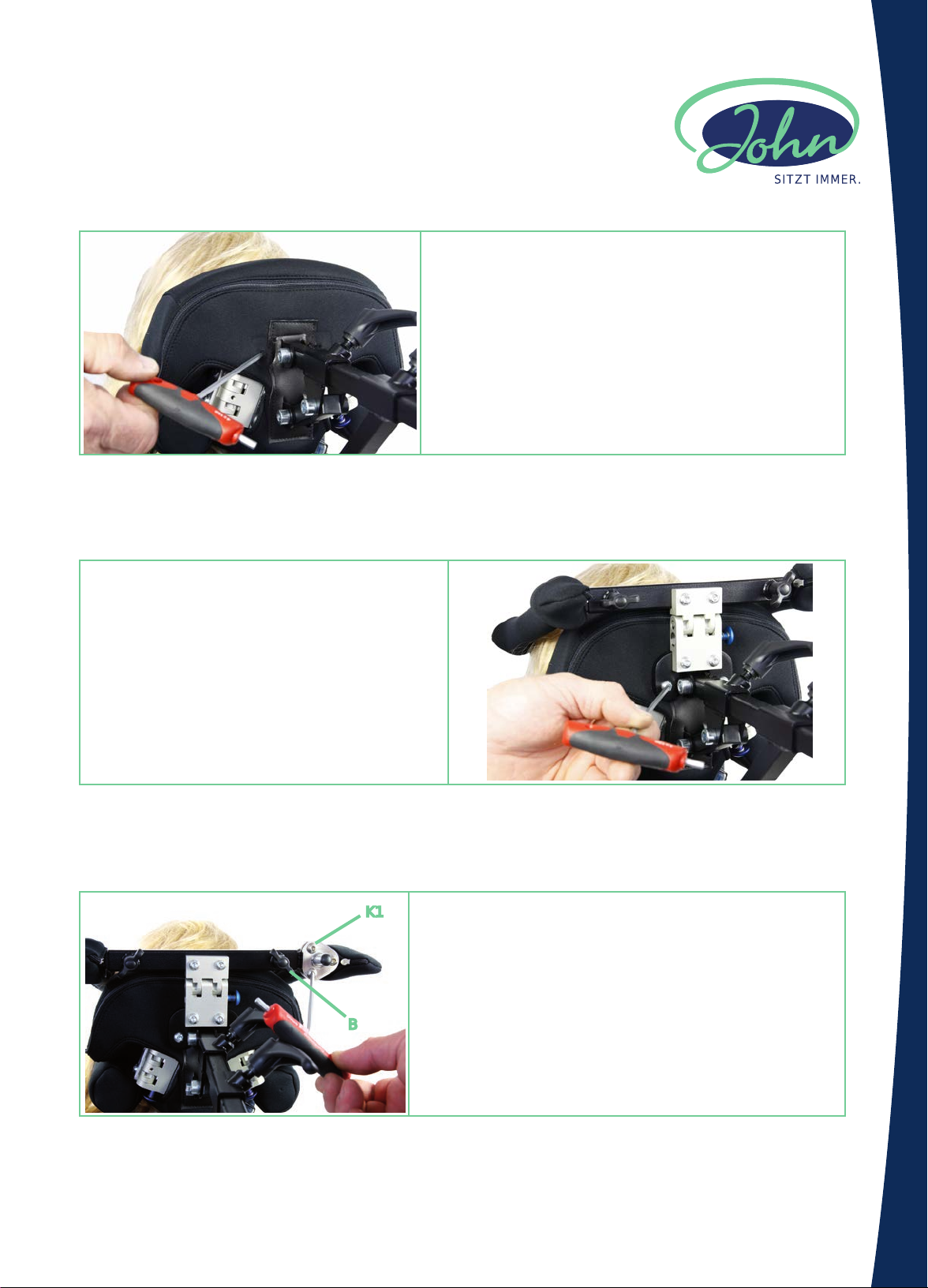

1. Remove the cover on back ball and socket joint (K1).
2. Lose the screws (K1) for adjustment of depth and
angle of guide retainer.
3. Lose the wing bolt „ergo wing“ (B) for adjustment in
width.

13
6.
7.

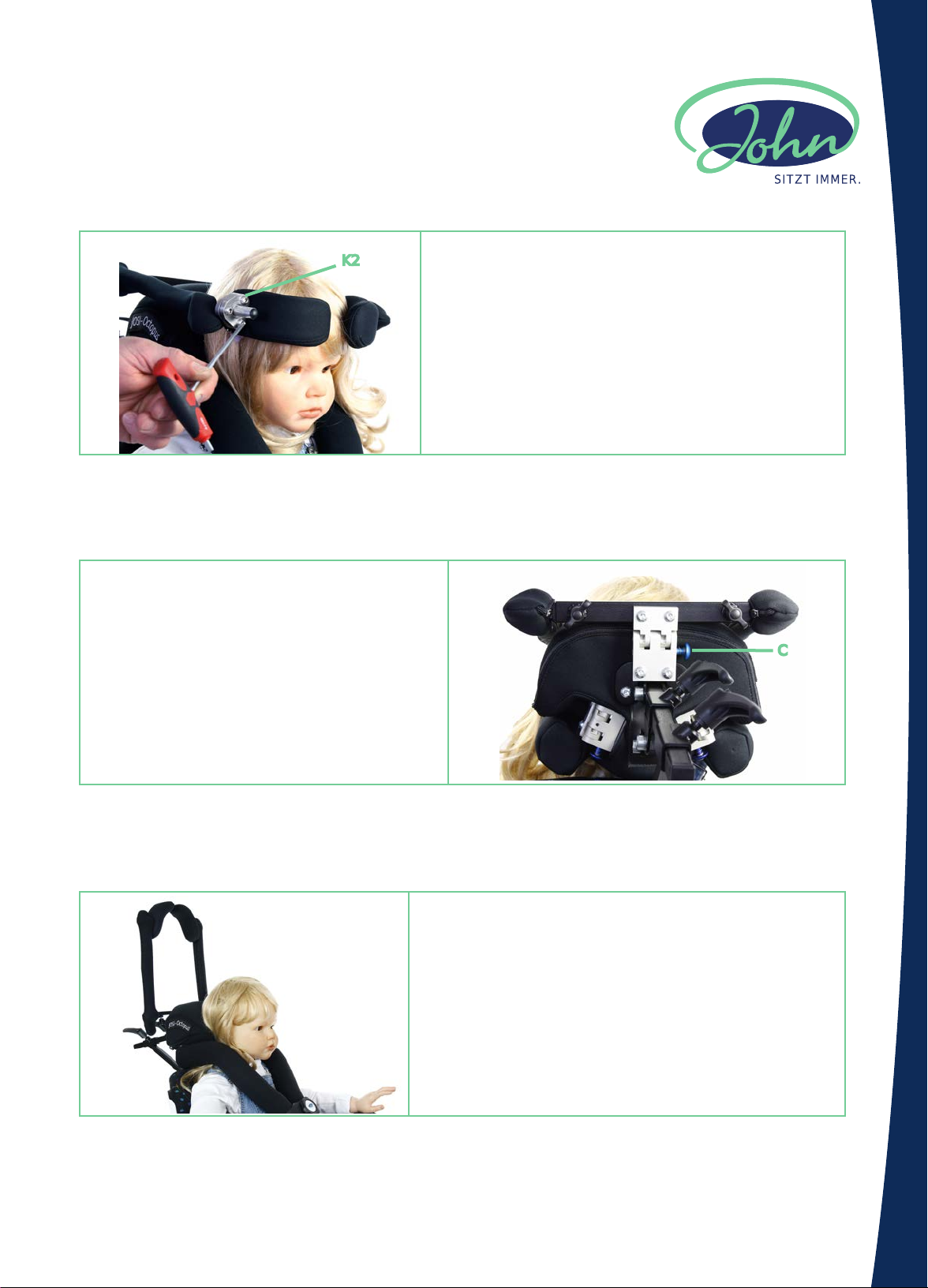

5.1. K2
C
4. Remove cover on the front ball and socket joint (K2).
Lose screws in order to adjust depth and angle of
headrest.
After finishing all adjustments tighten the screws again
and close the cover.
Finally check all add-on parts once more for correct
assembly and adjustment.
By pushing click-in joint with release button (C)
JOSI-Manta can be folded up.
By pushing click-in joint with release button (C) again
JOSI-Manta can be folded down and can be fixed with
click-in joint.

14
Care and Maintenance
For cleaning covers see label.
Check the click-in joints of retraction retainers (JOSI-Octopus) regularly for smooth-running. If necessary
they have to be lubricated.
Check all screw fittings and adjustments of the systems regularly.
Only qualified staff of orthopedic and rehab specialized trade is authorized for checking.
Defect add-on parts are to be replaced immediately!
Any use of defect systems is strictly forbidden!
Keeping the JOSI-Octopus and JOSI-Manta
Used materials
- Neopren clad with nylon jersey
- Polyethylene foam
- Polyester
- Aluminium
- Stainless steel
- Steel
- Steel zinc coated
- Steel powder coated
- Trobloc
- magnetic twist-off cap on strap (size 1-3)
- plastic strap with velcro strap fastener (size 0)
Reuse
The products are not for reuse. Lifetime depends on respective use.

(in a dry place)
Australian Head Office 26
Pardoe Street,
East Devonport, TAS 7310
Call 1300 543 343
[email protected]
medifab.com
Supplied by
New Zealand Head Office
32 Detroit Drive,
Rolleston 7675
Call 0800 543 343
