INSTALLATION
AVANT
ARC
Audiometry & Binaural
REM/LSM in One System
MANUAL

Contents
Getting to Know Your AVANT ARC ............................................................................................................
3
Computer Requirements...............................................................................................................................
4
Transducers & Accessories............................................................................................................................
6
Probe Mic Hanger Installation.....................................................................................................................
7
Software Installation.......................................................................................................................................
9
Connecting the Device ..................................................................................................................................
15
Loading Calibration Files...............................................................................................................................
18
EMC Precautions ..............................................................................................................................................
19
Safety....................................................................................................................................................................
22
Cleaning .............................................................................................................................................................
23
Permissions (Optional) ..................................................................................................................................
24
Technical Information ...................................................................................................................................
26
Limited Warranty .............................................................................................................................................
29
www.medrx-int.com
Manufacturer:
MedRx, Inc.
1200 Starkey Rd., #105, Largo FL 33771, U.S.A.
Toll Free: [phone] • [phone]
Fax: [phone]
E-mail: [e-mail]
www.medrx-usa.com
MedRx's Authorized
Representative in Europe:
#0123
DGS Diagnostic A/S
Audiometer Alle 1
5500 Middelfart
Denmark
TÜV SUD Certificate Body
Ridlerstraße 65
80339 Munich
Germany
Distributor:
MAICO Diagnostics GmbH
MedRx International Sales
Sickingenstr. 70-71, 10553 Berlin, Germany
Tel.: [phone], Fax: -99
E-mail: [e-mail]
Web: www.medrx-int.com

D-0123006-B 05/2019 3
Getting to Know Your AVANT ARC
Intended Use Statement:
The MedRx AVANT ARC is an electronic instrument containing an audiometer intended to
diagnose hearing loss in adults and children. Audiograms are created and used to set the
correct gain levels of the hearing aid for various frequencies. The device also contains a REM
(Real Ear Measurement) function intended to measure sound levels directly in patient ears.
They are used in the measurement and fitting of hearing aids for adults and children. These
measurements can be done with or without the hearing instrument being worn. They are
also used for hearing loss simulation. The REM can perform Live Speech Mapping (MedRx’s
in-situ method for getting the fitting right the first time). These devices should be operated
by trained professionals with education and/or training in the field of audiometry.
Indication For Use Statement:
The MedRx Avant ARC is an audiometer and a REM (Real Ear Measurement) device
combined into one system. It is for use by professionals with education and/or training in
the field of audiometry to conduct diagnostic hearing evaluations, evaluate basic hearing
function, aid in the diagnosis of otologic disorders, as well as to evaluate the fitting of
hearing aids and for hearing loss simulation in adults and children.
The software includes targets for DSL v5.0 and NAL-NL2. A unique feature of the Real Ear
Measurement System is simultaneous, binaural Live Speech Mapping, MedRx’s in-situ
method for getting the fitting right the first time, every time. The device performs Real Ear
Measurements where measurements are performed directly on the patient's ear. These
measurements can be done with or without a hearing instrument being in place. The reason
to perform Real Ear Measurements for hearing instrument fittings is that shape and size of
an ear canal significantly influence a hearing instrument's performance. Knowing the sound
intensity outside and inside the ear enables the practitioner to determine the actual
amplification and output that the patient receives through the hearing aid and make the
appropriate adjustments.
This unit is a Type 2 AE audiometer that meets the requirements of both ANSI S3.6 and IEC
60645-1 and IEC 60645-2. These standards specify the required precision that the AVANT
ARC does achieve. Measurement uncertainty is +/- 1 dB. This device and transducers are
intended for use at test frequencies between 125 Hz and 8000 Hz. This unit meets the
requirements of both ANSI S3.46-1997 and IEC 61669:2001. These standards specify the
required precision that the Avant ARC does achieve.
The AVANT ARC is an electronic instrument intended for the testing of human hearing using
both tone and speech audiometry. This device meets the specifications and tolerances for
audiometers and standard reference threshold levels for audiometric transducers such as
supra-aural, circumaural, and insert earphones, bone vibrators, and loudspeakers as defined
in ANSI S-3.6 and IEC 60645.
The AVANT ARC conforms to the RoHS directive 2011/65/EU when used with the supplied
accessories.

4 D-0123006-B 05/2019
Computer Requirements
MedRx Minimum Computer Specs:
Windows®-PC compatible computer
Intel™ i5 Dual Core, 2.0 GHz or better
4 GB RAM
20 GB free hard drive space
Available 2.0 USB port
Windows 7, 8 or 10 Professional (32 or 64-bit)
MedRx Recommended Computer Specs:
Windows®-PC Computer
Intel™ i5 Dual Core, 3.2 GHz or better
8 GB RAM or more •50 GB or more free hard drive space
Available 2.0 USB port
Graphics Adapter with 2GB Dedicated Video Memory
DVD-ROM Drive
High Speed Internet Connection
Windows 10 Professional 64-bit

D-0123006-B 05/2019 5
Avant ARC Bottom View
Notice! The Red & Blue adapters are included and must be removed to
attach 18 gage (1.0mm) Free Field speaker wires and then reinstalled. DC
Power supply must be used when using passive Free Field speakers.
To Install Free Field Speaker Wires:
Unplug both the Red & Blue connectors.
Place a small flat head screw driver on the small orange tabs
and push down while inserting a speaker wire into the opening
then remove the screw driver. Be sure the wire is secure.
Repeat until all the speaker wires are secured then plug both
connectors into the device.
Use passive speakers with 4 ohm impedance when using the internal speaker amplifier.
Screw
Driver
Screw
Driver

6 D-0123006-B 05/2019
Transducers and Accessories
Use the accessories provided with your Avant ARC. Use of unapproved accessories is not recommended
IP30 Insert Earphones
(Standard)
Supra-Aural
Headphones Optional
Bone Conductor Patient Response
Switch
Operator Mic &
Monitor (may vary)
Talkback Microphone Client Headset 3A Insert Earphones
(Optional)
Probe Microphones Probe Mic Hanger &
Clip Headphones DC Power Supply
USB Cable Speaker Optional

D-0123006-B 05/2019 7
Probe Mic Hanger Installation
You will need the two Probe Mics, the Probe
Mic Hanger and the Clip
Install the hook on the
back side of probe mic
Pull hook down to
seat on post
Once Installed the large O-ring should be
adjustable for fitting. Gently press clip into place.
Turn clip over place probe mic wires into clip Larger view of clip with wires inserted

8 D-0123006-B 05/2019

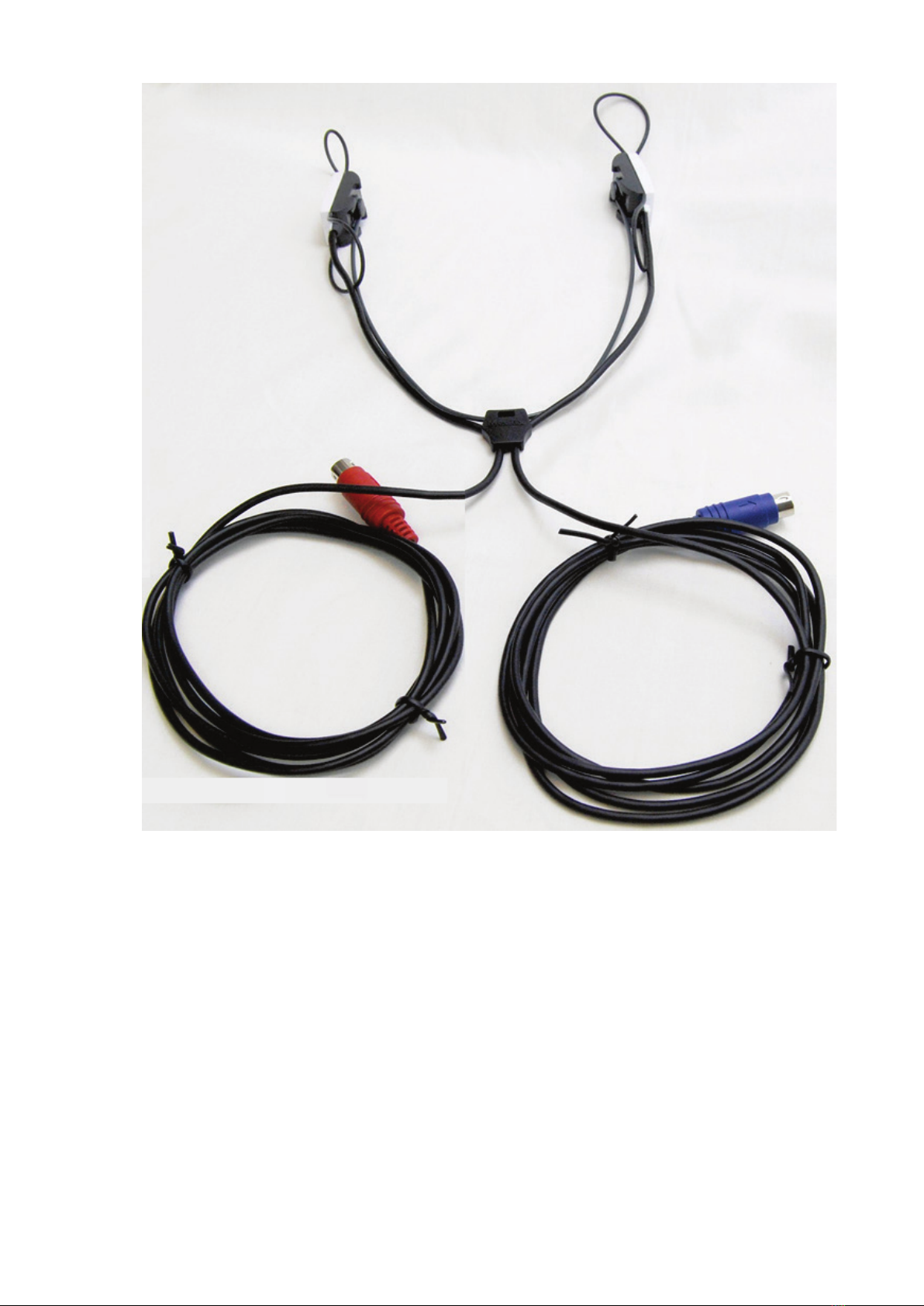

Probe Mic Hanger installation assembly complete.

D-0123006-B 05/2019 9
Software Installation

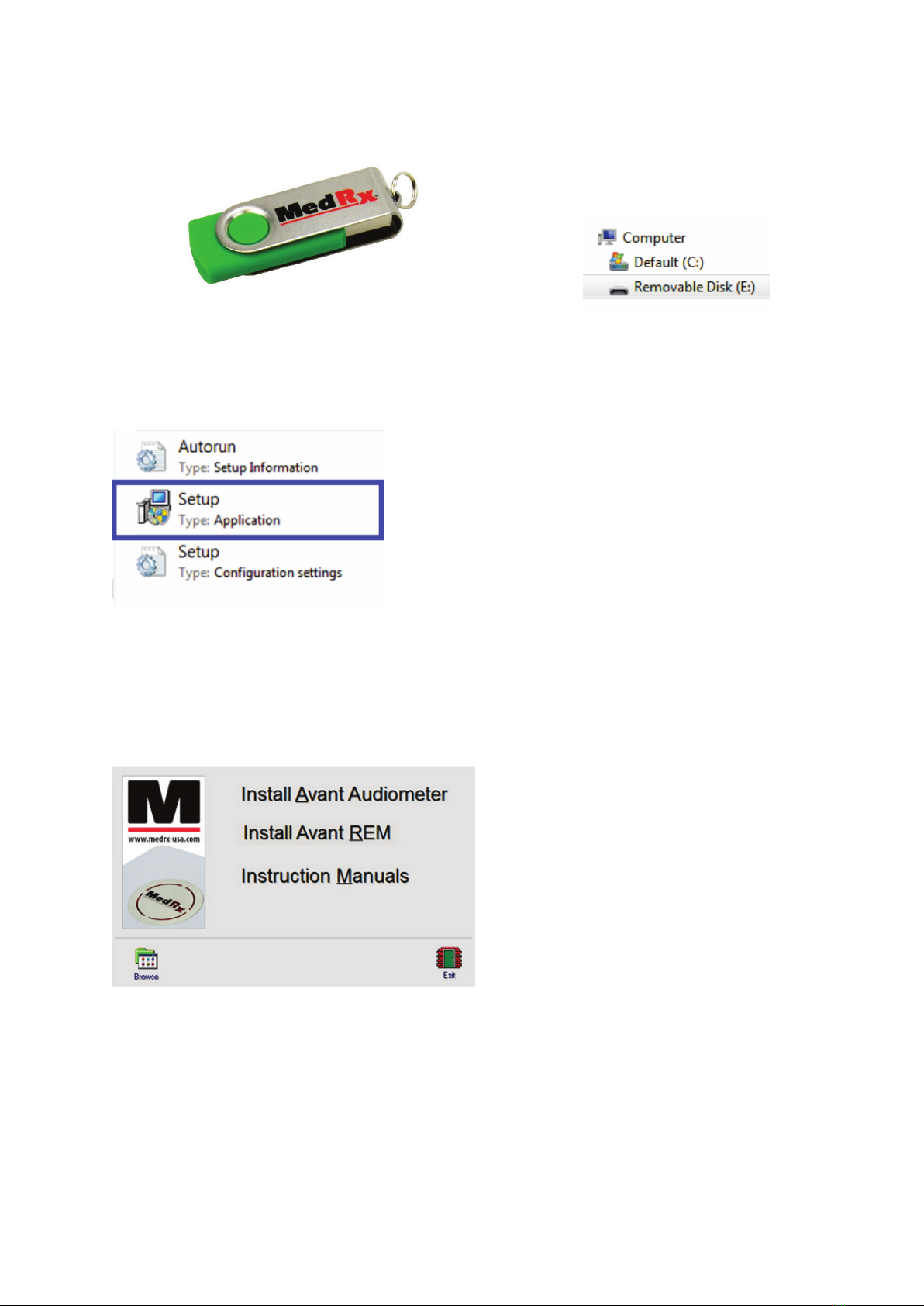

1. Insert the MedRx USB Flash Drive into
USB port:
•Launch My Computer
•Locate USB Drive
(E:) may vary depending on the USB port
selected.Consult your computer’s
documentation.
2. Double Click on Setup to launch:
•If requested, Accept
Permission to Install
Software.
Installing Audiometer Software
3. On the Setup screen, choose Install
AVANT Audiometer.
NOTE: No MedRx driver installation is
required with the AVANT ARC.
Also, the Electronic Copy of this Manual
is located under Manual.

10 D-0123006-B 05/2019

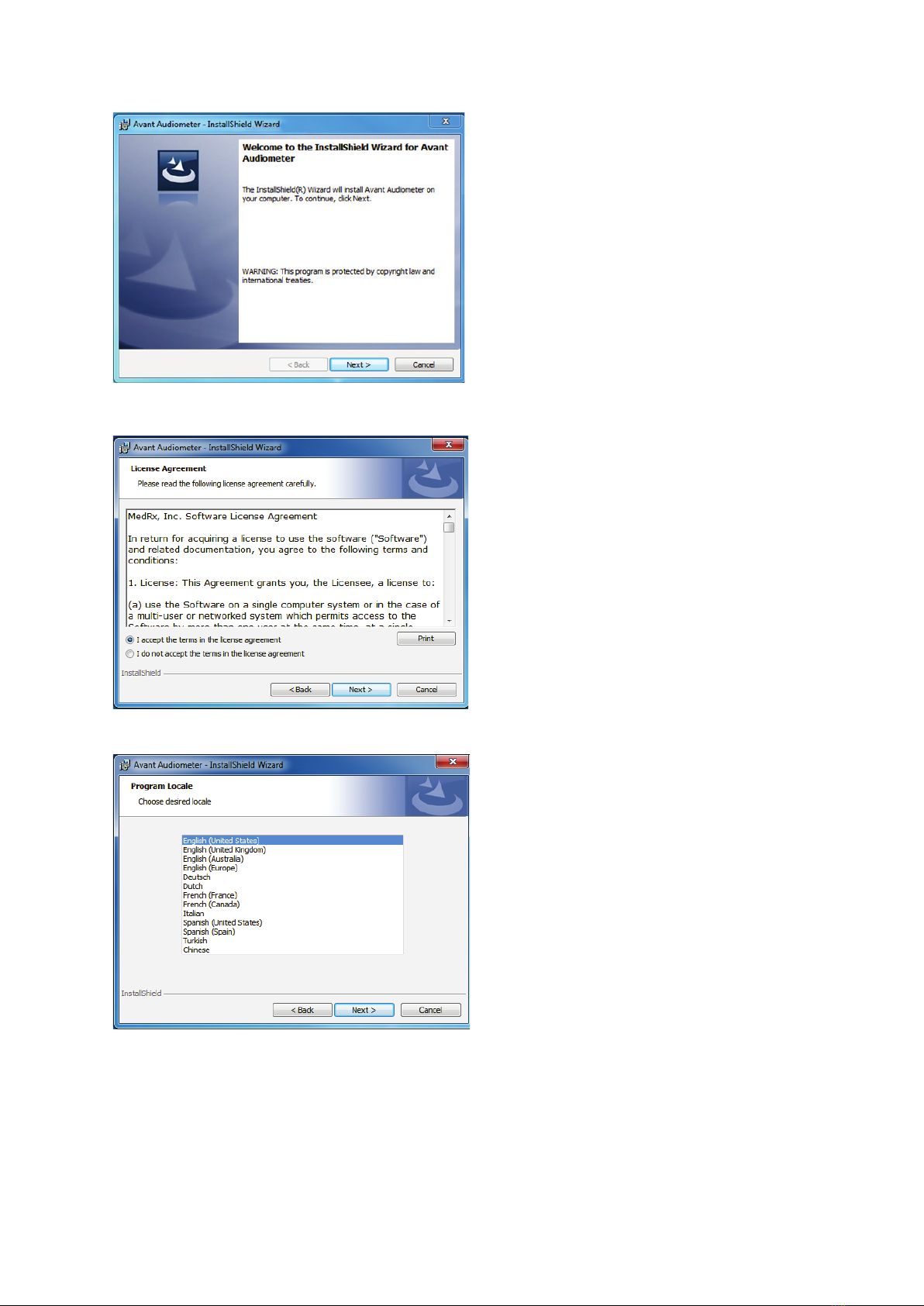

4. This is the Welcome screen.
•To continue, click Next.
5. Read the Software License Agreement.
This important document defines the
acceptable usage of the ARC
Audiometer software.
•Select Accept.
•Click Next.
6. This screen sets the language and
location choice. Make a selection.
•Click Next.

D-0123006-B 05/2019 11
7. This screen indicates the location of the
program files. The default location is
recommended for most users. If
necessary, this location can be changed.
•To continue with the default
settings, click Next.
NOTE: To change the location of the
files (advanced users or system
administrators only), click Change.
8. Installation of Program is ready to start.
•To continue, Click Install.
•To make changes, Click Back.
9. Wait while the InstallShield Wizard
Installs the AVANT Audiometer.
•Click Next.

12 D-0123006-B 05/2019

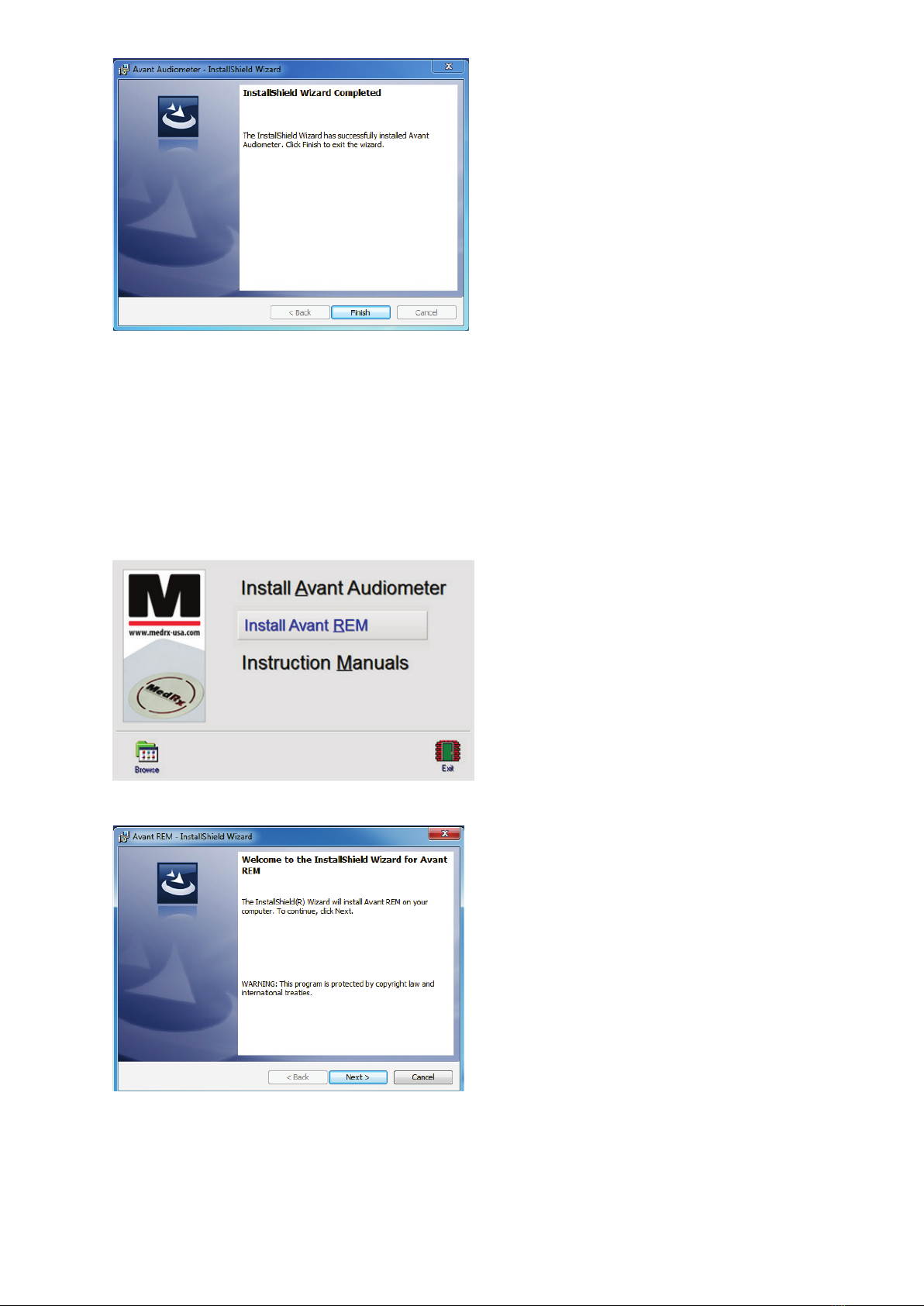

10. When the installation is complete. Click
Finish.
Installing REM Software
1. On the Setup screen, choose Install
Avant REM.
2. Wait for the program to setup the
InstallShield Wizard.
3. This is the Welcome screen.
•To continue, Click Next.

D-0123006-B 05/2019 13

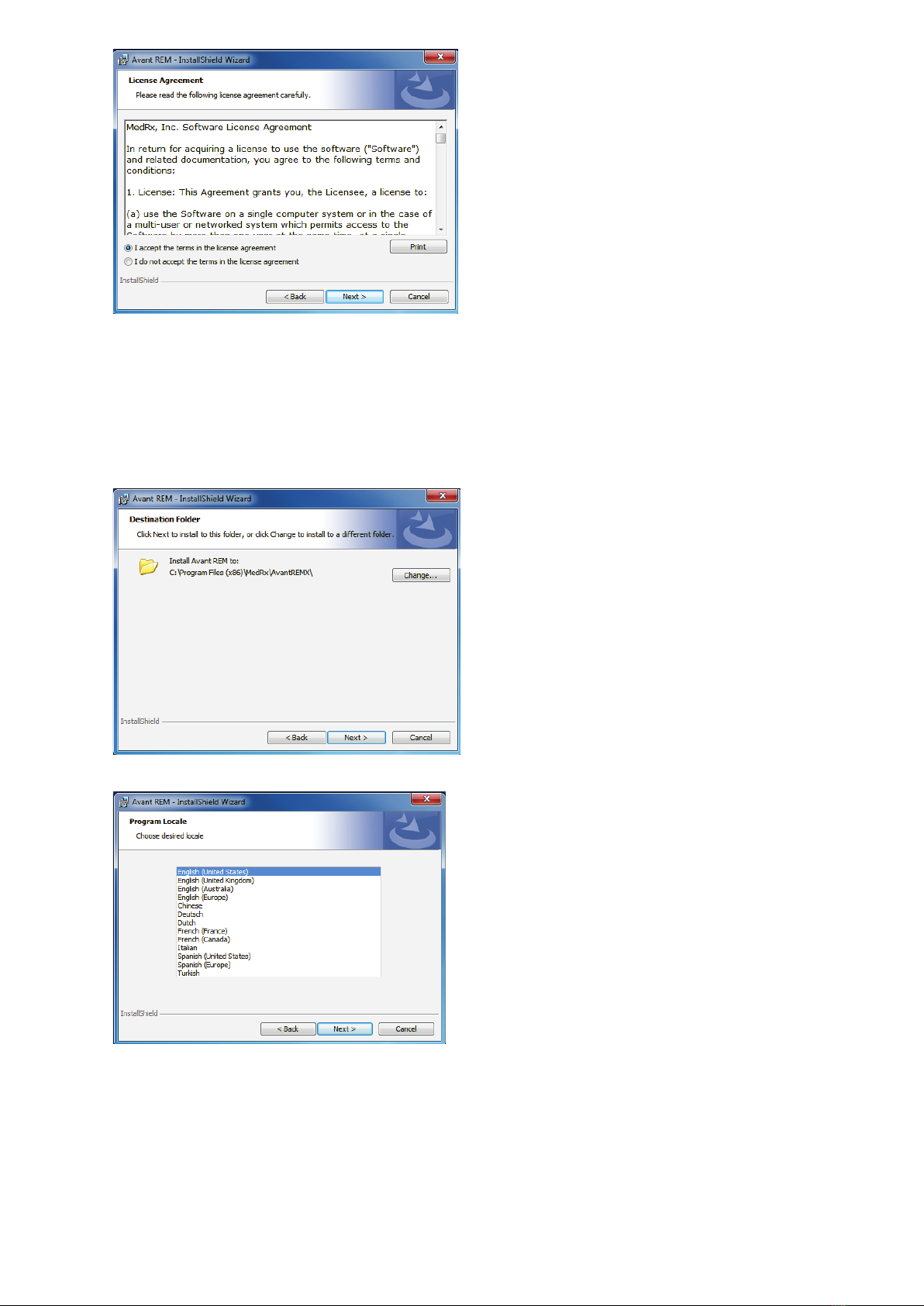

4. Read the Software License Agreement.
This important document defines the
acceptable usage of the Avant REM
Software.
•Click I accept.
•Click Next.
5. This screen indicates the location of the
program files. The default location is
recommended for most users. If
necessary, this location can be
changed.
•To continue with the default
settings, Click Next.
Note: To change the location of the files
(advanced users or system
administrators only), click Change.
6. This screen sets the language and
location choice. Make selection.
•Click Next.

14 D-0123006-B 05/2019
7. Installation of Program is ready to start.
•To continue, Click Install.
•To make changes, Click Back.
8. Wait while the InstallShield Wizard
installs the Avant REM program.
•Click Next.
9. When the installation is complete,
•Click Finish.

D-0123006-B 05/2019 15
Connecting Device

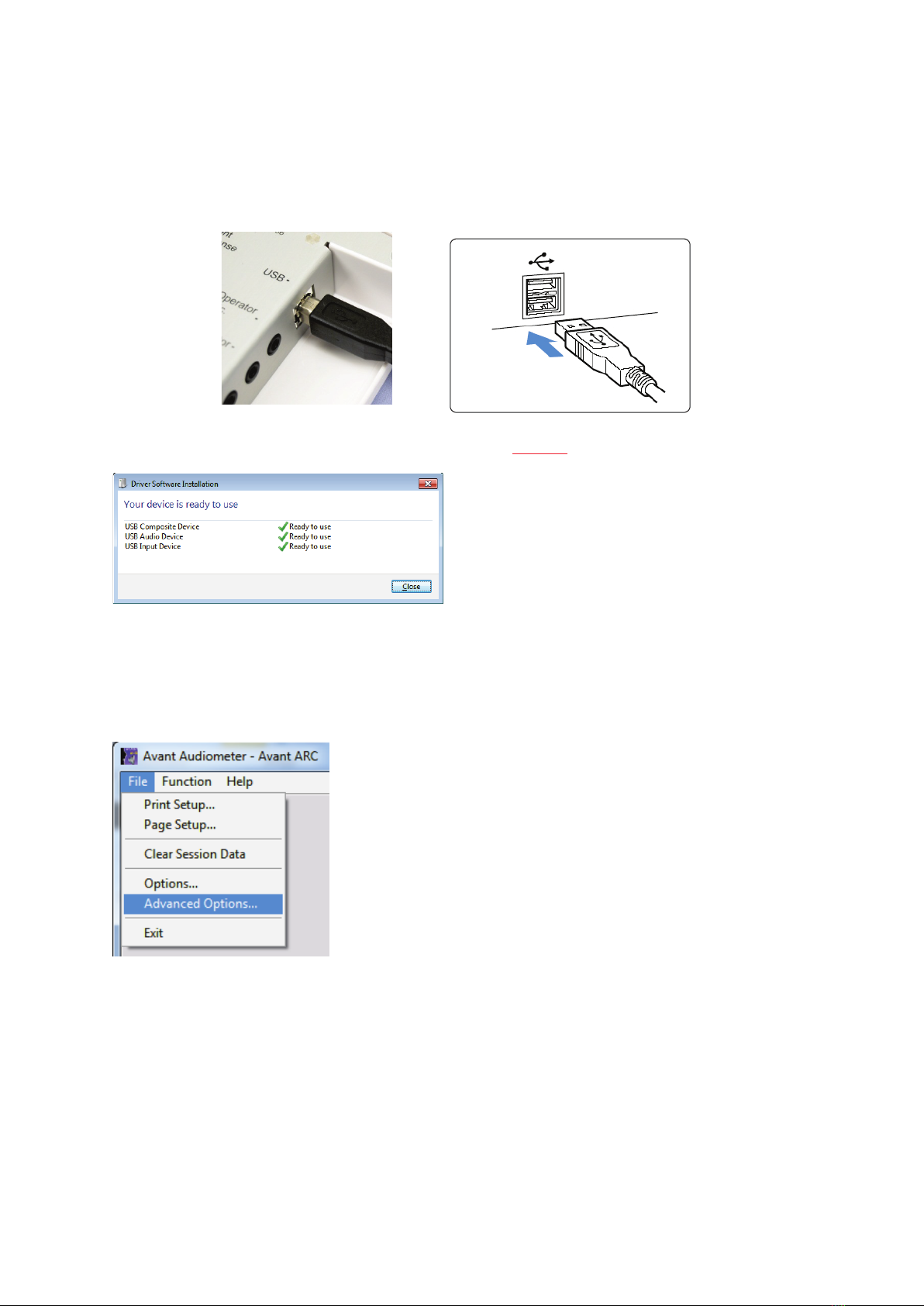

Your AVANT ARC is USB powered.
Connect the USB cable from the AVANT ARC to your computer as shown below.
Wait for the system to copy and install default Windows drivers.
When this screen appears and all devices are
“Ready to use”, Click Close.
Next you need to confirm or set the Default Windows sound card settings. This will route all non-
AVANTTM Windows sounds to the internal sound card of your computer. These sounds include
event notifications such as new e-mail and error warnings as well as audio and video playback.
1. Launch the AVANT Audiometer Software.
2. Open the Advanced Options from File menu as
shown.

16 D-0123006-B 05/2019

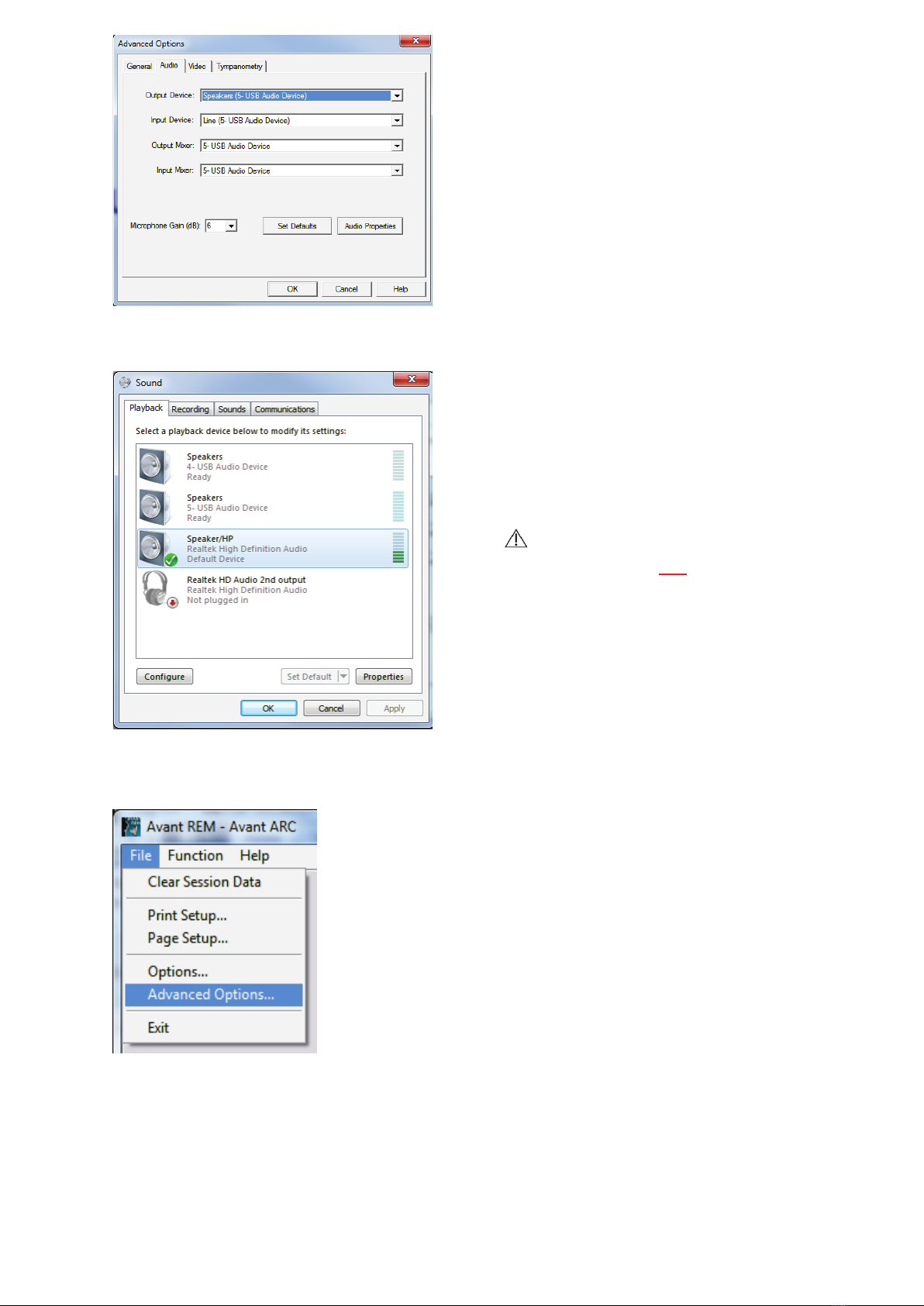

3. Open Audio tab.
When the audio properties are configured
properly, during driver installation, the Audio Tab
will appear like the image on the left. If not, use
the pull-down lists to adjust the settings to
match the image.
NOTE: Your specific Avant Audiometer will
appear in both Output and Input Device Tab.
4. Click Audio Properties.
In the Windows Sound control panel, make sure the
MedRx Audio Device is not set as default. If its the
default, change this by clicking on your system
audio device (non-MedRx) and then choose Set
Default.
NOTE: The internal sound card on your
computer will likely not have the same name as
this screen shot. Consult your computer’s
documentation for the name of the internal
sound card and set this control accordingly.
5. Click OK.
AVANT REM
1. Launch the REM Software.
2. Open the Advanced Options from File menu
as shown.

D-0123006-B 05/2019 17
3. Open Audio–A tab.
4. When the audio properties are configured
properly, during driver installation, the Audio Tab
will appear like the image on the left. If not, use
the pull-down lists to adjust the settings to
match the image.
5. Open Audio–B tab.
6. When the audio properties are configured
properly, during driver installation, the Audio Tab
will appear like the image on the left. If not, use
the pull-down lists to adjust the settings to
match the image.
7. Click Audio Properties.
8. Click OK.

18 D-0123006-B 05/2019
Loading Calibration Files
Each AVANT ARC audiometer is calibrated in
compliance with the ANSI S3.6 standard. This
calibration procedure results in a series of files
that the AVANT ARC software reads to keep the
hardware in calibration. These files are supplied
on a USB Flash Drive the same serial number as
your AVANT ARC device.
The final step before using your AVANT ARC to
evaluate hearing is to load these device specific
calibration files onto the computer used to
operate the AVANT ARC device.
1. With the MedRx USB Flash Drive
connected, open the AVANT ARC
software and Click:
•Function.
•Calibrate.
•Load Calibration.
2. After a few seconds, this message
will appear.
•Click Load.
3. When the files are finished being
loaded, this message will appear:
•Click YES to complete loading
the calibration.

D-0123006-B 05/2019 19
EMC Precautions
The Avant ARC needs special precautions regarding EMC and needs to be installed and put
into service according to the following EMC information.
List of all cables and maximum lengths of cables, transducers and accessories:
Transducer / Accessories Maximum Cable length
USB Cable 3,0 meters
Insert Earphones 2,0 meters
Bone B-71 2,0 meters
All Headsets 2,0 meters
All Microphones 2,0 meters
REM Probe 2,0 meters
All Speakers 3,0 meters
Warnings!
•The use of accessories, transducers and cables other than those specified, with the exception of
transducers and cables sold by the manufacturer of the Avant ARC as replacement parts for internal
components, may result in increased emissions or decreased immunity of the Avant ARC.
•The Avant ARC should not be used adjacent to or stacked with other equipment and if adjacent or stacked
use is necessary, the Avant ARC should be observed to verify normal operation in the configuration in
which it will be used.
•The Avant ARC may be interfered with by other equipment, even if that other equipment complies with
CISPR emission requirements.
•The Avant ARC does not have life supporting function
•Portable and mobile RF communications equipment can affect the Avant ARC.
Guidance and manufacturer’s declaration – electromagnetic emissions
The Avant ARC is intended for use in electromagnetic environment specific below. The customer or the user of the Avant
ARC should assure that it is used in such an environment.
Emission test Compliance Electromagnetic environment - guidance
RF emissions
CISPR 11
Group 1 The Avant ARC uses RF energy only for its
internal function. Therefore, its RF emissions are
very low and are not likely to cause any
interference in nearby electronic equipment.
RF emissions
CISPR 11
Class A The Avant ARC is suitable for use in all
establishments other than domestic and those
directly connected to the public low-voltage
power supply network that supplies buildings
used for domestic purposes.
Harmonic emissions
IEC 61000-3-2
Non applicable
Voltage fluctuations / flicker emissions
IEC 61000-3-3
Non applicable

20 D-0123006-B 05/2019
Guidance and manufacturer’s declaration – electromagnetic immunity
The Avant ARC is intended for use in electromagnetic environment specific below. The customer or the user of the Avant
ARC should assure that it is used in such an environment.
Immunity test IEC 60601
test level Compliance level Electromagnetic environment -
guidance
Electrostatic discharge (ESD)
IEC 61000-4-2
+/- 8 kV
contact discharge
+/- 2, 4, 8 &15kV
air discharge
+/- 8 kV
contact discharge
+/- 2, 4, 8 &15kV
air discharge
Floors should be wood, concrete or
ceramic tile. If floors are covered with
synthetic material, the relative
humidity should be at least 30%.
Electrical fast transient / burst
IEC 61000-4-4
+/- 2 kV for power
supply lines
+/- 1 kV for input /
output lines
+/- 2 kV for power
supply lines
+/- 1 kV for input /
output lines
Mains power quality should be that of
a typical commercial or hospital
environment.
Power frequency (50/60 Hz)
Magnetic field
IEC 61000-4-8
NA NA Power frequency magnetic fields
should be at levels characteristic of a
typical location in a typical
commercial or hospital environment.
Guidance and manufacturer’s declaration – electromagnetic immunity
The Avant ARC is intended for use in electromagnetic environment specific below. The customer or the user of the Avant
ARC should assure that it is used in such an environment.
Immunity test IEC 60601- test level Compliance level Electromagnetic environment -
guidance
Portable and mobile RF
communications equipment should be
used no closer to any part of the Avant
ARC, including cables, than the
recommended separation distance
calculated from the equation applicable
to the frequency of the transmitter.
Recommended separation distance:
Conducted RF
IEC 61000-4-6
0.15 - 80 MHz
3 Vrms & 6Vrms in
ISM Band 1 kHz
AC Mains
0.15 - 80 MHz
3 Vrms & 6Vrms in
ISM Band 1 kHz
AC Mains
d = 1,17
P×
Radiated RF
IEC 61000-4-3
3 V/m
80 MHz to 2,5 GHz
3 V/m
d = 1,17
P×
80 to 800 MHz
d = 2,33
P×
800 MHz to 2,5 GHz
Where P is the maximum output power
rating of the transmitter in watts (W)
according to the transmitter
manufacturer and d is the
recommended separation distance in
meters (m).
Field strengths from fixed RF
transmitters, as determined by an
electromagnetic site survey a, should be
less than the compliance level in each
frequency range b.
Interference may occur in the vicinity of
equipment marked with the following
symbol:
NOTE 1 At 80 MHz and 800 MHz, the higher frequency ranges applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and
reflection from structures, objects and people.
a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile
radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy.
To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be
