Operating Manual
MELAdest®65
Water distiller

General notes
Please read this operating manual carefully before commissioning the device. The instructions include important safety
information. The functionality and value-retention of this autoclave depends on the care accorded to it.
Please store this operating manual carefully and in close proximity to the device. It represents a component of the
product.
User group
These instructions are addressed to doctors, their assistants and service departments.
About this manual
Symbols used
Symbol
Explanation
Indicates a dangerous situation, which if not avoided could result in injuries ranging in
seriousness from light to life-threatening.
Draws your attention to a situation, which if not avoided, could result in damage to the
instruments, the practice fittings or the device.
Draws your attention to important information.

Contents
Contents
Chapter 1 – Device description .......................................................................................................4
Intended Use ................................................................................................................................................................... 4
Functional principle.......................................................................................................................................................... 4
Scope of delivery ............................................................................................................................................................. 4
Views of the device.......................................................................................................................................................... 4
Chapter 2 – Commissioning............................................................................................................5
Fitting the glass flask ....................................................................................................................................................... 5
Before commissioning ..................................................................................................................................................... 7
Chapter 3 – Operation and care...................................................................................................... 8
Producing distilled water.................................................................................................................................................. 8
Cleaning the distilling chamber........................................................................................................................................ 9
Chapter 4 – Malfunctions .............................................................................................................. 10
Appendix A – Spare parts .............................................................................................................11
Technical Data..............................................................................................................................11

Chapter 1 – Device description
4
Chapter 1 – Device description
Intended Use
The MELAdest 65 water distiller produces distilled water.
Functional principle
This practical water distillator produces water of the highest quality in accordance with what represents
one of the oldest methods of water treatment. When the device is activated, the water temperature
increases and escaping gases are boiled, then led through an opening. The water temperature increases
to 100°C and begins to boil. During evaporation, the chemicals, salts and soiling remain in the container.
The stream flows through the cooling coil system in the upper section where it cools and condenses into
distilled water.
Scope of delivery
Standard scope of delivery
MELAdest 65 water distiller
Power cable
Glass flask
Plastic guard ring
Adapter cover
Spout cap
Handle
Handle cover inc. bracket for adaptor cover

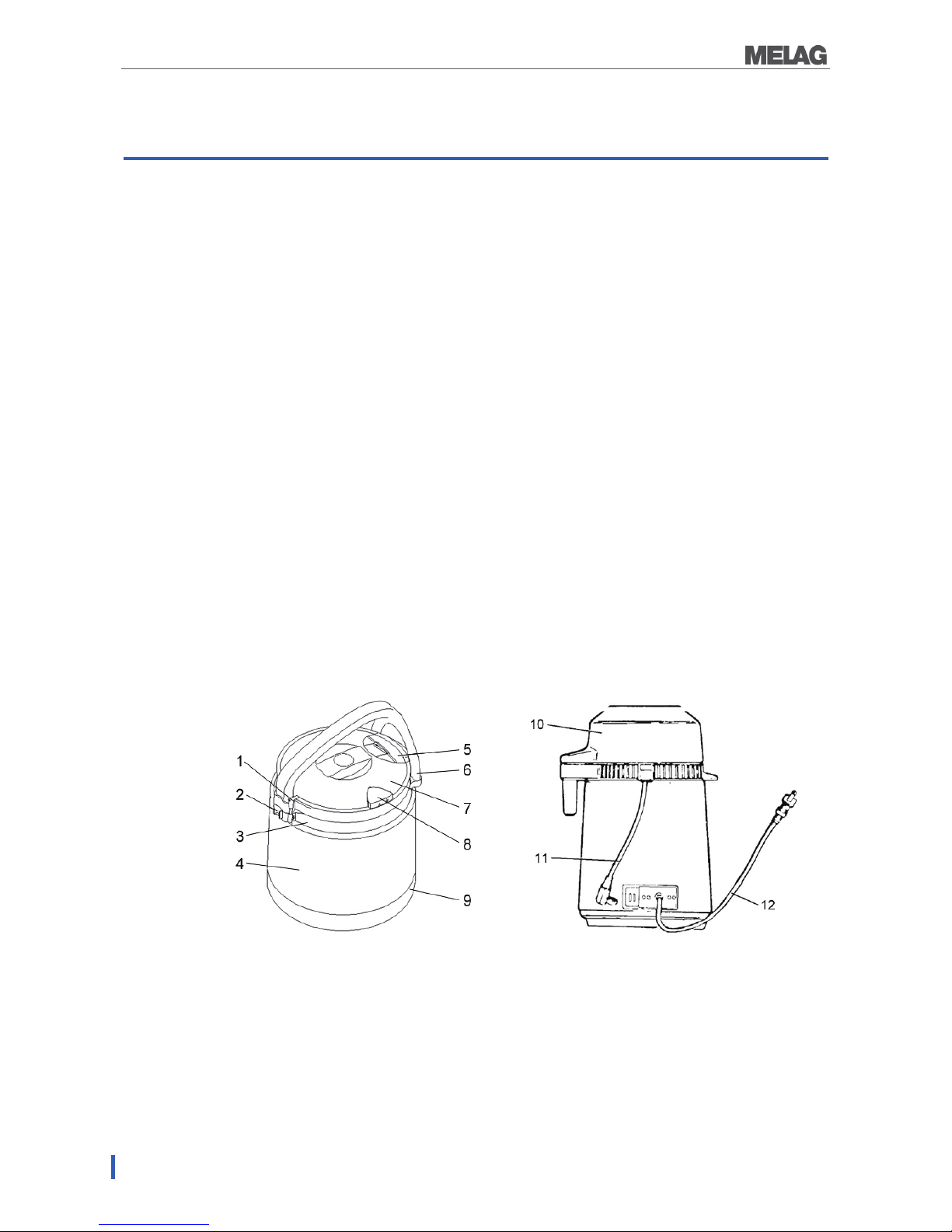

Views of the device
1
2
3
4
5
6
Hook for spout cap
Bracket for adapter-cover
Metal collar
Glass flask
Spout cap
Handle
7
8
9
10
11
12
Cover
Adapter cover
Plastic guard ring
Upper section of the distilling chamber
Connection cable
Power cable

Chapter 2 – Commissioning
5
Chapter 2 – Commissioning
Fitting the glass flask
1. Remove all the individual parts from the glass flask carefully.
2. Remove the packaging from the individual parts.

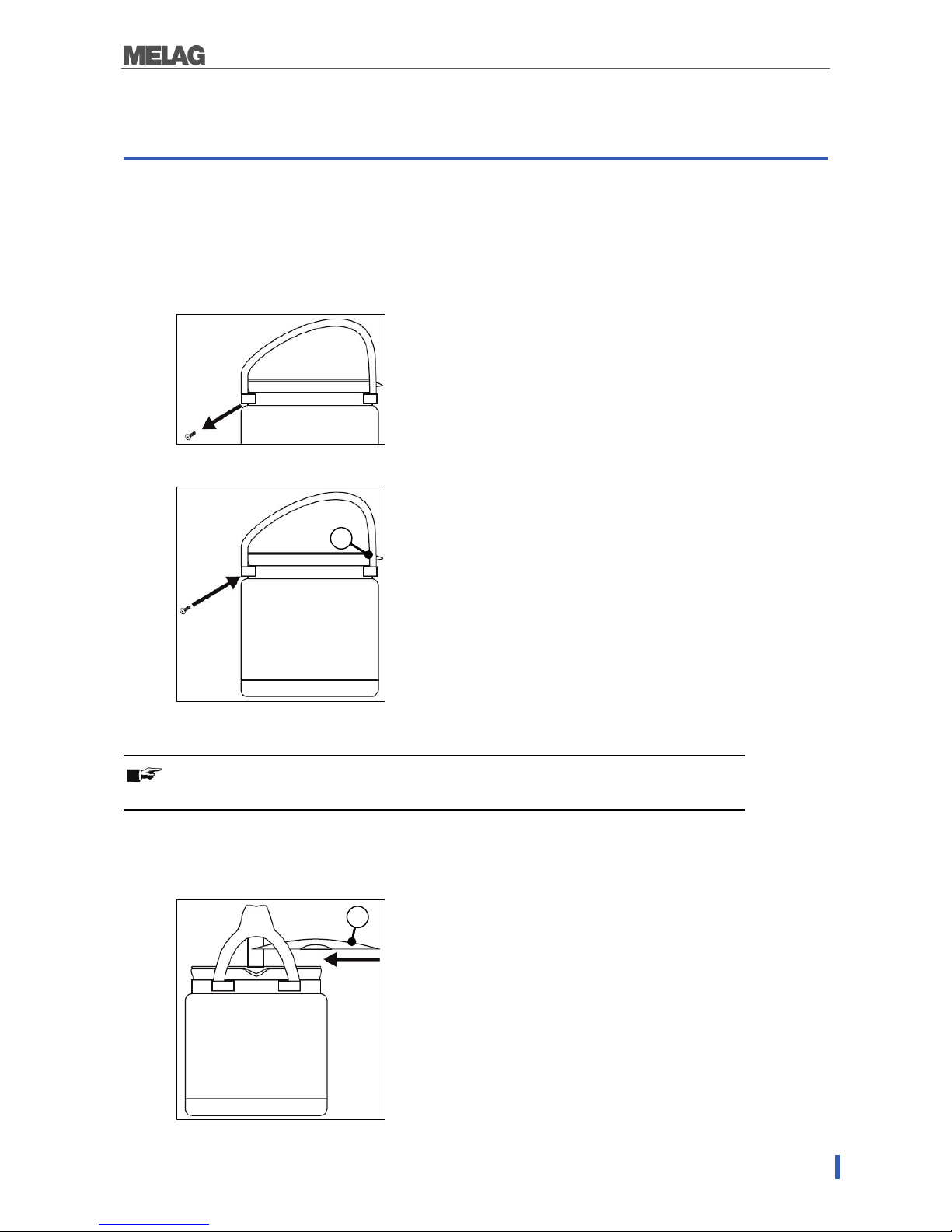

3. Place the glass flask in the plastic guard ring.
4. Loosen a screw on the metal collar on the neck of the glass flask.
5. Place the collar on the neck of the glass flask in such a way that the other screws on the collar lie
exactly opposite the spout cap (pos. a).
6. Refasten the metal collar with both screws.
PLEASE NOTE
Do not overtighten the screws when tightening.
7. Fill the glass flask 3/4 full with warm tap water. Add 1-2 drops of washing-up liquid and clean the
inside of the glass flask.
8. Afterwards, rinse and clean the glass flask thoroughly with clear water.

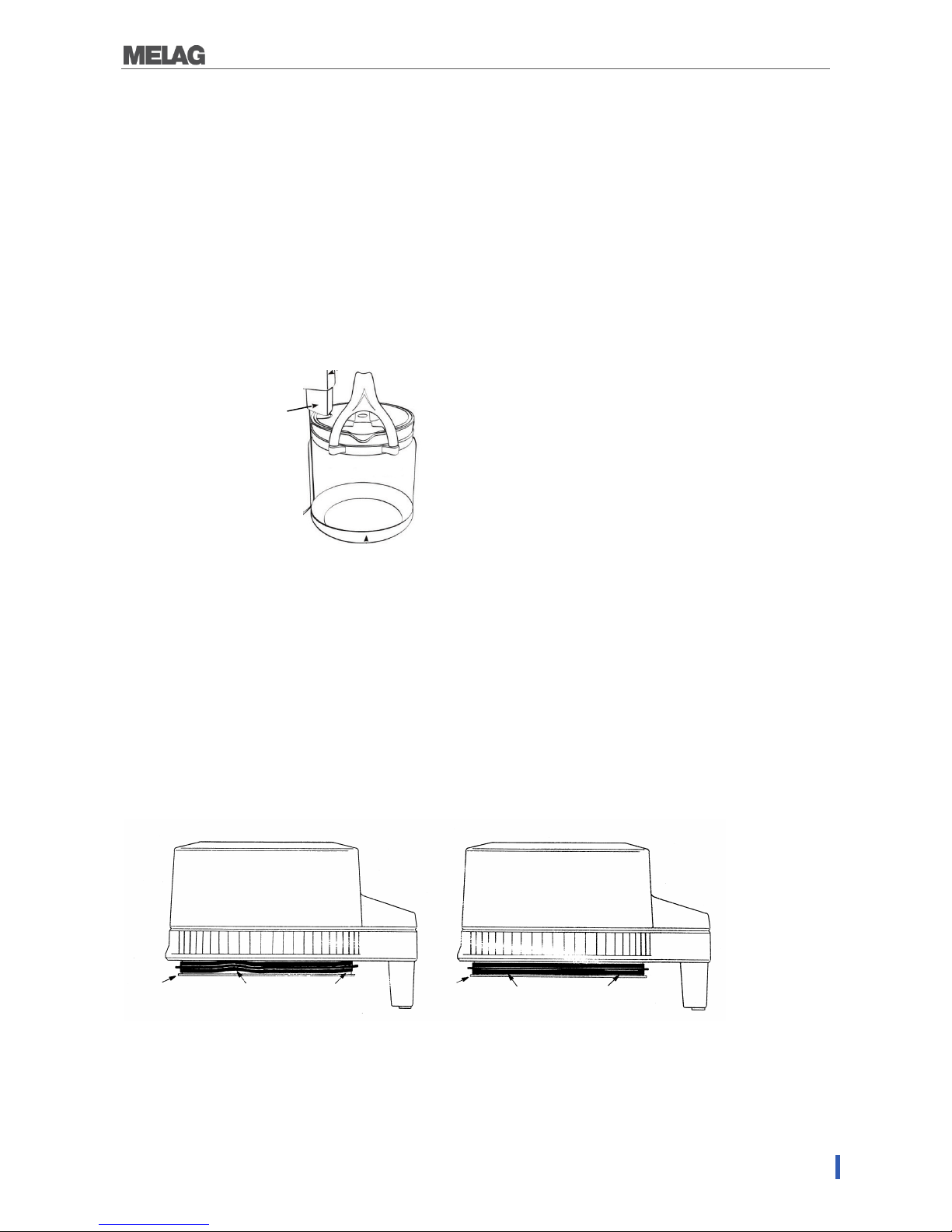

9. Place the cover (pos. b.) on the glass flask in such a way that the spout remains open.
a
b
