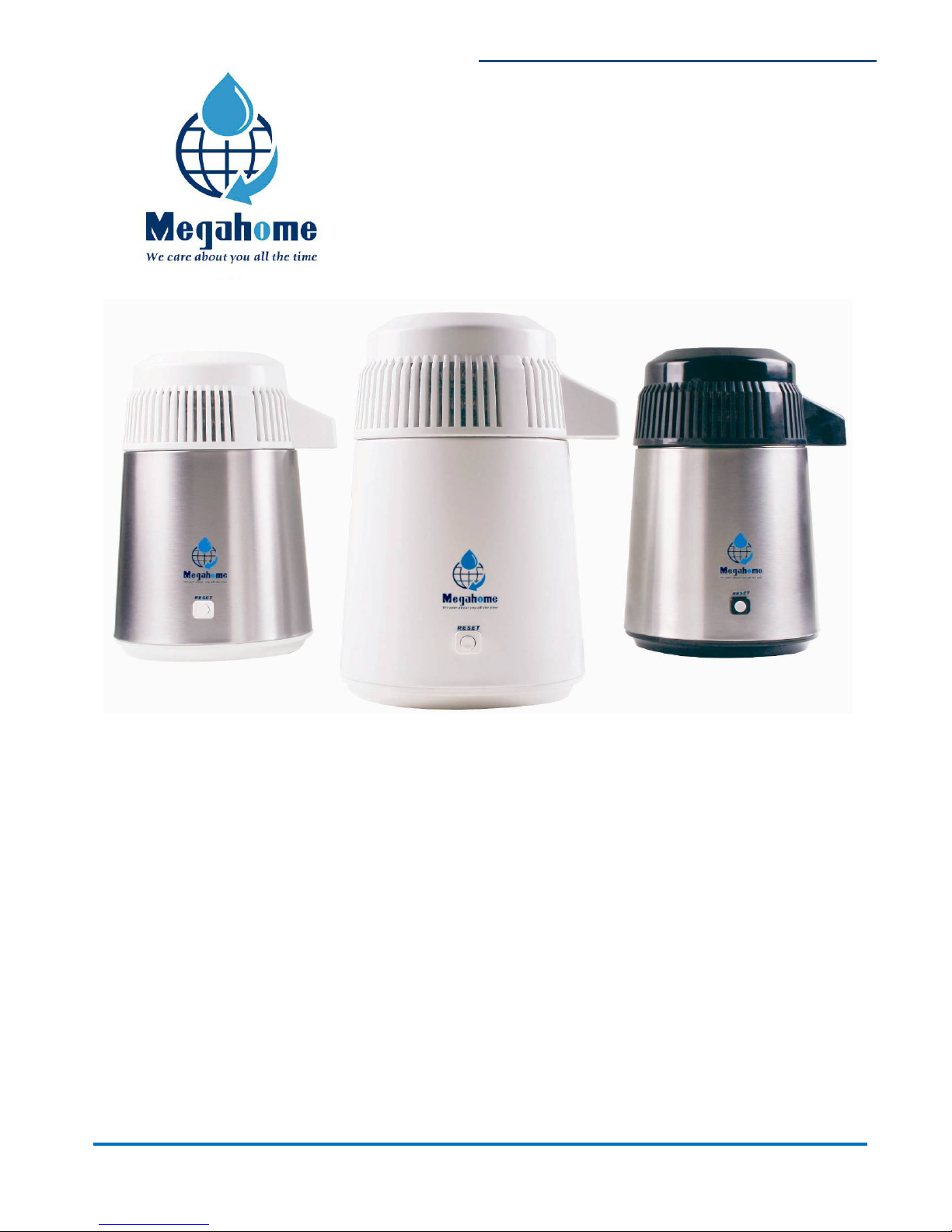

MegaHome MH-943TWS User manual

Thank you for buying Megahome Water Distiller.
Please read this instruction manual carefully before using your distiller.
Proper use and maintenance can reduce the defective rate of the distiller
and prolong its life.
We hope you enjoy using your Megahome water distiller.
Ref.2013-5
Megahome Distiller Instruction Manual
For:
MH-943TWS
MH-943SBS/SWS

1
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed,
including the following:
1. Read all Instructions.
2. Do not touch hot surface.
3. To protect against fire, electrical shock and injury to persons do not immerse cord, plug, or
electrical parts in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking
off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or
has been damaged in any manner. Return appliance to the nearest authorized service facility for
examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may result in
fire, electric shock or injury to persons.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10.Do not place on or near a hot gas or electrical burner, or in a heated oven.
11.Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any
control to off, then remove plug from wall outlet.
12.Do not use appliance for other than intended use.
13.This appliance is not intended for use by person (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
14.Children should be supervised to ensure that they do not play with the appliance.
15.Do not dispose of electrical appliances as unsorted municipal waste, use separate collection
facilities.
16.Contact your local government for information regarding the collection systems available.
17.If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into
the groundwater and get into the food chain, damaging your health and well-being.
18.When replacing old appliances with new once, the retailer is legally obligated to take back your old
appliance for disposal for free of charge.
19.Do not be immersed in water.
20.Scalding may occur if the lid is removed during the brewing cycles.
21.Household use only.
SAVE THESE INSTRUCTIONS.

2
Exploded Drawing
Top: Heat sink Body: Heating
Upper
Cover
Cushion
Rubber Ring
Screws
#304 Stainless Steel
Tank
Product Features
Boils the water to kill Bacteria and
Parasites.
Produces and collects the purified steam
that leaves behind impurities. Cools and
condenses the steam into pure distilled
water.
The advantages of distilled water are:
100% boiled and sterilized, pure, safe, and
environmentally friendly.
Drinking distilled water on a daily basis can
keep you hydrated and healthy.
Cooling Duct
Aluminum Fins
#304 Stainless
Steel Pipe
Fan &
Motor

3
Packing and accessories of distiller + PP bottle
Packing and accessories of distiller + Glass bottle
A
B
C
D
A
B
C
E
D
Distiller can be found inside
Styrofoam box.
Please verify the following
accessories:
A- 6x activated charcoal sachets
B- 1x 250gram cleaner
C- 1x power cord
D- 1x PP nozzle+1x PP handle
E- 1x PP bottle
(1) Remove the PP bottle that is located
inside the distiller.
(2) Please check if the PP bottle is in a good
condition before installing it. If the PP
bottle has been damaged, please contact
your local distributor for a replacement.
※Please follow the PP bottle instruction
manual for installing the PP bottle.
※Please do not heat up
the glass bottle on the
stove.
※Please do not pour hot
or boiling water into the
PP bottle.
Distiller can be found inside
Styrofoam box.
Please verify the following
accessories:
A- 6x activated charcoal sachets
B- 1x 250gram cleaner
C- 1x power cord
D- 1x The completed glass bottle
accessory kit
1. Remove the glass bottle that is located
inside the distiller.
2. Please check if the glass bottle is in a
good condition before installing it. If the
glass bottle has been damaged, please
contact your local distributor for a
replacement.
※The completed glass bottle accessory kit
is located inside the glass bottle (Please
see the image above). Please follow the
glass bottle instruction manual for
installing the glass bottle.
Glass Bottle
PP bottle

4
Nozzle Installing Instruction
Nozzle Removal Instruction
PP Nozzle PP Nozzle + Glass Insert
Please fold the activated charcoal sachet
in half and place it carefully in the nozzle
※Attention: If the glass insert has been
damaged, please contact your local
distributor for a replacement.
Please insert the nozzle into the 2 clip-on slots that can
be found underneath the water distiller top.
Please make sure that the nozzle and the spout of water
container (PP bottle or Glass bottle) are properly aligned
to avoid water leaking.
Successfully installing the
nozzle on the distiller top
Method 1: Remove the nozzle directly
from the distiller.
Method 2: Remove the nozzle directly
from the top of distiller.

5
Cleaning Instruction Prior To First Distillation
You need to clean the distiller before making water to drink or use.
1. Please remove the top and pour 2 liters of water into the stainless steel tank, then put the
top back on. Please fully insert the two power cords into the sockets on the distiller then
insert the main power cord into the wall outlet.
※Note:
1When the fan starts running, it means the distiller is beginning to heat up.
2The RESET button on the distiller is factory-set at “ON” position, thus pressing the
RESET button to start the distiller is not necessary for the first time user. It always turns
itself off automatically when distillation is completed.
2. During each distillation, a water container (PP or glass bottle, or any other type of water
container) must be placed underneath the distiller nozzle to collect distilled water.
※Do not drink the 2 liters water that is used to clean up the pipeline.
Starting-up
1. The RESET button serves only to start the machine,
and after each distillation the machine will turn off
automatically.
2. Please press down the RESET button to start the
machine, when the fan starts running, it means the
distiller is starting to heat up.
3. Please disconnect the main power cord from the wall
outlet in order to stop the distiller during a distillation
process.
4. Please do not replace any part in the distiller in order
to avoid system failure.
5. For security reason, if the RESET button does not
work, (e.g., the RESET button has stuck, lose its
elasticity, or the power did not turn off automatically
after the distillation), please stop using the distiller
immediately and contact your local distributor for
repair.

6
Distillation Process
1. Remove the top from the distiller then
pour water into the stainless steel tank.
※Please do not surpass the "FULL" line
(Please check the image on the right).
※Using hot or boiled water can reduce the distillation time
2. Place the top back onto the distiller then insert the two power cords into the sockets on the distiller
and please make sure both power cords have been plugged in properly by verifying the white lines
on both power cord plugs are no longer visible in order to avoid poor connection (please check the
images below).
3. Please make sure that the steps above (steps: 1&2) are performed properly before
pressing down the RESET button. When the fan starts running after hitting the RESET
button, it means the distiller is starting to heat up.
4. During each distillation process, a water container (PP or glass bottle, or any other type of
water container) must be placed underneath the distiller nozzle to collect the distilled water.
Attention to Power cords
1. Please do not shake the plug while pulling it out. Just pull out the plug directly to avoid damaging
the plug terminals.
2. Before each distillation process, please verify that the power cords are connected properly to the
distiller in order to avoid a bad connection, or damage to the distiller.
3. Power cord is one of the consumables. If power cord has any abnormality (for example: the plastic
appearance has melted or deformed), please stop using it and replace with a new one.
Attention
1. Make sure you use the correct voltage, and please do not use any transformer.
2. Please do not share the same outlet with other electrical appliances in order to prevent overloading.
3. Please keep the distiller exterior dry and please do not immerse the distiller in water.
4. Please place the distiller in a well-ventilated place during the distillation process.
5. Please keep a minimum space of 20cm above the distiller top in order to help the distiller cool down.
6. Please place the distiller on a flat surface in order to avoid it from sliding or falling.
7. This appliance is not intended for use by person (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
8. Please do not put any flammable materials under the distiller.
9. Please do not remove the top during the distillation process in order to avoid injury caused by the
hot steam.
10.After each distillation, please give the machine at least 20 minutes to cool down before starting
another distillation process.
Ð
Ð
!

7
Stainless Steel Tank Cleaning Instruction
Attention: During operation and cleaning, please avoid any water contacting the sockets on the water
distiller and the power cords in order to prevent the short circuit.
Attention
※If the level of residue remaining inside the stainless steel tank is too thick, please repeat
the steps mentioned above until the stainless steel tank is completely clean.
※The cleaner used for this product is food-grade and it’s completely harmless to human
body, thus please use with ease.
※Please clean the stainless steel tank regularly in order to prevent too much residue
build-up inside the distiller as this could greatly decrease the machine’s heating
efficiency.
※Please do not use any abrasive cleaner or brushes to clean the distiller in order to avoid
damaging the surface of the stainless steel tank.
※Please do not immerse any part of the distiller in water and please keep the distiller’s
exterior as dry as possible.
※After cleaning the stainless steel tank, please make sure that both power cords remain as
dry as possible. If the power cords come in contact with water, please use dry towels to
wipe water off of the power cords in order to prevent leakage.
※Please use vacuum cleaners or air guns to clean the aluminum fins and fan blades
regularly in order to prevent too much dust covering the aluminum fins and fan blades,
which would cause the distiller to overheat.
※Please make sure that the stainless steel tank of the water distiller remains clean when the
machine is not used in order to avoid any corrosion due to excess residue.
1. Please remove the top and pour hot water into the
stainless steel tank until the water level has surpassed
the residue build-up.
2. Please add 1-4 teaspoon of cleaner to the stainless steel
tank (the amount of the cleaner added depends on how
much residue remains in the stainless steel tank).
3. Please connect the main power cord to the wall outlet
then press the RESET button and allow the distiller to
heat up for at least 20 minutes before unplugging the
power cord from the wall outlet. Please wait until the
distiller has completely cooled down and then wipe the
residues with a cloth or dishtowels (do not use anything
that will scratch the stainless steel and please make sure
that the steps above are performed in a well-ventilated
area).

8
Activated Charcoal Sachet
※Activated charcoal ingredients: Natural coconut shell.
※Functions: Removes odors and improves taste.
※Validity date: Each activated charcoal sachet should be replaced within a period of 25 days.
If a strange taste or odor is discovered in the distilled water, please replace the
activated charcoal sachet immediately
※Water will be tastier if you use 2 sachets at a time.
※Please do not place an unused or currently used activated charcoal sachet in the
refrigerator to avoid odor absorption that would result in poor water taste.
※Used activated charcoal sachet can be re-used for odor removal by placing it in shoes or
refrigerator.
※New activated charcoal sachets can release a small trace of black powder, which is
completely harmless to human body. It is just powdered charcoal. Please use at ease.
※New activated charcoal sachets are sealed in sealed plastic bags and should be kept in a
cool place.
※The stored lifespan of a new activated carbon sachet is 2 years.
Distiller Cleaners
※Cleaner ingredients: Food grade citric acid (made of natural crops such as potatoes and
corn).
※Functions: Can dissolve dirt and hard residues, and inhibit the growth of bacteria.
※Objective: Cleaning the remaining residue after a distillation process.
※Cleaners can sometimes agglomerate under the different world climates. If the
hardening has occurred, please crush the hardened cleaners or dissolve them
in the water. The effect of the cleaners would remain the same regardless of the
hardening.
※Unused cleaners should be kept in a cool place in order to extend the product life.
※A package of 12 activated charcoal
sachets is available to purchase at
local distributor.
※A 250g of distiller cleaner is
included when purchasing a new
distiller.
※500g of distiller cleaners are
available to purchase at the local
distributor.
※A package of 6 activated charcoal
sachets is included when
purchasing a new distiller.

9
Distiller Top Trouble Shooting
Problems
Causes
Solutions
1.Weird noise occurs in the
top
(1) Motor malfunction
Replace motor, reassemble the
top
(2) Damages causedby
self-assembly/disassembly
Reassemble the top
2.Fan stops running
(1) Motor shaft is stuck
Replace motor
(2) Upper cover power
cord malfunction
Replace Upper cover power cord
(3) Motor wire connection
error
Recheck the motor wire
connection
(4) Motor fuse malfunction
Replace motor and reassembly
(5) Power disconnected
from the body
Distiller body reexamination
3.Water leakage from the
top during the distillation
process
(1) No power supply on the
Top
The Top must remain straight in
order to avoid poor connection
(2) Fan stops running
Re-examine the Top’s functions
(3) Cushion rubber ring
has hardened
Replace the cushion rubber ring
(4) Cooling duct is clogged
Re-examine the cooling duct
(5) Water leakage
The nozzle and the spout of water
container did not align properly

10
Distiller Body Trouble Shooting
Problems
Causes
Solutions
1.Body heating problem
(1) No power supply on the body
Verify if both power cords are
plugged properly that the white lines
on both power cords are no longer
visible.
(2) Blown fuse
Replace fuse
(3) No power supply from the wall outlet
Change to another wall outlet
(4) Power cord malfunction
Replace the power cord
(5) Thermal switch was not fully engaged
Depress the RESET button again
2. The RESET button does
not work
(1) Thermal switch malfunction
Replace the Thermal switch
(2) The spring in the RESET button is
jammed
Re-check and reinstall the spring in
the RESET button
3.Too much water remains
in the distiller after a
distillation process
(1) Thermal switch malfunction
Replace the thermal switch
(2) Blown fuse during the distillation
process
Replace the fuse
(3) Internal structure malfunction
Replace broken internal structure
4. Burned power cords and
sockets
The power cords were not properly plugged
that results in a poor connection between
power cords and the sockets
Replace power cords and sockets
5. Water leakage during the
distillation process
(1) The cushion rubber ring did not properly
install
Examination & Reassembly
(2) The cushion rubber ring has hardened
Replace the cushion rubber ring
(3) The cooling duct is clogged with dust
Clean the cooling duct
(4) Fan stops running
Verifying if fan has properly installed
(5) The nozzle was not installed properly
which results in water leakage
Re-examination & Reassembly
(6) The nozzle was not properly aligned
with the spout of water container
Examination & Reassembly
(7) Internal structure malfunction
Reexamine the internal structure

11
Warranty
Megahome distillers have a 12 month warranty against manufacturing defects. This warranty is not
applicable in the following conditions:
1. Failure to follow the instruction manual to operate the machine which results in damage to the
machine.
2. Repairing the machine by an unauthorized third party that includes the client him/herself.
3. Did not use on the proper voltage or any damage caused by human errors.
4. Did not regularly clean the machine (lack of cleaning can result in the cooling duct being covered
with dust, which can cause the fuse to blow).
5. Consumable items such as activated charcoal sachet and distiller cleaners are not part of this
warranty.
6. Damage caused by natural catastrophes (i.e., earthquake, tsunami, thunderstorm, and hurricane)
are excluded from this warranty.
7. Consumers are responsible for any repairing costs of items that are excluded from this warranty.
8. Please do not scratch or remove the serial number stickers on the distiller in order to protect the
validity of the product warranty.
※To protect the rights of consumers, broken distillers should be repaired by an authorized dealer.
※For consumer's safety, please use the certified electrical appliances only.
※Megahome Corporation offers water distillers with different voltage specifications for use around
the world. Please be sure that the purchased water distiller uses the same voltage in accordance
with local electrical voltage specifications.

12
Specification
International Certificates
230-240V 50 Hz 220-240V 50 Hz 120V 60 Hz
Megahome Corporation
No. 155, Keji 5th Rd., Annan District, Tainan City,
Taiwan, R.O.C. 709-55
TEL: [phone]~3
FAX: [phone]
http://www.megahome.com.tw
E-mail: [email protected]
Please contact us with any questions regarding to our products
Voltages: 100V-120V 60 Hz
220V-240V 50 Hz
Capacity: 4 liters
Power Consumption: 580W
Dimensions: Maximum diameter: 23.5 cm height: 36 cm
Distiller net weight: 3.4 kg
Distiller / PP bottle / accessories total gross weight: 5.2 kg
Distiller / glass bottle / accessories total gross weight: 6.0 kg
