Mercia Garden Products 10DTSHPN0804-V1 User manual
2mm Drill bit
x2
¡
ANY QUESTIONS?
Scan the QR code to
contact us via our customer
portal.
PLEASE SCAN HERE:
¡
¡
8
Some steps within this set of instructions come with an added video guide for your
convenience. These can be accessed via the QR code and used to aid you in constructing that
step. See below for how to use.
You can also nd all the videos on our youtube channel:
https://www.youtube.com/@merciagardenproducts8716/videos

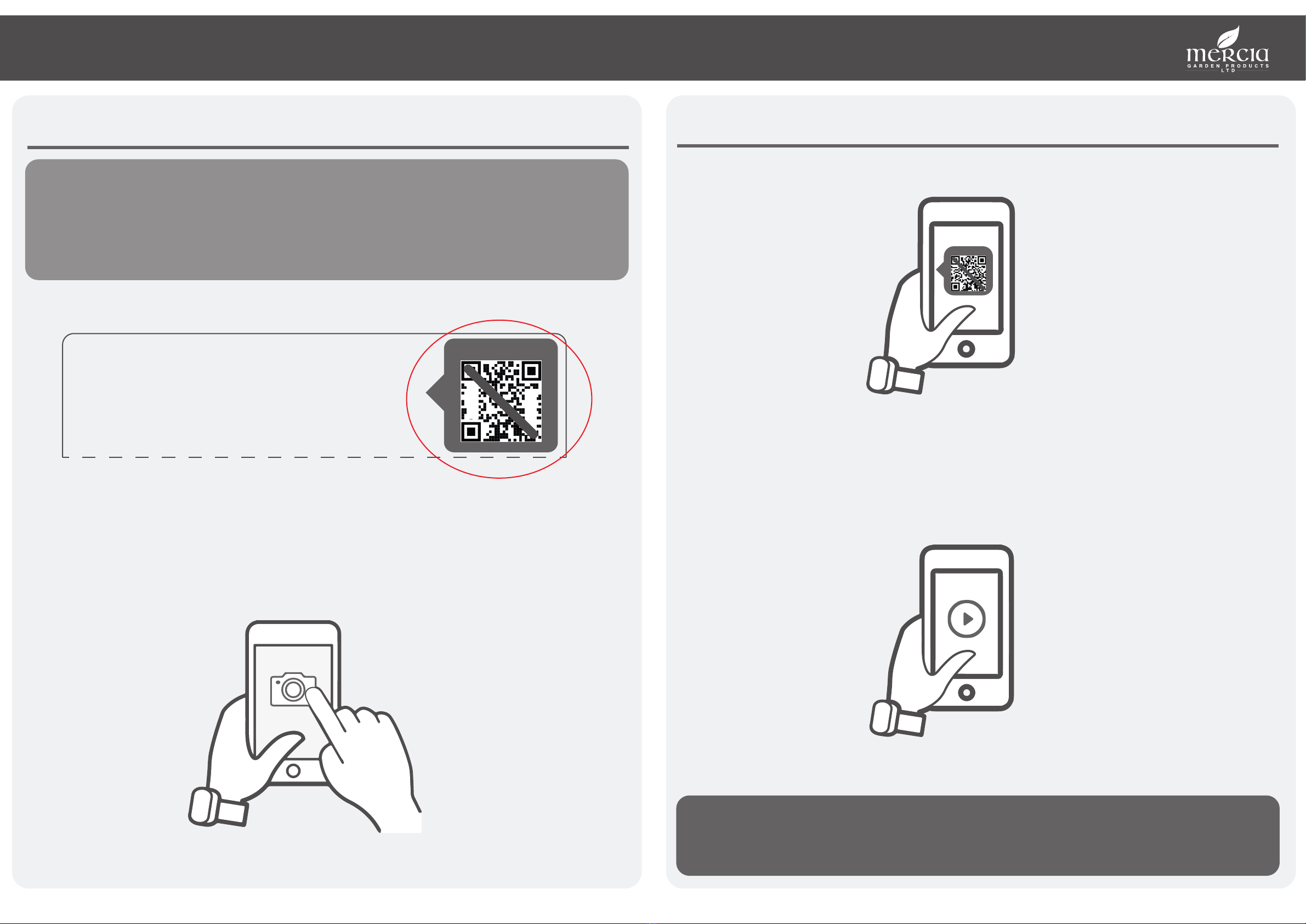

ACCESSING VIDEO GUIDES...
1.Find the QR code within the instruction step...
2. Open camera app...
3. Scan QR code...
4. Watch the video...
On your personal smart device (phone, tablet etc), open your camera app or QR code scanner
app.
To scan the QR code, hold the camera over the QR code so that it can be seen on the screen.
Once the QR code has been registered, follow the prompts on your device to open the video.
(This will vary depending on your device.)
Please note: Ensure to use the back camera of your smart device as this will scan the QR code more
accurately.
The video guide will now be displayed on your smart device.
Parts Needed- No. QTY 1
No. QTY 1
No. QTY 1
Step.....
Within the instruction step, there will be an icon in the top right that has a QR code in. This
is where the video can be accessed from.
Please note: not every step has a video guide.
Disclaimer: The garden building constructed in the video guides may be
constructed dierently to your building. Please ensure to read your instructions
carefully to avoid error.
ACCESSING VIDEO GUIDES...
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Overall Dimensions:
Width = 2310mm
Depth = 1217mm
Height = 1277mm
Base Dimensions:
Width = 2258mm
Depth = 1132mm
Turn button QTY 4
PI-07-0034
Pad bolt QTY 2
PI-07-0035
T-hinge QTY 6
PI-07-0082
Door Panel QTY 1
AI-10S11MBSD1130X1220-V1
Door QTY 1
AI-S11FBMBZBD510X1095-V1
Mesh Door Panel QTY 1
AI-10S11MESSD1130X1220-V1
Mesh Door QTY 1
AI-10S11MESLFD499X1021-V1
Right Gable QTY 1
AI-10S11MBPGR1074X1220-V1
Left Gable QTY 1
AI-10S11MBPGL1074X1220-V1
Centre Gable QTY 1
AI-10S11MBPGOP1074X1220-V1
Back Panel QTY 2
AI-S11MBPP1130X1024-V1
Roof Panel QTY 2
AI-S11MBPR1143X1202-V1
Floor Tile QTY 4
AI-S22MBF548X535-V1
Fascia - 12x95x1270mm QTY 4
S1295-1270mm
Cover Trim - 12x40x1218mm 6TY 6
S1240-1218mm
Base Frame A - 44x44x1126mm QTY 3
F4444-1126mm
Base Frame B - 44x44x1066mm QTY 1
F4444-1066mm
Base Frame D - 44x44x1060mm QTY 1
F4444-1060mm
Base Frame C - 44x44x519mm QTY 2
F4444-519mm
2
134
567
13
8
9
19 20
18
11
12
10
14
15
16
Centre Framing - 28x28x1085mm QTY 1
FS2828-1085mm
17
Contents:
21
Felt QTY 1
Green Label Blue Label
Small Back Panel QTY 1
AI-S11MBPP565X1024-V1
Mesh Panel QTY 1
AI-10MESSP565X1220-V1
Roof Panel QTY 1
AI-S11MBPR565X1202-V1
Cover Trim - 12x40x1218mm QTY 2
S1240-1218mm
25
242322
Base Framing - 44x44x563mm QTY 2
F4444-563mm
Framing - 28x28x1623mm QTY 1
FS2828-1623mm
26
27
Fascia- 12x95x565mm QTY 1
S1295-565mm
28
2X4 Extension Pack B.
10DTSHPN0204PB-V1 *If you have purchased a 12x4 building then you will have double
the amount of each item in pack B*
If you have purchased a 2ft Extension pack B, please follow instructions for ‘ 10x4
Extension pack B’ or ‘12x4 Extension pack B’ where relevant.
Contents:
Overall Dimensions:
Width = 2875mm
Depth = 1217mm
Height = 1277mm
Base Dimensions:
Width = 2821mm
Depth = 1126mm
Overall Dimensions:
Width = 3438mm
Depth = 1217mm
Height = 1277mm
Base Dimensions:
Width = 3384mm
Depth = 1126mm
10X4 12X4
50mm Screw x 24
40mm Screw x 51
20mm Screw x 20
30mm Screw x 96
Felt Tacks x 105
70mm Screw x 18
Nail Bag
There may be extra screws present in the nail bag.
60mm Screw x 38

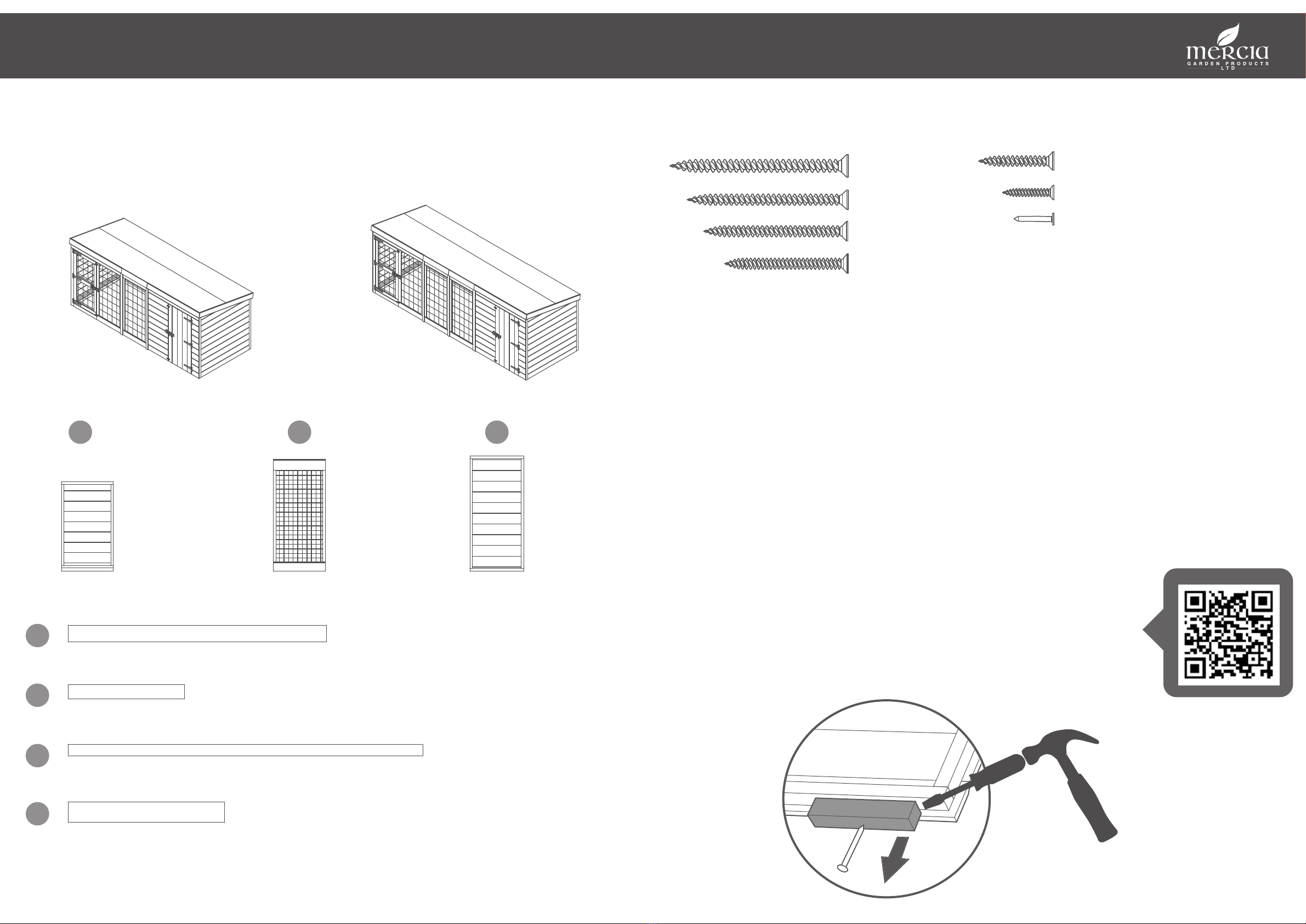

Pre Assembly
Before assembling remove the transportation blocks from the bottom of each panel.
Take care removing the blocks as to not damage the panels. Tap with a at headed
screwdriver and hammer.
Dispose of the blocks once removed.
PLEASE SCAN HERE:
13
Step 1
Parts Needed - No. 13 QTY 2
- No. 15 QTY 1
- No. 14 QTY 1
Construct the Base using Base Framing
A (No. 13), B (No. 14) & C (No. 15). This
will create a base for the Kennel area.
Fix the Framing together with 2x70mm
screws per corner.
6x70mm screws.
Pre drill
hole
70mm
screw
15
14
13
IMPORTANT: Pre-drill before xing screws.
IMPORTANT: Pre-drill before xing screws.
8
Step 2
Parts Needed - No. 5 QTY 1
- No. 8 QTY 1
Place the Right Gable (No. 5) and the Back
Panel (No. 8) onto the base framing and
x together with 3x40mm screws through
the framing.
**Do NOT x to the base framing until
the Roof is secured**
3x40mm screws.
Pre drill
hole
40mm
screw
5
a
a
a
a
IMPORTANT: Pre-drill before xing screws.
Step 3
Parts Needed - No. 1 QTY 1
Locate the Door Panel (No. 1) onto the base
framing. Ensure there is equal spacing
between the base framing and the panels.
Fix the Door Panel to the Right Gable using
3x40mm scews.
3x40mm screws.
Pre drill
hole
40mm
screw
1
a
a
a
a
16
15
Step 4
Parts Needed - No. 13 QTY 1
- No. 15 QTY 1
- No. 16 QTY 1
Place the remaining Base Framing (No.13,
15 & 16) into position as shown and
secure with 2x70mm screws through the
corners.
*The Run base framing does not x to the
Kennel area*
Please note: The base framing will be
secured further once all the panels are tted.
4x70mm screws.
Pre drill
hole
70mm
screw 13
IMPORTANT: Pre-drill before xing screws.
Step 4a - 10x4 EXTENSION PACK B
Parts Needed - No. 13 QTY 1
- No. 15 QTY 1
- No. 16 QTY 1
Place the remaining Base Framing
(No.13, 15, 16, & 26) into position as
shown and secure with 2x70mm
screws through the corners.
Locate the Framing (No.27) against the
base framing as shown. Ensure the
framing is level and ush.
Fix in place using 3x70mm screws,
going through the framing into the
bearers behind.
*The Run base framing does not x to the
Kennel area*
Please note: The base framing will be
secured further once all the panels are
tted.
7x70mm screws.
Pre drill
hole
70mm
screw
IMPORTANT: Pre-drill before xing screws.
- No. 26 QTY 2
- No. 27 QTY 1
15
16
26
26
13
27
Step 4b - 12x4 EXTENSION PACK B
Parts Needed - No. 13 QTY 1
- No. 15 QTY 1
- No. 16 QTY 1
Place the remaining Base Framing
(No.13, 15, 16, & 26) into position as
shown and secure with 2x70mm
screws through the corners.
Secure the front two Base Frames
(No.26) together using 1x70mm
screws, screwing through the bearer at
an angle into the next.
Locate the Framing (No.27) against the
base framing as shown. Ensure the
framing is level and ush.
Fix in place using 3x70mm screws,
going through the framing into the
bearers behind.
*The Run base framing does not x to the
Kennel area*
Please note: The base framing will be
secured further once all the panels are
tted.
8x70mm screws.
Pre drill
hole
70mm
screw
IMPORTANT: Pre-drill before xing screws.
- No. 26 QTY 4
- No. 27 QTY 1
15
16
26
26
13
27
26
26
Step 4c - EXTENSION PACK B’s.
10x4
Parts Needed - No. 22 QTY 1
- No. 23 QTY 1
Locate the Small Back Panel (No. 22) onto
the back of the base frame and the Mesh
Panel (No. 23) onto the front of the base
frame, as shown.
Secure the panels to the adjacent panels
using 3x40mm screws per panel.
**Do NOT x to the base framing until
the Roof is secured**
10x4
6x40mm screws.
12x4
12x40mm screws.
Pre drill
hole
40mm
screw
IMPORTANT: Pre-drill before xing screws.
12x4
Parts Needed - No. 22 QTY 2
- No. 23 QTY 2
10x4
12x4
22
23
22
23
22
23
a
a
a
a
a
a
a
a
a

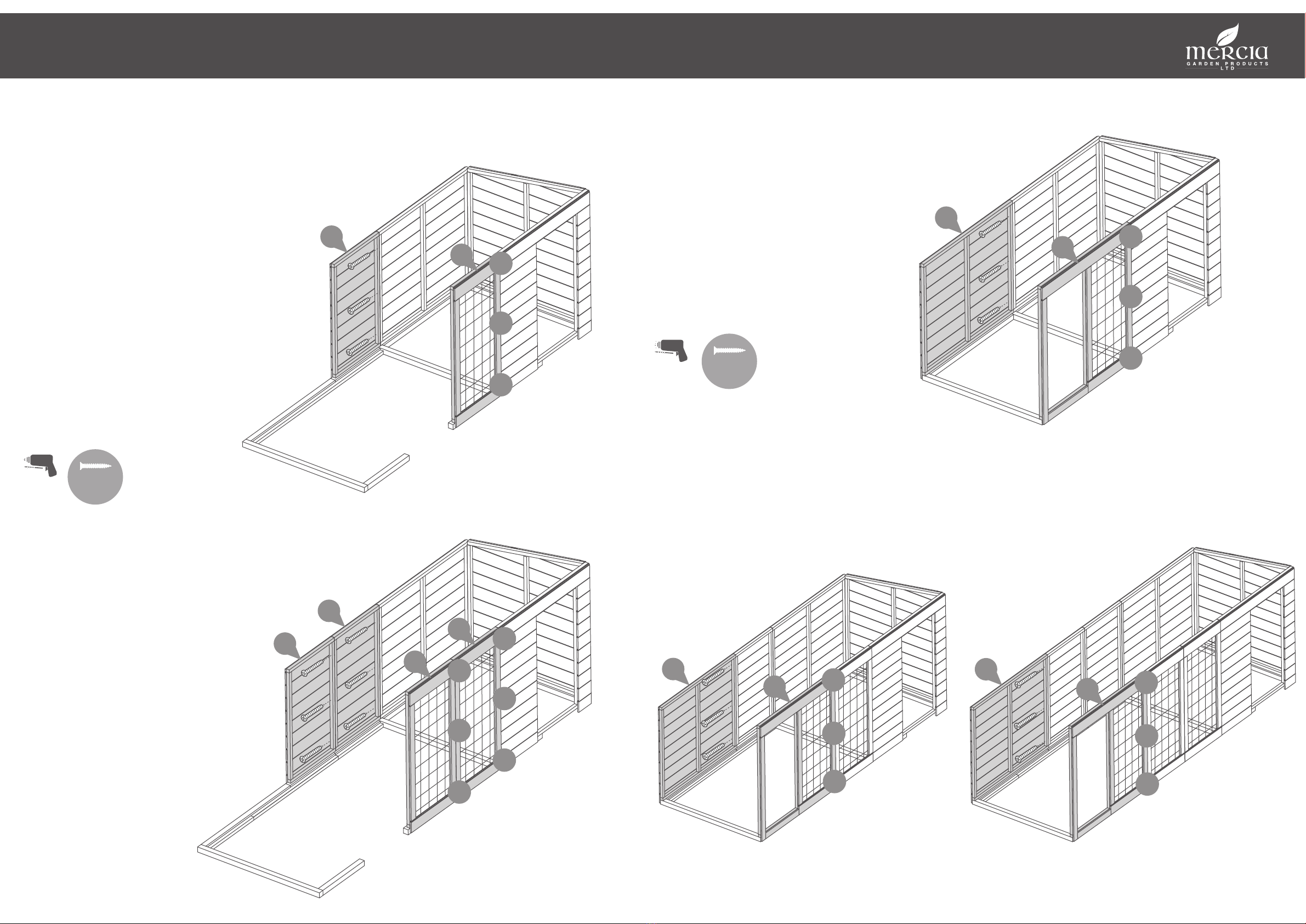

Step 5
Parts Needed - No. 3 QTY 1
- No. 8 QTY 1
Locate the remaining Back Panel (No. 8)
and the Mesh Door Panel (No. 3) on top of
the base framing as shown.
Secure in place using 3x40mm screws per
panel.
**Do NOT x to the base framing until
the Roof is secured**
6x40mm screws.
Pre drill
hole
50mm
screw
IMPORTANT: Pre-drill before xing screws.
EXTENSION PACK B’s:
10x4 12x4
8
a
a
a
3
8
a
a
a
3
8
a
a
a
3
¢
Step 6
Parts Needed - No. 7 QTY 1
Place the Central Gable (No. 7) onto
the central base frame, a shown.
Secure in place using 3x40mm
screws per side. Ensure to screw
through the Central Gable framing
into the rst panel in the ‘run’ areas
framing, a shown.
**Do NOT x to the base framing
until the Roof is secured**
6x40mm screws.
Pre drill
hole
40mm
screw
IMPORTANT: Pre-drill before xing screws.
EXTENSION PACK B’s:
10x4 12x4
a
a
a
7
a
a
a
7
7
7
a
a
a
a
a
a
a
a
a
a
a
a
Step 7
Parts Needed - No. 6 QTY 1
Place the Left Gable (No. 6) onto the base
framing, as shown.
Secure to the adjacent panels using
3x40mm screws per side.
**Do NOT x to the base framing until
the Roof is secured**
6x40mm screws.
Pre drill
hole
40mm
screw
IMPORTANT: Pre-drill before xing screws.
EXTENSION PACK B’s:
10x4 12x4
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
6
66
Step 8
Parts Needed - No. 17 QTY 1
Locate the Centre Framing (No. 17) to the
framing side of the Centre Gable (No. 3).
Ensure the framing is ush and level with
that of the panel, as shown.
Secure in place using 3x40mm screws.
3x40mm screws.
Pre drill
hole
40mm
screw
17
IMPORTANT: Pre-drill before xing screws.

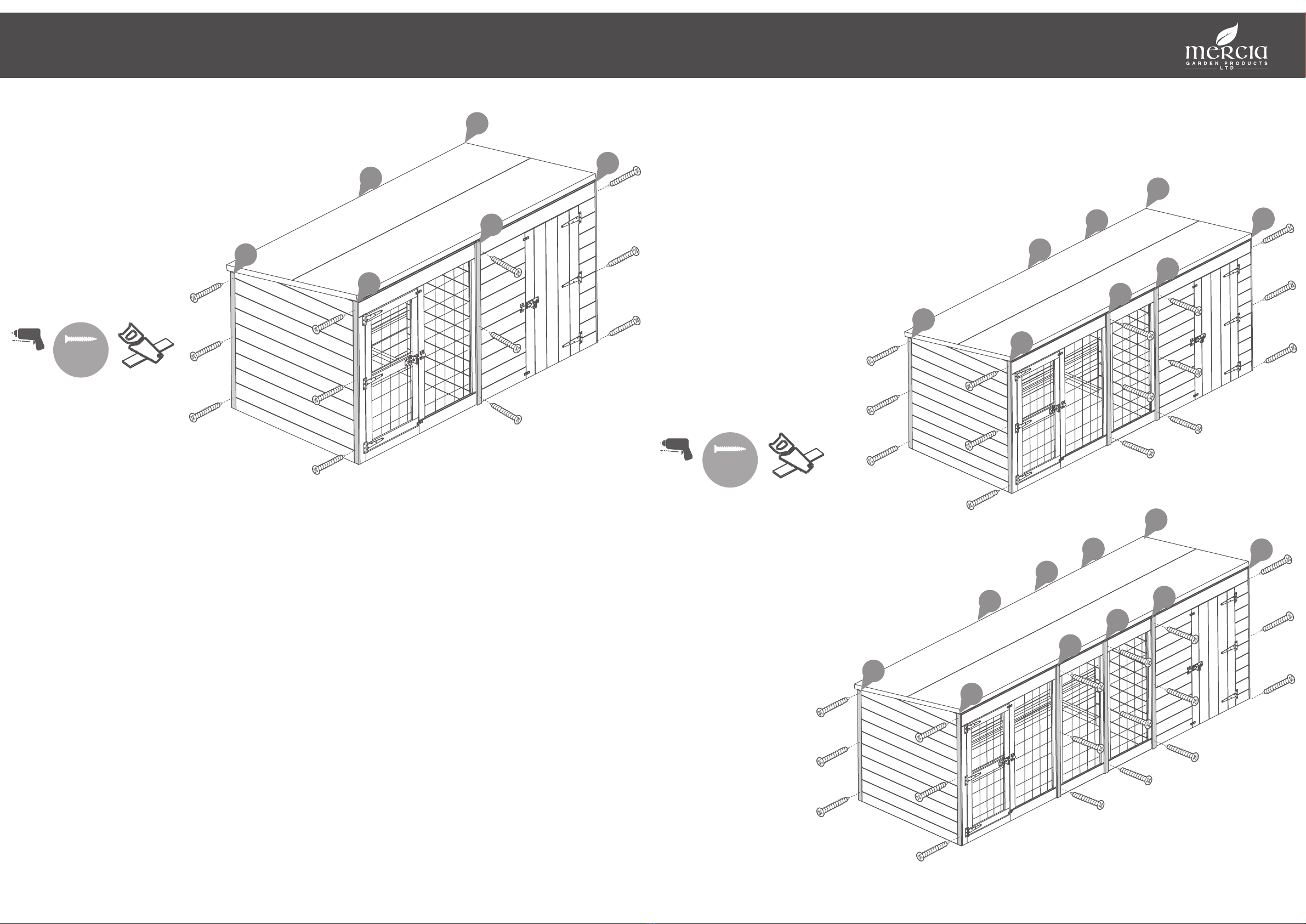

Step 9
Parts Needed - No. 9 QTY 2
Locate the Roof Panels (No.9) on top of
the building as shown. Ensure the Panels
sit on top of the Gables, are ush to the
sides of the Gables and ush to the front
of the building.
The Roofs will overhang at the back of
the building.
Fix the panels together, internally using
4x40mm screws, screwing through the
central framing. Ensure to stagger
screws to avoid collision.
Secure the Roof Panels to the building
using 60mm screws as shown.
4x40mm screws.
26x60mm screws
Pre drill
hole
40mm
screw
IMPORTANT: Pre-drill before xing screws.
*Internal view*
9
9
9
9
9
9
24
24
24
60mm
screw

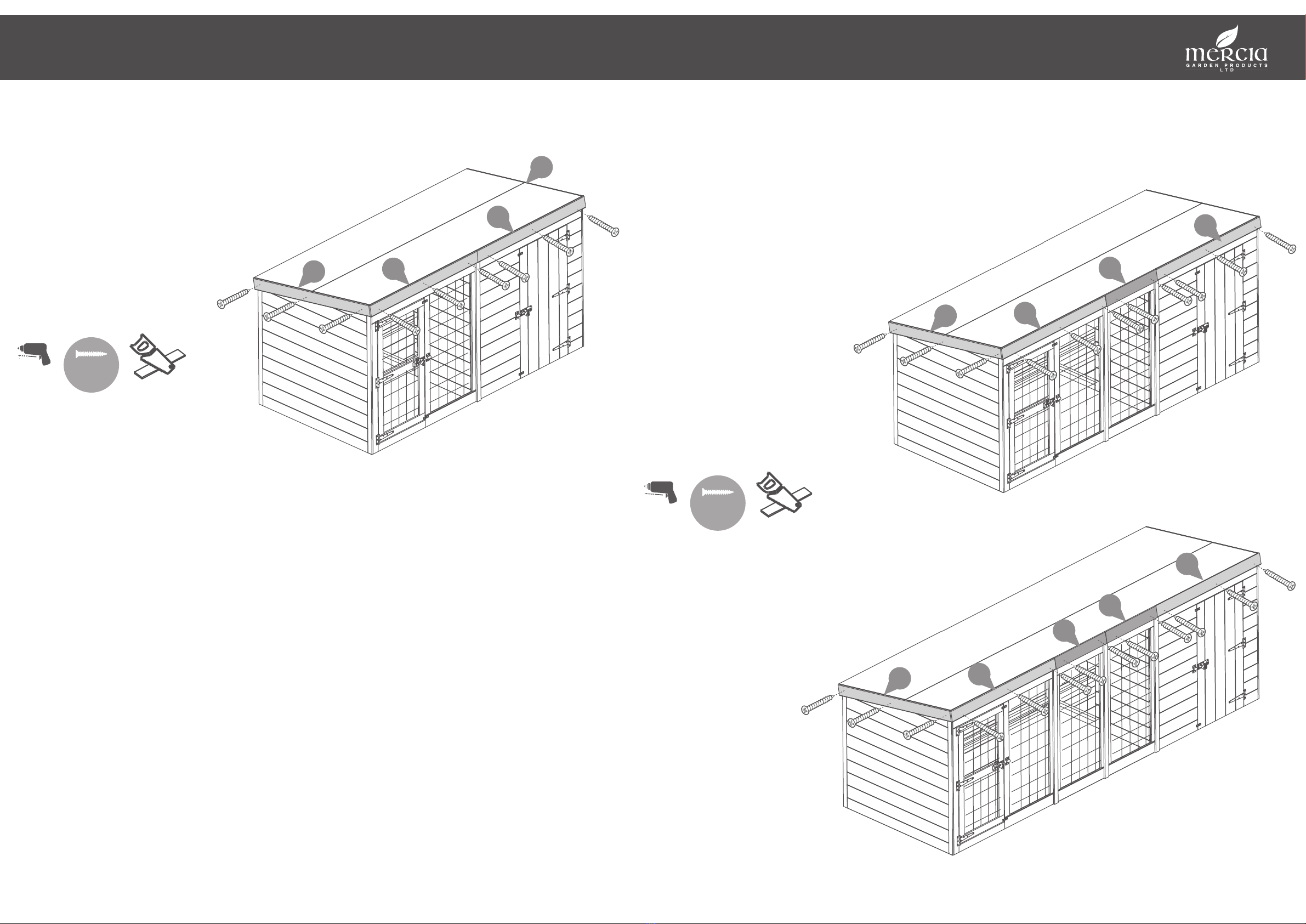

Step 9a - EXTENSION PACK B’s.
10x4
Parts Needed - No. 9 QTY 2
- No. 24 QTY 1
Locate the Roof Panels (No.9 & 24) on
top of the building as shown. Ensure the
Panels sit on top of the Gables, are ush
to the sides of the Gables and ush to
the front of the building.
The Roofs will overhang at the back of
the building.
Fix the panels together, internally using
4x40mm screws per join, screwing
through the central framing. Ensure to
stagger screws to avoid collision.
Secure the Roof Panels to the building
using 60mm screws as shown.
10x4:
8x40mm screws.
32x60mm screws.
12x4:
50x40mm screws.
38x60mm screws.
IMPORTANT: Pre-drill before xing screws.
12x4
Parts Needed - No. 9 QTY 2
- No. 24 QTY 2
10x4
12x4
*Internal view*
*Internal view*
Pre drill
hole
40mm
screw 60mm
screw
Step 10
Once the Roof Panels have been
secured, x the building to the base
frame by screwing though the panels
framing into the base frame using 50mm
screws.
16x50mm screws.
Pre drill
hole
50mm
screw
IMPORTANT: Pre-drill before xing screws.
EXTENSION PACK B’s:
10x4
20x50mm screws.
12x4
24x50mm screws.
b
b
b
b
b
bbb
bbb
b
bbb
b
b
bbb
bb
b
bbb
b
b
bb
b
Step 11
Parts Needed - No. 21 QTY 1
Cut the Felt (No.21) into two sheets
measuring:
2400mm (L) X 1000mm(W)
Lay the sheets onto the building in the order
shown in the illustration, ensure there is
50mm overhang on each side of the building
and the sheets overlap by 100mm.
Secure the felt in place using felt tacks spaced
at 100mm.
65 x Felt Tacks.
IMPORTANT: Pre-drill before xing screws.
Felt
tacks
10x4
2950mm (L) X 1000mm(W)
85 x Felt Tacks
12x4
3510mm (L) X 1000mm(W)
105 x Felt Tacks
EXTENSION PACK B’s:
21
21
21
1.
2.
100mm
HANDLE
WITH CARE
1 2
3
4
Step 12
Parts Needed - No. 2 QTY 1
- No. 19 QTY 3
Locate the Kennel Door (No. 2) into the
Door opening in the Door Panel (No. 1),
ensuring there is equal spacing on each
side.
Secure three T-hinges (No. 19) to the Door
and Door Panel using 7x30mm screws per
hinge.
**8x4 building shown for illustrative
purposes but the process is the same for
the extension packs.**
21x30mm screws
Pre drill
hole
30mm
screw
2
IMPORTANT: Pre-drill before xing screws.
19
19
19
19
PLEASE SCAN HERE:
PLEASE SCAN HERE:
Step 13
Parts Needed - No. 4 QTY 1
- No. 19 QTY 3
Locate the Mesh Door (No. 4) into the
Door opening in the Mesh Door Panel
(No. 3), ensuring there is equal spacing on
each side.
Secure three T-hinges (No. 19) to the Door
and Door Panel using 7x30mm screws per
hinge.
**8x4 building shown for illustrative
purposes but the process is the same for
the extension packs.**
21x30mm screws
Pre drill
hole
30mm
screw
IMPORTANT: Pre-drill before xing screws.
19
19
19
19
4
Step 14
Parts Needed - No. 18 QTY 2
- No. 20 QTY 4
Pre drill
hole
20mm
screw 30mm
screw
IMPORTANT: Pre-drill before xing screws.
b
aLocate a Pad Bolt (No. 18) onto each
door. Ensuring to align it with the
central Door framing.
Use 8x20mm screws to attach the Pad
Bolt to the Doors and 4x30mm screws
to attach the Pad Bolt catch to the
building.
Attach a Turn button (No. 20) to the
top and bottom of each door. Fix in
place using 1x20mm screw per Turn
Button.
**8x4 building shown for illustrative
purposes but the process is the same
for the extension packs.**
20x20mm screws
8x30mm screws
20
b
18
a
18
18
20
20
20
20
Step 15
Parts Needed - No. 12 QTY 6
Locate the Cover trims (No. 12) to
the corners and faces of the building
where the panels join, as shown.
Secure in place using 3x30mm
screws per trim.
The rear Cover trims will need to be
cut down to t.
18x30mm screws.
Pre drill
hole
30mm
screw
*Cut down
trims to t
IMPORTANT: Pre-drill before xing screws.
10x4
12x4
12
12
12
12
12
12
Step 15a - EXTENSION PACK B’S.
10x4
Parts Needed - No. 12 QTY 6
- No. 25 QTY 2
Locate the Cover trims (No. 12 & 25) to
the corners and faces of the building
where the panels join, as shown.
Secure in place using 3x30mm screws per
trim.
The rear Cover trims will need to be cut
down to t.
10x4
24x30mm screws.
12x4
30x30mmscrews
Pre drill
hole
30mm
screw
*Cut down
trims to t
IMPORTANT: Pre-drill before xing screws.
12x4
Parts Needed - No. 12 QTY 6
- No. 25 QTY 4
12
12
12
12
12 12
25
25
12
12
25
12
25
12
25
25 12
12
Step 16
Parts Needed - No. 11 QTY 4
Locate the Fascias (No. 11) to the
front and sides of the building,
ensuring they are ush to the top of
the building and the ends.
Secure in place using 3x30mm
screws per Fascia.
Some Fascias will need to be cut
down to t.
12x30mm screws.
Pre drill
hole
30mm
screw
*Cut down
trims to t
IMPORTANT: Pre-drill before xing screws.
11 11
11
11
Step 16a - EXTENSION PACK B’s.
10 x 4
Parts Needed - No. 11 QTY 4
- No. 28 QTY 1
Locate the Fascias (No. 11 & 28) to
the front and sides of the building,
ensuring they are ush to the top of
the building and the ends.
Secure in place using 3x30mm
screws per Fascia (No.11) and
2x30mm screws per add on Fascia
(No. 28).
Some Fascias will need to be cut
down to t.
10x4
14x30mm screws.
12x4
16x30mm screws.
Pre drill
hole
30mm
screw
*Cut down
trims to t
IMPORTANT: Pre-drill before xing screws.
12 x 4
Parts Needed - No. 11 QTY 4
- No. 28 QTY 2
11 11
11
28
11 11
11
28
28
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
Want to share your experience with us?
Leave us a review on Feefo, TrustPilot or Google.
Your reviews help other people nd and trust our
business, as well as helping to play an important role
in our growth and improvement!
Step 17
Place the Floor Panels (No.10) into the
kennel area as shown. Ensure they sit
on the base framing and are ush and
level.
These panels are removable so do not
need securing in position.
*For ease of use, drill a nger sized
hole in one panel.
¡
¡
ANY QUESTIONS?
Scan the QR code to
contact us via our customer
portal.
PLEASE SCAN HERE:
¢
£
¡
£
1
2
3
4
5
6
7
8
9
¤
¥
¤
2
1
¦
3
4
¥
£
¦
¡
¥
12
£
¦
¡
¢
Table of contents
Other Mercia Garden Products Garden House manuals
Mercia Garden Products
Mercia Garden Products 01DTOVPN0705SDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 0634AXNE0503HGDD2MW-V1 User manual
Mercia Garden Products
Mercia Garden Products 01SHPSTR0402-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 03DTSHCR0707FGD2TW-V2 User manual
Mercia Garden Products
Mercia Garden Products 03TGCOR0808-V3 User manual
Mercia Garden Products
Mercia Garden Products 02DTTWRS0605-V1-PEFC Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTPRMSHDB0808DDOP-V1 User manual
Mercia Garden Products
Mercia Garden Products 01OVLPA0808DDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTSHRAX0806SDNW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 02BRAM0806-V3-PEFC Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTOVRA1006SDFW-V1 User manual
Mercia Garden Products
Mercia Garden Products 03DTSHRA1008FGC42TW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01OVLPA1208DDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01OSBP1006SDFW-V1 User manual
Mercia Garden Products
Mercia Garden Products 03DTSHCR0909FGD4TW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products BOURNEMOUTH 03BRN0707-V4 Instruction manual
Mercia Garden Products
Mercia Garden Products 01OVLPA0806DDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTOVAX0604SDFW-V1 User manual
Mercia Garden Products
Mercia Garden Products 03DTSHPN0806FGD1TW-V1 User manual
Mercia Garden Products
Mercia Garden Products 01DTPRMSHPN1206DDOP-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01OVLPA0510PB-V1 User manual
Mercia Garden Products
Mercia Garden Products 01SHPWOR2010DDOW-V2 Instruction manual
Mercia Garden Products
Mercia Garden Products 0644RANE4535FGDD2TW1SW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTPRMSHPN1208DDOP-V2 User manual
Popular Garden House manuals by other brands
total sheds
total sheds Apex Summer Shed Assembly manual
Backyard Products
Backyard Products Heartland VALUE Series Assembly manual
STILLA
STILLA Hazel 9x6 Assembly instructions
Palmako
Palmako Nils 12.1 installation manual
Décor et Jardin
Décor et Jardin MODULES 12 Assembly Notice
finnhaus
finnhaus ELEGANTO 3024 Assembly instructions
Sojag
Sojag Monterey owner's manual
Deponti
Deponti Pinela Deluxe User manual & assembly instructions
Biohort
Biohort Europa Assembly manual
Palmako
Palmako FR44-3838-2 Assembly, installation and maintenance manual
Sentry Buildings
Sentry Buildings The Jefferson Assembly Book
Palmako
Palmako FR44-4738 installation manual
