Mercia Garden Products 03DTSHCV1208HGD4MW-V1 Instruction manual

P 1
Please retain product label and instructions for future reference
General Instructions
REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
PLEASE SCAN HERE:
03DTSHCV1208HGD4MW-V1
DIP TREATED SHIPLAP CURVED 12FT X 8FT HALF GLAZED DOUBLE 4 MEDIUM WINDOW
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
**Protim Aquatan T5 (621)**
Your building has been dip treated with Aquatan.
Aquatan is a water-based concentrate which is diluted with water, the building has been treated by the
correct application of Aquatan solution and then allowed to dry.
Aquatan is a decorative nish to colour the wood, which is applied industrially to timber fence panels and
garden buildings.
Aquatan undiluted contains: boric acid, sodium hydroxide 32% solution, aqueos mixture of sodium dioctyl
sulphosuccinat and alcohols: 2, 4, 6-trichlorophenol.
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy or
extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts To identify the
xings required
for each step use a
measuring tape.
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear
gloves when working with or handling rough
sawn timber.
For ease of assembly, you
will need a tape measure to
check dimensions of
components.

P 2
03DTSHCV1208HGD4MW-V1
Overall Dimensions:
Length = 2965mm
Width = 3640mm
Height = 2156mm
Base Dimensions:
Length = 2350mm
Width = 3506mm
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
21 345
6 98
7
Door Panel
QTY 1
AI-03S22SHDD1298X2095-V1
Front Window Panel
QTY 2
AI-03S21SH1FSFWC1109X2095-V1
Right Gable
QTY 1
AI-S21SHCGTR2272X323-V1
Side Window Panel
QTY 2
AI-03S21SH1FSFWC572X1782-V1
Left Gable
QTY 1
AI-S21SHCGTL2272X323-V1
Back Panel
QTY 3
AI-S21SHPP1172X1832-V1
Side Panel
QTY 2
AI-S21SHPPTF1700X1782-V1
Floor
QTY 4
AI-S21MBF1753X1175-V1
Roof
QTY 4
AI-S21MBCR910X2950-V1
Master Door
QTY 1
AI-PRMHGMD600X1715-V1
Secondary Door
QTY 1
AI-PRMHGSD600X1715-V1
Building Content:
Roof Block - 28x28x140mm QTY 6
FS2828-G-160mm (angled)
Door Rain Guard - 28x44x1210mm QTY 1
RG2844-1210mm
Window Rain Guard - 28x44x540mm QTY 4
RG2844-540mm
Roof End - 83x12x2950mm QTY 4
MB12RT83-2950mm
Door Beading - 17x12x1711mm QTY 2
S1217-1711mm
Roof Trim - 30x12x1510mm QTY 8
S1230-1510mm
Fascia - 95x12x1820mm QTY 2
SR1295-1820mm
Front Cover Trim - 56x12x2088mm QTY 4
S1256-2088mm
Side Cover Trim - 56x12x2070mm QTY 2
S1256-2070mm
Rear Cover Trim - 56x12x1810mm QTY 4
S1256-1810mm
Ridge Bar - 90x27x1714mm QTY 6
F2790-1714mm
Door Bar - 60x16x1705mm QTY 1
S1660-1705mm
Floor Block - 44x27x400mm QTY 12
F2744-400mm
Door Handle
PI-07-0001
U Channel QTY 6
PI-07-0013
Mortice Lock
PI-07-0017
Hinge QTY 6
PI-07-0023
Key Plate
Turn Button QTY 2
PI-07-0034
Tower Bolt QTY 2
PI-07-0114
Finial QTY 1
Shed Diamond Finial
10 11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Felt
27
28
29
30
31
32
33

P 3
Please retain product label and instructions for future reference
50mm Screw x 122
40mm Screw x 46
Felt Tacks x 190
30mm Screw x 266
80mm Screw x 12
Nail Bag
There may be extra screws present in the nail bag
Pre Assembly
Before assembling remove the transportation
blocks from the bottom of each panel.
Take care removing the blocks as to not damage
the panels. Tap with a at headed screwdriver
and hammer.
Dispose of the blocks once removed.
30mm
screw
Pre drill
hole
Join the hinges (No.27) to
the door frames (No.10 & 11) using
40mm screws. Ensure hinges are
attached using the outer plate of
the hinge.
Fit the doors to the Door Panel
(No.1) with 40mm screws making
sure to use the inner plate of the
hinge.
Fit the Mortice Lock (No.25)
into the recess and x in place with
the screws provided. Fit the Key
Plate (No. 26) to the opposite door
using the screws provided.
Fix the Door Handles
(No.31) and the metal bar (spindle)
using 8x30mm screws. Ensure the
mortice lock closes correctly. If not,
remove lock and turn the catch
around using the small grub screw.
8x30mm screws
36x40mm screws
The Mortice Lock is Reversible
26
25
1
a
b
c
b
a
31
c
b
27
Step 1
Parts Needed - No. 1 QTY 1
- No. 10 QTY 1
- No. 11 QTY 1
- No. 25 QTY 1
- No. 26 QTY 1
- No. 27 QTY 6
- No. 31 QTY 1
10
11
27
40mm
screw

P 4
Please retain product label and instructions for future reference
Step 2
Parts Needed - No. 15 QTY 2
- No. 22 QTY 1
- No. 29 QTY 2
30mm
screw
Pre drill
hole
Fix the Door Bar (No. 22) to
the inside of the Secondary Door
using 6x30mm screws as shown in
the illustration.
Fit the Door Beading (No. 15) to
the inside of the door frame using
8x30mm screws, ensuring that
they sit ush with the frame and
the door.
Attach the Tower Bolts (No.
29) to the door bar using
12x30mm screws.
26x30mm screws
22
15
15
29
d
e
e
d
IMPORTANT: Pre-drill before xing screws.
15
29
29
22 Secure the oor (No. 8) to the
Floor Blocks (No.23) using 12x30mm
screws per oor.
Repeat this for one other oor panel.
24x30mm Screws
Pre drill
hole
30mm
screw
Step 3
Parts Needed - No. 8 QTY 2
- No. 23 QTY 12
8
IMPORTANT: Pre-drill before xing screws.
23
8
23
Pre drill
hole
30mm
screw
Step 4
Parts Needed - No. 8 QTY 2
Secure the oor (No. 8) to the assembly
from Step 3, using 12x30mm screws per
oor.
Repeat this to create two assembled
oors.
24x30mm Screws
IMPORTANT: Pre-drill before xing screws.
8
8
8
8

P 5
Please retain product label and instructions for future reference

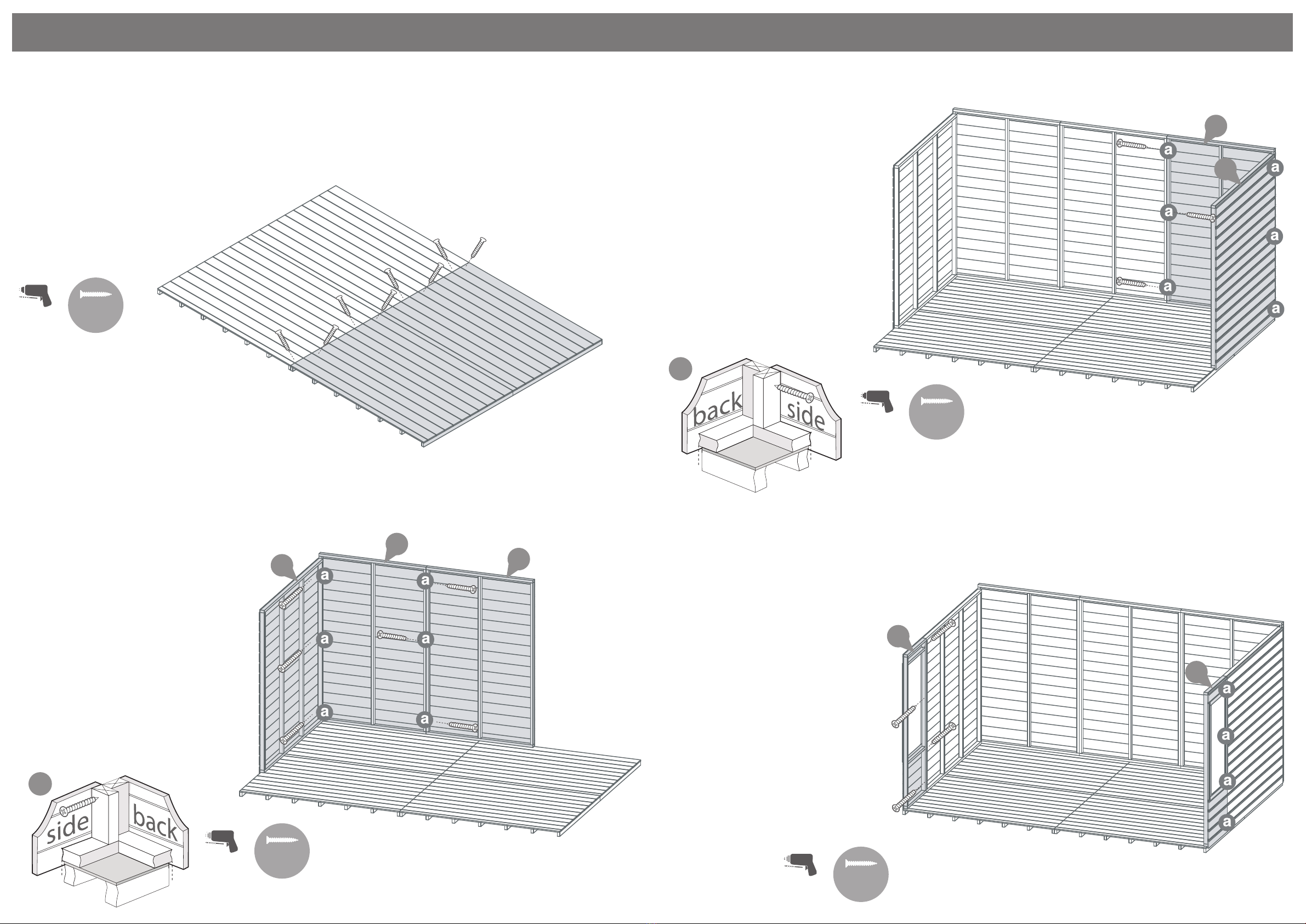

Place the assembled oor panels
(No.8) on to a rm and level base.
Ensure the base has suitable drainage,
free from areas where standing water
can collect.
Secure the oors together using
8x50mm screws through the oor
bearers in an alternating pattern.
8x50mm Screws
Step 5 IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
50mm
screw
Pre drill
hole
50mm
screw
Fix two of the Back panels (No.4) side by
side using 3x50mm screws, x the
corners of the back panel (No.4) and the
Side Panel (No.5).
Do NOT secure the building to the oor
until the roof is tted.
Position the panels so there is equal
spacing between the oor and the
cladding on all sides.
6x50mm Screws
5
44
Step 6
Parts Needed - No. 4 QTY 2
- No. 5 QTY 1
IMPORTANT: Pre-drill before xing screws.
a
Step 7
Parts Needed - No. 4 QTY 1
- No. 5 QTY 1
a
Pre drill
hole
50mm
screw
IMPORTANT: Pre-drill before xing screws.
5
4
Fix the last back panel (No.4) next to the
already standing back panel
using
3x50mm screws
. Then x the corners of
the side panel
(No.5) to the last back
panel
using 3x50mm screws .
Do NOT secure the building to the oor
until the roof is tted.
Position the panels so there is equal
spacing between the oor and cladding
on all sides.
6x50mm Screws

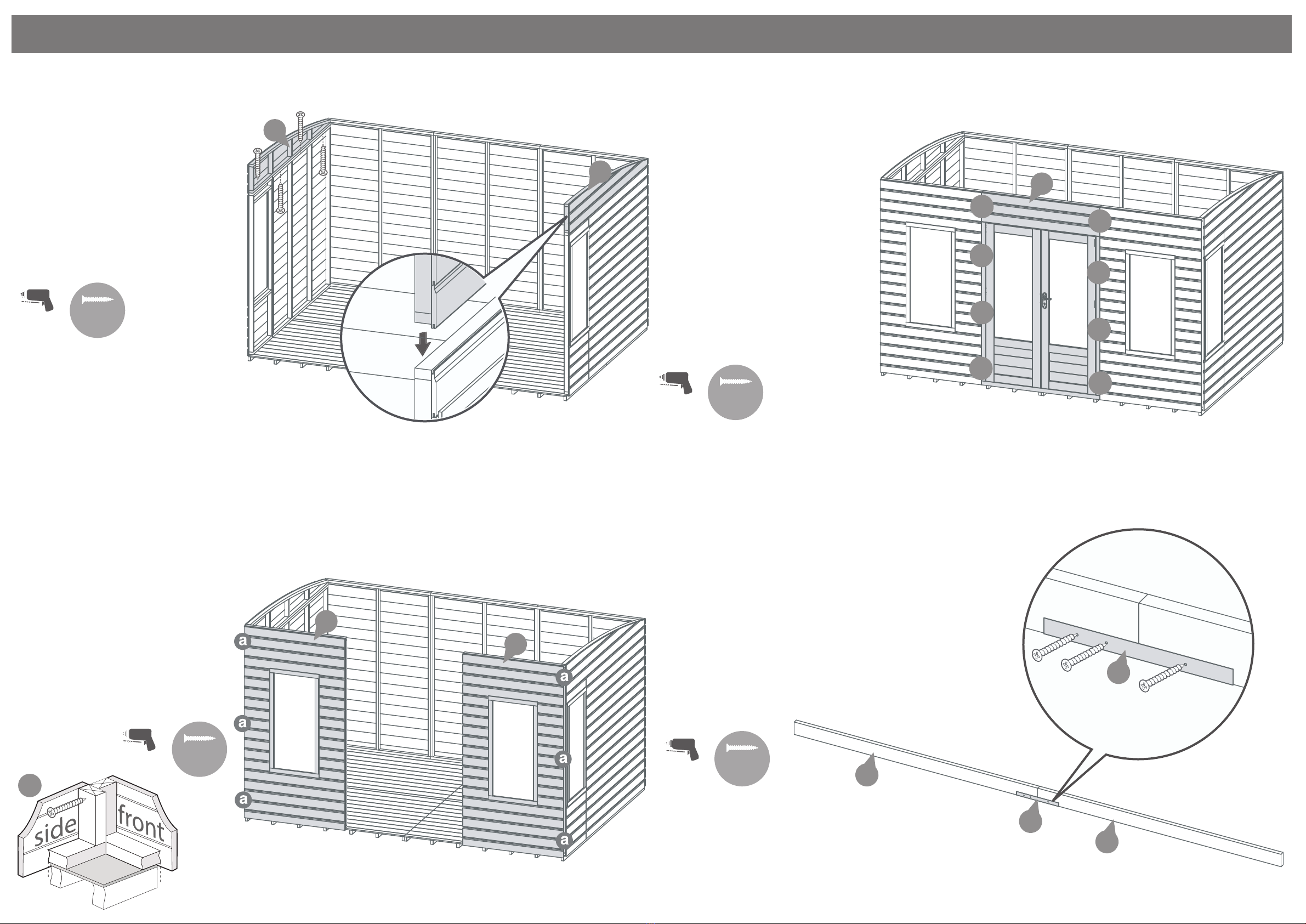

Fix the Side Window Panel (No.3) and
already standing Side Panel (No.5)
together by screwing through the
framing using 8x50mm screws.
Ensure to stagger screws to avoid
colliding.
Repeat this with the second Window
(No.3) and Side panel (No.5) but the
opposite way round, as shown in the
diagram.
Do NOT secure the building to the oor
until the roof is tted.
Position the panels so there is equal
spacing between the oor and cladding
on all sides.
8x50mm Screws
Pre drill
hole
50mm
screw
Step 8
Parts Needed - No.3 QTY 2
3
3
IMPORTANT: Pre-drill before xing screws.

P 6
Please retain product label and instructions for future reference
Pre drill
hole
50mm
screw
Place the Left Gable (No.6) and Right
Gable (No.7) on top of the side panels,
ensuring the boards interlock.
Secure in place using 4x50mm screws
per gable top, screwing in an alternating
pattern.
8x50mm Screws
Step 9
Parts Needed - No. 6 QTY 1
- No. 7 QTY 1 6
7
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
50mm
screw
Fix the Front Window Panels (No.2)
together with the Side Window Panels
(No.3) corners with 50mm screws as
shown in the illustration.
Do NOT secure the building to the oor
until the roof is tted.
Position the panels so there is equal
spacing between the oor and clad-
ding on all sides.
6x50mm Screws
Step 10
Parts Needed - No.2 QTY 2
IMPORTANT: Pre-drill before xing screws.
2
2
a
Step 11
Parts Needed - No.1 QTY 1
Place the assembled door panel (No.1)
onto the oor in-between the already
standing Front Window Panels
(No.2) .
Fix the panels together at the corners
using 4x50mm screws per side.
Do NOT secure the building to the
oor until the roof is tted.
Position the panels so there is equal
spacing between the oor and cladding
on all sides.
8x50mm Screws
Pre drill
hole
50mm
screw
a
a
a
a
a
a
a
a
1
Step 12
Parts Needed - No. 21 QTY 6
- No. 32 QTY 3
Place two Ridge Bars (No.21) inside a
U-Channel (No.32) butt up to each other
as shown in the illustration.
Secure in place using 10x30mm screws per
U-Channel.
Repeat the process to create another two
assembled Ridge Bars.
30x30mm Screws
Pre drill
hole
30mm
screw 21
32
21
32

P 7
Please retain product label and instructions for future reference
50mm
screw
Pre drill
hole
80mm
screw
Place the rst assembled
Ridge Bar (No.21) inside the building,
centralise it with the vertical gable
framing. Align the back edge of the
ridge bar with the top of the gable.
Once in place mark the position on
both sides with a pencil.
Place the top edge of the roof support
block (No. 12) ush to the pencil mark
and secure in place using 2x50mm
screws per block.
*Repeat this process on both sides for
the remaining assembled Ridge Bars.
Place the assembled Ridge
Bar(s) on top of the attached blocks
and secure through the outside of
both gables using 2x80mm screws
per side.
12x50mm Screws
12x80mm Screws
a
b
*Hint: When tting the Ridge Bar pencil mark the
centre of the Ridge Bar and follow down onto the
gable at a right angle, this will give you a guide to
x the support bars in place.

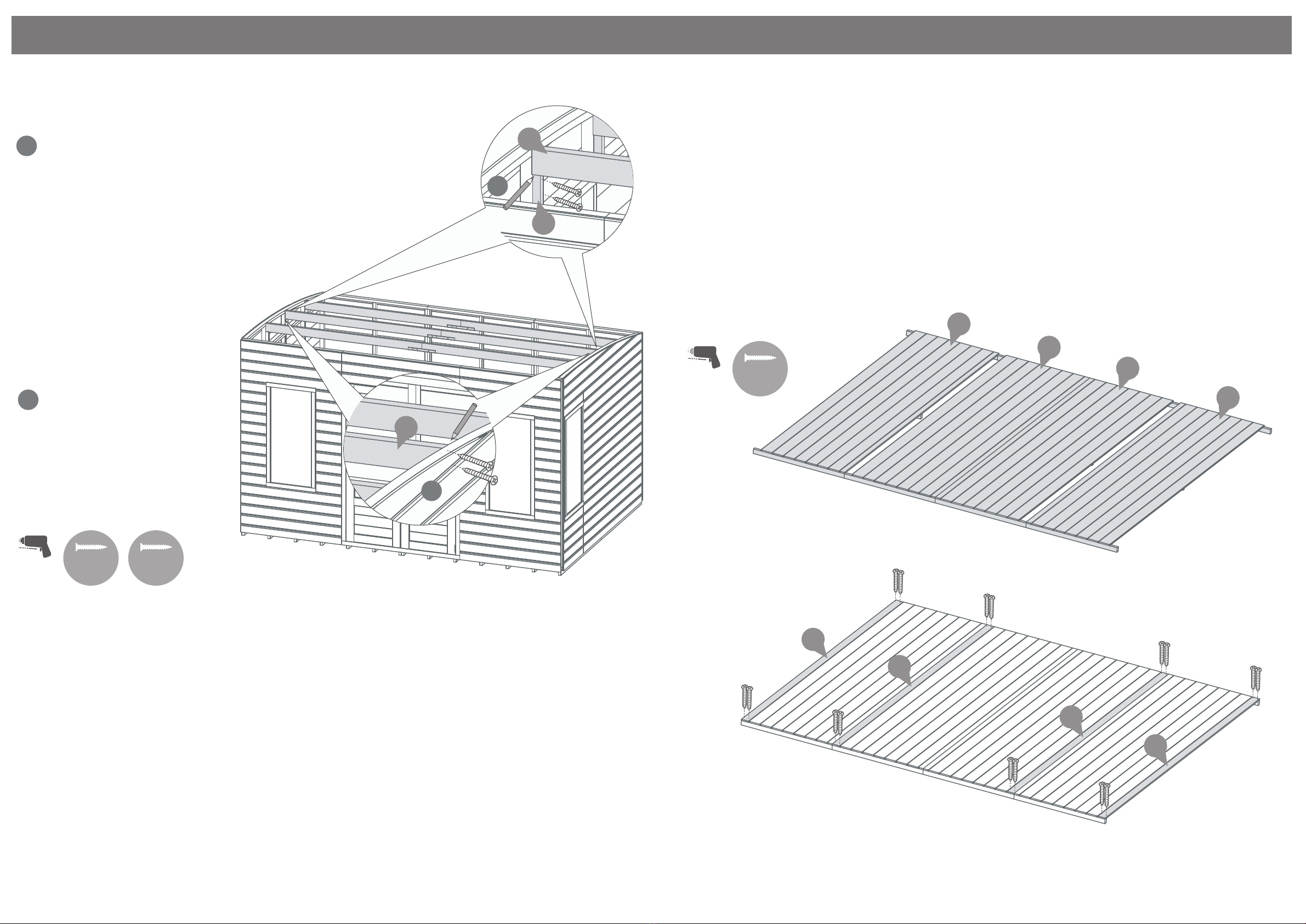

Step 13
Parts Needed - No. 12 QTY 6
- No. 21 QTY 3
a
12
b
21
IMPORTANT: Pre-drill before xing screws.
21
Step 14
Parts Needed - No. 9 QTY 4
- No. 24 QTY 4
Place the four roofs (No.9) together.
Please note that two of the Roof
Panels MUST go the opposite way to
the other two Roof Panels. Then slot
the four Roof End (No.24) pieces on
to the Roof Panels where shown in the
diagram. Fix the Roof Ends (No.24) to
the top and bottom Framing within
the Roof Panels using 2x30mm per
end.
16x30mm Screws
30mm
screw
Pre drill
hole
9
9
9
24
9
24
24
24
IMPORTANT: Pre-drill before xing screws.
Step 15
Parts Needed - No.9 QTY 4
- No.32 QTY 3

P 8
Please retain product label and instructions for future reference

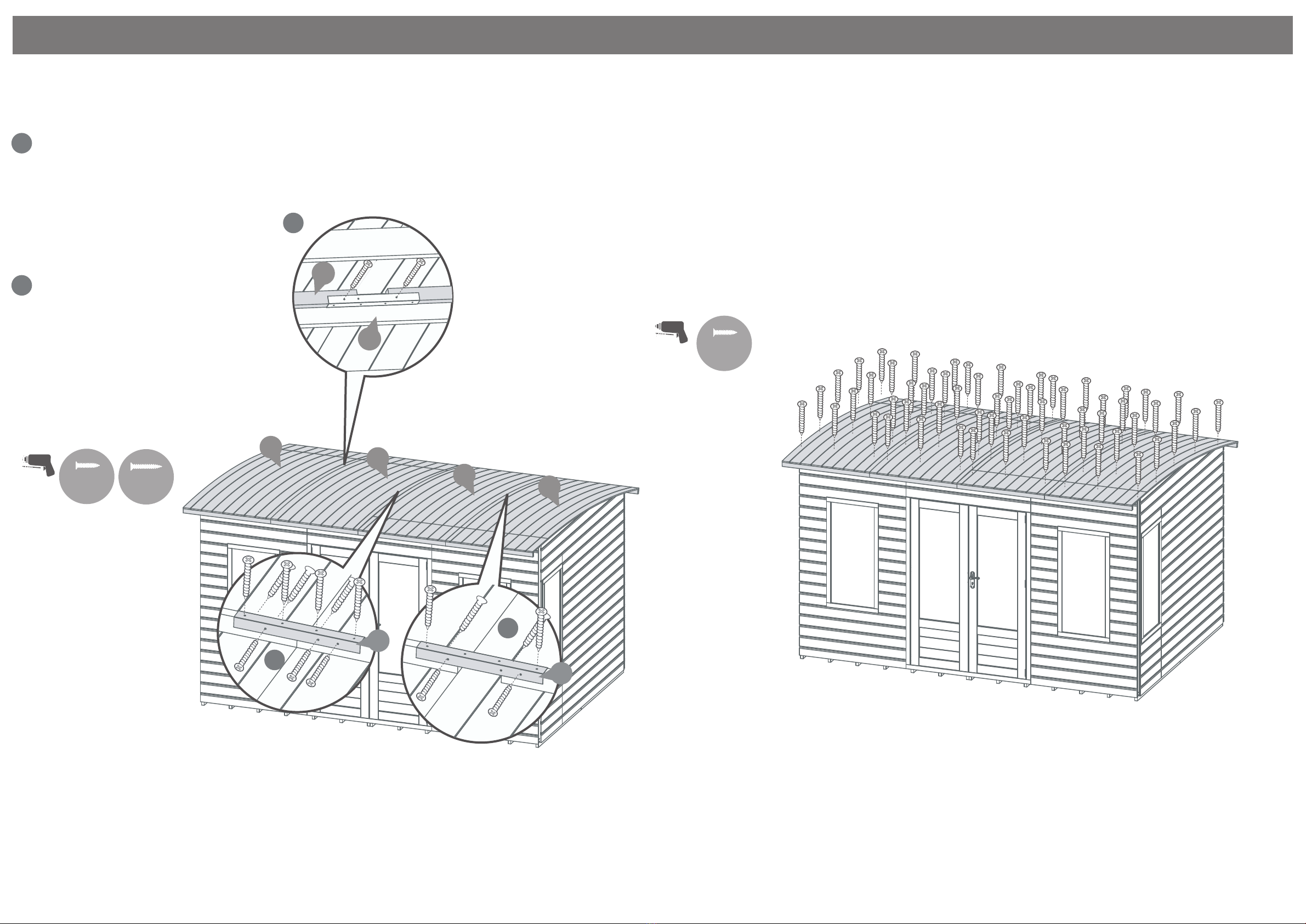

Place the Roof Panels (No. 9) on top of
the Building. Join together the centre
framing on the underside of the roofs
to the three U Channels (No.32) using
30mm screws as shown in the
diagram. Please note that there will
be a space between the framing
within two of the U Channels.
Place the centre framing within the
Roof Panels (No. 9) in front of the
assembled middle Ridge Bar (No. 21)
and secure together with 12x50mm
screws as shown in the diagram.
Ensure the screws line up with the
roof support bars.
22x30mm Screws
12x50mm Screws
9
9
9
9
50mm
screw
Pre drill
hole
Step 15
Parts Needed - No.9 QTY 4
- No.32 QTY 3
30mm
screw
a
b
32
32
a
a
b
9
21
IMPORTANT: Pre-drill before xing screws. Step 16
Fix the Roof Panels to the Framing within
the Panels and the Ridge Bars where they
meet (internally) using 12x30mm screws per
line.
HINT - Follow the nailing line of the framing
on the roof panel so that you are more likely
to x into the ridge bar below. Also use a
straight piece of timber as a guide to help
keep the screw positions in a straight line.
60x30mm Screws
Pre drill
hole
30mm
screw
IMPORTANT: Pre-drill before xing screws.
Step 17

P 9
Please retain product label and instructions for future reference
Step 17
Secure the building to the
oor using 32x50mm screws.
32x50mm Screws
*Ensure to align the screws with the
oor bearers.
50mm
screw
Pre drill
hole
b
b
b
b
b
bbb
bb
b
b
b
b
b
b
b
IMPORTANT: Pre-drill before xing screws.
b
Felt
tacks
1.
2.
4. 3.
HANDLE
WITH CARE
12
3
4
Cut the felt (No.33) into 4x strips measuring:
3740mm (L) X 1000mm (W) and lay onto the
roof in the order shown in the illustration, leav-
ing approximately 50mm of overhanging felt
around the building.
Secure the felt to the building with 190x felt
tacks at 100mm intervals
190x Felt Tacks
Step 18
Parts Needed - No. 33 QTY 1
33
Step 19
Parts Needed - No.16 QTY 8
Step 20
Parts Needed - No. 17 QTY 2
- No. 30 QTY 1

P 10
Please retain product label and instructions for future reference
Sandwich the felt either side between
the roof and the roof trims (No. 16),
xing each strip to the roof with 3x30mm
screws. The roof trims will need to be cut
to t.
24x30mm Screws
16
16
16
16
30mm
screw
Pre drill
hole
Step 19
Parts Needed - No.16 QTY 8
16
IMPORTANT: Pre-drill before xing screws.
16
*Cut down
trims to t
Fix the fascia’s (No. 17) to the front
of the building using 4x40mm
screws.
Attach the nial (No. 30) over the
join in the fascia’s with 2x40mm
screws.
10x40mm Screws
40mm
screw
Pre drill
hole
17
30 17
Step 20
Parts Needed - No. 17 QTY 2
- No. 30 QTY 1
IMPORTANT: Pre-drill before xing screws.
Step 21
Parts Needed - No. 18 QTY 4
- No. 19 QTY 2
- No. 20 QTY 4
Attach the front (No.18), side
(No.19) and rear (No.20) cover
trims to the building, xing each
trim using 3x30mm screws.
Ensure a trim is tted to each
corner of the building and over
panel joins.
30x30mm Screws
30mm
screw
Pre drill
hole
19
18
18 18
18
20
IMPORTANT: Pre-drill before xing screws.
Step 22
Parts Needed - No. 13 QTY 1
- No. 14 QTY 4

P 11
Please retain product label and instructions for future reference
Fix the Door Rain Guard (No. 13)
above the door using 4x50mm
screws.
Attach the Window Rain Guards
(No.14) above each window
using 3x50mm screws per Rain
Guard.
16x50mm Screws
50mm
screw
Pre drill
hole
*Seal each rain guard with silicone
sealant before xing to the building.
14
14 14
14
13
Step 22
Parts Needed - No. 13 QTY 1
- No. 14 QTY 4
SILICONE
SEALANT
14
IMPORTANT: Pre-drill before xing screws.
Step 23
Parts Needed - No. 28 QTY 2
Secondary Door
Locking Door
Fix the turn button’s (No. 28) to
the top and bottom of the
Secondary Door using 2x30mm
screws.
2x30mm Screws
30mm
screw
Pre drill
hole
*These turn buttons help keep your doors straight during high and low levels of moisture content in the air.
28
28
28
IMPORTANT: Pre-drill before xing screws.

Please retain product label and instructions for future reference
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back
P 12





















































2





1












3
4

































¡




1




2























¡



REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
PLEASE SCAN HERE:
