Mercia Garden Products 0619PNNE2424HGDD1SW-V1 Instruction manual

P 1
0619PNNE2424HGDD1SW-V1
19MM LOG CABIN, 2.4M X 2.4M, HALF GLAZED DOUBLE DOORS, ONE SHORT WINDOW.
2mm Drill bit
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
Please retain product label and instructions for future reference
General Instructions
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied)
including a Phillips screwdriver, Stanley knife, wood saw, step ladder and drill with 2mm
bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be aected during various weather conditions.
For the duration of heavy or extended periods of rain, swelling of the wood panels may
occur. Warping of the wood may also occur during excessive dry spells due to an interior
moisture loss. Unfortunately, these processes cannot be avoided but can be helped. It is
suggested that the outdoor building is sprayed with water during extended periods of
warm sunshine and sheltered as much as possible during rain or snow.
BUILDING A BASE
When thinking about where the building and base are going to be constructed:
Ensure that there will be access (60cm) to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to
diagrams for the base dimensions. The base should be slightly smaller than the external
measurement of the building, i.e. the cladding should overlap the base, creating a run
o for water. It is also recommended that the oor be at least 25mm above the
surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of safety and in
the case of childrens products independently tested to EN71 level, we cannot accept
responsibility for your safety whilst erecting or using this product.
Refer to the instructions pages for your specic product code
For ease of assembly use a
rubber mallet to t the log
boards. Do NOT use a heavy
hammer.
Ensure to measure and check before cutting
boards.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
It is advisable to use a hand
saw when cutting roof and
oor boards.
To ensure log boards are even, use a spirit
level to check each layer has been installed
correctly.
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts To identify the
xings required
for each step use a
measuring tape.

P 2
0619PNNE2424HGDD1SW-V1
Overall Dimensions:
Width = 2424mm
Depth = 2718mm
Height = 2378mm
Base Dimensions:
Width = 2204mm
Depth = 2204mm
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Window Contents
2
1
3
4
Window Qty 1
AI-06LOGSANGW684X1244-V1
5
Window Frame Left Upright - 71x70x1412mm Qty 1
AI-0619LOGWUFL-V3
Window Frame Right Upright - 71x70x1412mm Qty 1
AI-0619LOGWUFR-V3
Window Frame Top - 81x125x805mm Qty 1
AI-0619LOGSWTF-V3
Window Frame Bottom - 71x70x805mm Qty 1
AI-0619LOGSWBF-V3
7
6 Inch T-Hinge QTY 2
PI-07-0113
8
Casement Stay Qty 1
PI-07-0008
Double Door Contents
10
9
11
12
Mortice Lock
Qty 1
PI-07-0017
Key Plate
Qty 1
Handles (Pair)
Qty 1
PI-07-0006
Tower Bolt
QTY 2
PI-07-0114
Master Door Qty 1
(Morticed for lock)
AI-06LOGSANGHGMD750X1900-V1
13
14
15
17 18 19 20 21
9 Inch T-Hinge QTY 6
PI-07-0002
Slave Door Qty 1
AI-06LOGSANGHGSD750X1900-V1
Door Frame Left Upright - 71x70x2065mm Qty 1
AI-0619LOGDUFL-V3
Door Frame Top - 81x125x1632mm Qty 1
AI-0619LOGDDTF- V3
Door Strip - 16x60x1880mm Qty 1
S1660-1880mm
Door Frame Right Upright - 71x70x2065mm Qty 1
AI-0619LOGDUFR-V3
Door Frame Bottom - 71x70x1508mm Qty 1
AI-0619LOGDDBF-V3
6
16
Rain Guard QTY 1
RG2844-710 (28x44x710mm) Rain Guard QTY 1
RG2844-1520 (28x44x1520mm)

P 3
Please retain product label and instructions for future reference
30
31
32
33
34
29
Bottom Gable QTY 2
AI-0619LOGPN24-G-V1
Starter Board - 66x19x2396mm QTY 2
LB19RT66-A-2396
Log Board - 120x19x416mm QTY 36
LB19-B-416
Roof Purlin - 40x90x2400mm Qty 1
F4090-A-2400
Fascia - 120x12x2695mm QTY 2
S12120-2695
Fascia - 120x12x2424mm QTY 2
S12120-2424
Roof Board - 121x12x2696mm QTY 23
MB12-C-2696
Floor Board - 121x12x2160mm QTY 21
MB16-C-2160
38
Eaves Frame - 44x27x2396mm QTY 2
F2744-2396
35
36
37
Bearer - 44x44x2204mm QTY 2
F4444-2204-PT
Bearer - 44x44x2116mm QTY 8
F4444-2116-PT
39
40
Storm Brace - 44x27x2000mm QTY 8
F2744-2000
41
Closure Trim - 16x28x2400mm (approx length) QTY 8
S1628-2400
42
Felt
Roof Spacers QTY 5
PI-07-0208 (20x100x2mm)
43
Log Board - 120x19x2396mm QTY 45
LB19-A-2396
Finisher Board - 54x19x2396mm QTY 1
LB19RG54-A-2396
Finisher Board - 97x19x2396mm QTY 1
LB19RG97-A-2396
Log Board - 120x19x823mm QTY 24
LB19-B-823
Log Board - 120x19x2396mm Qty 1
LB19-AD-2396 (750mm window cut out)
Log Board - 120x19x2396mm Qty 1
LB19-AD-2396 (1564mm door cut out)
22
24
25
26
27
28
23a
23b
Top Gable A QTY 2
AI-0619LOGPN24-G-V1
Top Gable B QTY 2
AI-0619LOGPN24-G-V1
Felt Tacks x 110
70mm Screw x 54
Nail Bag
40mm Screw x 211
30mm Screw x 70
60mm Bolt Set x 16
There may be extra screws present in the nail bag
30mm Black Screw x 84
80mm Screw x 16

For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
P 4
Please retain product label and instructions for future reference
Pre-assembly
*Please note:
Each board interlocks at either end in a staggered pattern.
Before securing ensure that the boards are tted properly
in their respective tongues and grooves.
Step 1
Parts Needed - No. 33 QTY 2
No. 34 QTY 2

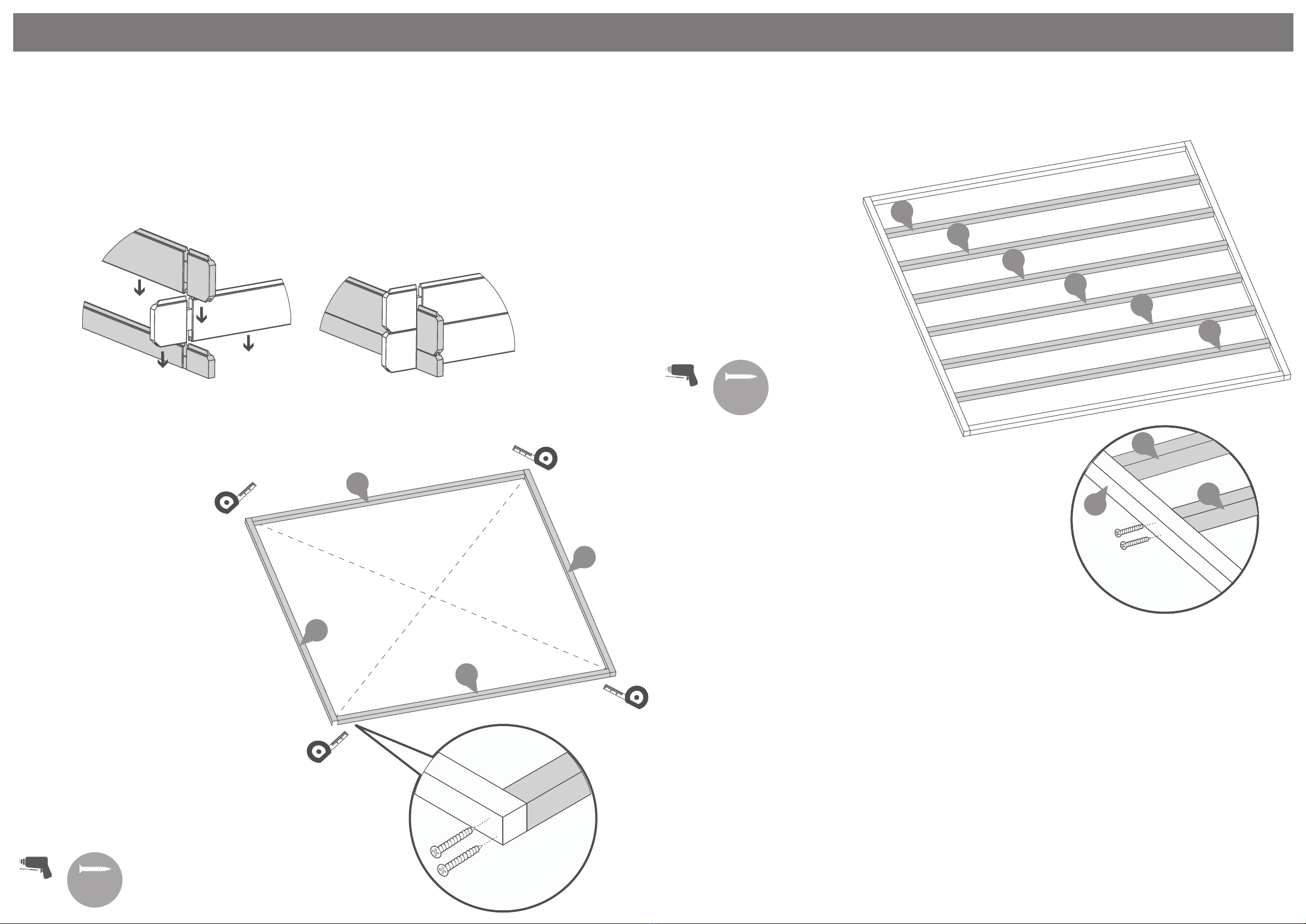

Lay the bearers (No. 33 & 34) onto
a rm and level surface (free from
areas where standing water can
collect) as shown in the
illustration.
Fix the bearers together at each
corner using 2 screws per corner
using 8x70mm screws in total,
ensuring the bearers are ush.
Once fully assembled, ensure the
bearers are square by measuring
from corner to corner as
illustrated, making sure the
measurements are equal.
If the bearers are not aligned
equally, unscrew, adjust and
re-align accordingly.
8x70mm Screws
33
34
34
Pre drill
hole
70mm
screw
IMPORTANT: Pre-drill before xing screws.
33
Step 2
Parts Needed - No. 34 QTY 6
Following the same method
arrange the remaining bearers
(No. 34) inside the assembled
frame.
*Ensure there is an equal amount
of space between each frame.
Secure each of the bearers in place
using 2x70mm screws for each
side of the bearer, ensuring .the
bearers remain level.
24x70mm Screws
Pre drill
hole
70mm
screw
34
33
34
34
34
34
34
34
34

P 5
Please retain product label and instructions for future reference
24 25
Pre drill
hole
70mm
screw
24
IMPORTANT: Pre-drill before xing screws.
Step 3
Parts Needed - No. 24 QTY 2
No. 25 QTY 2
Place the starter boards (No. 24) on to the assembled base frame along
the longest sides and place the rst two log boards (No. 25) in the
notch.
Ensure the boards sit square on the base using the same method used
in Step 1. Measure corner to corner, making sure the measurements are
equal.
Once the boards are square, lift up the log board (No. 25) and x the
starter boards in place.
Fix each of the starter boards to the frame by screwing through the
notch into the frame as shown in the illustration.
4x70mm Screws
24
25
Step 4
Parts Needed - No. 25 QTY 16
No. 28 QTY 12
Following the method shown in the
illustration, lay the rst 6 boards (No. 25
& 28).
Start by placing the front and back
boards, interlocking them with the side
boards. Then place the next side boards,
interlocking with the front and back
boards. Continue this method until you
have placed 6 boards o of the starter
boards on each side, as shown in the
illustration.
This will create your rst level.
*Ensure that the boards are level and
ush with each other as you lay each
one. 25
25
25
28
28

P 6
Please retain product label and instructions for future reference
Step 5
Parts Needed - No. 11 QTY 1
No. 12 QTY 1
No. 13 QTY 1
No. 14 QTY 1

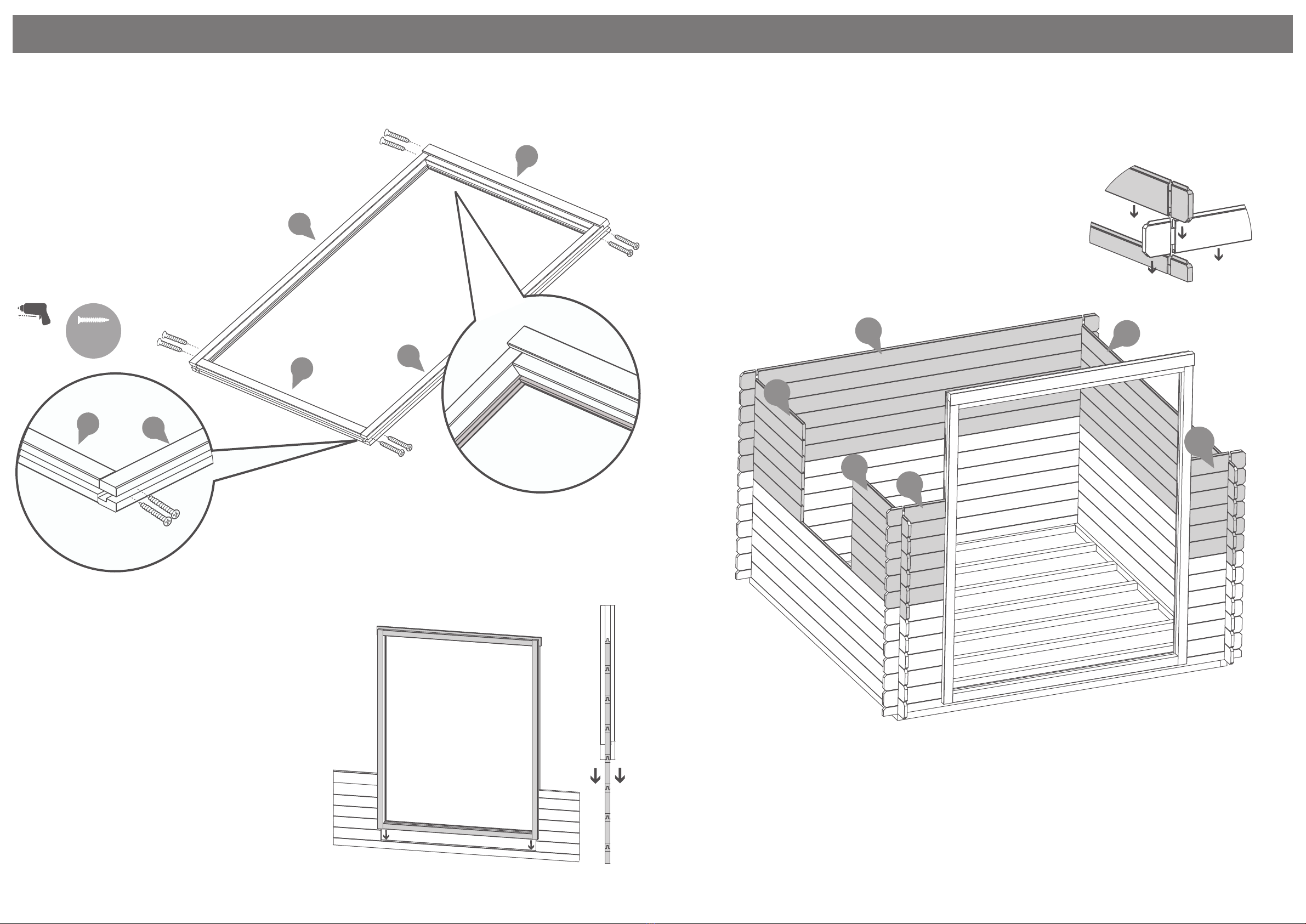

Arrange the left, right, top & bottom door
frames (No’s. 11, 12, 13 & 14) onto a level
surface. Secure the top and bottom frames to
the uprights using 2x80mm screw per corner,
ensuring the screws do NOT protrude through
the front of the door framing.
8x80mm Screws
Pre drill
hole
80mm
screw
13
14
11
12
IMPORTANT : Pre-drill before xing screws.
The lip of the door frame should
be postioned on the inside of
the building.
14 12
Step 6
Once you have laid 6 log boards (o of the starter)
up the door section, slide the assembled door
frame over the boards resting the frame on top of
the starter board (if you have not yet assembled
the door frame refer to step 5)
*Please note: This image is for illustrative purposes
and may dier from your choice in product
(regarding door position). Nevertheless the
process of tting the door frame is the same.
**Please Note: The short boards at the front of the
building (either side of the door and window
opening’s) can be placed either side depending on
your needs.
Step 7
Parts Needed - No. 25 QTY 12
No. 28 QTY 12
No. 29 QTY 12
Following the method shown in the illustration,
lay the next 6 boards (No. 25, 28 & 29) onto the
log cabin to create your second level.
*Ensure that the boards are level and ush with
each other as you lay each one.
25 25
29
28
28
29

P 7
Please retain product label and instructions for future reference
2
4
IMPORTANT : Pre-drill before xing screws.
Step 8
Parts Needed - No. 2 QTY 1
No. 3 QTY 1
No. 4 QTY 1
No. 5 QTY 1

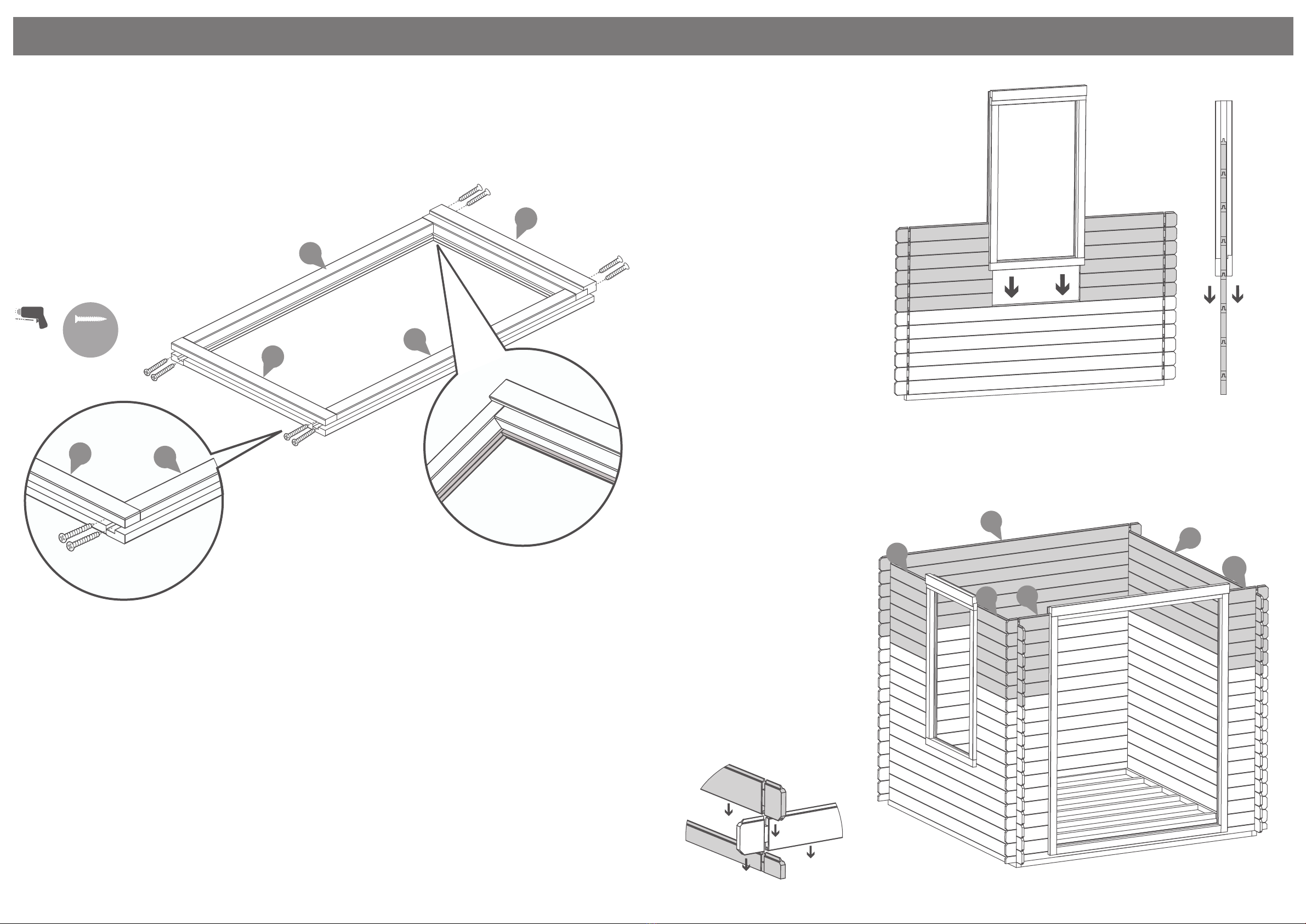

Arrange the left, right, top & bottom window
frames (No’s. 2, 3, 4,& 5) onto a rm and level
surface. Secure the top and bottom frames to
the uprights using 2x80mm screw per corner,
ensuring the screws do NOT protrude through
the front of the window framing.
8x80mm Screws
Pre drill
hole
80mm
screw
5
3
53
The lip of the door frame should
be postioned on the inside of
the building.
.Step 9
Once you have laid the second level
of boards onto the log cabin, slide
the windows between the smaller
boards and rest on to the longer
board (if you have not yet
assembled the window frames refer
to step 8)
*Ensure the boards are level with
each end.
*Please note: This image is for
illustrative purposes and may dier
from your choice in product
(regarding window position).
Nevertheless the process of tting the
window is the same
Step 10
Parts Needed - No. 25 QTY 12
No. 28 QTY 12
No. 29 QTY 12
Following the method shown in the
illustration, lay a further 6 boards
(No.25, 28 & 29) onto each side of
the log cabin. The boards should sit
just below the top of the door and
window frames, as shown in the
illustration.
*Ensure that the boards are level
and ush with each other as you lay
each one.
25
25
29
28
28
29

P 8
Please retain product label and instructions for future reference
25
25
31
30
Step 11
Parts Needed - No. 25 QTY 2
No. 30 QTY 1
No. 31 QTY 1
Following the method shown in the
illustration, lay the next two boards
(No. 25 & 30) on the window and
opposite plain side.
Once in position, place the next two
boards (No. 25 & 31) onto the door
and rear sides.
*Ensure that the boards are level
and ush with each other as you lay
each one.
Rubber Mallet
may be required
to t parts.
70mm
screw
Step 12
Parts Needed - No. 22 QTY 2
No. 25 QTY 1
No. 27 QTY 1
Following the method shown in
the illustration, place the bottom
gable (No.22) ,the remaining Log
board (No.25) and the nisher
board (No.27) onto the log cabin,
*Ensure that the boards are
level and ush with each other
as you lay each one.
Fix each board to the one below
by screwing through the notch
as shown in the illustration using
1x70mm screw per corner.
**Ensure to stagger the screws
so as not to collide with the
previous screw.
4x70mm Screws
Pre drill
hole
27
22
25
22
Rubber Mallet
may be required
to t parts.

P 9
Please retain product label and instructions for future reference
70mm
screw
Step 13
Parts Needed - No. 23a QTY 2
No. 23b QTY 1
No. 26 QTY 1
Following the method shown in
the illustration, place Top Gable A
(No. 23a), Top Gable B (No. 23b)
and the remaining Finisher board
(No. 26) onto the log cabin.
*Ensure that the boards are
level and ush with each other
as you lay each one.
Fix each board to the one below
by screwing through the notch
as shown in the illustration using
1x70mm screw per corner.
**Ensure to stagger the screws
so as not to collide with the
previous screw.
4x70mm Screws
Pre drill
hole
26
23a
Rubber Mallet
may be required
to t parts.
23b
23b
23a
32
32
Pre drill
hole
70mm
screw

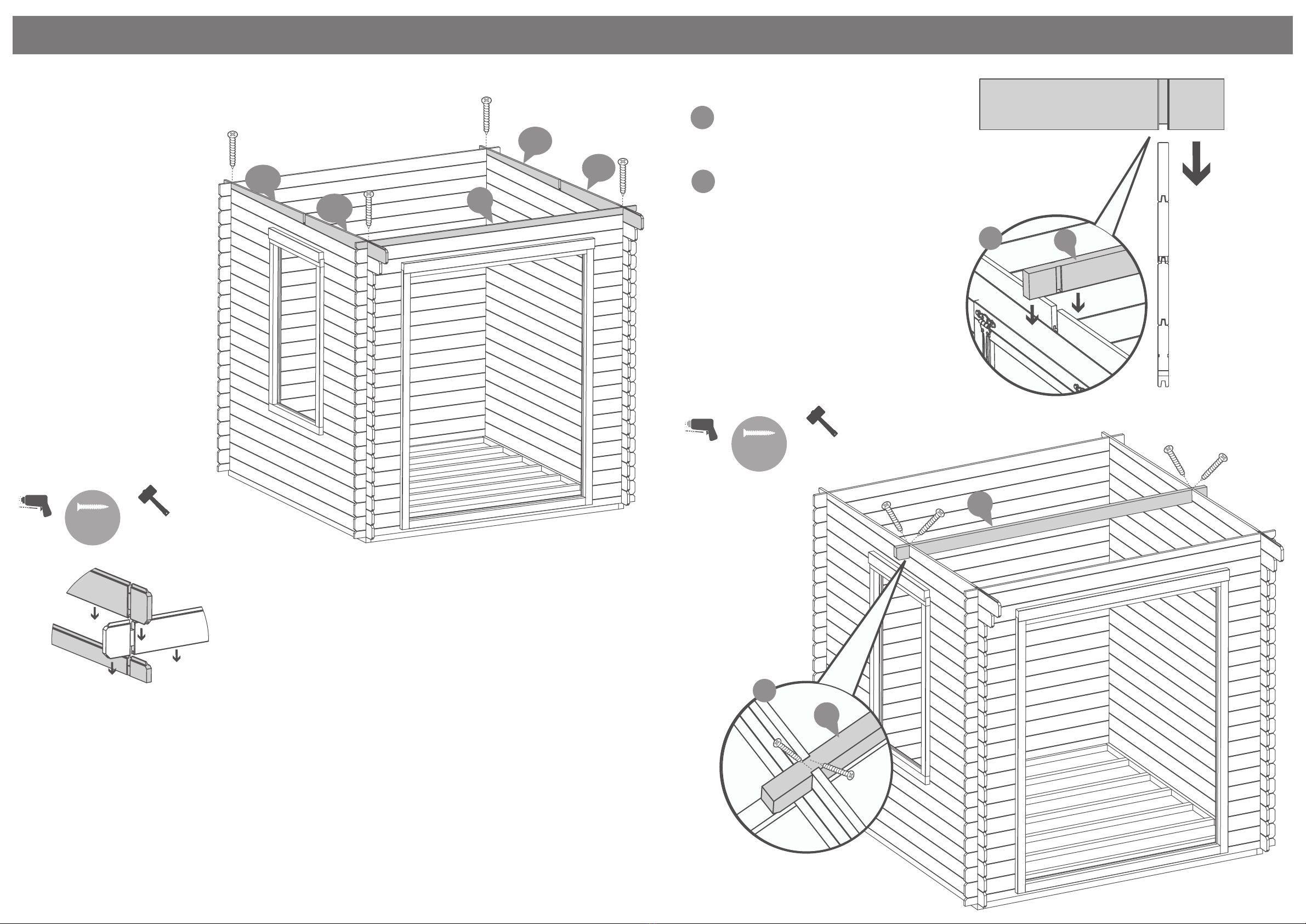

Step 14
Parts needed - No. 32 QTY 1
Align the Roof Purlin (No. 32)
into the cut out slots on each gable
top ensuring they interlock.
Secure the roof purlin at each
end by screwing through the purlin
into the boards (ensure to pre-drill
to avoid the boards splitting) using
2x70mm screws per purlin.
*Please note: The gable shown is for
illustrative purposes and may dier in
width from your choice in product.
Nevertheless, despite any dierences
the process of xing the purlins is the
same.
4x70mm Screws
a
b
a
32
b
Rubber Mallet
may be required
to t parts.

P 10
Please retain product label and instructions for future reference
40mm
screw
Pre drill
hole
*Cut to t

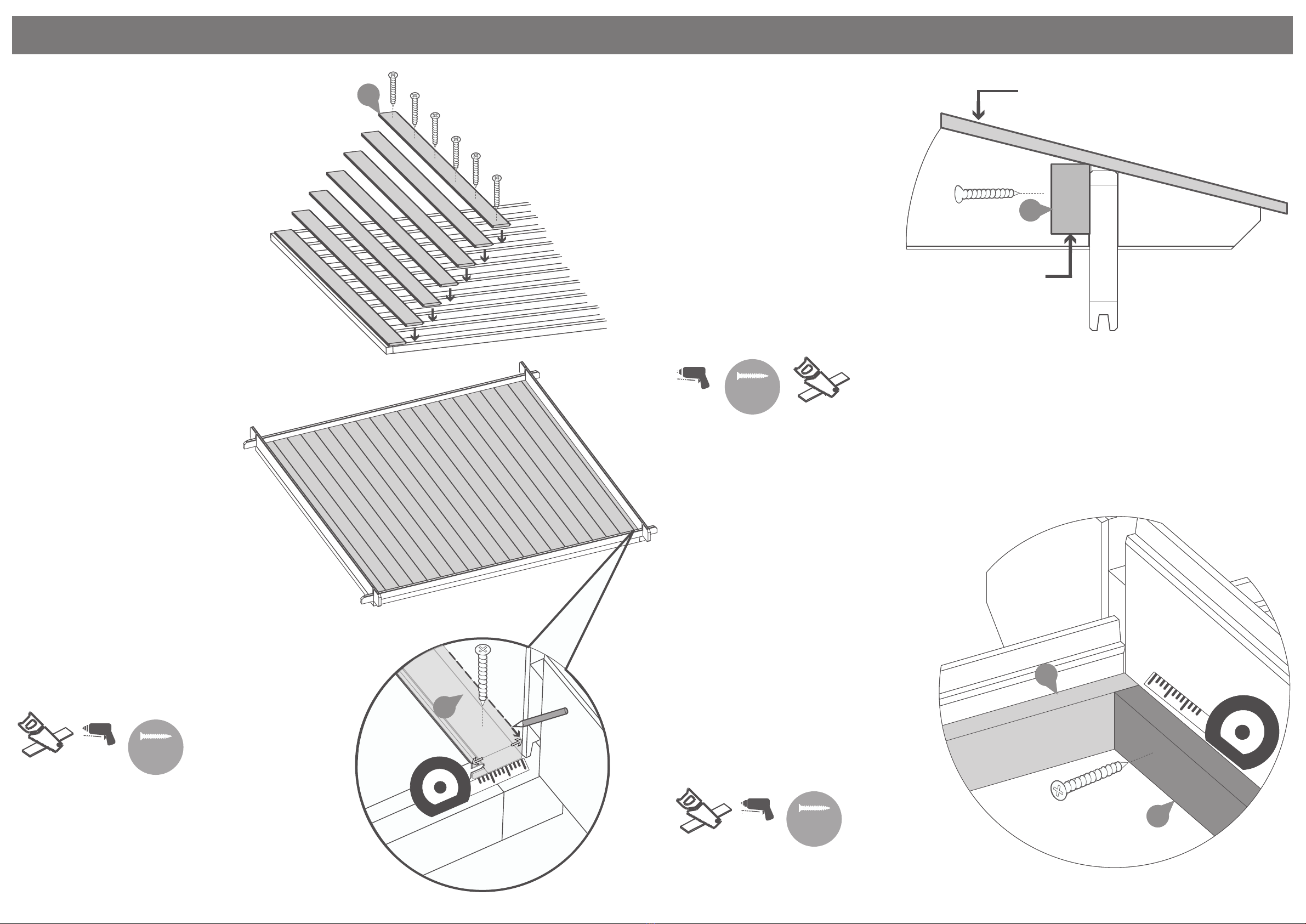

Step 15
Parts needed - No. 37 QTY 23
Place the rst roof board (No. 37)
onto the log cabin, making sure the boards
are ush to the end of the roof purlin.
Ensure there is an even amount of
overhang between the log boards and roof
board at the front and back of the cabin.
Once in position x to the purlin, front and
back of the log cabin using 3x40mm
screws.
Use the spacer (No. 43) to create an
expansion gap between each roof board if
installing during low levels of moisture
(Summer.) This creates an expansion gap
for the boards to move into during high
levels of moisture (Winter.)
Once in position x the roof boards to the
purlin, front and back of the log cabin
using 3x40mm srews per roof board.
*Please Note: The Purlin will be longer
than the log boards by 2mm each end.
You have been issued with 23 roof boards,
but in reality you may only need to use 22.
The last roof board will overhang
past the end of the roof purlin. Using a
straight edge and a pencil, mark out a line
as a guide.
Cut along the pencil mark and remove the
excess. Place the cut down board’s back
onto the roof and secure into place using
3x40mm screws per board.
*Please Note: This image is for illustrative
purposes and may dier from your choice in
product. Nevertheless the process of cutting
and tting the last roof board(s) is the same.
69x40mm Screws
a
a
b
37
b
37
Step 16
Parts Needed - No. 39 QTY 2
Ensuring the roof boards are ush and level,
x the eaves frames (No. 39) to the under-
side of the roof boards using 9x30mm
screws as shown in the illustration
*Please Note: This image is for illustrative
purposes and may dier from your choice in
product. Nevertheless the process of xing the
eaves frames is the same.
18x30mm Screws
30mm
screw
Pre drill
hole
39

P 11
Please retain product label and instructions for future reference
Pre drill
hole
30mm
screw
IMPORTANT : Pre-drill before xing screws.
1
7
Step 17
Parts Needed - No. 1 QTY 1
No. 7 QTY 2
Place the window (No. 1) onto a at
surface and x 2xT-hinges (No. 7) to the
window using 3x30mm black screws per
hinge.
Locate the window into the window
frame on the cabin, ensuring there is
equal spacing on each side between the
window and window frame.
Secure into position by screwing
through the T-hinges (No. 7) using
5x30mm black screws per hinge.
*Ensure to screw into the framing and
not into the channel.
16x30mm Black Screws
Pre drill
hole
30mm
screw
8
Step 18
Parts Needed - No. 8 Qty 1
Fix the casement stay (No. 8) onto the
window (No. 1) and the casement stay pins
to the window framing using 6x30mm
black screws.
*Ensure the casement stay is centralised
on the window.
6x30mm Black Screws
Pre drill
hole
30mm
screw
9
10
17
Step 19
Parts Needed - No. 9 QTY 1
No. 10 QTY 1
No. 17 QTY 6
Once the roof is xed, place the master
and slave doors (No’s 9 & 10) onto a at
surface and x 3x9 inch T-hinges (No.17)
to each door using 5x30mm black
screws per hinge.
Locate the doors into the door frame on
the cabin, ensuring there is equal
spacing on each side between the doors
and door frame.
Secure into position by screwing
through the T-hinges (No.17) using
4x30mm black screws per hinge,
making sure the doors open & close
freely without restriction
*Ensure to screw into the framing and
not into the channel.
54x30mm Black Screws

P 12
Please retain product label and instructions for future reference
IMPORTANT : Pre-drill before xing screws.
Pre drill
hole
30mm
screw

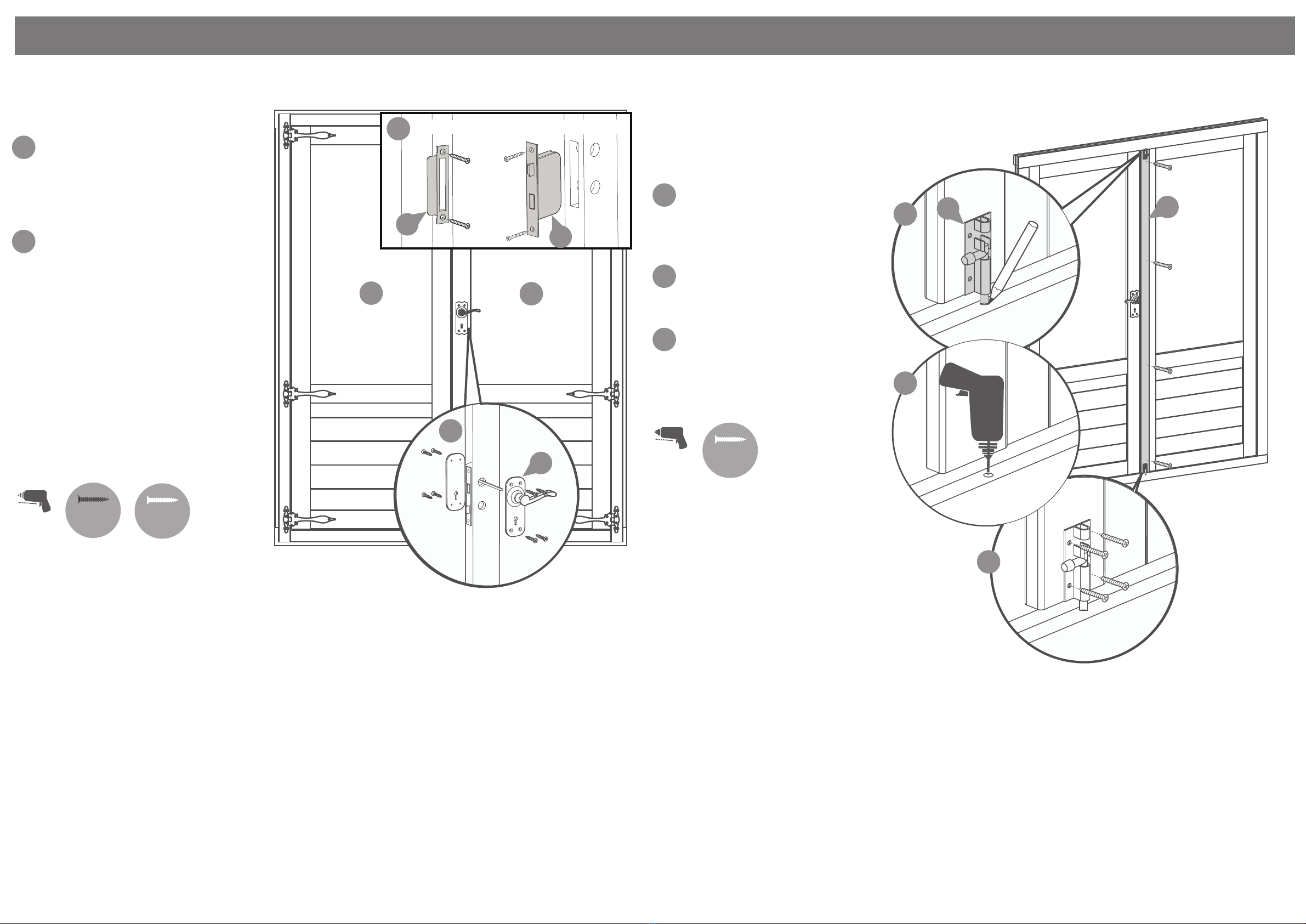

Step 20
Parts Needed - No. 18 QTY 1
No. 19 QTY 1
No. 20 QTY 1
Fit the Mortice Lock (No. 19) into
the recess in the master door (No. 9) and
secure using the screws provided. Attach
the Key Plate (No. 20) to the slave door
(No. 10) with 4x30mm screws.
Fit the Door Handles (No. 18) and
connect with the metalbar to the mortice
lock using 8x30mm black screws. Ensure
the lock mechanism closes correctly. If not,
remove the lock and turn the catch around
using the small grub screw.
*Please note: This image is for illustrative
purposes and may dier from your choice in
product (regarding ironmongery).
Nevertheless the process of xing the frames
is the same.
8x30mm Black Screws
4x30mm Screws
a
b
30mm
screw
The Mortice Lock is Reversible
a
b
18
20 19
10 9
Step 21
Parts Needed - No. 15 QTY 1
No. 21 QTY 2
Attach the Door Strip (No. 15) to the
back of the slave door using 4x40mm
screws as shown.
Once xed, place the Tower
Bolts (No. 21) roughly into position at
the top and bottom of the door strip.
With a pencil mark the around the bolt.
After marking the bolt onto the
frame, drill a hole for the barrel bolt to
locate into.
Following the hole being drilled,
place the tower bolts into position and
secure using the screws provided.
4x40mm Screws
a
b
c
c
Pre drill
hole
40mm
screw
21
IMPORTANT : Pre-drill before xing screws.
15
b
a

P 13
Please retain product label and instructions for future reference
40mm
screw
Pre drill
hole
*Cut to t
38
38
Step 22
Parts Needed - No. 38 QTY 21
Place the rst oor board (No. 38)
inside the building ush to the log
board on one side. Continue adding
the oor boards (internally) making
sure to interlock each individual board.
You have been issued with 21 oor
boards, but in reality you may only
need to use 20.
*Do NOT secure the boards until the
last board has been measured and
cut.
Following the same method outlined
previously measure the gap between
the bottom of the tongue (on the last
board placed) and the log board.
Using a straight edge mark out the
measurement onto the last oor board
(No. 38) and cut along the length
removing the excess.
**Please note: Mark the nal board
2mm under the measurement; This will
allow the timber to expand and contract
correctly.
Once all the oor boards are in position
secure each board into position using
6x40mm screws per board.
***Please Note: Ensure to screw
through each of the oor boards into the
oor bearers.
126x40mm Screws
Closure Trim
Internal
23
*Measure and cut the
closure trims to
t the internal space.
Closure Trim
Internal
40
*Measure and cut the
closure trims to
t the internal space.
Pre drill
hole
30mm
screw
*trim to t
Step 2.
Parts needed - No. 40 QTY 4
Inside the building place the closure
trim (No. 40) against the boarding and
align with the roof as shown in the
illustration.
*Measure and cut the closure trims to
t the internal space.
Once in position x each trim into
place by pre drilling a pilot hole and
using 6x30mm screws per trim,
equally spacing them along the face
of the board.
24x30mm Screws
RoofRoof
23
23
40
40
30mm
screw
Pre drill
hole
*Cut to t
Step 24
Parts needed - No. 40 QTY 4
Once the oor has been laid arrange the
closure trim (No. 40) around the outside
edge of oor (internally), measure and cut
down accordingly to best match the
internal space.
Secure each trim section into place using
6x30mm spaced equally along the board
as shown in the illustration.
*Do NOT x the closure trim to the oor
boards.
24x30mm Screws

P 14
Please retain product label and instructions for future reference
HANDLE
WITH CARE
12
3
4
Felt
tacks

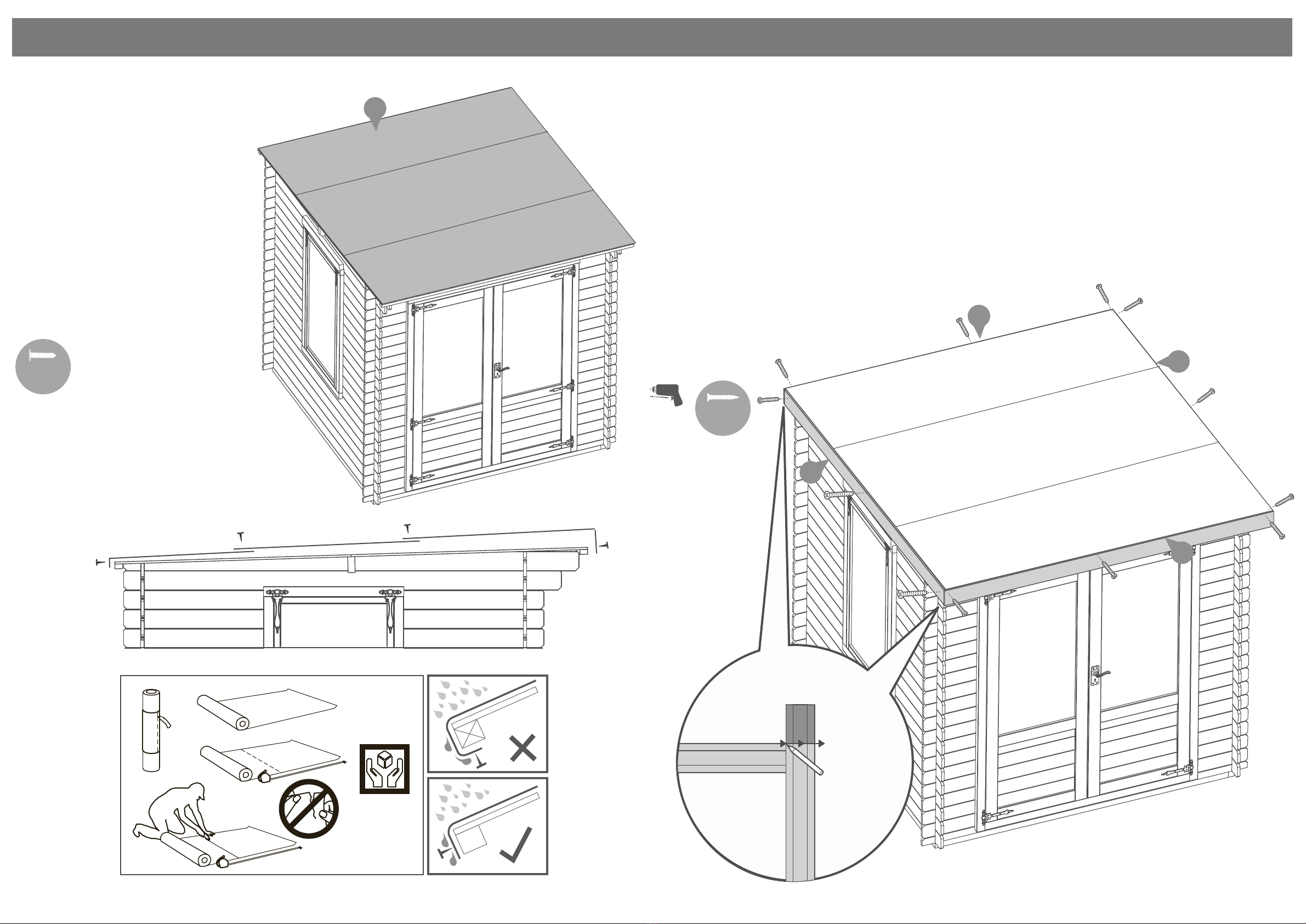

Step 25
Parts needed - No. 42
Cut the felt (No. 42) into three strips of:
2500mm (L) X 1000mm (W)
and lay onto the roof in the order shown
in the illustration.
*Ensure there is approximately 50mm of
overhanging felt each side.
Once the felt is laid out x to the roof
using felt tacks at 100mm intervals.
*Felt size: 2500mm (L) X 1000mm (W)
110 x Felt Tacks
1.
2. 3.
42
40mm
screw
Pre drill
hole
36
35
36
Step 26
Parts Needed - No. 35 QTY 2
No. 36 QTY 2
Attach the fascia’s (No. 35 & 36) around
the building (ensuring to trap the felt
in between the fascia’s) securing into
place using 3x40mm screws per fascia.
Ensure the fascia at the back of the log
cabin sits level or lower than the felt to
allow water to run o.
*Once in place mark the excess fascia
with a pencil and trim the fascias to
follow the shape of building as shown
in the illustration.
12x40mm Screws 35

P 15
Please retain product label and instructions for future reference
Pre drill
hole
60mm
bolt
41
41
Step 27
Parts needed - No. 41 QTY 8
Arrange the storm braces (No.41)
around the building (internally),
Placing 2xStorm braces per side, xing
into place using 2x 60mm bolts per
brace ,making sure the washer & nut
are tightened from the outside of the
building.
*Ensure the storm braces are secured
at the highest point possible on each
side.
The storm braces will need to be
altered during the buildings life as the
moisture content within the log boards
changes. The boards will expand
during periods of high moisture
(Winter) and shrink during periods of
low moisture (Summer.)
**Storm braces will help your building
expand and contract properly.
***Important: Ensure each bolt is
tightened using a washer so as not to
damage the log boards.
16x60mm Bolt Sets
Step 28
Parts Needed: No. 6 QTY 1
No. 16 QTY 1
Attach the Rain Guards (No. 6) to the
Window frame, xing in place onto
the framing above the window using
3x70mm screws per guard.
Attach the Rain Guard (No. 16) to the
Door frame, xing in place onto the
framing above the Door using
3x70mm screws.
6x70mm Screws.
70mm
screw
Pre drill
hole
6
16
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
SILICONE
SEALANT
It is ESSENTIAL to seal around all window framing with
sillicone sealant (not included) to minimise water ingress.
