03DTSHAX0705HGD2MW-V1
DIP TREATED SHIPLAP APEX 7X5 HALF GLAZED DOUBLE DOOR 2 MID WINDOW
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
For ease of assembly, you
will need a tape measure to
check dimensions of
components.
P 1
Please retain product label and instructions for future reference
General Instructions

P 2
03DTSHAX0705HGD2MW-V1
Please retain product label and instructions for future reference
Overall Dimensions:
Width = 2295mm
Depth = 1768mm
Height = 2279mm
Base Dimensions:
Width = 2066mm
Depth = 1456mm
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Overall Dimensions:
Width = 2295mm
Depth = 2233mm
Height = 2279mm
Base Dimensions:
Width = 2066mm
Depth = 1913mm
7X5- Pack A 7X7- Pack B
567
Plain Panel QTY 2
AI-S11SHPP1465X1710-V1
Secondary Door QTY 1
AI-STDHGSD574X1715-V1
Master Door QTY 1
AI-STDHGMD574X1715-V1
Roof QTY 2
AI-S11MBOHAR1720X1250-V1
234
Floor QTY 1
AI-R11MBF2066X1456-V1
Door Gable QTY 1
AI-03S11SHAGDD2018X2166-V1
1
Plain Gable QTY 1
AI-03S11SHAGP2018X2166-V1
8Ridge Bar 27x44x1409mm QTY 1
F2744-1409mm
13 Gable Cover trims 12x28x560mm QTY 2
S1228-560mm
12
Door Support Bar 12x40x1192mm QTY 1
S1240-1192mm
9Cover trims 12x40x1710mm QTY 4
S1240-1710mm
10
Fascias 12x60x1227mm QTY 4
S1260-1227mm
11 Door Cover trims 12x40x1740mm QTY 2
S1240-1740mm
29
Veranda Floor QTY 1
AI-R11STVF2066X457-V1
27
Roof QTY 2
AI-S11MBOHAR465X1250-V1
28
Railing QTY 2
AI-03FR430X702-V1
Roof Support 27x44x1722mm QTY 2
F2744-G-1742mm
Pack B-
Purchased Pack Component list
14 Gable Cover trims 12x28x533mm QTY 2
S1228-533mm
30
15 Window Strip 12x30x441mm QTY 2
S1230-441mm
16 Window Strip 12x30x855mm QTY 4
S1230-855mm
17 Shed Diamond QTY 2
Shed diamond nial
18 7.9m Felt QTY 1
PI-01-0016
19 Door Handles QTY 2
PI-07-0081
20 Butt Hinges QTY 6
PI-07-0066
21 Window Cill QTY 2
PI-08-0024
22 Corner Brace QTY 2
PI-07-0012
23 Press Lock QTY 1
PI-07-0162
24 Turn Button QTY 2
PI-07-0034
25 Styrene QTY 2
PI-05-0232
26 Barrel Bolt QTY 2
PI-07-0114
31
‘U’ Channel QTY 2
PI-07-0013
Pack A-
Purchased Pack Component list
60mm Screw x 12
50mm Screw x 34
Felt Tacks x 75
25mm Screw x 44
40mm Screw x 36
35mm Bolt x 4
10mm Screw x 8
50mm Screw x 12
40mm Screw x 6
30mm Screw x 12
Felt Tacks x 45
Pack A Pack B
Nail Bag
There may be extra screws present in the nail bag
30mm Screw x 48

P 3
Please retain product label and instructions for future reference

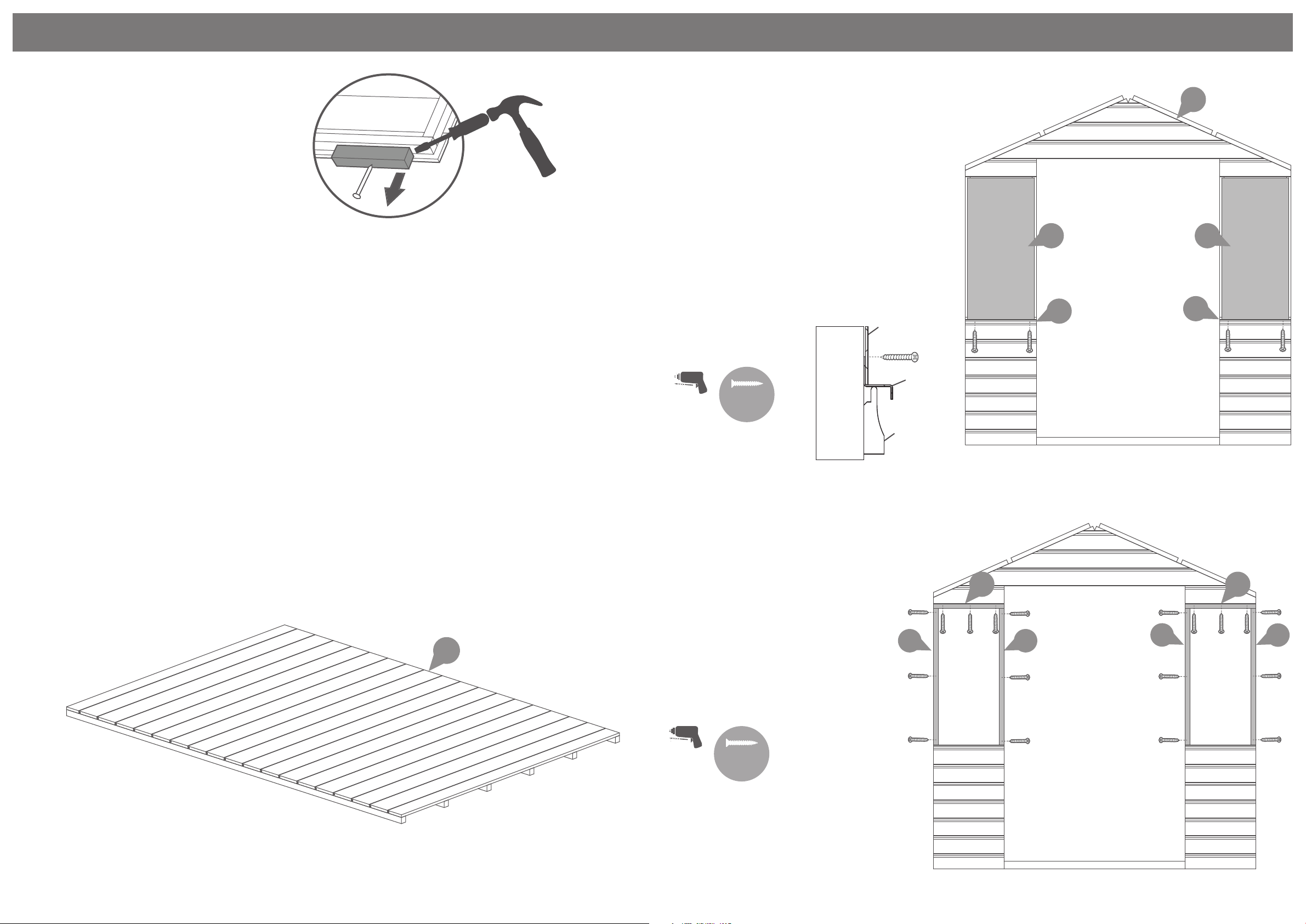

Pre Assembly
Before assembling remove the transportation
blocks from the bottom of each panel.
Take care removing the blocks as to not damage
the panels. Tap with a at headed screwdriver
and hammer.
Dispose of the blocks once removed.
4
Step 1
Parts needed - No 4 QTY 1
Place the oor (No.4) onto a rm
and level base. Ensure the base has
suitable drainage and is free from
areas where standing water can
collect.
Pre drill
hole
25mm
screw
Step 2
Parts needed - No 1 QTY 1
- No 21 QTY 2
- No 25 QTY 2
Lay the Door Gable onto a at surface with the
framing facing down.
Place the plastic window cill (No.21) onto the
external lip of the Door Gable (No.1). Fix the
Cill to the door gable framing using 2x25mm
screws per cill.
Lay the Styrene (No.25) into the window
openings so that it overlaps the surrounding
framing equally on both sides as per the
diagram
4x25mm Screws
25 25
21
21
Side View
Styrene
Window Cill
Cladding
Pre drill
hole
30mm
screw
IMPORTANT: Pre-drill before xing screws.
IMPORTANT: Pre-drill before xing screws.
16 16 16 16
1
Step 3
Parts needed - No 15 QTY 2
- No 16 QTY 4
Attach the Window Strips (No.15 and
No.16) using 30mm screws as per the
diagram. Ensure the strip does not
protrude the width of the window
frame.
Ensure you screw into the window
strips though to the framing, avoiding
the Styrene where possible
18x30mm Screws
15 15

P 4
Pre drill
hole
25mm
screw
IMPORTANT: Pre-drill before xing screws.
20

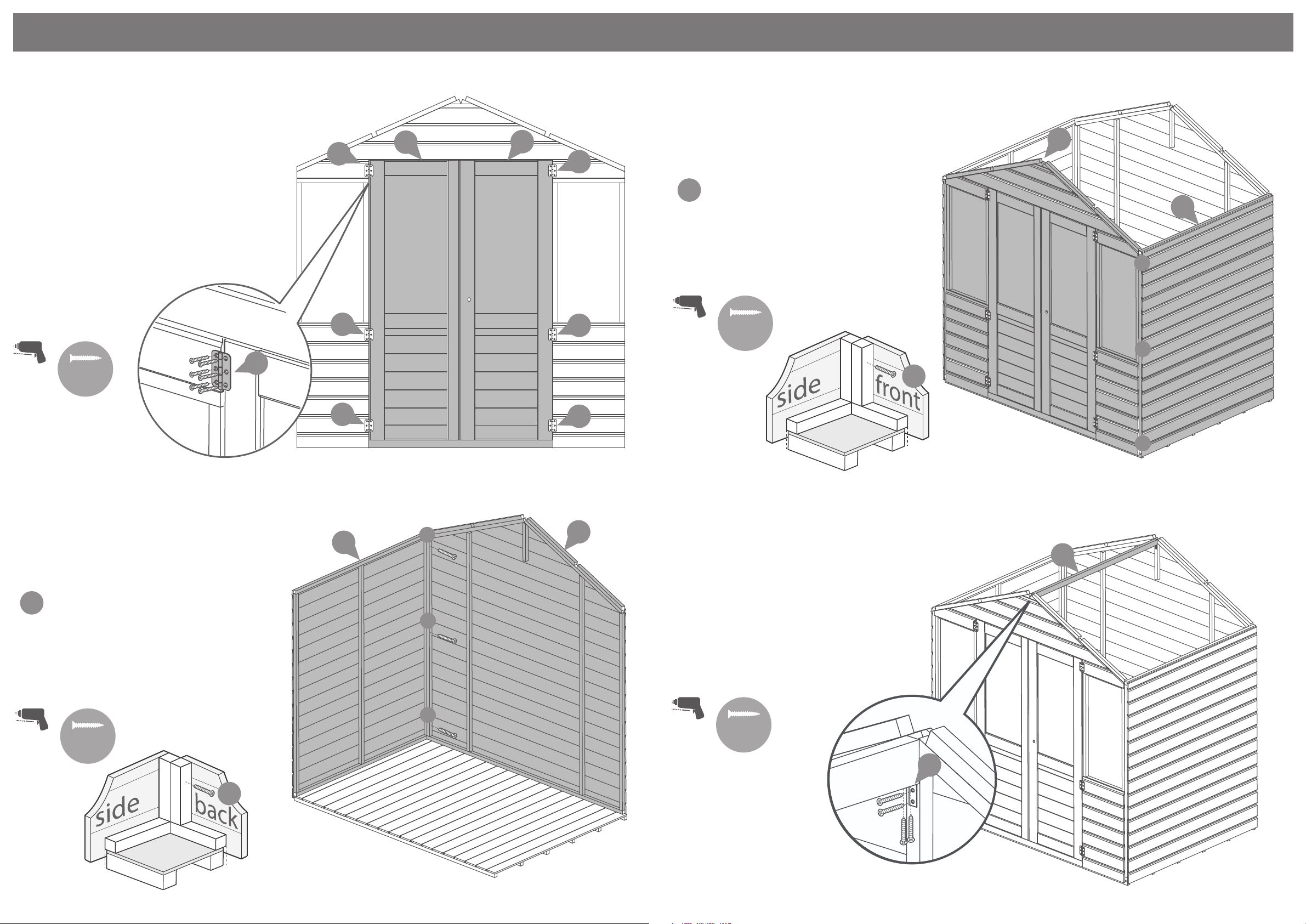

Step 4
Parts needed - No 6 QTY 1
- No 7 QTY 1
- No 20 QTY 6
Attach the doors (No. 6 and No.7) to
the door gable with 3x butt hinges
(No.20) per door, using 6x25mm
screws per hinge.
Ensure to screw the hinges into the
door gable framing.
*DO NOT SCREW INTO THE
WINDOW STRIPS*
36x25mm Screws 20
20
20
20
20
20
a
Pre drill
hole
50mm
screw
IMPORTANT: Pre-drill before xing screws.
Step 5
Parts needed - No 2 QTY 1
- No 5 QTY 1
Place the Plain Gable (No.2) and the
Plain panel (No.5) onto the oor.
Fix the corners with 50mm
screws as shown in the
illustration, making sure the
gable sits inside the plain
panel.
3x50mm Screws
a
a
a
a
52
a
6 7
Please retain product label and instructions for future reference
a
a
Pre drill
hole
50mm
screw
IMPORTANT: Pre-drill before xing screws.
Step 6
Parts needed - No 1 QTY 1
- No 5 QTY 1
Place the Door Gable (No.1) and the
Plain panel (No.5) onto the oor.
Fix the corners with 50mm
screws as shown in the
illustration, making sure the
gable sits inside the plain
panel.
3x50mm Screws
5
a
a
a
1
Pre drill
hole
30mm
screw
IMPORTANT: Pre-drill before xing screws.
Step 7
Parts needed - No 8 QTY 1
- No 22 QTY 2
Place the Ridge Bar (No.8) inbetween
the gables, resting ush with the top
of the gable framing.
Secure to the gables using a corner
brace (No.22) at each end, using
4x30mm screws per brace.
8x30mm Screws
8
22

P 5
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
**If you have purchased a 7x7 Summer House with Pack B
extension then skip to step 8a**
Step 8
Parts needed - No 3 QTY 2
60mm
screw
Pre drill
hole
3
3
Place the Roof Panel (No. 3) on top of the
building making sure the framing in the
roof panels sits rmly within the Gables
(No. 1 & 2) and on top of the Ridge Bar
(No. 8).
**Make sure that you have got the roof
panels the correct way round with the
recess at the top of the apex as shown in
the diagram.**
From the top, x directly through the roof
panels (No. 3) into the ridge bar (No. 8)
below using 5x60mm screws per roof
panel.
It is essential that the ridge bar (No. 8) and
roof panels (No. 3) framing pull together
when xed with 60mm screws. You may
require another person pushing the ridge
bar (No. 8) up from below to achieve this.
HINT - Follow the nailing line of the framing
on the roof panel so that you are more
likely to x into the ridge bar below.
10x60mm Screws
IMPORTANT: Pre-drill before xing screws.
3
3
Please retain product label and instructions for future reference

P 6
Please retain product label and instructions for future reference
Use 40mm screws to x the roof (No. 3)
down the sides, front and back of the
building.
Be sure that the screws attach into the
framing below.
20x40mm Screws
Pre drill
hole
40mm
screw
Step 9 IMPORTANT: Pre-drill before xing screws.
Step 10 IMPORTANT: Pre-drill before xing screws.
b
b
b
bbbb
bbbbbbb
Pre drill
hole
50mm
screw
Secure the building to the
oor internally using
28x50mm screws.
*Ensure to screw through the
framing into the oor bearers.
28x50mm Screws
bb
b
*Cut down
trims to t
Pre drill
hole
30mm
screw
Step 11
Parts needed - No 9 QTY 4
- No 13 QTY 2
- No 14 QTY 2
Attach the cover trims (No.9) to
each corner of the building using
3x30mm screws per cover trim.
Attach the gable cover trims
(No.13 and No.14) onto the door
gable.
Cut the gable cover trims (No.13)
and the cover trims (No.9) to t as
shown in the illustration
8x30mm Screws
13
14
9
14
13
9
9
13
IMPORTANT: Pre-drill before xing screws.

P 7
Please retain product label and instructions for future reference

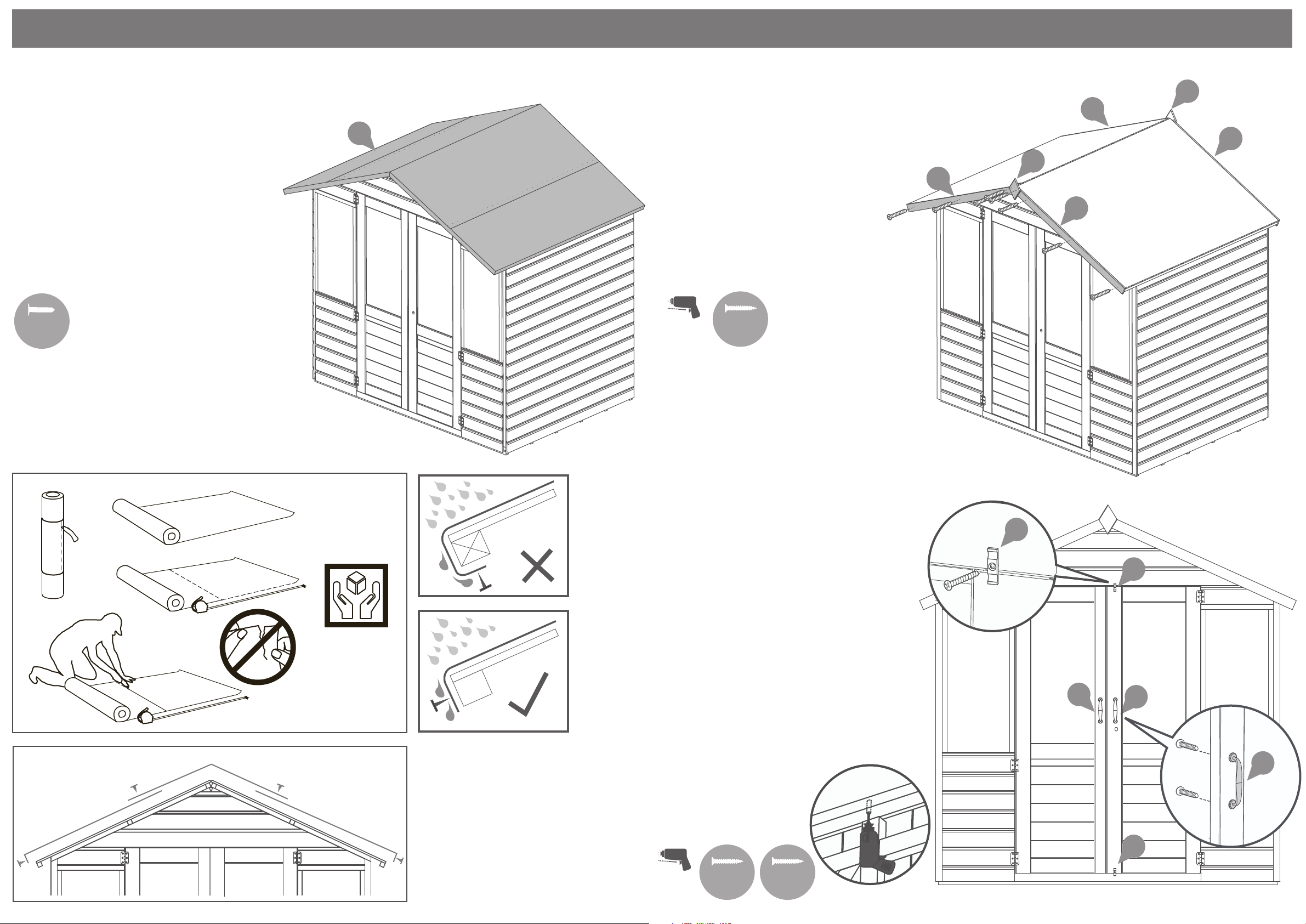

Felt
tacks
Cut the felt (No.18) into 3 strips
and place onto the roof, as shown
in the illustration. ensuring there
is approximatly 50mm of
overhanging around the building
Fix the sheets into place using 75x
felt tacks approximately 100mm
apart.
75x Felt Tacks
Step 12
Parts needed - No 18 QTY 1
HANDLE
WITH CARE
12
3
4
3
21
18 Fix the fascias (No.10) to the
building using 3x40mm screws
per fascia, ensuring the screws go
through to the roof framing
Fix the Shed Diamonds (No.17)
onto the fascias using 2x40mm
screws per nial
16x40mm Screws
Pre drill
hole
40mm
screw
Step 13
Parts needed - No 10 QTY 4
- No 17 QTY 2
17
IMPORTANT: Pre-drill before xing screws.
10
10
17
10
10
Attach the door handles (No.19) to the
doors using 25mm bolts included with
the door handle.
Pre drill a hole approximately 3mm and
x the handle from the inside with the
provided bolts
Attach the two turn buttons (No.24)
above the master door at the top and
bottom using 2x30mm screws.
*These turn buttons help to keep your
doors straight during high & low levels
of moisture content in the air.
2x30mm Screws
4x35mm Bolt
Pre drill
hole
35mm
bolt
Step 14
Parts needed - No 19 QTY 2
- No 24 QTY 2
19
19
24
24
30mm
screws
24
19
IMPORTANT: Pre-drill before xing screws.

P 8
Please retain product label and instructions for future reference
IMPORTANT: Pre-drill before xing screws.
Step 15
Parts needed - No 11 QTY 2
- No 12 QTY 1
12
11
11 11
12
On the inside of the building x
the Door Frame Strips (No.11 &
12), to the top and sides of the
doors frames. Make sure that the
edges are ush with the edge of
the framing. Fix with 4x30mm
screws per strip.
12x30mm Screws
Pre drill
hole
30mm
screw
Pre drill
hole
25mm
screw
10mm
screw
IMPORTANT: Pre-drill before xing screws.

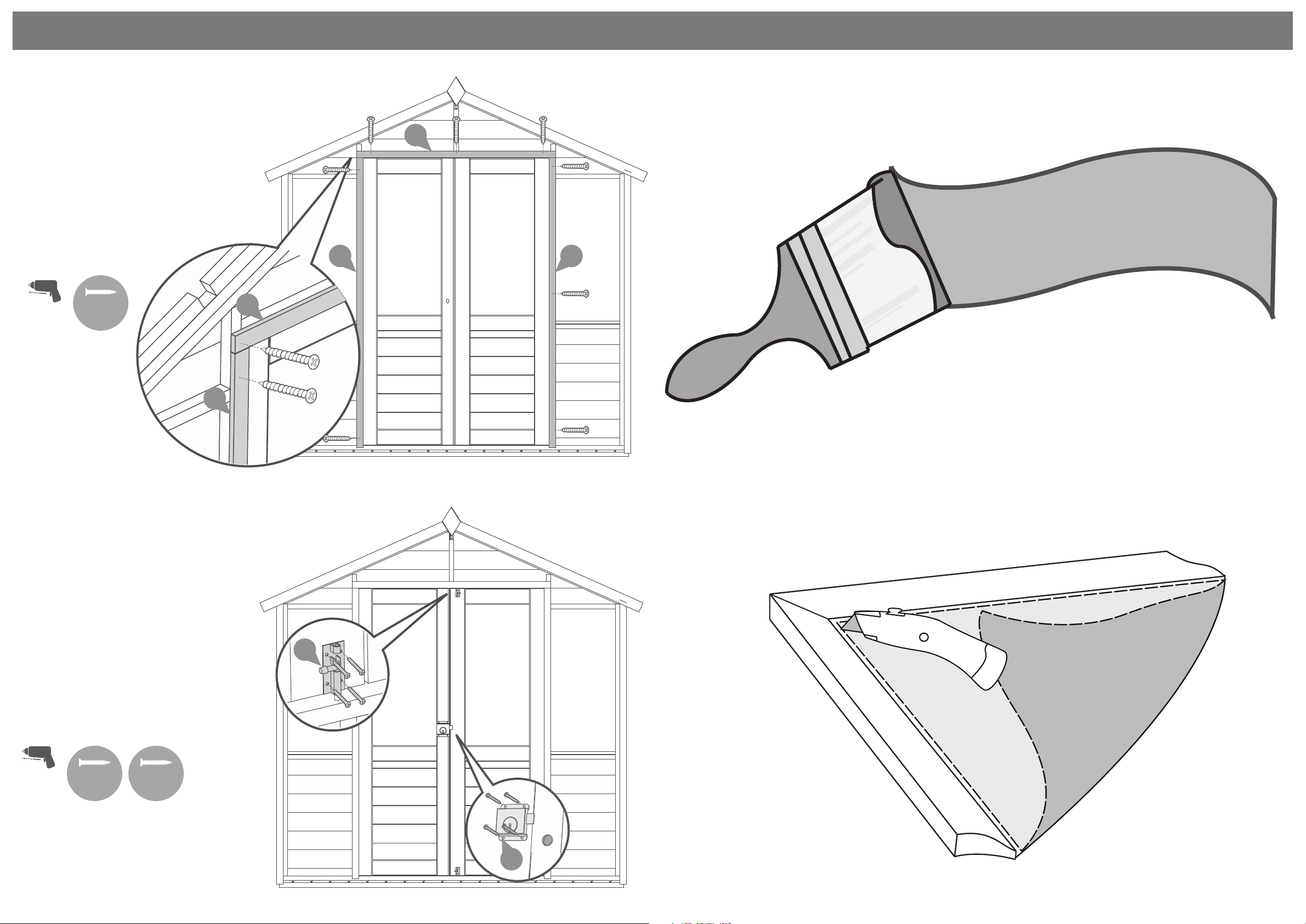

Step 16
Parts needed - No 23 QTY 1
- No 26 QTY 2
Secure the barrel bolts (No.26) to the top
& bottom of the secondary door using
4x10mm screws.
Attach the press lock (No.23) to the
master door with 4x25mm screws, aligning
the barrel with the key hole.
*Ensure the key turns and locks properly
before xing to the door.
8x10mm Screws
4x25mm Screws
26
23
It is ESSENTIAL that you apply wood treat-
ment immediately after the building has
been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back

Please retain product label and instructions for future reference
P 9
Fix the roofs (No.3 and No.28)
framing together using the ‘U’
Channel (No.31), laying evenly
over the roof framing pieces,
secure using 6x30mm screws.
Repeat for both roof panels.
12x30mm Screws
Pre drill
hole
30mm
screw
Step 8a
Parts needed - No 3 QTY 2
- No 28 QTY 2
- No 31 QTY 2
IMPORTANT: Pre-drill before xing screws.
31
31`
3
28
3
31`
28
Step 9a
Parts needed - No 3 QTY 2
- No 28 QTY 2
- No 31 Qty 2
60mm
screw
Pre drill
hole
3
3

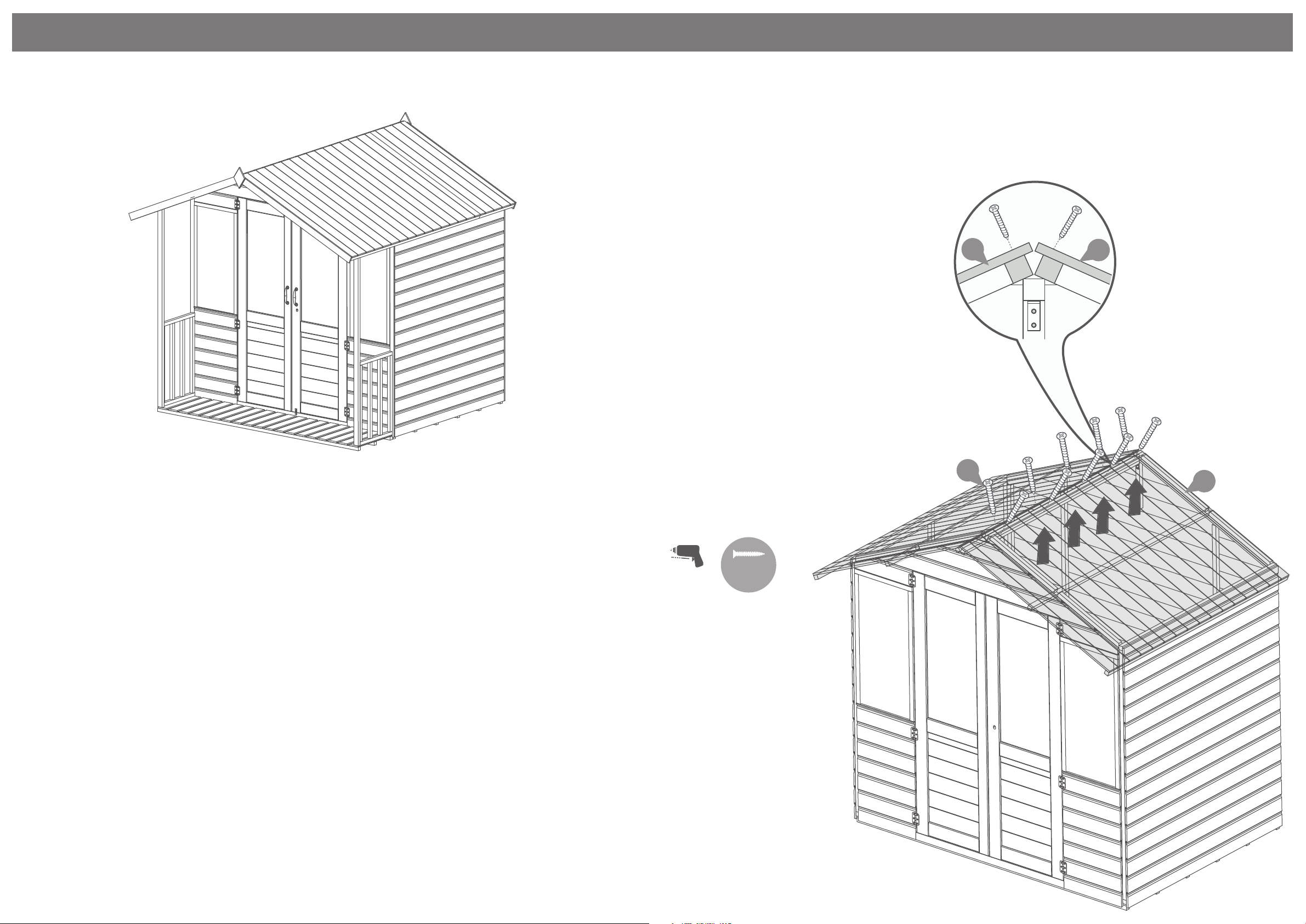

Place the assembled Roof Panels (No. 3, 28
& 31) on top of the building making sure
the framing in the roof panels sits rmly
within the Gables (No. 1 & 2) and on top of
the Ridge Bar (No. 8).
**Make sure that you have got the roof
panels the correct way round with the
recess at the top of the apex as shown in
the diagram.**
From the top, x directly through the roof
panels (No. 3 & 28) into the ridge bar (No.
8) below using 5x60mm screws per assem-
bled roof panel.
It is essential that the ridge bar (No. 8) and
roof panels (No. 3 & 28) framing pull
together when xed with 60mm screws.
You may require another person pushing
the ridge bar (No. 8) up from below to
achieve this.
HINT - Follow the nailing line of the framing
on the roof panel so that you are more
likely to x into the ridge bar below.
10x60mm Screws
IMPORTANT: Pre-drill before xing screws.

Please retain product label and instructions for future reference
P 10

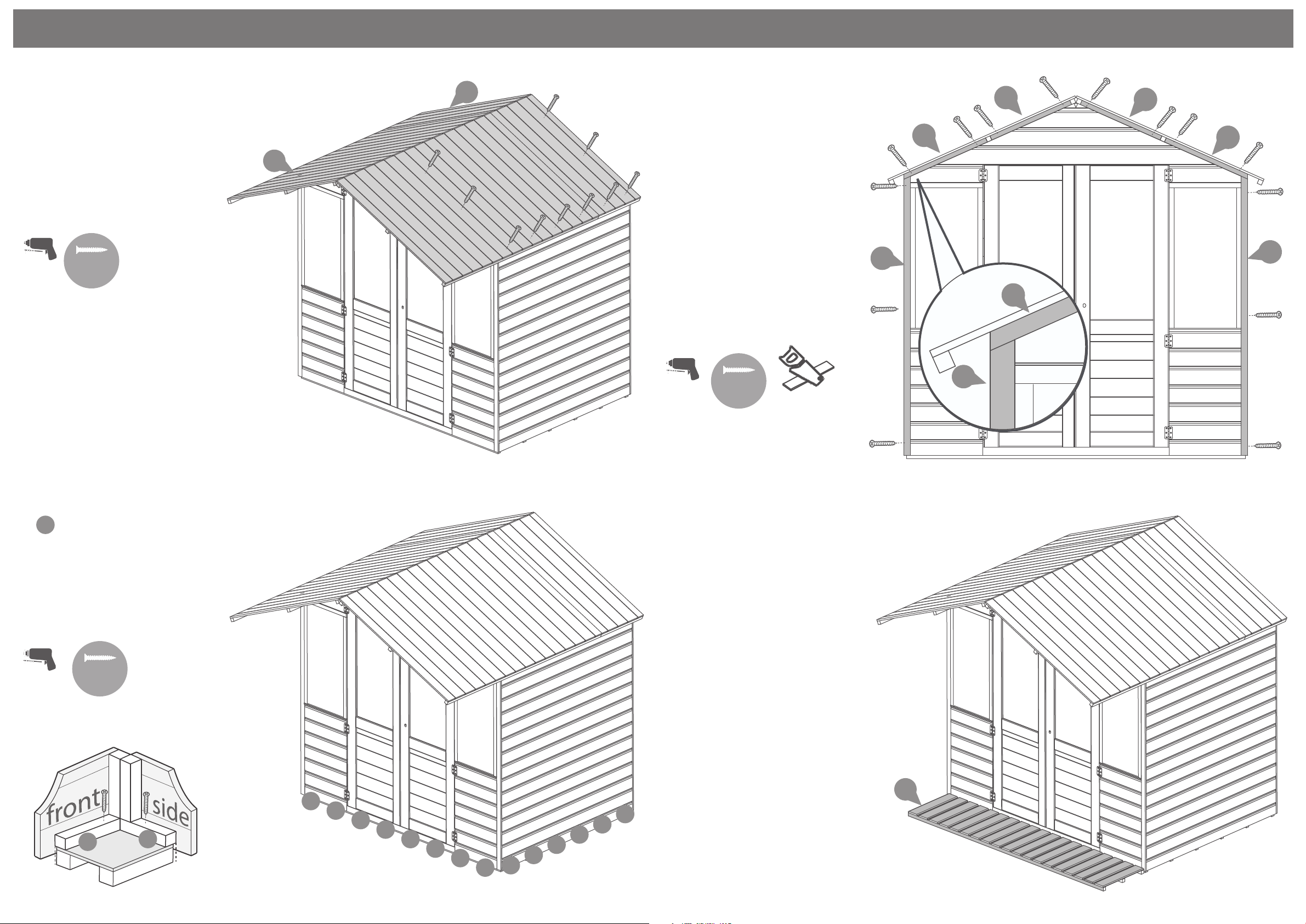

Use 40mm screws to x the roof (No. 3
& No. 28) down the sides, front and
back of the building.
Be sure that the screws attach into the
framing below.
20x40mm Screws
Pre drill
hole
40mm
screw
Step 10a IMPORTANT: Pre-drill before xing screws.
3
28
b
b
b
bbbb
bbbbbbb
Step 11a IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
50mm
screw
Secure the building to the
oor internally using
28x50mm screws.
*Ensure to screw through the
framing into the oor bearers.
28x50mm Screws
bb
b
IMPORTANT: Pre-drill before xing screws.
*Cut down
trims to t
Pre drill
hole
30mm
screw
Step 12a
Parts needed - No 9 QTY 4
- No 13 QTY 2
- No 14 QTY 2
Attach the cover trims (No.9) to
each corner of the building using
3x30mm screws per cover trim.
Attach the gable cover trims
(No.13 and No.14) onto the door
gable.
Cut the gable cover trims (No.13)
and the cover trims (No.9) to t as
shown in the illustration
8x30mm Screws
13
14
9
14
13
9
9
13
IMPORTANT: Pre-drill before xing screws.
Step 13a
Parts needed - No 27 QTY 1
Place the Veranda Floor (No.27) on the
ground, ush to the door gable as
shown in the illustration.
Ensure the veranda oor sits
centrally to the building.
27
