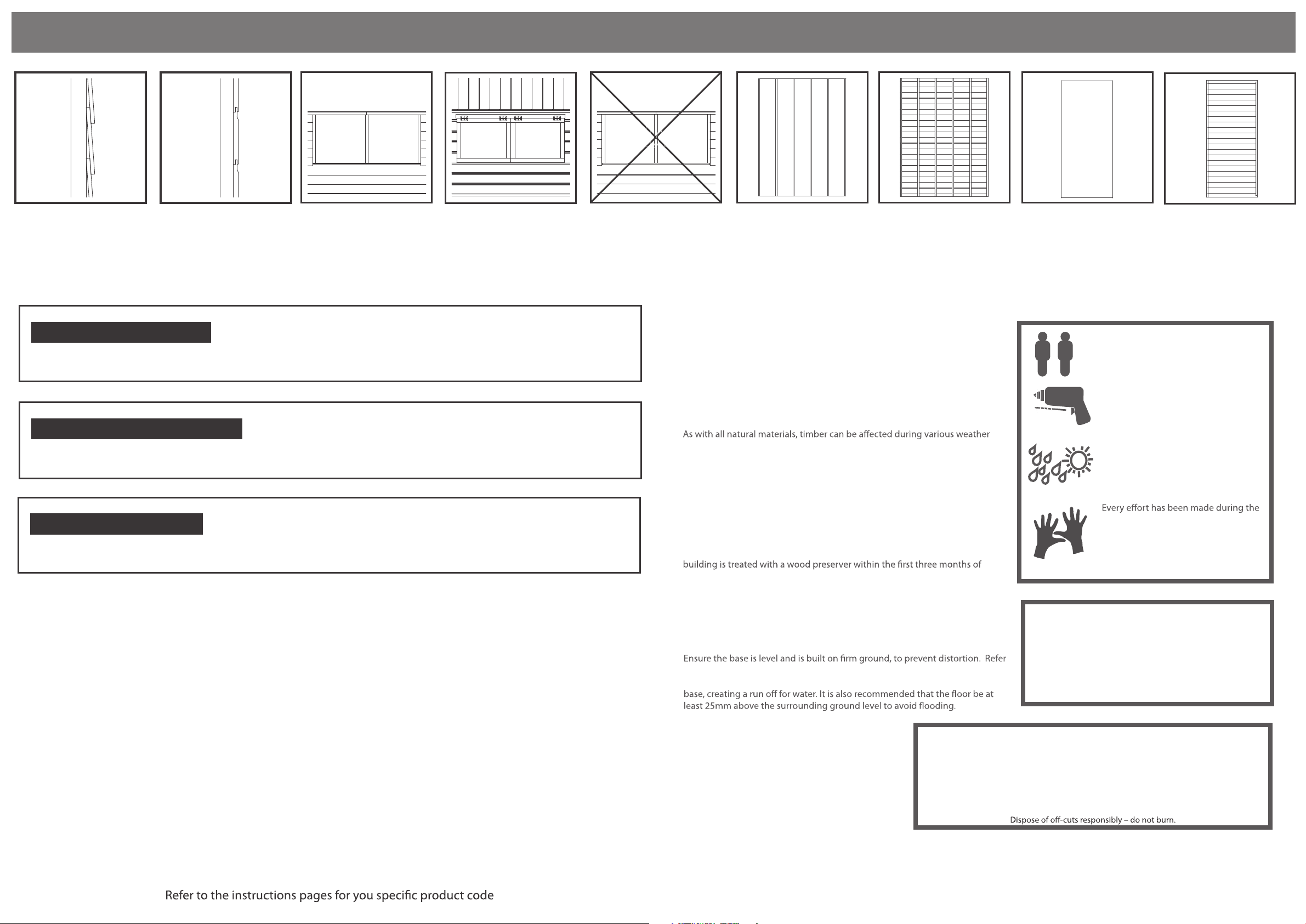

Mercia Garden Products 04GREEN0406SD-V1 Instruction manual

N/A
Overlap
Cladding
Shiplap
Cladding
Solid Sheet
Roof
T&G Roof
Solid Sheet
Floor
T&G Floor
Fixed
Windows
Opening
Windows
No
Windows
For Assistance Please
Contact Customer Care on
01636 880514
2mm Drill bit
x2
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All building’s should be erected by two
adults
For ease of assembly, it is advisable to
pilot drill all screw holes and ensure
all screw heads are countersunk.
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand
(not supplied) including a Phillips screwdriver, Stanley knife, wood saw,
step ladder and drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
conditions. For the duration of heavy or extended periods of rain, swelling of the
wood panels may occur. Warping of the wood may also occur during excessive
dry spells due to an interior moisture loss. Unfortunately, these processes cannot
be avoided but can be helped. It is suggested that the outdoor building is
sprayed with water during extended periods of warm sunshine and sheltered as
much as possible during rain or snow.
Our buildings are pre treated with a water based treatment**; this only helps to
protect the product during transit and for upto 3 months against mould. To
validate your guarantee and ensure longevity of the product, it is ESSENTIAL the
assembly and thereafter in accordance with the manufactures recommenda-
tions. Care must be taken to ensure the product is placed on a suitable base.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Whilst all products manufactured are made to the
highest standards of Safety and in the case of childrens
products independently tested to EN71 level,we cannot
accept responsibility for your safety whilst erecting or
using this product.
Mercia Garden Products Limited, Sutton On Trent, Newark, Nottinghamshire, NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
manufacturing process to eliminate the
prospect of splinters on rough surfaces
of the timber. You are strongly advised
to wear gloves when working with or
handling rough sawn timer.
**Protim Fentex E5**
Biocidal Product Regulation (EU 528/2012) Article 58 Information
Protim Fentex E2 preserved wood is a “treated article”which incorporates biocidal products.
Wood correctly preserved with Protim Fentex E2 is protected against mould in storage.
Contains: IPBC (3-iodo-2-propynyl-N-butyl carbamate) and propiconazole.
Wear gloves when handling freshly treated wood.
Avoid breathing dust when cutting treated or untreated wood.
to diagrams for the base dimensions, The base should be slightly smaller than
the external measurement of the building, i.e. The cladding should overlap the
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Please retain product label and instructions for future reference
P 1
General Instructions
04GREEN0406SD-V1
4x6 Greenhouse
04GREEN0606SD-V1
6x6 Greenhouse
04GREEN0806SD-V1
8x6 Greenhouse
14/01/2014
8

Step 1
P 2
04GREEN0406SD-V1
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Overall Dimensions:
Length = 1887mm
Width = 1215mm
Height = 2066mm
Base Dimensions:
Length = 1862mm
Width = 1191mm
Building content
Door Side
QTY 2
Sml Window
Side QTY 2
Lrg Window Side Door Gable Top Roof
(Opening Window)
123456
7
9
11
12
13
16
15
16
17
10
18
Remove transportation
blocks from the bottom
of each panel before
beginning assembly. Each
Panel should have two
Pre Assembly
2
Plain Gable Top
Roof
8
Door
9
Opening
Window
10
Door Beading Strip 1720mm
11
Fascia 1025mm
Base Frame 1862mm
12
Base Frame 1103mm
13
Roof Support Bar 1217mm
14
15 Buttery Hinges QTY 2
Window Casement Stay
Butt hinge QTY 2
17
Finial
Qty 2
18
19 35mm
Wooden Knob
8x70mm Screws
Lay the base frame down as shown
in the diagram. Ensure the base is
square and layed on level ground, fix
the base together with 2 x 70mm
screws per corner - pre drill to avoid
splitting the timber.
20 Turn Button
Please retain product label and instructions for future reference
Nail Bag 30mm Screw x 20
20mm Screw x 6
50mm Screw x 52
70mm Screw x 8
40mm Screw x 8
16mm Screws x 6
30mm Black Screw x 18
Pre drill
hole
70mm
screw
12
2345
78910
11
12
13
14
15
16
13
12
Door Rail 556mm
13
21

P 3
Fix the panels onto the base using
4 x 50mm screws per panel.
Fix the corners with 50mm screws
as shown in diagram.
Position the panels so there is equal spacing
between the floor and cladding on all 4 sides
Step 2
7x50mm Screws
50mm
screw
Step 3
Fix the remaining window
panel at the corner using
3 x 50mm screws.
Screw to the base using
4 x 50mm screws per panel.
Step 4
Fix the door sides to the window
panels and to the base using
10x50mm screws.
Please retain product label and instructions for future reference
Pre drill
hole
50mm
screw
11 x 50mm screws
2
3
Pre drill
hole
50mm
screw
10x50mm Screws
Pre drill
hole
50mm
screw
Step 5
Fix the gable tops to the panels
using 4x50mm screws per top as
shown in the diagram.
8x50mm Screws
Pre drill
hole
50mm
screw
2
1
1
5
bb
b
bb
b
b
4

P 4
Step 6
Attach the window to the roof
panel using 3x16mm screws and
3x30mm screws per butt hinge.
30mm
16mm
6x16mm Screws
6x30mm Screws
Pre drill
hole
16mm
screw
Pre drill
hole
30mm
screw
Fix the casement stay to the
opening window then align
the fixings onto the window
panel frame. Ensure the case-
ment stay fits into fixings when
closed before screwing them
down using 6 x 20mm screws.
6x20mm screws per casement stay
16
6x20mm Screws
Step 7
Fix the roof panels to the gable
tops using 8x50mm per roof panel
as shown in the diagram.
8x50mm Screws
Pre drill
hole
50mm
screw
Step 8
Attach the roof support bar to the
roof panels using 5x40mm screws.
Screw diagonally through the
support into the roof panel as
shown in the diagram.
5x40mm Screws
Pre drill
hole
40mm
screw
17
9
6
7
6
14

It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back
Step 9
Fix the door to the building using
16x30mm black screws per hinge
as shown in the diagram.
16x30mm Black Screws
Pre drill
hole
Fit the turn buttons to the
building using 2x30mm black
screws.
Step 10
Fit the fascia’s and the nial’s to the
building using 14x30mm screws as
shown in the diagram.
14x30mm Screws
Pre drill
hole
30mm
screw
Fit the door rail using 3x40mm
screws.
Pre drill
hole
40mm
screw
15
8
30mm
screw
2x30mm Black Screws
Pre drill
hole
30mm
screw
20
2x40mm Screws
21
