Metos Marine Mixer SP-30HA, SP-40HA
SAFETY INSTRUCTIONS
CAUTION Read before you operate the machine
It is important to read this manual and following the instructions before operate the machines.
This mixer is designed as a safe and efcient food processing product as long as the machine is used
in accordance with the instructions in this manual and is properly maintained.
User has taken following precautions in order to operate the mixer safely.
 All operators should be at least 18 years old and are adequately trained and supervised.
Also, have fully read and understood this manual.
 Owner should not let customer, visitor or other unauthorized people come in contact with
this machine.
 Do not wear loose clothes or ring while operating, and keep hands, hair and clothing away
the moving parts.
 NEVER use an extension cord to connect electrical power.
 Make sure the safety guard is closed and bowl is lifted to right position before operating.
 NEVER reach into the bowl when the mixer is running.
 NEVER place your hand or any kitchen utensil in the bowl whilst the mixer is in operation.
 When mixing product always follow the recommends agitator and speed setting
according to the capacity chart.
 STOP the mixer before changing speed.
 STOP the mixer before removing or installing attachments into the hub.
 NEVER put your hand and nger into the feed chute when using any mixer attachment,
include VH-12 Meat Mincer and V99S Vegetable Slicer.
Always use the pusher plate with attachment.
 Always UNPLUG before cleaning or doing any maintenances.
 DO NOT hose down or pressure wash any part of the mixer.
 NEVER bypass, alter or modify this machine. Doing so may create hazard and will void
warranty.

4
Metos Marine Mixer SP-30HA, SP-40HA
15.05.2015
OVERALL VIEW OF THE MIXER
A) Bowl
B) Removable Bowl Guard
C) Planetary Hub
E) Control Panel
F) Gear lever
G) Addition Chute
H) Bowl lift Wheel
I) Bowl Cradle
Control Panel
A) Emergency Stop
B) Start
C) Timer

15.05.2015
5
Metos Marine Mixer SP-30HA, SP-40HA
INSTALLATION INSTRUCTIONS
Installation
The machine is supplied factory lubricated and ready to run. It should be positioned
on any solid, level and non-skid work surface that is nonammable. Install in work
area with adequate light and space.
• For safety, the mixer should be BOLTED in position using all four holes located
in the legs.
• DO NOT attempt to lift the mixer alone.
• Clean the mixer before use. It is normal for the factory
to apply a generous amount of grease in and on the
machine before initial use.
• During the transportation or tting, please do not lean
over 35 degree to avoid the gear oil leaking from the
gear oil container.

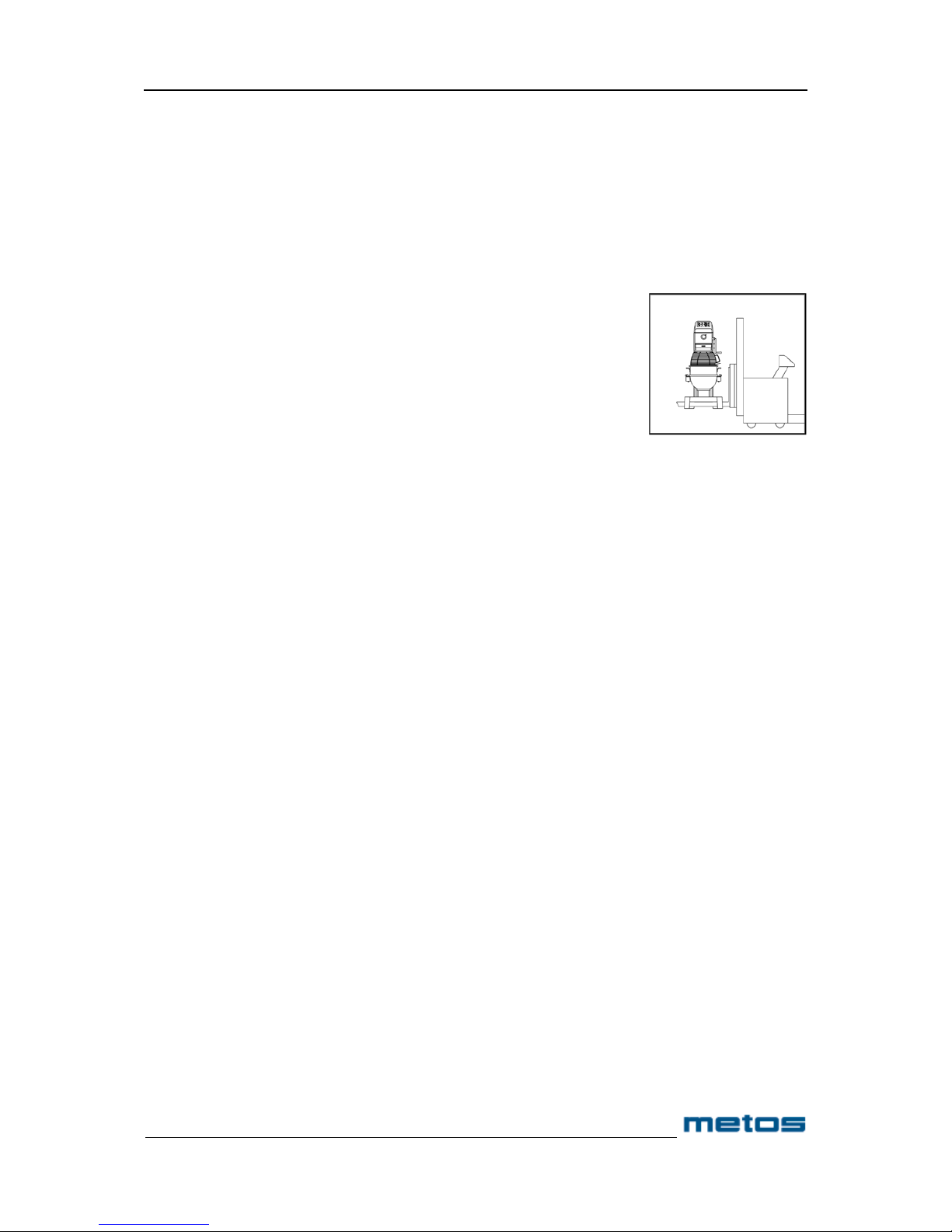

• Please use forklift to transporting.
Electrical connection
CAUTION: NEVER USE EXTENSION CORD. Low amp supply could damage the
mixer or cause a fire.
Before connecting this machine to the electrical supply, check that the details on the
rating plate (located on the rear of the machine) correspond to the details of your
electrical connection.
The mixer is supplied with a trailing lead tted with a molded plug. If the style of plug
is unsuitable for the socket you plan to use, the plug must be cut off and replaced
with an appropriate plug.
Machines are tted with a color coded three core cable as follows: Brown: Live , Blue:
Neutral. Green/Yellow: Earth
As the color of the wires may not correspond to the colored markings identifying the
terminals in your plug, you should proceed as follows:
• The wire which is colored blue must be connected to the terminal which is marked
with the letter N or colored black.
• The wire which is colored brown must be connected to the terminal which is
marked with the letter L or colored red.
• The wire which is colored green/yellow must be connected to the terminal which
is marked with the letter E or colored green.
NOTE: In terms of the 3-phase, when the mixer is located and connected with the
plug, please make sure that the shaft goes clockwise. (Same direction as the arrow
sticker that located on the front of the machine) If the shaft goes counterclockwise,
please replace the wires: R.S.T. (USA) L1, L2, L3, (Europe). To replace the wires
each other until the shaft goes clockwise.

6
Metos Marine Mixer SP-30HA, SP-40HA
15.05.2015
The mixer should be plugged into a switched socket which isolates all poles and has
a minimum contact clearance of 3mm and located close to the mixer for use in an
emergency and to facilitate servicing.
The machine must be incorporated into a potential equalization system.
The leakage current for this appliance is no greater than 1 mA/KW.
If the electrical supply cable to the machine becomes damaged, it must be replaced
by a specication or higher and suitable for the Mixer’s motor load.
The ground wire is xed to the machine and this connection must be kept intact.
CAUTION:The mixer MUST be grounded.
• The minimum requirement for all electrical equipment is correct operation between
air temperature of +5°C and +40°C.
• Electrical equipment is capable of operating correctly when the relative humidity does
not exceeding 95% at a maximum temperature of +40°C.
• Electrical equipment is capable of operating correctly at altitude up to 1000m.
• Electrical equipment is designed to withstand to protected against the effects of
transportation, and storage temperature within a range of -25°C to +55°C and
for short periods not exceeding 24h at up to +70°C.
OPERATING INSTRUCTIONS
Before using the mixer
Before using the mixer, ensure that all users are familiar with the correct operation of
the machine. In particular, care should be taken to ensure that the bowl and mixing tools
are correctly tted and that the bowl guard is in position prior to starting the machine.
Safety at work
NEVER place your hand or any kitchen utensil in the bowl whilst the mixer is
in operation.
• Keep hands, hair and clothing away from moving parts.
• Isolate the machine from the electrical supply by removing the plug from the
socket before cleaning, servicing or adjusting any parts or attachments.
• Do not use the machine with any cover or guard removed.
• Certain operator notice advising about the safe use of this mixer is attached to
the machine.

15.05.2015
7
Metos Marine Mixer SP-30HA, SP-40HA
Correct use of the mixer
• It is the responsibility of the operators to use the mixer correctly within the re-
commended limitations. Always follow the instructions on the side of the machine
when changing gear. If the motor labors, please stop the machine and reduce
the size of the mix immediately. Damage resulting from improper use will void
the warranty.
• For operator safety, the machine is tted with a bowl guard which is electrically
interlocker to ensure that the mixer cannot operate unless the guard is correctly
positioned and the bowl is raised. Excessive force used to open and close the bowl
guard may damage the electrically interlocker, and will void the warranty.
• For additional safety, the mixer has a no volt release feature which means that in
the event of a power failure, the machine will only restart after the control button has
been pressed again. This arrangement ensures that when the supply is restored,
the machine cannot restart on its own.
• Careful handling of bagged products by minimizing the height above the bowl base
from which they are poured.
• Careful slitting of bags in the lower part of the bowl to allow dust free discharge of
our as our as possible.
• Use temporary bowl covers to minimize openings through which our many
escape.
Tool selection
The beater, whisk and spiral dough hook are tools for the work implied by their names.
Do not use the beater for dough making or the whisk for anything other than whisking.
aerating or mixing light mixtures.
The Table shows the typical uses for each of the tools.
Beater Firm mixes such as light pastry,
cakes, biscits, icings, llings and mashed
vegetables.
Spiral Dough Hook Heavy mixes such as
dough, pie pastry
Whisk Light mixes such as whipped cream,
mayonnaise, egg whites, pancakes and
soufes.
NOTE: Always wash agitator with mild soap and apply light quantity of mineral
oil to planetary shaft after cleaning.

8
Metos Marine Mixer SP-30HA, SP-40HA
15.05.2015
Fitting the bowl
With the bowl cradle lowered, place the chosen mixing
tool in the bowl and position the bowl on the cradle.
There are three location points when fitting the bowl.
(1)The locking pin at the rear of the bowl should locate
in the hole of the cradle.
(2) The two holes in the bowl handles must engage
on the pins located on the cradle.
(3) Please ensure that the bowl is seated correctly on
the cradle before securing the bowl locking latches
prior to use.
Fitting the mixer tool
Slide the bayonet fitting of the agitator onto the drive shaft and twist
clockwise to secure it in position.To remove the agitator, slide the tool up
the shaft slightly and twist counter clockwise. Please refer to Figure 3.
NOTE: Install the bowl BEFORE inserting agitators.
NOTE: Agitators should always rotate in a clockwise direction around
bowl. If agitators move counterclockwise, please contact licensed elect-
rician immediately to remedy incorrect wiring.
Bowl lift & Bowl Guard
The bowl cradle and bowl guard are electrically interlocked so that the machine will
only operate with the bowl cradle at the raised position. In addition to this, the bowl
guard must be locked into place by sliding it into position across the top of the bowl
to the point where it will slide no further.
NOTE: Only once the bowl is raised and the bowl guard locked, the machine can ope-
rate.Thus ensuring total user safety at all times. Once the guard has been opened or
the bowl lowered, the machine will stop immediately.The Mixer can only be restarted
by pressing the start button again.
During the mixing process, additional ingredients can be added by the chute located
on the right hand side of the bowl guard.
The removable Bowl Guard
The interlocking bowl guard now is available to remove for cleaning purpose. With
separated handles, it can easy take out the bowl guard and cleaning in a sink or
dishwasher.
Fig A
Open / Closing the Bowl Guard
To open the bowl guard, holding the separated
handle, and rotating clockwise. (See Figure A)

15.05.2015
9
Metos Marine Mixer SP-30HA, SP-40HA
To close the bowl guard, rotating counterclockwise until the
bowl guard is in the locked position. (See Figure B)
NOTE: When the guard is open or not properly installed, the
mixer will not operate.
Fig. B
Removing and Attaching the Bowl Guard
NOTE: Before removing or attaching the bowl guard, make
sure the bowl is in the down/lower position and the agitator
is taking off the shaft.
To remove the bowl guard, push the upper and lower part
of the separated handle in different way (upper part – coun-
terclockwise, lower part – clockwise) and divide the handle.
(See figure C)
Fig.C
When the handle separated, hold the lower handle and con-
tinue turning the guard clockwise until the guard releases
from the ring catch on the mixer.
Fig.D
To reattach the bowl guard, line up the ring catch on the
left of the mixer; lift guard gently into place and rotate
the guard’s lower handle counterclockwise until it snaps
back into place with the upper part of the handle.
Controls
The Timer (C) is arranged to automatically stop the
machine after the selected interval. An untimed posi-
tion is provided for manually controlled mixing cycles.
Before starting the mixer it is necessary to set the
mixing duration or select the manual position – the
mixer will not operate in the 0 position.
Timed operation
For timed operation turn the Timer Knob (C) to the desired time (duration is marked
from 1 to 15 in graduations of one minute) and then press the Green Start Button (B)
to start the mixer. After the timed period you set, the mixer will stop automatically. If
it is necessary to stop the mixer before the end of the timed period, press the Red
Stop Button (A).

10
Metos Marine Mixer SP-30HA, SP-40HA
15.05.2015
Untimed operation
If you wish to manually control a mix, select the untimed mode by moving the Timer
Knob anti-clockwise until it stops.
CAPACITY
Please refer to Page 15. The table shows the recommended capacities of finished
weights of regular mixes. Although the machine may be capable of mixing larger
quantities, it will lead to excessive and premature wear and possible failure. Overlo-
ading also results in lengthy processes and unsatisfactory results.
NOTE: Reduce batch size by 10%, if chilled flour, water below 20°C, ice, or high gluten
flour is being used. ice, or high ten flour is being used.
NOTE: Overloading or not following the chart will damage the mixer and void the
warranty.
SPEED SELECTION
Before changing speeds, the mixer must always be STOPPED first.
The necessary speed can then be selected before restarting the machine by pressing
the Green Start Button.
The speed selected depends largely on the quantity and consistency of the product.
It is recommended that mixing is always started at the lowest speed and progressi-
vely increased to the desired setting. In an emergency situation always use the Red
Emergency Stop Button to stop the machine.Table shows the recommended speeds
for the range of tools.
IMPORTANT: When mixing products always follow the recommended
agitator and speed setting.
The mixer is equipped with a motor overload protection. If the mixer shuts off during
operation, reduce the batch size and wait 2 minutes. Press the stop button then
press the start button.
For heavier loads, the mixer should not run longer than 15 minutes without pausing
for a cool down period of at last 15 minutes or more before resuming mixer. For
lighter loads the mixer should not run longer than 30 minutes without pausing for a
cool down period of at last 30 minutes or more before resuming mixer.
