MICROWELL DRY 1200 METAL User manual

MODEL: DRY 800 & 1200 METAL
WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER
USER´S MANUAL

HUMIDISTAT
·
·
·
·
·
·
·
·
·
·
·
·
·
Do not manipulate with the device with wet hands.
Do not spray any flammable substances into the equipment; this might lead to fire.
Do not clean the device with water.
The cover of the device is made of steel, coated by three anticorrosive layers, protected by two variants of surface
colours: silver metallic finish or white colour (METAL type).
Do not clean the equipment with aggressive cleaning agents, this might lead to damage or deformations.
Never throw or insert any objects into any tube or opening.
Use this device only for the intended purpose, as described in the attached instructions for use. Do not use
components, which are not recommended.
Never block the air opening of the product. Protect the air openings from clogging by particles, hair etc.
When the device is not running correctly (smoke, smell, etc.), switch off the device by a circuit breaker
in the switchboard.
Repairs and relocations must be performed only by a service technician.
Before cleaning the device, switch off the circuit breaker in the switchboard.
Do not place any objects on the surface of the device.
When you do not intend to use the device for a longer time, switch off the circuit breaker.
2
EN - WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL
1. SAFETY MEASURES
2. USAGE SPECIFICATION
The units are designed especially for use in indoor swimming pools, spas and saunas. They can also be very useful in laundries,
drying rooms and elsewhere.
Microwell DRY 800 METAL is designed for use in swimming pool halls with 60 to 90m² swimming pools.
Microwell DRY 1200 METAL is designed for use in swimming pool halls with 90 to 120m² swimming pools.
The condition of using the equipment is keeping a room temperature within a range between min. 22 °C and max. 35 °C.
Optimal situation occurs when the room temperature is about 2-3 C ° higher than a swimming pool water-temparature.
EXHAUST GRID
INTAKE GRID
UNIT COVER
Thank you for purchasing our product.
Please read this user manual carefully before starting to use the device.
Please keep the instructions of this practical quide in order to get a quick know-how.
We do not take any responsibility or provide warranty in case of damage, loss or damnification caused by
incorrect usage or usage for other purposes, not specified in this manual.
Contents: 1. Safety measures
2.
3. Instructions for use
4. Instructions for maintenance
5. Servicing the unit
6. Installation guide
7. Technical data
Usage specification

The inbuilt humidistat is located in the cover of the device. It reads the humidiy of the incoming air, and depending on the set value,
switches on the compressor. In indoor swimming pool halls, the optimal air humidity level should range between 55% and 65 %.
Decreasing the level of humidity under the above mentioned range is not desirable, considerating the physiological aspects as well
as the aspects of providing building protection. Moreover, it increases the consumption of electrical energy. The humidistat can be
controlled by the user.
Humidistat display (front view)
3.
3.1.
INSTRUCTIONS FOR USE
Humidity regulation with an inbuilt digital humidistat located in the cover of the equipment
3
EN - WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL
Luminous point
signals, that the
humidity is shown on
display.
Luminous point signals,
that the temperature is
shown on display.
Current humidity or current
temperature display.
By pressing the “set” button,
the requested value blinks.
By pressing the or
button, the requested
value changes.
By repressing the “set” button
after the requested value has
been changed, “OK” symbol
appears and the requested value
is saved.
The current humidity or
temperature is shown on
display.
By pressing the button
when the current humidity is
being displayed, the current
temperature will be shown.
By pressing the button
when the current temperature
is being displayed, the current
humidity will be shown.
Although the current
temperature is shown on
a display, all the functions
work on the basis of the
humidity value.
Humidity setting Changing the display of humidity and temperature
Luminous point with “HUMI”
symbol on a display frame
signalizes the humidity display.
Luminous point with
“TEMP” symbol on a
display frame signalizes
the temperature
display.

4

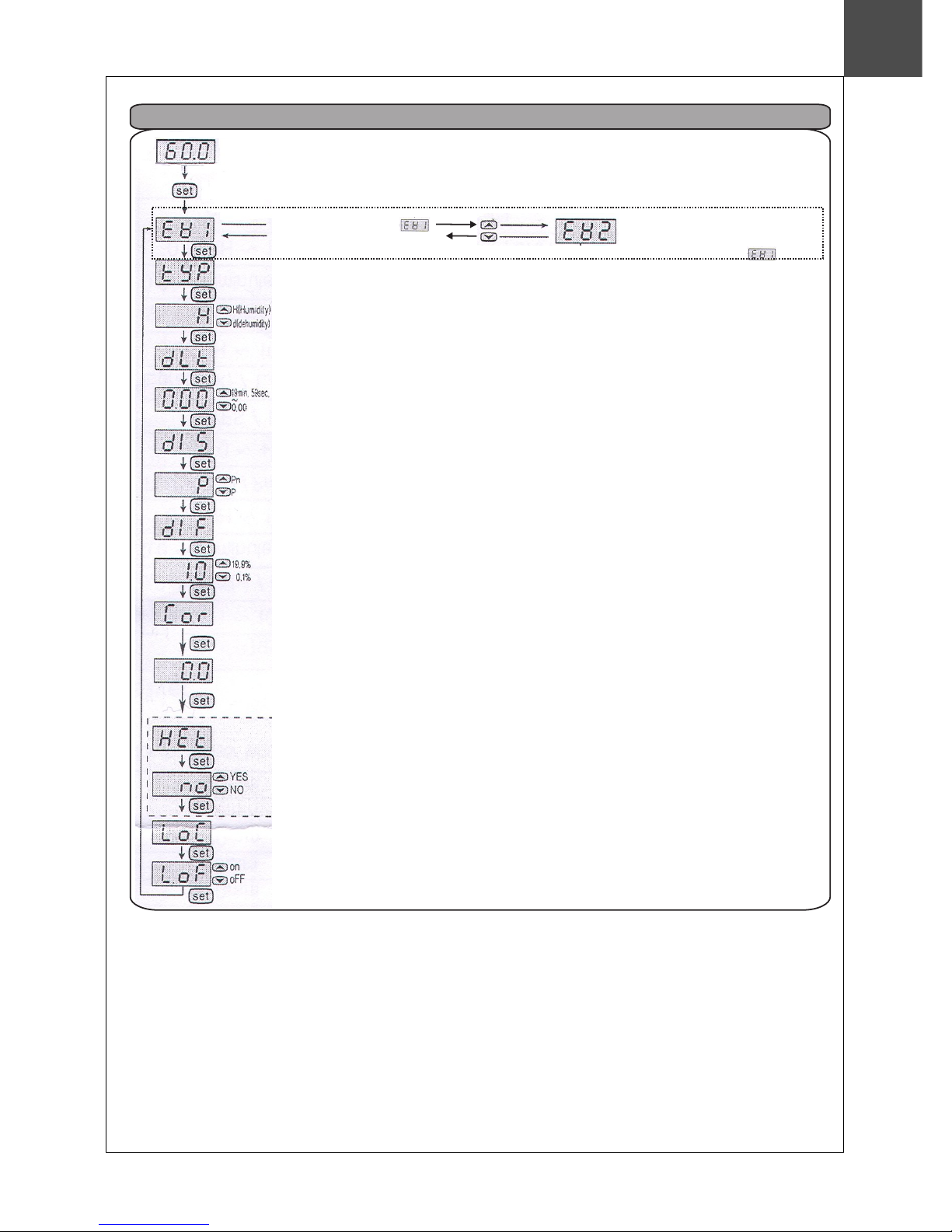

Current humidity or current temperature
display.
Keep the “set” button pressed for longer
than 5 secs.
Programming point “1”
Setting of the main output´values
Function setting.
=Humidity
=Dehumidity
Delayed time on the output. Used mainly
for device protection and in case of very
frequent switching on and switching off.
Setting of the deviation type.
Pn=+/- deviation
P=+deviation
Setting of the humidity hysteresis (zone
of insensitiveness) - difference between
closure and opening points.
In case the control circuit reacts too
slowly, reduce the hysteresis. In case the
control circuit is unstable (switches on and
off alternately), increase the hysteresis.
The correction function is used in case of
difference between the currently shown
value and the real exact value (detected
by etalon, e.g.)
HEt /heating/ Switching on of the heating
element on the humidity sensor FOX-2SH
is used for its prevention from misting, in
case the humidity is higher than 95% RH.
Switching on the “Lock function” - function
of set values´protection.
Lon= switching on the “Lock function”
LoF= cancellation of the “Lock function”
Program setting
By keeping the “set” button pressed for longer than 5 secs, the setting gets finished and you return to a mode of current
humidity display.
In case of inactiveness for longer than 30 secs, this is done automatically.
Setting of the additional output
which is not connected.
Don´t perform any settings here
and return to the point
3.2. Humidity regulation with a back-up mechanical humidistat located in the electronic box
In the electronic box there is a back-up mechanical humidistat, which is set on the value of 70 % RH. This humidistat has a back-up
function in case of digital humidistat failure. User should not perform any regulation of this humidistat.
EN - WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL

5
Condensed water is drained from the device by the force of gravity. It is necessary to locate the device in a way that enables
sufficient condensed water gradient. The condensate must be delivered through a siphon into the sewer or into the outside
environmemt. It is strictly forbidden to deliver the condensate back into the swimming pool, as it may be bacterially contaminated.
There is a tube for condensed water delivery located at the bottom of the device, on the left side. This tube must be plugged into
a sewerage pipe with an internal diameter min. 18 mm.
6.4. Condensate drain
CONDENSED WATER DELIVERY (AT THE BOTTOM OF THE DEVICE)
PIPE WITH AN INTERNAL DIAMETER OF MINIMUM 18mm.
2
POWER SUPPLY - CYSY WIRE 3C x 1,5 mm
600
280
50
90
EN - WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL
The cover can be disassembled by releasing of two screws located at the side parts of the device. Release the screws, pull the
bottom part of the cover toward yourself and then, by lifting it shortly, rake down the cover from the rear plate. The unit installation
is performed in an adverse way.
6.3. Dismounting and mounting of the cover
The unit must be installed in compliance with the local installation and electrical installation regulations !
6.1. Unit location
The unit is intalled on the floor. It is essential to ensure good air circulation by keeping the space free in front of equipment and
at least 200 mm above it. For the purpose of maintenance, it is further necessary to allow at least 200 mm of free space on both
sides of the unit.
6. INSTALLATION GUIDE
The equipment has a self-supporting construction and is very easy to install.
There is an elevated adjustable stand included in the equipment accessories.
6.2. Equipment fixation
The compressor´s operation starting is for securing its protection, delayed by min. 3 minutes. Depending on the humidity of
environment, it may last even longer. The user must not manipulate with the setting element of a time relay.
3.3. Compressor regulation
It is necessary to make sure that the intake and exhaust outlets are not covered. It is forbidden to place towels or other clothes
on the exhaust outlets to dry them. Cleaning of the device´s cover is allowed only by using non-abradant cleaning agents. In case
there is a water dripping from the equipment, please check whether a condensate pipe is not obstructed.
At least once a year, it is necessary to have the unit checked and cleaned by a service specialist. This is necessary in order to secure a
long operational life of the device. Cleaning the interior parts of the device by a user is not recommended, as this may lead to a
damage on the unit. The device contains mobile elements as well as elements under electrical pressure, therefore the interior parts
can be cleaned only by a certified electrician with an appropriate knowlegde of refrigerating technology.
4. MAINTENANCE INSTRUCTIONS
5. SERVICING THE UNIT

6
EN - WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL
The unit´s connection into the mains and its protection must meet the requirements of relevant norms. The connection
requirements are the following: 220-240 V/50Hz, 16A protection secured by a current protector with a nominal differential shut-off
current not exceeding 30mA. There is a terminal board for connecting the unit to the main, located on the left hand side of the
device. The master switch of the device must be located outside the swimming pool hall and it must be bipolaric and with L and N
conductors´ disconnecting. The dehumidifier must be inbuilt to a steady point for disconnecting the appliance from the mains with
a minimum 3 mm distance between the contacts for all the poles and in a switched off status.
The dehumidifier´s connection to the mains must be performed only by a qualified professional.
The dehumidifiers are simply adapted also to installation behind the wall into the adjacent room. In such case, only two grids are
visible in the swimming pool area. In the configuration for installation behind the wall, conduit adapters are screwed onto
the dehumidifier´s backside sheet. The adapters are delivered for passage through the wall of the length of 400 mm. In the place
of installation, they are shortened from the side of the swimming pool as necessary.
Flanges on the direct pieces are slipped on, so they can be cut into appropriate sizes directly in a place of assembly. Afterwards
the flanges are rivetted. The set also includes sealing band and screws for flanges´ connection.
6.5 Connecting the device to the mains
6.6 Mounting behind the wall - to order
Side cut View from the swimming pool
The dimensions of building slots are quoted.

TECHNICAL DATA UNITS
2
m
For swimming pools with max. water surface
30°C and 60 % RH l/24 h
Operating range - temperature
Operating range - humidity
°C
% Rw
3
m /h
Noisiness (in 1 m distance)
Heat input
Electrical power consumption
dB (A)
W
W
V/Hz/f
Operating current / Starting current
Protection
Conductor
A
A
2
mm
Pipe for condensate delivery (min. interior diameter)
Dimensions (width x height x depth)
Package sizing ( )width x height x depth
Weight - net / with package
mm
mm
mm
kg
Refrigerant - R 410 A kg
Mechanical Protection IP
7. Technical data
DRY 1200 METAL
DRY 800 METAL
60 - 90 90 - 120
90 120
22-35
20-100
740
22-35
20-100
740
46 46
5100
1700
8,0/50,0 12,0/60,0
7200
2400
230/50/1 230/50/1
16 16
CYSY 3C x 2,5 CYSY 3C x 2,5
d 18 d 18
1250 x 950 x 310
96/106
1250 x 950 x 310
1315 x 810 x 345
1300 x 1020 x 370
100/118
1,25 1,6
44 44
EXTRACTION RATE AT:
Air flow
Voltage
7
EN - WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL
Relative humidity
Dehumidification output
Air temperature
OUTPUT DIAGRAM OF DEHUMIDIFICATION (DRY 800 METAL)
OUTPUT DIAGRAM OF DEHUMIDIFICATION (DRY 1200 METAL)
Dehumidification output
Relative humidity
Air temperature
0
20
40
60
80
100
120
140
160
15 20 25 30 35 °C
80%
70%
60%
50%
40%
l/24 hod.
0
20
40
60
80
100
120
140
160
180
200
220
15 20 25 30 35 °C
80%
70%
60%
50%
40%
l/24 hod.

EN - WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL
8. WARRANTY CONDITIONS
The following exceptions stated by Microwell, Ltd. apply within the warranty.
No claims will be accepted if:
1. The dehumidifier is used in an incorrect way, not as described in this manual.
2. The dehumidifier is installed in an incorrect way, not as described in this manual.
3. The dehumidifier was put to operation by an unauthorized person.
4. The air flow through the dehumidifier is out of the defined borders.
5. The water flow through the dehumidifier is out of the defined borders.
6. ´s
7.
8.
The water pH level and/or chemical condition is out of the defined borders:
The dehumidifier suffered frost damage.
The electric tension source is insufficient or improper in any other way.
IN CASE OF ANY UNCERTAINTY YOU MAY HAVE, PLEASE FEEL FREE TO CONTACT US !
Acidity / pH level: pH 7,4 +/- 0,4
Total alkalinity, as CaCO3 ppm 80-120
Total hardness, as CaCo3 ppm 100-300
Total melted dry mass ppm max. 3000
Maximal saline content wt/wt 6%
Free chlorine range ppm 1,0-3,0
Superchlorination ppm max. 30 ppm/max. 24 hours
Bromine ppm 2-3
Baquacil ppm 25-50
Ozone ppm 0,8-1,0
Maximum copper content ppm max. 2
Aquamatic single purifier ppm max. 2
Tarn clean purifier ppm max. 2
Sherwood purifier ppm max. 2
TRANSPORT INSTRUCTIONS:
The dehumidifiers must be transported only in the original packaging and in a vertical position. Make sure that the
dehumidifier cannot turn over or fall down during transportation. Do never put the dehumidifier aside! It may lead to
serious compressor damage! No claims are accepted in case of any damage caused by transportation. When receiving
the product delivered to you, please check whether the package is not damaged. If any kind of objections occurs, please
make a proper documentation of them.
NOTE:
When applying applicable warranty, the registration card that ensures applicable warranties must be returned. In case
you cannot find the registration card of your dehumidifier, please contact the Service department of Microwell, Ltd. -
indicated your name, address and serial number of your dehumidifier. The registration card will be then sent to you for
filling in. In case you have any service or technique related questions, please specify the model number and serial
number of your dehumidifier. These information will help us in making proper diagnosing of your unit and the service can
be performed with a minimum time delay.
8

EN - WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL

MICROWELL, Ltd.
SNP 2018/42
927 01 Šaľa, Slovakia
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.microwell.sk
Distributed by:
