MODEL: DRY 300/400/500 PLASTIK
WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER
USER´S MANUAL

lDo not manipulate with the device with wet hands.
lDo not spray any flammable substances into the equipment; this might lead to fire.
lDo not clean the device with water.
lDo not clean the equipment with aggressive cleaning agents, this might lead to damage or deformations.
lWhen cleaning plastic parts do not use any cleaning agents unsuitable for the cover of the dehumidifier (household
cleaning agents, solvents, bleaching agents, benzene, diluents, rough cleaning powder, cresol, chemical agents).
Instead, sweep the dehumidifier cover with a soft cloth or a sponge.
lNever throw or insert any objects into any hose or opening.
lThe cover is made of plastic. Do not manipulate with lighted cigarette, cigarette ashes, or any other kind of fire in
vicinity to this part.
lUse this device exclusively for the intended purpose, as described in the attached instruction manual. Do not use
parts which are not recommended.
lNever block the air opening of the product. Protect the air openings from clogging by particles, hair etc.
lWhen the device is not running correctly (smoke, smell etc.), shut down the device by a circuit breaker in the
switchboard.
lRepair and dislocation must be performed exclusively by a service technician.
lBefore cleaning the device, switch off the circuit breaker in the switchboard.
lDo not place any objects onto the device.
lWhen you do not intend to use the device for a longer time, switch off the circuit breaker.
WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL
Thank you for your decision to purchase our device.
Please read this user manual carefully before switching on the device.
Please keep the instructions in this practical guide for your quick know-how.
We do not take responsibility or warranty in case of damage, loss or impairment caused by incorrect usage,
or by usage for other purposes not described in this manual.
Contents: 1. Safety measures
2. Specifications for use
3. Instructions for use
4. Instructions for maintenance
5. Servicing the unit
6. Installation guide
7. Technical data
1. SAFETY MEASURES
2. SPECIFICATIONS FOR USE
The units are designed especially for use in indoor swimming pools, spas and saunas. They can also be very useful in laundries,
drying rooms and elsewhere. 2
The Microwell DRY 300 PLASTIK is designed for halls with a swimming pool surface area of up to 30 m .
2
The Microwell DRY 500 PLASTIK is designed for halls with a swimming pool surface area of up to 60 m .
The condition for using the unit is maintaining the room temperature within the range between a minimum of 22°C and
a maximum of 35°C. Ideally, the air in the room should be 2-3 °C warmer than the water in the swimming pool.
Microwell DRY 400 PLASTIK is designed for rooms with a swimming pool, which surface is up to 45 m².
2
INTAKE GRID
HYGROSTAT
UNIT COVER
EXHAUST GRID

The built-in humidistat is located at the bottom of the unit, on the left. The built-in hygrostat reads the humidity of the incoming air
and, depending on the set value, does or does not switch the compressor on. In the central position of the regulator, the unit secures
the average relative humidity of 60%. In indoor swimming pool halls, the correct air humidity should range from 55 to 65%.
Decreasing the humidity under this range is not desirable either from the physiological viewpoint or from the viewpoint of protection
of the building. Moreover, it increases the electricity consumption. The humidistat can be controlled by the user.
A view at the hygrostat scale
3.2. Remote control
On demand a dehumidifier can be controlled by remote humidistat & thermostat DRY EASY 300. If so, User’s manual is
attached to this Manual.
3. INSTRUCTIONS FOR USE

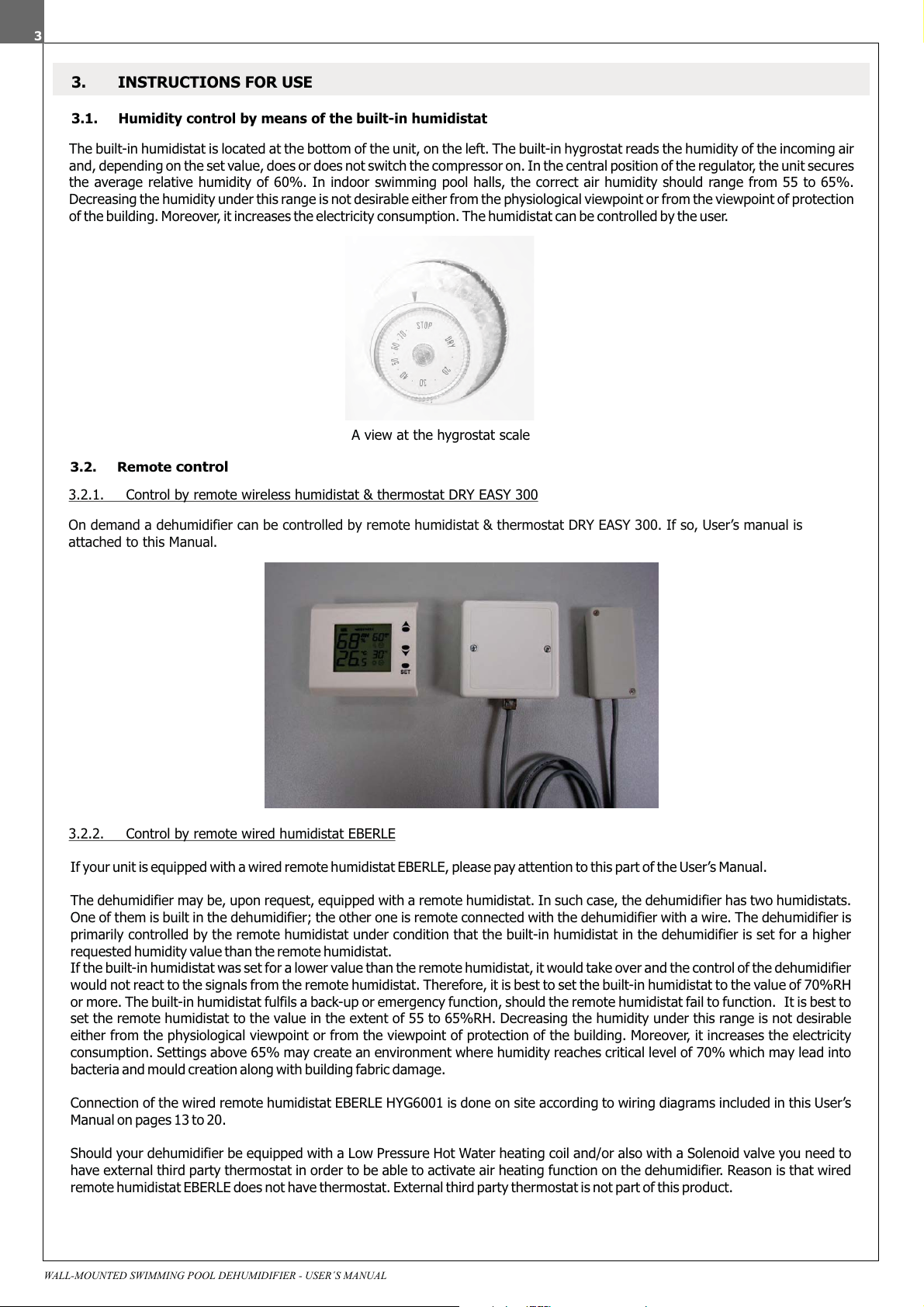

3.1. Humidity control by means of the built-in humidistat
3
WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL
If your unit is equipped with a wired remote humidistat EBERLE, please pay attention to this part of the User’s Manual.
The dehumidifier may be, upon request, equipped with a remote humidistat. In such case, the dehumidifier has two humidistats.
One of them is built in the dehumidifier; the other one is remote connected with the dehumidifier with a wire. The dehumidifier is
primarily controlled by the remote humidistat under condition that the built-in humidistat in the dehumidifier is set for a higher
requested humidity value than the remote humidistat.
If the built-in humidistat was set for a lower value than the remote humidistat, it would take over and the control of the dehumidifier
would not react to the signals from the remote humidistat. Therefore, it is best to set the built-in humidistat to the value of 70%RH
or more. The built-in humidistat fulfils a back-up or emergency function, should the remote humidistat fail to function. It is best to
set the remote humidistat to the value in the extent of 55 to 65%RH. Decreasing the humidity under this range is not desirable
either from the physiological viewpoint or from the viewpoint of protection of the building. Moreover, it increases the electricity
consumption. Settings above 65% may create an environment where humidity reaches critical level of 70% which may lead into
bacteria and mould creation along with building fabric damage.
Connection of the wired remote humidistat EBERLE HYG6001 is done on site according to wiring diagrams included in this User’s
Manual on pages 13 to 20.
Should your dehumidifier be equipped with a Low Pressure Hot Water heating coil and/or also with a Solenoid valve you need to
have external third party thermostat in order to be able to activate air heating function on the dehumidifier. Reason is that wired
remote humidistat EBERLE does not have thermostat. External third party thermostat is not part of this product.
3.2.2. Control by remote wired humidistat EBERLE
3.2.1. Control by remote wireless humidistat & thermostat DRY EASY 300

4
WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL
Under the inside cover of the unit, there is a two-position fan mode switch. In the first position, the fan runs even if the compressor
of the appliance has stopped: continuous operation of the fan. In the second position, the fan only runs simultaneously with the
compressor: periodical duty of the fan. The continuous operation mode of the fan is preferable, since the humidity reader built in
the device continuously reads humidity, and therefore a greater accuracy is reached. At the same time, continuous operation of the
fan results in better air circulation in the room. The installation work supplier selects the mode of the fan according to the request of
the user.
3.3. Control of the fan
Switch of the fan operation
Continuous duty of the fan
Periodical duty of the fan
In such case there are 2 black plastic boxes or casings on the dehumidifier electrobox. One is for EBERLE connection, another is
external thermostat connection. This is 230V/5A contact – a phase is sent out of a dehumidifier which must be connected to a
switching no-current contact of an external third party thermostat. When heating is required, third party thermostat returns this
phase back to the dehumidifier and activates air heating mode (opens solenoid valve and turns the ventilator on).
External third party thermostat connection EBERLE connection (1 to 1, 2 to 2, 3 to 3)
and main dehumidifier’s power supply (L, N, G)
Start-up of the compressor is, due to its protection, delayed by 3 minutes. Depending on the humidity of the environment, it may
take even longer for compressor to start operating. Once the compressor stops operating, the operation is renewed automatically,
at the earliest after three minutes. The user must not handle the setting element of the delay-action relay.
3.4. Control of the compressor

WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL
It is necessary to make sure that the suction inlet and the exhaust outlet are not covered. It is forbidden to place towels or clothing
items onto the exhaust outlets to dry them. The unit's cover can be cleaned with standard cleaning agents using a soft cloth or
a sponge. If water dripping out of the unit, please check the condensed water drain and make sure the pipe is not obstructed.
At least once a year, it is necessary to have the unit checked and cleaned by a service specialist. This is inevitable to secure a long
service life of the unit. We do not recommend the user to clean the interior elements of the unit, as this might cause a damage to the
unit. The unit contains mobile elements and live elements, therefore the interior parts may only be cleaned by a certified electrician
trained to service refrigerating appliances.
The unit must be installed in compliance with the local installation and electrical installation regulations !
6.1. Location of the unit
The unit is to be installed on the wall or on the mobile stand. To ensure the right operations of the dehumidifier and its maximum
efficiency in terms of humidity control, it is necessary to ensure proper air circulation into and from the dehumidifier. This requires
the actual unit placement appropriately into the swimming pool hall respecting basic prerequisites of air circulation and air flow. It is
strictly forbidden to install the unit just below the ceiling. At least 200mm of a free space must be kept above the unit and at least
150mm below the unit. Each swimming pool hall is individual thus a special care needs to be taken to choose a proper dehumidifier
placement. It is forbidden to install the unit on the ground. It is also strictly forbidden to block the air inlet and outlet with any
objects (canoe, buckets, ceiling beams, etc.). For maintenance purposes please keep free space of 200mm on both sides
of the dehumidifier.
4. MAINTENANCE INSTRUCTIONS
5. SERVICING THE UNIT
6. INSTALLATION GUIDE
The units have a self-supporting structure and are remarkably easy to install.
A part of the unit accessories is also an installation bracket, which must be fixed onto the wall. The axis of the fixation openings is
210 mm lower than the top edge of the unit. The fixation openings are 420 mm apart (DRY 300/400 PLASTIK) or 360 mm apart
(DRY 500 PLASTIK). Once the bracket is mounted to the wall, it is possible to mount the unit without disassembling its cover.
6.2. Mounting the unit
Model DRY 300/400 PLASTIK
Model DRY 500 PLASTIK
STIK
TOP EDGE OF THE UNIT
BRACKET SPIRIT LEVEL
MOUNTING HOLES
TOP EDGE OF THE UNIT
BRACKET SPIRIT LEVEL
MOUNTING HOLES
5

WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL
The cover can be dismounted after releasing two screws (DRY 300/400) or three screws (DRY 500) at the bottom of the unit.
Release the screws, pull the bottom part of the cover toward yourself and then, by lifting it shortly, rake down the cover from the
rear plate. To mount the cover, carry the procedure out in reverse order.
6.3. Dismounting and mounting the cover
The unit is designed in such a way that it can be securely mounted and will hold in its place even if lifted accidentally. In the top
edges of the back plate, there are screw holes for safety screws, which are accessible after dismounting the front fibreglass cover.
Arrows indicate the safety screw holes in the back plate. A safety screw is fastened through a screw hole in the back plate into a wall
plug in the wall. This will prevent the unit from being accidentally pulled out and falling off the mounting bracket. At the same time,
it will secure the perpendicular position of the unit and align the unit with the wall.
6.4. Securing the position of the unit
BACK PLATE
SAFETY SCREW HOLES
Condensed water is drained from the unit by the force of gravity. It is necessary to situate the unit in such a way that there is
sufficient declivity for the drainage of condensed water. The condensation product must be drained through a siphon into a sewer or
into the outside environment. It is strictly forbidden to drain the condensed water back into the swimming pool, as it may be
polluted by bacteria. A pipe for condensate drainage is led out at the bottom of the unit, on the left. This pipe is to be inserted into a
sewerage pipe with the inside diameter of at least 18 mm.
6.5. Drainage of condensate
CONNECTIONS ARE VALID FOR MODELS DRY 300/400 PLASTIK AS WELL DRY 500 PLASTIK - FRONT VIEW
ATTACHMENT OF THE HEATER ELEMENT TO THE DISTRIBUTION
OF THE HEATING WATER
THREAD G ½ '’ MALE
OPTIONS LOCATION OF CONNECTION
POWER SUPPLY
2
CYSY WIRE 3C x 1.5 (3C x 2.5) mm
(FROM THE REAR)
117
117
50
15
35
50
100
35
40
50
CONDENSATE DRAINAGE (FROM THE REAR)
PIPING WITH MINIMUM INTERNAL DIAMETER OF 18 mm
A1 - FROM LEFT SIDE
A2 - FROM RIGHT SIDE
A3 - FROM BACK SIDE
6

WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL
Connection of the unit onto the mains must conform to relevant safety standards. Connection requirements: Power supply: 220-
240V / 50Hz. Protection: 10A (DRY 300/400 PLASTIK) or 16A (DRY 500 PLASTIK) by a protective switch with nominal differential
drop-out current not exceeding 30 mA. The unit's terminal board for connection onto the electric mains is situated on the left hand-
side of the unit. The main switch of the unit must be situated outside of the swimming pool hall. The main switch of the unit must be
bipolar, with switch-out breaking of conductors L and N. An appliance for disconnecting the unit from the mains must be embedded
into a firm surface. The distance of contacts, when swithched off, must be at least 3 mm for all poles. The connection of the
appliance to the electric mains must be carried out by a certified electrician.
6.6 Connection of the unit onto the mains
An example of preparation of electric power supply, condensate drainage
and mounting of the bracket
The LPHW heater elements are supplied only to order. Connection of the hot water heater element onto the LPHW plumbing is
carried out similarly to the installation of radiators. On the feeder pipe, it is connected by a control valve and on the return pipe by a
closing screw joint. The LPHW is not supplied with a control valve and a screw joint; these are supplied by the supplier of the
heating.
6.7. LPHW heater element - to order
Attachment threading of the hot water heating element Attachment of the heater element to the distribution of the heating water
After installing the LPHW plumbing and leading the LPHW into the element under pressure, it is necessary to bleed the heater
element. The bleeding valve is located on the feeder pipe of the LPHW heater element. To secure that the LPHW heater element
works always at full heat output, blowing onto the unit by a fan must be provided even when no dehumidification is being
performed. Therefore, when using the LPHW heater element, the switch of fan operation must be switched into the position of
continuous operation.
THREAD G ½ '’ MALE
OPTIONS LOCATION OF CONNECTION
117
117
50
15
35
50
100
35
40
50
CONDENSATE DRAINAGE (FROM THE REAR)
PIPING WITH MINIMUM INTERNAL DIAMETER OF 18 mm
A1 - FROM LEFT SIDE
A2 - FROM RIGHT SIDE
A3 - FROM BACK SIDE
POWER SUPPLY
2
CYSY WIRE 3C x 1.5 (3C x 2.5) mm
(FROM THE REAR)
7

8
WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL
6.9. Mounting behind the wall - on demand
The dehumidifiers are simply adapted also to installation behind the wall into the adjacent room. In such case, only two grids are
visible in the swimming pool area. These are the same grids which are, in the basic configuration, installed on the dehumidifier's
cover. In the configuration for installation behind the wall, conduit adapters are screwed onto the dehumidifier's cover. The
adapters are delivered for passage through the wall of the length of 400 mm. In the place of installation, they are shortened from
the side of the swimming pool as necessary.
View from the adjacent room View from the swimming pool hall
6.8. Hot gas defrost - on demand
Hot gas defrost allows the dehumidifier to operate effectively at air temperatures down to 5°C. The gas circuit is equipped with 4-
way valve. When temperature on evaporator drops below zero, system starts to count 30 minutes of time. After this period the
evaporator temperature is checked again and if the current temperature is still below zero, a compressor and a ventilator are turned
off. Gas circuit is reversed and after 3 min a compressor starts. System now defreezes the unit for 3 minutes. After another 3
minutes, if the defrost cycle is completed, the unit goes into usual operations. In extremely low temperatures and in still humid
enough air it is normal to take 2 or 3 defreezing cycles to complete the procedure.
NOTE: It is normal for a compressor to turn itself off and on again during defreezing cycle.
Your compressor is protected for the transport with plastic zipper strap. Due to compressor size and weight this is necessary in
order to have a fully functional unit delivered to you safely. This protection must be removed before starting the unit. Please view
below pictures on how to proceed. The procedure generally takes few seconds. Please be advised that no removal of plastic zipper
strap results in warranty void.
6.10. Compressor transport protection (DRY 500 PLASTIK only)
Picture 1: Plastic zipper strap as
delivered from factory. Picture 2: To cut the strap use
pliers or other appropriate tool. Picture 3: Finally remove the strap from the dehumidifier.

9
WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL

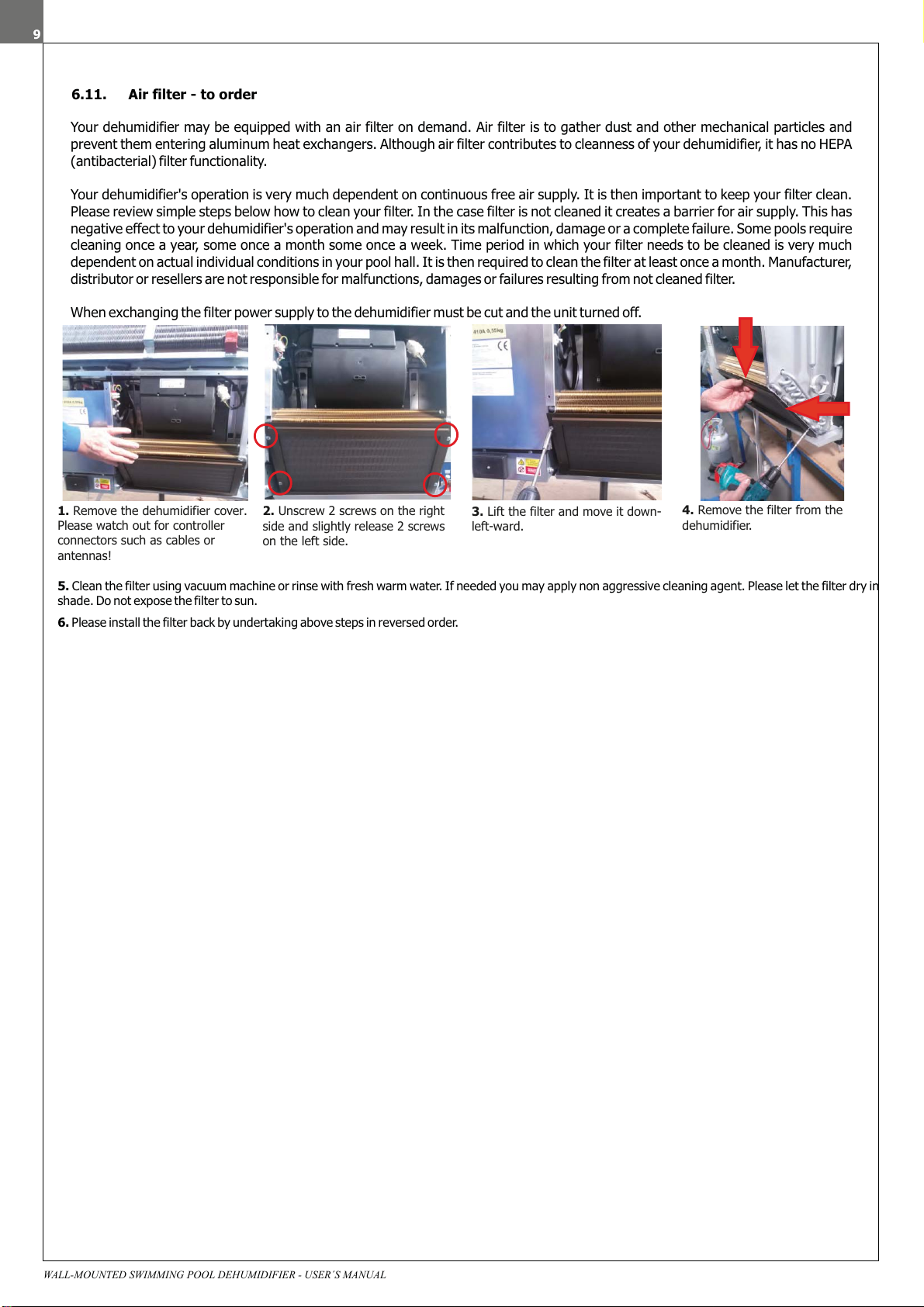

6.11. Air filter - to order
Your dehumidifier may be equipped with an air filter on demand. Air filter is to gather dust and other mechanical particles and
prevent them entering aluminum heat exchangers. Although air filter contributes to cleanness of your dehumidifier, it has no HEPA
(antibacterial) filter functionality.
Your dehumidifier's operation is very much dependent on continuous free air supply. It is then important to keep your filter clean.
Please review simple steps below how to clean your filter. In the case filter is not cleaned it creates a barrier for air supply. This has
negative effect to your dehumidifier's operation and may result in its malfunction, damage or a complete failure. Some pools require
cleaning once a year, some once a month some once a week. Time period in which your filter needs to be cleaned is very much
dependent on actual individual conditions in your pool hall. It is then required to clean the filter at least once a month. Manufacturer,
distributor or resellers are not responsible for malfunctions, damages or failures resulting from not cleaned filter.
When exchanging the filter power supply to the dehumidifier must be cut and the unit turned off.
1. Remove the dehumidifier cover.
Please watch out for controller
connectors such as cables or
antennas!
2. Unscrew 2 screws on the right
side and slightly release 2 screws
on the left side.
3. Lift the filter and move it down-
left-ward.
4. Remove the filter from the
dehumidifier.
5. Clean the filter using vacuum machine or rinse with fresh warm water. If needed you may apply non aggressive cleaning agent. Please let the filter dry in
shade. Do not expose the filter to sun.
6. Please install the filter back by undertaking above steps in reversed order.

WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL

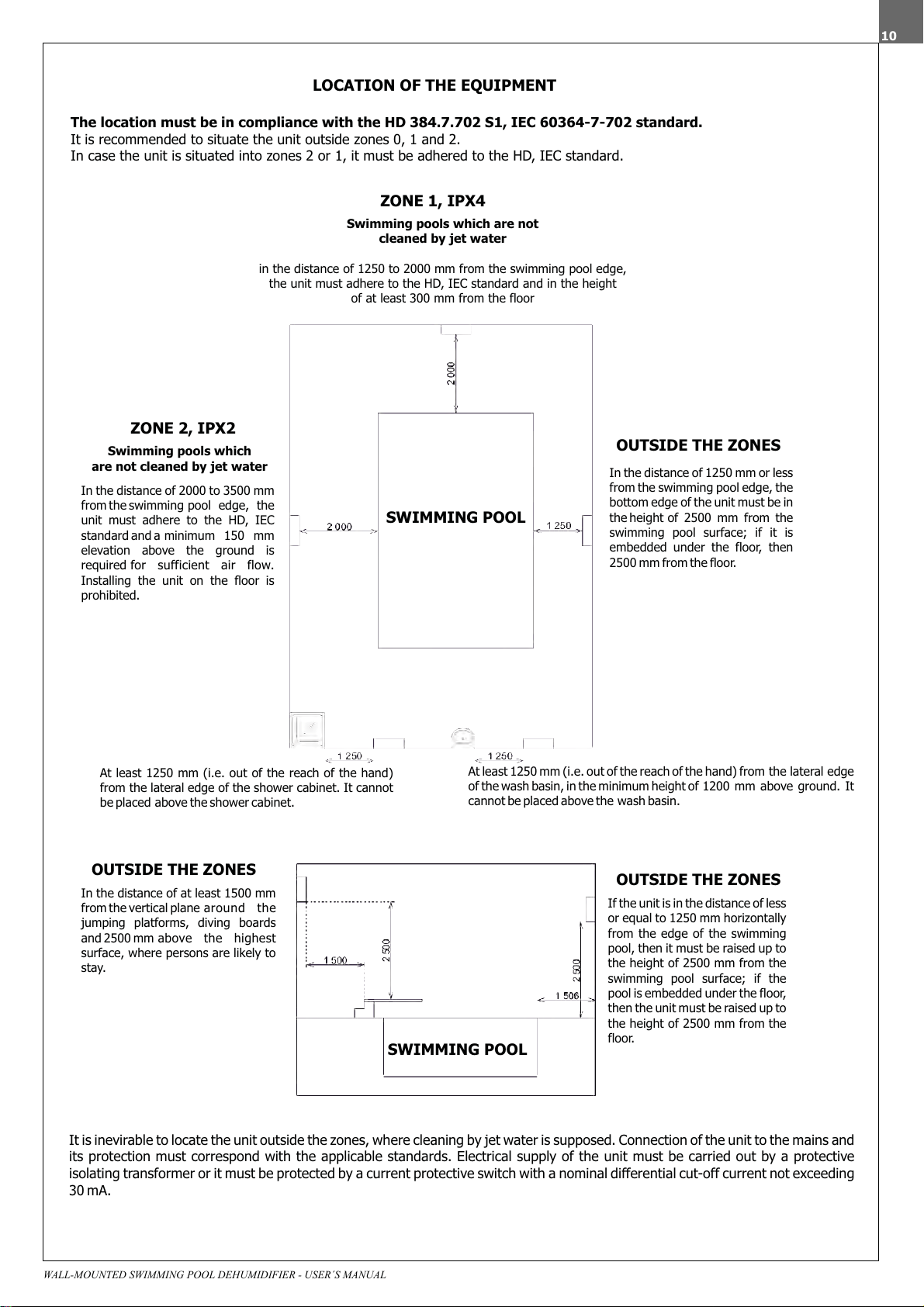

LOCATION OF THE EQUIPMENT
ZONE 1, IPX4
ZONE 2, IPX2
OUTSIDE THE ZONES
In the distance of 1250 mm or less
from the swimming pool edge, the
bottom edge of the unit must be in
the height of 2500 mm from the
swimming pool surface; if it is
embedded under the floor, then
2500 mm from the floor.
At least 1250 mm (i.e. out of the reach of the hand) from the lateral edge
of the wash basin, in the minimum height of 1200 mm above ground. It
cannot be placed above the wash basin.
In the distance of at least 1500 mm
from the vertical plane around the
jumping platforms, diving boards
and 2500 mm above the highest
surface, where persons are likely to
stay.
If the unit is in the distance of less
or equal to 1250 mm horizontally
from the edge of the swimming
pool, then it must be raised up to
the height of 2500 mm from the
swimming pool surface; if the
pool is embedded under the floor,
then the unit must be raised up to
the height of 2500 mm from the
floor.
It is inevirable to locate the unit outside the zones, where cleaning by jet water is supposed. Connection of the unit to the mains and
its protection must correspond with the applicable standards. Electrical supply of the unit must be carried out by a protective
isolating transformer or it must be protected by a current protective switch with a nominal differential cut-off current not exceeding
30 mA.
At least 1250 mm (i e ou
SWIMMING POOL
The location must be in compliance with the HD 384.7.702 S1, IEC 60364-7-702 standard.
It is recommended to situate the unit outside zones 0, 1 and 2.
In case the unit is situated into zones 2 or 1, it must be adhered to the HD, IEC standard.
SWIMMING POOL
Swimming pools which are not
cleaned by jet water
in the distance of 1250 to 2000 mm from the swimming pool edge,
the unit must adhere to the HD, IEC standard and in the height
of at least 300 mm from the floor
Swimming pools which
are not cleaned by jet water
In the distance of 2000 to 3500 mm
from the swimming pool edge, the
unit must adhere to the HD, IEC
standard and a minimum 150 mm
elevation above the ground is
required for sufficient air flow.
Installing the unit on the floor is
prohibited.
At least 1250 mm (i.e. out of the reach of the hand)
from the lateral edge of the shower cabinet. It cannot
be placed above the shower cabinet.
OUTSIDE THE ZONES OUTSIDE THE ZONES
10

WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL
7. TECHNICAL DATA
PIPING 615x65mm - DRY 300 PLASTIK
(PIPING 1075x65mm - DRY 500 PLASTIK)
FLANGED CONNECTION
R100
ELBOW 135° 615x65mm - DRY 300 PLASTIK
(ELBOW 135° 1075x65mm - DRY 500 PLASTIK)
25 mm WIDE FLANGE
DEHUMIDIFIER
R100
SHORTEN THE PIPING AS NECESSARY
PIPING 615x65mm - DRY 300 PLASTIK
(PIPING 1075x65mm - DRY 500 PLASTIK)
FLANGED CONNECTION
ELBOW 135° 615x65mm - DRY 300PLASTIK
(ELBOW 135° 1075x65mm - DRY 500 PLASTIK)
25 mm WIDE FLANGE
SHORTEN THE PIPING AS NECESSARY
MOUNTING FROM INSIDE: REINFORCE THE PIPING TO THE VALUE OF 65 MM
AND FROM THE OUTER SIDE - PUR FOAM HAS TO BE GLUED TO THE MASONRY.
AFTER HARDENING OF THE PUR FOAM, REMOVE THE FORTIFICATION AND
MOUNT THE GRID.
MOUNTING FROM INSIDE: REINFORCE THE PIPING TO THE VALUE OF 65 MM
AND FROM THE OUTER SIDE - PUR FOAM HAS TO BE GLUED TO THE MASONRY.
AFTER HARDENING OF THE PUR FOAM, REMOVE THE FORTIFICATION AND
MOUNT THE GRID.
DRY 300/400 PLASTIK
DRY 500 PLASTIK
300/400 PLASTIK
500 PLASTIK
130
227
428
83
DATA UNIT
DRY 300 DRY 400 DRY 500
For swimming pools with max. water surface m2
30 45 60
Exctraction rate at 30°C and 60 % RH l/24hrs
36 48 66
Exctraction rate at 30°C and 70 % RH l/24hrs
43 53 83
Exctraction rate at 30°C and 80 % RH l/24hrs
47,5 58 101
Operational temperature - standard °C
22-35 22-42 22-35
Operational temperature - antifreeze stat °C
15-35 15-42 15-35
Operational temperature - Thermostatic expansive valve (TEV) °C
22-42 - 22-42
Operational temperature - antifreeze stat + TEV °C
15-42 - 15-42
Operational temperature - hot gas defrost °C
5-35 - 5-35
Operational humidity range % RH
20-100 20-100 20-100
Air flow m3/h
550 550 800
Noise level (in 1m distance) dB (A)
42 42 44
Heat output W
1900 1900 3500
Energy consumption W
700 700 1000
Voltage V/Hz/f
230/50/1 230/50/1 230/50/1
Operating / Starting current A
3.1 / 15 3.1 / 15 4,5
Protection A
10 10 16
Conductor mm2
CYSY 3C x 1,5 CYSY 3C x 1,5 CYSY 3C x 2,5
Condensed water pipe mm
d 18 d 18 d 18
Dimensions netto (width x height x depth) mm
PLASTIK (780 x 660
x 255 ),
METAL&SILVER
(780 x 642 x 300)
PLASTIK (780 x 660
x 255 ),
METAL&SILVER
(780 x 642 x 300)
PLASTIK (1245 x
660 x 255 ),
METAL&SILVER
(1245 x 642 x 300)
Dimensions brutto (width x height x depth) mm
850 x 735 x 345 850 x 735 x 345 1315 x 735 x 345
Weight netto / brutto kg
PLASTIK 40/ 46 kg,
METAL 50 / 56 kg
PLASTIK 40/ 46 kg,
METAL 50 / 56 kg
PLASTIK 60 / 69 kg,
METAL 77 / 86 kg
Amount of refrigerant - R 410 A kg
0,5 0,5 0,75
Max. pressures in the system HP/LP bar
28,5/8,5 28,5/8,5 28,5/8,5
868
998
11

WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL

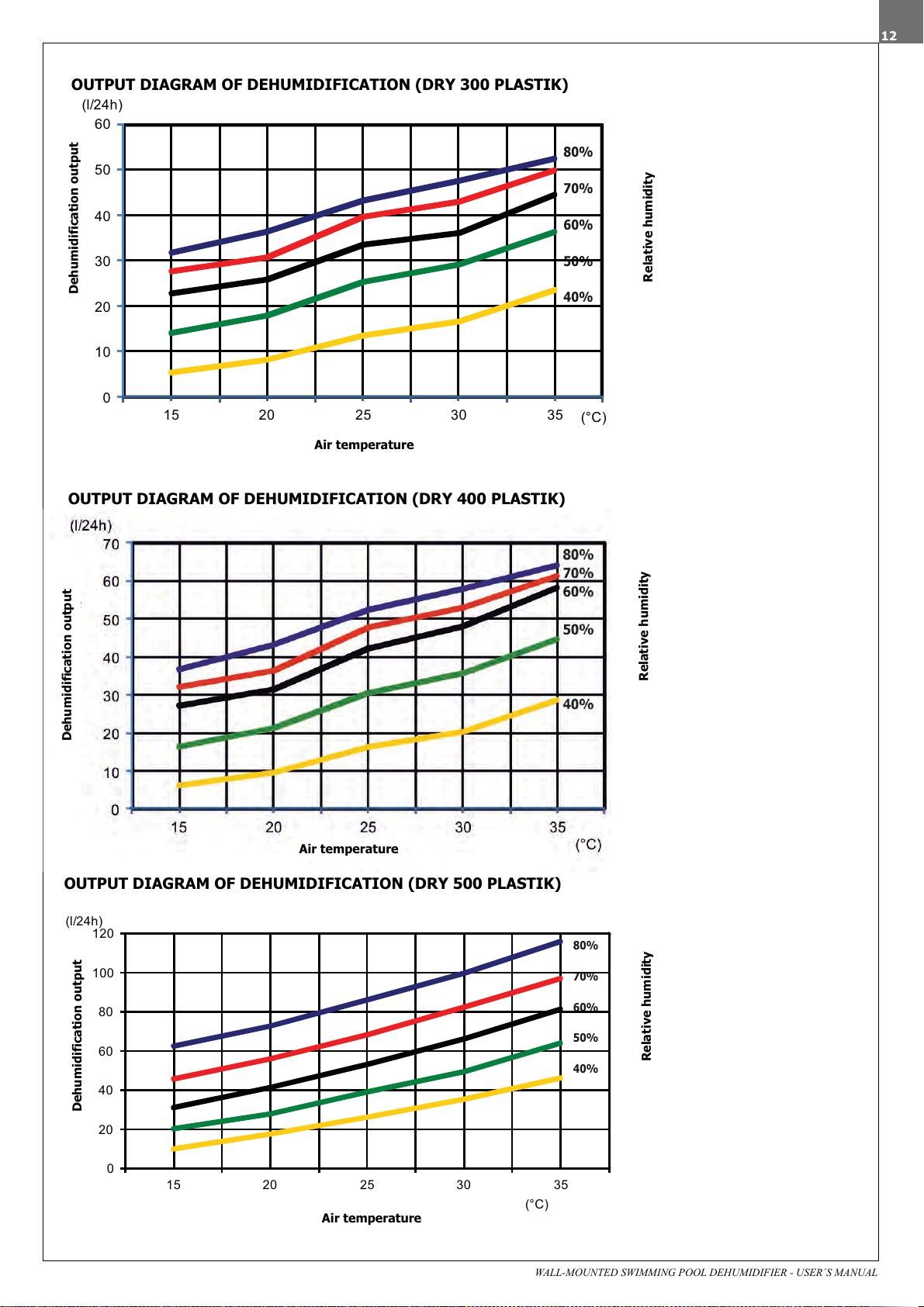

OUTPUT DIAGRAM OF DEHUMIDIFICATION (DRY 300 PLASTIK)
Dehumidification output
Relative humidity
Dehumidification output
Air temperature
OUTPUT DIAGRAM OF DEHUMIDIFICATION (DRY 500 PLASTIK)
Air temperature
Relative humidity
80%
70%
60%
50%
40%
80%
70%
60%
50%
40%
0
10
20
30
40
50
60
15 20 25 30 35
(l/24h)
(°
C)
0
20
40
60
80
100
120
15 20 25 30 35
(l/24h)
(°C)
OUTPUT DIAGRAM OF DEHUMIDIFICATION (DRY 400 PLASTIK)
Dehumidification output
Air temperature
Relative humidity
12

WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL
DIMENSIONS DRY 300/400 PLASTIK
DIMENSIONS DRY 500 PLASTIK
FRONT VIEW
VIEW FROM BELOW
SIDE VIEW
FRONT VIEW
VIEW FROM BELOW
SIDE VIEW
BRACKET
BRACKET
ATTACHMENT OF THE LPHW HEATER ELEMENT TO THE DISTRIBUTION
OF THE HEATING WATER
- (MODELS WITH THE LPHW HEATER ELEMENT ONLY)
THREAD G ½ '’
ATTACHMENT OF THE LPHW HEATER ELEMENT TO THE DISTRIBUTION
OF THE HEATING WATER
- (MODELS WITH THE LPHW HEATER ELEMENT ONLY)
THREAD G ½ '’
THE POSITION AGAINST GETTING LOOSE FROM
THE BRACKET
(FROM THE REAR)
THE POSITION AGAINST GETTING LOOSE FROM
THE BRACKET (FROM THE REAR)
THE POSITION AGAINST GETTING LOOSE FROM
THE BRACKET (FROM THE REAR)
THE POSITION AGAINST GETTING LOOSE
FROM THE BRACKET (FROM THE REAR)
CONDENSATE DRAINAGE (FROM THE REAR)
PIPING WITH MINIMUM INTERNAL DIAMETER OF 18 mm
CONDENSATE DRAINAGE (FROM THE REAR)
PIPING WITH MINIMUM INTERNAL DIAMETER OF 18 mm
POWER SUPPLY
2
CYSY WIRE 3C x 1.5 mm
(FROM THE REAR)
POWER SUPPLY
2
CYSY WIRE 3C x 2.5 mm
(FROM THE REAR)
13

WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL
WIRING DIAGRAM OF MODEL MICROWELL DRY 300/400 PLASTIK
DRY 300 BASIC
Note: Producer reserves right to make changes on wiring.
DRY 300/400
Standard
DRY 300/400
EASY 200 /
HYG 6001
DRY 300/400
LPHW / Solenoid
Wiring diagram
DRY 300 BASIC
DRY 300.1
DRY 300.2
14

WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL
DRY 300.1
Note: Producer reserves right to make changes on wiring.
15

WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - USER´S MANUAL
DRY 300.2
Note: Producer reserves right to make changes on wiring.
16
