UNIS Night Hunter User manual

www.universal-space.com
Operation Manual
IMPORTANT
All manuals and user guides at all-guides.com
all-guides.com

Night Hunter Manual
02/09/2018
1
WE ARE HERE TO ASSIST
For parts and service
Have Questions? Contact us!
UNIS SERVICE CENTER
Tel: [phone]
Fax: [phone]
Email: [e-mail]
All manuals and user guides at all-guides.com

Night Hunter Manual
02/09/2018
2

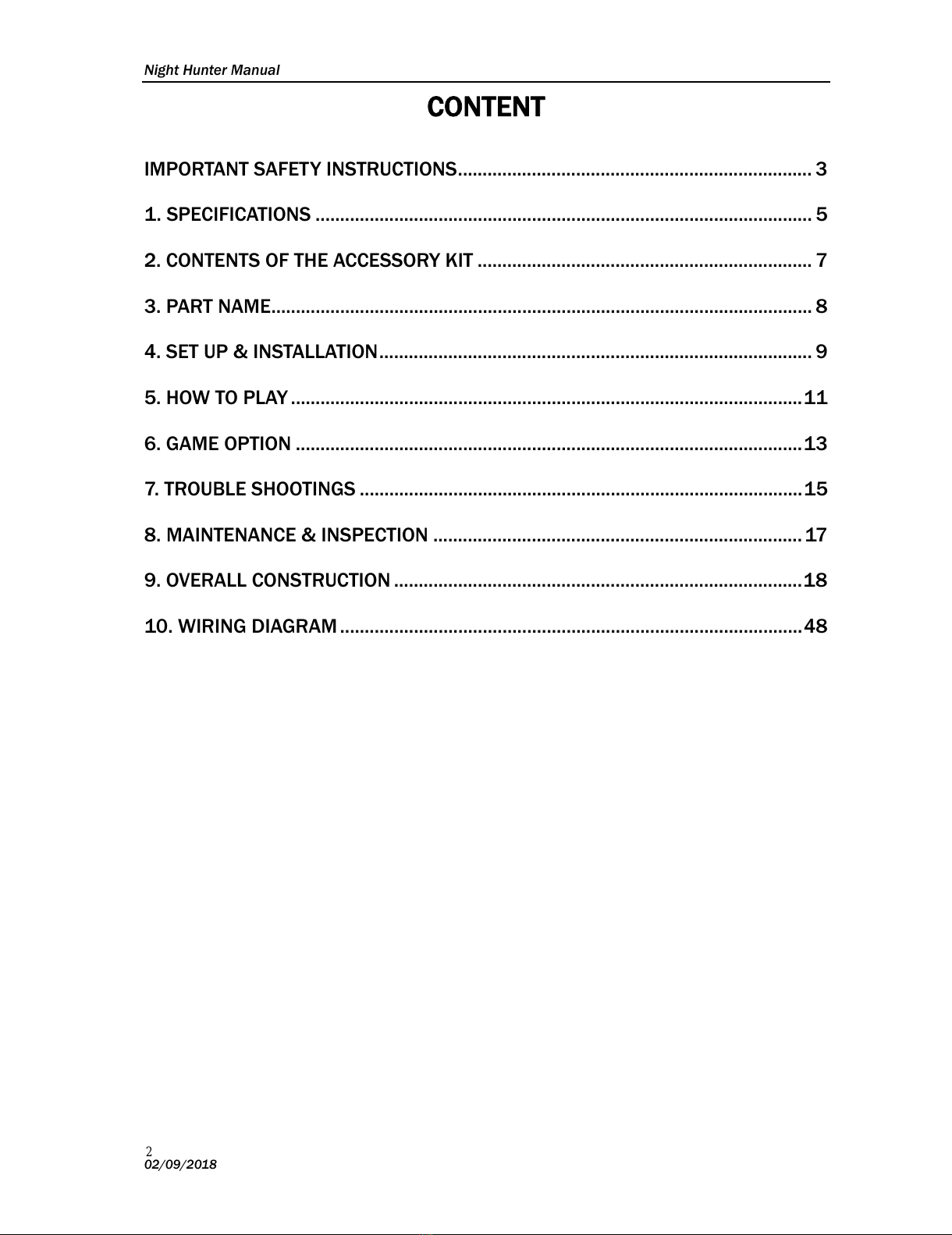

CONTENT
IMPORTANT SAFETY INSTRUCTIONS........................................................................ 3
1. SPECIFICATIONS ..................................................................................................... 5
2. CONTENTS OF THE ACCESSORY KIT .................................................................... 7
3. PART NAME.............................................................................................................. 8
4. SET UP & INSTALLATION........................................................................................ 9
5. HOW TO PLAY ........................................................................................................11
6. GAME OPTION .......................................................................................................13
7. TROUBLE SHOOTINGS ..........................................................................................15

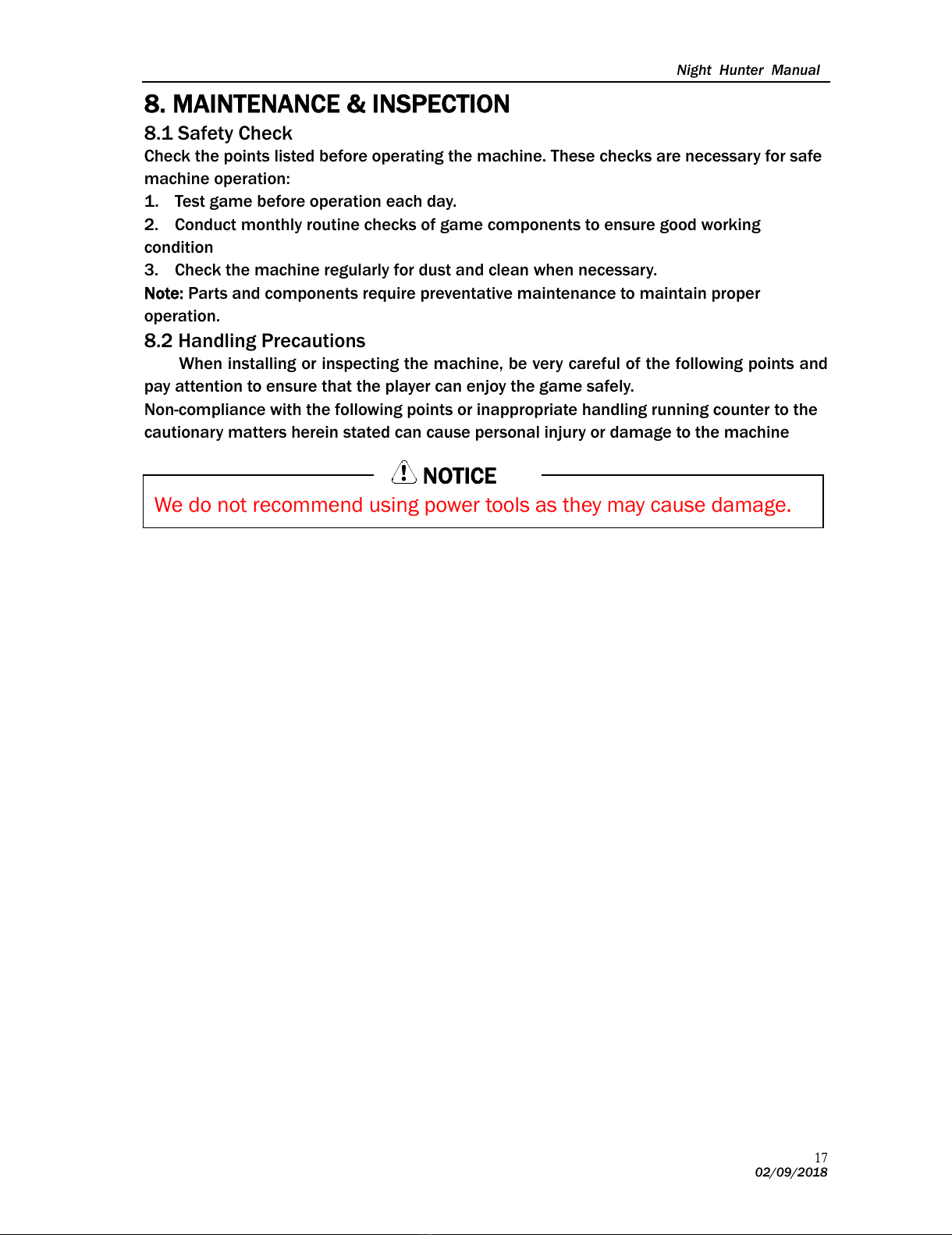

8. MAINTENANCE & INSPECTION ........................................................................... 17
9. OVERALL CONSTRUCTION ...................................................................................18
10. WIRING DIAGRAM ..............................................................................................48
All manuals and user guides at all-guides.com

Night Hunter Manual
02/09/2018
3

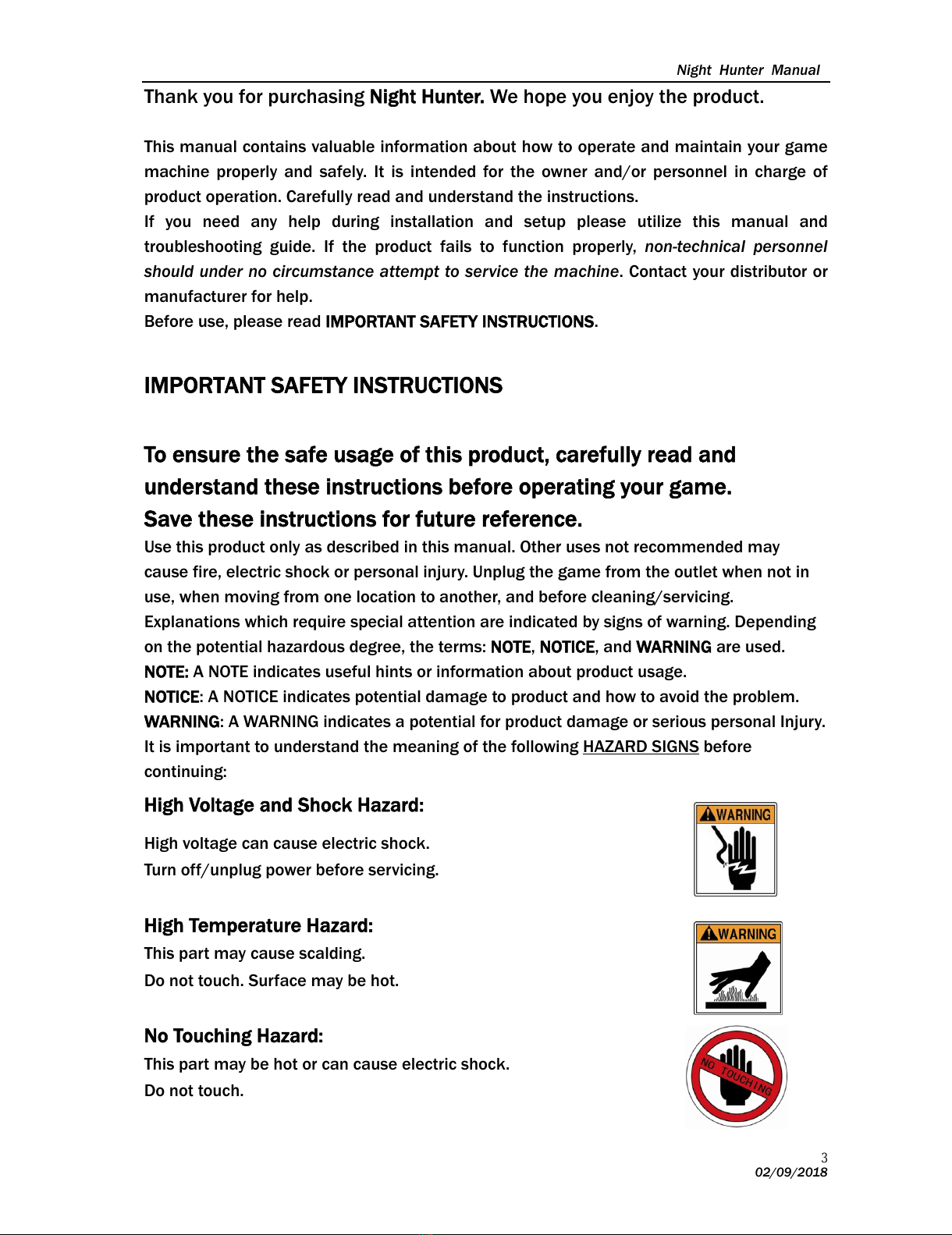

Thank you for purchasing Night Hunter. We hope you enjoy the product.
This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and/or personnel in charge of
product operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and
troubleshooting guide. If the product fails to function properly, non-technical personnel
should under no circumstance attempt to service the machine. Contact your distributor or
manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
To ensure the safe usage of this product, carefully read and
understand these instructions before operating your game.
Save these instructions for future reference.
Use this product only as described in this manual. Other uses not recommended may
cause fire, electric shock or personal injury. Unplug the game from the outlet when not in
use, when moving from one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending
on the potential hazardous degree, the terms: NOTE, NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.
It is important to understand the meaning of the following HAZARD SIGNS before
continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:
This part may cause scalding.
Do not touch. Surface may be hot.
No Touching Hazard:
This part may be hot or can cause electric shock.
Do not touch.
All manuals and user guides at all-guides.com

Night Hunter Manual
02/09/2018
4

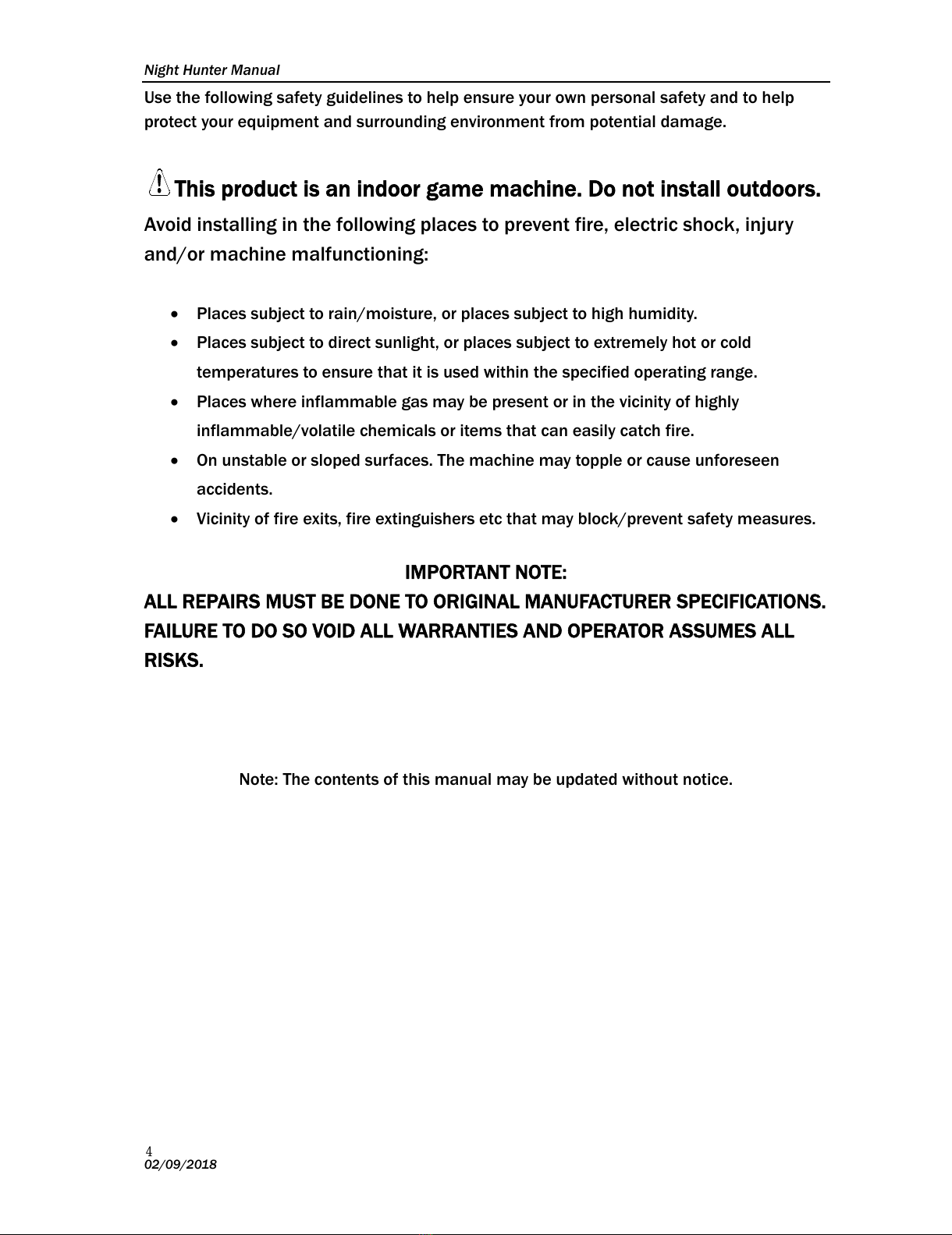

Use the following safety guidelines to help ensure your own personal safety and to help
protect your equipment and surrounding environment from potential damage.
This product is an indoor game machine. Do not install outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury
and/or machine malfunctioning:
Places subject to rain/moisture, or places subject to high humidity.
Places subject to direct sunlight, or places subject to extremely hot or cold
temperatures to ensure that it is used within the specified operating range.
Places where inflammable gas may be present or in the vicinity of highly
inflammable/volatile chemicals or items that can easily catch fire.
On unstable or sloped surfaces. The machine may topple or cause unforeseen
accidents.
Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures.
IMPORTANT NOTE:
ALL REPAIRS MUST BE DONE TO ORIGINAL MANUFACTURER SPECIFICATIONS.
FAILURE TO DO SO VOID ALL WARRANTIES AND OPERATOR ASSUMES ALL
RISKS.
Note: The contents of this manual may be updated without notice.
All manuals and user guides at all-guides.com

Night Hunter Manual
02/09/2018
5
1. SPECIFICATIONS
Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz
Min. Power consumption: 480W
Max. Power consumption: 1450W
Dimension: W53.8×D86.3×H 84.3 in
W1365 ×D2191 ×H2141 mm
Weight：Approximately 1433 lb
Part No: N111
Model No: C-502
NOTICE: After turning off the game, please wait at least 1 minute
before restarting again.
Note: Game specifications are subject to change without notice.
84.3 in
53.8 in 86.3 in
All manuals and user guides at all-guides.com
all-guides.com

Night Hunter Manual
02/09/2018
6
This machine will be divided into two parts during transportation.
Display part: W53.7×D30.4×H82.1in
Seat & control panel part:
W53.7×D55.7×H84.3 in
Note: Game specifications are subject to change without notice.
All manuals and user guides at all-guides.com

Night Hunter Manual
02/09/2018
7
2. CONTENTS OF THE ACCESSORY KIT
Open the package and make sure all the items are included:
1. Following accessories
NOTE: Part models are subject to change without notice.
No. Part No. Code Name Spec. Qty Picture
1 N111-401-000 25300171002 Key 171 2
2 N111-402-000 25300172002 Key 171B 2
3 N111-403-001 23301010041 Power cord 3×16AWG 3M 2
4 N111-801-000 41440000240A Manual English 1
All manuals and user guides at all-guides.com

Night Hunter Manual
02/09/2018
8
3. PART NAME
Key Components
Mar
q
uee
Ass
y
.
Vibration Seat and base
Monitor
Gun
Coin mech.
All manuals and user guides at all-guides.com

Night Hunter Manual
02/09/2018
9
4. SET UP & INSTALLATION
This product is an indoor game machine. Do not install outdoors.
Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid
Place the unit on a dry level surface
Ventilation openings in the back of the unit must not be obstructed by objects or by
wall.
4.1 Transporting the Game
If you need to move the game, adjust the levelers back to an “up” position.
NOTICE
Be careful not to damage the machine during transport.
Always unplug the game before moving.
Keep the machine in upright position during transport.
For longer distance transport, package the game properly to prevent damages.
4.2 Level Adjustment
Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the
game. If the game is installed on an unsuitable floor, it could cause game malfunction.
To secure the game, adjust the Leveler down until it touches the floor, lifting the casters off
the ground by 0.2 in. Repeat the same for all levelers.
Leveler Caster
Move F
i
Caster
Leveler
About 0.2 in
Move Fix
NOTICE
Make sure the machine is level.
We do not recommend using power tools as they may cause damage.
NOTICE
All manuals and user guides at all-guides.com

Night Hunter Manual
02/09/2018
10

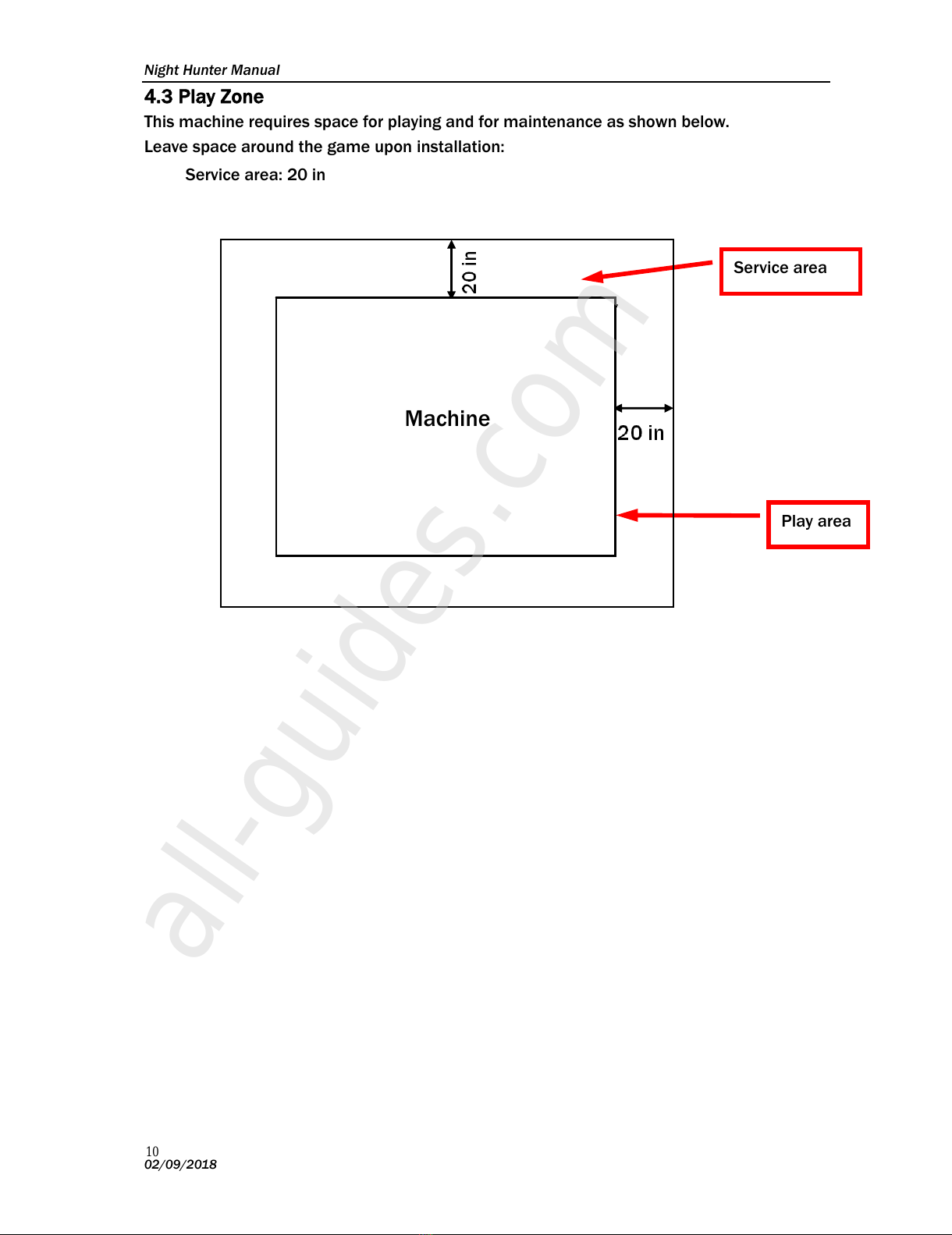

4.3 Play Zone
This machine requires space for playing and for maintenance as shown below.
Leave space around the game upon installation:
Service area: 20 in
Service area
Play area
Machine
All manuals and user guides at all-guides.com
all-guides.com

Night Hunter Manual
02/09/2018
11

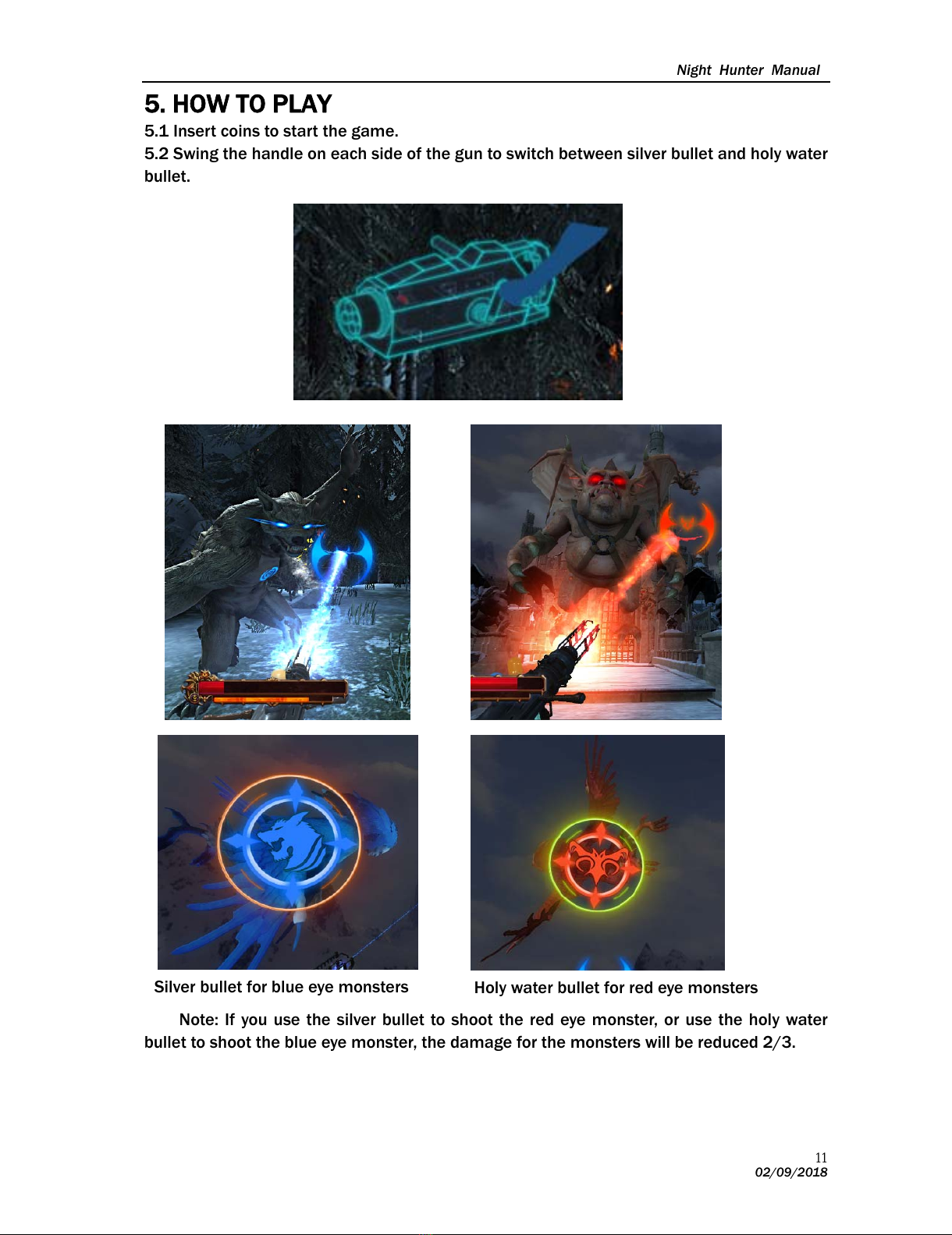

5. HOW TO PLAY
5.1 Insert coins to start the game.
5.2 Swing the handle on each side of the gun to switch between silver bullet and holy water
bullet.
Note: If you use the silver bullet to shoot the red eye monster, or use the holy water
bullet to shoot the blue eye monster, the damage for the monsters will be reduced 2/3.
Silver bullet for blue eye monsters Holy water bullet for red eye monsters
All manuals and user guides at all-guides.com

Night Hunter Manual
02/09/2018
12

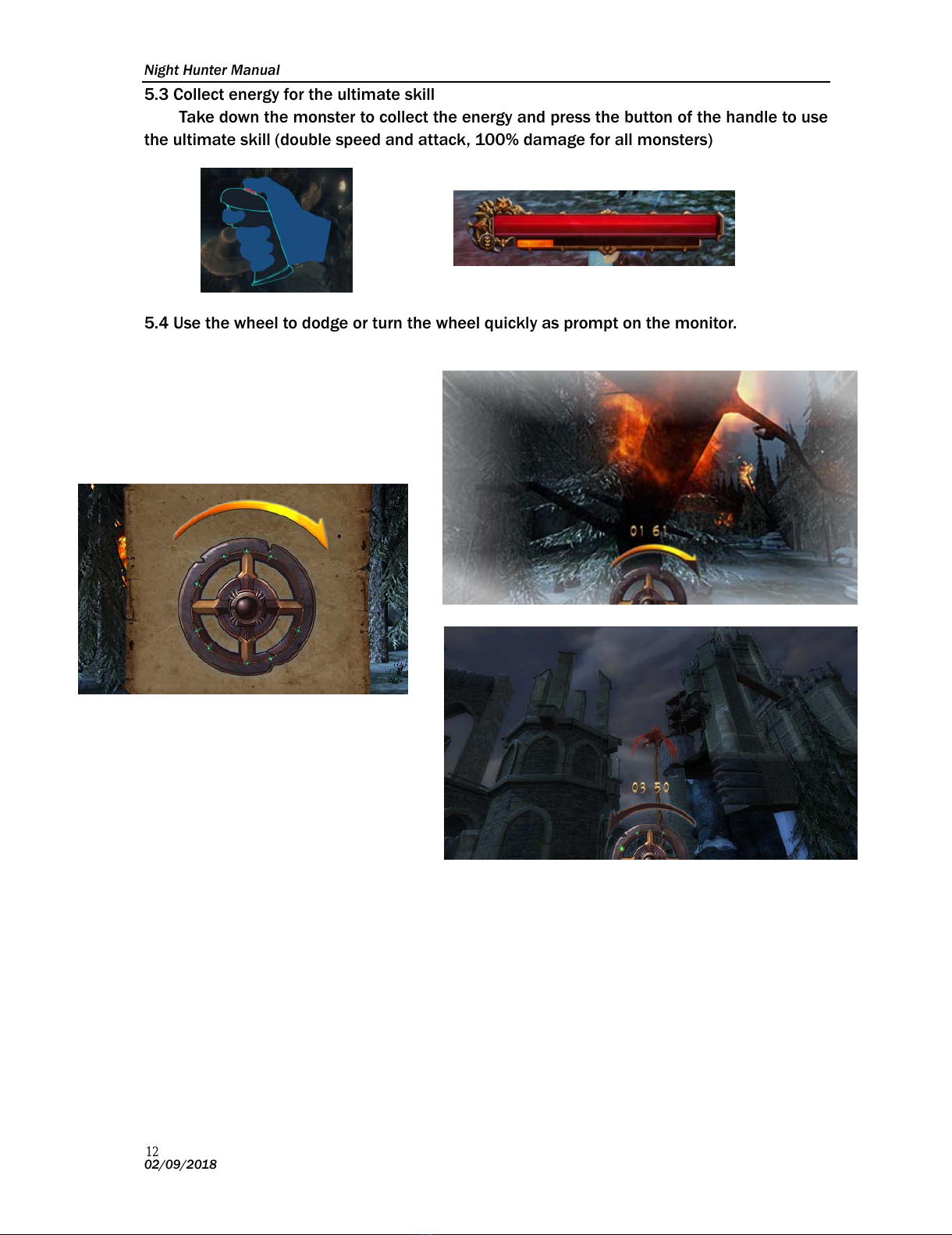

5.3 Collect energy for the ultimate skill
Take down the monster to collect the energy and press the button of the handle to use
the ultimate skill (double speed and attack, 100% damage for all monsters)
5.4 Use the wheel to dodge or turn the wheel quickly as prompt on the monitor.
All manuals and user guides at all-guides.com

Night Hunter Manual
02/09/2018
13
6. GAME OPTION
6.1 Adjustment button instruction
6.2 Setting menu
6.2.1 Main menu
Basic Setting
Calibrating Gun
Input Test
Output Test
Game Reset
Date/Time Setting
Bookkeeping
Daily Record
Back to Game
Free Play OFF/ON
Volume 0-10
Difficulty 1/2/3
Coins Per Game
1-50
Demo Music OFF/ON
Back OFF/ON
Open the coin door and there is a
meter panel. Press Settings button to
enter into the setting menu.
Settin
g
s
Test Reset
6.2.2 Basic Setting
6.2.3 Calibrating Gun
1P Calibrating Gun
2P Calibrating Gun
Back
Coin Button OFF/ON
Select Button OFF/ON
Test Button OFF/ON
Confirm Button OFF/ON
1P Emergency Stop Button
OFF/ON
2P Emergency Stop Button
OFF/ON
Steering Wheel Turn L, L side on，R side off.
Turn R, R side on, L side off
1PIndex Finger Key OFF/ON
2PIndex Finger Key OFF/ON
1PThumb Key OFF/ON
2PThumb Key OFF/ON
1P Change The Gun Key OFF/ON
2P Change The Gun Key OFF/ON
Back
6.2.4 Input Test
All manuals and user guides at all-guides.com

Night Hunter Manual
02/09/2018
14
6.2.4 Output Test
6.2.8 Daily Record
Blow OFF/ON
Pneumatic Platform 1 OFF/ON
Pneumatic Platform 2 OFF/ON
Pneumatic Platform 3 OFF/ON
Pneumatic Platform 4 OFF/ON
6.2.5 Game Reset
Factory Restore YES/NO
Reset Basic Settings YES/NO
Reset Customized Settings YES/NO
Clear All Records YES/NO
Clear Owed Tickets YES/NO
Clear Unused Coin YES/NO
Back 
6.2.6 Date/Time Setting
Year 2010-2100
Month 1-12
Day 1-31
Hour(24) 0-23
Minute 0-59
Second 0-59
Go Back & Save 
Back 
Player Coins Runtime
1 0 0.00
Back
Date Weekday RunTime CoinsTicketsPayout
2014-06-061 Fri 00:01 0 0 0.00
Prev. Page
Next Page
Clear
Back
6.2.7 Bookkeeping
All manuals and user guides at all-guides.com

Night Hunter Manual
02/09/2018
15

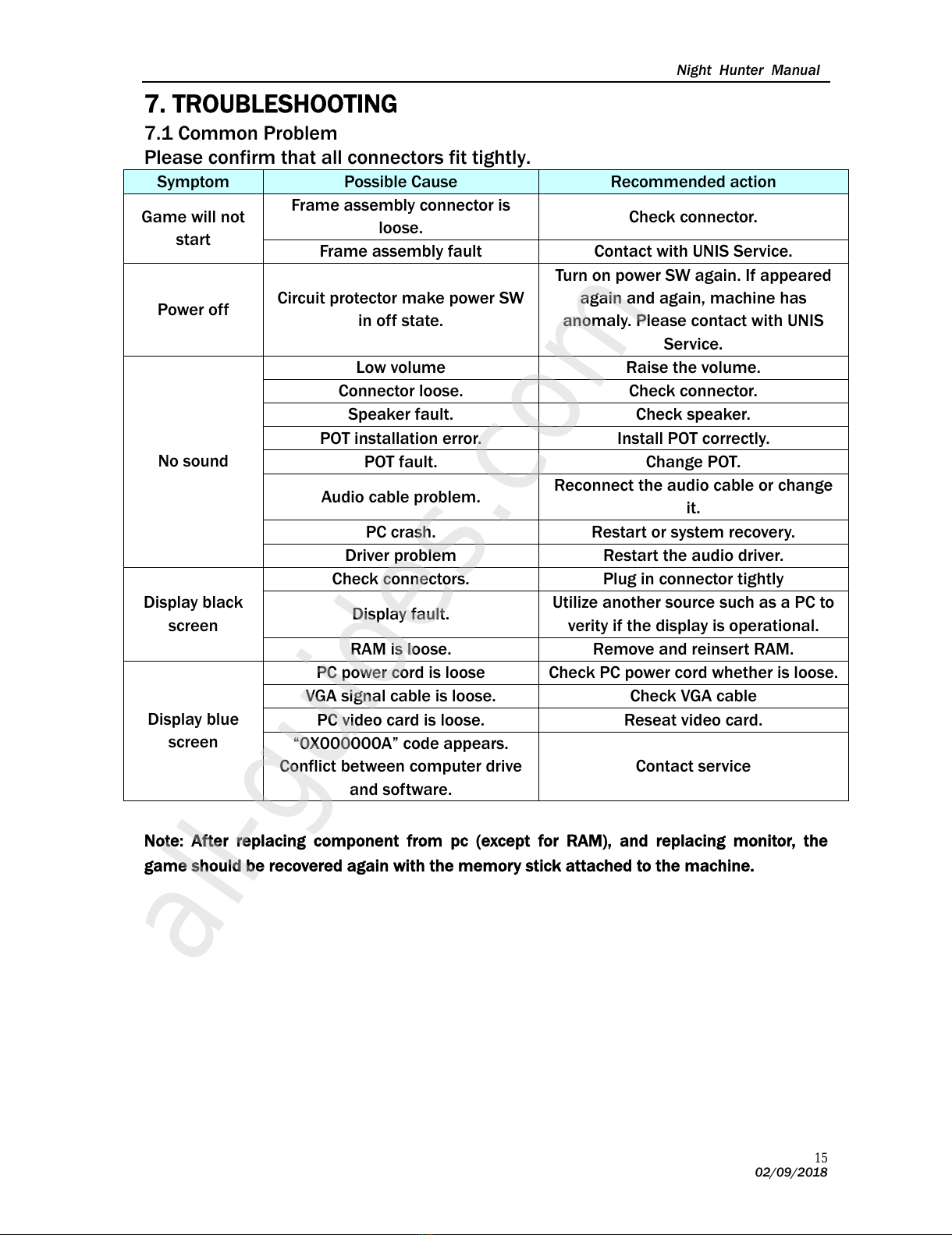

7. TROUBLESHOOTING
7.1 Common Problem
Please confirm that all connectors fit tightly.
Symptom Possible Cause Recommended action
Game will not
start
Frame assembly connector is
loose. Check connector.
Frame assembly fault Contact with UNIS Service.
Power off Circuit protector make power SW
in off state.
Turn on power SW again. If appeared
again and again, machine has
anomaly. Please contact with UNIS
Service.
No sound
Low volume Raise the volume.
Connector loose. Check connector.
Speaker fault. Check speaker.
POT installation error. Install POT correctly.
POT fault. Change POT.
Audio cable problem. Reconnect the audio cable or change
it.
PC crash. Restart or system recovery.
Driver problem Restart the audio driver.
Display black
screen
Check connectors. Plug in connector tightly
Display fault. Utilize another source such as a PC to
verity if the display is operational.
RAM is loose. Remove and reinsert RAM.
Display blue
screen
PC power cord is loose Check PC power cord whether is loose.
VGA signal cable is loose. Check VGA cable
PC video card is loose. Reseat video card.
“0X000000A” code appears.
Conflict between computer drive
and software.
Contact service
Note: After replacing component from pc (except for RAM), and replacing monitor, the
game should be recovered again with the memory stick attached to the machine.
All manuals and user guides at all-guides.com
all-guides.com

Night Hunter Manual
02/09/2018
16

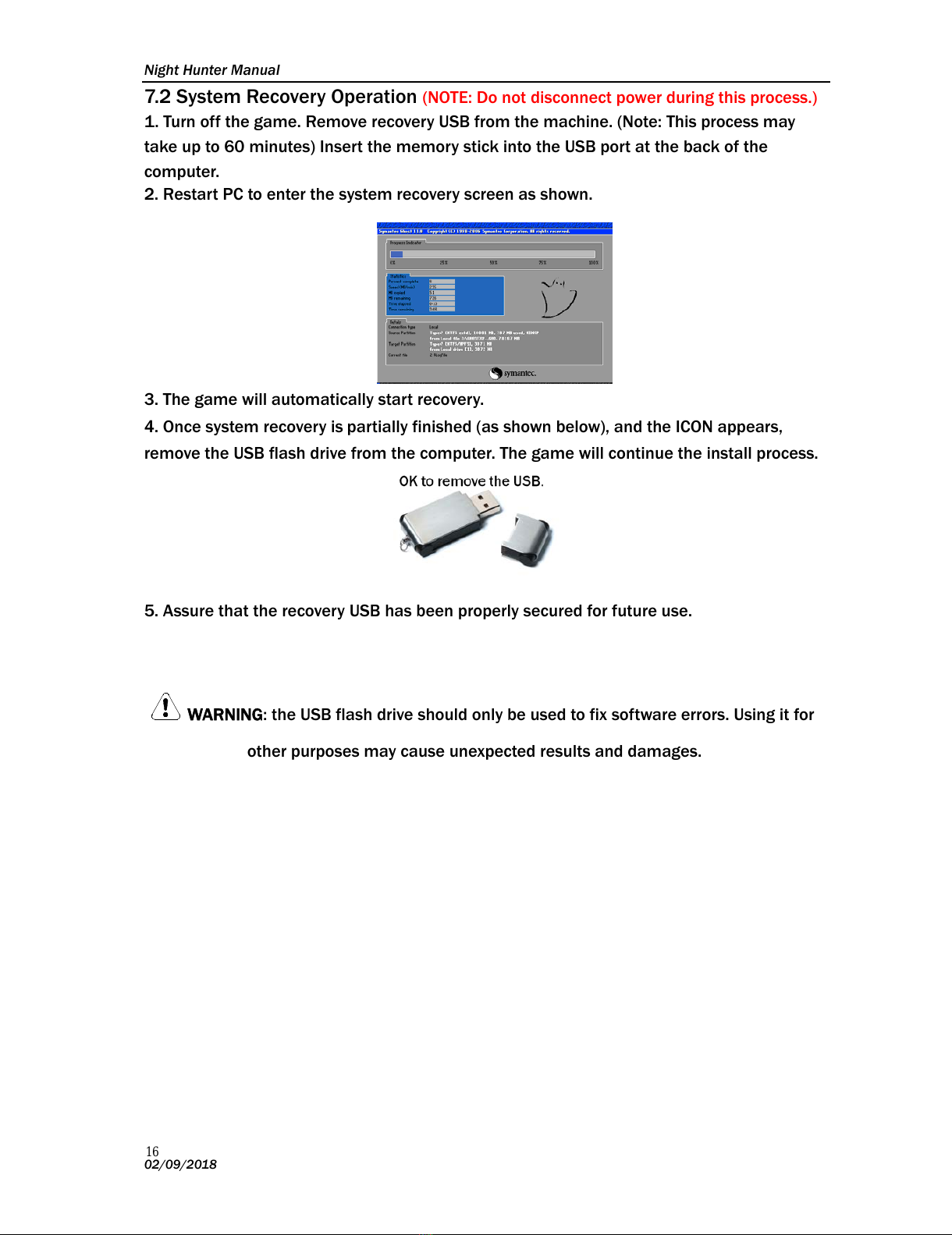

7.2 System Recovery Operation (NOTE: Do not disconnect power during this process.)
1. Turn off the game. Remove recovery USB from the machine. (Note: This process may
take up to 60 minutes) Insert the memory stick into the USB port at the back of the
computer.
2. Restart PC to enter the system recovery screen as shown.
3. The game will automatically start recovery.
4. Once system recovery is partially finished (as shown below), and the ICON appears,
remove the USB flash drive from the computer. The game will continue the install process.
5. Assure that the recovery USB has been properly secured for future use.
WARNING: the USB flash drive should only be used to fix software errors. Using it for
other purposes may cause unexpected results and damages.
All manuals and user guides at all-guides.com

Night Hunter Manual
02/09/2018
17
8. MAINTENANCE & INSPECTION
8.1 Safety Check
Check the points listed before operating the machine. These checks are necessary for safe
machine operation:
1. Test game before operation each day.
2. Conduct monthly routine checks of game components to ensure good working
condition
3. Check the machine regularly for dust and clean when necessary.
Note: Parts and components require preventative maintenance to maintain proper
operation.
8.2 Handling Precautions
When installing or inspecting the machine, be very careful of the following points and
pay attention to ensure that the player can enjoy the game safely.
Non-compliance with the following points or inappropriate handling running counter to the
cautionary matters herein stated can cause personal injury or damage to the machine
We do not recommend using power tools as they may cause damage.
NOTICE
All manuals and user guides at all-guides.com

Night Hunter Manual
02/09/2018
18
9. OVERALL CONSTRUCTION
9.1 General Assembly
No. Part No Code
Name
QTY
1 N111
-
001
-
000 29941714A004
Seat Assy.
1
2 N111
-
002
-
000 29941714A001
Cloth Assy. 1
3 N111
-
003
-
000 29941714011
Gun Assy.
2
4 N111
-
004
-
000 29941714013
Control panel Assy. 1
5 N111
-
005
-
000 29941714A002
Monitor wood
case Assy. 1
6 N111
-
006
-
000 29941714005
Base Assy(top) 1
7 N111
-
291
-
000 20641714050
Skirt
1
8 N111
-
007
-
000 29941714006
Base Ass
y
.(bottom) 1
9 N111
-
008
-
000 29941714007
Side light assy.(bottom) 2
10 N111
-
009
-
000 29941714008
Back light assy.(bottom) 1
All manuals and user guides at all-guides.com

Night Hunter Manual
02/09/2018
19
9.2 Cloth Assy.
No. Part No Code
Name
QTY
1 N111-102-000 20241714002
Cloth bracket R 1
2 N111-104-000 20241714003
Cloth bracket fix plate 2
3 N111-103-000 20641714048
Black cloth 1
4 N111-101-000 20241714001
Cloth bracket 1
5 N111-105-000 20241714004
Top pressing plate 1
6 N111-106-000 20241714005
Side pressing plate 2
All manuals and user guides at all-guides.com
