NAMCO Air Combat User manual

0
a
CD
3
ij:
-
z

CONTENTS
1. SPECIFICATIONS ._._.....____..............................,......,.,....,...............,,.............................................. 1
2. PRECAUTIONS
2-l Caution When Installing
.........................................................................................................
1
2-2 Caution When Handling ......................................................................................................... 2
2-3 Caution When Handling Rear Projection Screen ................................................................. .2
3. INSPECTION ................................................................................................................................. 2
4. INSTALLATION
4-l Game Components ...............................................................................................................
3
4-2 Attaching Cockpit Cabinet to the Monitor Cabinet ................................................................. 4
4-2-l Attaching Interconnect Box to the Monitor Cabinet .................................................. 4
4-2-2 Attaching Interconnect Box to the Cockpit Cabinet ................................................. 4
4-3 Attaching Monitor Marquee to the Monitor Cabinet ............................................................... 4
5. ADJUSTMENTS
5-l Power On ...............................................................................................................................
5
5-2 Adjustment Switches on the Service Panel ........................................................................... 5
5-3 Test Mode and Play Options
...........................................................................................
... .
5-3-i Setting Game Fees (Coin Options Screen) ......................................................... .7
5-3-2 Changing Game Settings (Game Options Screen) ............................................... .8
5-4 Initializing Controls ................................................................................................................ 9
6. HOW TO PLAY ............................................................................................................................ 10
7. MAINTENANCE
7-l Removing PCB Tray Assembly ...........................................................................................
1 1
7-2 Removing Game PC Boards
......................................................................................... 1:
7-3 Replacing Fluorescent Lamps ............................................................................................. 12
7-3-l Replacing Cookpit Fluorescent Lamp ..................................................................... 12
7-3-2 Replacing Marquee Fluorescent Lamps .........................................................
IX’
7-3-3 Replacing Incandescent Lamps .........................................................................
,%
8. TROUBLESHOOTING -GENERAL .........................................................................................
. .

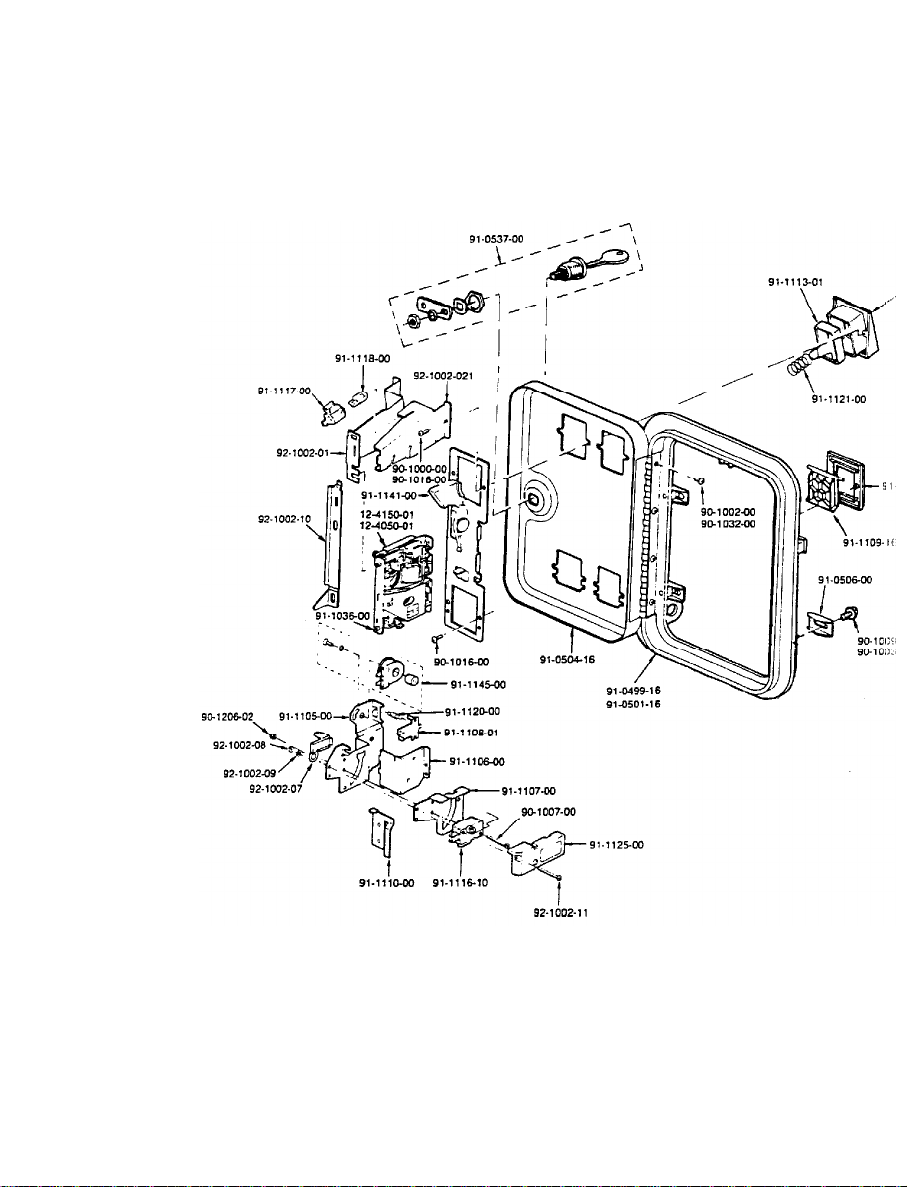

9. PARTS DRAWINGS ........................................................................................................... 75
2,
10. GAME HARNESS WIRING DIAGRAM .............................................................................
!
11. LIST OF ILLUSTRATIONS (See over)

11. LIST OF ILLUSTRATIONS
4-1 Game Components . . . . . . . . . . ..I........................................................................................
5-1 Service Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
,
5-2 Menu Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .__..,....
5-3 Joystick
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-4 Coin Options Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
!5-5 Table of Coin Option Settings .......................................................................................
5-6 Game Option Screen . . . . . . . . . .._.........................................................................................
5-7 Table of Game Option Settings (Game Fee Example) . . . . . . . . . . . . . . .._.................................
5-8 Volume Reset Screen (Initializing Controls) ...................................................................
7-l Removing Game PCB . . . . . . .._._...........................................................................................
PARTS DRAWINGS
9-l Base Assembly .................................................................................................................
9-2 Cockpit Assembly .............................................................................................................
9-3 Monitor Cabinet Assembly - Front....................................................................................
94 Monitor Cabinet Assembly - Rear .....................................................................................
9-5 Seat Assembly ....................................................................................................
. ...............
9-6 Control Panel (Logic Board) Assembly ..............................................................................
:
9-7 Throttle Assembly ..............................................................................................................
:
9-6 Throttle ...............................................................................................................................
:I
9-9 Joystick ..............................................................................................................................
2

AIR COMBAT”
I. SPECIFICATIONS
POWER SUPPLY:
POWER CONSUMPTION:
DIMENSIONS:
Assembled Game
INSTALLED GAME WEIGHT:
CRATED DIMENSIONS:
Monitor Cabinet Assy.
Seat Assembly
Marquee Assembly
SHIPPING WEIGHT:
Monitor Cabinet Assy.
Seat Assembly
Marquee Assembly
MONITOR:
ACCESSORIES:
PC XT Type Switching Power Supply - 200 Watts
120VAC, 5.0 AMP
Width Depth Height
42.81” 110.62” 77.12”
1,041 lbs.
Width Depth Height
44” 33.75” 65.5”
34.38” 68.5” 54”
44” 11.75” 13.5”
559 lbs.
463 Ibs.
69 lbs.
One (1) 46” Rear Projection Color Monitor
with remote control
Keys: (Coin Box) . . . . . . .._....................................... 2
(Coin Door) . ... ... ...._.._............................... 2
(Monitor Cabinet) . . . . . . .._............................ 2
Security Wrench
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Instruction Manual .._........._._._.............................. 1
Note: Specifications may change without prior notice. Modification and/or
alteration of the AIR COMBAT game with kits or parts not supplied by
NAMCO may void the warranty.
2. PRECAUTIONS
2-1 Cautions When Installing
This game is designed for indoor use only. The game must not be installed out-
doors or under the following conditions:
a. In areas directly exposed to sunlight, high humidity, direct water contact, dust,
high heat or extreme cold.
b. In locations that would present an obstacle in case of emergency, i.e. near tire
equipment or emergency exits.
c. On an unstable surface or floor subject to vibration.

2-2 Caution When Handling
a. AC power must always be turned OFF, and the game unplugged, before
replacing any parts or connecting/disconnecting connectors.
b. When unplugging the game from an elecnical outlet, always grasp the plug,
not the cord.
c. Do not subject game to physical shock when transporting or moving it.
d. The power supply range is between 1 lo-120VAC, (switchable to 220 VAC).
e. The cabinet must be grounded with a securely connected ground plug.
f. Care must be taken at all times to avoid electrical shock whenever inspecting
or adjusting the game, particularly around the monitor.
g. Always return the leg levelers to the extreme “up” position before moving the
game, and separate the game into its two assemblies - monitor cabinet and
seat.
h. Adjustment is required whenever the game PC board, ROM, Joystick, Throttle
Control or other potentiometers are changed.
i. DO NOT attempt to repair the Printed Circuit Board (PCB). It contains
sensitive chips that could easily be damaged by even the small internal voltage
of a multi-meter. Always return the PCB to your distributor for any repairs.
2-3 Caution When Handling Rear Projection Screen
The rear projection screen is easily damaged, or deformed, unless proper care is
given to it’s care and cleaning.
a. The screen should generally be cleaned by wiping gently with a soft cloth.
b. If extremely dirty, wet a cloth with a mild solution of neutral detergent and
water, wring dry, and wipe gently. Finish with a soft dry cloth.
c. Never:
lUse any chemical cleaners like paint thinner, benzine etc.
lUse any alkaline or acid based detergent.
l Apply any volatile matter such as insecticide.
.Leave the screen in contact with rubber or vinyl products for any extended
time.
3. INSPECTION
The AIR COMBAT Game cartons should be carefully inspected upon receipt to
insure that the game is complete and was delivered in good condition.
Inspect the game cabinet by doing the following:
1. Examine the monitor cabinet exterior and seat assembly for dents, chips, or
broken parts.
2. Open the side service door and the coin door on the seat assembly as we’ ” the
back cover of the monitor cabinet, and inspect the interior as follows:
2

Verify that all plug-in connectors are firmly plugged in. DO NOT force
connectors together. The connectors are heyed so they fit only in the proper
orientation. A reversed edge connector can damage a PCB and will void your
warranty.
Inspect the power cord to insure that there are no cuts or dents in the insulation.
Inspect the power supply connectors.
Inspect other major sub-assrmblie~. such as the rear prqjection monitor, PCB,
leg levers, and speakers. Make sure that they are mounted securely and that all
ground wires are firmly connected.
4. INSTALLATION

4-2 Attaching the Cockpit Cabinet to the Monitor Cabinet
4-Z-l Attaching the Interconnect B OX to the Monitor Cabinet
a. Remove the interconnect metal box cover by removing the six (6)
button head screws.
b. Attach the interconnect box to the monitor cabinet lower front panel
by inserting four (4) l/4-20 bolts through the box holes into the
monitor cabinet, and tighten them.
c. Carefully pull the two (2) six-position and two (2) three-position
molex connectors game harness out through the monitor and
interconnect box holes.
4-2-2 Attaching the Interconnect Box to the Cockpit Cabinet
a. Roll the monitor cabinet to its intended operating area and place in
position.
b. Roll the cockpit cabinet close to the interconnect box.
c. Attach the interconnect box to the cockpit cabinet lower front panel by
inserting four (4) l/4-20 bolts through the box holes into the cockpit
cabinet, and tighten them.
d. Carefully pull the two (2) six-position and two (2) three-position
molex connector game harness out through the cockpit cabinet and
interconnect box holes.
e. Connect the four (4) molex connectors together. Make sure that the
wire colors match.
f. Lower the eight (8) leg levelers of the game and adjust all leg levelers
until the game is stable and rests firmly on the floor.
g. Reinstall the interconnect cover.
4-3
Attaching the Monitor Marquee to the Monitor Cabinet
1. Remove four (4) l/4-20 bolts, two (2) on each end of the bottom of the
marquee box.
2. Remove four (4) l/4-20 bolts, two on each end of the top of the monitor
cabinet.
3. Install two (2) metal ‘7” brackets on the marquee box predrilled holes.
4. Connect three-position molex marquee connector with the monitor c,!!)inet
connector.
5. Install and secure the marquee box to the monitor cabinet with the ~-cT’ ining
l/4-20 bolts.
4-4 Setting Game Options
Refer to Section 5 of this manual. The Service Panel and Service Swrz.: : (/
located inside the Coin Door.
4

5. ADJUSTMENTS
5-1 Power on
When installation is complete, connect the power cord to an AC outlet and turn
the power on. The Power on/off Switch is located on the lower right of the
Monitor Cabinet. Use the TV remote control to turn the TV on.
5-2 Adjustment switches on the Service Panel
The Service Panel is located behind the coin door. It has controls for adjustment
of the speaker volume and balance, and switches for accessing the test modes.
.wd---hFRONT
0
LOUDER
BASS BALANCE VOCUME CONTROL
ON
OFF
I
Illustration 5-1, SERVICE PANEL
1. Test Switch
Turning this switch “ON” enters the Test Mode, and activates the Menu
Screen on the moniror. This is where the self-tests are performed, and game
variables (pricing, level of difficulty, potentiometer adjustment etc.) are set/
changed (Ref. 5-3). Turn the test switch to the “OFF” position at any time to
return to the Game Mode.
2. Audio Volume Control
The audio volume adjustment controls the volume of all four (4) speakers.
3. Audio Bass Balance Control
This volume control is used to balance the volume between the two front
speakers and the two rear speakers.
4. Service Switch
By pressing this switch, credits can be issued without advancing the coin
counter. This switch is also used to change screens in the Test Mode.
5

5-3 Test Mode
Open the coin door and move the test switch to the “ON” position. The “Menu”
Screen is displayed on the monitor.
-.
MENU
COIN OPTIONS
GAME OPTIONS
SWITCH TEST
SOUND TEST
EFFECT TEST
MONITOR TEST PAlTERNS
ADS DATA
IN = PRESS SHOOT 1 SWITCH
Illustration S-2, MENU SCREEN
1. Selecting Menu Item
0
0
0
0
0
0
0
7 l
l NOTE:
This ttem is only show .I
when “DATA SAMPLlNlf,,’
in rhe
GAME OPTION SCREl3
(Illuslralion -2)
,is turned
10 “ON”
Select an item to be changed by moving the lever “FORWARD” and “BACK”
(Ref. Illustration 553) until the desired item is illuminated in red letters.
2. Activating Selected Screen
To activate the selected screen, press the trigger (SHOOT 1) on the lever, and
the selected screen will be displayed.
3. After all desired changes have been made, you may exit the Test Mode by
turning “OFF” the Test Switch (all changes will be retained), or press the
Service Switch to make the various test screens appear in sequence
EACH TIME THE SERVICE SWITCH IS PRESSED.
TRIGGER (SHOOT 1)
MISSILE BUTTON (SHCOT 2)
Illustration 5-3, JOYSTICK CONTROLS

~.iY: ‘-mg Game Fees (Coin Option Screen)
.-,”
Coin Option Screen is used to change the game fees. Any item
-.s:- -Jayed on this screen (Illustration 54) can be changed per the settings
-, 7
L ‘- An on the Table of Coin Option Settings (Illustration 5-5) as follows:
Select the item to change by moving the lever “FORWARD” or
“BACK.
.Change the contents of an item by pressing the trigger (SHOOT 1).
To return to the Test Menu Screen, press the missile button (SHOOT 2).
COIN OPTIONS
<DEFAULT IN GREEN>
FREE PLAY
NO
GAME COST
3 COINS 1 CREDIT + (b)
COIN 1 MECH VALUE
1 COIN COUNT AS iCOIN
-----+d)
COIN 2 MECH VALUE
1 COIN COUNT AS 1 COIN
BO;$JEFOR QUANTlTY BUY-IN
EXil= PRESS SHOOT 2 SWITCH
Illustration 54. COIN OPTION SCREEN
.‘. 7lN
COUNTER 1 1 Coin countS as “X’coin(s) 1-9 Cans foriiinal seniflg is !‘4 1
y 7lN COUNTER 2 1
Cotn M”“t.5 as “x-cm(s) 1-9 Coins (0rigiMI Setdng Is f 4 )
L -‘NUS COIN One bonus
coin is added imw 4
when the speclhed number of 2-9 c01ns QIV~ 1 extra coin
Illustration S-S, TABLE OF COIN OPTION SETTINGS
7

5-3-2 Changing the Game Settings (Game Option Screen)
Selecting the Game Options item on the Menu Screen, allows game option
setting (i.e. difficulty etc.) to be made.
/ \
GAME OPTIONS
<DEFAULT IN GREEN>
GAME DIFFICULTYFIRST:
LEVEL G EXTEND: 1s 2::
(a)
EXTRA. (45) SEC
SOUND IN ATRACT. ON
PI
DISPLAY FBI SCREEN.
ON (4
DATASAMPLING (ADS): OFF (d)
EXIT = PRESS SHOOT 2 SWITCH
c
d
Illustration 54, GAME OPTION SCREEN
Items displayed in green can be changed per settings shown in the Table of
Game Option Settings (Illustration 5-7) as follows:
a. Select the item to change by moving the lever “FORWARD” or “BACK
b. Change the contents of that item by pressing the trigger (SHOOT 1).
c. To return to the Menu Screen, press the missile button (SHOOT 2).
(d) ADS SAMPLING
%f {ki) ’
Illustration 5-7. TABLE OF GAME OPTION SETTINGS
5-3-3 Switch Test - Used to test the switches and potentiometers
S-34 Sound Test - Used to test sounds and music
5-3-5 Effect Test - Used to test effects and lights
5-34 Monitor Test Patterns - Used to test the monitor
5-3-7 ADS Data - Used to track and display game data if “ADS” is set 10
“ON” on the Game Option Screen.
8

54 Initializing Controls
When replacing the game PCBs, ROMs, Joystick, Throttle Control, and/or
potentiometers, be sure to follow the procedures below.
1. Open the coin door.
2. Place the Joystick and the Throttle Control in the centered position, and press
the Service Switch.
3. While pressing the Service Switch, set the Test Switch to “ON”.
4. The potentiometer value on the Reset Screen will clear to “00”.
5. Return the test switch to “OFF” to return to the attract mode.
I >
VOLUME RESET
VOLUME 0 : 00
VOLUME 1: 00
VOLUME 2 : 00
PUSH SERVICE TO RESET
L 1
Illustration 5-8, VOLUME RESET SCREEN
9

6. HOW TO PLAY
l AIR COMBAT is a game that assigns the player a mission to shoot down and destroy
all enemy fighters that appear on the screen. The player has both a machine gun and
missiles that are fired by using two separate control buttons.
l After inserting the proper coin(s), a player first selects a game difficulty level
(CADET, CAPTAIN or ACE) by moving the lever left or right within the time
allotted as shown on a display in the center of the screen. If no level is selected, one
is assigned automatically.
l The player starts the game by pushing the start switch located on the cockpit console,
l Enemy fighter planes appear one at a time.
l The player attempts to shoot them down using the machine gun and missiles. The
machine gun is fired with each pull of the trigger. If a player keeps the trigger
depressed, the gun fires continuously. Missiles must be “launched” individually.
l The player’s missiles are limited in number, but there are enough machine gun
“bullets” for the time alloted to the entire game. No more than two missiles can be
fit-cd at one time.
l The player’s rank is determined by his/her proficiency in playing the game.
- The three levels are:
CADET- This is a training mode for players lcaming the game. The player can clear
this level easily using only missiles. The game pauses occassionally to
provide hints on how to play. ‘The messages can bc bypassed by pressing the
missile and machine gun buttons simultaneously. The game ends when six
enemy aircraft have been dcstroycd. No rank is awarded.
CAPfAIN - This is a difficulty level in which the player rcccives no hints on how to play.
If a player shoots down four enemy aircraft, the battlc sccnc changes from
over land to over water. If the player shoots down all six aircraft, the game
ends. The player’s rank is indicated. Players can increase their ranking by
destroying the enemy aircraft with the machine guns.
This is a difficulty lcvcl which a player cannot clear withoul mastering the
USC of the machine gun. If a player shoots down three aircraft, the sccnc
changes from land to sea.
When the player shoots down three mom cncmy aircraft (a total of six), the
player is allowed to attempt a landing on an aircraft carrier. If the player
fails the landing, the game is over. Howcvcr, if player lands successfully,
the strongest cncmy of the game appcam for the final stage. If the player can
shoot down that cncmy, the game ends, and the player is awarded the top
rank of “Commander-in-Chief’.
l The game is over when a player shoots down
(operator adjustable) runs out.
10
ail enemy 01 game
time

11111111111111111111lllll
CAUTION 1
BE SURETOUNPLUGTHE AC POWERBEFORE
:,,,,,',,-~,,,,,,,,-------~
CONDLCTINGAhl JIAINTENANCEPROCEDURES.
!
7. MAINTENANCE
7-l Removing the
PC6 Tray Assembly (Refer to Section 9-l for illustration)
1. Unlock and open the service door on the side of the base of the seat assembly.
2. Remove the two (2) bolts securing the tray to the slideout rack.
3. Pull tray forward and out to remove.
4. Reverse these steps to secure the tray.
7-2 Removing the Game PC Boards
1, Unlock and open the service door on the side of the base of the seat assembly.
2. Remove the two (2) bolts securing the tray to the slideout rack.
3. Pull tray forward until PCB Card Cage clears the base assembly opening, but
do not pull the PCB tray all the way out.
4. Disconnect the 60 position connector from the EM1 Board.
5. Open the card cage by removing the four phillips head screws (M5 x 20)
securing the EMI cover cage cap to the cage.
6. Remove the EM1 cover.
7. Open the white PCB retaining latches at each side of the boards, and pull the
PCBs gently outward to remove. NOTE: Each PCB has an assigned position
and must remain in that position for proper operation.
8. Repeat step 7. to remove the other three PCBs.
Illustration 7-1, REMOVING GAME PCBs
11

:
BESURE TO UNPLUG THE AC POWER BEFORE
CONDUCTING ANY MAINTENANCE PROCEDURES.
z
1111-111-1111111111-llll 4
9. To reinstall, fit the PCBs on their respective cage rails and firmly insert them,
making sure that their edge connectors are properly seated with the internal
connectors.
10. Resecure the white PCB retaining latches.
11. Reinstall the EM1 cover by resecuring the four phillips head screws, making
sure to reconnect the EMI Board connector to the EMI PCB.
12. Push the tray back into the base cabinet.
13. Reattach the two bolts securing the tray.
7-3 Replacing the Lamps
7-3-l Replacing Cockpit Fluorescent Lamp
Refer to Section 9-2 for illustration
a. Remove the screws securing the front cover on the cockpit assembly.
b. Remove the fluorescent lamp from its holders by rotating tube and
pulling outward.
c. Replace with a new 15 watt fluorescent lamp.
d. Reinstall the front cover in its original position.
7-3-2 Replacing Fluorescent Lamp of Marquee Assembly
Refer to Section 9-3 for illustration
a. Remove the three (3) bolts securing the Marquee Signboard top mold-
ing, and remove it.
b. Slide the acrylic Marquee panel up and lift out.
c. Remove the defective fluorescent lamps (there are two (2) 18” lamps)
from its holders by rotating tube and pulling outward.
d. Replace with a new 15 watt fluorescent lamp(s).
e. Reinstall the Marquee Sign and top molding in their original positions.
7-3-3 Replacing Cockpit Incandescent Lamp
Refer to Section 9-2 for illustration
a. Remove the four (4) screws securing the cockpit indicator panel, and
remove it.
b. Replace the defective GE 161 bulb(s) by pulling forward from socket.
c. Replace the indicator panel.
12

TROUBLESHOOTING - GENERAL
If you suspect the game may be malfunctioning, the following steps should be taken
before you make a service request.
(1) Check to see that the circuit breaker is properly set.
(2) The power supply should be set to either 1 IO or 220 Volts AC. However, when some
other equipment (air conditioner, multiple pinball games, air compressors, etc.) are
^ ^^..^^.^ .A .^ .I... I^-^ - ^._.^_ -..-- 1.. rL- ..-I . ..-- --.. -L- .-. L-
CVIIIIF;CLFU LU ~11s ~amc; ~UWGL wppy, wc vwrdgc ~ltay warge ueyond this rdnge and
cause game trouble or improper operation.
(3) When the game does not work with the power turned on, turn the power off, wait ten
seconds, then turn the power back on. This may restart the game. If it still does not
work, inspect the fuse.
(4) When the game PCB, the ROMS, Joystick, Throttle, or Potentiometers are replaced, it
is necessary to make initialization adjustments to play normal games. Make appropri-
ate adjustments referring to section 54.
(5) Check all wiring connections as malfunctions can be caused by loose connections.
(6) Foreign substances or dust on the game PCB or on the monitor PCB, may cause
malfunctions or improper operation. Check that the PCBs are clean.
(7) When you make electrical checks, use the wiring diagrams for reference.
* If the above suggestions are not applicable, or no improvement is observed, contact
your distributor or the service office printed on the back cover of this manual.
* DO NOT ATTEMPT TO REPAIR THE GAME PCB YOURSELF. Instead,
please return the board to your distributor for any repairs. The PCB contains
sensitive chips that could be destroyed even by the internal voltage of a multimeter.
* When sending parts to be repaired, make sure to pack them firmly with a complete
explanation of the problem. When sending PCBs, package them in anti-static
foam or bubble wrap, and pack them in cardboard boxes to protect against impact
damage during shipment. To ship monitors, pack them in wooden frames so that
CRT’s and PCBs are protected against excess load.
13

COIN CONTROLS COIN DOOR ASSEMBLY
14

rts Drawings
1s
-

9-l BASE ASSEMBLY, Front View

9-2 COCKPIT ASSEMBLY - AC0501708-00
