Millipore APC ErgoTouch Pro 2 User manual

APC ErgoTouch Pro 2
Airborne Particle Counter
Operation Manual

2
MANUAL HISTORY
The following is a manual history of the
APC ERGOTOUCH PRO 2 Handheld Airborne Particle Counter
Revision Date: January 2012
IMPORTANT NOTE
In the following Merck shall mean Merck KGaA, Darmstadt, Germany.

3
Contents
Safety Information 4
Laser Safety 4
Labels 4
Caution 4
Warning 4
Caution or Warning Symbols 4
1 Introduction and Unpacking 5
Unpacking the APC ERGOTOUCH PRO 2 Handheld
Airborne Particle Counter 5
Model APC ErgoTouch Pro 2 Airborne Particle
Counter Parts List 5
Optional Accessories 6
Model APC ErgoTouch Pro 2 Airborne Particle
Counter Optional Accessories 6
2 Getting Started 7
Instrument Description 7
Using the Instrument Stand and Stylus 7
Providing Power 8
To Install the Lithium-Ion Battery 8
To Use AC Power 8
Using with a Printer 9
Performing a Zero Check 9
To Perform a Zero Check 9
Installing an Isokinetic Inlet 10
Installing a Temperature/Relative Humidity Probe 10
3 Operation 11
Screen Layout and Functionality 11
Software Input Panel (Keyboard) 11
Main Tab 11
Zoomed Data Screen 13
Setup Tab 13
System Setup Screen 14
Change Power On Password Screen 14
Change Setup Password Screen 15
Configuration Screen 15
Print Setup Screen 16
Print Schedule Screen 16
Clear Samples Screen 17
Device Setup Screen 17
Date and Time Screen 17
Display Screen 18
Information Screen 18
Communications Screen 18
Regional Screen 19
Sampling Screen 19
Channels Screen 19
Sample Timing Screen 20
Alarms Screen 20
Count Mode Screen 21
Count Units Screen 21
Environment Screen 22
Locations Screen 22
Recipe Screen 23
Data Tab 24
Export Data Screen 25
Print Data 25
Reports Tab 26
Room Definition Screen 27
Generate Screens 27
4 Data Handling 28
USB Data Download 28
USB Computer Communication 28
Installing Software 28
Ethernet Communications 28
5 Maintenance and Warranty 29
Maintenance Schedule 29
Recommended Field Maintenance Schedule 29
Zero Check 29
Cleaning the Instrument Enclosure 29
6 Troubleshooting 30
7 Contacting Customer Service 31
Technical Contacts 31
Returning the APC ERGOTOUCH PRO 2
Handheld Airborne Particle Counter for Service 31
APPENDIX A – Specifications 32
Temperature/RH Probe (700084) Specifications
(optional accessory) 33
Compliance 33
Dimensional Diagram 33

4

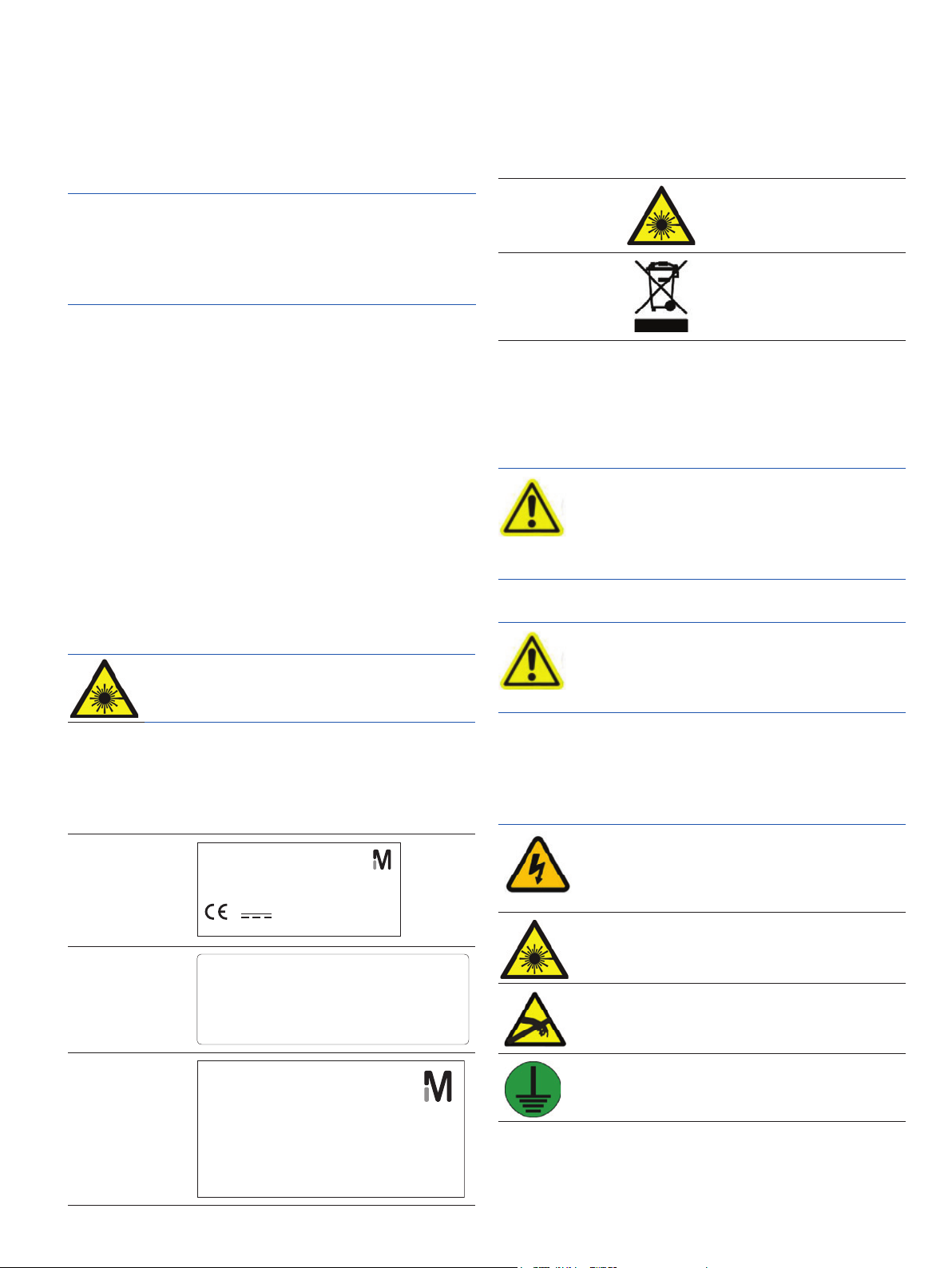

4. Laser radiation
label (internal)
5. European symbol
for non-dispos-
able item. Item
must be recycled.
Description of Caution/Warning Symbols
Appropriate caution/warning statements are used throughout the
manual and on the instrument that require you to take cautionary
measures when working with the instrument.
CAUTION
Failure to follow the procedures prescribed in this
manual might result in irreparable equipment
damage. Important information about the opera-
tion and maintenance of this instrument is included
in this manual.
WARNING
Warning means that unsafe use of the instrument
could result in serious injury to you or cause
damage to the instrument. Follow the procedures
prescribed.
Caution or Warning Symbols
The following symbols may accompany cautions and warnings
to indicate the nature and consequences of hazards:
Warns that uninsulated voltage within the instru-
ment may have sufficient magnitude to cause
electric shock. Therefore, it is dangerous to make
contact with any part inside the instrument.
Warns that the instrument contains a laser and that
important information about its safe operation and
maintenance is included in the manual.
Warns that the instrument is susceptible to electro-
static dissipation (ESD) and ESD protection proce-
dures should be followed to avoid damage.
Indicates the connector is connected to earth
ground and cabinet ground.
Safety Information
This section gives instructions to promote safe and proper
handling of the APC ERGOTOUCH PRO 2 Handheld Airborne
Particle Counters.
IMPORTANT
There are no user-serviceable parts inside the instrument.
Refer all repair and maintenance to a qualified factory-
authorized technician. All maintenance and repair information
in this manual is included for use by a qualified factory-
authorized technician.
Laser Safety
• The APC ErgoTouch Pro 2 Handheld Airborne Particle Counter
is a Class I laser-based instrument.
• During normal operation, you will not be exposed to laser
radiation.
• Precaution should be taken to avoid exposure to hazardous
radiation in the form of intense, focused, visible light.
• Exposure to this light may cause blindness.
Take these precautions:
• DO NOT remove any parts from the particle counter unless
you are specifically told to do so in this manual.
• DO NOT remove the housing or covers. There are no user-
serviceable components inside the housing.
WARNING
The use of controls, adjustments, or procedures
other than those specified in this manual may
result in exposure to hazardous optical radiation.
Labels
Advisory labels and identification labels are attached to the out-
side of the particle counter housing and to the optics housing on
the inside of the instrument.
1. Serial number
label
(back panel)
ErgoTouch Pro 2
Particle Counter, 0.3-10 μm /0.1 CFM
Serial No. 9306-O2BT
xxV, yyW
Merck KGaA, Darmstadt, Germany

2. Laser radiation
symbol label
(internal)
DANGER!
VISIBLE LASER RADIATION WHEN OPEN.
AVOID DIRECT EXPOSURE TO BEAM
WARNING: NO USER SERVICABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED PERSONNEL
3. Calibration Label
(side panel)
Serial No.: 123456789
Date Calibration: dd mmm yyyy
Next Calibration: dd mmm yyyy
Merck KGaA, Darmstadt, Germany – www.your-contacts.com/biomonitoring

5
1 Introduction and Unpacking
The APC ERGOTOUCH PRO 2 Airborne Particle Counter (particle counter) is a lightweight, handheld particle counter with a touch-
screen interface. It operates on the included lithium-ion battery or AC power.
This device has a 0.1 CFM (2.83 L/min) flow rate and counts bin sizes from 0.3 to 25 µm that depend on the model ordered
(see table below). Up to 10,000 data sets can be downloaded for analysis and reporting using the Data Download Software included
with the device.
Model Size Range
APC ErgoTouch Pro 2 0.3 to 10 µm, user-selectable; factory-calibrated at
0.3, 0.5, 1.0, 3.0, 5.0, 10.0 µm
Typical applications for this particle counter include clean room monitoring, research, exposure assessment, indoor air quality, filter
testing, clearance testing, quality assurance, and contaminant migration studies. All APC ERGOTOUCH PRO 2 particle counters meet
JIS standards.
Unpacking the APC ERGOTOUCH PRO 2 Handheld Airborne Particle Counter
Carefully unpack the APC ERGOTOUCH PRO 2 Airborne Particle Counter from the shipping container and verify that all the items
shown in the photos below and listed in the following tables are present. Contact Merck KGaA, Darmstadt, Germany immediately if
items are missing or broken.
Model APC ErgoTouch Pro 2 Airborne Particle Counter Parts List
Qty. Item Description Part/Model Reference Picture
1 APC ERGOTOUCH PRO 2 Airborne
Particle Counter
1.44302.0001
1 Power Supply with universal plugs 1.44306.0001
1 Isokinetic inlet 1.44159.0001
1 Battery pack 1.44132.0001
1 Computer cable (2 m), USB A to B 1.44100.0001
1 Stylus NA
1 HEPA zero filter assembly 1.44157.0001
1 ErgoTrak Lite Data Download utility
software CD (includes manual)
N/A
1 Operation Manual (installed on CD)
1 Calibration certificate N/A
1 Quick Start Guide N/A

6
Optional Accessories
The following photos and table list optional accessories. If you ordered optional accessories, make certain they have been received
and are in working order.
Model APC ErgoTouch Pro 2 Airborne Particle Counter Optional Accessories
Item Description Part/Model Reference Picture
External battery charger with AC adapter
and power cord
1.44134.0001
External Printer 1.44305.0001
Carry case 1.44303.0001
Temperature/
humidity probe
1.44304.0001
Stainless Steel
Isokinetic inlet
1.44159.0001
Isokinetic probe
(used with tubing)
1.44160.0001
0.1 cfm Barb Inlet Fitting 1.44143.0001
Tubing, Superthane
1/8-inch ID x ¼-inch OD, Clear 100 ft
1.44142.0001
APC Compressed Gas Adaptor 1.44179.0001
APC Compressed Gas Adaptor Nozzle Set 1.44180.0001

7
2 Getting Started
This chapter provides information to help you use the Model APC ErgoTouch Pro 2
Handheld Airborne Particle Counter including:
• Instrument Description
• Using the Instrument Stand and Stylus
• Providing Power
• Performing a Zero Check
• Installing an Isokinetic Inlet
• Installing a Temperature/Relative Humidity Probe
Instrument Description
The Model APC ErgoTouch Pro 2 has many features to make measurements convenient.
They are described in detail below.
Using the Instrument Stand and Stylus
The Model APC ErgoTouch Pro 2 is equipped with an
integral instrument support stand. To open the stand,
grasp it by the large finger hole and pull it out until it
locks into place. Be careful not to overextend the stand.
To store the stand out of the way when not in use,
simply push the stand back until it snaps into place.
The Model APC ErgoTouch Pro 2 is also equipped with
a plastic stylus for use with the touch screen interface.
The stylus locks into place in the case near the top of
the unit when not in use.
Stand
USB Host and
Device Ports
Ethernet Port
Power Entr
y
Isokinetic Inlet Stylus
Touch -Screen
Start Sample
Power Button

8
Providing Power
The Model APC ErgoTouch Pro 2 may be powered using a rechargeable lithium-ion
battery, or through an AC power cord.
NOTES
•When using AC power, the battery (if installed) charges when the instrument
is on, but not while actively sampling.
•Removing/changing the lithium-ion battery or disconnecting AC power does
not cause loss of data.
To Install the Lithium-Ion Battery
1. Remove the battery cover from the back of the instrument by lightly depressing
the textured tab on the cover located on the lower left.
2. Place the lithium-ion battery into the battery compartment and slide it forward
(toward the top of the unit) until it locks into place.
3. Replace the battery cover and slide it in place until you hear a click.
WARNING
The battery supplied has built in protection against explosion
and fire hazard. Do not use a substitute.
WARNING
Do not use non-rechargeable batteries in this instrument.
Fire, explosions, injury or other hazards may result.
To Use AC Power
1. Connect the AC power adapter to the power cord.
2. Insert the AC power adapter into the side of the Model APC ErgoTouch Pro 2
3. Connect the power cord to an outlet.
4. Press the on/off button (located on the front of the instrument handle).
5. After a splash screen displays the logo, a brief start-up sequence begins as
the Windows® CE operating system boots up.

9
Using with a Printer
A hard copy of a sample set can be printed
from the instrument using the optional
Model 1.44163.0001 thermal printer
(see Chapter 3, “Operation”). Only the Model
1.44305.0001 printer is compatible with
the Model APC ErgoTouch Pro 2.
The printer may be used on its internal
battery or an AC adapter. A custom commu-
nications cable is included with the printer.
The cable goes between the USB A port and
the 9 pin DSUB on the printer.
•
•
Performing a Zero Check
A zero check should be performed at least once a day. It should also be performed
before conducting any important testing or certification.
To Perform a Zero Check
1. Turn on the instrument and wait until the main menu appears.
2. Remove the Isokinetic inlet if attached. The zero check cannot be performed when
the isokinetic inlet is attached to the instrument.
3. Attach the zero filter to the inlet nozzle
located on the top of the instrument.
4. Press the Start button and allow the instrument to purge for 2 minutes.
5. After the 2-minute purge, continue to sample. In accordance with JIS standards,
there should be no more than 1 particle counted at any size in 5 minutes.
NOTE
If the instrument does not go to zero (1 particle in 5 minutes is considered
zero), refer to Chapter 6, Troubleshooting, for additional information.
6. Remove the zero filter and put the isokinetic inlet back on—the instrument is now
ready for operation.

10
Installing an Isokinetic Inlet
The Isokinetic inlet smoothly accelerates air
into the inlet of the instrument. To install,
simply thread the inlet directly onto the inlet
nozzle until finger tight. The inlet seals over
an O-ring so it doesn’t have to be very tight
to seal.
Installing a Temperature/Relative Humidity Probe
To install the optional temperature/relative humidity probe:
1. Align the probe so the pins slide into the sockets of the base connector.
2. Align the locking collar on the probe so it will slide over the alignment pins
on the base connector
3. Press down and turn the locking collar to lock in the probe.
4. Temperature and relative humidity are automatically displayed in the
upper-left corner.
5. Remove the probe turned the locking collar
and then pulling straight up on the probe.

11
3 Operation
The Model APC ErgoTouch Pro 2 Handheld Airborne Particle Counter is controlled using a touch screen display.
Use the plastic stylus or your finger tip. DO NOT use sharp objects (such as a pen point) that may damage the
screen overlay.
To turn on the instrument, press the on/off button
(located in the center of the front of the instrument).
After a splash screen displays the logo, a brief start-up
sequence begins as the Windows® CE operating system
boots up.
The instrument is ready for operation when the main
tab shown on the side appears. If an optional tem-
perature/humidity probe is attached, those values will
be shown in the upper-left corner also.
Screen Layout and Functionality
There are four main screens (tabs): Main, Setup, Data, and Reports. The operation of each of these screens, the
information displayed on them, and the operations you can perform from each are described in the remainder
of this chapter.
Some screens require or allow you to enter information. To enter
information, tap on the screen and an
on-screen keyboard appears.
Software Input Panel (Keyboard)
Throughout the setup screens, a keyboard will appear
on the screen when text may be entered. Data may be
entered using this keyboard. When the entry is com-
plete, press either the Enter or Esc keys. The keyboard
will then be hidden until another text entry box is
selected.
Main Tab
The Main Tab is the default screen. The left side of the screen summarizes the concentrations for the currently selected location.
Tap on the size and count portion of the screen to enable Zoomed Data Screen (see Setup Tab).
The display shows:
• Temperature*
• Relative humidity*
• Bin sizes
• Particle count/concentration
* Temperature and Humidity are displayed only if the optional T/H probe is installed.

12
The status bar at the top of the screen shows the current time and date settings
(see the Setup Tab) and indicates:
Icon Description
Laser requires service
Sufficient flow through the APC APC ErgoTouch Pro 2
Insufficient flow through the APC APC ErgoTouch Pro 2
Operating on AC power, no battery installed
Operating on AC power, battery is installed and charging.
(The battery charges when the instrument is on but not actively taking a particle sample.)
Battery charged
Low battery
Battery must be charged
The right side of the Main Tab shows locations and
other information (delay, cycles, and so on).
These can be configured using the Setup Tab.
Field Description
(Location) This dropdown box displays information about any of the available locations that are
associated with the samples.
The group of settings (recipe) that you are using for this sample.
Delay The Delay displays one of two times;
1. Before the Start button is pressed the Start Delay time is displayed and then immedi-
ately after the Start button is press the delay time begins a countdown.
2. During sampling and between cycles (after the Start Delay has been displayed), the
Hold Delay is displayed and then begins a countdown.
Time The time for each sample.
Recs The total number of records in the database/10000 (maximum number of records).
Manual/
Automatic/Beep
Mode Indicator; refers to the “Data Count Mode” (see section below).
Start/Stop button to begin and end sampling in the configured mode. Start/Stop may
also be entered using the triangle-shaped button below the power button on the front
of the instrument.
Press to print the current sample to the optional printer.

13
The status bar at the top of the screen shows the current time and date settings
(see the Setup Tab) and indicates:
Icon Description
Laser requires service
Sufficient flow through the APC APC ErgoTouch Pro 2
Insufficient flow through the APC APC ErgoTouch Pro 2
Operating on AC power, no battery installed
Operating on AC power, battery is installed and charging.
(The battery charges when the instrument is on but not actively taking a particle sample.)
Battery charged
Low battery
Battery must be charged
The right side of the Main Tab shows locations and
other information (delay, cycles, and so on).
These can be configured using the Setup Tab.
Field Description
(Location) This dropdown box displays information about any of the available locations that are
associated with the samples.
The group of settings (recipe) that you are using for this sample.
Delay The Delay displays one of two times;
1. Before the Start button is pressed the Start Delay time is displayed and then immedi-
ately after the Start button is press the delay time begins a countdown.
2. During sampling and between cycles (after the Start Delay has been displayed), the
Hold Delay is displayed and then begins a countdown.
Time The time for each sample.
Recs The total number of records in the database/10000 (maximum number of records).
Manual/
Automatic/Beep
Mode Indicator; refers to the “Data Count Mode” (see section below).
Start/Stop button to begin and end sampling in the configured mode. Start/Stop may
also be entered using the triangle-shaped button below the power button on the front
of the instrument.
Press to print the current sample to the optional printer.
Zoomed Data Screen
The Zoomed Data screen is entered by touching in the size and count part of the main tab display. The bottom
portion of the screen summarizes the concentrations for the currently selected location. Tap the size and
count portion of the display to switch back to the Main Tab display.
The display shows:
• Temperature*
• Relative humidity*
• Air Velocity
• Bin sizes
• Particle count/concentration
Field Description
Location Label that displays information about the currently selected location.
Manual/Automatic/Beep Mode Indicator; refers to the “Data Count Mode” (see section below).
Press the Start/Stop button to begin sampling in the configured mode.
Setup Tab The setup tab provides access to the following:
Sampling
Setup
Set up Particle Channels, Sample Timing,
Particle Channel Alarms, Sample Count
Mode,
Count Units, and Environment
display settings.
Locations
Setup
Identify and save the location informa-
tion associated with collected samples.
Recipe
Setup
Save a group of settings (a recipe) that
you use over and over so you don’t have
to reset individual settings.
System
Setup
Change Power On Password, Setup
Password, System Configuration, Print
Settings, Print Schedule and Clear
Samples
Device
Setup
Set Date and Time, Screen Alignment,
Com
munications, Regional Settings, and
get device
information.

14
System Setup Screen
From the System Setup screen you can select (or
change) the power on password, set up a password,
select system configuration parameters, select print
settings, schedule printing and clear samples.
Change Power On Password Screen
If a Power On password has been previously set, you
must enter that password before being allowed to
change the Power On password. If a Power On pass-
word is set, then on instrument startup a password
screen will ask for the password before the instru-
ment can be used. A blank password is regarded
as no password and if set as the new password, will
not prompt you for a password on system startup.
NOTE
Keep the password in a safe place. It is difficult to
reset the password and requires contacting the
factory. If you have misplaced the password, please
contact our technical support.
Tap on the screen to display the on-screen keyboard
and enter the required information.
Field Description
Old Password Enter your existing password (if one has already been set) or leave blank.
New Password Enter a new password. The password can be any length and use any characters.
Confirm New Password Retype the new password then press OK. A confirmation message appears if the
password is changed.
NOTE
Leave both New Password and Confirm New Password fields blank to turn off password protection.
Call us if you have forgotten your password.

15
Change Setup Password Screen
If a Setup password has been previously set, you must
enter that password before being allowed to change
the Setup password. If a Setup password is set, click-
ing on the setup tab at the bottom of the main screen
brings up a password screen. That password must be
entered in order to change instrument settings.
Tap on the screen to display the on-screen keyboard
end enter the required information.
Field Description
Old Password Enter your existing password (if one has already been set) or leave blank.
New Password Enter a new password The password can be any length and use any characters.
Confirm New Password Retype the new password then press OK. A confirmation message appears if the
password is changed.
NOTE
Leave both New Password and Confirm New Password fields blank to turn off password protection.
Call us if you have forgotten your password.
Configuration Screen
Use this screen to set configuration parameters.
Press OK when finished.
Field Description
∆ and ∑ on Zoom
Select to zoom in on both cumulative (∑) and differential (∆) counts on the Main Tab.
To zoom the Main Tab, select on the left side of the Main Tab. (It takes a moment
for the screen to update.) Click on the screen again to return to normal view.
Store Partial Samples When selected, stores the partial record in the current database if the instrument
is stopped during a sampling period.

16
Print Setup Screen
A hard copy of a sample set or statistics can be printed
from the instrument using an optional thermal printer.
Use this screen to set print parameters. Press OK
when finished.
Field Description
Serial Number Indicates that the serial number of the particle counter used to collect the data
will be printed.
Model Name Indicates that the model number of the particle counter used to collect the data
will be printed.
Separator Indicates a line separator will be printed after the Model Name and Serial Number
in the header of all printouts
Differential Indicates that the differential value of the data will be printed.
Cumulative Indicates that the cumulative value of the data will be printed.
Last Calibration The date and time the instrument was last calibrated.
NOTE
Printer paper has a colored strip printed on the last few feet of each roll to indicate when it is time
to change the paper roll.
Print Schedule Screen
Use this screen to schedule automatic printing. You
can choose to either print when an alarm occurs or
print whenever a sample is complete.
Field Description
Automatic Printing Enables automatic printing when checked.
On Sample Print data whenever a sample completes.
On Alarm Print data when an alarm condition occurs.

17
Clear Samples Screen
The Clear Samples screen lets you clear all samples
from the internal database. Select Yes to clear all
samples. Select No to return to the System Setup
screen.
Device Setup Screen
Use this screen to access screens that let you set
or change the date and time, set visual parameters
of the display, set up communications, set regional
features, and get system information such as soft-
ware version, etc.
Date and Time Screen
This screen lets you set the current date and time and
set the date format. Press OK when finished. You can
select options using the arrows or tapping on the
screen which brings up the keyboard.
Field Description
Date Press the down arrow to display a calendar then select the date from the calendar.
Time Select the time component you want to change (hours; minutes; seconds) and then
use the left and right arrows to adjust to the current time.
24 Hour Time display is in 24 hour format when checked.

18
Display Screen
This screen lets you set or change visual parameters
Field Description
Screen
Alignment
Press this item to reset the screen
alignment, and follow the directions
on the alignment screen.
Information Screen
This screen lets you view the system’s model, serial
number, copyright, manufacture date, calibration
date, next calibration date, firmware version, USB IP
address and date and time format. Press Close when
finished.
Communications Screen
This screen lets you configure the IP address, subnet,
and default gateway to which the instrument belongs.
Field Description
IP Address The numerical identification (logical address) that is assigned to this device
when participating in a computer network utilizing the Internet Protocol for
communication between its nodes.
Subnet Mask A network of computers and devices that have a common, designated IP address
routing prefix. All hosts within a subnet can be reached in one “hop” (time to
live = 1), implying that all hosts in a subnet are connected to the same link.
Default Gateway A node on the computer network that serves as an access point to another net-
work and is chosen when the IP address does not belong to any other entities in
the Routing Table.
Use DHCP (Dynamic Host
Configuration Protocol)
When checked, this protocol is used to automatically obtain the information
necessary for operation from a DHCP server running on your local network.
NOTE
TCP/IP is an industry standard networking protocol that allows computers and devices to communicate
over Ethernet and other media access channels. Providing full details on how to configure an IP network
is beyond the scope of this manual. Please contact your company IT department or a qualified network-
ing professional if you are not qualified to configure such a network.

19
Regional Screen
This screen lets you set the language in which the
on-screen dialog is displayed and your regional format
for numbers.
Field Description
Language Select the language in which you want
on-screen dialog displayed; options are
German, English, Spanish, French, Italian,
Chinese, and Japanese.
Formats Select the format that is commonly used
to display real numbers and the date and
time in your region.
Sampling Screen
Use this screen to access screens that let you set up
how sampling is displayed and handled. You can
select which channels to use, the sample timing, the
count mode, count units, environment, and alarm
thresholds.
Channels Screen
This screen lets you choose the channels that are
enabled and set their particle size. Press OK when
finished.
Field Description
Enable Select the channels you want to view on
the main display.
Size This box allows for changing the default
size for any channel. Highlight the size
information and use the on-screen
keyboard to change its value. Channels
cannot be set below 0.3 or above 10.0 µm
and they may not overlap one another.

20
Sample Timing Screen
This screen lets you select parameters for sampling.
Use the up and down arrows or the on-screen key-
board to change or enter information. These parame-
ters are only valid when the APC APC ErgoTouch Pro 2
is running in Automatic mode. Press OK when finished.
Field Description
Sample Sample is the total number of samples you want collected. In Automatic mode, a Count value of
0 causes the instrument to count continuously using the settings for Delay, Time, and Hold until
the Start/Stop button is pressed again. Use the up and down arrows or the on-screen keyboard
to set the count. See Count Mode Screen for information on the different count modes.
Delay Delay indicates how long it will be before the first sample is taken. Remember, it takes approxi-
mately 6 seconds for the pump to reach the flow set point; taking a measurement before the
pump is functioning properly may result in a data error.
Highlight the time component you want to change (hours, minutes, seconds) and use the up and
down
arrows or the on-screen keyboard to change the value.
Hold Hold indicates how long the instrument pauses between samples. Highlight the time component
you want to change (hours, minutes, seconds) and use the up and down arrows or the on-screen
keyboard to change the value.
Time Time indicates the duration of each sample run (count particles). Highlight the time component
you want to change (hours, minutes, seconds) and use the up and down arrows or the on-screen
keyboard to change the value.
Volume
Volume sets the volume of air that will pass through the instrument for each sample. If you select
volume, you must select Cubic Feet, Cubic Meters or Cubic Liters for measurement using the arrows.
Alarms Screen
Use this screen to set the alarm threshold for each
channel. Press OK when finished.
Field Description
Enable Select the channels on which you want to enable alarms.
Threshold To change the threshold for any channel, click the up and down arrows for that channel or use
the on-screen keyboard to change its value. The threshold value units use the current display
Count Units (see Count Units Screen).
When a channel value exceeds the threshold value you set, the channel data is highlighted in red on the
Main tab, an audible alarm sounds, and the alarm icon appears on the Main tab.
To clear the alarm, click the alarm icon In addition, the record is printed if you have selected that option
on the Print Schedule Screen.
