Getting started
h
ci
k
f
b
g
d
e
a
en
1.1 Package contents

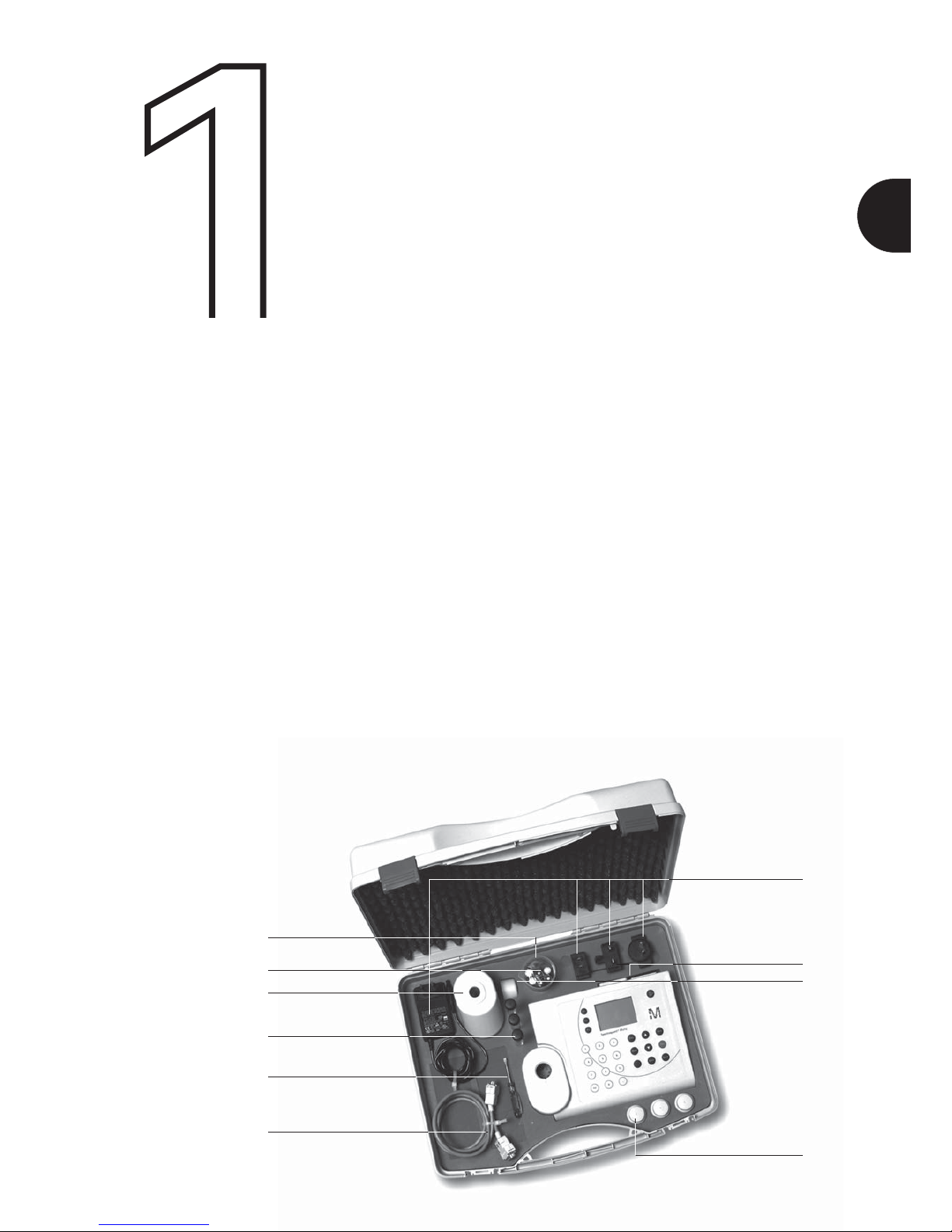

The standard contents of the Spectroquant® Multy Colorimeter
package comprise the following items:
1 colorimeter in a plastic carrying case
1 beaker (plastic) 100 ml (a)
1 set of rechargeable batteries (7 nickel-cadmium batteries; type AA) (b)
1 adapter for 16-mm ø round cells (c)
3 round cells with lids, ø 16 mm (d)
1 screwdriver
(e)
1 cable for connection with a PC or printer (f)
1 mains adapter, 100 - 240 V, 50 - 60 Hz
with 4 wall-socket adapters (EU, UK, USA, AUS) (g)
2 protective caps for connection terminals on the back (h)
1 lid for adapter (i)
1 lithium battery (CR 2032; 3V)
3 round cells with lids, ø 24 mm (k)
1 operating-instructions
manual
1 certificate of compliance

8
1.2 Inserting the rechargeable
batteries/lithium powerpack
Before operating the system for the first time, the rechargeable
batteries and the lithium powerpack included in the package
must be installed.
The batteries enclosed in the package are not charged.
ABattery pack: 7 nickel-cadmium batteries (type AA, 750 mAh)
BBattery: lithium battery (type CR 2032, 3V)
CFuse: 1 A, delayed-action, 20 mm
1. Ensure that the Spectroquant® Multy Colorimeter is switched off.
2. Remove, where applicable, the cell from the measurement
compartment.
3. Place the unit on its front on a clean, flat surface.
4. Remove the two screws (E) on the battery-compartment cover
(F) on the bottom of the unit.
5. Remove the batteries cover (F).
6. Remove any old batteries (A) and/or the lithium powerpack (B).
7. Insert 7 new rechargeable batteries and/or the lithium
powerpack
.
Make sure that the batteries are inserted correctly!
8. Attach the battery-compartment cover.
9. Replace the screws and tighten with moderate pressure.
Mains
connector
DSerial interface
(printer, PC)
Protective cap
EScrews
ABattery pack CFuse BBattery Back of unit
FBattery-compartment cover
Dispose of used batteries and/or
the lithium powerpack in accordance
with the local regulations.
en

9
1.2.1 Lithium powerpack –
Important information
The lithium powerpack (B) serves to save all important data
(saved measurement results, settings) for approx. ½ year when
the unit is not being supplied with power by the battery pack
or the mains supply.
As long as the colorimeter is being supplied with mains or
battery power, it does not draw any power from the lithium
powerpack. Since lithium powerpacks have a very long life,
it will in all probability not be necessary to exchange the
one supplied. All the same, to ensure proper functioning it is
recommended to replace the lithium powerpack every five years.
Note
When neither the mains adapter nor the battery pack are
supplying power, removal of the lithium powerpack will result
in a complete loss of data (saved measurement results and
settings). For this reason we strongly recommend that the unit
is connected to the mains power supply while replacing the
lithium powerpack.
1.2.2 Charging the battery pack
The rechargeable batteries (A) remain in place in the photo-
meter for recharging. Once the mains power supply is established,
the batteries start to be charged.
Charge the rechargeable batteries in the instrument for 5 days
(working with power from mains is possible). Now use the
instrument without mains until the first battery warning comes
up. Charge again, 4 days this time. Repeat usage to battery
warning and charging four times.
Approximately 10 charging/discharging cycles are required until
the batteries reach their full capacity.
The unit can be operated with mains power supply with or
without the batteries in place. For this you must attach the
country-specific wall-socket adapter to the mains adapter.
en

10
1.2.3 Using non-rechargeable batteries
In principle it is also possible to operate the unit using conven-
tional batteries – in this case, however, they must never be
used in combination with the mains adapter. The charging
process would start automatically as soon as the colorimeter is
connected to the mains power supply. Conventional batteries
are destroyed by the charging current, resulting in severe dam-
age to the unit. This also involves the risk of fire and explosion.
1.2.4 Using the protective caps
To protect the connection terminals on the unit from damage
(e.g. corrosion) due to environmental influences such as e.g.
dust or water splashes, the supplied protective caps should be
attached over the connection points (D) when these are not
being used.
en

en
11
1.3 Overview of the key functions
Switching the unit on and off
Function key: Function explained at the corresponding place in the text
Function key: Function explained at the corresponding place in the text
Function key: Function explained at the corresponding place in the text
Back to method selection / to parent menu
Confirmation of selections (visible on the display as the “ ” symbol)
Menu for settings and other functions
Moves cursor (visible on the display as the “>>” symbol) up or down
Save a displayed result
Zero-calibration function
Run a measurement
Display of date and time / user countdown
On
O
F1
F2
F3
tseTedoM
Store
Zero
654
321
987
,0
Spectroquant® Multy
Enter
Esc
Time

12
1.5 Overview of the mode menu
Mode No. Mode function Brief description Section

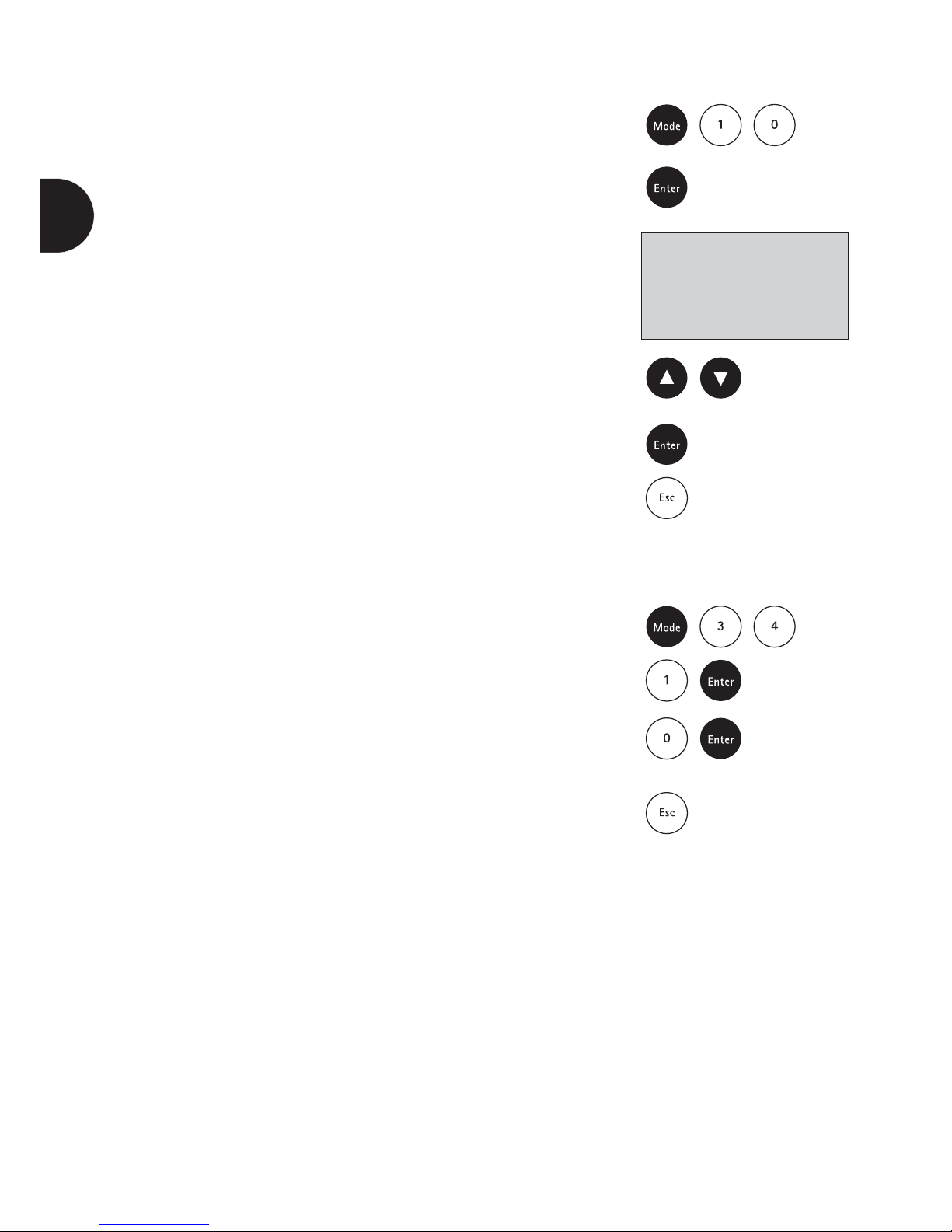

10 Language Setting the language 1.6
11 Key-beep Activating the acoustic key-acknowledgment tone 3.3.1
12 Clock Setting the date and time 1.8
13 Countdown Activating/deactivating the countdown for reaction times 3.3.3
14 Signal-beep Activating/deactivating the acoustic signal at the end of a measurement 3.3.2
20 Print Printing all saved measurement results 5.3.2
21 Print, date Printing measurement results from a defined date range 5.3.3
22 Print, code No. Printing measurement results from a defined code-No. range 5.3.4
1.4 Starting the colorimeter
the first time

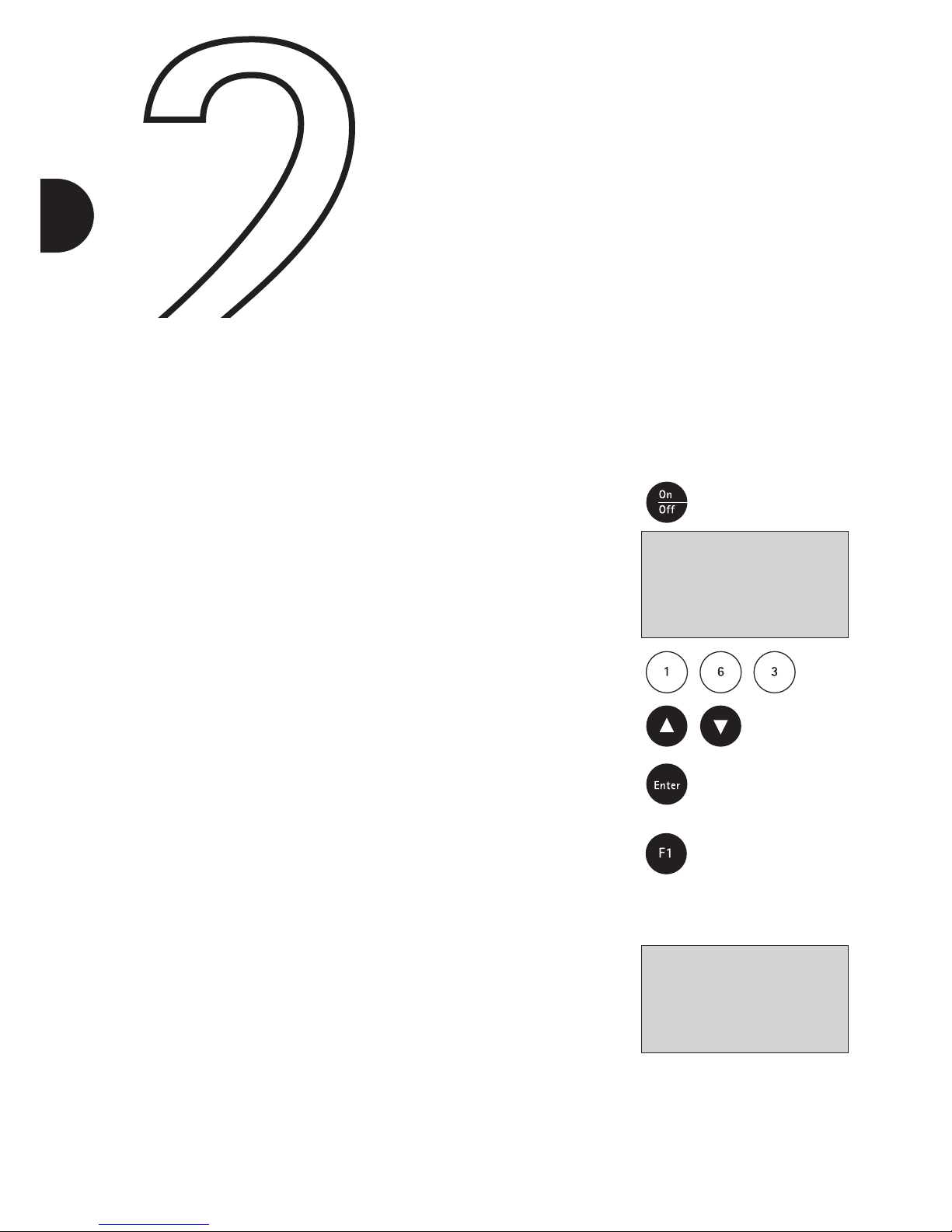

Switch on the colorimeter by pressing the [On/Off] button.
The unit runs an electronic self-check test.
The display then shows:
Pressing the [Enter] key takes the colorimeter to method
selection.
Any data already saved in the unit must be deleted (mode 34,
see chapter 1.7, "Delete data"), the user-method system must
be initialized (mode 69, see section 5.6.5, "Initializing the
user-method system (concentration and polynomials)"), and
the date and time should be reset. (See below for details.)
The Spectroquant® Multy is supplied with English preset as the
standard language setting. Before making the first measurement
you should therefore reset the unit to the language of your
choice. To do this go from the method list and change to the
mode menu by pressing the [Mode] key.
The display shows:
After a short time the selection list appears:
Please initialize
the storagesystem
with MODE 34
MODE Menu
cancel: ESC
>> 10:Language
11:Key-beep
12:Clock
... ...
... ...
en

13
Mode No. Mode function Brief description Section
23 Print, method Printing measurement results from a defined method 5.3.5
29 Print params. Setting the printer options 5.3.1
30 Storage Viewing all saved measurement results 2.8.1
31 Stor., date Viewing measurement results from a defined date range 2.8.2
32 Stor., code No. Viewing measurement results from a defined code-No. range 2.8.3
33 Stor., method Viewing measurement results from a defined method 2.8.4
34 Delete data Deleting saved measurement results 2.9
45 User calibration Saving user-specific calibration 5.7.1
46 Clear calibr. Deleting user-specific calibration 5.7.2
50 Profi-Mode Activating the expert-user function (laboratory function) 3.2
60 Method list Processing the method list 3.1.1
61 Mlist all on User-specific method list, activate all methods 3.1.2
62 Mlist all off User-specific method list, deactivate all methods 3.1.3
64 User concentr. User methods, Entry of a concentration method 5.6.1
65 User polynoms User methods, Entry of a user polynomial 5.6.2
66 User m. clear User methods, Deleting a user method 5.6.3
67 User m. print User methods, Printing data for a user method 5.6.4
69 User m. init. User methods, Initializing the user-method system 5.6.5
70 Langelier Calculation of the Langelier saturation index 5.8
71 Temperature Setting the temperature (°C or °F) for Langelier mode 70 5.8
80 LCD contrast Setting the display contrast 3.4
91 System-Info Information on the Spectroquant® Multy, e.g. current unit configuration 3.5
The individual mode functions are selected in the
following manner:
Enter the digits for the desired function, e.g.: [1] [0]
for setting the language, or
press the []or []arrow keys to select the desired function
from the display list.
Confirm your selection by pressing [Enter].
Make your settings as described in the respective sections
of this manual.
Press the [Esc] key to exit the mode menu.
en

14
1.6 Setting the language
Press the keys [Mode] [1] [0] in succession.
Confirm your selection by pressing [Enter].
The display now shows:
Select the desired language using the arrow keys []or [].
Confirm your selection by pressing [Enter].
(Pressing the [Esc] key takes you back to the method-
selection menu.)
1.7 Deleting data
Press the keys [Mode] [3] [4] in succession to delete
any stored data.
Confirm by pressing [1] and [Enter].
Press the [0] and [Enter] keys to abort the process.
In the event that you press the [1] key by mistake, you can exit
the menu by pressing the [Esc] key if you wish to save the data
from deletion.
<Language>
Deutsch
>> English
Français
...
en

15
1.8 Setting the date and time
Press the keys [Mode] [1] [2] in succession.
Confirm your selection by pressing [Enter].
The display now shows:
The date and time are entered in the following sequence:
year, month, day,
e.g.: July 14, 2006 = [0] [6] [0] [7] [1] [4]
hours, minutes,
e.g.: 3.07pm = [1] [5] [0] [7].
Confirm your selection by pressing [Enter].
Note
When you confirm the entry by pressing [Enter] the seconds
are automatically set to zero.
Pressing the [Esc] key takes you back to the method-
selection mode.
1.9 Time and date display
Press the [Time] key.
The display now shows the current time and date.
The unit returns to the previous routine after approx.
15 seconds
or when you press the [Enter] key.
1.10 Automatic switch-off
The Spectroquant® Multy switches off automatically 20 minutes
after the last time a key was pressed. In the last 30 seconds before
it switches off, the unit emits an acoustic signal. During
these 30 seconds you can press a key to prevent the unit from
switching off automatically. The automatic switch-off function is
inactive while the unit is performing operations (running countdown,
printing). After the operation in question has ended, the 20-minute
waiting time before the automatic switch-off function starts run-
ning anew.
<Clock>
yy-mm-dd hh:mm
__-__-__ __:__
en

16
Operating mode
2.1 Selecting the method
Switch on the Spectroquant® Multy by pressing the
[On/Off] key.
The display shows the selection list of the stored methods:
There are two ways to select the desired method:
a) by entering the method number directly, e.g.: [1] [6] [3]
for COD 14541, or
b) by pressing the []or []arrow keys to select the desired
method from the displayed list.
Confirm your selection by pressing [Enter].
Note
Pressing the [F1] key switches between the compact and
the detailed method-selection list. The method-selection list
must be shown on the display for this option.
Example for the detailed method-selection list
Line 1: Method number, method name, item number
Line 2: Measuring range
Line 3: Type of test (cell test or test)
Line 4: Cells used (16 mm/24 mm)
>> 10 Acid cap. 01758
20 Aluminium 14825
21 Aluminium 00594
... ...
... ...
163 COD 14541
25-1500 mg/l
Cell Test
16 mm
en

17
Note
The five-digit item number (e.g. 14541) gives the five digits
in the middle of the catalogue/ordering number 1.XXXXX.0001,
in this case 1.14541.0001. In some cases in which the assign-
ment is self-evident (e.g. monochloramine)
or else in which all Spectroquant® tests available for one
parameter can be used (e.g. chlorine), this number is not shown.
For an overview of all programmed methods please refer to the
included CD, section 5.1, “Overview of preprogrammed methods
and analytical procedures”.
2.2 Measuring with test kits
A detailed description of the procedure for the selected method
is given on the provided CD in section 5.1, “Overview of prepro-
grammed methods and analytical procedures”. The procedures
may differ slightly from those described in the respective pack-
age inserts.
After selecting the method, prepare the blank and sample for
measurement.
In the case of analysis specifications in which reaction times
must be observed, a timer (countdown) is integrated in
the method programme. (In such cases the cells must not be
inserted into the measurement compartment.)
After the method has been selected the display shows:
Example: Method 90, Bromine 00605
If you wish to exit the menu at this stage, simply press the
[Enter] key twice (= abort countdown) and then the [Esc]
key once.
After the method has been selected, the countdown function
is started by pressing the [Enter] key. The remaining time is
shown continuously. An acoustic signal is emitted in the last
10 seconds before the countdown expires. After the countdown
has run out, proceed as described in the analysis procedures.
In some methods there are several reaction times that have
to be considered; these are shown and processed in the proper
sequence.
en
90 Bromine 00605
0.10-5.00 mg/l Br2
Count-down 1
1:00
Start:

18
Note
The running countdown can be skipped by pressing the [Enter]
key once. In this case the user must observe the necessary
reaction time him-/herself. (Failure to observe the specified
reaction time can lead to erroneous results.) Further options
to deactivate the countdown procedure: mode No. 13 or
Profi mode (mode No. 50).
After the countdown has expired the display shows:
Place the prepared blank in the measurement compartment
with the mark on the cell pointing towards the mark on
the unit case.
Positioning the cell (ø 24 mm)
Align the triangular mark on the cell with that on the Spectroquant®
Multy:
To afford better protection against sunlight, press the o-ring firmly
into place.
90 Bromine 00605
0.10-5.00 mg/l Br2
prepare Zero
press ZERO
en

19
en
Positioning the cell (ø 16 mm)
Attach the 16-mm cell adapter.
Align the line mark above the item number of the cell with
the triangular mark on the Spectroquant® Multy. Subsequently attach
the lid to cover the adapter.
Press the [Zero] key.
The display shows:
Insert the prepared sample into the measurement compartment
with the cell mark aligned with the mark on the unit case.
Press the [Test] key.
The result is displayed in the following manner:
Example: Method 90 (Bromine 00605)
Line 1: Method number, method name, item number
Line 2: Measuring range
Line 3: Result (expressed as the concentration)
90 Bromine 00605
0.10-5.00 mg/l Br2
Zero accepted
prepare Test
press TEST
90 Bromine 00605
0.10 - 5.00mg/l Br2
2.11mg/l Br2

90 Bromine 00605
0.10-5.00 mg/l Br2
Zero accepted
prepare Test
press TEST
20
In the event the result lies outside the respective measuring
range, the following message appears on the display:
the concentration of the sample lies below the measuring range
or, respectively,
the concentration of the sample lies above the measuring range.
After the result has been displayed
• it can be saved (see section 2.7, “Saving measurement results”
and section 2.8, “Retrieving saved measurement results” for
further details)
• it can be printed out (see section 5.3)
• a new method can be selected:
pressing the [Esc] key takes the colorimeter back to the
method-selection mode;
you can also enter a new method number directly
(confirm by pressing [Enter])
• further measurements can be made using the same or a
new zero setting:
• If you wish to measure other samples using the same method:
Press the [Test] key.
The display shows:
Confirm by pressing [Test].
90 Bromine 00605
0.10 - 5.00mg/l Br2
Underrange Br2
90 Bromine 00605
0.10 - 5.00mg/l Br2
Overrange Br2
en

21
en
• If you wish to measure other samples with a new zero setting:
Press the [Zero] key to reset to zero.
The display shows:
2.3 Differentiation
Some methods permit further differentiation (e.g. chlorine).
After selecting the method, e.g. 131 Chlorine Test, you are
prompted to state the type of measurement (e.g. differentiated,
free, or total).
Use the []or []arrow keys to select the desired
measurement type.
Confirm your selection by pressing [Enter].
90 Bromine 00605
0.10-5.00 mg/l Br2
Count-down 1
1:00
Start:
Chlorine Test
>> diff
free
total

22
2.4 Altering the citation form
Wherever this is appropriate, it is possible to alter the citation
form (see section 5.1, “Overview of preprogrammed methods
and analytical procedures” for possible citation-form alterna-
tives).
After the first sample has been measured using a specific
method and the result is shown on the display, you can alter
the citation form in the following manner:
Result shown on display using Method 380 (Phosphate 14543)
as an example:
Pressing the []arrow key gives you the option to select
a citation form.
The result shown on the display changes to this:
Pressing the []arrow key again shows the next
citation form:
Pressing the []arrow key takes you back to the previous
citation form.
The citation form last shown on the display remains valid
for all consequent measurements until changed again.
380 Phosphate 14543
0.05-4.00mg/l PO4-P
0.33mg/l PO4-P
380 Phosphate 14543
0.15-12.26mg/l PO4
1.01mg/l PO4
380 Phosphate 14543
0.11-9.17mg/l P205
0.76mg/l P205
en
