User Guide
EZ-Pak®
Dispenser Curve

----
NOTICE
The information in this document is subject to change without notice and should not be
construed as a commitment by Millipore SAS, Molsheim, France. Millipore SAS assumes no
responsibility for any errors that may appear in this document. This manual is believed to
be complete and accurate at the time of publication. In no event shall Millipore SAS be
liable for incidental or consequential damages in connection with or arising from the use of
this manual.

Contents
Introduction..........................................................................................................
Operator and Equipment Safety ..............................................................................
Specifications and Operating Requirements ...............................................................
System Components...............................................................................................
Dispenser Indicator Light Information .......................................................................
Dispenser powered by rechargeable battery ..........................................................
Dispenser powered by AC ..................................................................................
Installing the EZ-Pak® Dispenser Curve ...................................................................
Dispenser powered by rechargeable battery ..........................................................
Dispenser powered by AC ..................................................................................
Loading a Membrane Cartridge
into the EZ-Pak® Dispenser Curve ........................................................................
Using the EZ-Pak® Dispenser Curve ........................................................................
Adjusting the Membrane Exposure (optional) .............................................................
Cleaning the EZ-Pak® Dispenser Curve ....................................................................
Replacing the Battery ............................................................................................
Troubleshooting .....................................................................................................
Ordering Information .............................................................................................
Symbols Referenced ...............................................................................................
Standard Product Warranty .....................................................................................
Technical Assistance ..............................................................................................
5
6
7
8
10
10
11
12
12
14
15
22
24
26
27
29
31
33
34
34

NOTE: This user guide is also available in the following languages: French, Italian,
German, Spanish, and Japanese. Versions can be found on our website at
www.millipore.com/techlibrary.
REMARQUE : Ce guide de l’utilisateur est également disponible dans les langues
suivantes : français, italien, allemand, espagnol et japonais.
Les versions peuvent être téléchargées depuis notre site Internet : www.millipore.com/
techlibrary.
NOTA: Il presente manuale e disponibile anche nelle seguenti lingue: francese, italiano,
tedesco, spagnolo e giapponese. Tali versioni si trovano nel nostro sito web all’indirizzo
www.millipore.com/techlibrary.
HINWEIS: Diese Bedienungsanleitung ist auch in den folgenden anderen Sprachen
verfügbar: Französisch, Italienisch, Deutsch, Spanisch und Japanisch. Diese Versionen
finden Sie auf unserer Website:
www.millipore.com/techlibrary.
NOTA: Esta guía de usuario también esta disponible en los siguientes idiomas: francés,
italiano, alemán, español y japones. Puede encontrar las versiones en nuestro sitio web
www.millipore.com/techlibrary.
注記：このユーザーガイドは、フランス語、イタリア語、ドイツ語、ス
ペイン語、および日本語の版があります。それぞれの版はWEBサイト（www.millipore.com/
techlibrary）からご覧いただけます。

Introduction
The EZ-Pak® Dispenser Curve provides portable, hands-free, high-speed
dispensing of ready-to-use, sterile, individually-packed membranes for
microbiological analysis of liquid samples.
The system is available in two versions:
•Powered by lithium ion battery (up to 10,000 membranes are
dispensed per charge)
•Powered by alternating current (AC)
EZ-Pak® membrane cartridges can be loaded into the EZ-Pak® Dispenser Curve
in less than 30 seconds.
The EZ-Pak® Dispenser Curve automatically collects the protective packaging.
The EZ-Pak® Dispenser Curve is designed to be used under standard clean
conditions and with traditional membrane filtration methods.
EZ-Pak® membrane cartridges contain 150 white, black, or green gridded 47-
mm or 50-mm diameter membranes, and can be used with the Microfil®
filtration system.

Operator and Equipment Safety
•Read and understand this manual before using the EZ-Pak® Dispenser Curve.
Failure to follow operating instructions could result in user injury or damage to
the instrument.
•Read and understand all maintenance instructions in this manual before
performing maintenance on the EZ-Pak® Dispenser Curve. Failure to follow
instructions could result in user injury or damage to the instrument.
•Any alteration of the EZ-Pak® Dispenser Curve from factory specification may
cause unsafe conditions, and will void the product warranty.
•Any attempt to use the EZ-Pak® Dispenser Curve in a manner not specified in
this user guide may result in damage to the instrument, possible operator
injury, and will void the product warranty.
•Do not attempt to open and repair the EZ-Pak® Dispenser Curve. Service should
be performed by trained and authorized personnel only.
•Place the EZ-Pak® Dispenser Curve on a clean, flat, stable, horizontal surface,
away from any source of excessive heat and close to an easily accessible
power outlet.
•Do not expose the EZ-Pak® Dispenser Curve to liquid. If this happens,
immediately switch off and disconnect the EZ-Pak® Dispenser Curve from the
power outlet.
•Use only accessories delivered with the dispenser (external power supply,
rechargeable battery, battery charger). See Ordering Information in this user
guide.
•Preferably use EZ-Pak® membrane cartridges with the EZ-Pak® Dispenser
Curve.
•Before cleaning, switch off and disconnect the EZ-Pak® Dispenser Curve from
the power outlet.
•Before moving the EZ-Pak® Dispenser Curve, switch it off it to avoid
unwanted membrane dispensing.
•The power supply must be protected by a fuse below the main connection.
•The electrical installation must comply with local standards.
•Use an electrical surge protector to prevent damage to the system.

Specifications and Operating Requirements
Dispenser
powered by
lithium-ion
battery
Dispenser powered
by alternating
current (AC)
Dimensions
Width 31 cm / 12.2 in.
Depth 18 cm / 7.1 in.
Height 16.5 cm / 6.5 in.
Weight 2.1 kg / 4.7 lbs. 1.9 kg / 4.3 lbs.
Voltage
Supply Voltage Input 100 V – 240 V
50 Hz - 60 Hz
Current 300 mA 400 mA
Supply Voltage Output 14.8 V 12 V
Environmental operating
temperature 15 to 40 °C (59 °F to 104 °F)
Operating humidity < 90 %
Operating altitude < 2000 m (6561 ft.)
Protection type (IEC
60529-2004)
IP42 for the dispenser
IP40 for the battery charger and the external power supply
Sound intensity <70 dB
Regulatory
Information
We certify that the EZ-Pak® Dispenser Curve was designed and
manufactured in application of :
•The following European Council directives:
― Electromagnetic compatibility 2004/108/EC
― Low voltage directive 2006/95/EC
― Restriction of the use of certain Hazardous Substances in
electrical equipment (RoHS) 2011/65/EC
•The Electrical Appliance and Material Safety Law: PSE mark
Materials of
Construction
Housing Glass bead―reinforced polyamide 6
Cover Glass bead―reinforced polyamide 6
Front sticker Polyester
On/Off switch Polyamide 6-6
Paper and plastic film spool Polyoxymethylene (POM)
Clips Stainless steel
Feet Silicone
Power Inlet Polyamide 6 (battery version) Brass (AC
version)

System Components
The package contains:
•EZ-Pak® Dispenser Curve
•Plastic film and paper spool clips
•Rechargeable lithium-ion battery and battery charger (for dispenser powered by
rechargeable battery)
or
External power supply (for dispenser powered by AC)
•Four power adapter plugs (Europe, USA/Japan, United Kingdom, and Australia/China)
•Screwdriver (for membrane exposure adjustment)
•User Guide
NOTE:
The accessories of the EZ-Pak® Dispenser Curve, listed above, are located on the upper
side of the top cushion layer.

Screw
Back plate
Power inlet
Paper spool
Plastic film/paper
spool clips
Plastic film spool

Dispenser Indicator Light Information
When the dispenser is ON, three indicator lights provide information about the
state of the dispenser.

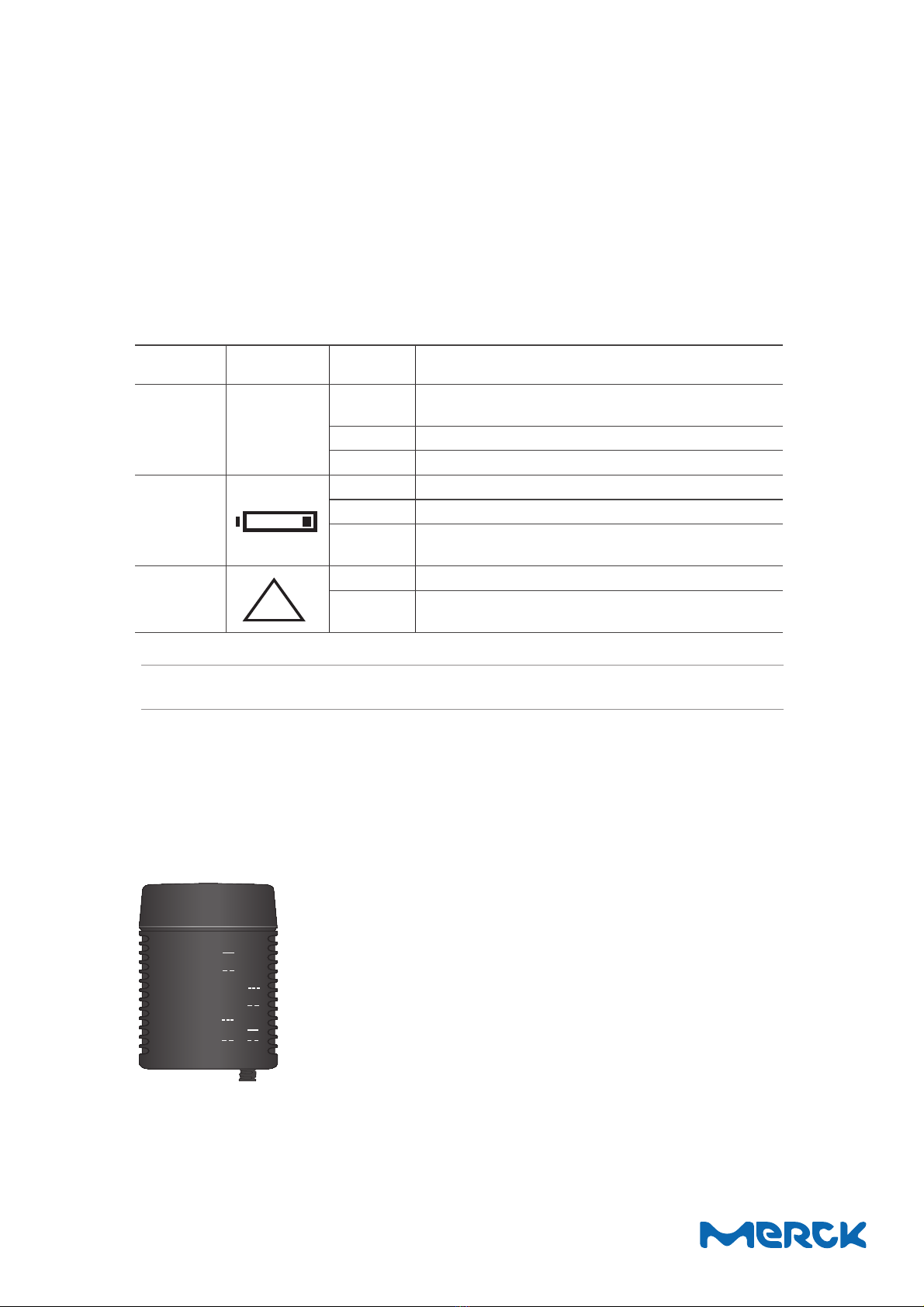

Dispenser powered by rechargeable battery
Indicator
Color
Meaning Status Information
Green
OFF The dispenser is off or is not ready to use (battery
completely discharged or dispenser failure).
Blinking The dispenser is in sleep mode.
ON The dispenser is ready to use.
Yellow
OFF The dispenser battery is charged.
Blinking The dispenser battery is charging.
ON The dispenser battery is low. The dispenser still can be
used, but should be recharged.
Red
OFF The dispenser is operating properly.
ON The dispenser is in a failure mode. See
“Troubleshooting” in this user guide.
NOTE
When the dispenser battery is completely discharged, the yellow and green
indicator lights go off.
Using the battery charger
The dispenser begins charging as soon as it is connected through the charger to a
power outlet, even if the dispenser switch is in Off position (0).
When the dispenser switch is in Off position (0), the status of the charge process
is indicated on the battery charger:
!
OK
Pre Charge
Vorladung
Standby
Bereit
Yellow
Gelb
Green
Grün
Rapid Charge
Hauptladung
Maintain
Nachladung
Error/Fehler
Ready/Fertig
Wait/Warten
Standby: the battery charger is connected to a power outlet
but not to the dispenser.
Pre Charge / Rapid Charge: the dispenser battery is
charging.
Error: the battery is out of order.
Maintain : the battery is 90% charged.
Ready: the battery is fully charged.
Wait: this status is not applicable on this kind of battery
charger.

Dispenser powered by AC
Indicator
Color
Meaning Status Information
Green
OFF The dispenser is off or is not ready to use, or
dispenser failure.
Blinking The dispenser is in sleep mode.
ON The dispenser is ready to use.
Yellow Not applicable. This indicator light is always off.
Red
OFF The dispenser is operating properly.
ON The dispenser is in a failure mode. See
“Troubleshooting” in this user guide.
OK
!

Installing the EZ-Pak® Dispenser Curve
1.. Remove all components from the box. Remove the dispenser fr
the protective bag.
NOTE
Retain all packing materials. If the unit needs to be shipped, it
should be packed in the original materials.
2. Place the dispenser in its working environment.
Dispenser powered by rechargeable battery

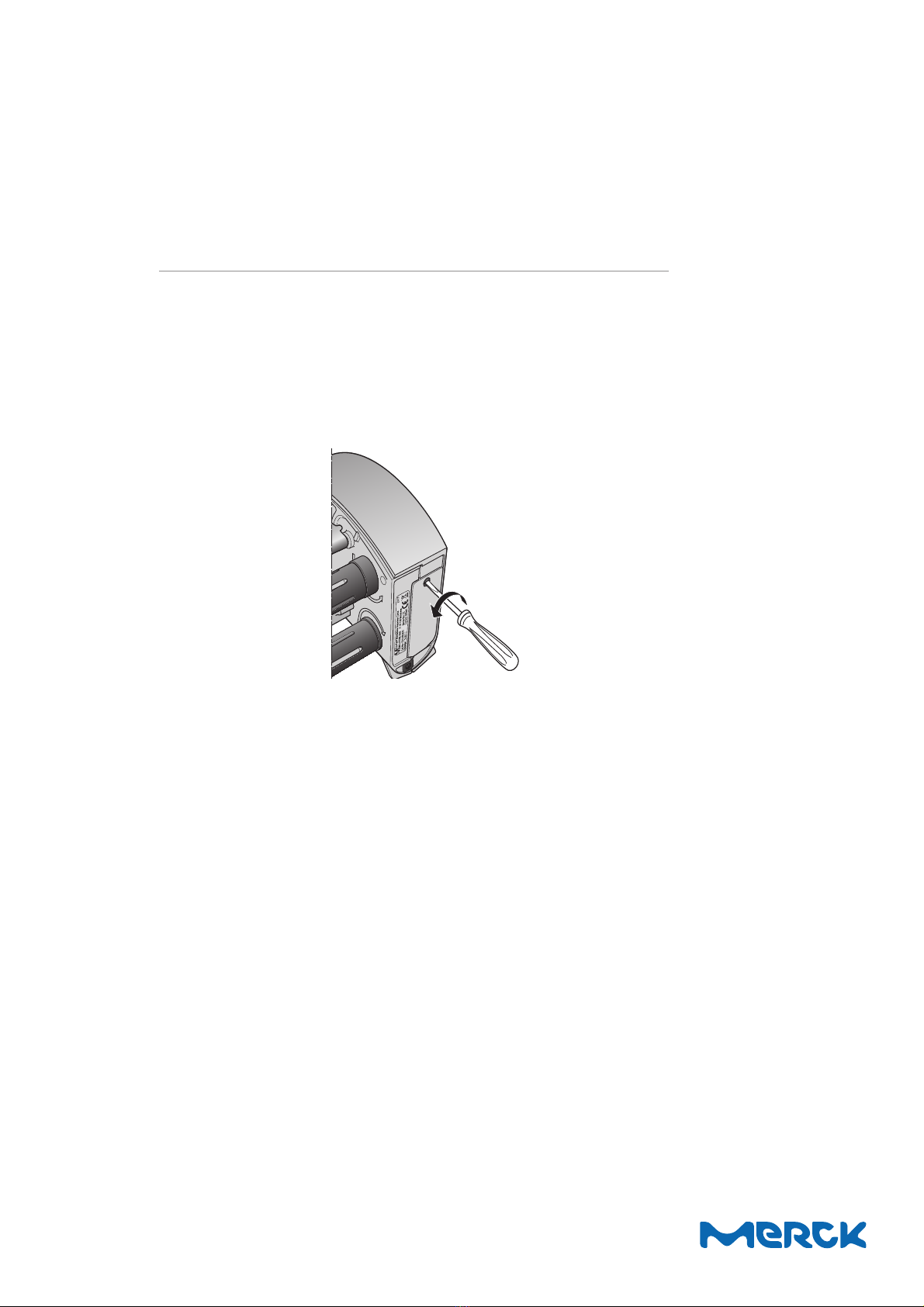

1.. Use the screwdriver delivered with the dispenser to remove the scr
that secures the plate located at the back of the dispenser.
2. Remove the plate.
3. Pull the cord out from the
slot.

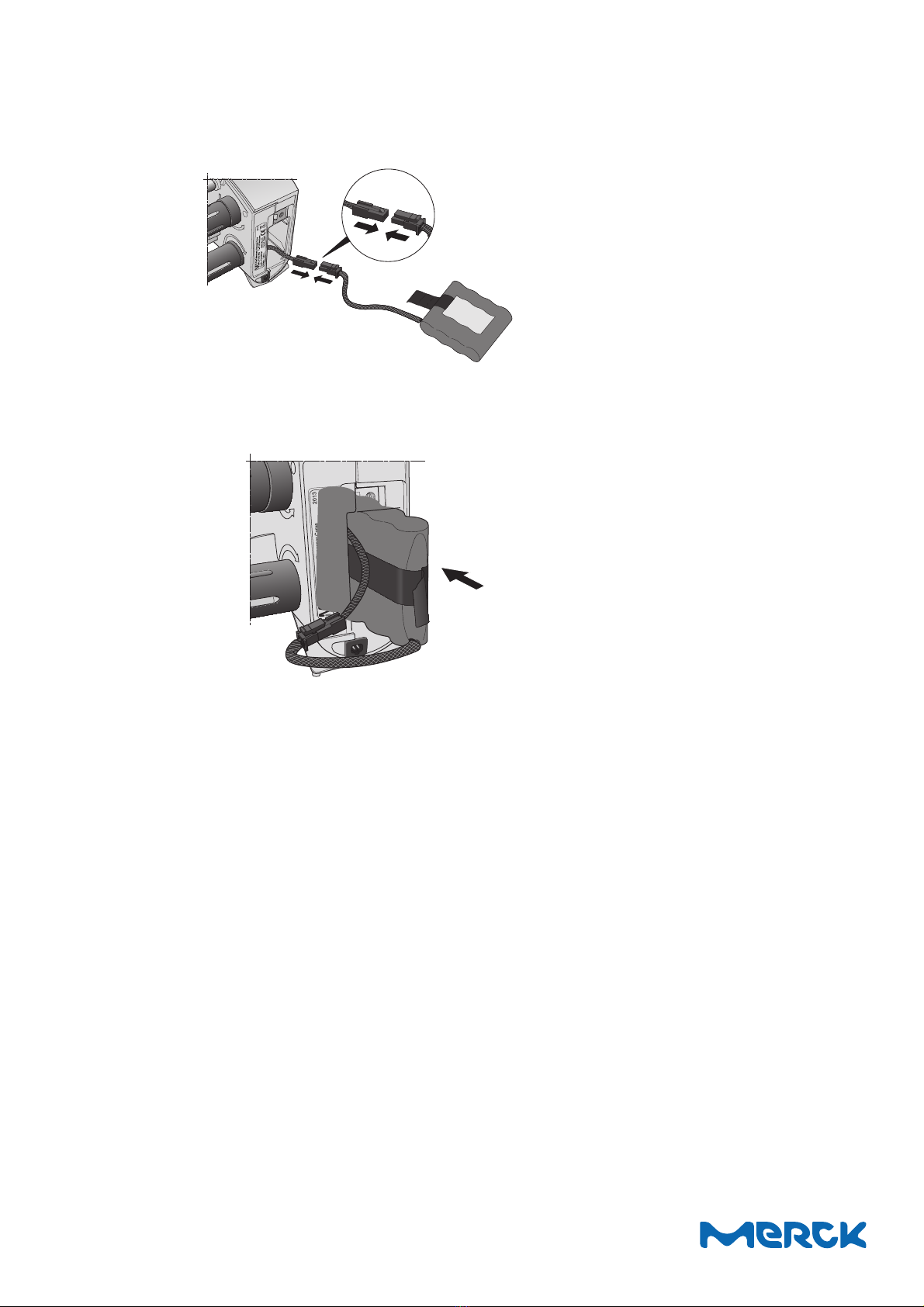

4. Plug the battery delivered with the dispenser to the cord connector.
5. Put the battery into the dispenser.
6. Put the plate back on the dispenser and fasten the screw.
7. Connect the appropriate power adapter plug to the battery charger.

NOTE
Four power adapter plugs are supplied: Europe, USA/Japan,
United Kingdom, and Australia/China.
8. Connect the battery charger cord to the power inlet
on the dispenser.
9. Connect the battery charger to a power outlet.
NOTE
Before first use, completely charge the battery.
Power inlet
Battery
charger
Four power
adapter plugs
Dispenser powered by AC
1. Connect the appropriate power adapter plug to the external power
supply.
NOTE
Four power adapter plugs are supplied: Europe,
USA/Japan, United Kingdom, and Australia/China.
2. Connect the external power supply cord to the
power inlet on the dispenser.
3. Connect the external power supply to a power
outlet.
Power inlet
External
power
supply
Four power
adapter plugs

Loading a Membrane Cartridge into the EZ-Pak®
Dispenser Curve
1. Ensure that the dispenser is off.
2. Open an EZ-Pak® membrane cartridge by detaching the piece of
cardboard from the left side of the box.
NOTE
Only EZ-Pak® membrane cartridges with the “M” logo on the cartridge label
are compatible with the EZ-Pak® Dispenser Curve.
3. Open the dispenser cover.

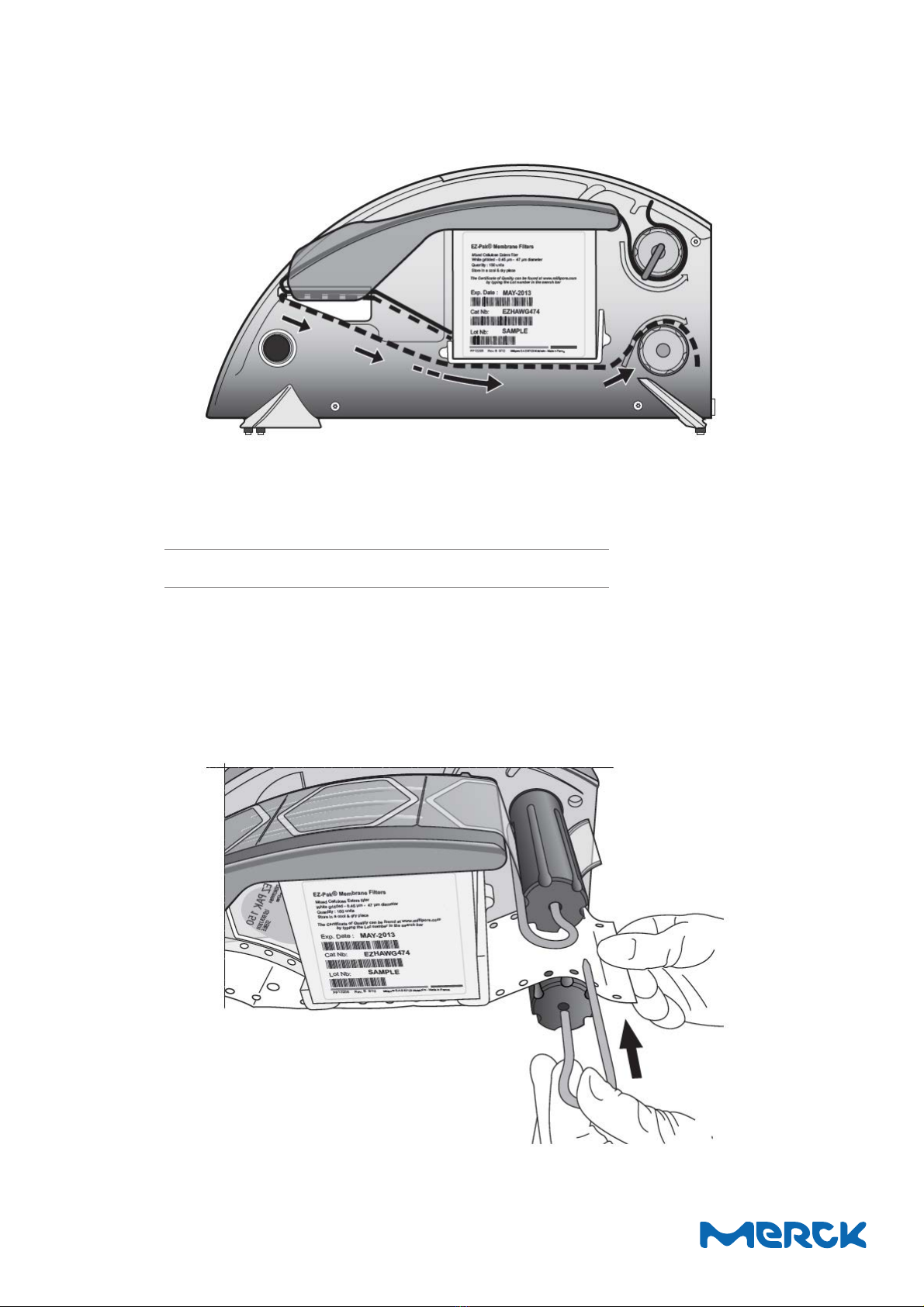

4. Insert the EZ-Pak® membrane cartridge as shown:
5. Pull out the band until the first cell containing a membrane is visible
and fully out of the membrane cartridge.
NOTE
To avoid membrane waste, the first cells on the
band do not contain membranes.

6. Close the cover.
7. Pull off the plastic film and the paper spool clips.

8. Peel away the transparent plastic film from the paper backing of the
cells that are outside of the dispenser.
9. Place the end of the plastic film below the plastic film spool.
NOTE
Refer to the arrows on the dispenser for placement of
the film and the backing paper on the spools.

10. Place the long part of the clip in one of the plastic film spool grooves
to pin the film against the plastic film spool.
11. Secure the film by pushing the small part of the clip into the plastic
film spool until the end stop.

12. Place the backing paper above the paper spool.
NOTE
Refer to the arrows on the dispenser for placement of
the film and the backing paper on the spools.
13.3. Pin the backing paper against the backing paper spool by placing
long part of the clip into one of the paper spool grooves.
