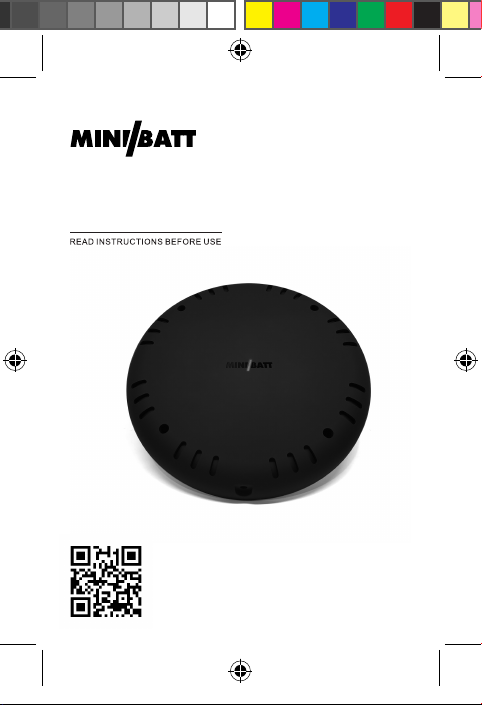

miniBatt PowerDISTANCE User manual

PowerDISTANCE
WIRELESS CHARGER
Please register online
www.miniBatt.com/register MB-PWDIST
USER MANUAL miniBatt PowerDISTANCE_angles.indd 1 17/10/18 8:50

Thank you for purchasing miniBatt PowerDISTANCE, the rst wireless
charger with an easy and invisible installation under the table that
can charge any Qi-compatible smartphone at a distance up to
35 mm.
With this charger, you can charge any Qi-compatible device like a
smartphone or other low-power wireless charging receivers without
the hassle of untangling cables. Just stick the wireless charger
under any non-metallic surface and place your smartphone on the
charging surface, and your smartphone starts charging.
Read this user manual carefully before using the product. Also, read
the user manual for the device that you connect to the charger.
Thank you for selecting miniBatt products.
USER MANUAL miniBatt PowerDISTANCE_angles.indd 2 17/10/18 8:50

WHAT’S IN THE BOX:
INSTALLATION PROCESS:
Wireless Charger Power Adapter Two Antenna stickers
1. Fix the wireless charger under any non-metallic furniture (wood,
plastic, ceramic, glass,…) by using the double tape sticker.
NOTE: Furniture thickness should be between 25 to 35mm.
USER MANUAL miniBatt PowerDISTANCE_angles.indd 3 17/10/18 8:50

2. You can x the product also with the M3*16
3. Stick the antenna sticker exactly aligned with the center of the
wireless charger.
Antenna stiker must be placed on center
NOTE: Furniture thickness should be between 25 to 35mm.
4. Plug the wireless charger on the power adapter.
5. Place your phone on the center of the antenna sticker to start
charging.
FOR MORE INFORMATION
ON THE INSTALATION VISIT
USER MANUAL miniBatt PowerDISTANCE_angles.indd 4 17/10/18 8:50

IMPORTANT ATTENTION:
The thickness of the furniture
must be between 25 to 35 mm.
The center of the antenna sticker
xed on the top of the furniture
has to be exactly the same as the
center for the wireless charger
installed on the bottom
The vertical distance should
not be less than 25 mm.
Equipment below 25mm. enters
in protection status and does
not work.
Do not place any metal object
or credit card, magnetic storage
media near the product,
because information stored on
may be erased.
USER MANUAL miniBatt PowerDISTANCE_angles.indd 5 17/10/18 8:50

STANDARD:
NUMER OF COILS:
INPUT:
OUTPUT:
FREQUENCY:
CHARGING DISTANCE:
EFFICIENCY
PROTECTIONS:
MEDIDAS:
GARANTIA:
CERTIFICACIONES:
POWER ADAPTER:
Compatible Qi – BPP
Single Coil
DC 19V1A
5V1A
109.62-130.61KHz
25mm / 35 mm (vertical) 70%
at 25mm / 55% at 35 mm FOD, OPT,
OVD
157 x 21mm
3 Years
CE, RoHS, REACH, FCC,
Compatible Qi - BPP
33.98dBμA/m@3m distance (for EU)
INPUT 100-240V 50/60Hz – 0,7A
OUTPUT 19V - 1A
PART NUMBER: PowerDISTANCE
EAN CODE: 8435048433008
TECHNICAL SPECIFICATIONS:
USER MANUAL miniBatt PowerDISTANCE_angles.indd 6 17/10/18 8:50
H-FIELD STRENGTH:

3 Years
Warranty
For FAQ’s and more information, please visit:
www.minibatt.com/todo-lo-que-todavia-no-
conoces-sobre-la-carga-inalambrica
Lifetime technical
Support
COSTUMER SERVICE:
USER MANUAL miniBatt PowerDISTANCE_angles.indd 7 17/10/18 8:50

WARRANTY AND SUPPORT
INFORMATION
Please register online
www.miniBatt.com/register
USER MANUAL miniBatt PowerDISTANCE_angles.indd 8 17/10/18 8:50

Please register online: www.miniBatt.com/register
Please retain proof of purchase and warranty information.
To register your product, obtain product information and
documentation, or to access customer-only special oers, direct
your Web browser to the web page at:
www.miniBatt.com/register
Please retain the receipt as proof of purchase and write down the
information below in case you need to obtain support information.
IMPORTANT!
Thank you for selecting miniBatt
USER MANUAL miniBatt PowerDISTANCE_angles.indd 9 17/10/18 8:50

PRODUCT WARRANTY
TURISPORT SL (“MINIBATT”) offers a limited product warranty
on hardware for two years from the date of purchasing.
Products repaired or replaced under warranty shall be subject to
the product warranty remaining for the original products that are
repaired or replaced.
Defects in material or workmanship on a hardware product or
software, covered under warranty, will be repaired or replaced with
the same or functionally equivalent product by MINIBATT, at its
discretion, free of charge under these conditions:
(1) Obtain a return material authorization (RMA) number from
MINIBATT.
(2) Return the failed product to a MINIBATT designated repair
facility with shipping charge prepaid, and
(3) Provide MINIBATT with written proof of the original date of
purchase, such as a dated purchase receipt.
Replacement products may be refurbished or contain refurbished
materials. If MINIBATT, by its sole determination, is unable to repair
or replace the defective product, it will refund the purchase price of
the product, less a reasonable usage charge.
This warranty does not apply if, in the sole judgment of MINIBATT,
the product fails due to damage from shipment, handling, storage,
accident, abuse or misuse, or if it has been installed, used or
maintained in a manner not conforming to product manual
instructions, has been modied in any way, or has had any serial
number removed or defaced. Repair by anyone other than
MINIBATT or an approved agent will void this warranty.
The maximum liability of MINIBATT under this warranty is limited
to the purchase price actually paid by the customer for the product
covered by the warranty, regardless of the amount of any other
direct or indirect damage suered by the customer. MINIBATT
USER MANUAL miniBatt PowerDISTANCE_angles.indd 10 17/10/18 8:50

makes no warranty that the software will be error free or will
operate without interruption.
MINIBATT reserves the right to revise or update its products,
software or documentation without notice. MINIBATT also reserves
the right to change the terms of its limited product
warranty at any time. Except as specically provided above or as
required by law, the warranties and remedies stated above are
exclusive and in lieu of all others, oral or written, express or
implied. Any and all other warranties, including implied warranties
of merchantability and fitness for a particular purpose, and non-
infringement of third party rights are expressly excluded. MINIBATT
shall not under any circumstances be liable to any person for any
special, incidental, indirect or consequential damages, including
without limitation, damages resulting from use or malfunction of
the product, loss of profits or revenues or costs of replacement
goods, even if MINIBATT is informed in advance of the possibility of
such damages. The maximum liability of MINIBATT under this
warranty is limited to the purchase price actually paid by customer
for the product covered by the warranty. Customer’s purchase and
usage of this product is expressly contingent upon the acceptance
of the warranty terms above.
Manufacturer: TURISPORT SL
Address: Ctra. De Vic 99-101 08160 Montmelo Barcelona Spain
USER MANUAL miniBatt PowerDISTANCE_angles.indd 11 17/10/18 8:50

For more information, please visit the
miniBatt website: www.miniBatt.com
Designed in Barcelona
Made in China
This device complies with CE regulations and meets the requirements of the
applicable European guidelines.
Electronic old device are valuable materials and do not belong in the domestic
waste. If the device has reached the end of its operational life, please dispose of it
in a accordance with the applicable regulatory requirements of the local collection
points. Disposal in general household waste is prohibited.
Use only in dry indoors locations.
This device complies with Part 18 of the FCC Rules.
NOTE: This equipment has been tested and found to comply with the limits for a wireless power
charger, pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the product.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator and your body. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Environmentally friendly disposal
Old electrical appliances must not be disposed of together with the residual
waste, but have to be disposed of separately . The disposal at the communal
collection point via private persons if for free. The owner of old appliances is
responsible to bring the appliances to these collection points or to similar
collection points . With this little personal effort, you contributed to recycle
valuable raw materials and the treatment of toxic substances.
