miniBatt FR80 Multi Charge EU User manual

FR80 MULTI CHARGE EU
WIRELESS CHARGER
Please register online:
www.miniBatt.com/register
C
M
Y
CM
MY
CY
CMY
K
AAFF USER MANUAL FR80 Multi Charge.pdf 1 19/6/19 10:19

Qi and Qi mark, are the trade marks of WPC.
This product applies for all Qi standard transmitter.
Thank you for selecting miniBatt products.
Thank you for purchasing a miniBatt FR80 Multi Charge. With this
5 in 1 charger, you can charge any device, not only those with
wireless charge Qi-compatible, but also all other ones that has to
be connected to a USB Type A, Type C or 110-220V.
Parts of the product are magnetic. Metallic materials may be
attracted to the charger. Do not place any credit card or other
magnetic storage media near the product, because info stored
on them may be erased.
Qi is a global standard that makes wireless charging possible for
your device. With this a Qi-compatible device, you don´t need to
connect any cable to charge it.
Read this user manual carefully before using the product.
C
M
Y
CM
MY
CY
CMY
K
AAFF USER MANUAL FR80 Multi Charge.pdf 2 19/6/19 10:19

PRODUCT INTRODUCTION:
miniBatt FR80 is a stylish 5 in 1 wireless charger, with one induction
coil supporting fast charge, compatible with all Qi wireless devices to
be installed in any piece of furniture.
In addition, its pop-up system allows you to lift the cover cap to get
access to the other power supply connections. It includes a power
output (110- 220V with EU plug), 2 x USB Type A connections and 1
Type C connection.
The king of versatility. Ideal and practical power supply of many
devices at the same time. It can be easily installed into an existing 80
mm. through hole on the surface of any piece of furniture or into a
new hole with a maximum thickness of 50 mm.

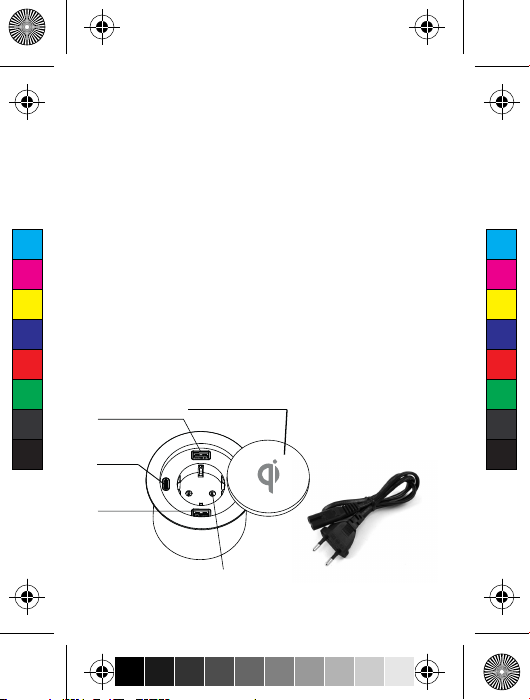

Product overview:
EU Plug cableEU Plug 110 - 240V
USB - A
USB - A
USB
Type C
Qi
Wireless Charge10W
C
M
Y
CM
MY
CY
CMY
K
AAFF USER MANUAL FR80 Multi Charge.pdf 3 19/6/19 10:19

TECHNICAL SPECIFICATIONS:
Input:
110-220V EU plug
Outputs:
Wireless charger: 10W (max)
2 ports USB A/ 1 port USB C (NO PD): 5V 6A (max)
110-220V EU plug
Size:
90 mm. (outside ring ) – 80 mm inside diameter x 86 mm. (height)
DATA SHEET:
SKU: MB-FR80MULTICHARGER_B
EAN CODE 8435048433442
COLOR BLACK MATT
- FR80 Multi Charge EU 1 PCS
- EU Plug cable 1 PCS
- User Manual 1 PCS
Parts list (included in this package):
C
M
Y
CM
MY
CY
CMY
K
AAFF USER MANUAL FR80 Multi Charge.pdf 4 19/6/19 10:19

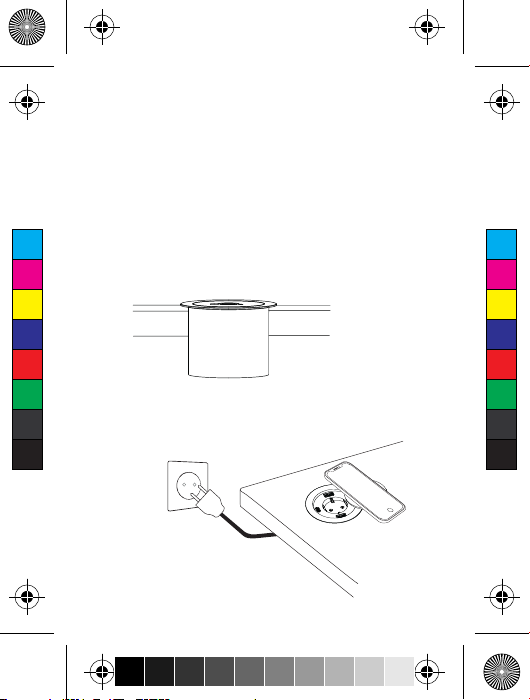

USER GUIDE:
Before start using the miniBatt FR80 Multi Charge EU you must
install the product on an existing 80 mm. through hole.
You can also make a new hole or make a new one into any piece of
furniture and x the unit with the threaded xing washer.
The product can be installed on any surface with a thickness from 5
mm to 50mm.
Connect the FR80 cable included on the box to a 110-220V power
output with EU Plug
No aditional power adapter is required.
110-220 V
EU Plug
*Desktop Max. 50 mm
Min. 0,5 mm
C
M
Y
CM
MY
CY
CMY
K
AAFF USER MANUAL FR80 Multi Charge.pdf 5 19/6/19 10:19

When the product is installed, you can use it with two dierent options:
1. ONLY WIRELESS CHARGE
If you only want to charge your smartphone with the wireless charger,
just drop it on the charger surface. Please align your wireless
smartphone coil with the center of the product, marked with the Qi
logo.
2. CHARGE DIFFERENT DEVICES AT ONCE:
If you want to charge multiple devices at the same time, or use
dierent charging outputs.
*Smartphone
*Desktop
Press the button
1 Step
C
M
Y
CM
MY
CY
CMY
K
AAFF USER MANUAL FR80 Multi Charge.pdf 6 19/6/19 10:19

IT IS POSSIBLE TO USE ALL OUTPUTS AT THE SAME TIME,
INCLUDING THE WIRELESS CHARGER.

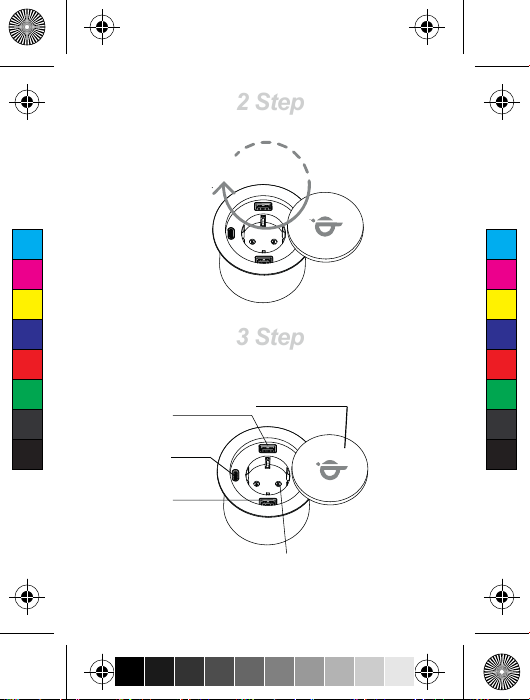

Press and rotate
2 Step
Rotation and wireless charging
3 Step
EU Plug 110 - 240V
USB - A
USB - A
USB
Type C
Qi
Wireless Charge10W
*Rotate 90º
C
M
Y
CM
MY
CY
CMY
K
AAFF USER MANUAL FR80 Multi Charge.pdf 7 19/6/19 10:19

Safety information:
• After opening wireless charger cover, don’t put metal things or water
inside USB/220V output.
• Keep the device dry. Precipitation, humidity and all types of liquids will
damage the device.
• Wireless charger cover only can rotate 90 degree.
• Use the charging station for intended purposes only.
• The charging station should only be used at normal indoor conditions.
Working temperature 0-45º.
• Do not attempt to charge a device having a damaged, cracked or open
battery case.
• Do not use the device in dusty or dirty areas. Moving parts and
electronic components can be damaged.
• Do not store the device in high or low temperatures. The device can be
damaged.
• Do not attempt to open the device.
• Unauthorized modications may damage the device and violate
regulations governing radio devices.
• Do not drop, knock, or shake the device. Rough handling can break
internal circuit boards and mechanics.
• Only use a soft, clean, dry cloth to clean the surface of the device.
C
M
Y
CM
MY
CY
CMY
K
AAFF USER MANUAL FR80 Multi Charge.pdf 8 19/6/19 10:19

WARRANTY AND SUPPORT
INFORMATION
Please register online:
www.miniBatt.com/register
C
M
Y
CM
MY
CY
CMY
K
AAFF USER MANUAL FR80 Multi Charge.pdf 9 19/6/19 10:19

Please register online: www.miniBatt.com/register
Please retain proof of purchase and warranty information.
To register your product, obtain product information and
your Web browser to the web page at:
www.miniBatt.com/register
Please retain the receipt as proof of purchase and write down the
information below in case you need to obtain support information.
IMPORTANT!
Thank you for selecting miniBatt
