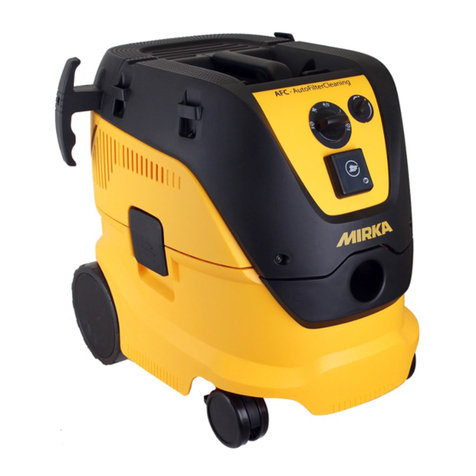

MIRKA 1230 Series User manual

MIRKA® DUST EXTRACTOR 1230
Today, health and safety issues are becoming more and more important.
Sanding tools and abrasives are made more and more ecient, with focus
on dust-free applications. This development places higher requirements on
the dust extractors. To meet these demands, the Mirka dust extractor range
has been extended with new versions of Mirka dust extractors:
Mirka® Dust Extractor 1230 L PC
Mirka® Dust Extractor1230 L AFC (AutoFilterCleaning)
Mirka® Dust Extractor 1230 M AFC (AutoFilterCleaning)
The 1230 dust extractor range is equipped with a high-performance 1200 W motor and a 1-stage turbine
that creates 250 mbar suction with an airow of 4500 l/min. The new 1230 dust extractors include the
auto-start function. As the dust extractor only runs when the power tool is in use, thanks to the auto start
function, there is less noise and at the same time the dust extractor gains a longer lifetime. Bigger wheels
signicantly improve maneuverability on uneven oor surfaces. Another advantage is that the lter is
easy to reach through a separate opening in the back without removing the upper part.
Mirka Dust Extractor 1230 L PC 230V
EAN: 6416868904444
IMPROVE YOUR PERFORMANCE
This professional dust extractor has a high performance
motor and turbine, which creates 250 mbar vacuum and
4500 l/min air ow. The AutoStart function increases the
lifetime of the motor and reduces noise. A eece dust bag
is also included.
Mirka Dust Extractor 1230 L AFC 230V
EAN: 6416868904727
Flat top with space for storage and large wheels for better
maneuverability. Auto-lter cleaning for convenience
and consistent performance. Hose and cable storage for
more comfortable transportation. A eece dust bag is also
included.
Mirka Dust Extractor 1230 M AFC 230V
EAN: 6416868252521
This professional M-class dust extractor has a high
performance motor and turbine, which creates 250 mbar
vacuum and 4500 l/min air ow. Auto-lter cleaning for
convenience and consistent performance, as well as an
air-ow sensor which indicates when air ow falls below
optimal. A eece dust bag is also included.
©Mirka Ltd 202399 AA-MA012017FG
For more information please visit www.mirka.com and check our videos on the Mirka YouTube channel
Mirka Ltd Finland

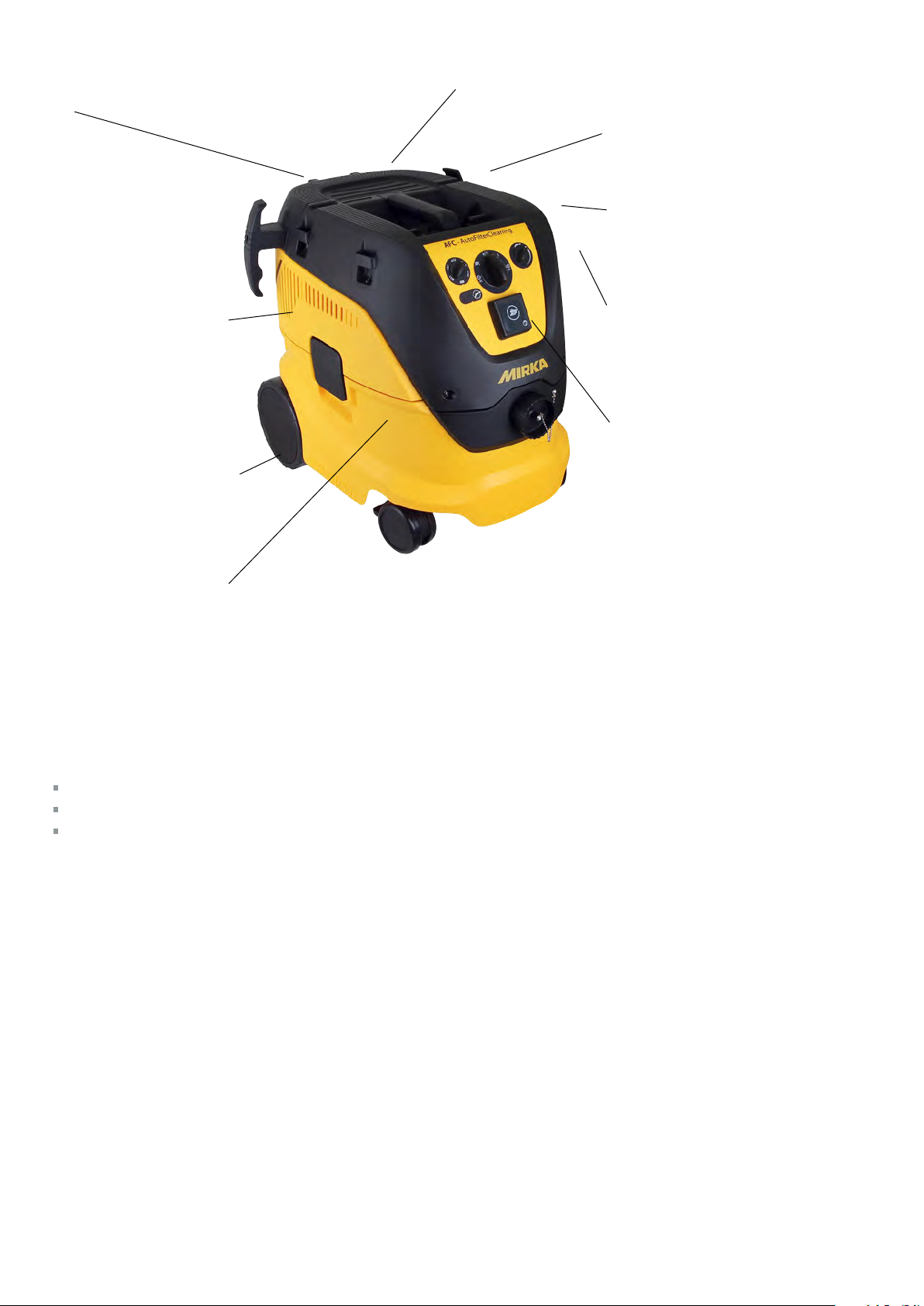

Technical Specifications
Technical features
Mirka® Dust Extractor 1230 L / M
Voltage mains supply 220 – 240 V ~
Mains frequency 50/60 Hz
Power input 1200 W
Volume flow air 4500 l/min
Vacuum 250 mbar
Noise level, LpA 60 dBA
Tank volume 30 l
Dimension W x D x H 385 x 565 x 565 mm
Weight 14.5 kg
Cable storage Simple and effective. The durable
strap keeps the cable in place during transportation.
Easily accessible flat filter
The filter is easy to reach
through a separate opening in
the back without removing the
upper part.
Big wheels Significantly improves
maneuverability on uneven floor
surfaces.
Hose storage Keeps the
hose and dust extractor
placed together.
AutoStart function As the
dust extractor only runs when
the power tool is in use, the
dust extractor gains a longer
lifetime and makes less noise.
Note! When used together with
pneumatic tools an additional
accessory is needed
Flat top Space for storage
during use.
Air intake filter Longer life
time of motor. A (PET) filter is
available as an accessory for
even better protection.
High-performance A 1200 W motor and a 1-stage turbine that creates
250 mbar suction with an airflow of 4500 l/min. These features make
the dust extractor well suited for Mirka applications.
Cable High quality and long reach.

©Mirka Ltd 202399 AA-MA012017FG
For more information please visit www.mirka.com and check our videos on the Mirka YouTube channel
Mirka Ltd Finland
Technical Specifications
Technical features
Mirka® Dust Extractor 1230 L / M
Voltage mains supply 220 – 240 V ~
Mains frequency 50/60 Hz
Power input 1200 W
Volume flow air 4500 l/min
Vacuum 250 mbar
Noise level, LpA 60 dBA
Tank volume 30 l
Dimension W x D x H 385 x 565 x 565 mm
Weight 14.5 kg
Cable storage Simple and effective. The durable
strap keeps the cable in place during transportation.
Easily accessible flat filter
The filter is easy to reach
through a separate opening in
the back without removing the
upper part.
Big wheels Significantly improves
maneuverability on uneven floor
surfaces.
Hose storage Keeps the
hose and dust extractor
placed together.
AutoStart function As the
dust extractor only runs when
the power tool is in use, the
dust extractor gains a longer
lifetime and makes less noise.
Note! When used together with
pneumatic tools an additional
accessory is needed
Flat top Space for storage
during use.
Air intake filter Longer life
time of motor. A (PET) filter is
available as an accessory for
even better protection.
High-performance A 1200 W motor and a 1-stage turbine that creates
250 mbar suction with an airflow of 4500 l/min. These features make
the dust extractor well suited for Mirka applications.
Cable High quality and long reach.
Mirka’s new dust extractors
– improve your performance
Today, health and safety issues are becoming more and more important. Sanding tools and abrasives are made more and
more efficient, with focus on dust-free applications. This development places higher requirements on the dust extractors. To
meet these demands, the Mirka dust extractor range has been extended with new versions of Mirka dust extractors:
Mirka® Dust Extractor 1230 L PC
Mirka® Dust Extractor1230 L AFC (AutoFilterCleaning)
Mirka® Dust Extractor 1230 M AFC (AutoFilterCleaning)
Mirka Dust Extractor 1230 L PC is a model that requires manual filter-cleaning, while the two other models (AFC) are equipped
with an automatic filter-cleaning system. The efficient filter cleans itself every 15 seconds and which clearly improves the
performance of the dust extractor.
Advantages with automatic filter cleaning
Less maintenance
Constant performance
Possibility to work without dust bags
The 1230 dust extractor range is equipped with a high-performance 1200 W motor and a 1-stage turbine that creates
250 mbar suction with an airflow of 4500 l/min. The new 1230 dust extractors include the auto-start function. As the dust
extractor only runs when the power tool is in use, thanks to the auto start function, there is less noise and at the same time the
dust extractor gains a longer lifetime. Bigger wheels significantly improve maneuverability on uneven floor surfaces. Another
advantage is that the filter is easy to reach through a separate opening in the back without removing the upper part.
The 1230 dust extractor range is convenient to use as it allows
a case fastening system which is available as an accessory. There is extra
space on top that provides storage during use. You are able to attach one
or several plastic cases on top of the dust extractor.

4Mirka® Dust Extractor • 1230 L • 230 V • PC & AFC
3
1
2
4
5
6
7
8
9
10
11
Quick reference

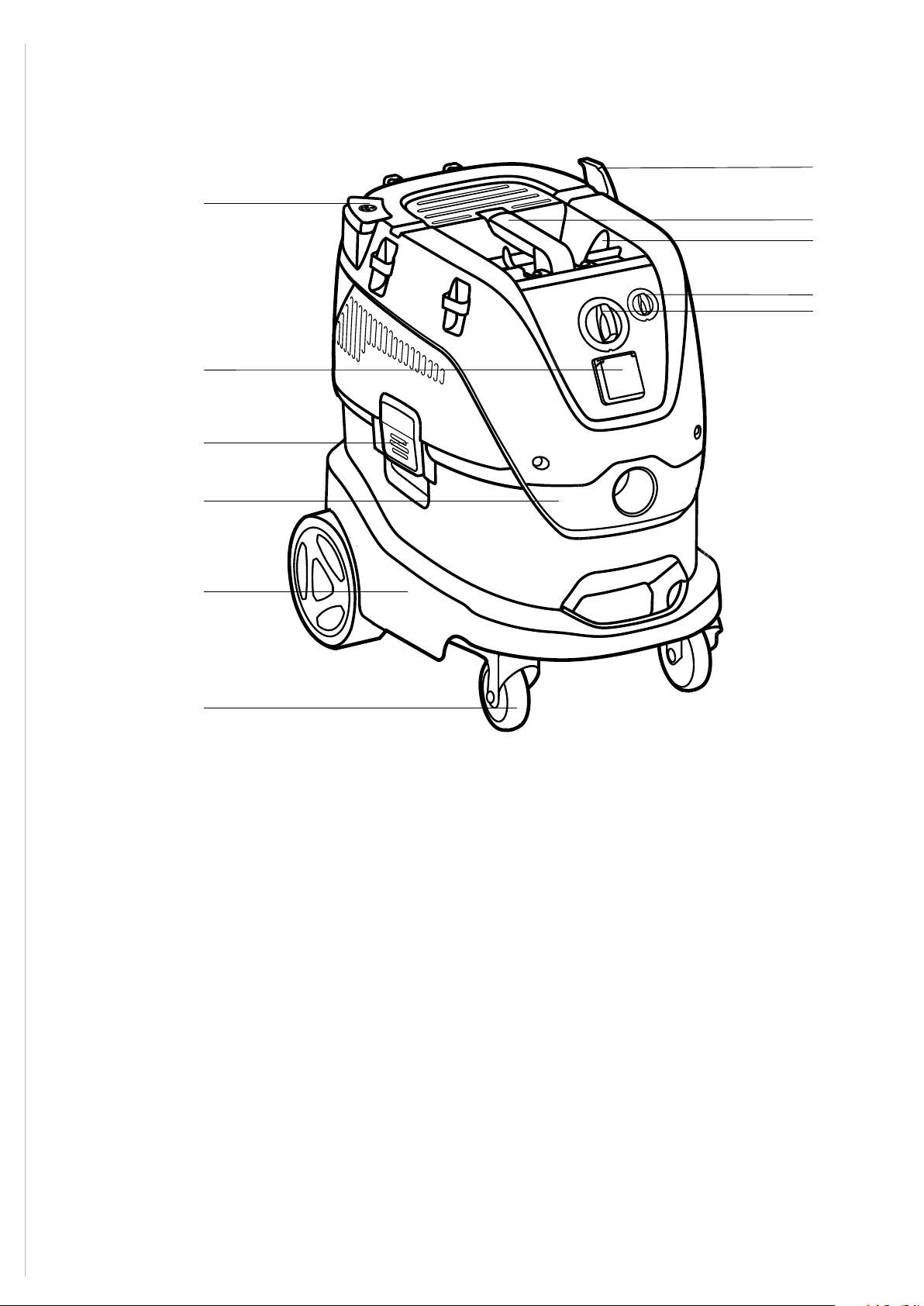

Operating elements
1Handle
2Accessory positions
3Container clamp
4Wheel
5Container
6Inlet fitting
7Switch
8Speed control
9Appliance socket
10 Filter cleaning button (Push & Clean)
11 Hose hook

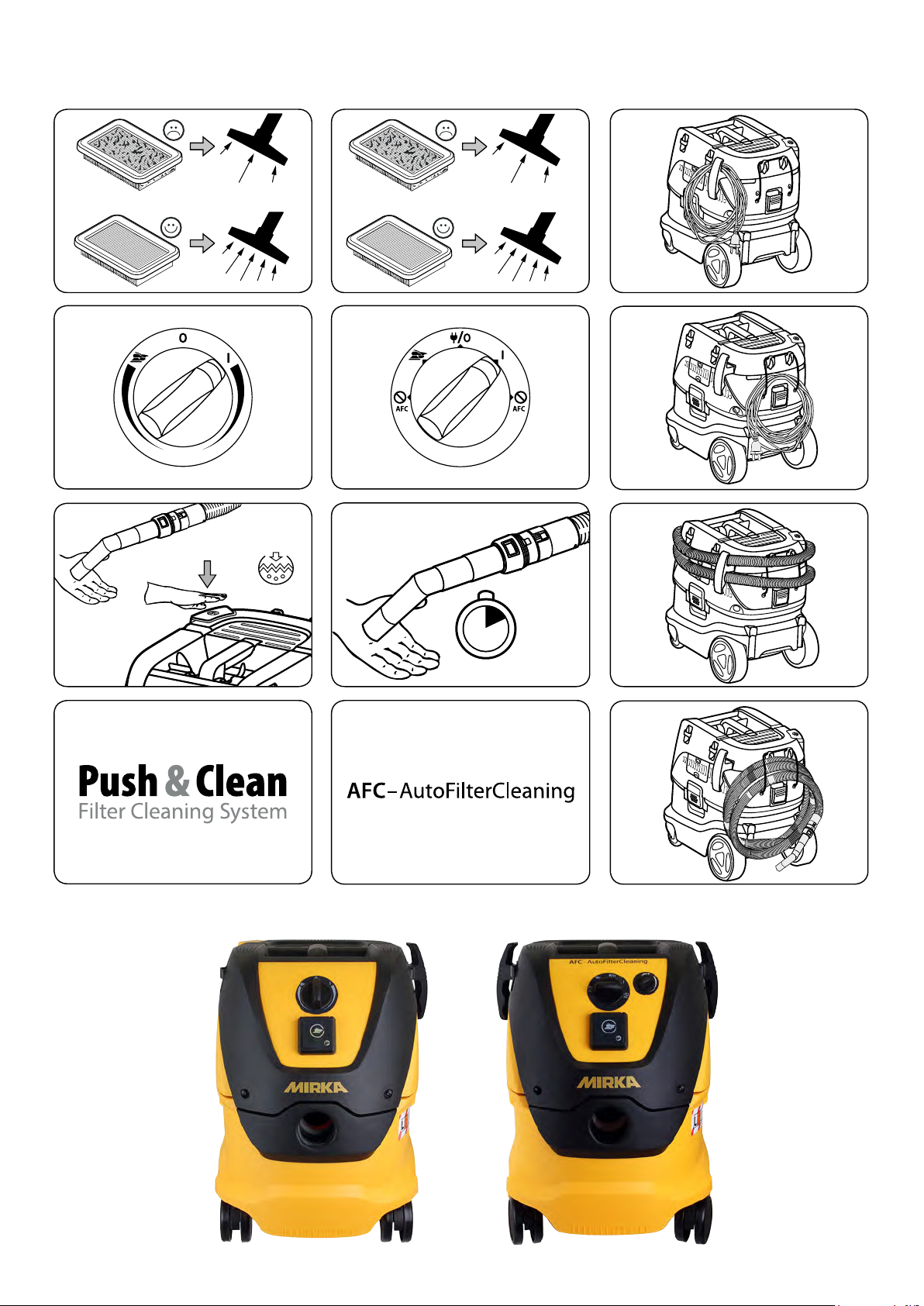

The pictorial quick reference guide
The pictorial quick reference guide is designed to help you
when starting up, operating and storing the unit. The guide is
subdivided into four sections, which are represented by symbols:
Before starting
DO READ OPERATING INSTRUCTIONS BEFORE USE!
Control / Operation
APC – Push & Clean filter cleaning system
BAFC – Auto Filter Cleaning system
CCable and hose storage

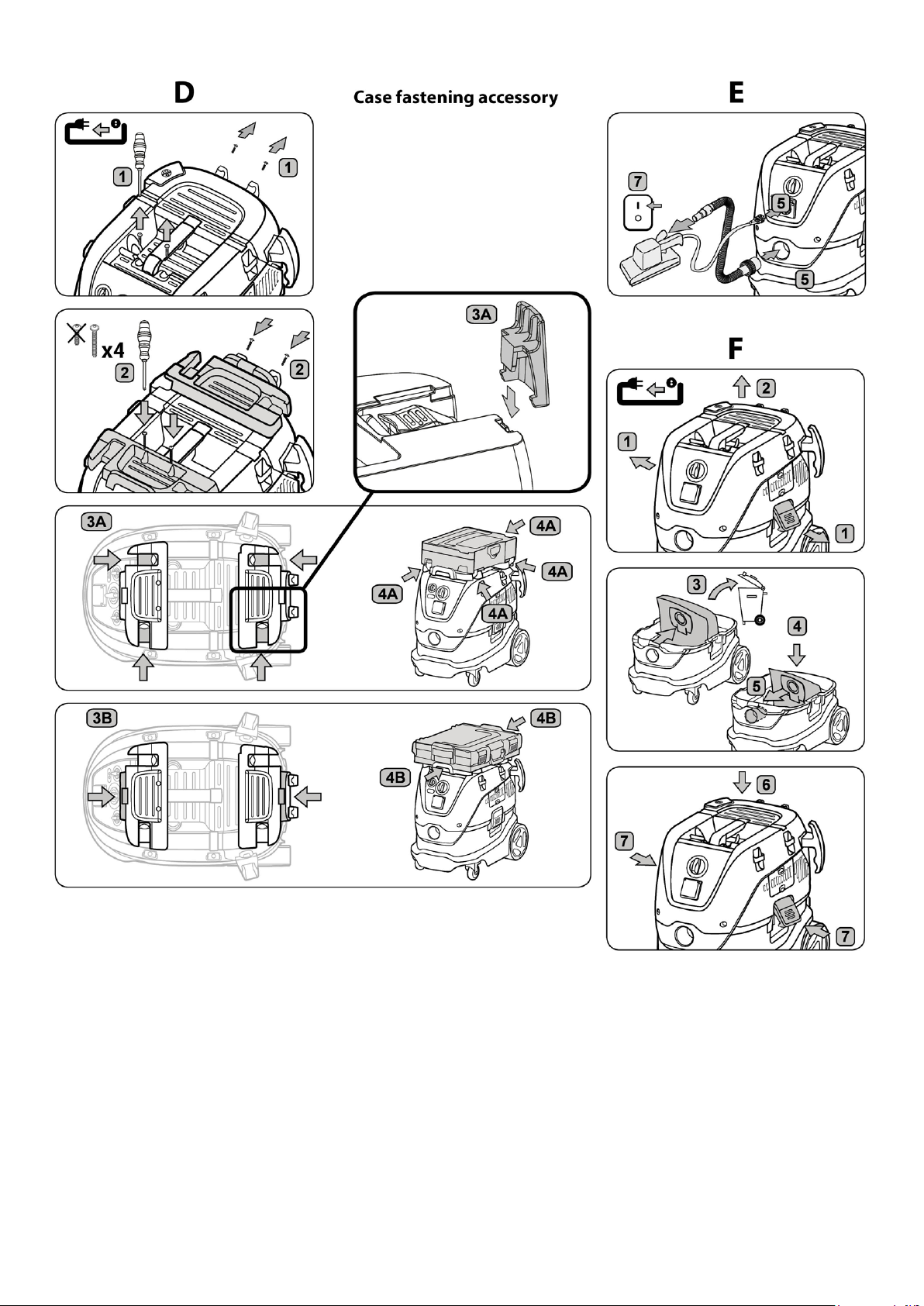

DCase fastening accessory
Connecting electrical appliances
EPower tool adaption
Maintenance
FFilter bag replacement

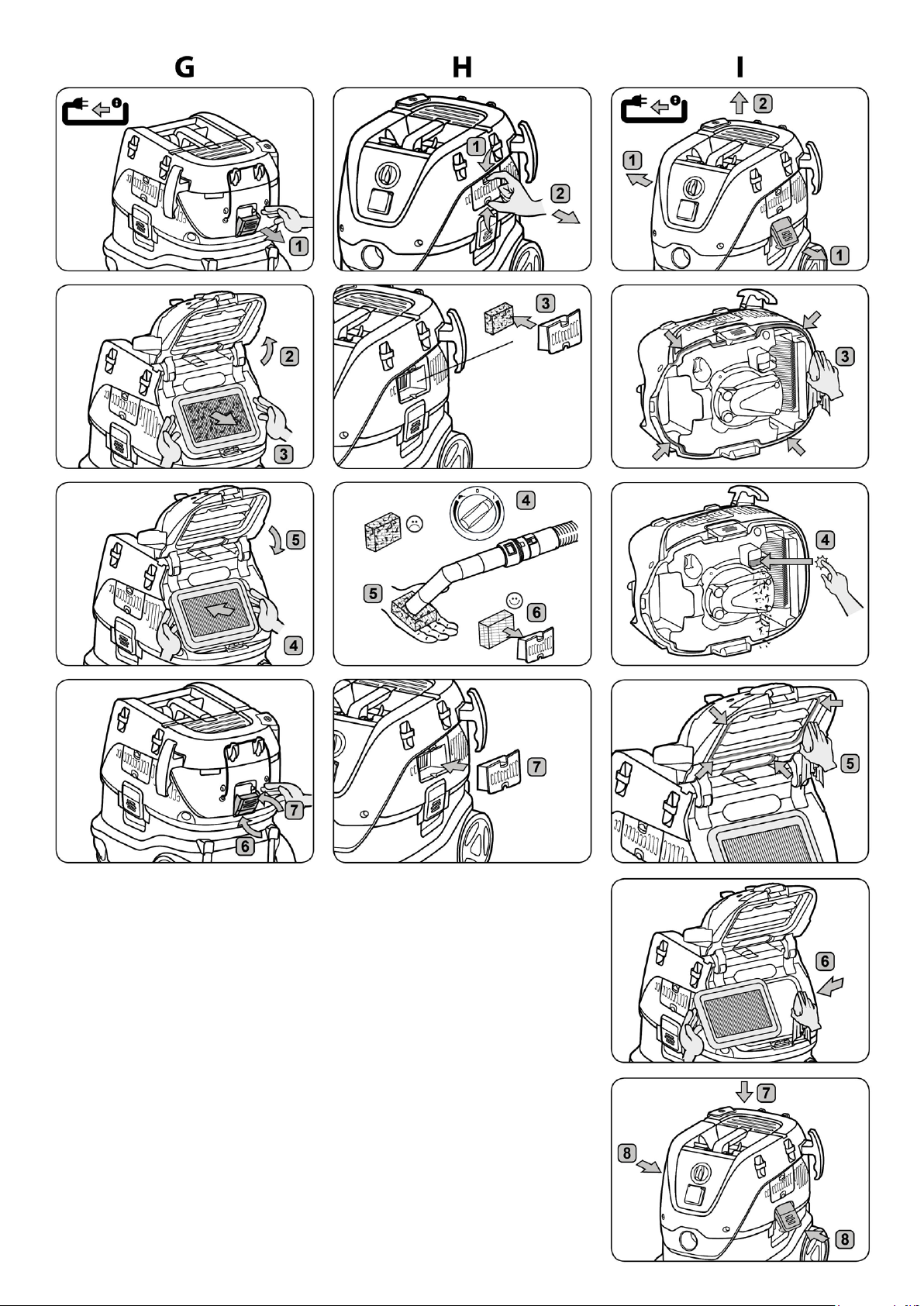

GFilter replacement
HMotor cooling filter cleaning
IGaskets and float cleaning
MIRKA® DUST EXTRACTOR 1230 L-CLASS
©Mirka Ltd 202399 AA-MA012017FG
For more information please visit www.mirka.com and check our videos on the Mirka YouTube channel
Mirka Ltd Finland
Technical Specifications
Technical features
Mirka® Dust Extractor 1230 L / M
Voltage mains supply 220 – 240 V ~
Mains frequency 50/60 Hz
Power input 1200 W
Volume flow air 4500 l/min
Vacuum 250 mbar
Noise level, LpA 60 dBA
Tank volume 30 l
Dimension W x D x H 385 x 565 x 565 mm
Weight 14.5 kg
Cable storage Simple and effective. The durable
strap keeps the cable in place during transportation.
Easily accessible flat filter
The filter is easy to reach
through a separate opening in
the back without removing the
upper part.
Big wheels Significantly improves
maneuverability on uneven floor
surfaces.
Hose storage Keeps the
hose and dust extractor
placed together.
AutoStart function As the
dust extractor only runs when
the power tool is in use, the
dust extractor gains a longer
lifetime and makes less noise.
Note! When used together with
pneumatic tools an additional
accessory is needed
Flat top Space for storage
during use.
Air intake filter Longer life
time of motor. A (PET) filter is
available as an accessory for
even better protection.
High-performance A 1200 W motor and a 1-stage turbine that creates
250 mbar suction with an airflow of 4500 l/min. These features make
the dust extractor well suited for Mirka applications.
Cable High quality and long reach.
Mirka’s new dust extractors
– improve your performance
Today, health and safety issues are becoming more and more important. Sanding tools and abrasives are made more and
more efficient, with focus on dust-free applications. This development places higher requirements on the dust extractors. To
meet these demands, the Mirka dust extractor range has been extended with new versions of Mirka dust extractors:
Mirka® Dust Extractor 1230 L PC
Mirka® Dust Extractor1230 L AFC (AutoFilterCleaning)
Mirka® Dust Extractor 1230 M AFC (AutoFilterCleaning)
Mirka Dust Extractor 1230 L PC is a model that requires manual filter-cleaning, while the two other models (AFC) are equipped
with an automatic filter-cleaning system. The efficient filter cleans itself every 15 seconds and which clearly improves the
performance of the dust extractor.
Advantages with automatic filter cleaning
Less maintenance
Constant performance
Possibility to work without dust bags
The 1230 dust extractor range is equipped with a high-performance 1200 W motor and a 1-stage turbine that creates
250 mbar suction with an airflow of 4500 l/min. The new 1230 dust extractors include the auto-start function. As the dust
extractor only runs when the power tool is in use, thanks to the auto start function, there is less noise and at the same time the
dust extractor gains a longer lifetime. Bigger wheels significantly improve maneuverability on uneven floor surfaces. Another
advantage is that the filter is easy to reach through a separate opening in the back without removing the upper part.
The 1230 dust extractor range is convenient to use as it allows
a case fastening system which is available as an accessory. There is extra
space on top that provides storage during use. You are able to attach one
or several plastic cases on top of the dust extractor.

Mirka® Dust Extractor • 1230 L • 230 V • PC & AFC 5
A B
3
4
3x
2
Vibeke will make
3x
3
4
3x
2
Vibeke will make
10 sec.
6Mirka® Dust Extractor • 1230 L • 230V • PC & AFC
C

86 Mirka® Dust Extractor • 1230 L • 230 V • PC & AFC
en
We reserve the right to make changes to this manual without prior notice.
Operating elements
1Handle
2Accessory positions
3Container clamp
4Wheel
5Container
6Inlet fitting
7Switch
8Speed control
9Appliance socket
10 Filter cleaning button (Push & Clean)
11 Hose hook
The pictorial quick reference guide
The pictorial quick reference guide is designed to help you when starting up, operating and storing the unit. The guide
is subdivided into four sections, which are represented by symbols:
Contents
1. Safety instructions
1.1 Symbols used to mark instructions
1.2 Instructions for use
1.3 Purpose and intended use
1.4 Electrical connection
1.5 Extension lead
1.6 Warranty
1.7 Important warnings
2. Risks
2.1 Electrical components
2.2 Hazardous dust
2.3 Spare parts and accessories
2.4 In explosive or inflammable atmosphere
3. Control / Operation

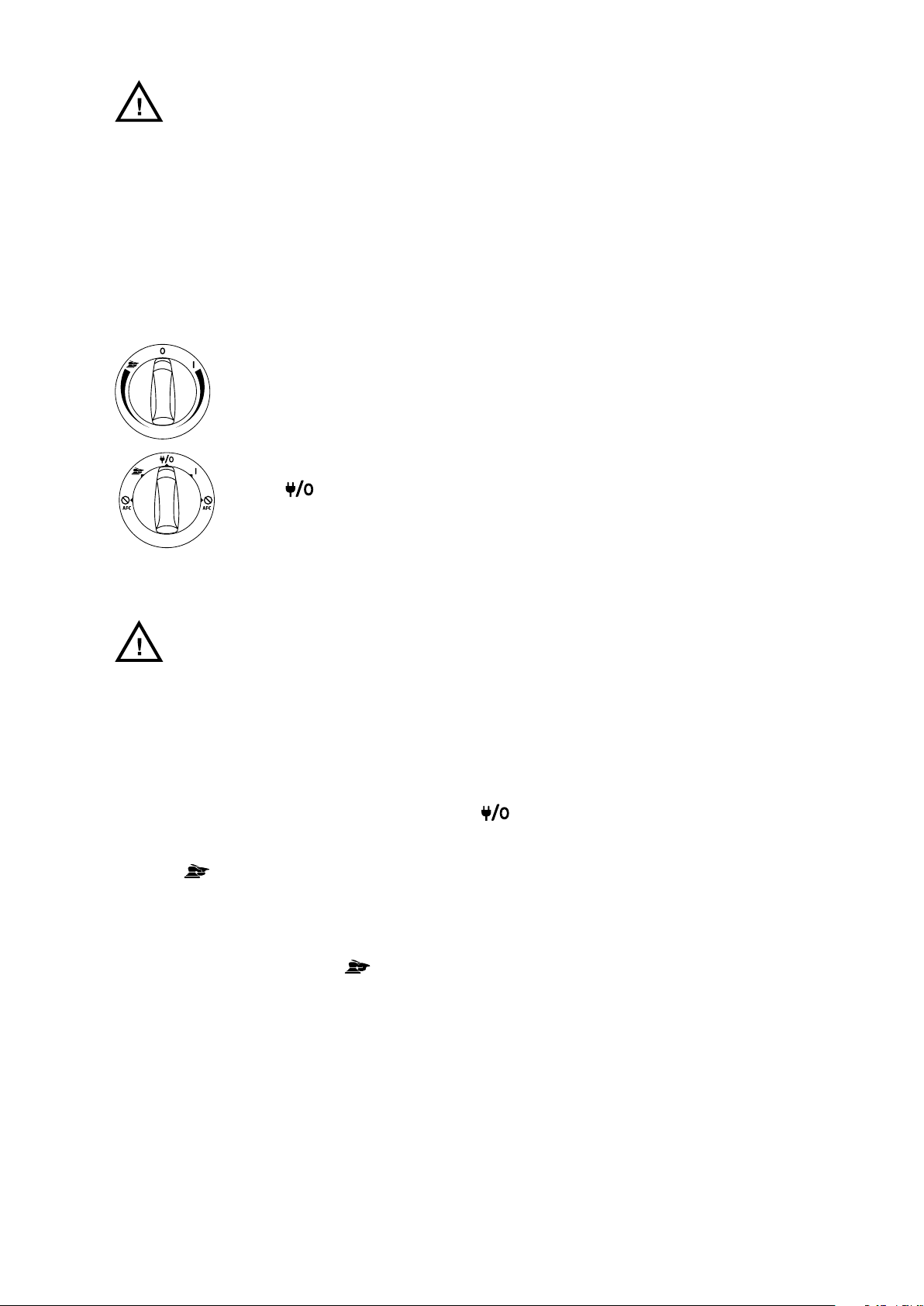

3.1 Starting and operating the machine
3.2 Auto-On / Off socket outlet for power tools
3.3 PC – Push & Clean
3.4 AFC – Auto Filter Cleaning
3.5 Antistatic connection
3.6 Motor cooling filter
3.7 Wet pick-up
3.8 Dry pick-up
4. After using the machine
4.1 After use
4.2 Transport
4.3 Storage
4.4 Accessory and tool storage
4.5 Recycling the machine
5. Maintenance
5.1 Regular servicing and inspection
5.2 Maintenance
6. Further information
6.1 EU Declaration of conformity
6.2 Specifications
Before starting
DO READ OPERATING INSTRUCTIONS BEFORE USE!
Control / Operation
APC – Push & Clean filter cleaning system
BAFC – Auto Filter Cleaning system
CCable and hose storage
DCase fastening accessory
Connecting electrical appliances
EPower tool adaption
Maintenance
FFilter bag replacement
GFilter replacement
HMotor cooling filter cleaning
IGaskets and float cleaning
88 Mirka® Dust Extractor • 1230 L • 230 V • PC & AFC
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
Any other use is considered as improper use. The manufacturer accepts no liability for any damage resulting from such
use. The risk for such use is borne solely by the user. Proper use also includes proper operation, servicing and repairs as
specified by the manufacturer.
For Dust Class L machines the following applies:
The appliance is suitable for picking up dry, non-flammable dust and liquids, hazardous dust with OEL (Occupational
Exposure Limit) values > 1 mg/m3.
Dust Class L (IEC 60335-2-69). Dust in this class has OEL values > 1 mg/m3. For machines intended for Dust Class L, the
filter material has been tested. The maximum degree of permeability is 1% and there is no special requirement for
disposal.
For dust extractors, ensure adequate air change rate L, when the exhaust air is returned to the room. Observe national
regulations before use.
1.4 Electrical connection
•It is recommended that the machine should be connected via a residual current circuit breaker.
• Arrange the electrical parts (sockets, plugs and couplings) and lay down the extension lead so that the protection
class is maintained.
• Connectors and couplings of power supply cords and extension leads must be watertight.
1.5 Extension lead
1. Only use the version of extension lead specified by the manufacturer, or one of a higher quality.
2. When using an extension lead, check the minimum cross-sections of the cable:
Cable length Cross section < 16 A Cross section < 25 A
≤ 20 m 1,5 mm22,5 mm2
20–50 m 2,5 mm24,0 mm2
1.6 Warranty
Our general conditions of business are applicable with regard to the warranty. Unauthorised modifications to the
appliance, the use of incorrect brushes and use of the appliance in a way other than for the intended purpose exempt
the manufacturer from any liability for the resulting damage.
1.7 Important warnings
WARNING
• To reduce the risk of fire, electric shock, or injury, please
read and follow all safety instructions and caution markings
before use. This machine is designed to be safe when used
for cleaning functions as specified. Should damage occur to
electrical or mechanical parts, the machine and/or accessory
en

Mirka® Dust Extractor • 1230 L • 230V • PC & AFC 91
• If the electric cable is damaged, it must be replaced by an
authorized Mirka distributor or similar qualified person in
order to avoid a hazard.
• In no circumstances should the power supply cord be wrapped
around fingers or any part of the operator.
2.2 Hazardous dust
WARNING
Hazardous materials. Vacuuming up hazardous materials can
lead to serious or even fatal injuries. The following materials
must not be picked up by the machine:
• hot materials (burning cigarettes, hot ash, etc.)
• flammable, explosive, corrosive liquids (e.g. petrol, solvents,
acids, alkalis, etc.)
• flammable, explosive dust (e.g. magnesium or aluminium
dust, etc.)
2.3 Spare parts and accessories
CAUTION
Spare parts and accessories.
The use of non-genuine spare parts, brushes and accessories can impair the safety and/or function of the appliance.
Only use original spare parts and accessories from Mirka. Spare parts that can affect the health and safety of the
operator and/or function of the appliance, are specified below.
Description Mirka code
Filter element 8999100411
Fleece filter bag (5 pcs) 8999100211
Disposal bag (5 pcs) 8999110311
Motor cooling filter 8999110111
Motor cooling filter PET 8999110211
Case fastening accessory 8999110411
Pneumatic box 230 V 8999101011
en
88 Mirka® Dust Extractor • 1230 L • 230 V • PC & AFC
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
Any other use is considered as improper use. The manufacturer accepts no liability for any damage resulting from such
use. The risk for such use is borne solely by the user. Proper use also includes proper operation, servicing and repairs as
specified by the manufacturer.
For Dust Class L machines the following applies:
The appliance is suitable for picking up dry, non-flammable dust and liquids, hazardous dust with OEL (Occupational
Exposure Limit) values > 1 mg/m3.
Dust Class L (IEC 60335-2-69). Dust in this class has OEL values > 1 mg/m3. For machines intended for Dust Class L, the
filter material has been tested. The maximum degree of permeability is 1% and there is no special requirement for
disposal.
For dust extractors, ensure adequate air change rate L, when the exhaust air is returned to the room. Observe national
regulations before use.
1.4 Electrical connection
• It is recommended that the machine should be connected via a residual current circuit breaker.
• Arrange the electrical parts (sockets, plugs and couplings) and lay down the extension lead so that the protection
class is maintained.
• Connectors and couplings of power supply cords and extension leads must be watertight.
1.5 Extension lead
1. Only use the version of extension lead specified by the manufacturer, or one of a higher quality.
2. When using an extension lead, check the minimum cross-sections of the cable:
Cable length Cross section < 16 A Cross section < 25 A
≤ 20 m 1,5 mm22,5 mm2
20–50 m 2,5 mm24,0 mm2
1.6 Warranty
Our general conditions of business are applicable with regard to the warranty. Unauthorised modifications to the
appliance, the use of incorrect brushes and use of the appliance in a way other than for the intended purpose exempt
the manufacturer from any liability for the resulting damage.
1.7 Important warnings
WARNING
• To reduce the risk of fire, electric shock, or injury, please
read and follow all safety instructions and caution markings
before use. This machine is designed to be safe when used
for cleaning functions as specified. Should damage occur to
electrical or mechanical parts, the machine and/or accessory
en
Mirka® Dust Extractor • 1230 L • 230V • PC & AFC 97
Technical data
Mirka® Dust Extractor 1230 L PC • EU AFC • EU PC • GB AFC • CH/AU/NZ PC • AU/NZ
Possible voltage V220–240 220–240 220–240 220–240 220–240
Power PIEC W1200 1200 1200 1200 1200
Connected load for appliance socket W2400 2400 1750 1100 1100
Mains frequency Hz 50/60 50/60 50/60 50/60 50/60
Fuse A16 16 13 10 10
Protection grade (moist, dust) AIPX4 IPX4 IPX4 IPX4 IPX4
Protection class (electrical) AI I I I I
Max. airflow*
l/s 75 75 75 75 75
m3/h 270 270 270 270 270
CFM 159 159 159 159 159
Max. vacuum
kPa 25 25 25 25 25
hPa 250 250 250 250 250
inH20100 100 100 100 100
Sound pressure level LPA (IEC 60335-2-69) dB(A) 68 ± 2 68 ± 2 68 ± 2 68 ± 2 68 ± 2
Working sound level dB(A) 60 ± 2 60 ± 2 60 ± 2 60 ± 2 60 ± 2
Vibration ISO 5349 ahm/s2≤ 2,5 ≤ 2,5 ≤ 2,5 ≤ 2,5 ≤ 2,5
Weight
kg 14,5 14,5 14,5 14,5 14,5
lb 31,9 31,9 31,9 31,9 31,9
Filter surface area m20,5 0,5 0,5 0,5 0,5
Dust class L L L L L
* Measured at container
Specifications and details are subject to change without prior notice. Model range may vary between markets.
6.2 Specifications
en

92 Mirka® Dust Extractor • 1230 L • 230 V • PC & AFC
2.4 In explosive or inflammable atmosphere
CAUTION
This machine is not suitable for use in explosive or inflammable atmospheres or where such atmospheres are likely to
be produced by the presence of volatile liquid or inflammable gas or vapour.
3. Control / Operation
CAUTION
Damage due to unsuitable mains voltage. The appliance can be damaged as a result of being connected to an
unsuitable mains voltage.
• Ensure that the voltage shown on the rating plate corresponds to the voltage of the local mains power supply.
3.1 Starting and operating the machine
Check that the electrical switch is switched off (in position 0). Check that suitable filters are installed in the machine.
Then connect the suction hose into the suction inlet on the machine by pushing the hose forward until it fits firmly
into the inlet. When used for dust extraction together with a dust-producing tool, connect the end of the suction hose
using an appropriate adapter. Connect the plug into a proper electrical outlet. Put the electrical switch into position I in
order to start the motor.
Turn to I: Activate the dust extractor.
Turn clockwise for speed control.
Turn to 0: Stop the dust extractor.
Turn to sander: Activate Auto-On/Off.
Operation – turn counter-clockwise for speed control.
Turn to I: Activate the dust extractor.
Turn to : Stop the dust extractor. Permanent power on socket.
Turn to I: Activate Auto-On/Off operation.
Turn to I + AFC Off: Activate the dust extractor with deactivated Auto Filter Cleaning.
Turn to sander + Off: Activate Auto-On/Off operation with deactivated Auto Filter Cleaning.
Speed control operation on separate rotary knob.
3.2 Auto-On / Off socket outlet for power tools
CAUTION
Appliance socket
The appliance socket is designed for electrical auxiliary equipment; see technical data for reference.
• Prior to plugging in an appliance, always switch off the machine and the appliance that is to be connected.
• Read the operating instructions for the appliance to be connected and observe the safety notes contained in these.
An earthed appliance socket is integrated in the machine. An external power tool can be connected there. The socket
features permanent power on when the switch is set to the position, i.e. the machine can be used as an extension
cord.
In position , the machine can be switched on and off from the connected power tool.
Dirt is picked up from the source of dust immediately. To comply with regulations, only approved dust-producing tools
should be connected.
The maximum power consumption of the connected electrical appliance is stated in the “Specifications” section.
Before turning the switch to position , ensure that the tool connected to the appliance socket is switched off.
en

Mirka® Dust Extractor • 1230 L • 230V • PC & AFC 93
3.3 Push & Clean
The “PC”machine is equipped with a semiautomatic filter cleaning system, Push & Clean. The filter cleaning system
must be actuated when the suction performance starts to fade. Regular use of the filter cleaning feature maintains
suction performance and increases the lifetime of the filter. For instructions, see the quick reference guide.
3.4 AFC – Auto Filter Cleaning
The “AFC” machine is equipped with an automatic filter cleaning system, Auto Filter Cleaning. A frequent cleaning cycle
will automatically run during operation to ensure that suction performance is always at its best.
If suction performance decreases or in very dusty applications, a manual filter cleaning operation is recommended:
• Switch off the machine.
• Close the nozzles or suction hose opening with the palm of your hand.
• Turn the switch to position “I” and let the machine operate at full speed for approx. 10 seconds with the suction hose
opening closed.
If suction power is still reduced take out the filter and clean it mechanically or replace the filter. For certain applications,
such as wet pick-up, it is recommended to turn off the Auto Filter Cleaning system. For details see chapter 3.1.
3.5 Antistatic connection
CAUTION
The machine is equipped with an antistatic system to discharge any static electricity that may develop during dust
pick-up.
The antistatic system is located in the front part of the motor top and creates an earth ground connection to the
inlet fitting of the container. For correct operation, the use of an electrically conductive or antistatic suction hose is
recommended. When inserting the optional disposal bag make sure the antistatic connection is maintained.
3.6 Motor cooling filter
To protect the electronics and motor, the machine is equipped with a motor cooling filter. Clean the motor cooling
filter regularly.
For areas with a high concentration of fine dust in the surrounding air it is recommended to equip the machine with
an optional motor cooling filter PET to prevent dust from settling inside the air channels and motor. Contact your local
sales representative.
CAUTION
If the motor cooling filter is clogged by dust the overload protection switch in the motor may be tripped. If this
happens, switch off the machine, clean the motor cooling filter and allow machine to cool for approx. 5 minutes.
3.7 Wet pick-up
CAUTION
The machine is equipped with a water level limit system which shuts off the machine when the maximum liquid level is
reached. When this occurs, switch off the machine. Disconnect the machine from the socket and empty the container.
Never pick up liquids without the water level limit system and filter in place.
Picking up liquids
• Do not pick up flammable liquids.
• Before liquids are picked up, always remove the filter bag/disposal bag and check that the water level limit works
properly.
• If foam appears, stop work immediately and empty the container.
• Clean the water level limiting device regularly and check for signs of damage.
en
