MIRKA 1242M User manual

Mirka®Dust Extractor
1230M & 1242 M • 230V / 100–120 V • PC & AFC

ar ..............................13
bg Инструкция за експлоатация .............23
cs Návod k obsluze......................................35
da Brugsanvisning .......................................46
de Bedienungsanleitung ............................57
el Οδηγίες χρήσης ......................................69
en Operating instructions...........................80
es Instrucciones de manejo .......................91
et Kasutusjuhised......................................102
fiKäyttöohjeet.......................................... 113
fr Instructions d’utilisation......................124
hr Upute o radu .........................................135
hu Kezelői útmutató ..................................146
is Notkunarleiðbeiningar ........................157
it Istruzioni per l’uso ................................168
ja 取扱説明書 ...........................................178
ko 사용 지침................................................189
lt Naudojimo instrukcijos........................200
lv Lietošanas instrukcija...........................211
mk Упатства за ракување.........................222
nl Gebruiksaanwijzing..............................234
no Bruksanvisning......................................245
pl Instrukcje dot. użytkowania................256
pt Instruções de operação .......................267
ro Instrucţiuni de operare........................277
ru Руководство по эксплуатации .........289
sl Navodila za uporabo. . . . . . . . . . . . . . . . . . . . . . . . . . . .302
sr Uputstvo za rad.....................................313
sv Bruksanvisning......................................324
tr İşletim Talimatları .................................336
zh 操作说明................................................346
Mirka®Dust Extractor
1230 M & 1242 M

4Mirka® Dust Extractor • 1230M & 1242M • 230 V / 100–120V • PC & AFC
Quick reference

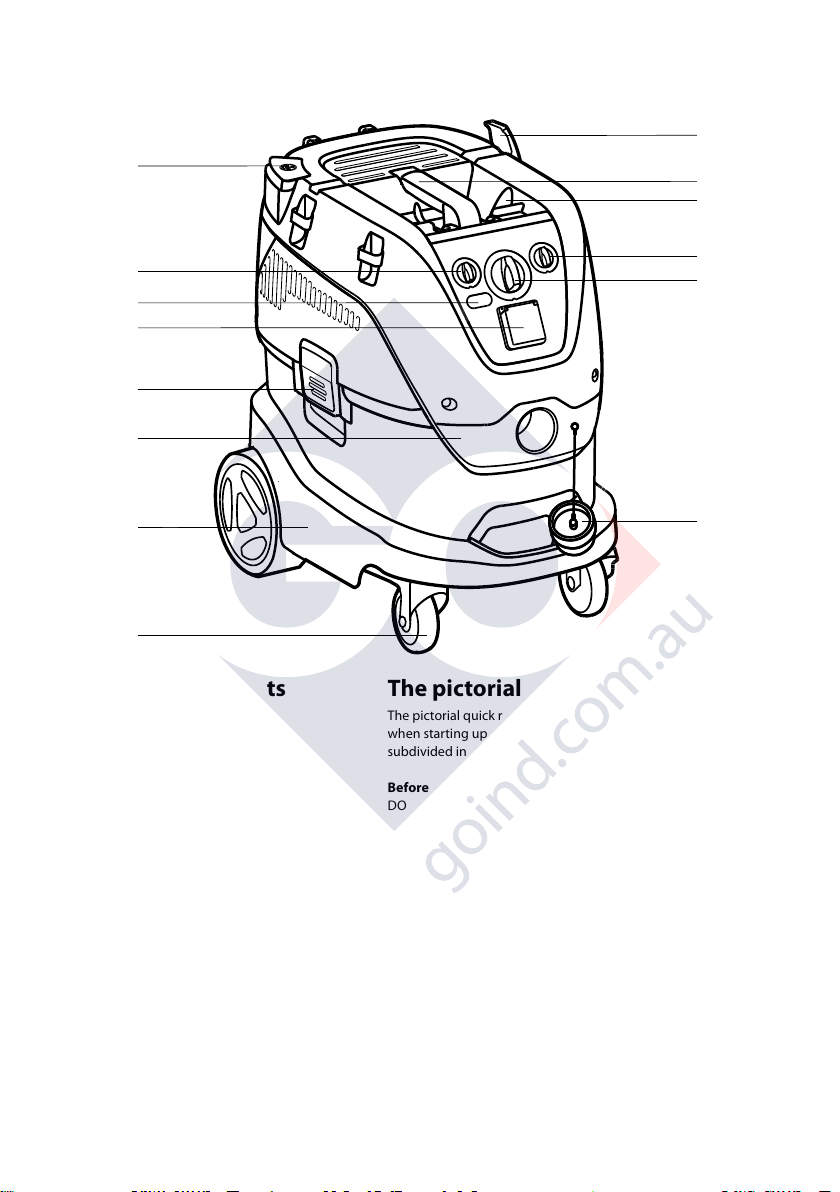

Operating elements
1Handle
2Accessory positions
3Container clamp
4Wheel
5Container
6Inlet fitting
7Switch
8Speed control
9Appliance socket
10 Filter cleaning button (Push & Clean)
11 Hose hook
12 Hose diameter setting
13 LED indicator
14 Inlet cap
The pictorial quick reference guide
The pictorial quick reference guide is designed to help you
when starting up, operating and storing the unit. The guide is
subdivided into four sections, which are represented by symbols:
Before starting
DO READ OPERATING INSTRUCTIONS BEFORE USE!
Control/Operation
AFlow rate and filter warning
BPC – Push & Clean filter cleaning system
CAFC– Auto Filter Cleaning system
DCable and hose storage

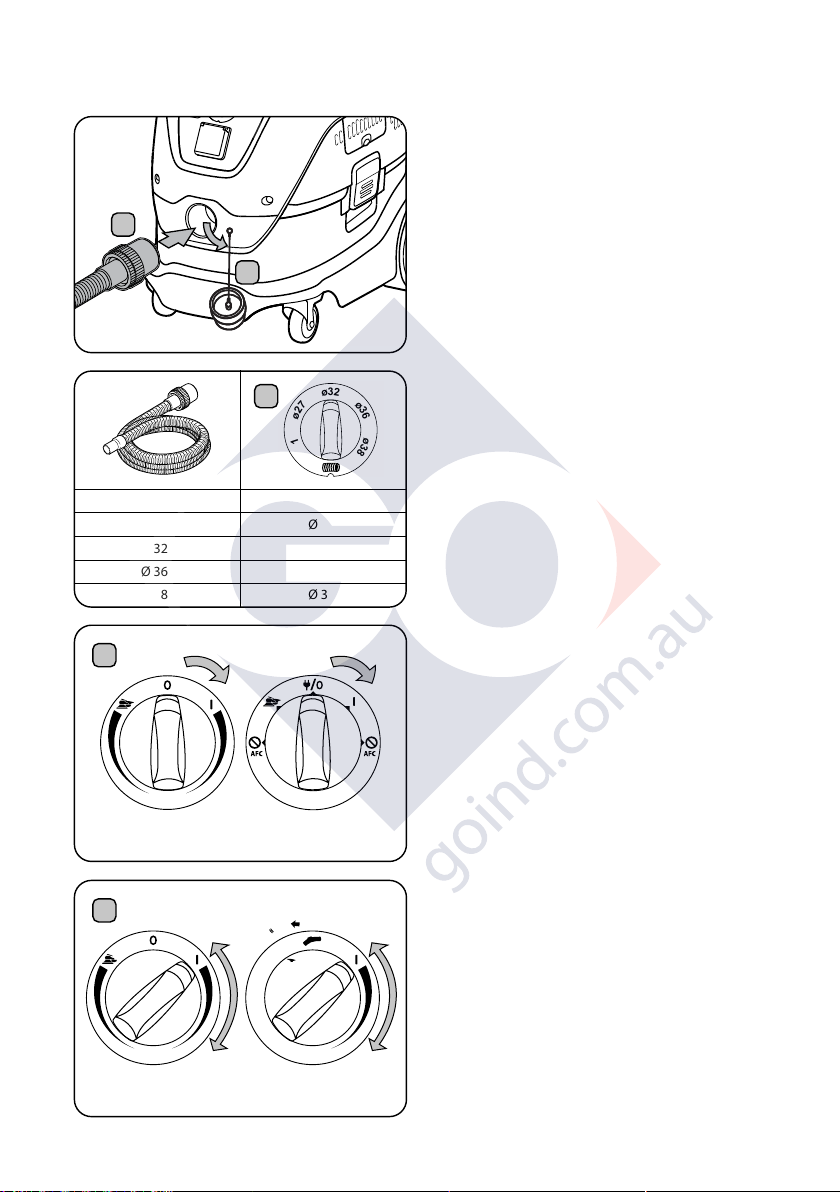

EHose insert & operations
FCase fastening accessory
Connecting electrical appliances
GPower tool adaption
Maintenance
HFilter bag replacement
IFilter replacement
JMotor cooling filter cleaning
KGaskets and float cleaning
3
1
2
4
5
6
7
8
9
10
13
12
14
11

Mirka® Dust Extractor • 1230 M & 1242M • 230 V / 100–120 V • PC & AFC 5
A B
3
4
3x
2
Vibeke will make
3x
20 m/s
=
=

6Mirka® Dust Extractor • 1230M & 1242M • 230 V / 100–120V • PC & AFC
C D
3
4
3x
2
Vibeke will make
10 sec.

Mirka® Dust Extractor • 1230 M & 1242M • 230 V / 100–120 V • PC & AFC 7
E
2
1
ø
2
1
ø
2
7
ø
3
2
ø
3
6
ø
3
8
Ø 21 Ø 21
Ø 27 Ø 27
Ø 32 Ø 32
Ø 36 Ø 36
Ø 38 Ø 38
4
PC AFC
4
max.
min.
max.
min.
3

8Mirka® Dust Extractor • 1230M & 1242M • 230 V / 100–120V • PC & AFC
F G
3
4
2
2
1
3
4
2
5
5
7
x4
11
x4
22
3A
3B
4B
4B
3A
4A
4A
4A
4A
Case fastening accessory

Mirka® Dust Extractor • 1230 M & 1242M • 230 V / 100–120 V • PC & AFC 9
H I
5
4
3
1
2
3
2
1
2
1
7
6
7
4
5
6
5
4
3
7
8
8
4
4
6
7
6
5
4
6
7
2
3
4
6
7
1

10 Mirka® Dust Extractor • 1230M & 1242M • 230 V / 100–120V • PC & AFC
J
1
2
3
4
56
4
5
6
7
4
8
7

Mirka® Dust Extractor • 1230 M & 1242M • 230 V / 100–120 V • PC & AFC 11
K
1
2
1
1
2
1
4
3
1
2
1
5
4
5
4
1
2
1
3
5
6
7
8
8

80 Mirka® Dust Extractor • 1230M & 1242M • 230 V / 100–120V • PC & AFC
en
We reserve the right to make changes to this manual without prior notice.
Operating elements
1Handle
2Accessory positions
3Container clamp
4Wheel
5Container
6Inlet fitting
7Switch
8Speed control
9Appliance socket
10 Filter cleaning button (Push & Clean)
11 Hose hook
12 Hose diameter setting
13 LED indicator
14 Inlet cap
The pictorial quick reference guide
The pictorial quick reference guide is designed to help you when starting up, operating and storing the unit. The guide
is subdivided into four sections, which are represented by symbols:
Contents
1. Safety instructions
1.1 Symbols used to mark instructions
1.2 Instructions for use
1.3 Purpose and intended use
1.4 Electrical connection
1.5 Extension lead
1.6 Warranty
1.7 Important warnings
1.8 Additional warnings
2. Risks
2.1 Electrical components
2.2 Hazardous dust
2.3 Spare parts and accessories
2.4 In explosive or inflammable atmosphere
3. Control/Operation
3.1 Starting and operating the machine
3.2 Auto-On/ Off socket outlet for power tools
3.3 PC – Push & Clean
3.4 AFC – Auto Filter Cleaning
3.5 Antistatic connection
3.6 Motor cooling filter
3.7 Wet pick-up
3.8 Dry pick-up
4. After using the machine
4.1 After use
4.2 Transport
4.3 Storage
4.4 Accessory and tool storage
4.5 Recycling the machine
5. Maintenance
5.1 Regular servicing and inspection
5.2 Maintenance
6. Further information
6.1 EU Declaration of conformity
6.2 Specifications
Before starting
DO READ OPERATING INSTRUCTIONS BEFORE USE!
Control/Operation
AFlow rate and filter warning
BPC – Push & Clean filter cleaning system
CAFC– Auto Filter Cleaning system
DCable and hose storage
EHose insert & operations
FCase fastening accessory
Connecting electrical appliances
GPower tool adaption
Maintenance
HFilter bag replacement
IFilter replacement

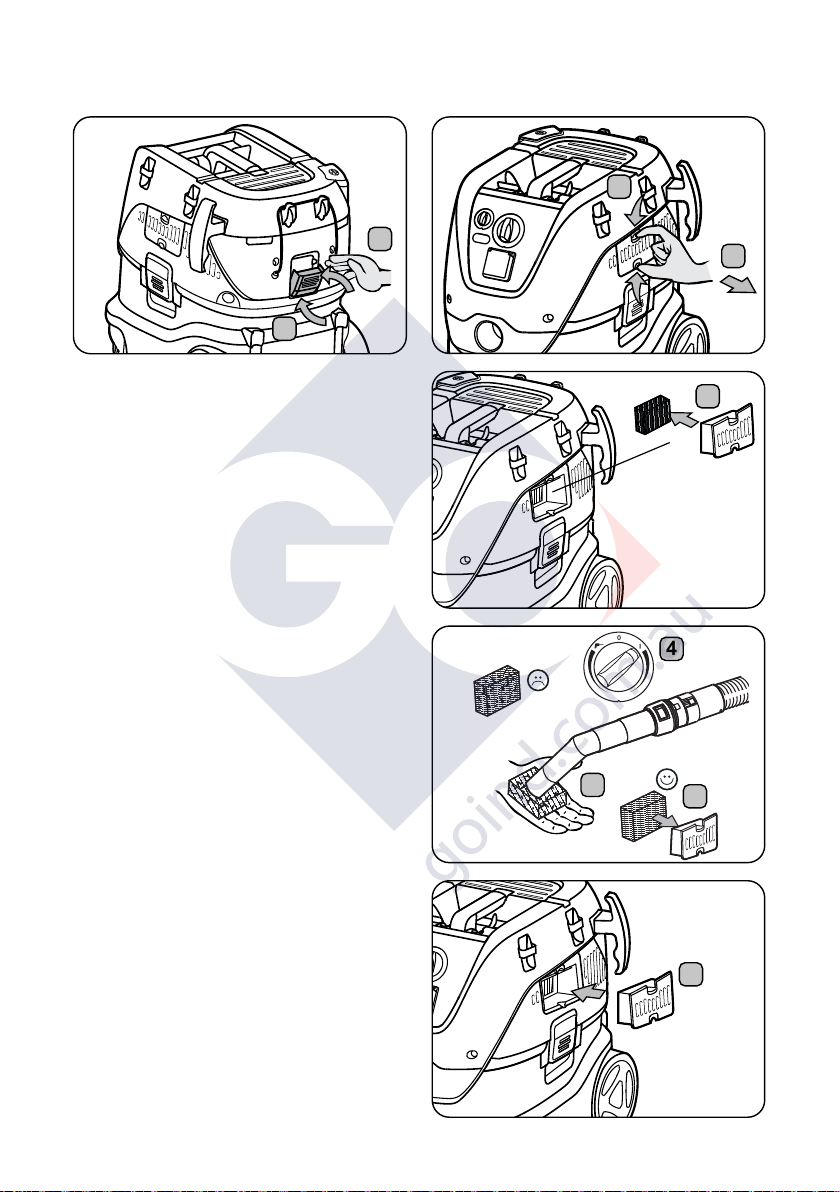

JMotor cooling filter cleaning
KGaskets and float cleaning

Mirka® Dust Extractor • 1230 M & 1242M • 230 V / 100–120 V • PC & AFC 81
en
1. Safety instructions
This document contains safety information that is relevant to the appliance, along with a quick reference
guide. Before starting up your machine for the first time, this instruction manual must be read through
carefully. Save the instructions for later use.
Further support
Further information on the appliance can be found on our website at www.mirka.com. For further queries, please
contact the Mirka service representative responsible for your country. See reverse of this document.
1.1 Symbols used to mark instructions
DANGER
Danger that leads directly to serious or irreversible injuries, or even death.
WARNING
Danger that can lead to serious injuries or even death.
CAUTION
Danger that can lead to minor injuries and damage.
1.2 Instructions for use
The appliance must:
• Only be used by persons who have been instructed in its correct usage and explicitly commissioned with the task of
operating it.
• Only be operated under supervision.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge.
• Children must be supervised to make sure that they do not play with the appliance.
• Do not use any unsafe working methods.
• Never use the appliance without a filter.
• Switch off the appliance and disconnect the mains plug in the following situations:
– Prior to cleaning and servicing
– Prior to replacing components
– Prior to changing over the appliance
– If foam develops or liquid emerges
Besides the operating instructions and the binding accident prevention regulations valid in the country of use, observe
recognised regulations for safety and proper use.
Before starting work, the operating staff must be informed about and trained in:
• use of the machine.
• risks associated with the material to be picked up.
• safe disposal of the picked-up material.
1.3 Purpose and intended use
This mobile dust extractor is designed, developed and rigorously tested to function efficiently and safely when
properly maintained and used in accordance with the following instructions.
This machine is suitable for industrial use, for example at plants, construction sites and workshops.
Accidents due to misuse can only be prevented by those using the machine.

82 Mirka® Dust Extractor • 1230M & 1242M • 230 V / 100–120V • PC & AFC
en
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
Any other use is considered as improper use. The manufacturer accepts no liability for any damage resulting from such
use. The risk for such use is borne solely by the user. Proper use also includes proper operation, servicing and repairs as
specified by the manufacturer.
The air flow in safety vacuum systems has to be strictly controlled to achieve a minimum flow rate of Vmin = 20 m/s in the
suction hose.
For Dust Class M machines the following applies:
The appliance is suitable for picking up dry, non-flammable dust and liquids, sawdust and hazardous dust with OEL
(Occupational Exposure Limit) values ≥ 0,1 mg/m³.
Dust Class M (IEC 60335-2-69). Dust in this class includes: dust with OEL values ≥ 0.1 mg/m³ as well as sawdust. The
machine has been tested in its entirety under vacuum for this dust class. The maximum degree of permeability is 0,1%
and the exhaust air must be low in dust.
For dust extractors, ensure adequate air change rate M, when the exhaust air is returned to the room. Observe national
regulations before use.
1.4 Electrical connection
• It is recommended that the machine should be connected via a residual current circuit breaker.
• Arrange the electrical parts (sockets, plugs and couplings) and lay down the extension lead so that the protection class
is maintained.
• Connectors and couplings of power supply cords and extension leads must be watertight.
1.5 Extension lead
1. Only use the version of extension lead specified by the manufacturer, or one of a higher quality.
2. When using an extension lead, check the minimum cross-sections of the cable:
Cable length Cross section < 16 A Cross section < 25 A
≤ 20 m 1,5 mm22,5 mm2
20–50 m 2,5 mm24,0 mm2
1.6 Warranty
Our general conditions of business are applicable with regard to the warranty. Unauthorised modifications to the
appliance, the use of incorrect brushes and use of the appliance in a way other than for the intended purpose exempt
the manufacturer from any liability for the resulting damage.
1.7 Important warnings
WARNING
• To reduce the risk of fire, electric shock, or injury, please read and follow all safety
instructions and caution markings before use.This machine is designed to be safe when
used for cleaning functions as specified. Should damage occur to electrical or mechanical
parts, the machine and/or accessory should be repaired by a competent service centre or
the manufacturer before use in order to avoid further damage to the machine or physical
injury to the user.

Mirka® Dust Extractor • 1230 M & 1242M • 230 V / 100–120 V • PC & AFC 83
en
• Do not leave the machine when it is plugged in. Unplug from the socket when not in use
and before maintenance.
• Do not use with damaged cord or plug.To unplug, grasp the plug, not the cord. Do not
handle plug or machine with wet hands.Turn off all controls before unplugging.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord
around sharp edges or corners. Do not run machine over cord. Keep cord away from
heated surfaces.
• Keep hair, loose clothing, fingers and all parts of the body away from openings and
moving parts. Do not put any objects into openings or use with opening blocked. Keep
openings free of dust, lint, hair, and anything else that could reduce the flow of air.
• Do not use in outside areas at low temperature.
• Do not use to pick up flammable or combustible liquids such as gasoline, or use in areas
where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot
ashes.
• Use extra care when cleaning on stairs.
• Do not use unless filters are fitted.
• If the machine is not working properly or has been dropped, damaged, left outdoors, or
dropped into water, return it to a service centre or dealer.
• If foam or liquid escapes from the machine, switch off immediately.
• The machine may not be used as a water pump.The machine is intended for vacuuming
air and water mixtures.
• Connect the machine to a properly earthed mains supply.The socket outlet and the
extension cable must have an operative protective conductor.
• Provide for good ventilation at the work place.
• Do not use the machine as a ladder or step ladder. The machine can tip over and become
damaged. Danger of injury.
• Only use the socket outlet on the machine for purposes specified in the instructions.
1.8 Additional warnings
WARNING
Some dust created by power sanding, sawing, grinding, drilling, and other construction
activities contains chemicals known to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemicallytreated lumber.

84 Mirka® Dust Extractor • 1230M & 1242M • 230 V / 100–120V • PC & AFC
en
Your risk from these exposures varies, depending on how often you do this type of work.
To reduce your exposure to these chemicals: work in a well ventilated area, and work with
approved safety equipment, such as those dust masks that are specially designed to filter
out microscopic particles.
2. Risks
2.1 Electrical components
DANGER
The upper section of the machine contains live components. Contact with live components
leads to serious or even fatal injuries. Never spray water on to the upper section of the
machine.
DANGER
Electric shock due to faulty mains connecting lead.Touching a faulty mains connecting
lead can result in serious or even fatal injuries.
• Do not damage the mains power lead (e.g. by driving over it, pulling or crushing it).
• Regularly check whether the power cord is damaged or shows signs of ageing.
• If the electric cable is damaged, it must be replaced by an authorized Mirka distributor
or similar qualified person in order to avoid a hazard.
• In no circumstances should the power supply cord be wrapped around fingers or any
part of the operator.
2.2 Hazardous dust
WARNING
Hazardous materials.Vacuuming up hazardous materials can lead to serious or even fatal
injuries.The following materials must not be picked up by the machine:
• hot materials (burning cigarettes, hot ash, etc.)
• flammable, explosive, corrosive liquids (e.g. petrol, solvents, acids, alkalis, etc.)
• flammable, explosive dust (e.g. magnesium or aluminium dust, etc.)
2.3 Spare parts and accessories
CAUTION
Spare parts and accessories.
The use of non-genuine spare parts, brushes and accessories can impair the safety and/or function of the appliance.
Only use original spare parts and accessories from Mirka. Spare parts that can affect the health and safety of the
operator and/or function of the appliance, are specified below.

Mirka® Dust Extractor • 1230 M & 1242M • 230 V / 100–120 V • PC & AFC 85
en
Description Mirka code
Filter element 8999100411
Fleece filter bag (5 pcs) 8999100211
Disposal bag (5 pcs) 8999110311
Motor cooling filter 8999110111
Motor cooling filter PET 8999110211
Case fastening accessory 8999110411
Pneumatic box 230V EU 8999101011
Pneumatic box 230V UK 8999101011UK
Handle for Dust Extractor 8999299111
2.4 In explosive or inflammable atmosphere
CAUTION
This machine is not suitable for use in explosive or inflammable atmospheres or where such atmospheres are likely to
be produced by the presence of volatile liquid or inflammable gas or vapour.
3. Control/Operation
CAUTION
Damage due to unsuitable mains voltage. The appliance can be damaged as a result of being connected to an
unsuitable mains voltage.
• Ensure that the voltage shown on the rating plate corresponds to the voltage of the local mains power supply.
3.1 Starting and operating the machine
Check that the electrical switch is switched off (in position 0). Check that suitable filters are installed in the machine.
Then connect the suction hose into the suction inlet on the machine by pushing the hose forward until it fits firmly
into the inlet. When used for dust extraction together with a dust-producing tool, connect the end of the suction hose
using an appropriate adapter. Connect the plug into a proper electrical outlet. Put the electrical switch into position I in
order to start the motor.
Turn to I: Activate the dust extractor.
Turn clockwise for speed control.
Turn to 0: Stop the dust extractor.
Turn to sander: Activate Auto-On/Off.
Operation – turn counter-clockwise for speed control.
Turn to I: Activate the dust extractor.
Turn to : Stop the dust extractor. Permanent power on socket.
Turn to I: Activate Auto-On/Off operation.
Turn to I + AFC Off: Activate the dust extractor with deactivated Auto Filter Cleaning.
Turn to sander + Off: Activate Auto-On/Off operation with deactivated Auto Filter Cleaning.
Speed control operation on separate rotary knob.
The hose diameter and the setting for suction hose diameter must be the same: Ø 21, 27, 32, 36, 38 mm.

86 Mirka® Dust Extractor • 1230M & 1242M • 230 V / 100–120V • PC & AFC
en
3.2 Auto-On/ Off socket outlet for power tools
CAUTION
Appliance socket
The appliance socket is designed for electrical auxiliary equipment; see technical data for reference.
• Prior to plugging in an appliance, always switch off the machine and the appliance that is to be connected.
• Read the operating instructions for the appliance to be connected and observe the safety notes contained in these.
An earthed appliance socket is integrated in the machine. An external power tool can be connected there. The socket
has a 5 Amp thermal fuse to protect the machine against overload. If the power consumption gets too high the thermal
fuse activates and cut off the power on the socket outlet. The thermal fuse can be deactivated again by pressing the
knob. The socket features permanent power on when the switch is set to the position, i.e. the machine can be used
as an extension cord.
In position , the machine can be switched on and off from the connected power tool.
Dirt is picked up from the source of dust immediately. To comply with regulations, only approved dust-producing tools
should be connected.
The maximum power consumption of the connected electrical appliance is stated in the“Specifications”section.
Before turning the switch to position , ensure that the tool connected to the appliance socket is switched off.
3.3 Push & Clean
The“PC” machine is equipped with a semiautomatic filter cleaning system, Push & Clean. The filter cleaning system must
be actuated when the suction performance starts to fade. Regular use of the filter cleaning feature maintains suction
performance and increases the lifetime of the filter. For instructions, see the quick reference guide.
3.4 AFC – Auto Filter Cleaning
The“AFC” machine is equipped with an automatic filter cleaning system, Auto Filter Cleaning. A frequent cleaning cycle
will automatically run during operation to ensure that suction performance is always at its best.
If suction performance decreases or in very dusty applications, a manual filter cleaning operation is recommended:
• Switch off the machine.
• Close the nozzles or suction hose opening with the palm of your hand.
• Turn the switch to position“I” and let the machine operate at full speed for approx. 10 seconds with the suction hose
opening closed.
If suction power is still reduced take out the filter and clean it mechanically or replace the filter. For certain applications,
such as wet pick-up, it is recommended to turn off the Auto Filter Cleaning system. For details see chapter 3.1.
3.5 Antistatic connection
CAUTION
The machine is equipped with an antistatic system to discharge any static electricity that may develop during dust pick-up.
The antistatic system is located in the front part of the motor top and creates an earth ground connection to the
inlet fitting of the container. For correct operation, the use of an electrically conductive or antistatic suction hose is
recommended. When inserting the optional disposal bag make sure the antistatic connection is maintained.
3.6 Motor cooling filter
To protect the electronics and motor, the machine is equipped with a motor cooling filter. Clean the motor cooling filter
regularly.
For areas with a high concentration of fine dust in the surrounding air it is recommended to equip the machine with
an optional motor cooling filter PET to prevent dust from settling inside the air channels and motor. Contact your local
sales representative.

Mirka® Dust Extractor • 1230 M & 1242M • 230 V / 100–120 V • PC & AFC 87
en
CAUTION
If the motor cooling filter is clogged by dust the overload protection switch in the motor may be tripped. If this
happens, switch off the machine, clean the motor cooling filter and allow machine to cool for approx. 5 minutes.
3.7 Wet pick-up
CAUTION
The machine is equipped with a water level limit system which shuts off the machine when the maximum liquid level is
reached. When this occurs, switch off the machine. Disconnect the machine from the socket and empty the container.
Never pick up liquids without the water level limit system and filter in place.
Picking up liquids
• Do not pick up flammable liquids.
• Before liquids are picked up, always remove the filter bag/disposal bag and check that the water level limit works
properly.
• If foam appears, stop work immediately and empty the container.
• Clean the water level limiting device regularly and check for signs of damage.
Before emptying the container, unplug the machine. Disconnect the hose from the inlet by pulling out the hose. Release
the container clamps by pulling them outwards so that the motor top is released. Lift the motor top off the container.
Always empty and clean the container and water level limit system after picking up liquids.
Empty by tilting the container backwards or sideways and pour the liquid into a floor drain or similar. Refit the motor
top on the container. Secure the motor top with the container clamps. Sudden movements can accidentally trigger
the water level limiting device. Should this happen; turn off the machine and wait for 3 seconds to reset the device.
Continue to operate the machine afterwards.
3.8 Dry pick-up
CAUTION
Picking up environmentally hazardous materials. Materials picked up can present a hazard to the environment.
• Dispose of the dirt in accordance with legal regulations.
Unplug the machine before emptying after dry pick-up. Release the container clamps by pulling them outwards so that
the motor top is released. Lift the motor top off the container.
Main filter: Check the filter. To clean the filter you can brush or wash it. Wait until the filter is dry before re-starting dust
pick-up.
Dust bag: Check bag to ensure the fill factor. Replace dust bag if necessary. Remove the old bag. The new bag is fitted
by passing the cardboard piece with the rubber membrane through the vacuum inlet. Make sure that the rubber
membrane passes the raised part of the vacuum inlet.
After emptying: Close motor top on the container and secure the motor top with the container clamps. Never pick up
dry material without having a filter fitted in the machine. The suction efficiency of the machine depends on the size and
quality of the filter and dust bag. You should therefore only use an original filter and dust bags.
4. After using the machine
4.1 After use
Unplug the machine from the socket when the machine is not in use. Wind up the cord starting from the machine. The
power cord can be wound up around the motor top or the container, or hung from the hook provided, or some other
fastener.

88 Mirka® Dust Extractor • 1230M & 1242M • 230 V / 100–120V • PC & AFC
en
4.2 Transport
• Before transporting the machine, close all the container clamps.
• Close the inlet with the inlet cap.
• Do not tilt the machine if there are liquids in the container.
• Do not use a crane hook to lift the machine.
• Do not lift the machine by the trolley handle
4.3 Storage
CAUTION
Store the appliance in a dry place, protected from rain and frost. The machine must be stored indoors only.
4.4 Accessory and tool storage
For convenient transport and storage of accessories or tools, integrated rails are provided on the side of the machine,
which allow fastening with straps or some other means. A flexible strap and hooks are included at the back of the
machine for hanging the suction hose or mains cable. For instructions, see quick reference guide.
An optional case fastening accessory with attachment system can be installed on top of the machine for fastening of
2-point or 4-point storage cases. Unplug from the socket before installing the case fastening accessory.
CAUTION
Do not lift machine and case fastening accessory without ensuring that the storage case is safely installed. Note the
weight and balance of the appliance in case of storage. Maximum weight of storage cases is 30 kg.
4.5 Recycling the machine
Make the old machine unusable.
1. Unplug the machine.
2. Cut the power cord.
3. Do not discard electrical appliances with regular household waste.
As specified in European Directive 2012/19/EU on old electrical and electronic appliances, used electrical
goods must be collected separately and recycled ecologically.
5. Maintenance
5.1 Regular servicing and inspection
Regular servicing and inspection of your machine must be carried out by suitably qualified personnel in accordance
with relevant legislation and regulations. In particular, electrical tests for earth continuity, insulation resistance, and
condition of the flexible cord should be carried out frequently.
In the event of any defect, the machine MUST be withdrawn from service, completely checked and repaired by an
authorized service technician. At least once a year, a Mirka technician or an instructed person must perform a technical
inspection including filters, air tightness and control mechanisms.
5.2 Maintenance
Remove the plug from the socket before performing maintenance. Before using the machine make sure that the
frequency and voltage shown on the rating plate correspond with the mains voltage.
