SERVICE MANUAL
CONTENTS
1. TECHNICAL CHANGES ····································2
2. PART NAMES AND FUNCTIONS······················3
3. SPECIFICATION·················································5
4. NOISE CRITERIA CURVES·······························6
5. OUTLINES AND DIMENSIONS ·························7
6. WIRING DIAGRAM ············································8
7. REFRIGERANT SYSTEM DIAGRAM················9
8. SERVICE FUNCTIONS ····································10
9. TROUBLESHOOTING······································12
10. DISASSEMBLY INSTRUCTIONS·····················24
11. PARTS LIST······················································27
12. OPTIONAL PARTS ······················BACK COVER
Wireless type
Models
MSZ-GA50VA -
MSZ-GA60VA -
MSZ-GA71VA - E1
E1
E1
No. OB388
SPLIT-TYPE, HEAT PUMPAIR CONDITIONERS
MSZ-GA50VA -
MSZ-GA60VA -
MSZ-GA71VA - E1
E1
E1
Indication of model name
NOTE:
This service manual describes technical data of the indoor unit.
•As for outdoor units MUZ-GA50VA - , MUZ-GA60VA - and MUZ-GA71VA - , refer to the
service manual OB389.
•As for outdoor units MXZ-3A54VA - , MXZ-4A71VA - and MXZ-4A80VA - , refer to the
service manual OB377. E1E1E1
E1E1E1
OB388.qxp 05.1.26 18:12 Page 1

2
1
MSZ-A18YV - ➔MSZ-GA50VA -
MSZ-A24YV - ➔MSZ-GA60VA -
MSZ-A26YV - ➔MSZ-GA71VA - E1E1
E1E1
E1E1
1. Indication of capacity has been changed.(BTU base ➔kW base)
2. Power supply cord has been removed.
3. Indoor electronic control P.C. board has been changed.
4. Indoor fan motor has been changed. ( AC ➔DC)
5. Shape of motor band and motor bed have been changed.
6. Symbol on terminal block has been changed (to S1/S2/S3).
TECHNICAL CHANGES
OB388.qxp 05.1.26 18:12 Page 2

3

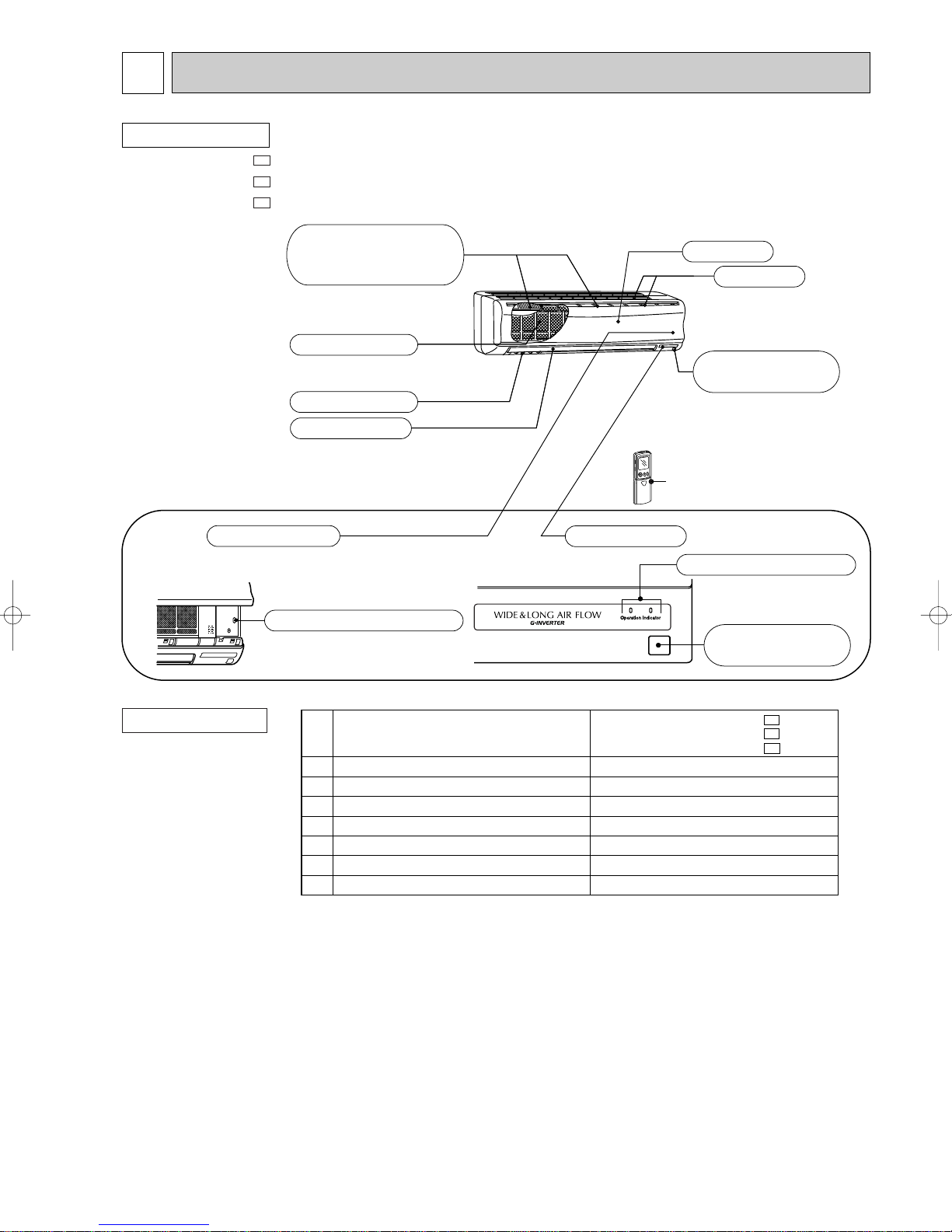

PART NAMES AND FUNCTIONS
2
INDOOR UNIT
Grille
(When the grille is opened)
Remote controller
Operation section Display section
Emergency operation switch
Operation indicator lamp
Air inlet
Remote control
receiving section
Horizontal vane
Vertical vanes
Air cleaning filter (option)
(Anti-allergy enzyme
filter:blue bellows type)
Catechin air filter
Remote control
receiving section
MSZ-GA50VA -
MSZ-GA60VA -
MSZ-GA71VA - E1
E1
E1
ACCESSORIES
Indoor unit
1
2
3
4
5
6
7
Installation plate
Installation plate fixing screw 4 o25 mm
Remote controller holder
Fixing screw for 3o3.5 o1.6 mm (Black)
Battery (AAA) for remote controller
Wireless remote controller
Felt tape (Used for left or left-rear piping)
1
7
1
2
2
1
1
MSZ-GA50VA -
MSZ-GA60VA -
MSZ-GA71VA -
E1
E1
E1
OB388.qxp 05.1.26 18:12 Page 3

4

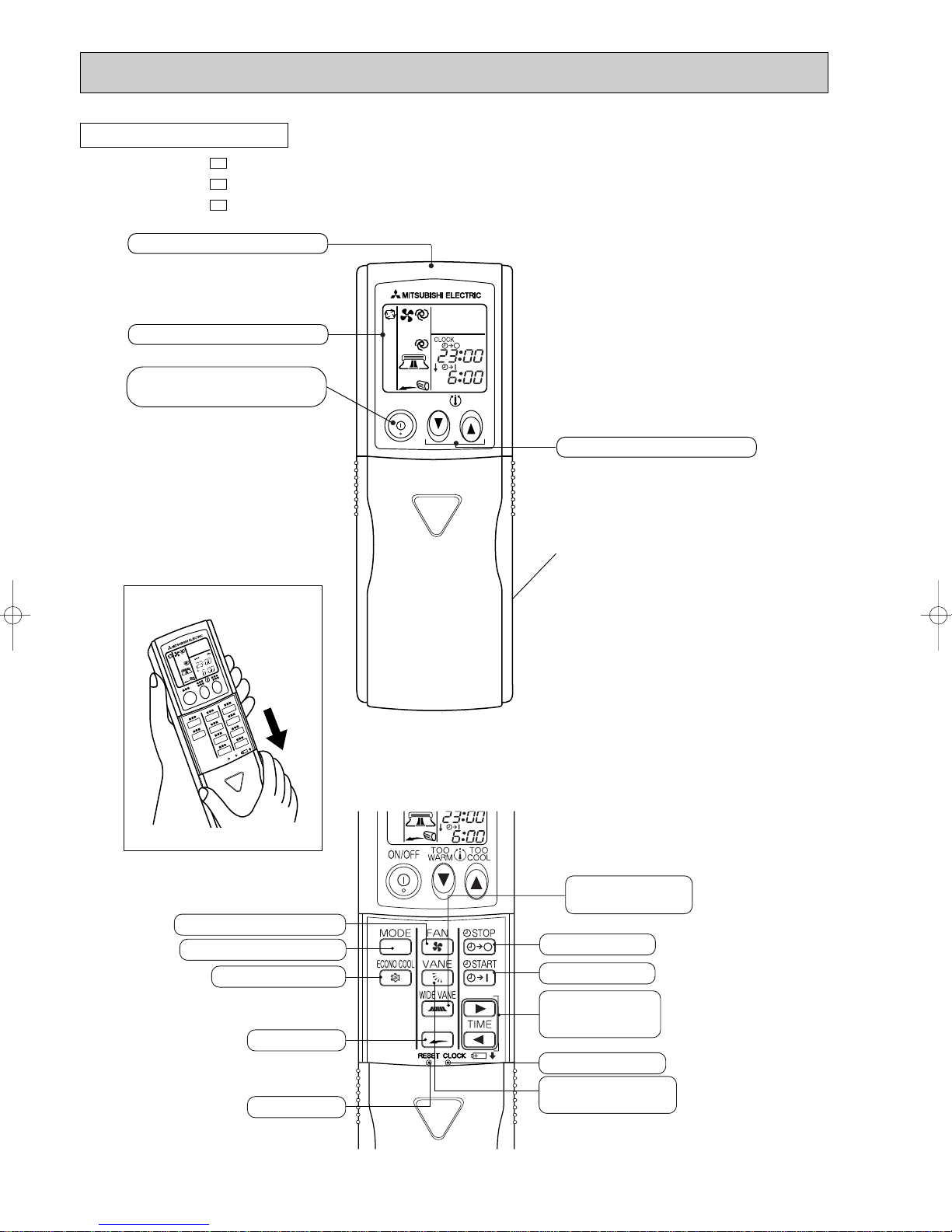

REMOTE CONTROLLER
MSZ-GA50VA -
MSZ-GA60VA -
MSZ-GA71VA - E1
E1
E1
ON/OFF
TOO
COOL
TOO
WARM
LONG
Open the front lid.
Signal transmitting section
Operation display section
OPERATE /STOP
(ON /OFF)button
TEMPERATURE buttons
Indication of remote controller
model is on back.
ON-TIMER button
CLOCK SET button
TIME SET buttons
FORWARD button
BACKWARD button
VANE CONTROL button
(Horizontal vane button)
OFF-TIMER button
LONG button
RESET button
WIDE VANE button
(Vertical vane button)
FAN SPEED CONTROL button
OPERATION SELECT button
ECONO COOL button
OB388.qxp 05.1.26 18:12 Page 4

5
SPECIFICATION
3
Indoor model
Function
Power supply
Air flow
(High/Med. /Low )
Power outlet
Running current
✽1
Power input ✽1
Auxiliary heater
Power factor
✽1
Fan motor current ✽1
Model
Dimensions WOHOD
Weight
Air direction
Sound level(High/Med. /Low )
Fan speed(High/Med. /Low )
Fan speed regulator
Thermistor RT11(at 25:)
Thermistor RT12(at 25:)
Thermistor RT13(at 25:)
Remote controller model
K/h
A
A
W
A(kW)
%
A
mm
kg
dB
rpm
k"
k"
k"
MSZ-GA50VA - E1
Single phase
230V, 50Hz
852/690 /498
20
0.45
50
—
48
0.45
RC0J56-AA
1,100O325O258
16
5
48/38 /31
1,120/940 /720
3
10
10
10
KM05C
Cooling
Heating
MSZ-GA60VA - E1
Single phase
230V, 50Hz
20
0.60
60
—
43
0.60
RC0J56-AA
1,100O325O258
16
5
54/40 /32
3
10
10
10
KM05C
Cooling
1,032/768 /522
1,310/1030 /750
Heating
1,032/786 /522
1,310/1050 /750
Electrical data
Fan motor
Special remarks
Capacity
w w
w w
ww
ww
ww
ww
w w
ww
ww
w w
ww
NOTE: Test conditions are based on ISO 5151.
Cooling : Indoor Dry-bulb temperature 27°C Wet-bulb temperature 19°C
Outdoor Dry-bulb temperature 35°C Wet-bulb temperature(24°C)
Heating : Indoor Dry-bulb temperature 20°C Wet-bulb temperature 15.5°C
Outdoor Dry-bulb temperature 7°C Wet-bulb temperature 6°C
Indoor-Outdoor piping length 5m
wReference value
✽1 Measured under rated operating frequency.
Indoor model
Function
Power supply
Air flow
(High/Med. /Low )
Power outlet
Running current
✽1
Power input ✽1
Auxiliary heater
Power factor
✽1
Fan motor current ✽1
Model
Dimensions WOHOD
Weight
Air direction
Sound level(High/Med. /Low )
Fan speed(High/Med. /Low )
Fan speed regulator
Thermistor RT11(at 25:)
Thermistor RT12(at 25:)
Thermistor RT13(at 25:)
Remote controller model
K/h
A
A
W
A(kW)
%
A
mm
kg
dB
rpm
k"
k"
k"
MSZ-GA71VA - E1
Single phase
230V, 50Hz
20
0.60
60
—
43
0.60
RC0J56-AA
1,100O325O258
16
5
54/40 /33
3
10
10
10
KM05C
Cooling
1,032/798 /564
1,310/1,060 /800
Heating
1,032/816 /564
1,310/1,080 /800
Electrical data
Fan motor
Special remarks
Capacity
w w
ww
ww
w w
ww w
ww
ww
w
OB388.qxp 05.1.26 18:12 Page 5

6
NOISE CRITERIA CURVES
4
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
BAND CENTER FREQUENCIES, Hz
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
Test conditions,
Cooling : Dry-bulb temperature 27: Wet-bulb temperature 19:
48
SPL(dB(A)) LINE
High
FAN SPEED
Heating : Dry-bulb temperature 20: Wet-bulb temperature 15.5:
MSZ-GA50VA - E1 MSZ-GA60VA -
MSZ-GA71VA - E1
E1
INDOOR UNIT
Item Model
Fuse
Vane motor
Varistor
Terminal block
(F11)
(MV1/ MV2)
(NR11)
(TB)
MSZ-GA60VA - E1
MSZ-GA50VA - E1 MSZ-GA71VA - E1
T3.15AL 250V
MP20/MP20
ERZV14D471
4P
Specifications and rating conditions of main electric parts
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
BAND CENTER FREQUENCIES, Hz
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
Test conditions,
Cooling : Dry-bulb temperature 27: Wet-bulb temperature 19:
54
SPL(dB(A)) LINE
High
FAN SPEED
Heating : Dry-bulb temperature 20: Wet-bulb temperature 15.5:
INDOORUNIT WALL
MICROPHONE
0.8m
1m
OB388.qxp 05.1.26 18:12 Page 6

7

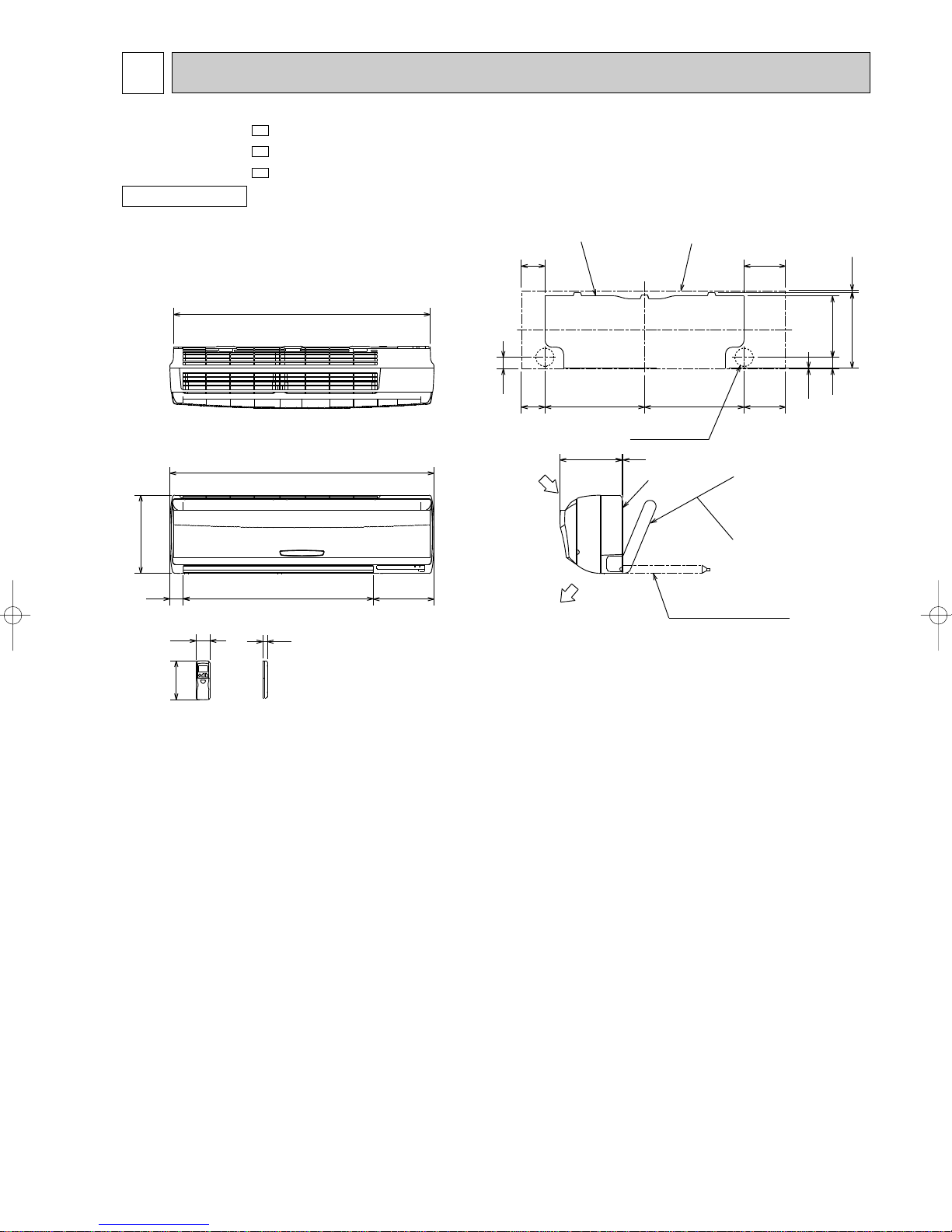

OUTLINES AND DIMENSIONS
5
258
159
19
58
47
7.5
315
255.547
2.5
98 173
98 173414.5 414.5
5
253
791
56
1068
1100
325
Air out
Air in
Insulation [28
Drain hose [16
(Connected part O.D)
Installation plate
Wall hole [75
Wireless remote controller
Installation plate Indoor unit
{
Liquid line [6.35-0.5m
Gas line [12-0.43m
Insulation [50 O.D
[32 I.D
{
Liquid line [9.52-0.5m
Gas line [12-0.43m
Insulation [50 O.D
[32 I.D
for MSZ-GA50/60VA
for MSZ-GA71VA
INDOOR UNIT
MSZ-GA50VA -
MSZ-GA60VA -
MSZ-GA71VA - E1
E1
E1 Unit: mm
OB388.qxp 05.1.26 18:12 Page 7

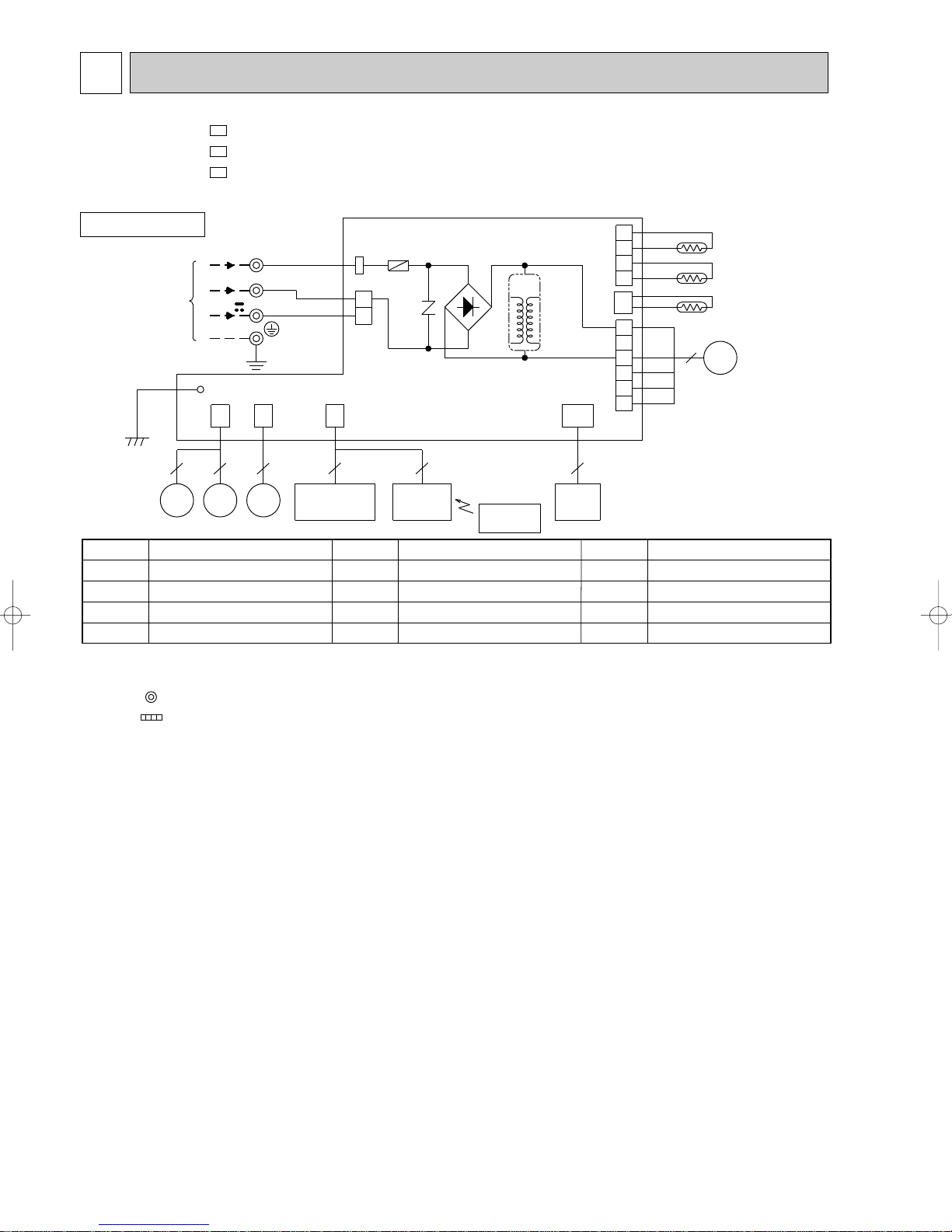

WIRING DIAGRAM
8
6
MSZ-GA50VA -
MSZ-GA60VA -
MSZ-GA71VA - E1
E1
E1
MODELS WIRING DIAGRAM
INDOOR UNIT
MV2 MV2
5 5
152
CN
3
CN
101
BLU
CN211
6
5
3
1
RT12
RT11
MF
BLK
YLW
112
CN
CN
111
WHT
RED
RT13
2
45
1
2
3
4
GRN
S1
T111
CN
151
1
2
CN201
LD104
12-24V
105(T)
LD
2
F11
NR11
DB111
TAB3
TB
S3 RED
BLK
TO OUTDOOR
UNIT
CONNECTING
MV1
5
RECEIVER
P.C.BOARD
SW P.C.
BOARD
INDOOR ELECTRONIC
CONTROL P.C. BOARD
BLU
230V~
3
POWER MONITOR
P.C.BOARD
S2
REMOTE
CONTROLLER
SYMBOL
RT13
T111
TB
SYMBOL
MV2
NR11
RT11
RT12
SYMBOL
DB111
F11
MF
MV1
DIODE STACK
FUSE (3.15A)
INDOOR FAN MOTOR
VANE MOTOR (HORIZONTAL)
VANE MOTOR (VERTICAL)
VARISTOR
ROOM TEMPERATURE THERMISTOR
INDOOR COIL THERMISTOR (MAIN)
INDOOR COIL THERMISTOR (SUB)
TRANSFORMER
TERMINAL BLOCK
NAME NAME NAME
1.About the outdoor side electric wiring refer to the outdoor unit electric wiring diagram for servicing.
2.Use copper conductors only. (For field wiring)
3.Symbols below indicate.
: Connector
: Terminal block
NOTES:
OB388.qxp 05.1.26 18:12 Page 8

9
REFRIGERANT SYSTEM DIAGRAM
7
MSZ-GA71VA - E1
INDOOR UNIT
Indoor
heat
exchanger
Flared connection
Room temperature
thermistor
RT11
Indoor coil
thermistor
RT13(sub)
Flared connection
Refrigerant pipe [15.88
(with heat insulator)
Refrigerant pipe [9.52
(with heat insulator)
Indoor coil
thermistor
RT12(main)
Strainer
#50
Refrigerant flow in cooling
Refrigerant flow in heating
MSZ-GA50VA - E1
INDOOR UNIT
Indoor
heat
exchanger
Room temperature
thermistor
RT11
Refrigerant pipe [12.7
(with heat insulator)
Flared connection
Flared connection
Indoor coil
thermistor
RT12(main)
Refrigerant pipe[6.35
(with heat insulator)
Distributor
MSZ-GA60VA - E1
INDOOR UNIT
Indoor
heat
exchanger
Room temperature
thermistor
RT11
Refrigerant pipe [15.88
(with heat insulator)
Flared connection
Flared connection
Indoor coil
thermistor
RT12(main)
Refrigerant pipe [6.35
(with heat insulator)
Distributor
Unit:mm
Indoor coil
thermistor
RT13(sub)
Indoor coil
thermistor
RT13(sub)
OB388.qxp 05.1.26 18:12 Page 9

10
8
When the indoor unit is controlled with the remote controller, the operation mode, set temperature, and the fan speed are
memorized by the indoor electronic control P.C. board. The “AUTO RESTART FUNCTION” sets to work the moment power
has restored after power failure. Then, the unit will restart automatically.
8-3. AUTO RESTART FUNCTION
Table 1
No. 1 unit
No. 2 unit
No. 3 unit
No. 4 unit
1 unit operation
No modification
–
–
–
2 units operation
Same as at left
Solder J1
–
–
3 units operation
Same as at left
Same as at left
Solder J2
–
4 units operation
Same as at left
Same as at left
Same as at left
Solder both J1 and J2

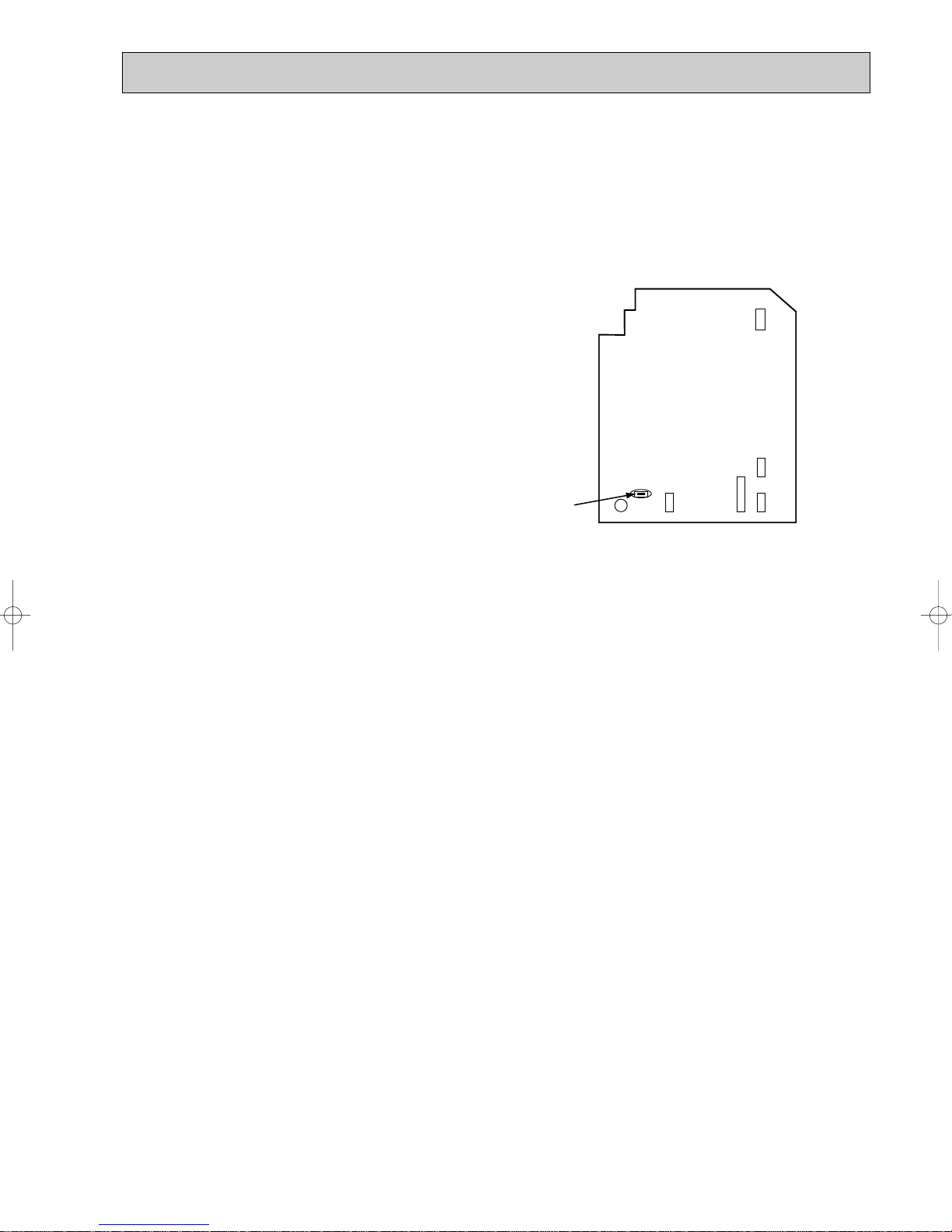

8-2. P.C. BOARD MODIFICATION FOR INDIVIDUAL OPERATION
A maximum of 4 indoor units with wireless remote controllers can be used in a room.
In this case, to operate each indoor unit individually by each remote controller, P.C. boards of remote controller must be
modified according to the number of the indoor unit.
How to modify the remote controller P.C. board
Remove batteries before modification.
The board has a print as shown below :
8-1. TIMER SHORT MODE
For service, set time can be shortened by short circuit of JPG and JPS on the electronic control P.C. board.
The time will be shortened as follows.
Set time : 1 minute ➔ 1-second
Set time : 3 minute ➔ 3-second (It takes 3 minutes for the compressor to start operation. However, the starting time is
shortened by short circuit of JPG and JPS.)
The P.C. board has the print “J1” and “J2”. Solder “J1” and “J2” according to the number of indoor unit as shown in Table 1.
After modification, press the RESET button.
NOTE : For remodelling, take out
the batteries and press the
OPERATE/STOP(ON/OFF)
button twice or 3 times at first.
After finish remodelling,
put back the batteries then
press the RESET button.
MSZ-GA50VA -
MSZ-GA60VA -
MSZ-GA71VA - E1
E1
E1
How to set the remote controller exclusively for particular indoor unit
After you turn the breaker ON, the first remote controller that sends the signal to the indoor unit will be regarded as the
remote controller for the indoor unit.
The indoor unit will only accepts the signal from the remote controller that has been assigned to the indoor unit once they are
set. The setting will be cancelled if the breaker has turned off, or the power supply has shut down.
Please conduct the above setting once again after the power has restored.
SERVICE FUNCTIONS
Remote controller model : KM05C
J2
J1
OB388.qxp 05.1.26 18:12 Page 10

11
How to release “AUTO RESTART FUNCTION”
1Turn off the main power for the unit.
2Pull out the electronic control P.C. board, the receiver P.C.
board and the display P.C.board. (Refer to 10.2.)
3Solder jumper wire to JR07 on the indoor
electronic control P.C. board. (Refer to 9-7.)
NOTE
•The operation settings are memorized when 10 seconds have passed after the indoor unit was operated with the
remote controller.
•If main power is turned off or a power failure occurs while AUTO START/STOP timer is active ,the timer setting is
cancelled.
•If the unit has been off with the remote controller before power failure, the auto restart function does not work as the
power button of the remote controller is off.
•To prevent breaker off due to the rush of starting current, systematize other home appliances not to turn on at the same
time.
•When some air conditioners are connected to the same supply system, if they are operated before power failure, the
starting current of all the compressors may flow simultaneously at restart.
Therefore, the special counter-measures are required to prevent the main voltage-drop or the rush of the starting current
by adding to the system that allows the units to start one by one.
JR07
CN151
CN152
CN101
CN211CN112
BZ
Operation
1If the main power has been cut, the operation settings remain.
2After the power is restored, the unit restarts automatically according to the memory.(However, it takes at least 3 minutes
for the compressor to start running.)
OB388.qxp 05.1.26 18:12 Page 11

TROUBLESHOOTING
12
9
9-1. Cautions on troubleshooting
1. Before troubleshooting, check the following:
(1) Check the power supply voltage.
(2) Check the indoor/outdoor connecting wire for mis-wiring.
2. Take care the following during servicing.
(1) Before servicing the air conditioner, be sure to turn off the unit first with the remote controller, and then after
confirming the horizontal vane is closed, turn off the breaker and / or disconnect the power plug.
(2) Be sure to turn OFF the power supply before removing the front panel, the cabinet, the top panel, and the electronic
control P.C. board.
(3) When removing the electronic control P.C. board, hold the edge of the board with care NOT to apply stress on the
components.
(4) When connecting or disconnecting the connectors, hold the housing of the connector. DO NOT pull the lead wires.
3. Troubleshooting procedure
(1) First, check if OPERATION INDICATOR lamp on the indoor unit is flashing on and off to indicate an abnormality.
To make sure, check how many times the abnormality indication is flashing on and off before starting service work.
(2) Before servicing check that the connector and terminal are connected properly.
(3) If the electronic control P.C. board is supposed to be defective, check the copper foil pattern for disconnection and the
components for bursting and discolouration.
(4) When troubleshooting, refer to 9-2., 9-3. and 9-4.
4. How to replace batteries
Weak batteries may cause the remote controller malfunction.
In this case, replace the batteries to operate the remote controller normally.
1Remove the front lid and insert batteries.
Then reattach the front lid.
Lead wiring Housing point
NOTE : If the RESET button is not pressed, the remote controller may not operate correctly.
MSZ-GA50VA -
MSZ-GA60VA -
MSZ-GA71VA - E1
E1
E1
2Press the RESET button with tip end of ball point
pen or the like, and then use the remote controller.
INFORMATION FOR MULTI SYSTEM AIR CONDITIONER
OUTDOOR UNIT : MXZ series
Multi system air conditioner can connect two or more indoor units with one outdoor unit.
•Unit won’t operate in case the total capacity of indoor units exceeds the capacity of outdoor units. Do not
connect indoor units beyond the outdoor unit capacity.
•When you try to operate two or more indoor units with one outdoor unit simultaneously, one for the cooling and
the other for heating, the operation mode of the indoor unit that operates earlier is selected. The other indoor units will
start the operation later cannot operate, indicating as shown in the figure below. In this case, please set all the indoor
units to the same operation mode.
•When indoor units starts the operation while the defrosting of outdoor unit is being done, it takes a few minutes (max.
10 minutes) to blow out the warm air.
•In the heating operation, though indoor unit that does not operate may get warm or the sound of refrigerant flowing
may be heard, they are not malfunction. The reason is that the refrigerant continuously flows into it.
Lighted
Blinking
RESET button
Insert the negative pole of the
batteries first. Check if the polarity
of the batteries are correct.
OB388.qxp 05.1.26 18:12 Page 12

13
Outline of the function
This air conditioner can memorize the abnormal condition which has occurred once.
Even though OPERATION INDICATOR lamp indication listed on the troubleshooting check table (9-4.) disappears, the
memorized failure details can be recalled.
This mode is very useful when the unit needs to be repaired for the abnormality which doesn't recur.
9-2. Failure mode recall function

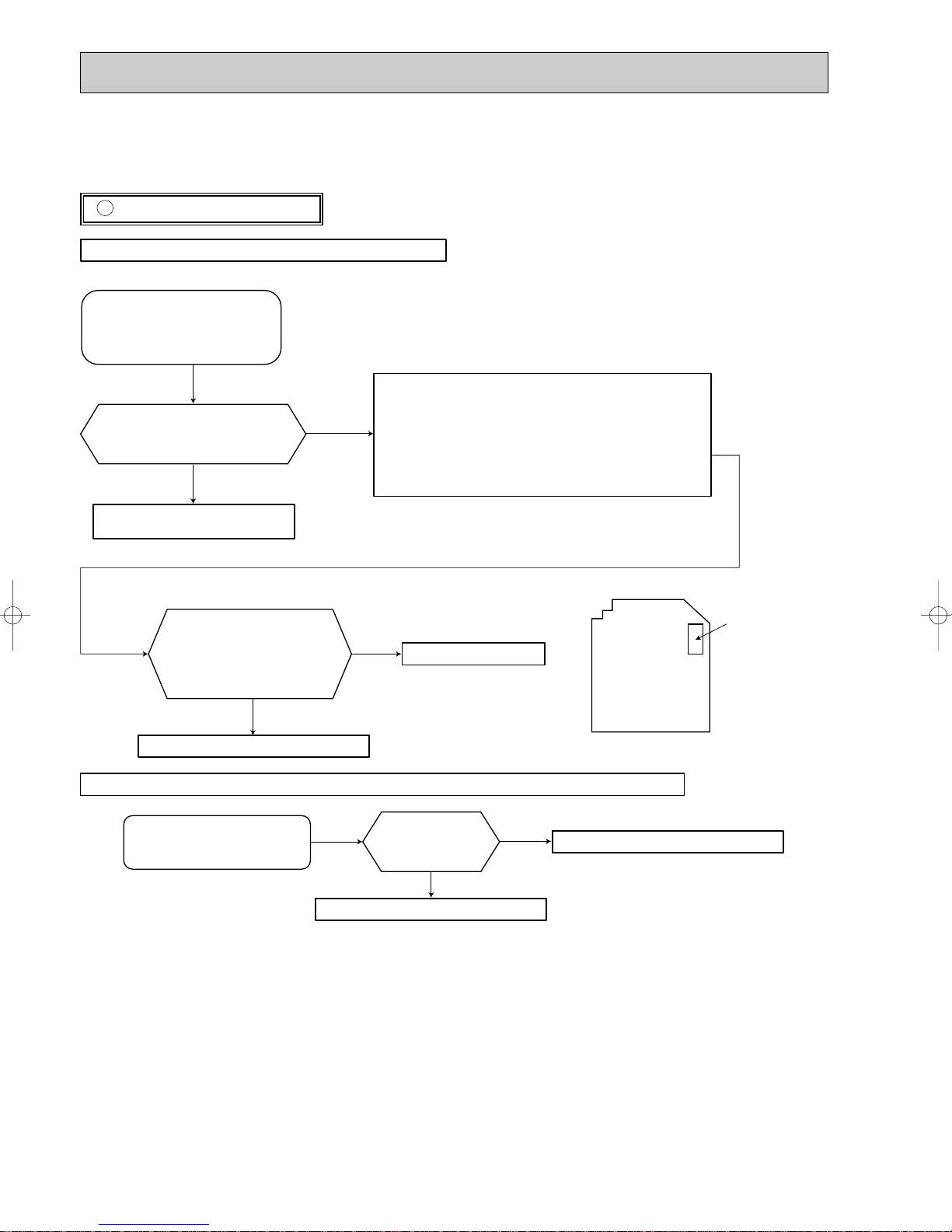

1. Flow chart of the indoor/outdoor unit failure mode recall function
Operational procedure
Yes
(Blinks)
No
(OFF)
Yes
No
Releasing the failure mode recall function
Note1.Make sure to release the failure mode recall function once it's set up, otherwise the unit cannot operate properly.
2.If the abnormal condition is not deleted from the memory, the last abnormal condition is kept memorized.
W2. Blinking pattern when the indoor unit is abnormal:
W3.Blinking pattern when the outdoor unit is abnormal:
ON
OFF Beeps
Repeated cycle Repeated cycle
ON
OFF No beep Beeps
Repeated cycle
2.5-second OFF Blinking at 0.5-
second interval
2.5-second OFF 3-second ON Blinking at 0.5-
second interval
Beeps Repeated cycle
2.5-second OFF Blinking at 0.5-
second interval
No beep Beeps
Repeated cycle
2.5-second OFF 3-second ON Blinking at 0.5-
second interval
Repeated cycle
Beeps
Does the left lamp of OPERATION INDICATOR lamp
on the indoor unit blink at the interval of 0.5 seconds?
Blinks: Either indoor or outdoor unit is abnormal.
Beep sounds are emitted at the same timing
of the blinking of the left lamp of
OPERATION INDICATOR lamp. W2
The cause of abnormality cannot be found because the abnormality doesn't recur.
Setting up the failure mode recall function
Before blinking, does the left lamp of OPERATION
INDICATOR lamp stay ON for 3 seconds?
Stays ON for 3 seconds (without beep):
The outdoor unit is abnormal.
The indoor unit is abnormal.
Check the blinking pattern, and refer to confirm the
abnormal point(9-2. 2.).
Make sure to check at least two consecutive blinking cycles. W2
Turn ON the power supply.
1While pressing both OPERATION SELECT
button and TOO COOLbutton on the remote controller at the same
time, press RESET button.
2First, release RESET button.
And release the other two buttons since all LCD in operation display
section of the remote controller is displayed after 3 seconds.
Deleting the abnormal condition
1After repairing the unit, recall the failure mode again according to
"Setting up the failure mode recall function" mentioned above.
2Press EMERGENCY OPERATION switch so that the memorized
abnormal condition is deleted.
3Release the failure mode recall function according to "Releasing the
failure mode recall function" mentioned above.
Repair the defective parts.
Release the failure mode recall function by the following procedures.
1With the remote controller headed towards the indoor unit, press any button
that is not used in this failure mode recall function (e.g. TIMER button) .
OR
1Turn OFF the power supply and turn ON it again.
2Press RESET button of the remote controller.
Judgment of indoor/outdoor abnormality
W1
Press OPERATE/STOP(ON/OFF) button of the remote controller (the set temperature
is displayed).
With the remote controller headed towards the indoor unit, press TOO COOL or TOO
WARM button to adjust the set temperature to 24:.
Indoor unit is normal.
There is a possibility that the outdoor unit is abnormal.
Confirm the presence of abnormality according to the flow chart of the
detailed outdoor unit failure mode recall function.
The outdoor unit is abnormal.
Check the blinking pattern, and refer to confirm the abnormal point.
Make sure to check at least two consecutive blinking cycles. W3
1While pressing both OPERATION SELECT
button and TOO COOLbutton on the
remote controller at the same time,
press RESET button.
2First, release RESET button.
And release the other two buttons since all LCD
in operation display section of the remote controller
is displayed after 3 seconds.
As for outdoor unit MUZ type, refer to service manual OB389.
As for outdoor unit MXZ type, refer to service manual OB377.
W1. Regardless of normal or abnormal, a short
beep is emitted once as the signal is received.
OB388.qxp 05.1.26 18:12 Page 13

14

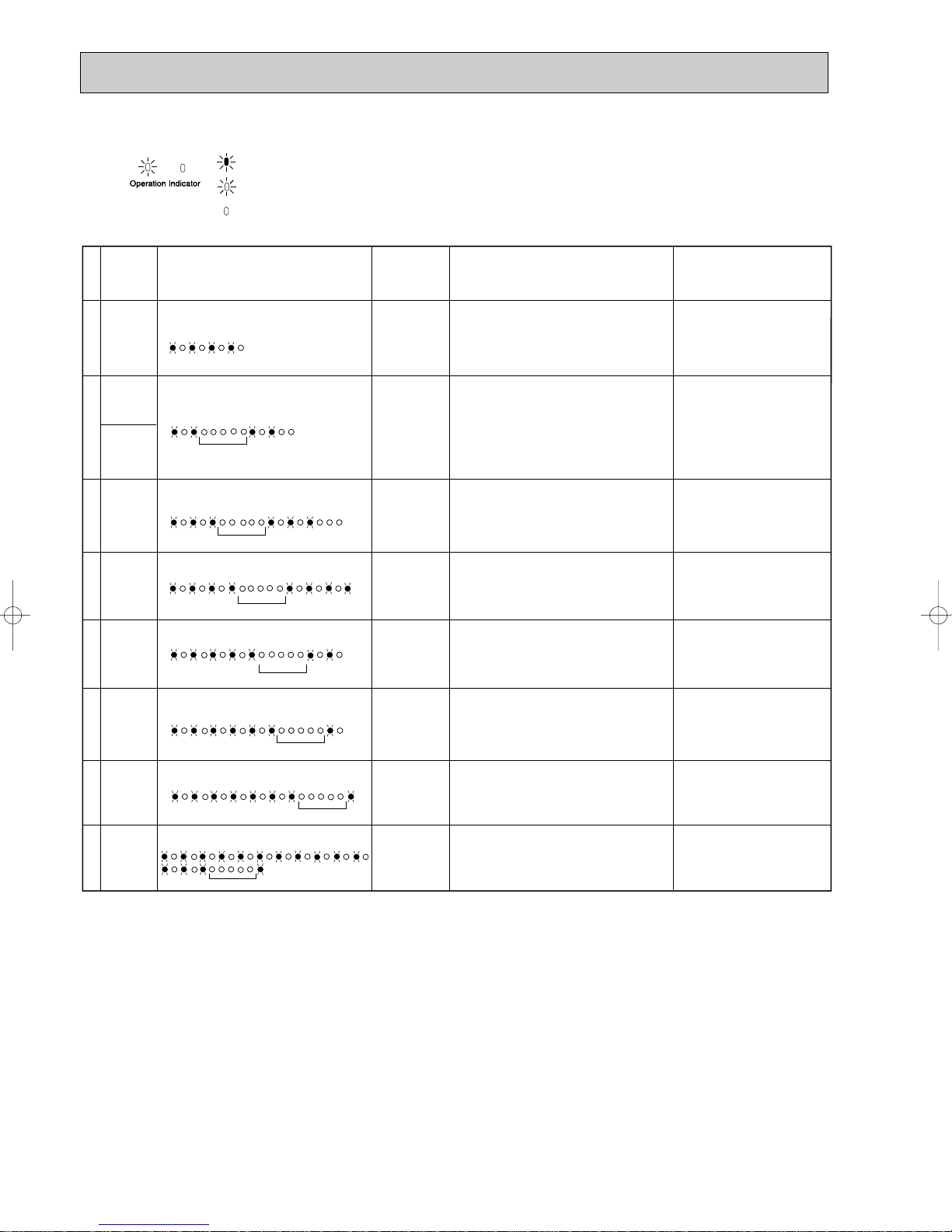

2. Indoor unit failure mode table
NOTE:Blinking patterns of this mode differs from the ones of Troubleshooting check table(9-4.).
12-time flash
2.5-second OFF
Replace the indoor electronic control
P.C. board.
Indoor control system When it cannot properly read data in the
nonvolatile memory of indoor electronic
control P.C. board.
11-time flash
2.5-second OFF
Refer to 9-6.A"Check of indoor fan
motor".
Indoor fan motor When the rotational frequency feedback
signal is not emit during 12-second
indoor fan operation.
2-time flash
2.5-second OFF
Refer to the characteristic of the main
indoor coil thermistor, the sub indoor coil
thermistor (9-7.).
Indoor coil thermistor When the indoor coil thermistor short or open
circuit is detected every 8 seconds
during operation.
3-time flash
2.5-second OFF
Refer to 9-6.D"How to check miswiring
and serial signal error".
Serial signal error When the serial signal from outdoor unit is not
received for a maximum of 6 minutes.
1-time flash
every 0.5-second
Refer to the characteristics of room
temperature thermistor (9-7.).
Room temperature
thermistor
When the room temperature thermistor short
or open circuit is detected every 8
seconds during operation.
Not lighted –Normal –
Left lamp of
OPERAITON
INDICTOR Check point
Abnormal point
(Failure mode) Detection method
OB388.qxp 05.1.26 18:12 Page 14

15
Start
Indoor unit
operates.
Outdoor unit
doesn't
operate.
Indoor unit
doesn't receive
the signal from
remote controller.
OPERATION INDICATOR
lamp on the indoor unit is
flashing on and off.
Outdoor unit
operates in
only Test Run
operation. w
Outdoor unit
doesn't
operate
even in
Test Run
operation. w
Indoor unit
operates, when
EMERGENCY
OPERATION
switch is pressed.
Indoor unit
doesn't operate,
when
EMERGENCY
OPERATION
switch is pressed.
Check room
temperature
thermistor.
Refer to 9-7.
"Test point
diagram and
voltage".
Refer to
"How to check
inverter/
compressor".
Refer to 9-6.B
"Check of
remote controller
and receiver
P.C. board".
1. Check indoor / outdoor
connecting wire.
(Check if the power
is supplied to the
indoor unit.)
2. Refer to 9-6.C
"Check of indoor
electronic control
P.C. board and indoor
fan motor".
Unit doesn't
operate
normal
operation in
COOL or
HEAT mode.
Refer to
"Check of
R.V. coil".
Left lamp
Flash on and off
at 0.5-second
intervals
Cause:
Indoor/
Outdoor unit
• Mis-wiring
or trouble
of serial signal
Left
lamp
2-time flash
Cause:
Indoor unit
• Trouble of
room temp-
erature/
indoor coil
thermistor
Left lamp
3-time flash
Cause:
Indoor unit
• Trouble of
indoor fan
motor
Left lamp
5-time flash
Cause:
Outdoor unit
• Outdoor
power
system
abnormality
Left lamp
6-time flash
Cause:
Outdoor unit
• Trouble of
thermistor
in outdoor
unit
Left lamp
7-time flash
Cause:
Outdoor unit
• Trouble of
outdoor
control
system
Refer to 9-6.
D "How to
check
mis-wiring
and serial
signal error
(when
outdoor unit
doesn't work)".
Check room
temperature
thermistor
and indoor
coil thermis-
tor.
Refer to 9-7.
"Test point
diagram and
voltage".
Refer to 9-6.
A"Check of
indoor fan
motor".
Refer to
"How to check
inverter/
compressor".
Refer to
"Check of
outdoor
thermistors".
Replace the
inverter P.C.
board or
the outdoor
electronic
control P.C.
board.
Left lamp
14-time flash
Cause:
Outdoor unit
• Other
abnormality
Check
"Flow chart of
the detailed
outdoor unit
failure mode
recall function."
Left lamp
4-time flash
Cause:
Indoor unit
• Trouble of
indoor unit
control
system
Replace the
indoor
electronic
control
P.C. board.
As for outdoor unit MUZ type,
refer to service manual OB389.
As for outdoor unit MXZ type,
refer to service manual OB377.
Indoor unit operates.
Outdoor unit doesn't
operate normally.
If blinking of OPERATION
INDICATOR lamp cannot be
checked, it can be checked with
failure mode recall function.
w "Test Run operation" means the
operation within 30 minutes after
EMERGNCY OPERATION switch
is pressed.
9-3. Instruction of troubleshooting
OB388.qxp 05.1.26 18:12 Page 15

16
NOTE : When the indoor unit has started operation and the above detection method has detected an abnormality (the first
detection after the power ON), the indoor electronic control P.C. board turns OFF the indoor fan motor with
OPERATION INDICATOR lamp flashing.
No.
1
2
5
6
SymptomOperation indicator lamp Detection method
Check point
Left lamp flashes.
0.5-second ON
0.5-second OFF
Mis-Wiring
or serial
signal
Outdoor
power
system
Outdoor
thermistors
Outdoor
control
system
Indoor coil
thermistor
When serial signal from outdoor unit is not
received for a maximum of 6 minutes.
When it consecutively occurs 3 times that the
compressor stops for overcurrent protection or
start-up failure protection witth in 1 minute
after start-up.
Outdoor thermistors short or open circuit
during compressor operation.
When it cannot properly read data in the
nonvolatile memory of the inverter P.C. board
or the outdoor electronic control P.C. board.
• Refer to "Check of outdoor
thermistor".
Refer to service manual
OB389 or OB377.
• Refer to "Check of inverter/
compressor".
Refer to service manual
OB389 or OB377.
Check the stop valve.
• Replace the inverter P.C.
board or the outdoor
electronic control P.C. board.
Refer to service manual
OB389 or OB377.
• Refer to 9-6.D"How to check
mis-wiring and serial signal
error".
3Indoor fan
motor
7
Abnormal
point
Room
tempera-
ture
thermistor
Left lamp flashes.
2-time flash
2.5-second OFF
When the indoor coil or room temperature
thermistor is short or open circuit. • Refer to 9-7.the
characteristics of indoor coil
thermistor, and the room
temperature thermistor.
Left lamp flashes.
3-time flash
2.5-second OFF
When rotational frequency feedback signal is
not emit during indoor fan operation. • Refer to 9-6.A"Check of
indoor fan motor".
Indoor unit
and outdoor
unit do not
operate.
Indoor unit
and outdoor
unit do not
operate.
Left lamp flashes.
5-time flash
2.5-second OFF
Left lamp flashes.
6-time flash
2.5-second OFF
Indoor unit
and outdoor
unit do not
operate.
Indoor unit
and outdoor
unit do not
operate.
Indoor unit
and outdoor
unit do not
operate.
Other
abnormality
An abnormality other than above mentioned is
detected. • Confirm the abnormality in
detail using the failure mode
recall function.
Indoor unit
and outdoor
unit do not
operate.
Indoor unit
and outdoor
unit do not
operate.
8
4
Left lamp flashes.
4-time flash
2.5-second OFF
Indoor
control
system
When it cannot properly read data in the
nonvolatile memory of indoor electronic
control P.C. board.
Indoor unit
and outdoor
unit do not
operate.
• Replace the indoor electronic
control P.C. board.
Left lamp flashes.
7-time flash
2.5-second OFF
Left lamp flashes.
14-time flash
2.5-second OFF
9-4. Troubleshooting check table
NOTE : Before taking measures, make sure that the symptom reappears for accurate troubleshooting.
Self check table
Lighted
Blinking
Not Lighted
· Flashing of OPERATION INDICATOR lamp (left-hand side lamp)
indicates abnormalities.
OB388.qxp 05.1.26 18:12 Page 16

17
Lighted
Blinking
Not Lighted
NOTE : When the indoor unit has started operation and the above detection method has detected an abnormality (the first
detection after the power ON), the indoor electronic control P.C. board turns OFF the indoor fan motor with
OPERATION INDICATOR lamp flashing.
No. SymptomOperation indicator lamp Detection method
Check point
Abnormal
point
1
MXZ type
Operation
mode
setting
Outdoor unit
operates but
indoor unit
does not
operate.
When the operation mode of each indoor unit
is differently set to COOL(includes DRY) and
HEAT at the same time, the operation mode of
indoor unit that has operated at first has the
priority.
• Unify the operation mode.
Refer to service manual
OB377.
2.5-second OFF
Right lamp flash
· Flashing of OPERATION INDICATOR lamp (right-hand side lamp) indicates
abnormality.
· OPERATION INDICATOR lamp (left-hand side lamp) is lighted.

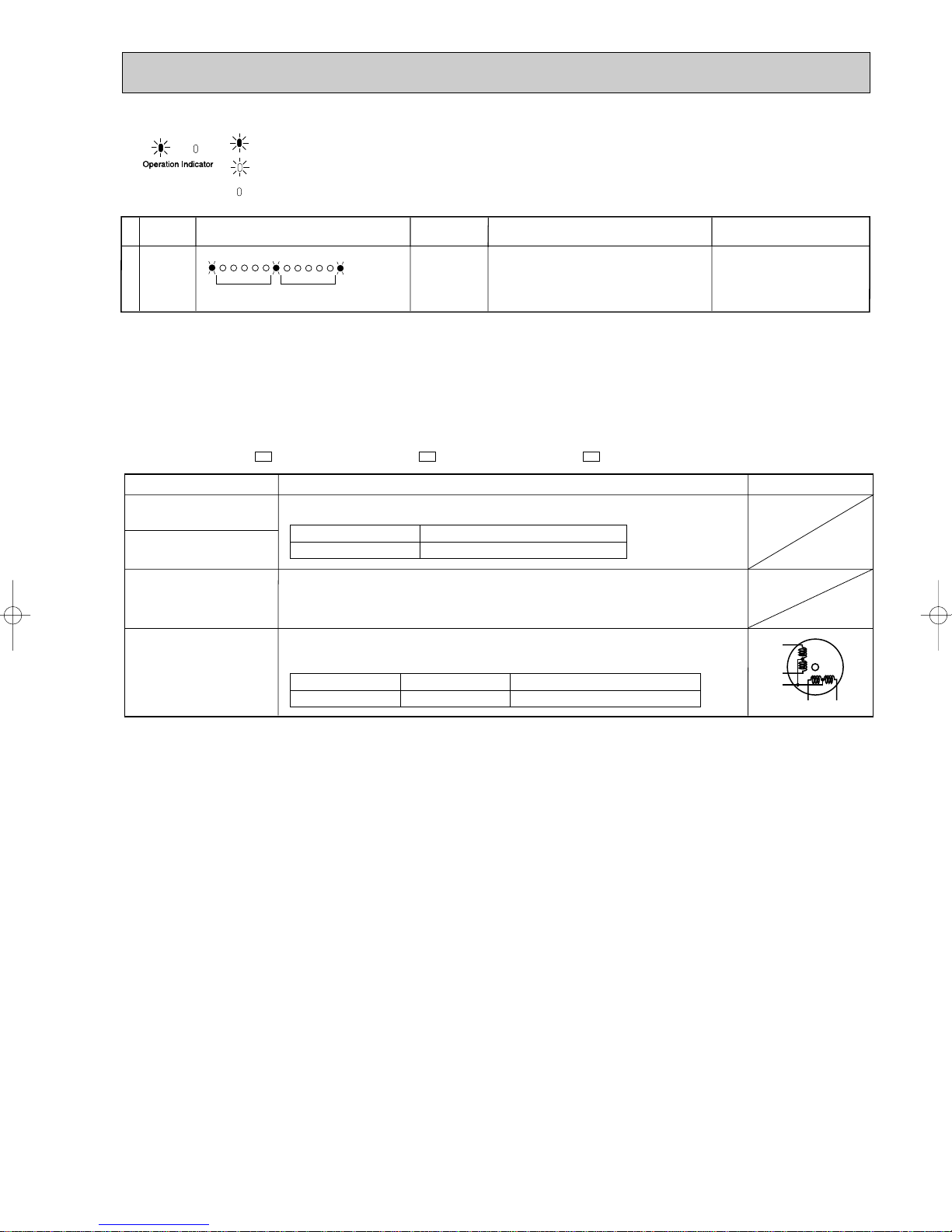

9-5. Trouble criterion of main parts
MSZ-GA50VA - MSZ-GA60VA - MSZ-GA71VA - E1E1E1
Part name FigureCheck method and criterion
Indoor fan motor(MF)
Measure the resistance with a tester. (Part temperature 10˚C ~ 30˚C)
Normal
8 k"~ 20 k"Abnormal
Open or short-circuit
Room temperature
thermistor(RT11)
Indoor coil thermistor
(RT12(MAIN), RT13(SUB))
Horizontal vane
motor(MV1)
Vertical vane
motor(MV2) Normal
BRN-other one Abnormal
Open or short-circuit
Measure the resistance between the terminals with a tester.
(Part temperature 20°C ~ 30°C)
240 "~ 260 "
Color of the lead wire
Check 9-6. A.
RED
YLW
BRN
ORN GRN
ROTOR
OB388.qxp 05.1.26 18:12 Page 17

18
Check of indoor fan motor
A
When OPERATION INDICATOR lamp flashes 3-time.
Indoor fan does not operate.
wIf 12 seconds or more passes after EMERGENCY OPERATION switch
is pressed, the voltage mentioned above 2 goes 0V DC although the
indoor electric control P.C. board is normal.
Indoor electronic
control P.C. board
Pay careful attention to the high voltage on
the fan motor connector CN211.
Yes
No
No
Changed
Unchanged
Is there any foreign matter that
interferes the rotation of the
line flow fan?
Turn OFF the power supply.
Insert a stick such as a screw driver
into the air outlet, and check if there is
any catch in the rotation of the line
flow fan.
Adjust the line flow fan and
remove the foreign matter.
w
Turn ON the power supply, wait 5 seconds or more, and then press
EMERGENCY OPERATION switch.
Measure the supply voltage as follows within 12 seconds
after EMERGENCY OPERATION switch is pressed.
If more than 12 seconds passes by, turn OFF the power supply and
turn ON it again, then measure the voltage.
1.Measure the voltage between CN211 1(+) and 3(-).
2.Measure the voltage between CN211 5(+) and 3(-).
Is there 325V DC between
CN211 1(+) and 3(-), and does
the voltage between CN211 5(+)
and 3(-) rise to the range of 3 to 6V
DC within 12 seconds after
EMERGENCY OPERATION switch
is pressed?
Yes Replace the indoor fan motor.
CN211
Replace the indoor electronic control P.C. board.
The indoor fan motor error has occurred, and the indoor fan repeats "12-second ON and 30-second OFF" 3times, and then stops.
Measure the voltage between CN211
6(+) and 3(-) while the fan
motor is rotating.
Is it unchanged holding
0V DC or 15V DC?
Replace the indoor fan motor.
Replace the indoor electronic control P.C. board.
The indoor fan motor error has occurred, and the indoor fan doesn't operate.
9-6. Troubleshoot flow
OB388.qxp 05.1.26 18:12 Page 18

19
Check of remote controller and receiver P.C. board
B
Indoor unit operates by pressing EMERGENCY OPERATION switch, but does not operate with the remote controller.
wCheck if the remote controller is exclusive for this air conditioner.
Yes
Replace the batteries. (Refer to 9-1.4.)
Turn on a radio to AM and press switch on
the remote controller.
Is noise heard from radio?
Are there any fluorescent lights of
inverter or rapid-start type within
the range of 1m?
Replace the remote controller.
● Reinstall the unit away from lights.
● Attach a filter on receiving part.
Switch on the remote controller.
Is LCD display on the the remote
controller visible?
Remove the batteries, then set them back
and press RESET button. (Refer to 9-1.4.)
Check if the unit operates with the remote
controller.
Yes
Does the unit operate with the
remote controller?
Yes
OK
No
(not clear)
Yes
No
No
Replace the receiver P.C. board.
Measure the voltage between receiver P.C. board connector CN301 No.2(+) and No.3(-) when the remote
controller button is pressed.
Is the voltage approx. 4V DC? Replace the indoor electronic control P.C.
board.
No(5V or 0V DC)
Yes
OB388.qxp 05.1.26 18:12 Page 19

20
The unit does not operate with the remote controller.
Also, OPERATION INDICATOR lamp does not light up by pressing EMERGENCY OPERATION switch.
Check of indoor electronic control P.C. board and indoor fan motor
C
Yes
No
w1. The fan motor connector's 1lead wire is red, whereas 3is black.
w2. Connect "+" of the tester to fan motor connector's 1lead
wire, and "-" to 3lead wire, otherwise the resistance cannot be
measured properly.
w3
w3. Short circuit:
The indoor fan motor is
abnormal.
Yes
No
w1,2
Does the unit operate with the remote controller?
Does OPERATION INDICATOR lamp light up by
pressing EMERGENCY
OPERATION switch?
Turn OFF the power supply.
Remove indoor fan motor connector CN211 and
vane motor connector CN151 from the indoor electronic
control P.C. board and turn ON the power supply.
Measure the resistance of the horizontal vane
motor coil.
Normal value is approx. 300'to 250'.
Measure the resistance between CN211 3
and 4of the indoor fan motor connector.
Normal value is approx. 30k'to 50k'.
Short circuit:
Replace the indoor fan motor.
Short circuit:
Replace the horizontal vane motor and the indoor
electronic control P.C. board.
Turn OFF the power supply.
Check both “parts side” and “pattern
side” of the indoor electronic control P.C.
board visually.
Replace the varistor(NR11) and fuse(F11).
Are the varistor(NR11) burnt
and the fuse(F11) blown?
Be sure to check both the fuse
and the varistor in any case.
No
Yes
No
Is the fuse(F11) blown only?
Yes
No
Is the resistance 1M'
or more?
Measure the resistance between
1(+) and 3(-) of the indoor fan
motor connector (to CN211 on the
indoor electronic control P.C. board) .
Replace the fuse (F11).
Replace the fuse (F11) and the indoor fan motor.
Is the resistance
approx. 4'?
Measure the cement resistance R111 on
the indoor electronic control P.C. board.
Replace the indoor electronic control P.C. board.
Replace the indoor electronic control P.C. board
and the indoor fan motor.
Yes
CN211
Fuse(F11)
Varistor(NR11)
Indoor electronic
control P.C.Board
OB388.qxp 05.1.26 18:12 Page 20
