Mitsubishi Electric PEA Series User manual

SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS
SERVICE MANUAL
Model name
<Indoor unit>
Model name
<Indoor unit>
Series PEA
2015
PEA-RP200GAQ
PEA-RP250GAQ
PEA-RP400GAQ
PEA-RP500GAQ
PEA-RP250GA
PEA-RP400GA
PEA-RP500GA
• This manual describes only
service data of the indoor
units.
CONTENTS
1. TYPES OF INDOOR UNITS ·······························2
2. SAFETY PRECAUTION ···································3
3. PART NAMES AND FUNCTIONS····················8
4. SPECIFICATIONS ··········································10
5. DATA·······························································11
6. OUTLINES AND DIMENSIONS·····················13
7.WIRING DIAGRAM·········································16
8. REFRIGERANT SYSTEM DIAGRAM ············20
9.TROUBLESHOOTING····································21
10. SERVICE DATA (PARTS NAME) ···················33
Indoor unit
Remote controller (option)
HWE1007B.qx 6/2/15 4:27 PM Page 1

2
1TYPES OF INDOOR UNITS
Service Reference
PEA-RP200GAQ
PEA-RP250GAQ
PEA-RP400GAQ
PEA-RP500GAQ
PEA-RP200GAQ(R2).TH-AF
PEA-RP250GAQ(R2).TH-AF
PEA-RP400GAQ(R1).TH-AF
PEA-RP500GAQ(R1).TH-AF
Model name
Specification
HWE1007B.qx 6/2/15 4:27 PM Page 2

3
SAFETY PRECAUTION
2
Cautions for units utilising refrigerant R410A
CAUTIONS RELATED TO NEW REFRIGERANT
Use new refrigerant pipes.
Make sure that the inside and outside of refrige-
rant piping is clean and it has no contamination
such as sulfur hazardous for use, oxides, dirt,
shaving particles, etc.
In addition, use pipes with specified thickness.
Store the piping to be used during installation
indoors and keep both ends of the piping sealed
until just before brazing. Leave elbow joints, etc.
in their packaging.)
Use ester oil, ether oil or alkylbenzene oil small
amount) as the refrigerant oil applied to flares
and flange connections.
In case of using the existing pipes for R22, be careful with
the followings.
áBesure to perform replacement operation
before test run.
áAvoid using thin pipes.
Charge refrigerant from liquid phase of gas
cylinder.
If the refrigerant is charged from gas phase, composition
change may occur in refrigerant and the efficiency will be
lowered.
Do not use refrigerant other than R410A.
If other refrigerant (R22 etc. is used, chlorine in refrige-
rant can cause deterioration of refrigerant oil etc.
Use a vacuum pump with a reverse flow check
valve.
Vacuum pump oil may flow back into refrigerant cycle and
that can cause deterioration of refrigerant oil etc.
Use the following tools specifically designed for
use with R410A refrigerant.
The following tools are necessary to use R410A refrigerant.
Keep the tools with care.
If dirt, dust or moisture enter into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
Do not use a charging cylinder.
If a charging cylinder is used, the composition of refrigera-
nt will change and the efficiency will be lowered.
Flare tool
Electronic refrigerant
charging scale
Vacuum pump adaptor
Size adjustment gauge
Gauge manifold
Torque wrench
Gas leak detector
Charge hose
Tools for R410A
Contamination inside refrigerant piping can cause deterio-
ration of refrigerant oil etc.
If dirt, dust or moisture enter into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
If large amount of mineral oil enter, that can cause deterio-
ration of refrigerant oil etc.
Ventilate the room if refrigerant leaks during
operation. If refrigerant comes into contact with
a flame, poisonous gases will be released.
[1] Cautions for service
(1) Perform service after collecting the refrigerant left in unit completely.
(2) Do not release refrigerant in the air.
(3) After completing service, charge the cycle with specified amount of refrigerant.
(4) When performing service, install a filter drier simultaneously.
Be sure to use a filter drier for new refrigerant.
HWE1007B.qx 6/2/15 4:27 PM Page 3

4
[2] Storage of Piping Material
(1) Storage location
Store the pipes to be used indoors. (Warehouse at site or owner’s warehouse)
Storing them outdoors may cause dirt, waste, or water to infiltrate.
(2) Pipe sealing before storage
Both ends of the pipes should be sealed until immediately before brazing.
Wrap elbows and T’s in plastic bags for storage.
*The new refrigerator oil is 10 times more hygroscopic than the conventional refrigerator oil (such as Suniso). Water
infiltration in the refrigerant circuit may deteriorate the oil or cause a compressor failure. Piping materials must be stored
with more care than with the conventional refrigerant pipes.
OK
OK
NG
NG
HWE1007B.qx 6/2/15 4:27 PM Page 4

5
 
No changes from the conventional method, but special care is required so that foreign matter (ie. oxide scale, water, dirt,
etc.) does not enter the refrigerant circuit.
Example: Inner state of brazed section
hen non-oxide brazing was not used hen non-oxide brazing was used
    
1. Do not conduct refrigerant piping work outdoors on a rainy day.
2. Apply non-oxide brazing.
3. Use a brazing material (BCuP-3) which requires no flux when brazing between copper pipes or between a copper
pipe and copper coupling.
4. If installed refrigerant pipes are not immediately connected to the equipment, then braze and seal both ends of them.

1. The new refrigerant oil is 10 times more hygroscopic than the conventional oil. The probability of a machine failure if
water infiltrates is higher than with conventional refrigerant oil.
2. A flux generally contains chlorine. A residual flux in the refrigerant circuit may generate sludge.

¥Commercially available antioxidants may have adverse effects on the equipment due to its residue, etc. hen
applying non-oxide brazing, use nitrogen.
HWE1007B.qx 6/2/15 4:27 PM Page 5

6
  
No changes from the conventional method. Note that a refrigerant leakage detector for R22 cannot detect R407C leakage.
Halide torch R22 leakage detector
    
1. Pressurize the equi ment with nitrogen u to the design ressure and then judge the equi mentÕs airtightness, taking
tem erature variations into account.
2. When investigating leakage locations using a refrigerant, be sure to use R407C.
3. Ensure that R407C is in a liquid state when charging.

1. Use of oxygen as the ressurized gas may cause an ex losion.
2. Charging with R407C gas will lead the com osition of the remaining refrigerant in the cylinder to change and this
refrigerant can then not be used.

¥Aleakage detector for R407C is sold commercially and it should be urchased.
 
1. Vacuum um with check valve
Avacuum um with a check valve is required to revent the vacuum um oil from flowing back into the refrigerant
circuit when the vacuum um ower is turned off ( ower failure).
It is also ossible to attach a check valve to the actual vacuum um afterwards.
2. Standard degree of vacuum for the vacuum um
Use a um which reaches 0.5 Torr (500 MICRON) or below after 5 minutes of o eration.
In addition, be sure to use a vacuum um that has been ro erly maintained and oiled using the s ecified oil. If the
vacuum um is not ro erly maintained, the degree of vacuum may be too low.
3. Required accuracy of the vacuum gauge
Use a vacuum gauge that can measure u to 5 Torr. Do not use a general gauge manifold since it cannot measure a
vacuum of 5 Torr.
4. Evacuating time
¥ Evacuate the equi ment for 1 hour after Ð755 mmHg (5 Torr) has been reached.
¥ After envacuating, leave the equi ment for 1 hour and make sure the that vacuum is not lost.
5. O erating rocedure when the vacuum um is sto ed
In order to revent a backflow of the vacuum um oil, o en the relief valve on the vacuum um side or loosen the
charge hose to drawn in air before sto ing o eration.
The same o erating rocedure should be used when using a vacuum um with a check valve.
 
HWE1007B.qx 6/2/15 4:27 PM Page 6

7

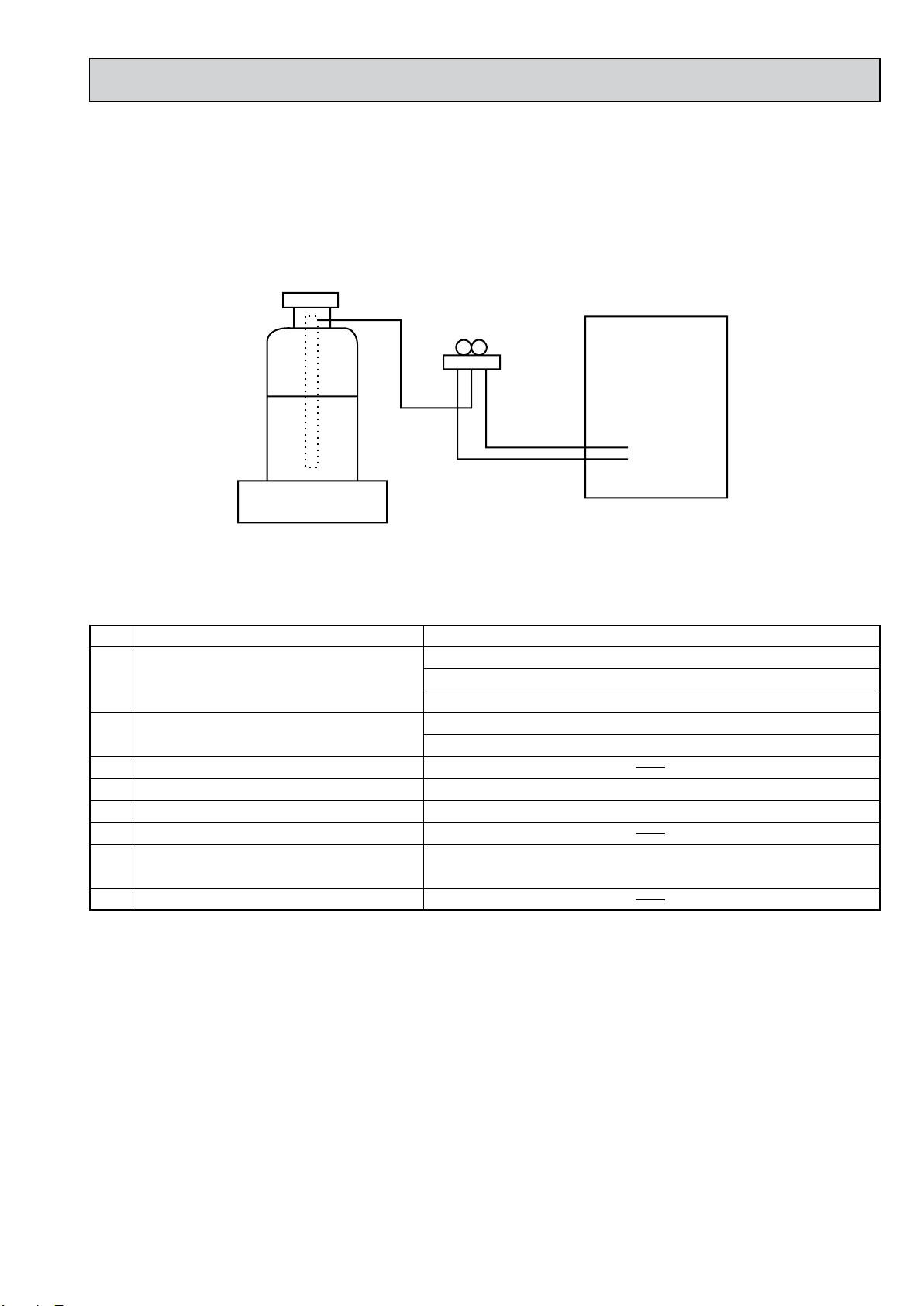

[6] Additional refrigerant charge
When charging directly from cylinder
· Check that cylinder for R410A on the market is syphon type.
· Charging should be performed with the cylinder of syphon stood vertically. (Refrigerant is charged from liquid phase.)
[7] Service tools
Use the below service tools as exclusive tools for R410A refrigerant.
No. Specifications
1Gauge manifold ·Only for R410A
·Use the existing fitting specifications.(UNF1/2)
·Use high-tension side pressure of 5.3MPa·G or over.
2Charge hose ·Only for R410A
·Use pressure performance of 5.09MPa·G or over.
3Electronic scale
4Gas leak detector ·Use the detector for R134a, R407C or R410A.
5Adaptor for reverse flow check ·Attach on vacuum pump.
6Refrigerant charge base
7Refrigerant cylinder ·Only for R410A Top of cylinder (Pink)
Cylinder with syphon
8Refrigerant recovery equipment
Gravimeter
Unit
HWE1007B.qx 6/2/15 4:27 PM Page 7

8
3PART NAMES AND FUNCTIONS
● Remote controller (option)
Once the controls are set, the same operation mode can be repeated by simply pressing the ON/OFF button.
● Operation buttons
●Indoor Unit
Air intake duct flange
Air outlet duct flange
Air outlet
Air intake
(sucks the air inside the room into the unit)
PAR-21MAA
ON/OFF
FILTER
CHECK
OPERATION
CLEAR
TEST
TEMP.
MENU
BACK DAY
MONITOR/SET
CLOCK
ON/OFF
Set Temperature buttons
Down
Up
Timer Menu button
(Monitor/Set button)
Mode button (Return button)
Set Time buttons
Back
Ahead
Timer On/Off button
(Set Day button)
Opening the
door.
ON/OFF button
Fan Speed button
Filter button
(<Enter> button)
Test Run button
Check button (Clear button)
Airflow Up/Down button
Louver button
(Operation button)
To preceding operation
number.
Ventilation button
(Operation button)
To next operation number.
HWE1007B.qx 6/2/15 4:27 PM Page 8

9
●Display
For purposes of this explanation,
all parts of the display are shown
as lit. During actual operation, only
the relevant items will be lit.
˚F˚C
˚F˚C
ERROR CODE
AFTER
TIMER
TIME SUN MON TUE WED THU FRI SAT
ON
OFF
Hr
AFTER
FILTER
FUNCTION
ONLY1Hr.
WEEKLY
SIMPLE
AUTO OFF
Identifies the current operation
Shows the operating mode, etc.
*Multilanguage display is sup-
ported.
“Centrally Controlled” indicator
Indicates that operation of the re-
mote controller has been prohib-
ited by a master controller.
“Timer Is Off” indicator
Indicates that the timer is off.
Temperature Setting
Shows the target temperature.
Day-of-Week
Shows the current day of the week.
Time/Timer Display
Shows the current time, unless the simple or Auto Off
timer is set.
If the simple or Auto Off timer is set, shows the time
remaining.
“Sensor” indication
Displayed when the remote controller
sensor is used.
“Locked” indicator
Indicates that remote controller but-
tons have been locked.
“Clean The Filter” indicator
Comes on when it is time to clean the
filter.
Timer indicators
The indicator comes on if the corre-
sponding timer is set.
Up/Down Air Direction indica-
tor
The indicator shows the direc-
tion of the outcoming airflow.
“One Hour Only” indicator
Displayed if the airflow is set to
weak and downward during COOL
or DRY mode. (Operation varies
according to model.)
The indicator goes off after one
hour, at which time the airflow di-
rection also changes.
Room Temperature display
Shows the room temperature.
Louver display
Indicates the action of the swing
louver. Does not appear if the
louver is stationary.
(Power On indicator)
Indicates that the power is on.
Fan Speed indicator
Shows the selected fan speed.
Ventilation indicator
Appears when the unit is running in
Ventilation mode.
Caution
●Only the Power on indicator lights when the unit is stopped and power supplied to the unit.
●If you press a button for a feature that is not installed at the indoor unit, the remote controller will display the “Not Available”
message.
If you are using the remote controller to drive multiple indoor units, this message will appear only if he feature is not
present at the parent unit.
●When power is turned ON for the first time, it is normal that “PLEASE WAIT” is displayed on the room temperature indication
(For max. 2minutes). Please wait until this “PLEASE WAIT” indication disappear then start the operation.
HWE1007B.qx 6/2/15 4:27 PM Page 9

10
4SPECIFICATIONS
Model name
Cooling
1.00
2.0
Heating
1.00
2.0
H
W
D
Hi
Lo
kW
A
CMM
L/s
CMM
L/s
Pa
mmAq
dB(A)
dB(A)
mm
mm
mm
kg
lbs
PEA-RP200GAQ PEA-RP250GAQ
3PH 4W 50Hz 380-415V
Galvanized steel
Cross fin coil
Centrifugal (direct) o2
0.77
65
1083
52
867
150
15
Remote control & built in
51
48
R1
400
1400
634
70
154
Cooling
1.18
2.3
Heating
1.18
2.3
3PH 4W 50Hz 380-415V
Galvanized steel
Cross fin coil
Centrifugal (direct) o2
0.77
80
1333
64
1067
150
15
Remote control & built in
52
49
R1
400
1600
634
77
169
Power supply (phase, cycle,voltage)
Input
Running current
External finish
Heat exchanger
Operation control & Thermostat
Sound level
Drain connection
Dimensions
Weight
Mode
Fan (drive) o No.
Fan motor output
Airflow
External static pressure
Hi
Lo
Model name
Cooling
1.55
3.8
Heating
1.55
3.8
H
W
D
kW
A
CMM
L/s
Pa
mmAq
dB(A)
mm
mm
mm
kg
lbs
PEA-RP400GAQ PEA-RP500GAQ
3PH 4W 50Hz 380-415V
Galvanized steel
Cross fin coil
Centrifugal (direct) o2
1.3
120
2,000
150
15
Remote control & built in
52
R1
595
1947
764
130
286
Cooling
2.84
5.4
Heating
2.84
5.4
3PH 4W 50Hz 380-415V
Galvanized steel
Cross fin coil
Centrifugal (direct) o2
1.8
160
2,667
150
15
Remote control & built in
53
R1
595
1947
764
133
293
Power supply (phase, cycle,voltage)
Input
Running current
External finish
Heat exchanger
Operation control & Thermostat
Sound level
Drain connection
Dimensions
Weight
Mode
Fan (drive) o No.
Fan motor output
Airflow
External static pressure
Fan
Fan
HWE1007B.qx 6/2/15 4:27 PM Page 10

11
DATA5
5-1. Sound Data
Indoor units
Indoor unit
Position measurement
Measurement point
Inlet
Outlet
1.5m
2m 1m
PEA-RP200,250: Upper High/Lower Low
SPL
dB(A) 63Hz 125Hz 250Hz 500Hz 1000Hz 2000Hz 4000Hz 8000Hz
51 55 54 51 49 47 43 33 27
48 50 50 47 46 44 40 29 21
52 56 55 52 50 48 44 34 28
49 51 51 48 47 45 41 30 22
53 55 54 51 50 48 44 40 31
OCTAVE BAND FREQ.Hz
Model
52 53 51 52 50 46 44 39 30
PEA-RP200GAQ
PEA-RP250GAQ
PEA-RP500GAQ
PEA-RP400GAQ
HWE1007B.qx 6/2/15 4:27 PM Page 11

12
5-2. Fan Performance Curve
Indoor units
PEA-RP200GAQ
Fan Performance Curve 50Hz PEA-RP250GAQ
Fan Performance Curve 50Hz
PEA-RP400GAQ
Fan Performance Curve 50Hz PEA-RP500GAQ
Fan Performance Curve 50Hz
70.0 80.0 100.0 110.0 120.0 130.090.0
(Pa)
(Pa) (Pa)
External static pressure
Air flow (CMM)
0
50
100
150
200
300
250
110.0100.0 120.0 130.0 140.0 150.0 160.0 170.0
(Pa)
External static pressure
Air flow
(CMM)
0
50
100
150
200
350
300
250
Hi
Lo
45.0 50.0 55.0 60.0 65.0 70.0
Hi
Lo
0
50
100
150
200
250
300
0
50
100
150
200
250
60.0 65.0 70.0 75.0 80.0 85.0 90.0
External static pressure
Air flow Air flow
(CMM) (CMM)
External static pressure
HWE1007B.qx 6/2/15 4:27 PM Page 12

13
OUTLINES AND DIMENSIONS
6
Return air sensor
A
Rubber bush <Remote controller wiring>
Rubber bush <Outdoor unit connection wiring>
Rubber bush <Power supply wiring>
A
4-
ø
12 Holes
Drain R1
Top view
Control box
Return air duct flange
Supply air duct flange <For hanging bolt M10>
[Field supply]
22-
ø
3.1 Holes
24-
ø
3 Holes
Refrigerant pipe ø
9.52 (3/8 braze)
Refrigerant pipe
ø
25.4 (1 braze)
<Accessory> 2pcs. ·Pipe cover ··································
(For dew condensation prevention of local piping and unit connection.)1pc.
·Remote controller························
Return air
Left side view
Supply air
Front view
75
55
12970
42
124 34
131
530
50
9525011
7x130(=910)
10
130
130
45 45
31 31
1102
200
10
8x130(=1040)
1300 20
199
100
40
20
462
144
1284
400
155 1000 105
40 1260 40
1340
1400
56539
22330
145
89 35
130
130
35
634
262 73
10 54
10
376 2510010025
Unit : mm
PEA-RP200GAQ
HWE1007B.qx 6/2/15 4:27 PM Page 13

14
Unit : mm
PEA-RP250GAQ
Rubber bush <Remote controller wiring>
Rubber bush <Outdoor unit connection wiring>
Rubber bush <Power supply wiring>
A
A
4-
ø
12 Holes
Drain R1
Top view
Control box
22-
ø
3.1 Holes
<For hanging bolt M10> [Field supply]
Return air duct flange
Supply air duct flange
26-
ø
3 Holes
Left side view
Supply air
Return air
Front view
Return air sensor
<Accessory> ·Pipe cover ································· 2pcs. (For dew condensation prevention of local piping and unit connection.) ·Remote controller ······················ 1pc.
Refrigerant pipe ø
12.7 (1/2 braze)
Refrigerant pipe
ø
25.4 (1 braze)
42
144145
75
55
70 129
124
131
50 530
34
130
9525011 10
66
1302
1484
7x130(=910) 130
45 45
200
20
100
20
199
40
1500
462
66 9X130(=1170)
10
25 100 100 25
10 10
1540 40146040 255 205
376
1000
1600
73262
400
39 565
54
634
35
130
89 330 22
130
35
HWE1007B.qx 6/2/15 4:27 PM Page 14

15
PEA-RP400,500GAQ
45
Refrigerant pipe PEA-RP400GAQ : ø9.52 (3/8 braze) PEA-RP500GAQ : ø12.7 (1/2 braze) [2 places (*2 part)]
*2
*1
*2 *1
Refrigerant pipe ø25.4 (1 braze) [2 places (*1 part)]
Return air sensor (2 places)
Drain R1
24- ø3.1 HOLES
36- ø3 HOLES
Left side view Front view
Top view
Return air Supply air
4- ø15 HOLES
<For hanging bolt M12> [Field supply]
Return air duct flange
Control box
Supply air duct flange
A
Rubber bush <Remote controller wiring>
Rubber bush
<Power supply wiring>
Rubber bush <Outdoor unit connection wiring>
A
<Accessory> ·Pipe cover ································· 4pcs. (For dew condensation prevention of local piping and unit connection.) ·Remote controller ······················ 1pc.
81
117156117
10
20 1840
10
40
60 60
61
60
4040 1800
1880
50 664
525
22
102 22.5
120
4X120(=480)
22.5
595
1824
50
764
2801125395
340 18822
1947
570
40 130 130 40
10
33
29
130
12X130(=1560)
29
149 1618
100
42.5
130
8X130(=1040)42.5
10
203320141
20
42559
700
39
Unit : mm
HWE1007B.qx 6/2/15 4:27 PM Page 15

16

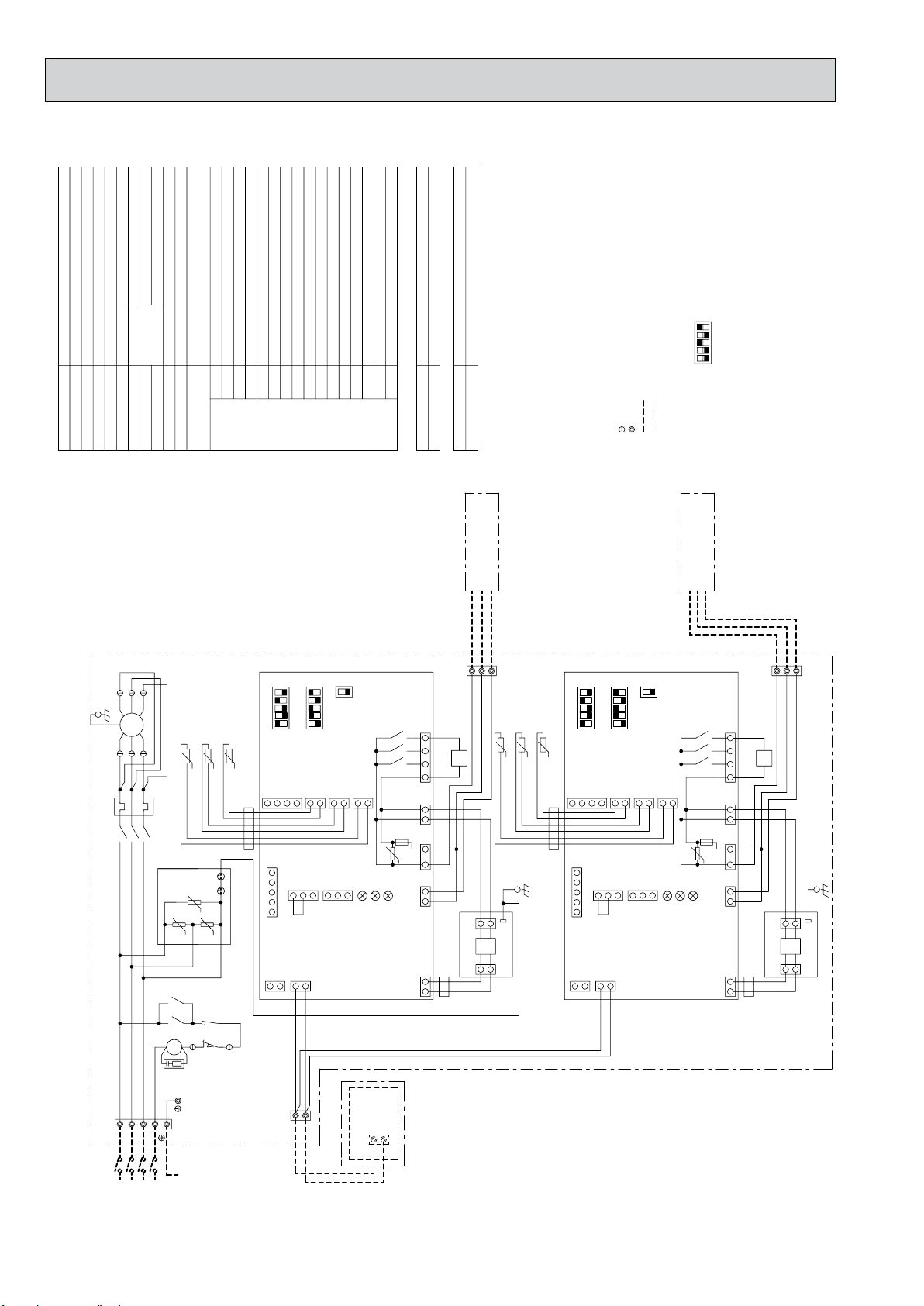

7WIRING DIAGRAM
PEA-RP200,250GAQ
t˚ t˚ t˚
ON
OFF
SWE
ON OFF
SW1
51F
49F
X1
52F
Lo 52F
Hi
TB5
2 1
1 2 2 1 2 1 4 3 2 1
CN29
CN41
CN21
CN20
CN3C
2 1 3 3 1 2
1 2 1 2
LED3 LED2 LED1
DC13.1V
21 1313 13
54321
CN51
CN31
CN32
CND CNDK
CN2L
CN22
CN2D
DC
13.1V
CN2S
1 2
CNSK
1 3
TAB1
FUSE
ZNR
FAN
1573
X4
X1 X1
X5 X6
S1 S2 S3
TB4
FB
3 2 1
52F
1 2 3
Lo
Hi
52F
L1 L2 L3
TB2
RED WHITE BLACK
N
RED
WHITE
BLACK
TH1 TH2 TH5
4
5
C01
C01
(6P)
(Lo)
C02
(3P)
(Hi)
DSA
DSR
U
U
U U
ON OFF
(*1)SW2
SNB BOARD 1
CR2 CR1
ZNR5~7
12 43OFF
ON
5
(*1)SW2
INDOOR UNIT
1~
M
TO OUTDOOR UNIT CONNECTING WIRES (POLAR)
PE
POWER SUPPLY 3N~PE 380/400/415V 50Hz
CIRCUIT BREAKER (FIELD SUPPLY) PEA-RP200,250GAQ:15A
OUTDOOR UNIT
2 1
REMOTE CONTROLLER
TB6
BOARD
REMOTE CONTROLLER
CONTROLLER BOARD
INDOOR
INDOOR POWER BOARD
Note:1. Color of earth wire is yellow and green twisting.
2. Specification subject to change without notice. 3. Indoor and outdoor connecting wires are made with polarities,make sure matching wiring and terminal. 4. Emergency operation If a trouble occurs with either the remote controller or the indoor microcomputer and no other trouble exists, emergency operation for cooling or heating can be performed by changing the setting of connector (SWE) "ON" on the indoor controller board. SWE :ON / Indoor fan is running high speed. 5. Symbols used in wiring diagram above are,
:CONNECTOR :TERMINAL
(HEAVY DOTTED LINE):FIELD WIRING (THIN DOTTED LINE) :OPTIONAL PARTS
6. (*1)SW2 shows PEA-RP250 setting. In case of PEA-RP200 setting is shown as below.
51F
NAME
REMOTE CONTROLLER
SYMBOL
TB6 TERMINAL BLOCK
CONNECTOR (LOSSNAY) CONNECTOR (CENTRALLY CONTROL) CONNECTOR (HA TERMINAL-A) CONNECTOR (REMOTE SWITCH) CONNECTOR (DRAIN SENSOR)
CN32 CN41 CN51 CN31 CN2L
INDOOR CONTROLLER BOARD
FB FERRITE CORE
X1 AUXILIARY RELAY
MAGNETIC CONTACTOR (INDOOR FAN MOTOR<LOW SPEED>)52FLo
MF1 51F 49F
TB2,4,5
TH1 TH2
FAN MOTOR (INDOOR) OVER CURRENT RELAY (INDOOR FAN MOTOR) INTERNAL THERMOSTAT (INDOOR FAN MOTOR) TERMINAL BLOCK
THERMISTOR
FUSE FUSE (T6.3AL250V) ZNR VARISTOR
AUXILIARY RELAYX4-6
SW2 SWE LED1 LED (POWER SUPPLY) LED2 LED (POWER SUPPLY<REMOTE CONTROLLER>) LED3 LED (TRANSMISSION<INDOOR·OUTDOOR>)
TH5
SW1
CR1,2 SURGE KILLER
MAGNETIC CONTACTOR (INDOOR FAN MOTOR<HIGH SPEED>)52FHi
ROOM TEMP LIQUID PIPE TEMP COND/EVA TEMP
SYMBOL NAME
INDOOR UNIT
ARRESTERDSA,DSR VARISTORZNR5~7
SNB BOARD 1
CONNECTOR (EMERGENCY OPERATION) SWITCH (CAPACITY CODE) SWITCH (MODEL SELECTION)
Caution, 1.To protect fan motor from abnormal current,over current relays is installed.
Therefore, do not change factory set value of over current relays.
54321
53421
HWE1007B.qx 6/2/15 4:27 PM Page 16

17
PEA-RP200,250GAQR2
t˚ t˚ t˚
ON
OFF
SWE
ON OFF
SW1
51F
49F
X1
52F
Lo 52F
Hi
TB5
2 1
1 2 2 1 2 1 4 3 2 1
CN29
CN41
CN21
CN20
CN3C
2 1 3 3 1 2
1 2 1 2
LED3 LED2 LED1
DC13.1V
21 1313 13
54321
CN51
CN31
CN32
CND CNDK
CN2L
CN22
CN2D
DC
13.1V
CN2S
1 2
CNSK
1 3
TAB1
FUSE
ZNR
FAN
1573
X4
X1 X1
X5 X6
S1 S2 S3
TB4
FB
3 2 1
52F
1 2 3
Lo
Hi
52F
L1 L2 L3
TB2
RED WHITE BLACK
N
RED
WHITE
BLACK
TH1 TH2 TH5
4
5
C01
C01
(6P)
(Lo)
C02
(3P)
(Hi)
DSA
DSR
U
U
U U
ON OFF
(*1)SW2
SNB BOARD 1
CR2 CR1
ZNR5~7
12 43OFF
ON
5
(*1)SW2
INDOOR UNIT
1~
M
TO OUTDOOR UNIT CONNECTING WIRES (POLAR)
PE
POWER SUPPLY 3N~PE 380/400/415V 50Hz
CIRCUIT BREAKER (FIELD SUPPLY) PEA-RP200,250GAQ:15A
OUTDOOR UNIT
2 1
REMOTE CONTROLLER
TB6
BOARD
REMOTE CONTROLLER
CONTROLLER BOARD
INDOOR
INDOOR POWER BOARD
Note:1. Color of earth wire is yellow and green twisting.
2. Specification subject to change without notice. 3. Indoor and outdoor connecting wires are made with polarities,make sure matching wiring and terminal. 4. Emergency operation If a trouble occurs with either the remote controller or the indoor microcomputer and no other trouble exists, emergency operation for cooling or heating can be performed by changing the setting of connector (SWE) "ON" on the indoor controller board. SWE :ON / Indoor fan is running high speed. 5. Symbols used in wiring diagram above are,
:CONNECTOR :TERMINAL
(HEAVY DOTTED LINE):FIELD WIRING (THIN DOTTED LINE) :OPTIONAL PARTS
6. (*1)SW2 shows PEA-RP250 setting. In case of PEA-RP200 setting is shown as below.
51F
NAME
REMOTE CONTROLLER
SYMBOL
TB6 TERMINAL BLOCK
CONNECTOR (LOSSNAY) CONNECTOR (CENTRALLY CONTROL) CONNECTOR (HA TERMINAL-A) CONNECTOR (REMOTE SWITCH) CONNECTOR (DRAIN SENSOR)
CN32 CN41 CN51 CN31 CN2L
INDOOR CONTROLLER BOARD
FB FERRITE CORE
X1 AUXILIARY RELAY
MAGNETIC CONTACTOR (INDOOR FAN MOTOR<LOW SPEED>)52FLo
MF1 51F 49F
TB2,4,5
TH1 TH2
FAN MOTOR (INDOOR) OVER CURRENT RELAY (INDOOR FAN MOTOR) INTERNAL THERMOSTAT (INDOOR FAN MOTOR) TERMINAL BLOCK
THERMISTOR
FUSE FUSE (T6.3AL250V) ZNR VARISTOR
AUXILIARY RELAYX4-6
SW2 SWE LED1 LED (POWER SUPPLY) LED2 LED (POWER SUPPLY<REMOTE CONTROLLER>) LED3 LED (TRANSMISSION<INDOOR·OUTDOOR>)
TH5
SW1
CR1,2 SURGE KILLER
MAGNETIC CONTACTOR (INDOOR FAN MOTOR<HIGH SPEED>)52FHi
ROOM TEMP LIQUID PIPE TEMP COND/EVA TEMP
SYMBOL NAME
INDOOR UNIT
ARRESTERDSA,DSR VARISTORZNR5~7
SNB BOARD 1
CONNECTOR (EMERGENCY OPERATION) SWITCH (CAPACITY CODE) SWITCH (MODEL SELECTION)
Caution, 1.To protect fan motor from abnormal current,over current relays is installed.
Therefore, do not change factory set value of over current relays.
54321
53421
HWE1007B.qx 6/2/15 4:27 PM Page 17

18
PEA-RP400,500GAQ
FUSE FUSE
t˚ t˚ t˚
t˚ t˚ t˚
DSR
U
U U
DSA
GREEN/YELLOW
(*1)SW2
12
21
43
OFF ON
5
ON OFF
SW1
543
ON
OFFSWE
12
21
43
OFF ON
5
ON OFF
SW1
543
ON
OFFSWE
49F
X02
X01
4
5
C01
52F
3 2 1
3 2 1
C02C01
52F
L1 L2 L3
TB2
RED WHITE BLACK
N
RED
WHITE
BLACK
BLUE
51F
FB22 FB12
TB4-1
TB4-2
TH1-2 TH2-2 TH5-2
TH5-1 TH2-1 TH1-1
X2
S3 S2 S1
FB21
X1
TB5
S3 S2
2 1
S1
FB11
1 2 2 1 2 1 4 3 2 1
CN29
CN41
CN21
CN20
CN3C
2 1 3 3 1 2
1 2 1 2
LED3 LED2 LED1
X6X5X4
375 1
DC13.1V
21 1313 13
ZNR
54321
CN51
CN31
CN32
CND CNDK FAN
CN2L
CN22
CN2D
DC
13.1V
CN2S
1
2
CNSK
1
3
DC
13.1V
CN2S
1
2
CNSK
1
3
CN3C
2 1 3 3 1 2
1 2 1 2
LED3 LED2 LED1
DC13.1V
21 1313
ZNR
54321
CN51
CN31
CN32
CND
CN2L
CN22
CN2D
1 2 2 1 2 1 4 3 2 1
CN29
CN41
CN21
CN20
X6X5X4
375 1
13
CNDK FAN
TAB1 TAB1
(*1)SW2
POWER BOARD INDOOR
SNB BOARD 1
(No.2)
CONTROLLER BOARD
INDOOR
INDOOR POWER BOARD
CONTROLLER BOARD
51F
CR
ZNR5~7
12 43
OFF ON
5
(*1)SW2
(No.1) (No.2)
(No.1)
INDOOR
Note:1. Color of earth wire is yellow and green twisting.
2. Specification subject to change without notice. 3. Indoor and outdoor connecting wires are made with polarities,make sure matching wiring and terminal. 4. Emergency operation If a trouble occurs with either the remote controller or the indoor microcomputer and no other trouble exists, emergency operation for cooling or heating can be performed by changing the setting of connector (SWE) "ON" on the indoor controller board. SWE :ON / Indoor fan is running high speed. 5. Symbols used in wiring diagram above are,
:CONNECTOR :TERMINAL (HEAVY DOTTED LINE):FIELD WIRING (THIN DOTTED LINE) :OPTIONAL PARTS
6. (*1)SW2 shows PEA-RP500 setting.(2places) In case of PEA-RP400 setting is shown as below.
M
1~
INDOOR UNIT
TB6
REMOTE CONTROLLER
2 1
BOARD
REMOTE CONTROLLER
PE
CIRCUIT BREAKER (FIELD SUPPLY) PEA-RP400,500GAQ:15A
POWER SUPPLY 3N~PE 380/400/415V 50Hz
OUTDOOR UNIT OUTDOOR UNIT
TO OUTDOOR UNIT CONNECTING WIRES (POLAR)
TO OUTDOOR UNIT CONNECTING WIRES (POLAR)
(No.1) (No.2)
CONNECTOR (LOSSNAY) CONNECTOR (CENTRALLY CONTROL) CONNECTOR (HA TERMINAL-A) CONNECTOR (REMOTE SWITCH) CONNECTOR (DRAIN SENSOR)
CN32 CN41 CN51 CN31 CN2L
TB3,TB8
SYMBOL NAME
TERMINAL BLOCK
OUTDOOR UNIT
CONNECTOR (EMERGENCY OPERATION) SWITCH (CAPACITY CORD)
SW1 SWITCH (MODEL SELECTION)
LED (TRANSMISSION<INDOOR·OUTDOOR>)LED3 LED (POWER SUPPLY<REMOTE CONTROLLER>)LED2 LED (POWER SUPPLY)LED1
SWE SW2
ARRESTER
DSA,DSR
VARISTOR
ZNR5~7
SNB BOARD 1
SYMBOL NAME
AUXILIARY RELAYX1,2
INDOOR CONTROLLER BOARD
FB21,FB22 FB11,FB12 FERRITE CORE
COND/EVA TEMP LIQUID PIPE TEMP ROOM TEMP
52F MAGNETIC CONTACTOR (INDOOR FAN MOTOR)
SURGE KILLERCR
TH5-1,5-2
VARISTORZNR FUSE (T6.3AL250V)FUSE
INDOOR UNIT
THERMISTOR
TERMINAL BLOCK INTERNAL THERMOSTAT (INDOOR FAN MOTOR) OVER CURRENT RELAY (INDOOR FAN MOTOR) FAN MOTOR (INDOOR)
TH2-1,2-2 TH1-1,1-2 TB2,4-1,4-2,5 49F 51F MF1
X4-6 AUXILIARY RELAY
NAME
REMOTE CONTROLLER
SYMBOL
TB6 TERMINAL BLOCK
Caution, 1.To protect fan motor from abnormal current,over current relays is installed.
Therefore, do not change factory set value of over current relays.
U
U
HWE1007B.qx 6/2/15 4:27 PM Page 18

19
PEA-RP400,500GAQR1
U
U
U
Note:1. Color of earth wire is yellow and green twisting.
2. Specification subject to change without notice. 3. Indoor and outdoor connecting wires are made with polarities,make sure matching wiring and terminal. 4. Emergency operation If a trouble occurs with either the remote controller or the indoor microcomputer and no other trouble exists, emergency operation for cooling or heating can be performed by changing the setting of connector (SWE) "ON" on the indoor controller board. SWE :ON / Indoor fan is running high speed. 5. Symbols used in wiring diagram above are, :CONNECTOR :TERMINAL
(HEAVY DOTTED LINE):FIELD WIRING (THIN DOTTED LINE):OPTIONAL PARTS
6. (*1)SW2 shows PEA-RP500 setting.(2places) In case of PEA-RP400 setting is shown as below.
INDOOR UNIT
GREEN/YELLOW
(*1)SW2
12
21
43
OFF ON
5
ON OFF
SW1
543
ON
OFF
SWE
12
21
43
OFF ON
5
ON OFF
SW1
543
ON
OFF
SWE
49F
X02
X01
4
5
C01
52F
3
2
1
3 2 1
C02C01
52F
L1 L2 L3
TB2
RED WHITE BLACK
N
2 1
RED
WHITE
BLACK
CIRCUIT BREAKER (FIELD SUPPLY) PEA-RP400,500GAQR1:15A
POWER SUPPLY 3N~PE 380/400/415V 50Hz
BLUE
FUSE
51F
FUSE
FB22 FB12
TB4-1
TB4-2
TH1-2 TH2-2 TH5-2
TH5-1 TH2-1 TH1-1
t˚ t˚ t˚
X2
S3 S2 S1
FB21
X1
t˚ t˚ t˚
MF1
3~
TB6
TB5
S3 S2
REMOTE CONTROLLER
2 1
S1
FB11
1 2 2 1 2 1 4 3 2 1
CN29
CN41
CN21
CN20
DSR DSA
CN3C
2 1 3 3 1 2
1 2 1 2
LED3 LED2 LED1
X6X5X4
375 1
DC13.1V
21 1313 13
ZNR
54321
CN51
CN31
CN32
CND
CNDK
FAN
CN2L
CN22
CN2D
DC
13.1V
CN2S
1
2
CNSK
1
3
DC
13.1V
CN2S
1
2
CNSK
1
3
CN3C
2 1 3 3 1 2
1 2 1 2
LED3 LED2 LED1
DC13.1V
21 1313
ZNR
54321
CN51
CN31
CN32
CND
CN2L
CN22
CN2D
1 2 2 1 2 1 4 3 2 1
CN29
CN41
CN21
CN20
X6X5X4
375 1
13
CNDK
FAN
TAB1 TAB1
OUTDOOR UNIT OUTDOOR UNIT
(*1)SW2
POWER BOARD INDOOR
(No.1)
SNB BOARD 1
TO OUTDOOR UNIT CONNECTING WIRES (POLAR)
TO OUTDOOR UNIT CONNECTING WIRES (POLAR)
(No.2)
CONTROLLER BOARD
INDOOR
(No.2)
(No.1)
INDOOR POWER BOARD
BOARD
REMOTE CONTROLLER
(No.1)
CONTROLLER BOARD
INDOOR
(No.2)
51F
CR
ZNR5~7
12 43
(*1)SW2 OFF
ON
5
Caution, 1.To protect fan motor from abnormal current,over current relays is installed. Therefore, do not change factory set value of over current relays.
NAME
TERMINAL BLOCK
REMOTE CONTROLLER
CONNECTOR (LOSSNAY) CONNECTOR (CENTRALLY CONTROL) CONNECTOR (HA TERMINAL-A) CONNECTOR (REMOTE SWITCH) CONNECTOR (DRAIN SENSOR)
CN32 CN41 CN51 CN31 CN2L
TB6
SYMBOL
TB3,TB8
SYMBOL NAME
TERMINAL BLOCK
OUTDOOR UNIT
CONNECTOR (EMERGENCY OPERATION) SWITCH (CAPACITY CODE)
SW1 SWITCH (MODEL SELECTION)
LED (TRANSMISSION<INDOOR·OUTDOOR>)LED3 LED (POWER SUPPLY<REMOTE CONTROLLER>)LED2 LED (POWER SUPPLY)LED1
SWE SW2
ARRESTERDSA,DSR VARISTOR
SNB BOARD 1
SYMBOL NAME
AUXILIARY RELAYX1,2
INDOOR CONTROLLER BOARD
FB21,FB22 FB11,FB12 FERRITE CORE
COND/EVA TEMP LIQUID PIPE TEMP ROOM TEMP
52F MAGNETIC CONTACTOR (INDOOR FAN MOTOR)
SURGE KILLERCR
TH5-1,5-2
VARISTORZNR FUSE (T6.3AL250V)FUSE
INDOOR UNIT
THERMISTOR
TERMINAL BLOCK INTERNAL THERMOSTAT (INDOOR FAN MOTOR) OVER CURRENT RELAY (INDOOR FAN MOTOR) FAN MOTOR (INDOOR)
TH2-1,2-2 TH1-1,1-2 TB2,4-1,4-2,5 49F 51F MF1
X4-6 AUXILIARY RELAY
U
U
ZNR5~7
HWE1007B.qx 6/2/15 4:27 PM Page 19

20
PEA-RP200GAQ PEA-RP250GAQ
PEA-RP400GAQ PEA-RP500GAQ Unit : mm
Pipe temperature
thermistor/liquid
(TH2)
Distributor
Condenser/evaporator
temperature thermistor
(TH5)
Room temperature
thermistor (TH1)
Refrigerant flo in cooling
Refrigerant flo in heating
Strainer
Strainer
Heat exchanger
Refrigerant GAS pipe connection
Brazing
Refrigerant LIQUID pipe connection
Brazing

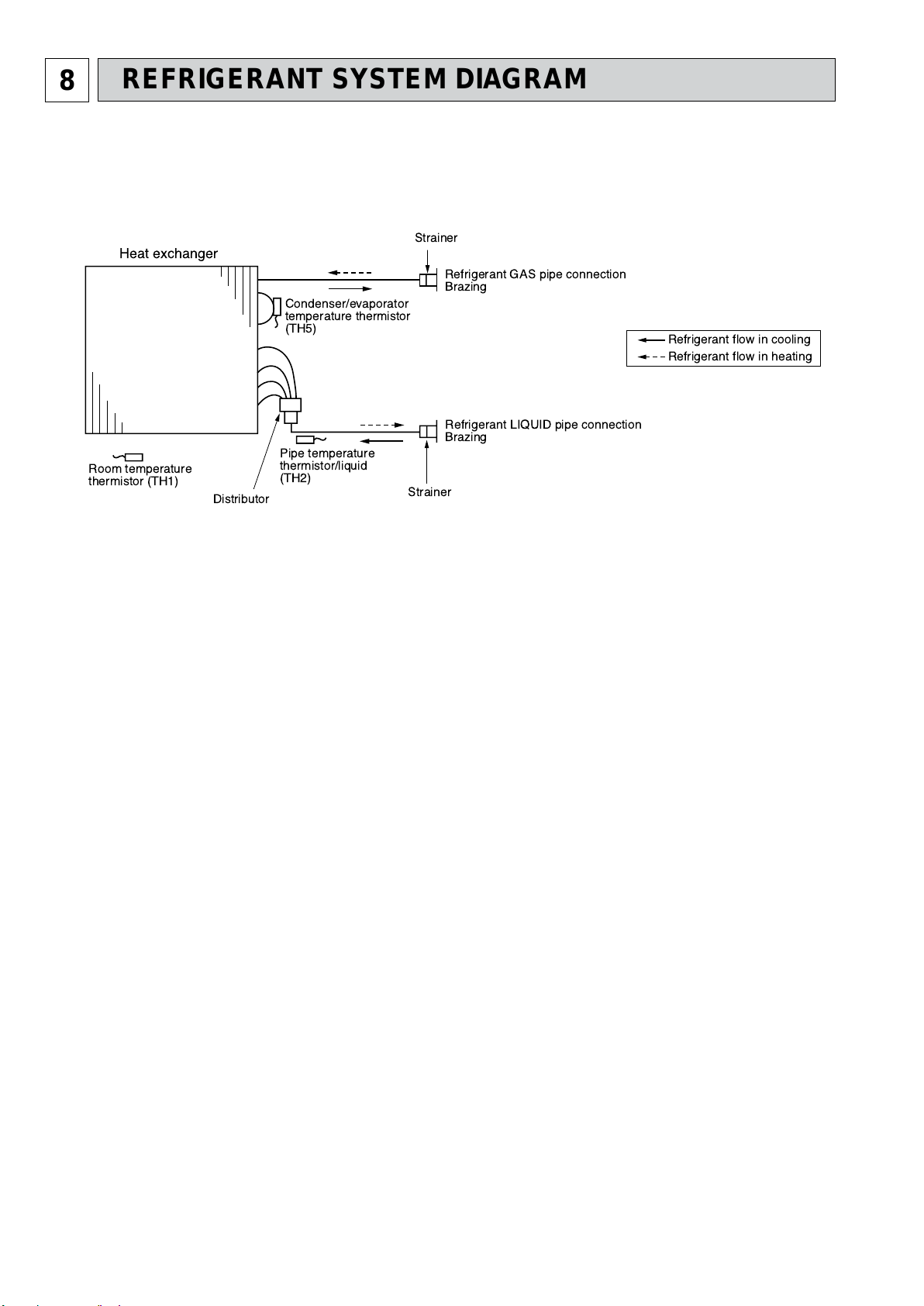

8REFRIGERANT SYSTEM DIAGRAM
HWE1007B.qx 6/2/15 4:27 PM Page 20
