Mitsubishi MELSEC A1S64AD User manual

A/D Converter module
type A1S64AD
User's Manual
(Hardware)
Thank you for buying the Mitsubishi general-purpose programmable
controller MELSEC-A Series
Prior to use, please read both this manual and detailed manual
thoroughly and familiarize yourself with the product.
MODEL A1S64AD(H/W)-U-E
MODEL
CODE 13JE46
IB(NA)-66485-E(1112)MEE
©1994 MITSUBISHI ELECTRIC CORPORATION

zSAFETY PRECAUTIONS z
(Read these precautions before using.)
Before using this product, please read this manual and the relevant manuals
carefully and pay full attention to safety to handle the product correctly.
These precautions apply only to Mitsubishi equipment. Refer to the CPU
module user’s manual for a description of the PLC system safety precautions.
In this manual, the safety precautions are classified into two levels:
"WARNING" and " CAUTION".
Under some circumstances, failure to observe the precautions given under
"CAUTION" may lead to serious consequences.
Observe the precautions of both levels because they are important for personal
and system safety.
Make sure that the end users read this manual and then keep the manual in a
safe place for future reference.
[PRECAUTIONS FOR DESIGN]
CAUTION
zDo not bunch the control wires or communication cables with the main
circuit or power wires, or install them close to each other.
They should be installed 100mm (3.9inch) or more from each other.
Not doing so could result in noise that may cause malfunction.
[INSTALLATION PRECAUTIONS]
CAUTION
zUse the PC in an environment that meets the general specificaitons
contained in this manual. Using this PC in an environment outside the
range of the general specifications could result in electric shock, fire,
erroneous operation, and damage to or deterioration of the product.
zInstall so that the pegs on the bottom of the module fit securely into the
base unit peg holes.
The module fixing screws must be tighten by the specified torque.
Not installing the module correctly or tightening the screws to the terminal
base could result in erroneous operation, damage, or pieces of the product
falling.

[WIRING PRECAUTIONS]
CAUTION
zIf there are high levels of noise, ground the AG terminal and FG terminal with
Class D grounding (Class 3 grounding) or higher dedicated for the PLC.
Failure to observe this could lead to malfunctioning.
zWhen wiring in the PLC, be sure that it is done correctly by checking the product's
rated voltage and the terminal layout. Connecting a power supply that is different
from the rating or incorrectly wiring the product could result in fire or damage.
zTighten terminal screws to the specified torque.
If a terminal screw is not tightened to the specified torque, it the module may fall
out, short circuit, or malfunction.
If a terminal screw is tightened excessively, exceeding the specified torque, the
module may fall out, short circuit, or malfunction due to breakage of the screw or
the module.
zBe careful not to let foreign matters such as sawdust or wire chips get inside the
module. These may cause fires, failure or malfunction.
[STARTUP/MAINTENANCE PRECAUTIONS]
WARNING
zWhen power is on, do not touch the terminals.
Doing so can cause an electric shock or malfunction.
zBefore starting cleaning or terminal screw retightening, always switch off the
power externally in all phases.
Not switching the power off in all phases can cause a module failure or
malfunction.
CAUTION
zNever disassemble or modify the module.
Failure to observe this could lead to trouble, malfunctioning, injuries or fires.
zAlways turn the power OFF before installing or removing the module. Failure to
observe this could lead to module faults or malfunctioning.
zDo not install/remove the terminal block more than 50 times after the first use of
the product. (IEC 61131-2 compliant)
[PRECAUTIONS FOR DISPOSAL]
CAUTION
zDispose of this product as industrial waste.



zCONDITIONS OF USE FOR THE PRODUCT z
(1) Mitsubishi programmable controller ("the PRODUCT") shall be used in conditions;
i) where any problem, fault or failure occurring in the PRODUCT, if any, shall not
lead to any major or serious accident; and
ii) where the backup and fail-safe function are systematically or automatically
provided outside of the PRODUCT for the case of any problem, fault or failure
occurring in the PRODUCT.
(2) The PRODUCT has been designed and manufactured for the purpose of being
used in general industries.
MITSUBISHI SHALL HAVE NO RESPONSIBILITY OR LIABILITY (INCLUDING,
BUT NOT LIMITED TO ANY AND ALL RESPONSIBILITY OR LIABILITY BASED
ON CONTRACT, WARRANTY, TORT, PRODUCT LIABILITY) FOR ANY INJURY
OR DEATH TO PERSONS OR LOSS OR DAMAGE TO PROPERTY CAUSED BY
the PRODUCT THAT ARE OPERATED OR USED IN APPLICATION NOT
INTENDED OR EXCLUDED BY INSTRUCTIONS, PRECAUTIONS, OR
WARNING CONTAINED IN MITSUBISHI'S USER, INSTRUCTION AND/OR
SAFETY MANUALS, TECHNICAL BULLETINS AND GUIDELINES FOR the
PRODUCT.
("Prohibited Application")
Prohibited Applications include, but not limited to, the use of the PRODUCT in;
yNuclear Power Plants and any other power plants operated by Power
companies, and/or any other cases in which the public could be affected if any
problem or fault occurs in the PRODUCT.
yRailway companies or Public service purposes, and/or any other cases in which
establishment of a special quality assurance system is required by the
Purchaser or End User.
yAircraft or Aerospace, Medical applications, Train equipment, transport
equipment such as Elevator and Escalator, Incineration and Fuel devices,
Vehicles, Manned transportation, Equipment for Recreation and Amusement,
and Safety devices, handling of Nuclear or Hazardous Materials or Chemicals,
Mining and Drilling, and/or other applications where there is a significant risk of
injury to the public or property.
Notwithstanding the above, restrictions Mitsubishi may in its sole discretion,
authorize use of the PRODUCT in one or more of the Prohibited Applications,
provided that the usage of the PRODUCT is limited only for the specific
applications agreed to by Mitsubishi and provided further that no special quality
assurance or fail-safe, redundant or other safety features which exceed the
general specifications of the PRODUCTs are required. For details, please contact
the Mitsubishi representative in your region.

About the Manuals
The following manuals are related to this product.
Refer to the following table, and procure these manuals as necessary.
Detailed Manual
Manual name Manual No.
(Model code)
A/D converter module type A1S64AD User’s Manual IB-66336
1. Outline
This manual explains the specifications and names of each part of the A1S64AD type
analog/digital converter (hereinafter, A1S64AD) used in combination with the
MELSEC-A Series PLC CPU module (hereinafter PLC CPU).
2. Performance Specifications
The performance specifications of the A1S64AD are shown below.
Item Specifications
Analog input
Voltage: -10 to 0 to +10VDC
(input resistance 1MΩ)
Current: -20 to 0 to +20mA
(input resistance 250Ω)
Select with the input
terminals.
Digital input 16-bit coded binary
-4096 to +4095 when set to 1/4000
-8192 to +8191 when set to 1/8000
-12288 to +12287 when set to 1/12000
Digital output value
(At 5V/20mA gain, 0V/90mA offset)
Analog input
1/4000 1/8000 1/12000
Input/output
characteristics *1
+10V
+5V or +20mA
0V or 0mA
-5V or -20mA
-10V
+4000
+2000
0
-2000
-4000
+8000
+4000
0
-4000
-8000
+12000
+ 6000
0
-6000
-12000
1/4000 1/8000 1/12000
Maximum
resolution Voltage input
Current input
2.5mV
10μA
1.25mV
5μA
0.83mV
3.33μA
General accuracy
*2 Within ±1% ±40 ±80 ±120
Maximum
conversion speed 20ms/channel
Maximum
absolute input Voltage ±15V Current ±30mA *3

Item Specifications
No. of analog
input points 4 channels/module
Specific
isolated area
Isolation
method
Dielectric
withstand
voltage
Insulation
resistance
Between input
terminal and
PLC power
supply
Photocoupler
isolation
500V AC
for
1 minute
5MΩor more
(measured with a
500V DC insulation
resistance tester)
Between
channels Not isolated - -
Isolation
specifications
No. of occupied
input/output points Special 32 points
Connection
terminal 20-point terminal block
External power
supply Not required
Applicable wire
size 0.75 to 1.5mm2
Applicable crimp
terminal 1.25-3, 1.25-YS3, V1.25-3, V1.25-YS3A
Internal current
consumption
(5VDC)
0.4A
Weight 0.25kg
*1: The gain is set to 5V and the offset to 0V as the default.
*2: This is the accuracy in respect to the maximum digital output value. The maximum
digital value is the maximum value of the selected resolution. It is the same for
either a current input or voltage input.
*3: Current value indicates value of instant input current that does not break module
inner electrical resistance.
Point
The range of the analog input at the which maximum resolution and general
accuracy can be tolerated is as follows.
Voltage -10 to 0 to +10V
Current -20 to 0 to +20mA
Refer to the User's Manual for the PLC CPU in use for details on the general
specifications.

3. Names and Settings of Each Part
3.1 Names of each part
The names of each A1S64AD part are shown below.
A1S64AD
1)
3)
4)
2)
5)
RUN
CH
OFFSET
GAIN
TEST
V+
I+
COM
SLD
V+
I+
A.G
FG
COM
SLD
V+
I+
COM
SLD
C
H
1
C
H
2
C
H
3
V+
I+
COM
SLD
C
H
4
1
2
4
6
8
10
12
14
16
18
20
3
5
7
9
11
13
15
17
19

No. Name Details
1) RUN LED
RUN
The operation state of the A1S64AD is indicated.
yNormal mode
ON : In normal operation
Flickering: Write data error has occurred.
OFF : 5V power OFF or watch dog timer error
yTest mode
ON : OFF SET switch or GAIN switch is ON
OFF : OFF SET switch and GAIN switch are
both OFF
2) CHANNEL selection
switch
CH
The channel for adjusting the offset and the gain is
selected.
(Channels other than 1 to 4 have no process.)
3) OFF SET switch
OFF SET
By setting the switch to the OFF SET side, the
analog input value at that time will be saved by the
A1S64AD as the offset value.
4) GAIN switch
GAIN
By setting the switch to the GAIN side, the analog
input value at that time will be saved by the
A1S64AD as the gain value.
5) Test mode terminal
TEST
Short-circuit across terminals 1 and 2 when setting
the offset or gain.

3.2 Setting the offset and gain
Follow the procedure below to change the input/output conversion characteristics.
Start
Short-circuit the test mode terminal
(across 1-2)
Set the "channel selection switch"
to the channel to be changed.
A
Apply the voltage or current to be
set as the offset value.
1)
TEST
RUN
CH
V
V+
COM
I+
V+
COM
A
For voltage
For current
Actually connected resistance value
RUN OFF SET
ON
Set the offset switch to "OFF SET".
OFF
Set to
channel
to be set.

End
Release the test mode terminal
(across 1-2).
Adjust any other
channels?
YES
Apply the voltage or current to be
set as the gain value.
Set the gain switch to "GAIN".
1)
NO
For voltage
For current
V
V+
COM
I+
V+
COM
A
Actually connected resistance value
RUN GAIN
ON
TEST
A
Remarks
The offset value and gain value have the following meanings.
(1) The offset value is the analog input value (voltage or current) at which the digital
output value is "0".
(2) The gain value is the analog input value (voltage or current) at which the digital
output value is the following:
(a) 2000 (1/4000 resolution)
(b) 4000 (1/8000 resolution)
(c) 6000 (1/12000 resolution)

4. Handling
4.1 Precautions for handling
(1) The main body case and terminal block are made of resin, so do not drop them
or apply strong impacts.
(2) Do not remove the module PCB from the case. Doing so could lead to faults.
(3) Make sure that foreign matter, such as wire scraps, does not enter from the top
of the module during wiring. Remove any foreign matter that does enter.
(4) Tighten the module installation screws and terminal screws within the following
ranges.
Screw position Tightening torque range
Module installation screw (M4 screw) 78 to 118N ycm
Terminal block terminal screw (M3.5 screw) 59 to 88N ycm
Terminal block installation screw (M4 screw) 78 to 118N ycm
5. Wiring
The precautions for wiring and an example of module connection are given in this
section.
5.1 Precautions for wiring
External wiring that is not easily affected by noise is a prerequisite for using the
A1S64AD functions to the fullest and creating a highly reliable system.
The precautions for external wiring are given below.
(1) Use separate cables for the alternating current and A1S64AD external input
signals to eliminate the effect of surge or inductance on the alternating current
side.
(2) Do not lay the wires or bundle the wires with the main circuit wires, high voltage
wires or the load wire other than that from the PLC. Failure to observe this will
increase the effect of noise, surge and inductance.
(3) Ground the shield of a shielded wire or shielded cable to one point on the PLC
side.

5.2 Example of module connection
An example for connecting the voltage input and current input is given below.
-15V
CH1
*4
*3
*1 Shield
500k
500k
250
+15V
GND
*2
V+
I+
COM
SLD
CH4
*1
Shield *5
500k
500k
250
V+
I+
COM
ANALOG
GND
FG
SLD
(1) For voltage input
Signal source 0 to ±10V
(2) For current input
Signal source 0 to ±20mA
*1: Use a 2-core twisted shield wire.
*2: Indicates the A1S64AD input resistance.
*3: For the current input, always connect with the (V+) and (I+) terminals.
*4: If noise or ripple is generated in the external wiring, connect a. 0.1 to 0.47μF
capacitor (approximate 25V or more withstand voltage) between the terminal V
and COM.
*5: Ground if there are high levels of noise. There are cases when the power supply
unit FG or this module FG should also be grounded.
When changing the grounding wiring (grounding or not grounding) after setting
the offset value and gain value, set the offset value and gain value again.

6. Outline Dimension Drawing
130 (5.12)
34.5 (1.36)93.6 (3.69)6.5
(0.26)
7.3
(0.29)
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
A1S64AD
RUN
CH
OFFSET
GAIN
Unit:mm(in)

WARRANTY
Mitsubishi will not be held liable for damage caused by factors found not to be the cause of
Mitsubishi; machine damage or lost profits caused by faults in the Mitsubishi products; damage,
secondary damage, accident compensation caused by special factors unpredictable by Mitsubishi;
damages to products other than Mitsubishi products; and to other duties.
Other manuals for MELSEC A1S64AD
1
Table of contents
Other Mitsubishi Media Converter manuals

Mitsubishi
Mitsubishi A616AD User manual

Mitsubishi
Mitsubishi MELSEC-A AJ65VBTCU-68DAVN User manual

Mitsubishi

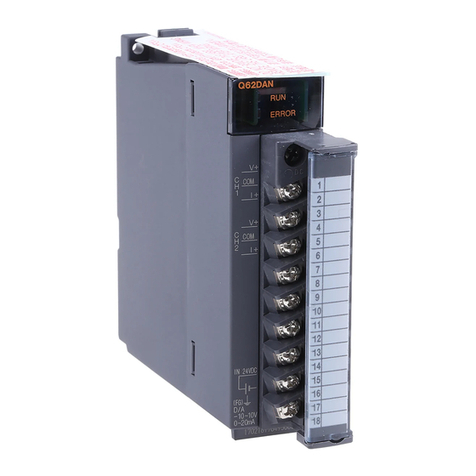

Mitsubishi Q62DAN User manual

Mitsubishi

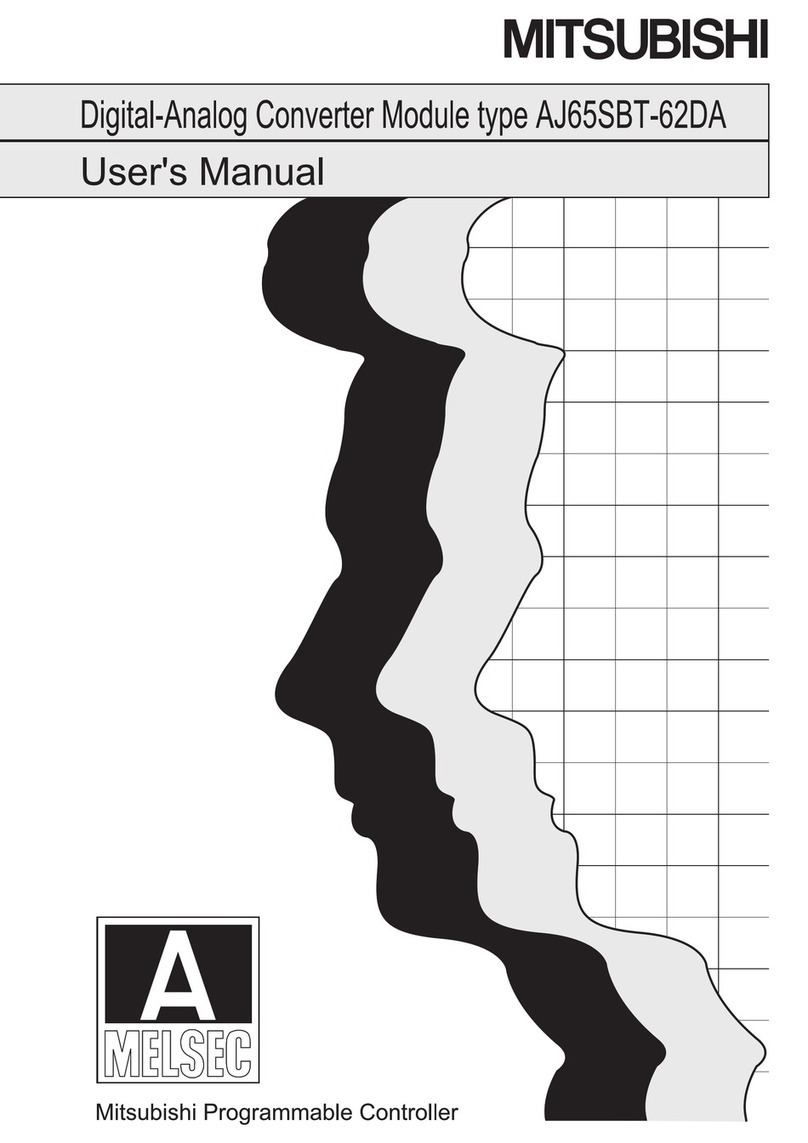

Mitsubishi AJ65SBT-62DA User manual

Mitsubishi
Mitsubishi CP800E User manual

Mitsubishi
Mitsubishi Q66-AD-Dg User manual

Mitsubishi
Mitsubishi AJ65SBT-64AD User manual

Mitsubishi
Mitsubishi Q64AD User manual

Mitsubishi

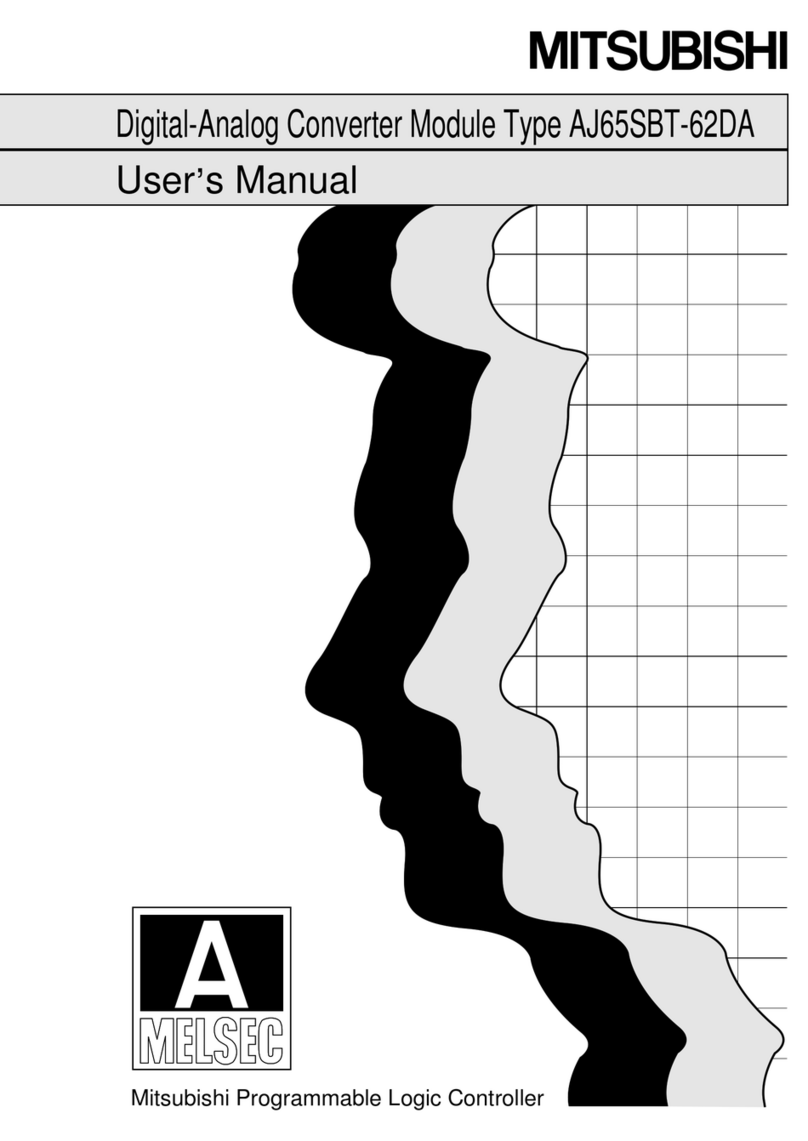

Mitsubishi AJ65SBT-62DA User manual

Mitsubishi

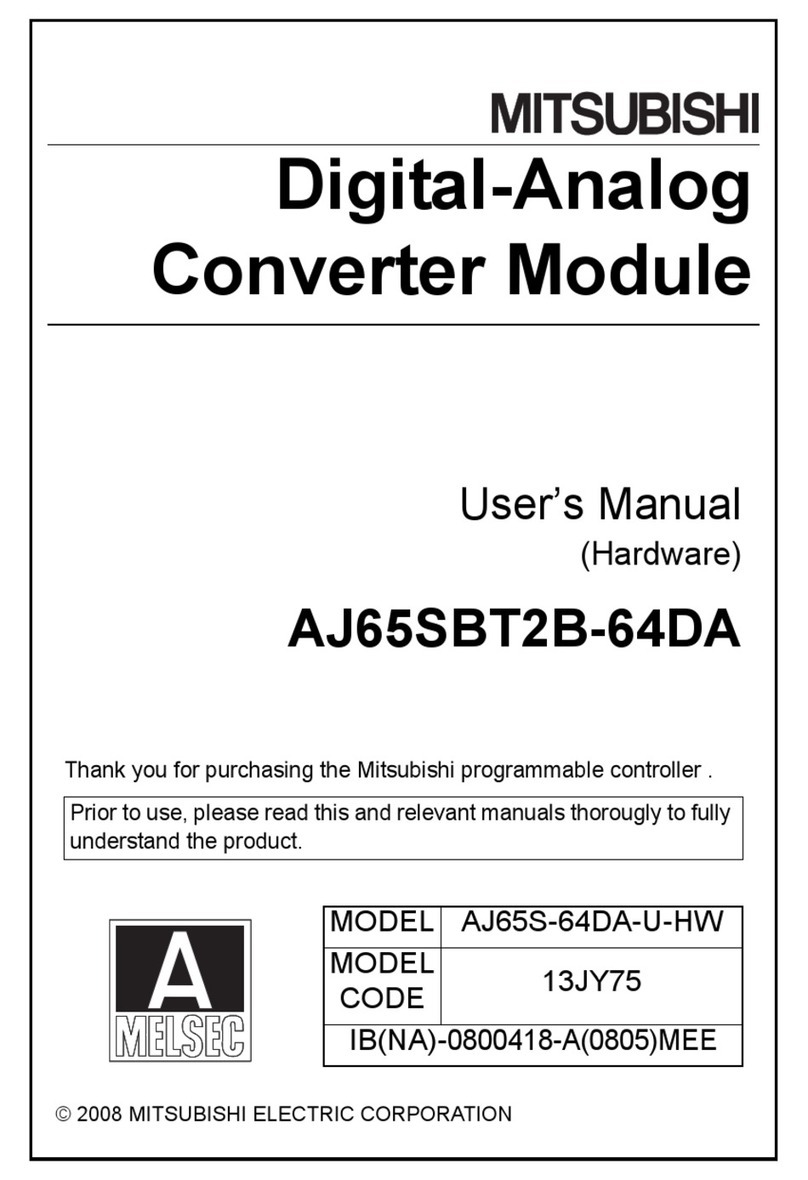

Mitsubishi AJ65SBT2B-64DA User manual
